| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Dimmable Text | 120V only |
| Material | Plastic |
| Fixture Type | Linear |
| Status | Active |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Total Harmonic Distortion | <20% |

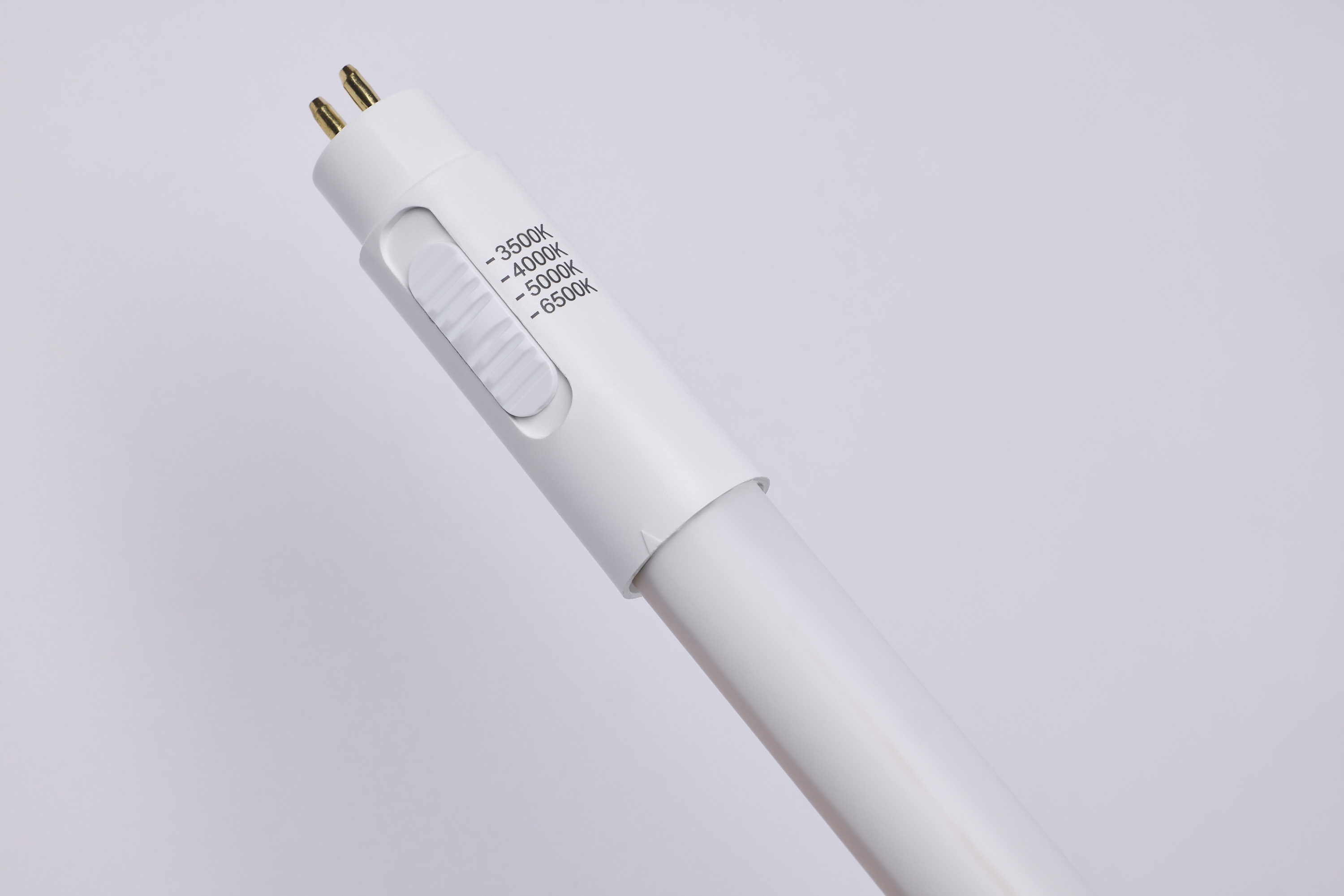

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.200-0.070A |
| IOT Enabled | False |
| Lens Finish | Frost |
| Lens Material | Glass |
| Nominal Length | 48.0 |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Shatter Proof Type | PET Coated |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 54W |
| Incandescent Equivalent | 100W |
| CCT (Kelvin Temp) | 3500K/4000K/5000K/6500K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 180 |
| Color Temp | Neutral White to Daylight |
| CRI | 80+ |
| Dimming Type | Reverse Phase |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 3200L |
| Volts | 120V-347V |
| Watts | 24W |
| Lamp Base | Miniature Bi Pin |
|---|---|
| Finish | Frost |
| ANSI Base | G5 |
| MOD Lamps | 0.62 |
| MOL | 45.75 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| Dark Sky Rated | False |
| FCC Compliant | True |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Classified |
| CA Compliance Text | Lawful for sale |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923410000 |
|---|---|
| Case Cube | 0.5704 |
| Case Height | 4.72 |
| Case Length | 48.23 |
| Case Quantity | 25 |
| Case UPC | 10045923410007 |
| Case Weight | 9.65 |
| Case Width | 4.33 |
| EA Cube | 0.0149 |
| EA Height | 0.75 |
| EA Length | 45.67 |
| EA Quantity | 1 |
| EA Weight | 0.35 |
| EA Width | 0.75 |
| Inner Cube | 0.0 |
| Pack Type | Sleeve |

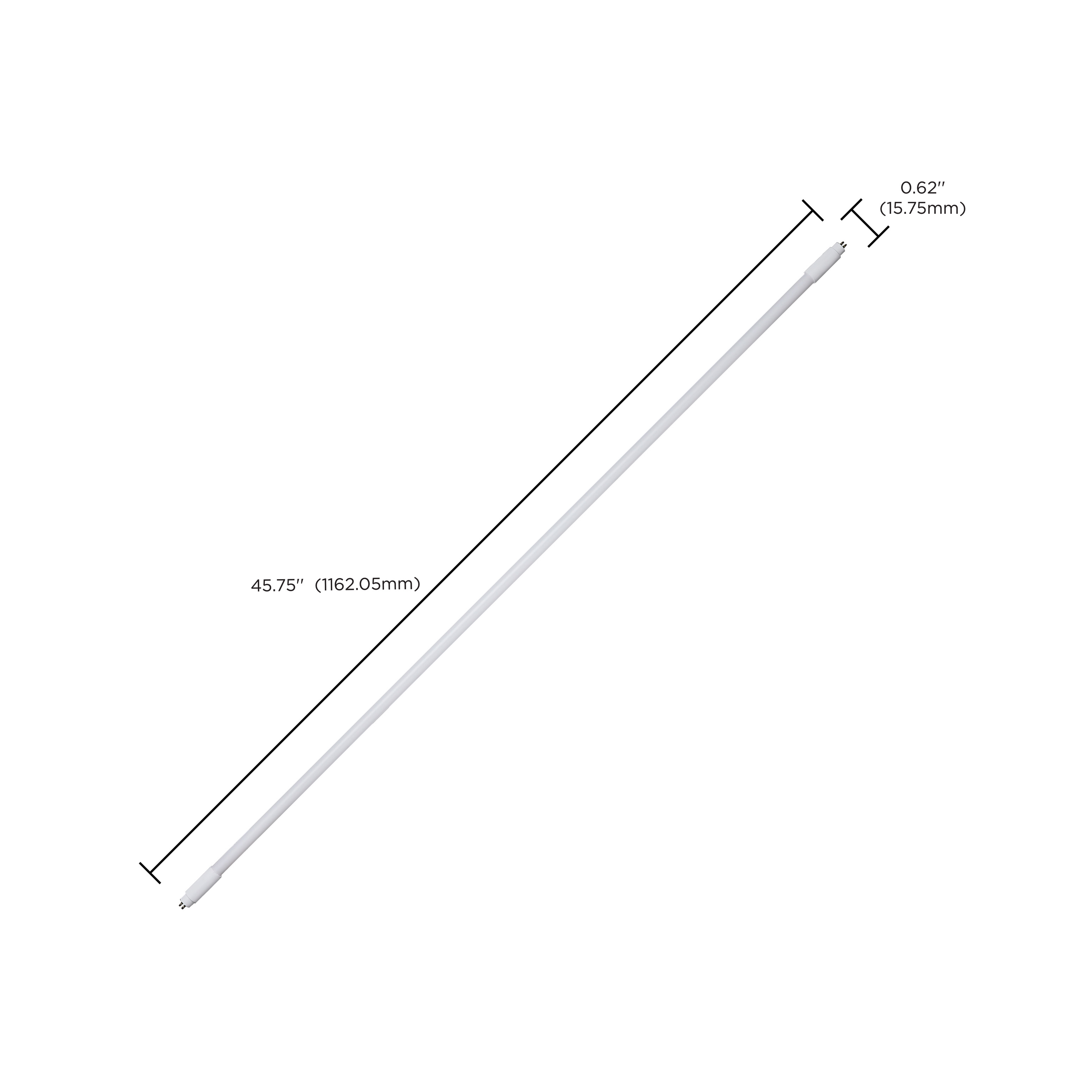

| Web Length | 45.75 |
| Web Width | 0.62 |
