| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A/B |
| Lamp Filament | LED |
| Material | Glass / Plastic |
| Fixture Type | T8 |
| Status | Active |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Total Harmonic Distortion | <20% |

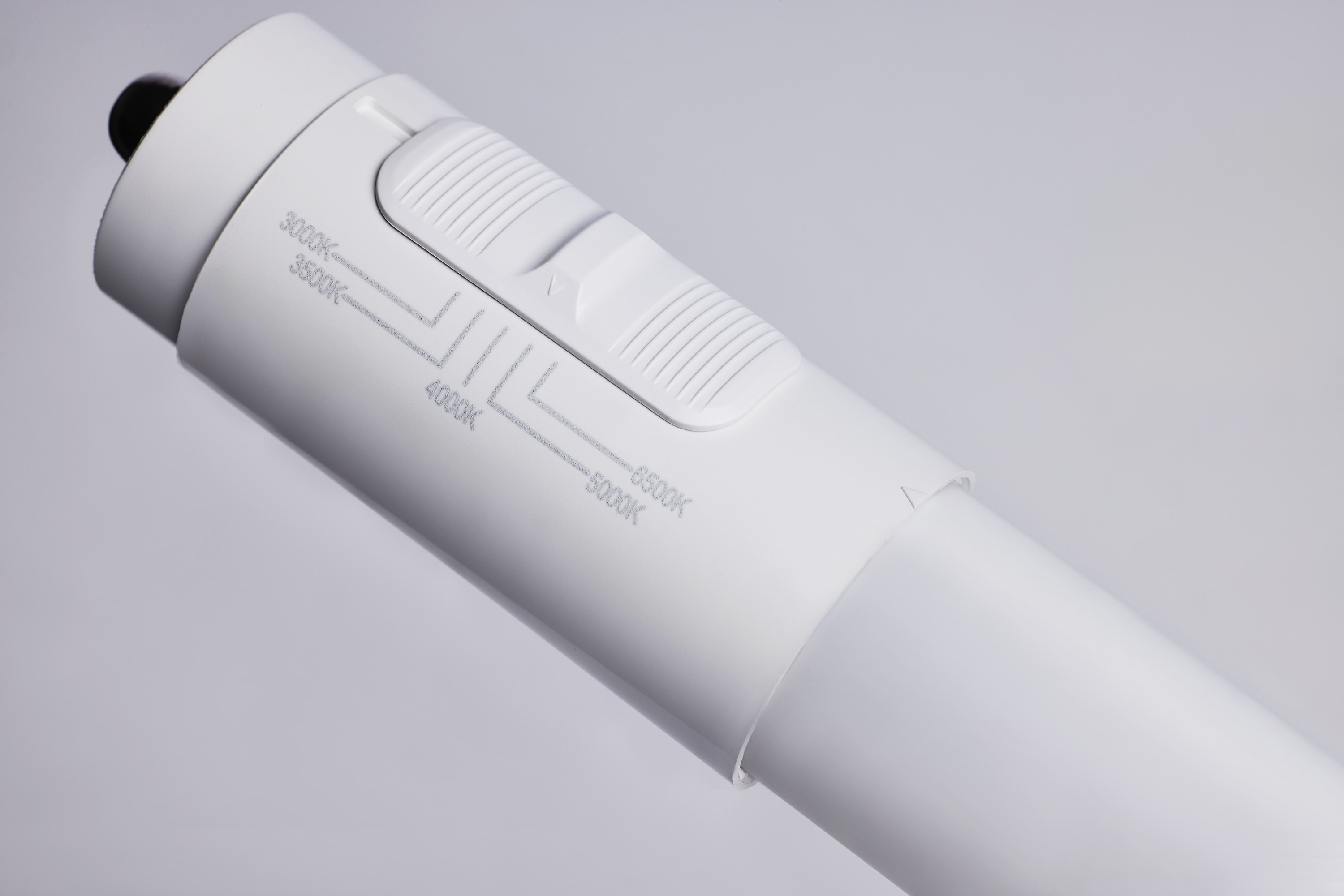

| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.190-0.080A |
| Nominal Length | 48.0 |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Shatter Proof Type | PET Coated |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 32W |
| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K/6500K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 200 |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 2500L |
| Volts | 120V-277V |
| Watts | 18W |
| Lamp Base | Single Pin |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | Fa8 |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |

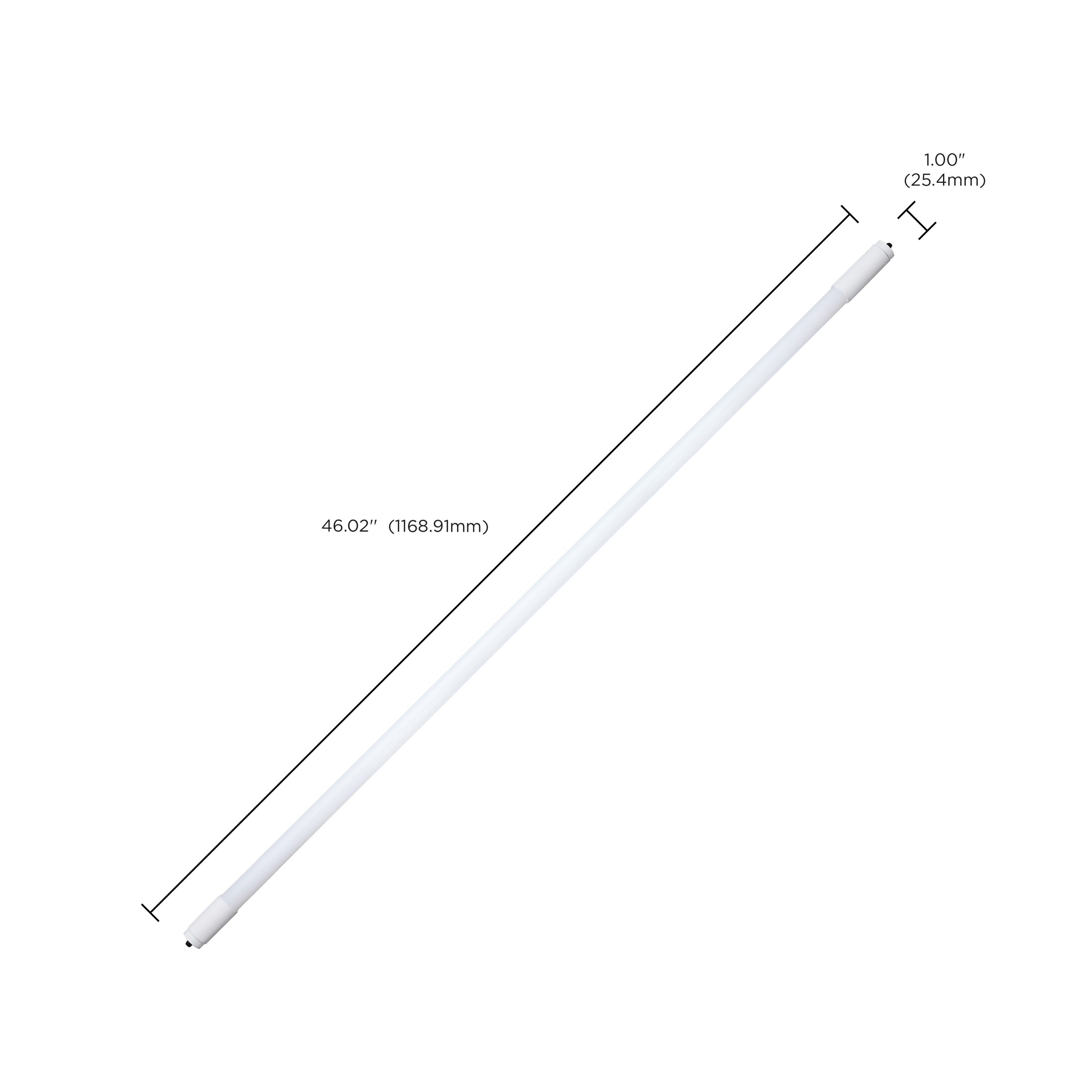

| MOL | 46.02 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | Yes |
| Dark Sky Rated | No |
|---|---|
| FCC Compliant | Yes |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | Lawful for sale |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923116674 |
|---|---|
| Case Cube | 1.1078 |
| Case Height | 6.3 |
| Case Length | 48.23 |
| Case Quantity | 25 |
| Case UPC | 10045923116671 |
| Case Weight | 14.46 |
| Case Width | 6.3 |
| EA Cube | 0.03 |
| EA Height | 1.06 |
| EA Length | 46.26 |
| EA Quantity | 1 |
| EA Weight | 0.54 |
| EA Width | 1.06 |
| Pack Type | Sleeve |
| Web Length | 46.02 |
| Web Width | 1.0 |
