S11690

12WLED/DW/4/FS/RND/FL/DD

  • 8/12 Watt LED Direct Wire Downlight
  • 27K/3K/35K/4K/5K CCT

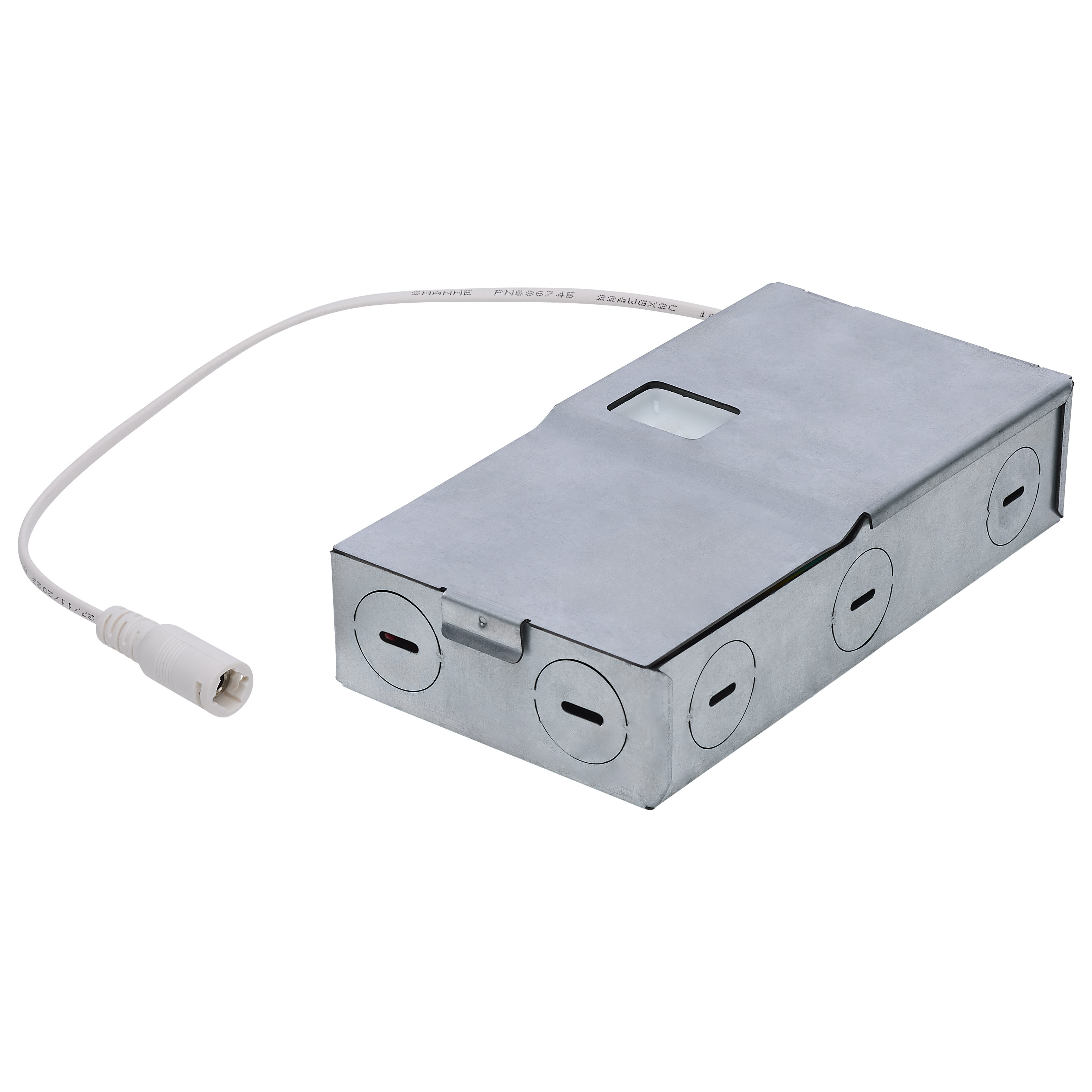

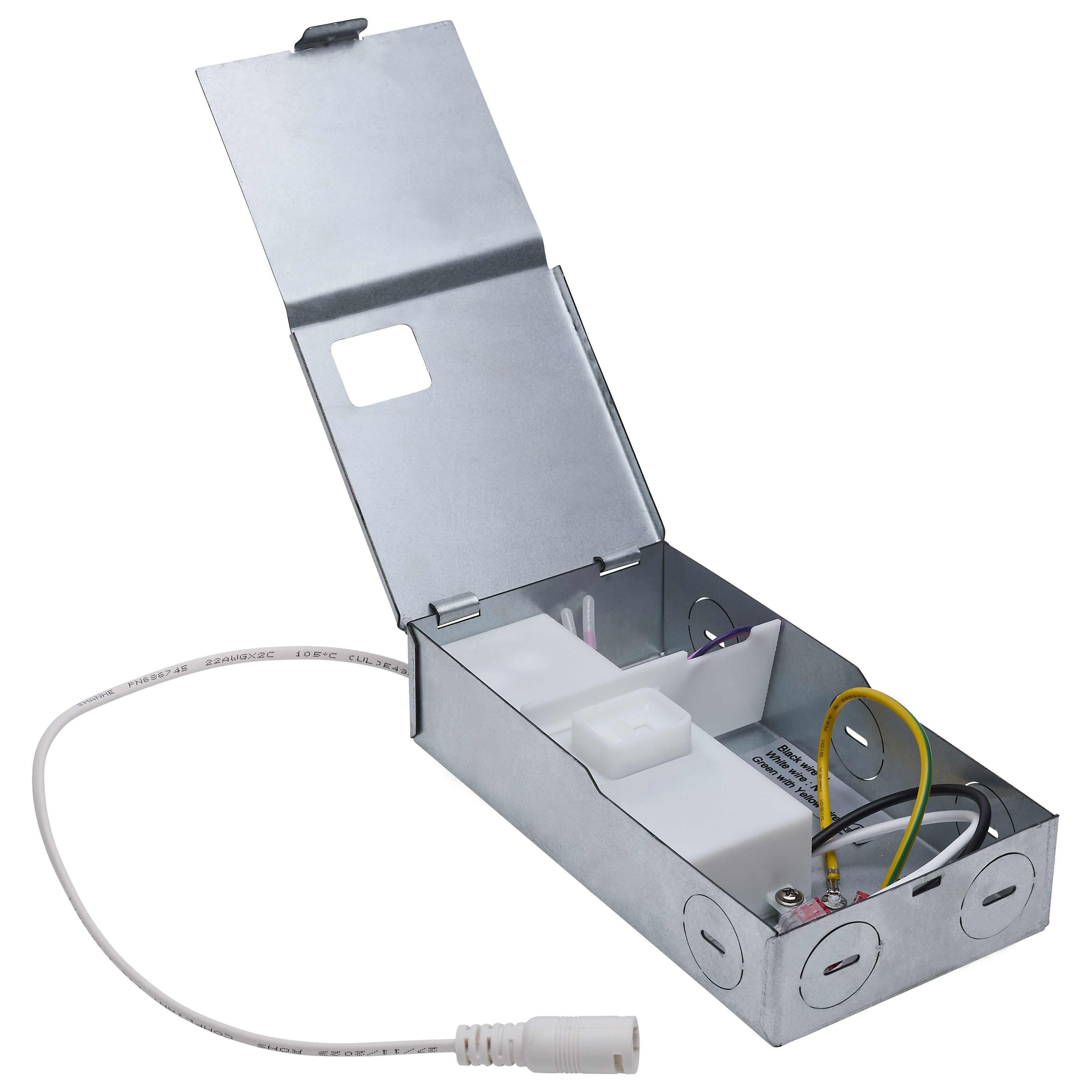

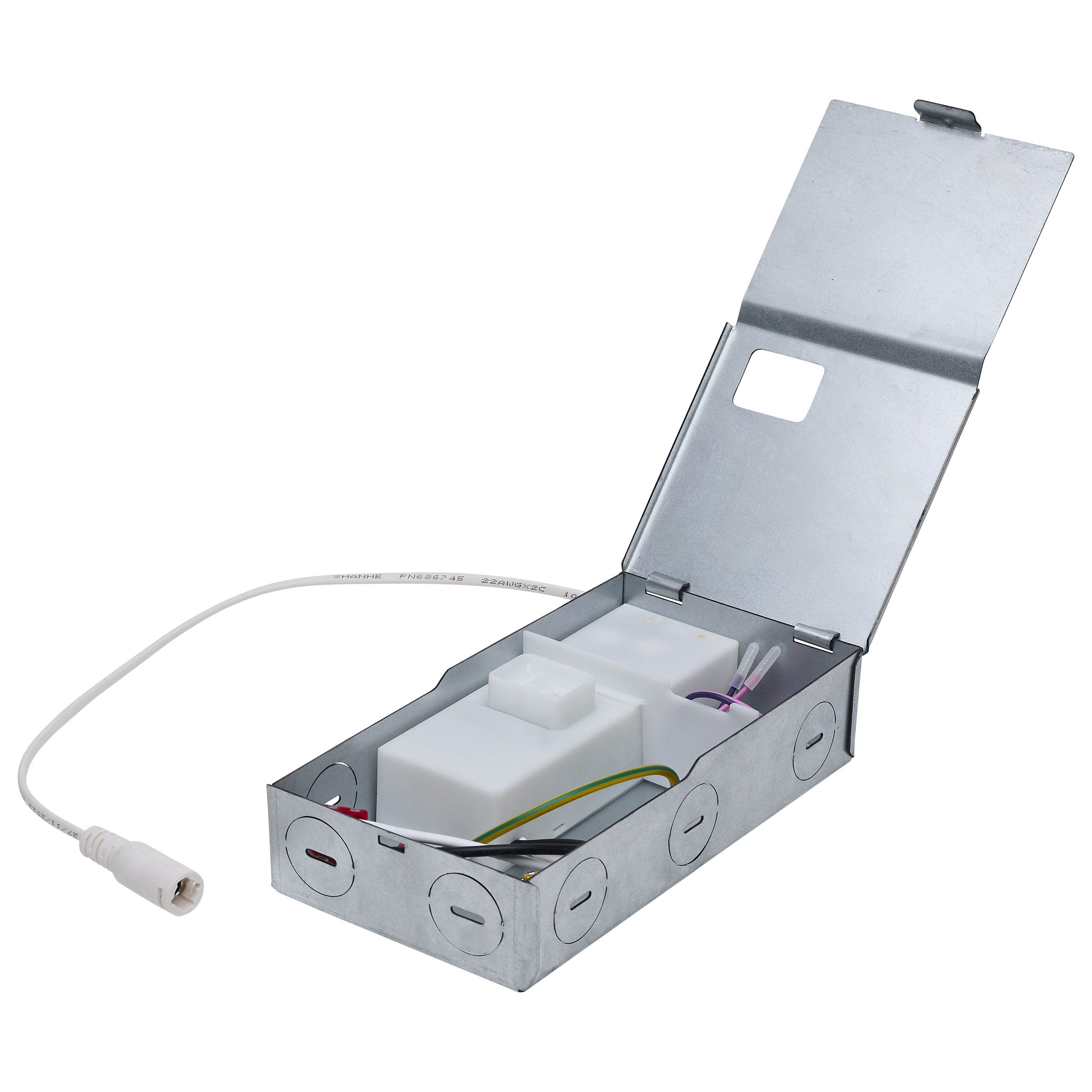

  • Remote Driver
  • 4 Inch
  • Round
  • Flat Face
  • White Finish
  • 120-277 Volt
  • Dual Dimming
cc_selectable^y^1
air_tight^y^1
energy_star_certified^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11690 SpecificationsS11690 Instructions.pdf
Tools
Lighting Layout Analysis For S11690
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

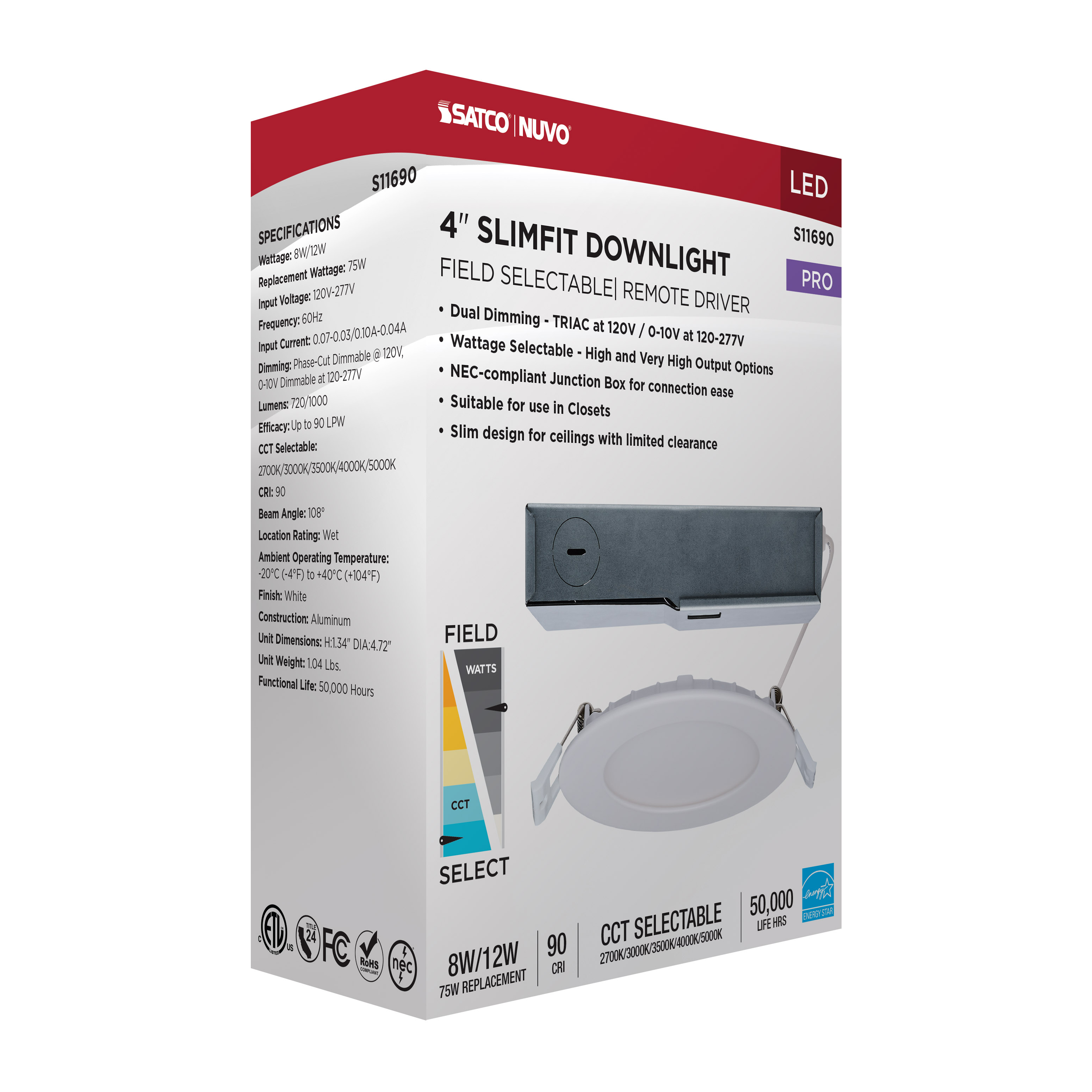

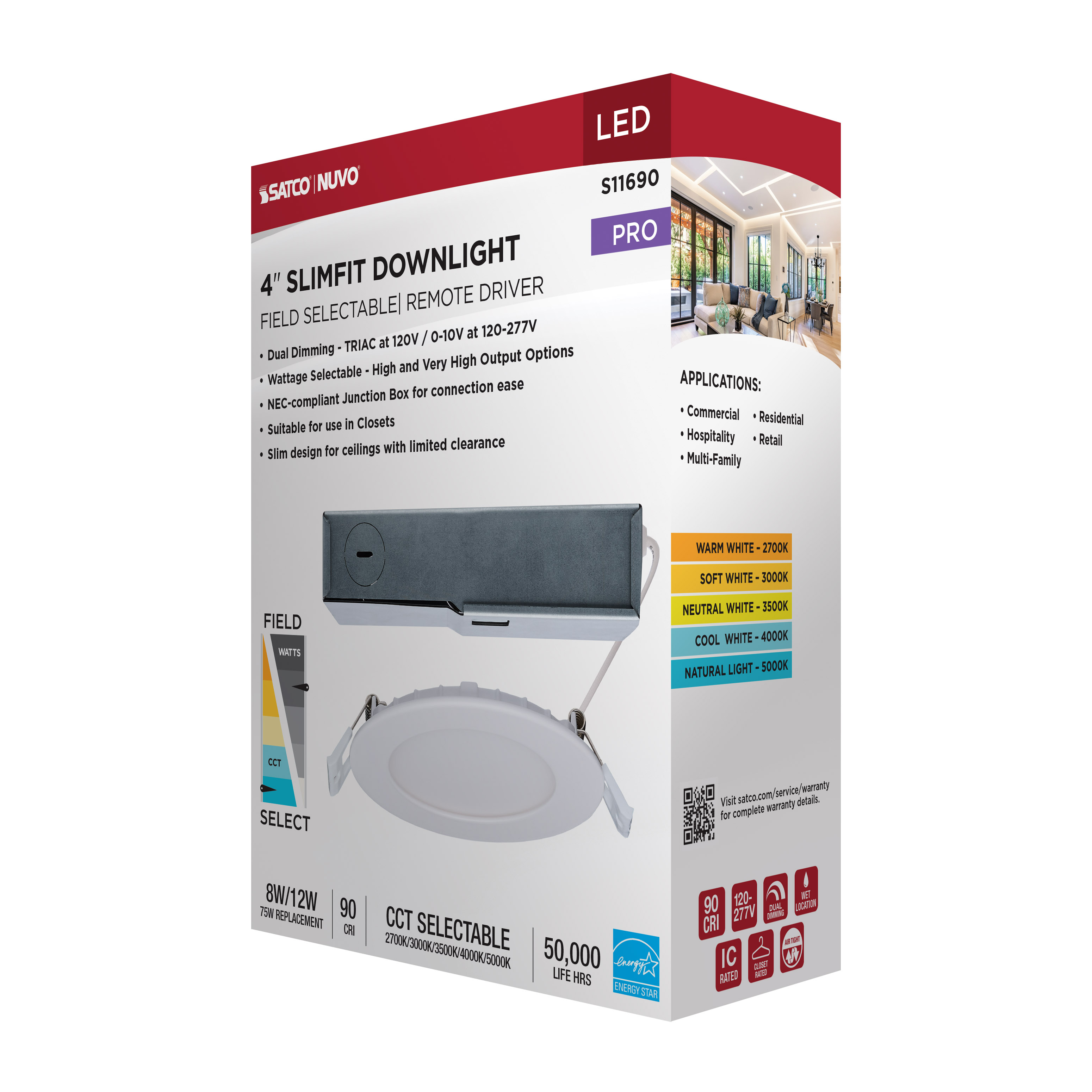

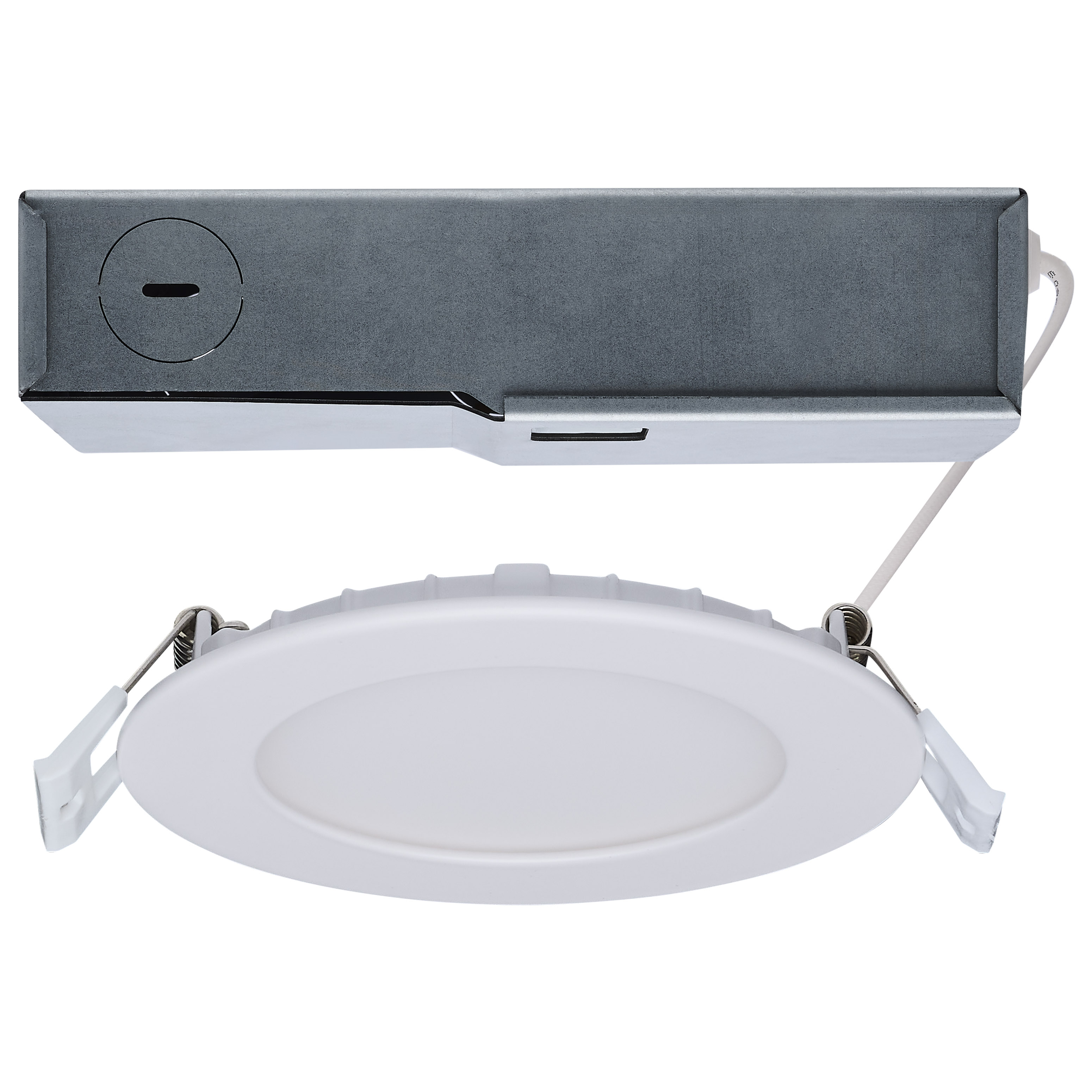

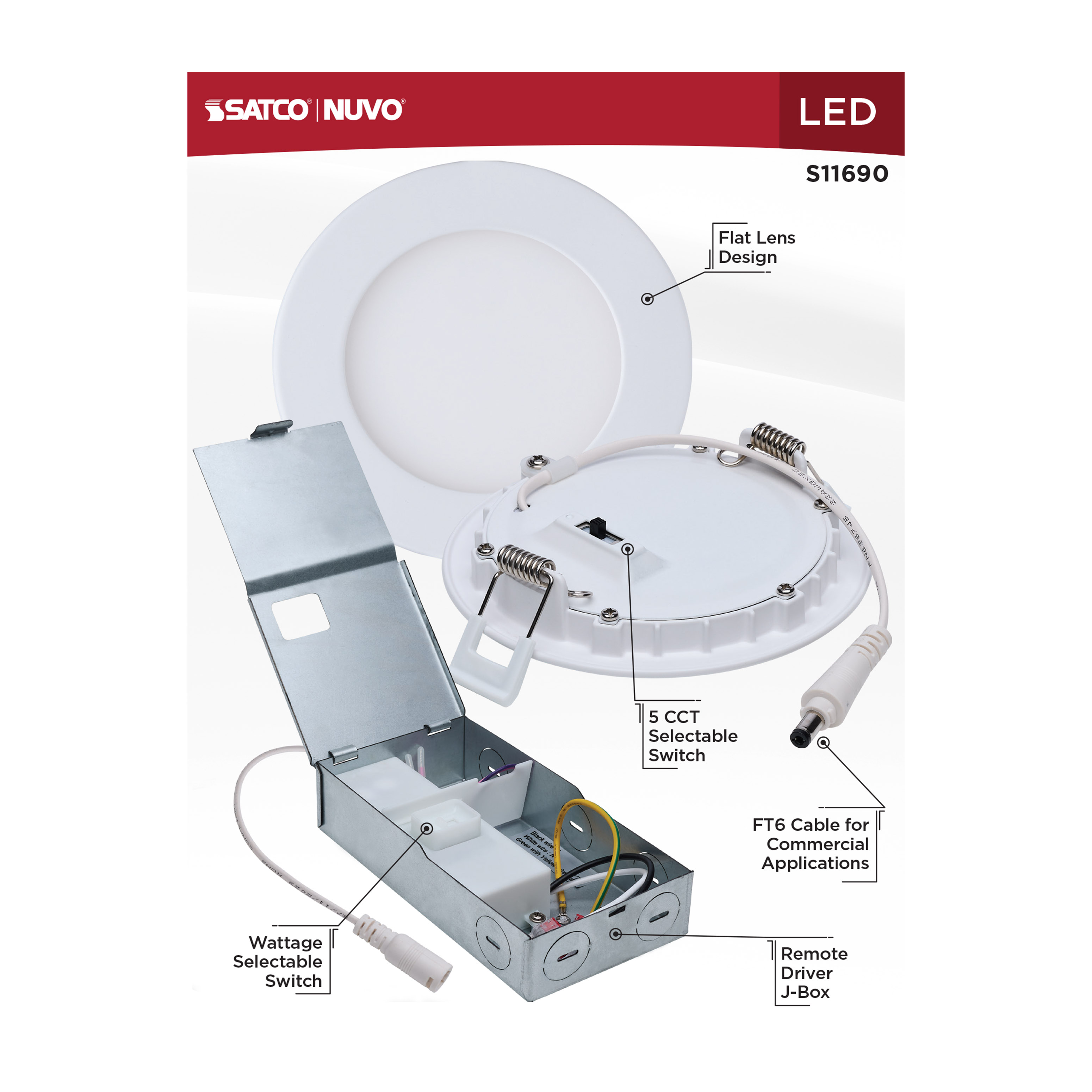

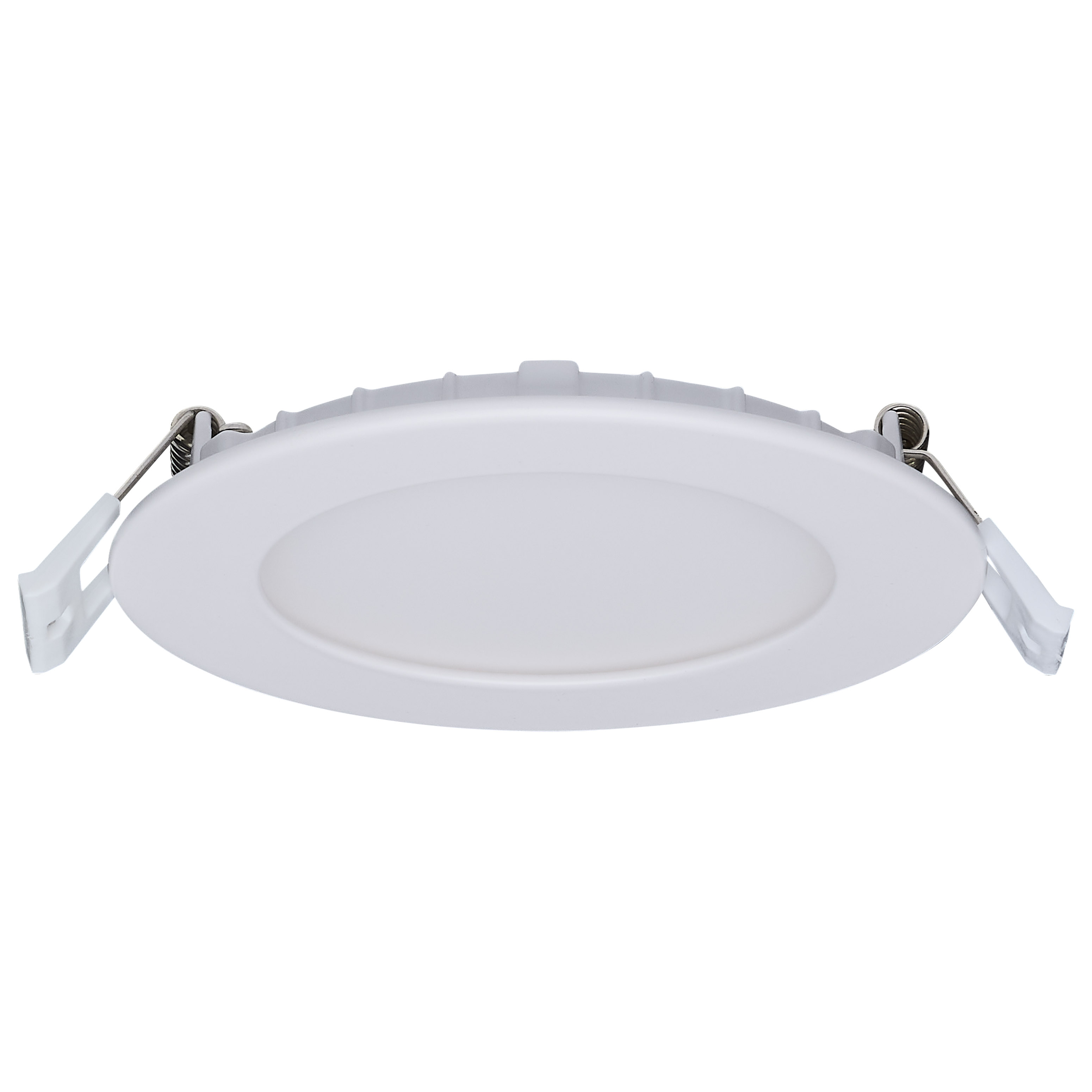

The SATCO NUVO Pro Series S11690 4" LED Slimfit Downlight delivers compact, high-performance illumination for applications with limited ceiling clearance. Field-selectable CCT and dual wattage options (8W/12W) provide up to 1,000 lumens while replacing a 75W incandescent lamp. A pre-wired remote driver and dual dimming compatibility-Phase-cut at 120V and 0–10V at 120–277V-support flexible lighting control. IC and Airtight rated with 90 CRI, this slim-profile fixture is NEC-compliant for closets and built with durable aluminum construction and an acrylic lens. Rated for 50,000 hours and backed by a 5-year warranty.
Products Specs

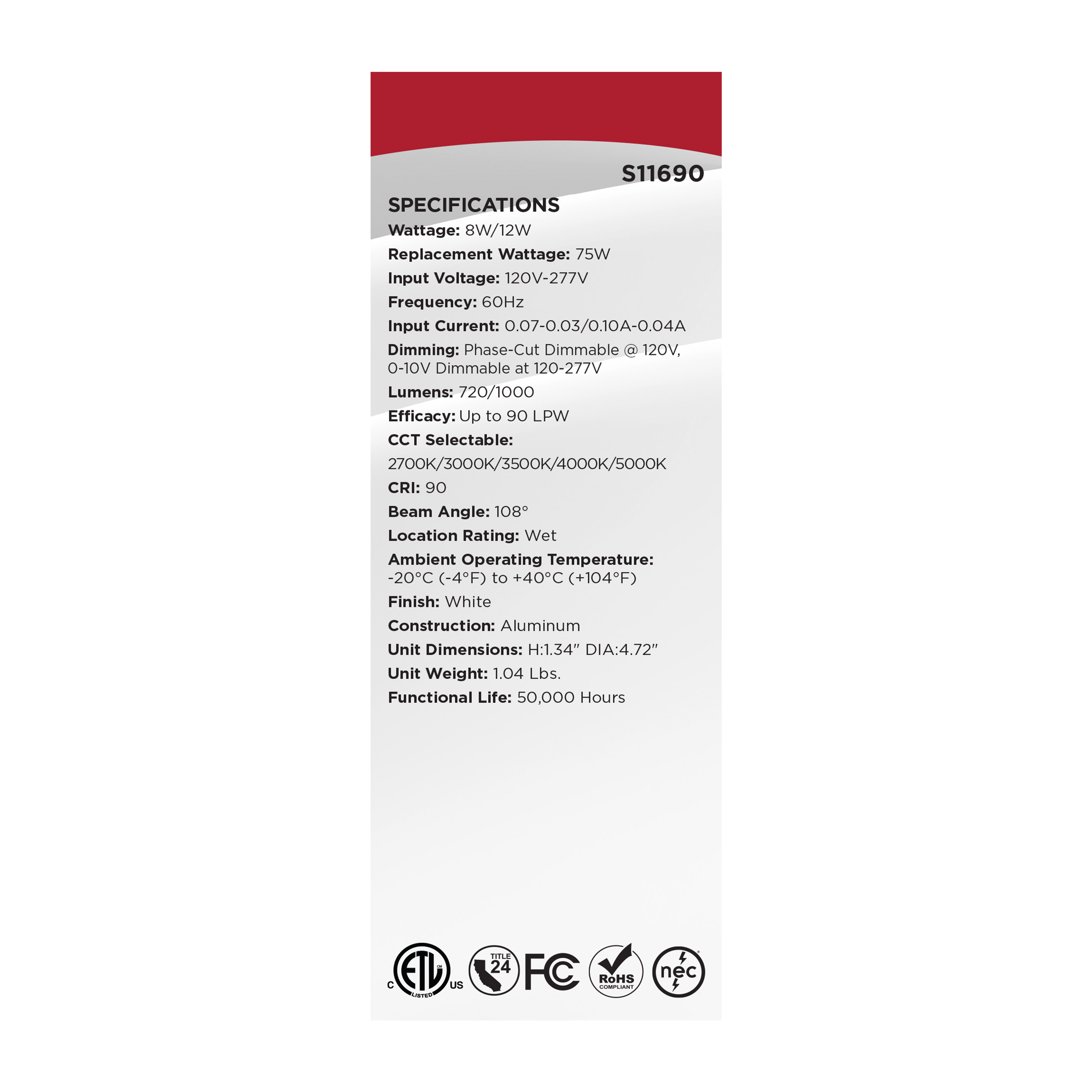

General
CompanySATCO
Mounting Height3.43
Bulb IncludedIntegrated
Center Beam Candle Power350

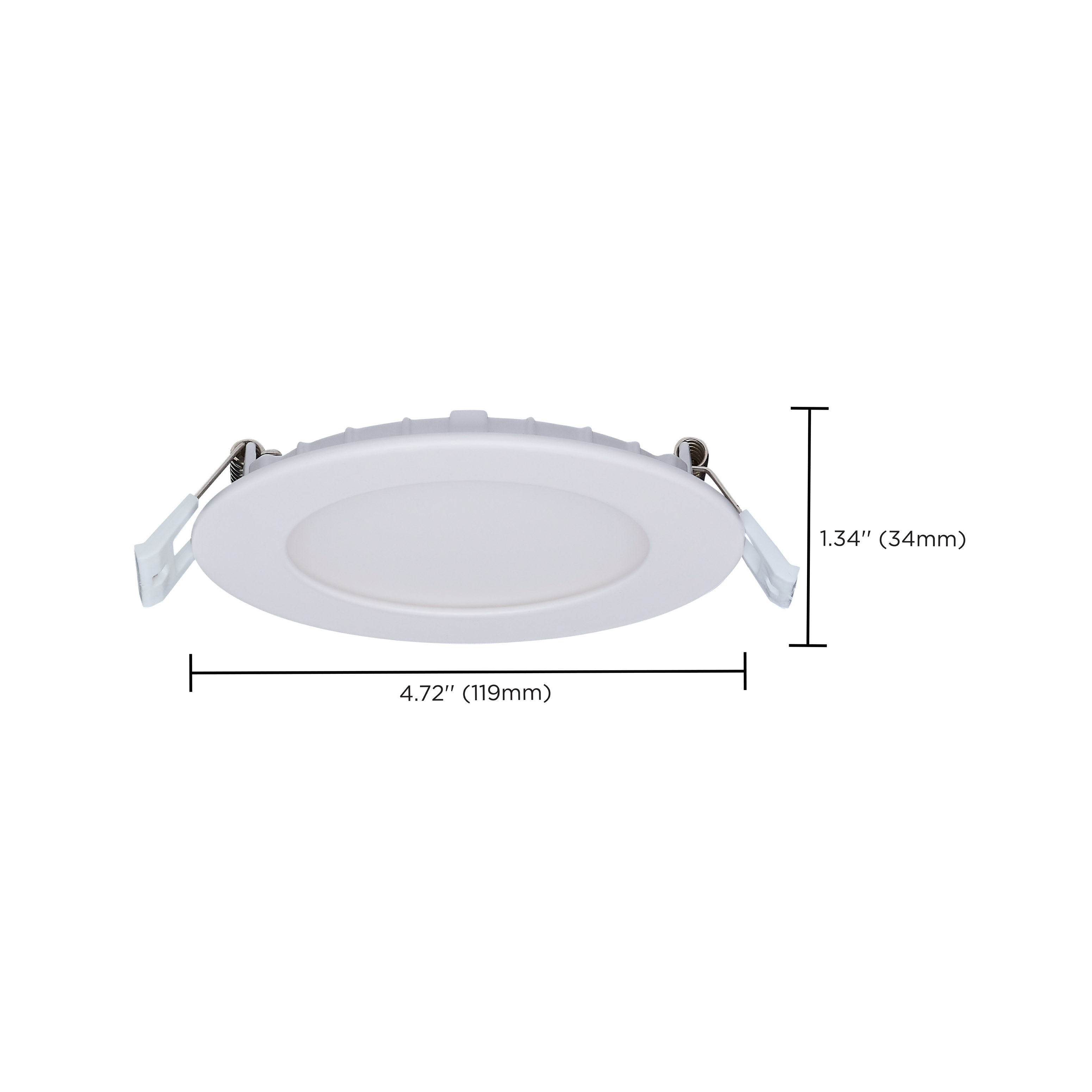

Diameter4.72
MaterialAluminum
Fixture TypeRemote Driver LED Downlight
Product NotesDefault Wattage Setting: 12W
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<20%

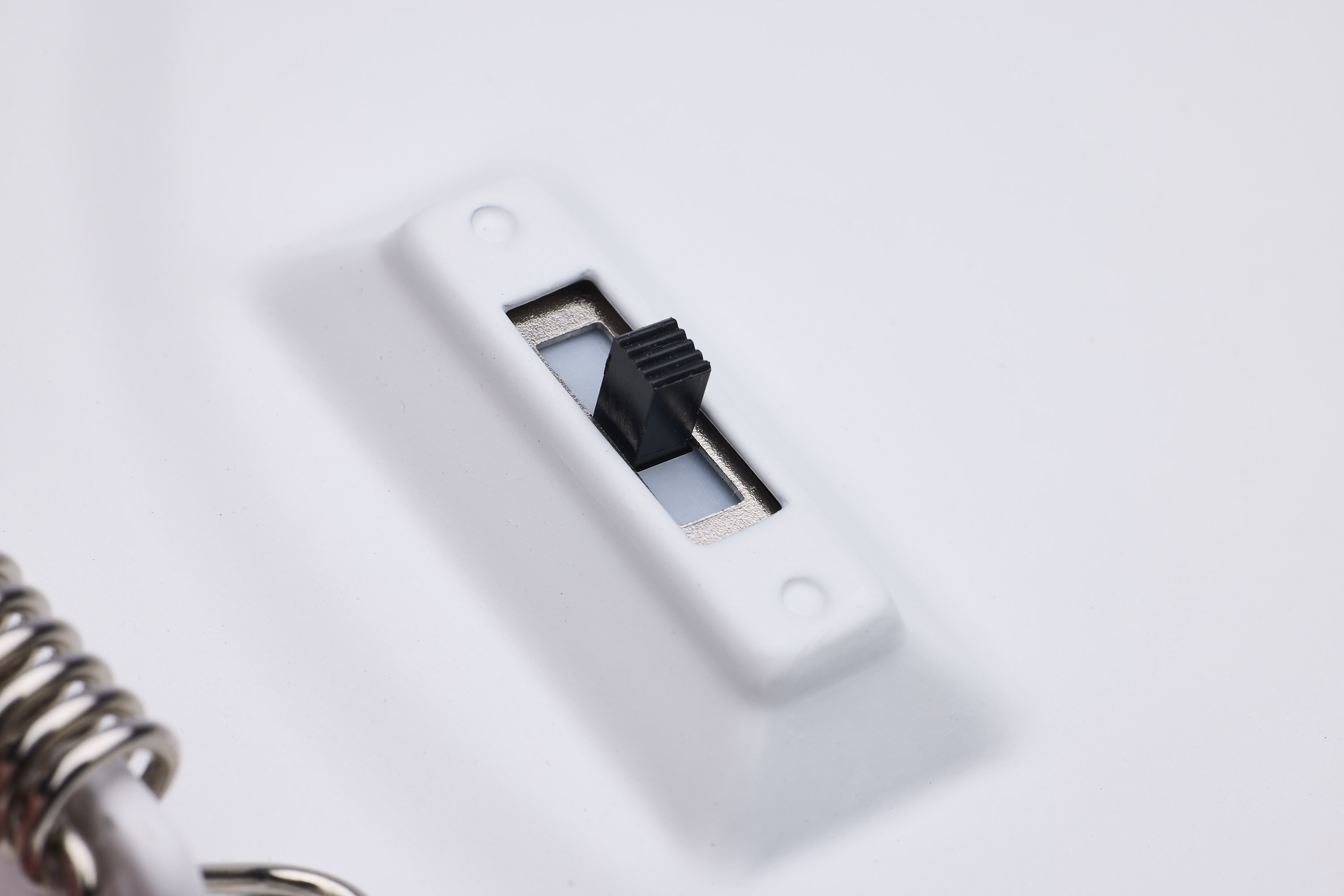

CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Amps0.067-0.029/0.100-0.043A
Mounting Diameter4.25
Has CameraNo
IOT EnabledNo
Lens FinishMatte Frosted
Lens MaterialAcrylic
LensedYes
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)108
Color TempWarm White to Natural Light
CRI90+
Dimming TypeDual Dimming, Forward (TRIAC) or Reverse Phase at 120V/0-10V at 120-277V
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)

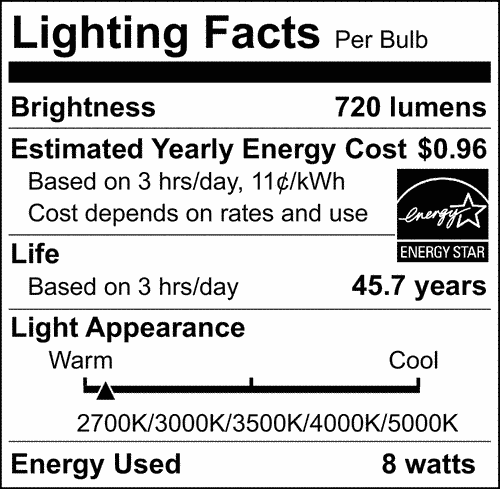

Lumens720L/1000L
Volts120V-277V
Watts8W/12W
Max Lumens1000L
ConnectionDirect Wired
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED

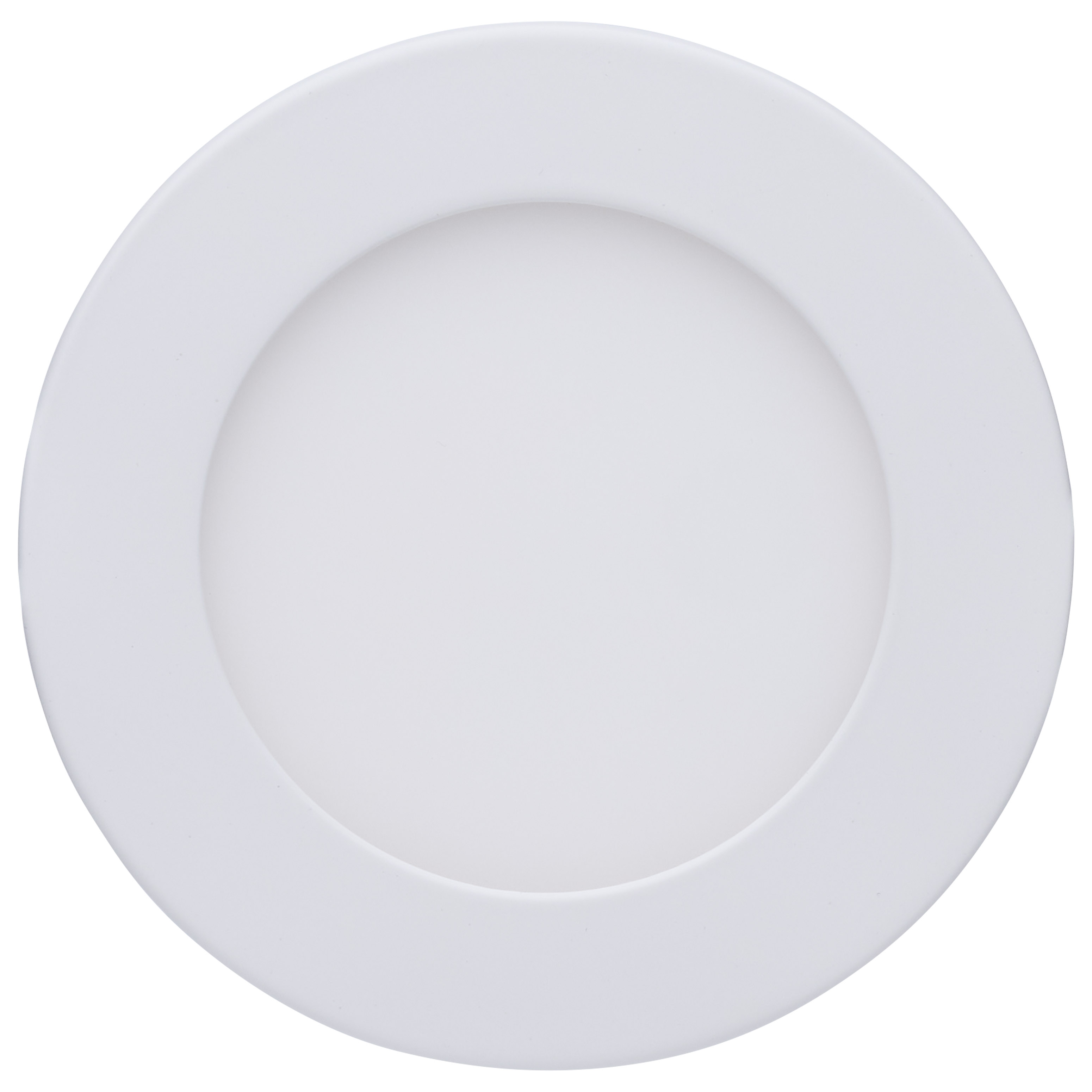

Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesPlenum Rated FT6 Cable
Documents
Compliance
Air TightYes
CA Prop 65Lead
Energy Star ID3994344
FCC CompliantYes
IC RatedYes
Location RatingWet
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Energy Star CertifiedYes
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923116902
Case Cube0.7518
Case Height14.57
Case Length10.94
Case Quantity12
Case UPC10045923116909
Case Weight14.55
Case Width8.15
EA Cube0.0502
EA Height6.89
EA Length5.08
EA Quantity1
EA Weight1.14
EA Width2.48
Pack TypeBox
Web Height1.34
Web Width4.72
