S11691

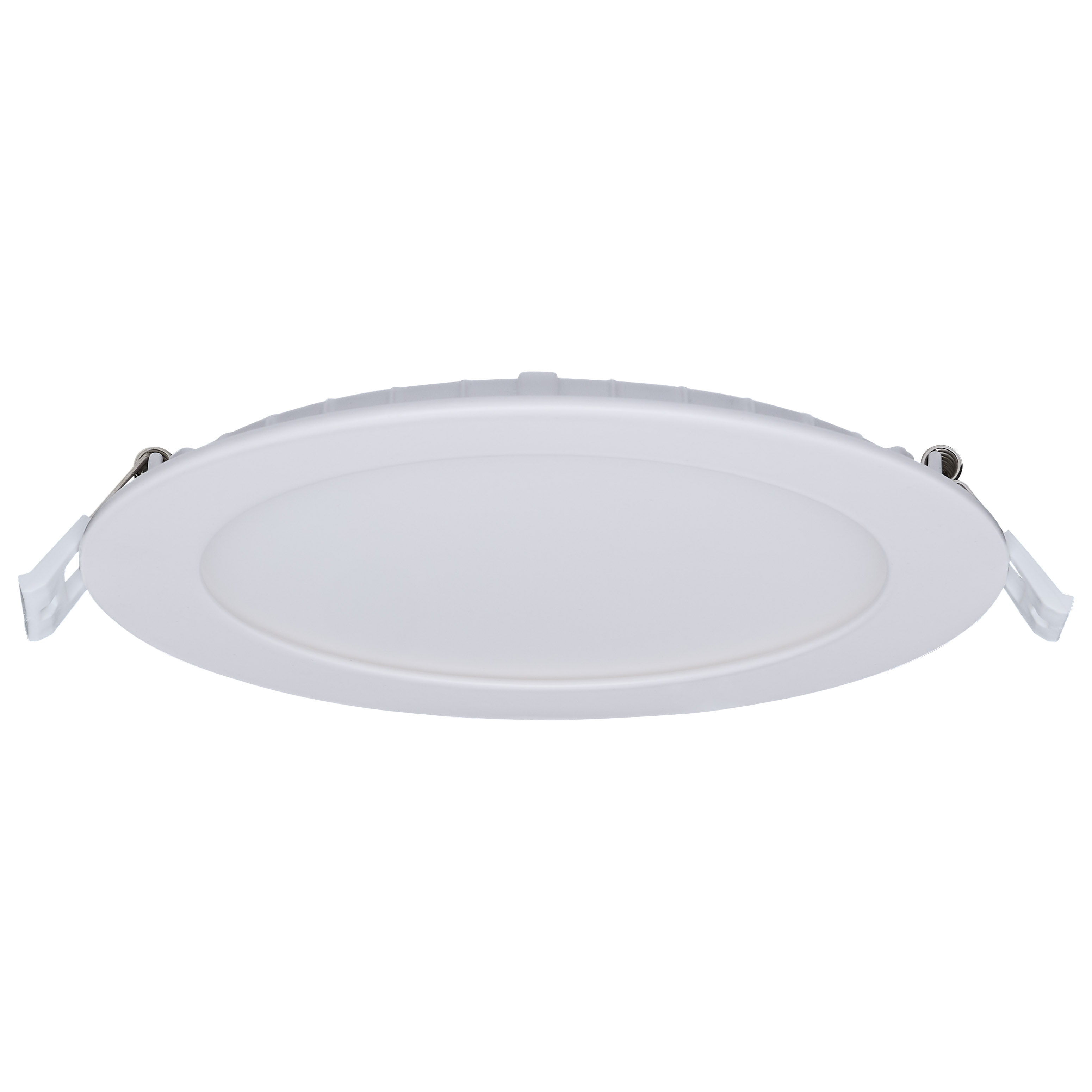

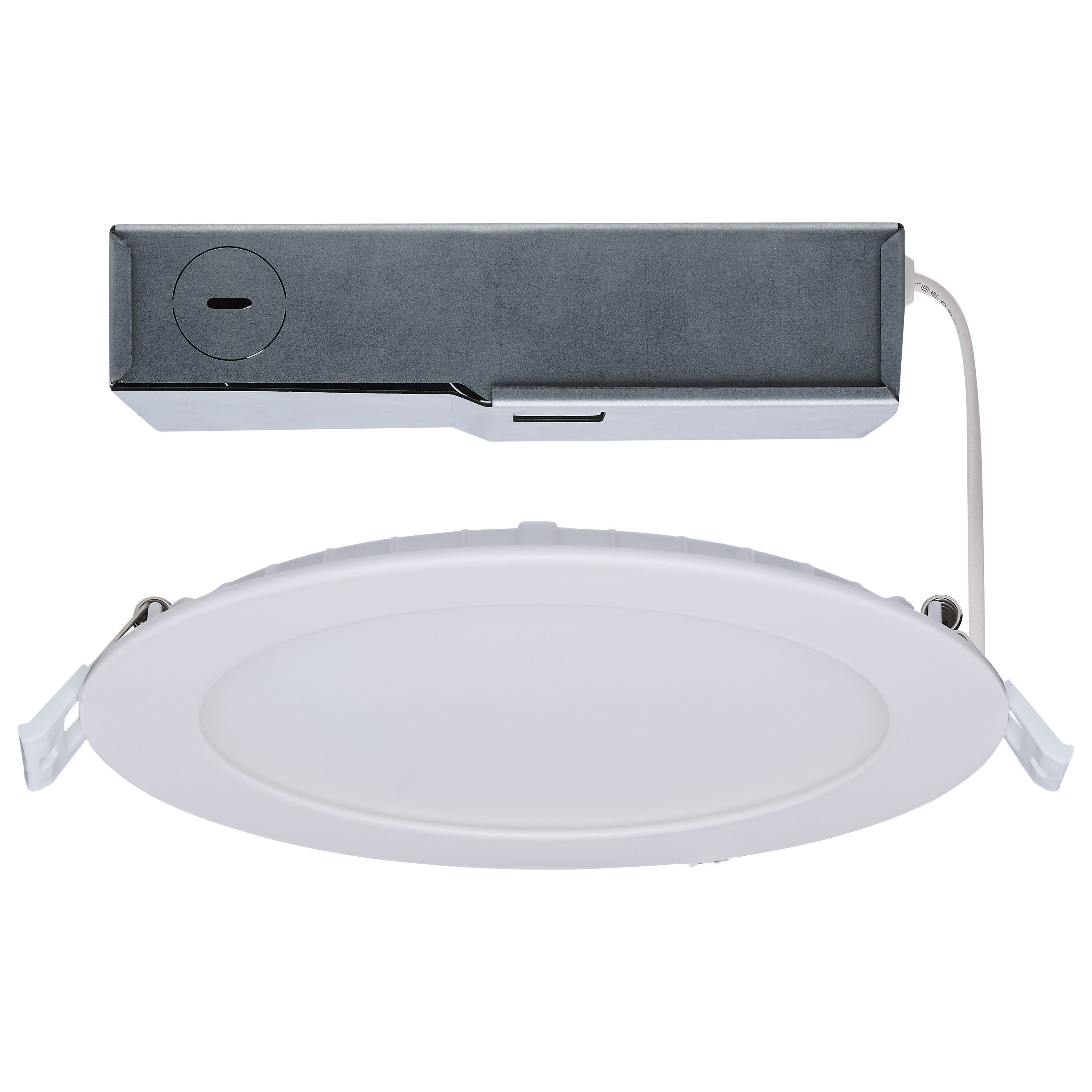

15WLED/DW/6/FS/RND/FL/DD

  • 11/15 Watt
  • LED Direct Wire Downlight
  • 27K/3K/35K/4K/5K CCT

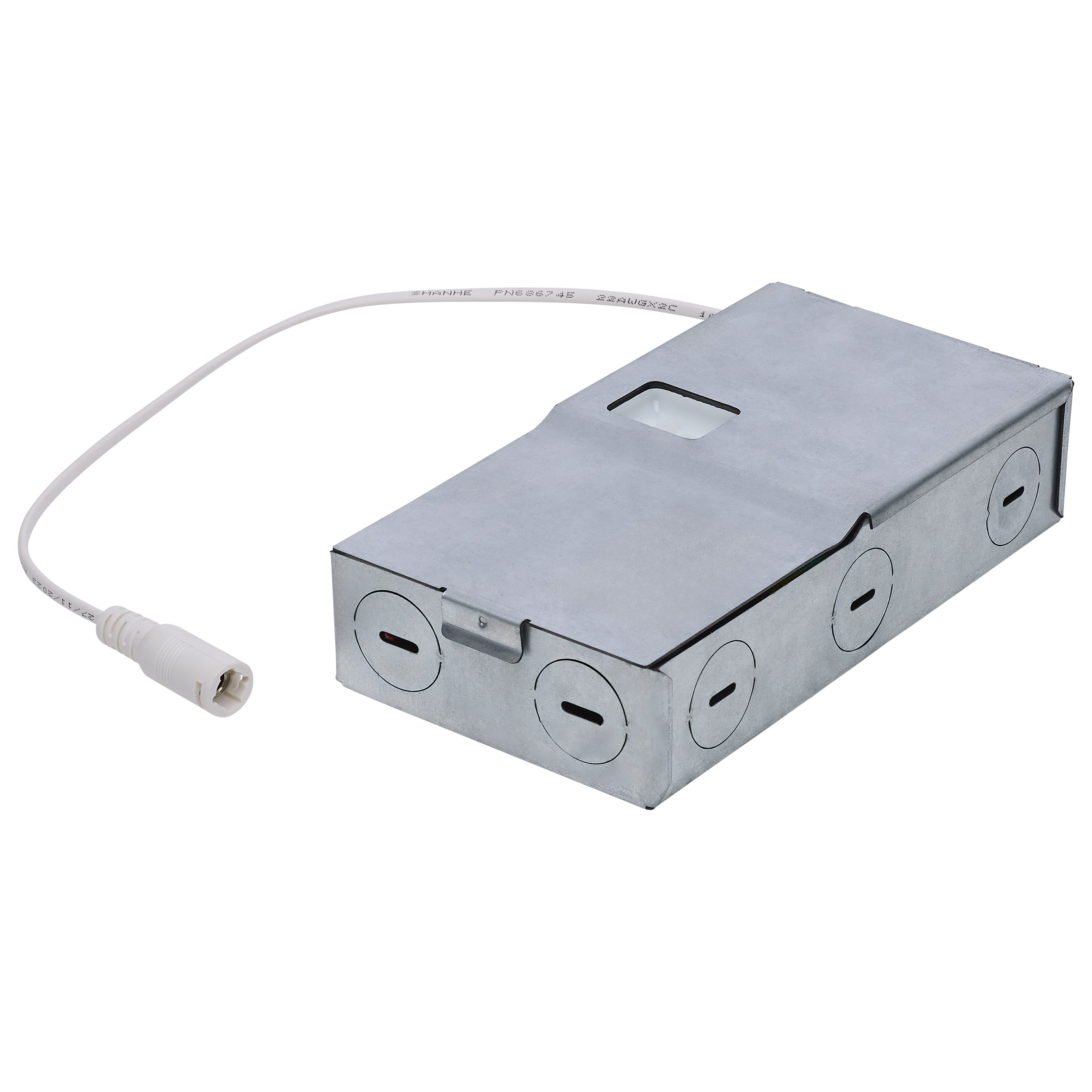

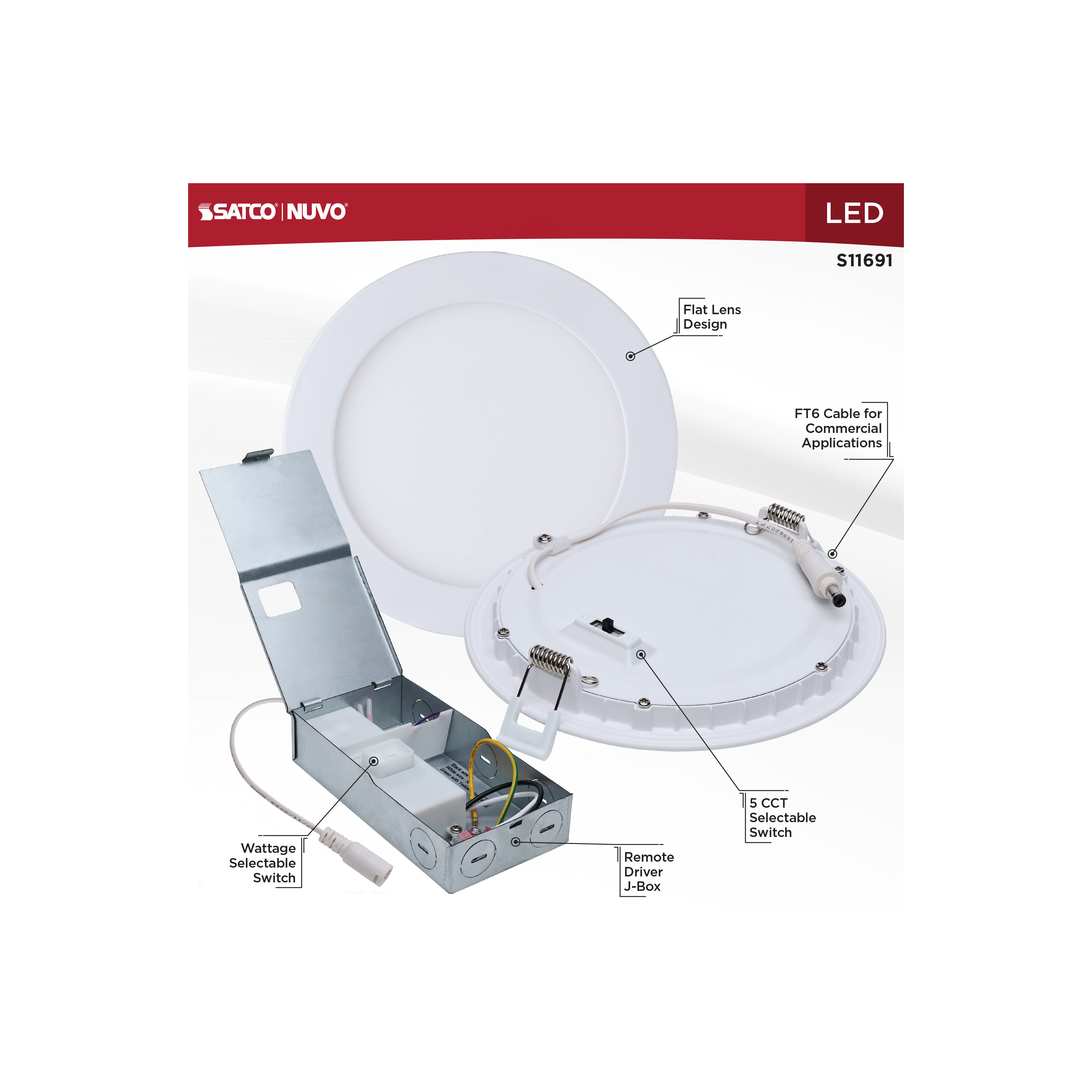

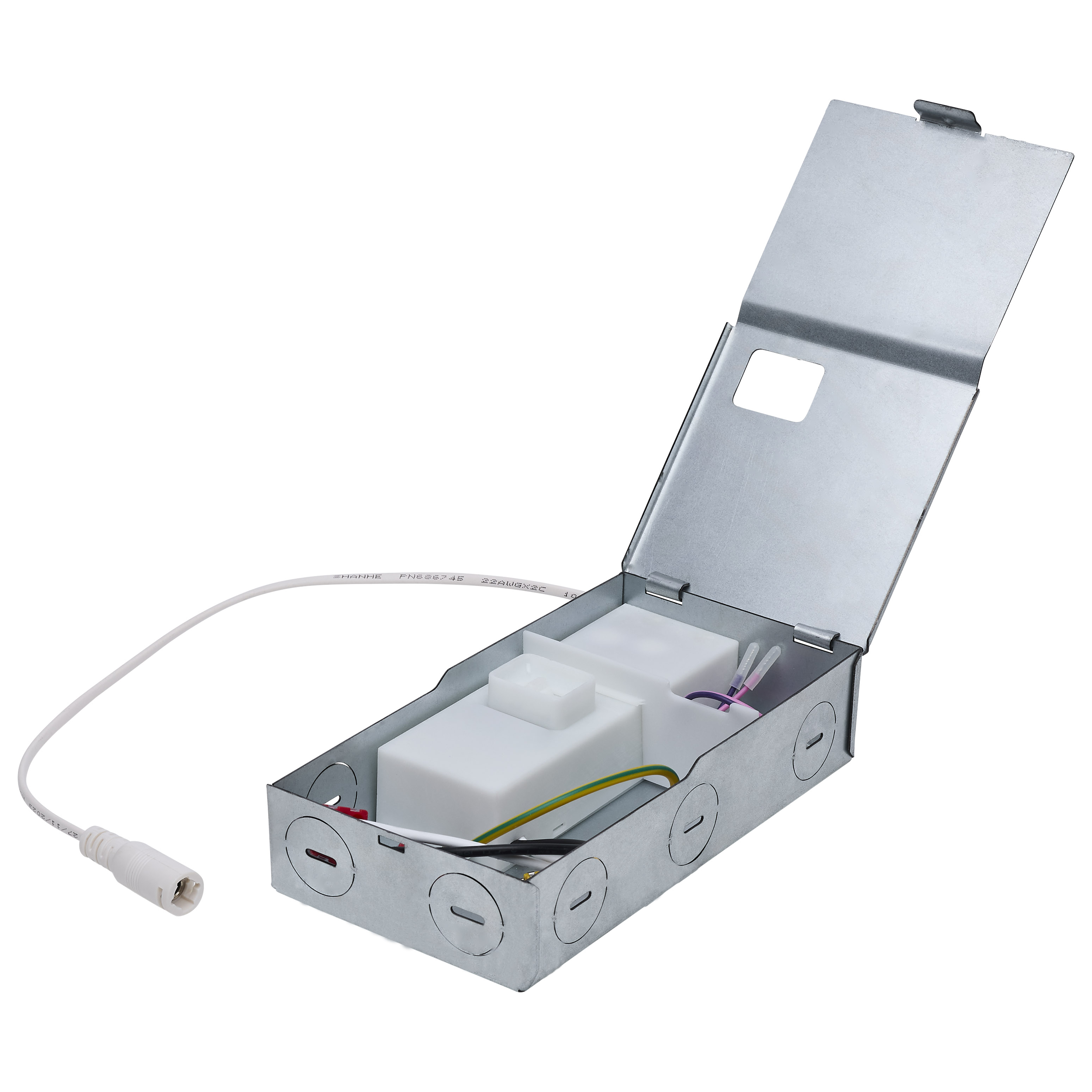

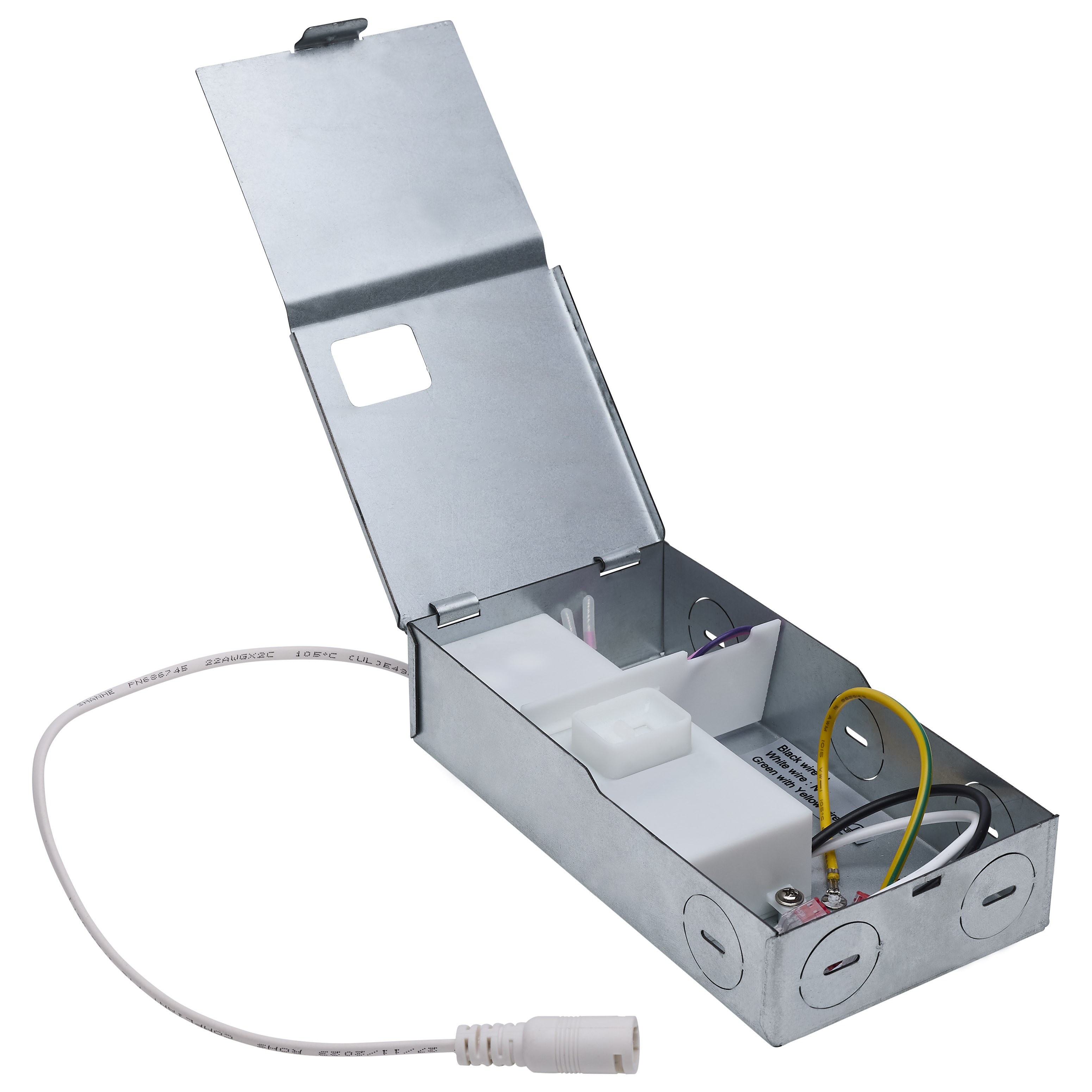

  • Remote Driver
  • 6 Inch
  • Round

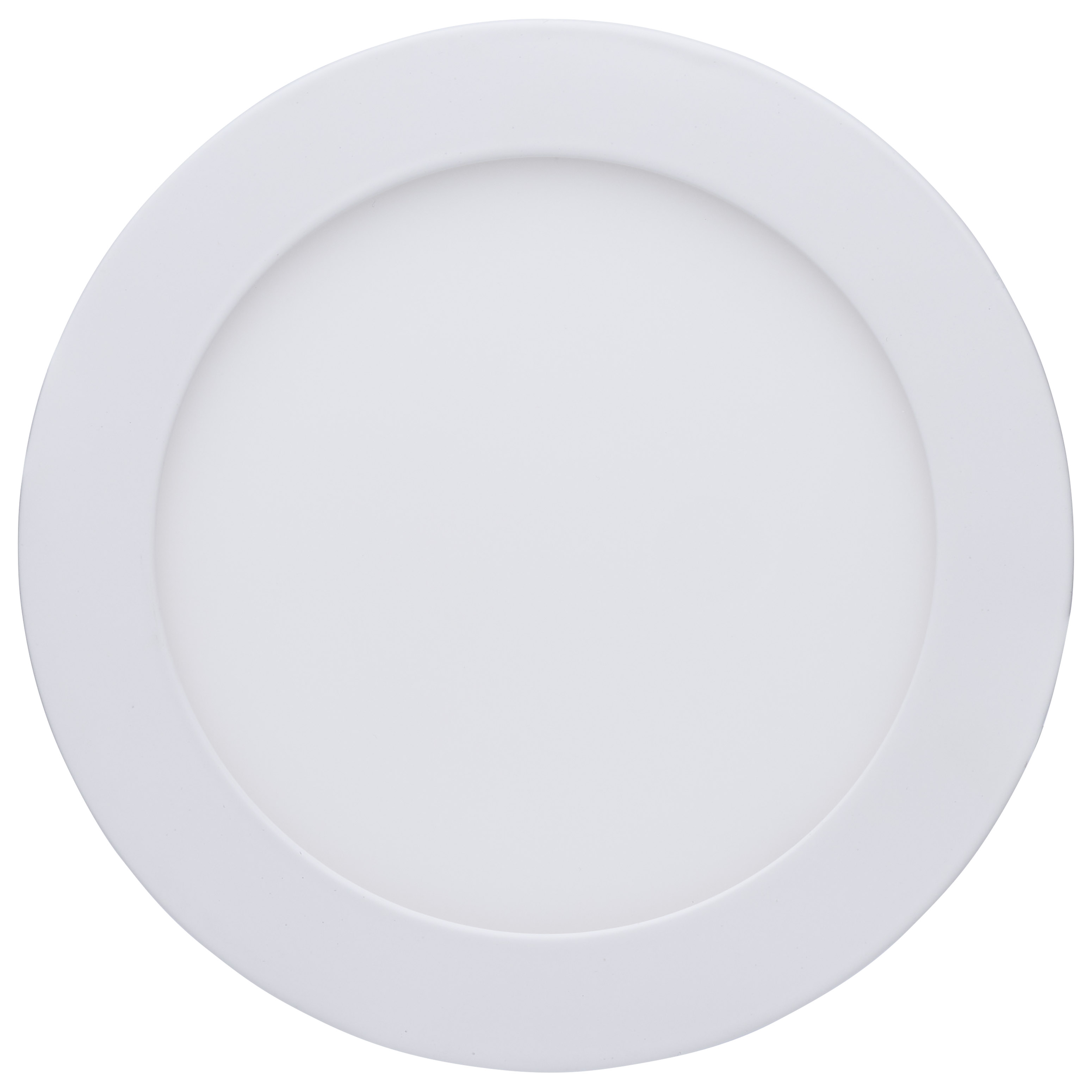

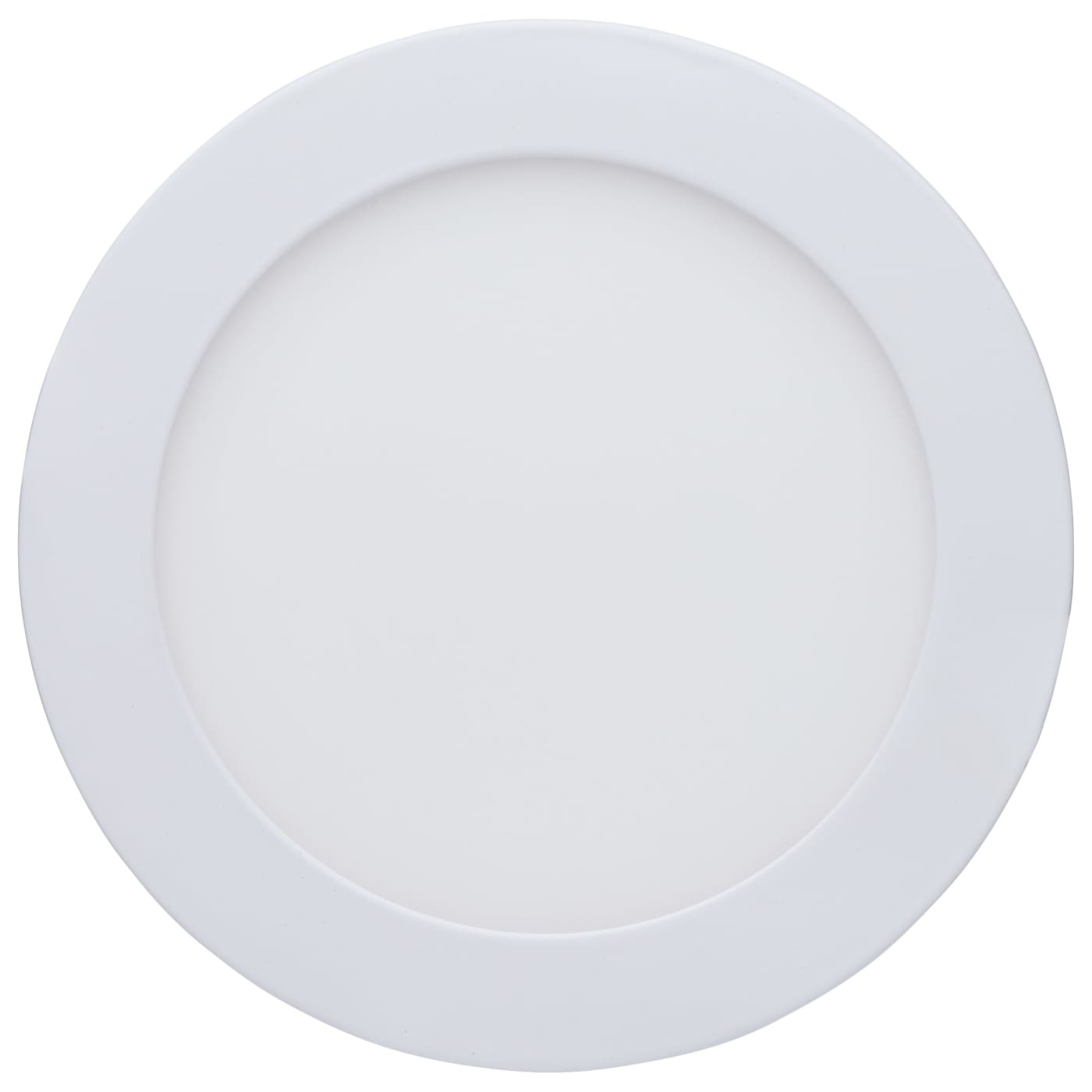

  • Flat Face
  • White Finish
  • 120-277 Volt
  • Dual Dimming
cc_selectable^y^1
air_tight^y^1
energy_star_certified^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11691 SpecificationsS11691 Photometrics 11W 2700K.iesS11691 Photometrics 11W 3000K.ies
Tools
Lighting Layout Analysis For S11691
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

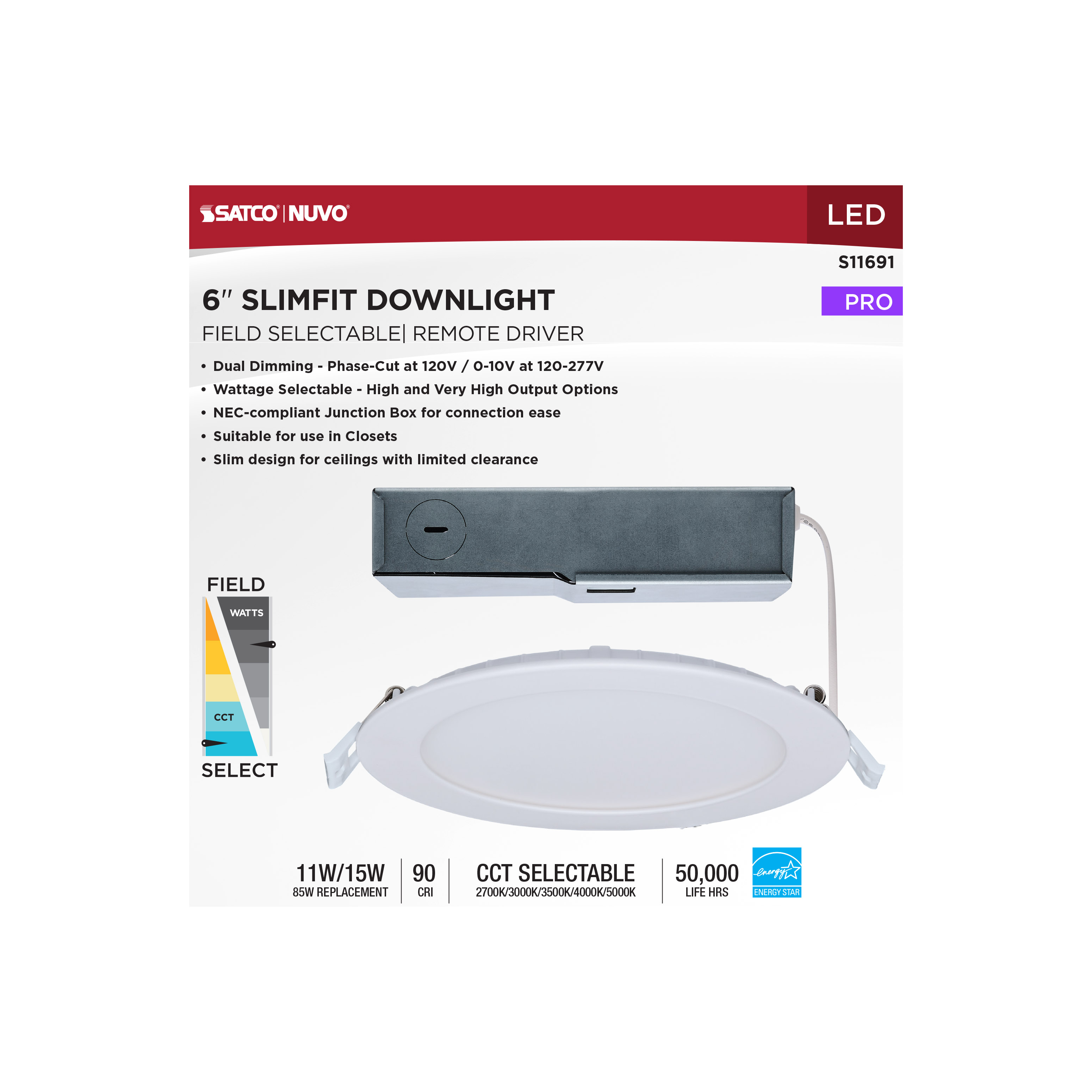

11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming

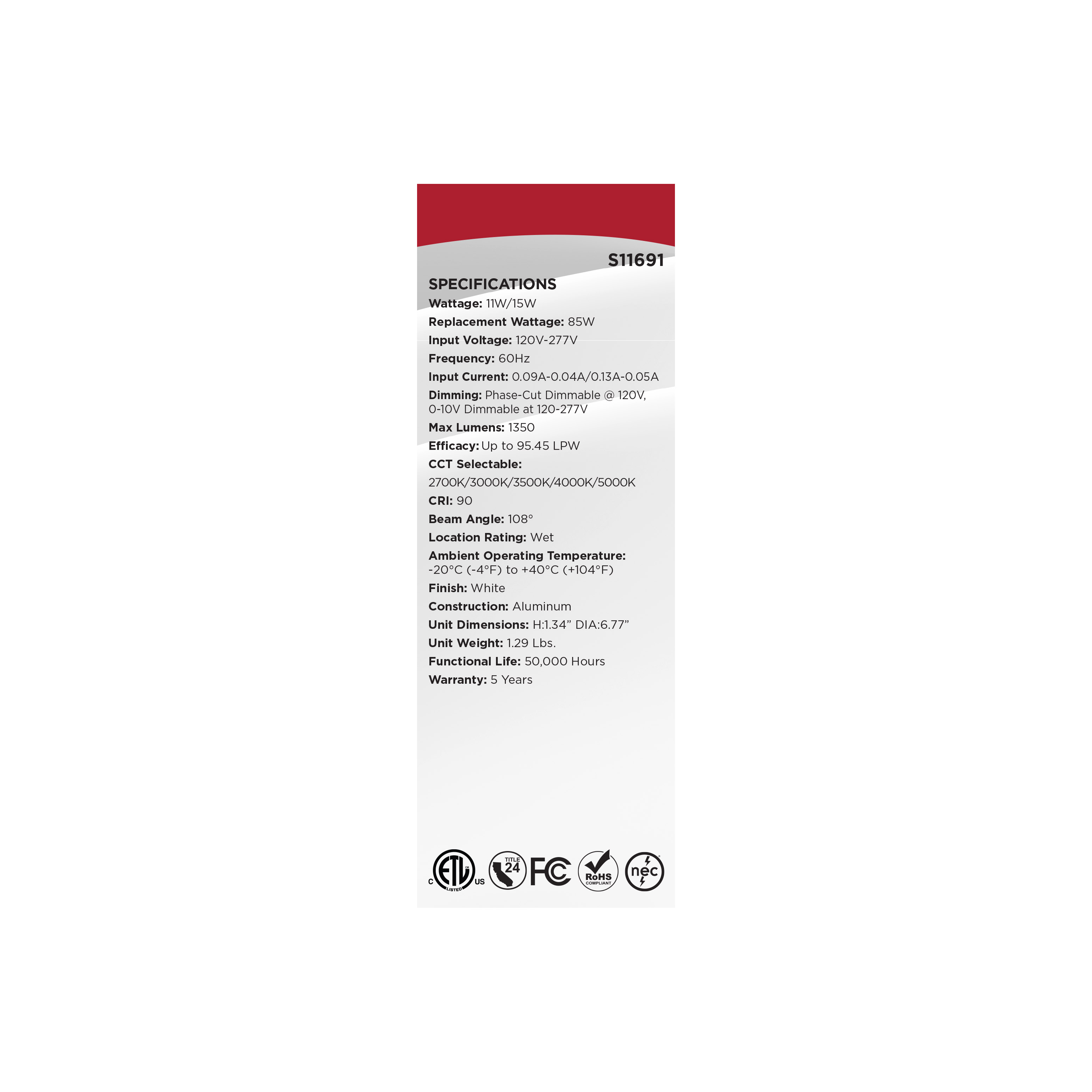

Products Specs
General
CompanySATCO
Mounting Height1.61
Bulb IncludedIntegrated
Center Beam Candle Power500

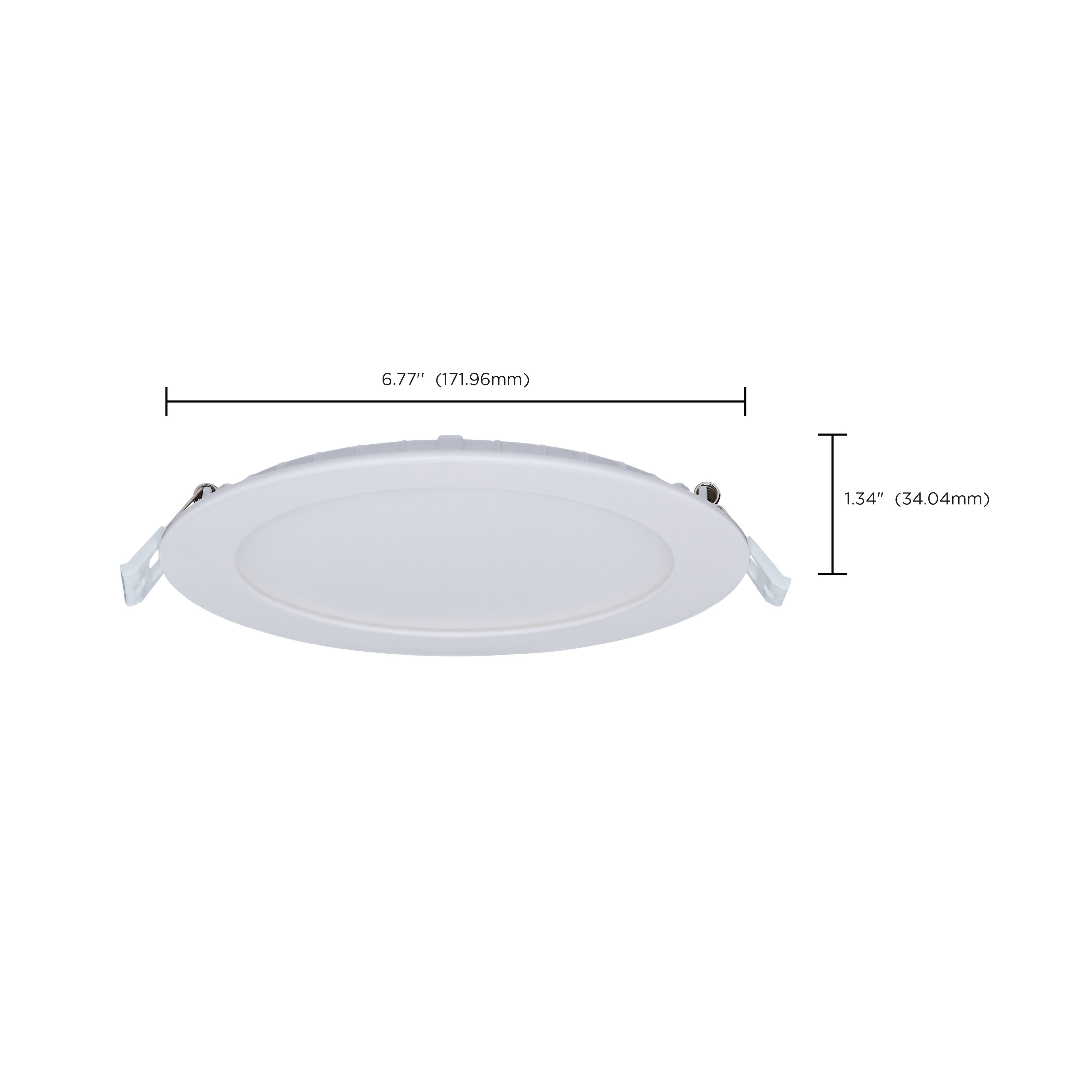

Diameter6.77
Dimmable TextDual Dimming; Forward Phase at 120V / 0-10V at 120-277V
MaterialAluminum
Fixture TypeRemote Driver LED Downlight
Product NotesDefault Wattage Setting: 15W
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<20%

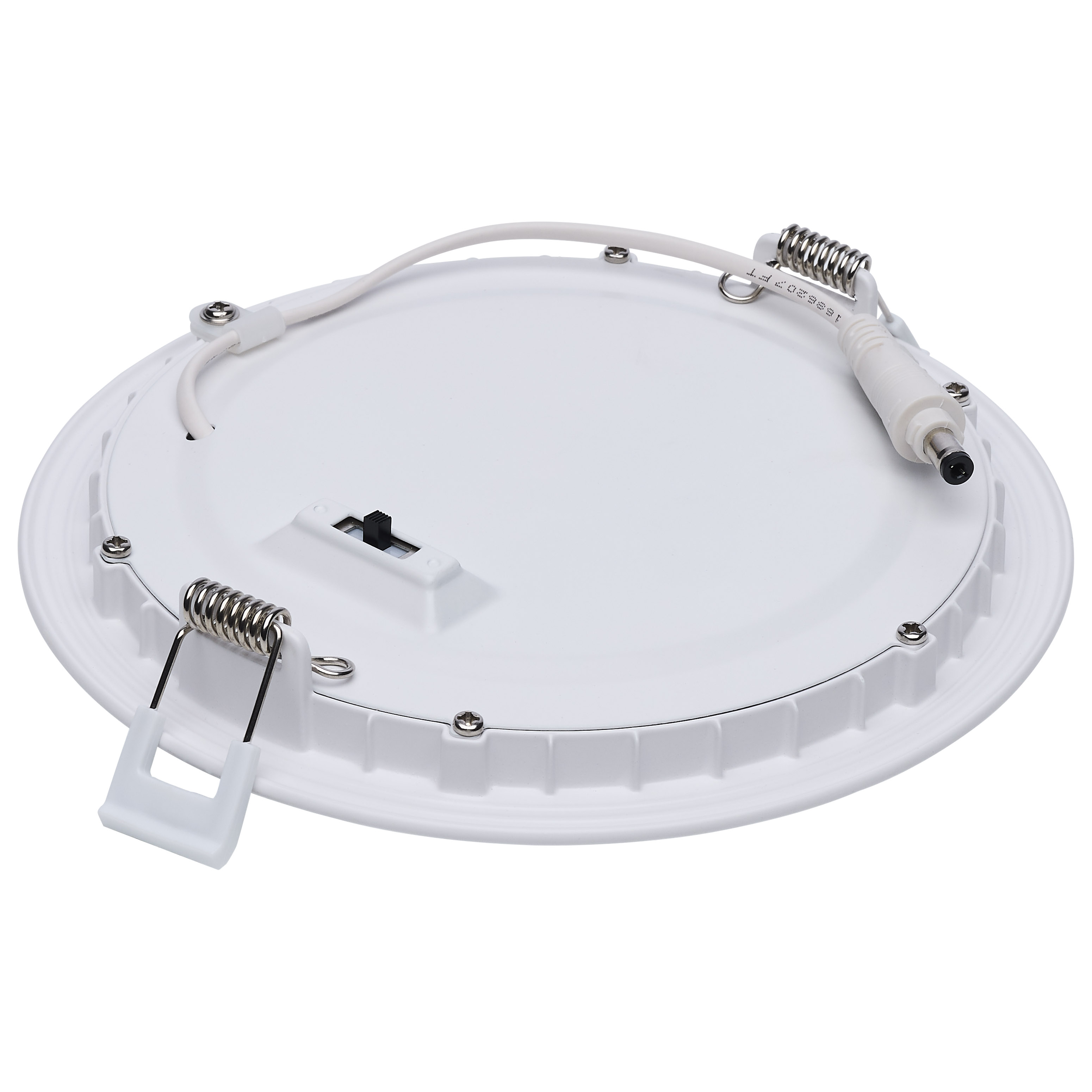

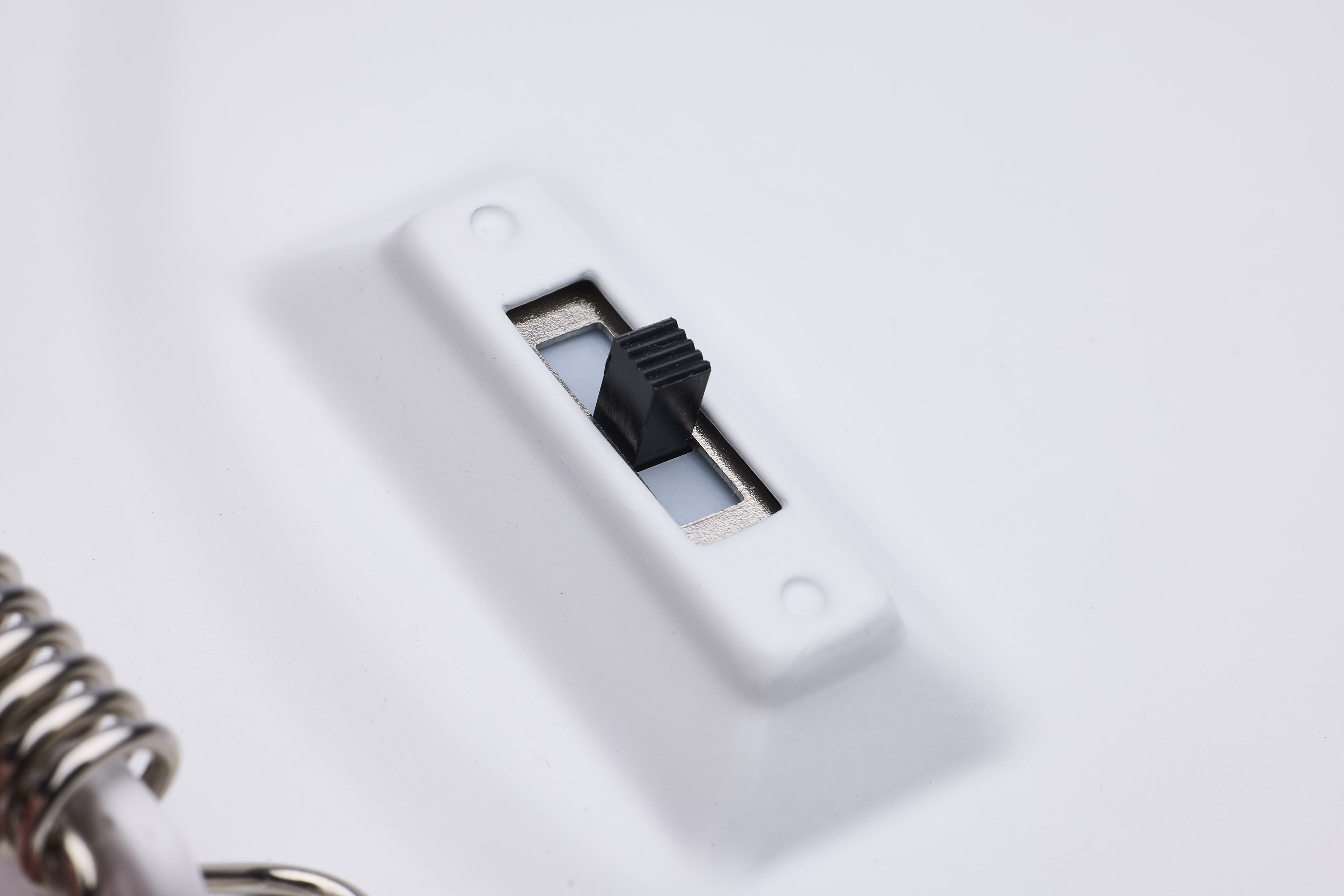

CCT SelectableYes

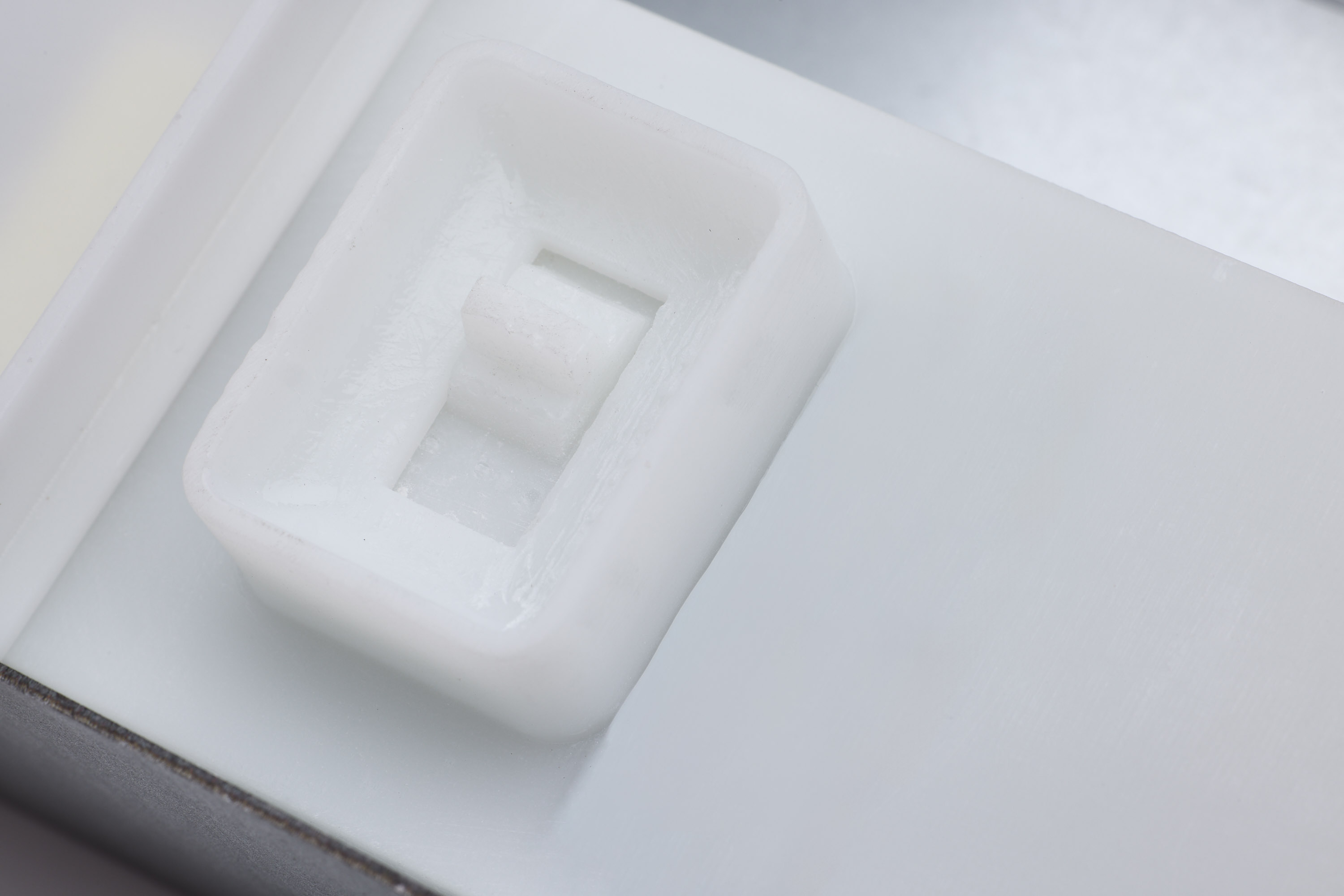

Wattage SelectableYes
Finish FamilyWhite
Amps0.092-0.040/0.125-0.054A
Mounting Diameter6.18
Has CameraNo
IOT EnabledNo
Lens FinishMatte Frosted
Lens MaterialAcrylic
LensedYes
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Incandescent Equivalent85W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)108
Color TempWarm White to Natural Light
CRI90+
Dimming TypeDual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-277V
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)

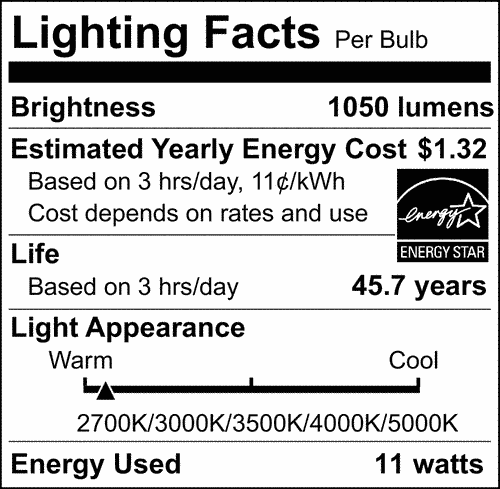

Lumens1050L/1350L
Volts120V-277V
Watts11W/15W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesPlenum Rated FT6 Cable
Documents
Compliance
Air TightYes
CA Prop 65Lead
Energy Star ID3994345
FCC CompliantYes
IC RatedYes
Location RatingWet
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Energy Star CertifiedYes
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923116919
Case Cube0.9902
Case Height14.57
Case Length14.41
Case Quantity12
Case UPC10045923116916
Case Weight18.08
Case Width8.15
EA Cube0.0673
EA Height6.89
EA Length6.81
EA Quantity1
EA Weight1.42
EA Width2.48
Inner Cube0.0
Pack TypeBox
Web Height1.34
Web Width6.77
