40WLED/DW/LINEAR/48"/ADJ-CCT - S11724
40WLED/DW/LINEAR/48"/ADJ-CCT - S11724
40WLED/DW/LINEAR/48"/ADJ-CCT - S11724
40WLED/DW/LINEAR/48"/ADJ-CCT - S11724
40WLED/DW/LINEAR/48"/ADJ-CCT - S11724
S11724

40WLED/DW/LINEAR/48"/ADJ-CCT

Discontinued

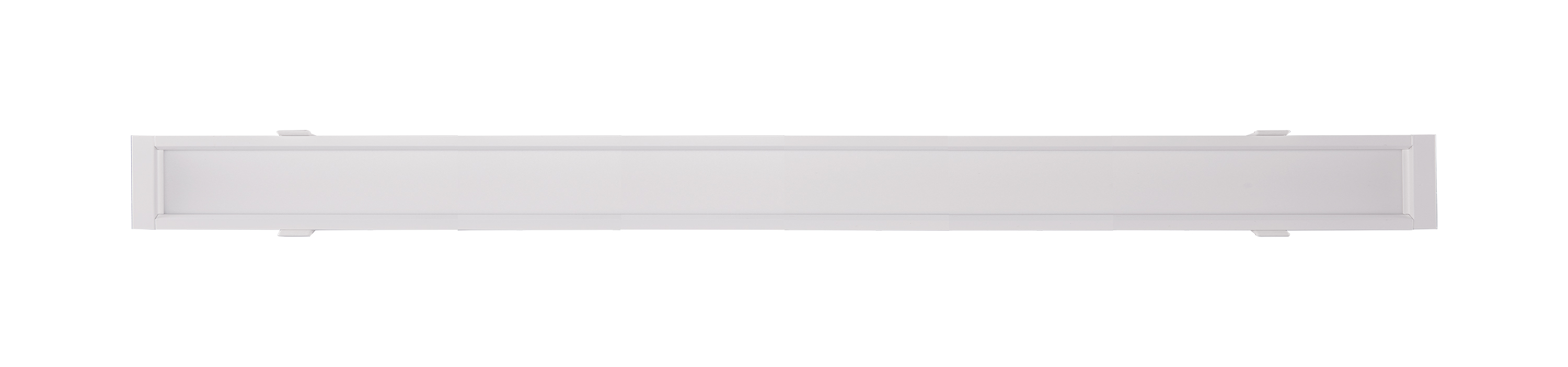

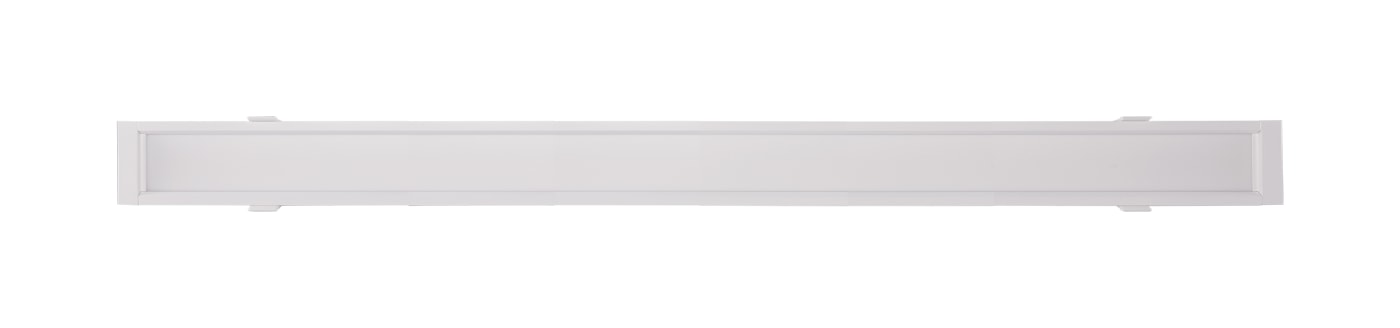

  • 40 Watt LED Direct Wire Linear Downlight
  • 48 in.
  • Adjustable CCT
  • 120 Volt
location_rating^damp^1
cc_selectable^y^1
air_tight^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
volts^120v^2
ic_rated^y^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S11724 SpecificationsS11724 Photometrics 3000K.iesS11724 Photometrics 4000K.ies
Tools
Lighting Layout Analysis For S11724
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
40 Watt LED Direct Wire Linear Downlight; 48 in.; Adjustable CCT; 120 Volt
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
MaterialAluminum / Plastic
Fixture TypeDirect Wire LED Downlight
StatusDiscontinued
StyleUtility
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.333A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeLength: 47.2 in. Width: 7.87 in. Height: 4.72 in.
Power Factor>0.9
SDS ClassLED_Lamp
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated40000
Beam Angle (degree)110
Color TempWarm to Cool White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens3000L
Volts120v
Watts40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Compliance
Air TightYes
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
UL ApplicationCeiling / Wall
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923117244
Case Cube6.859
Case Height16.5
Case Length49.2
Case Quantity12
Case UPC10045923117241
Case Weight46.3
Case Width14.6
EA Cube0.3272
EA Height3.15
EA Length48.0
EA Quantity1
EA Weight3.55
EA Width3.74
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.15
Web Length48.0
Web Width3.74
