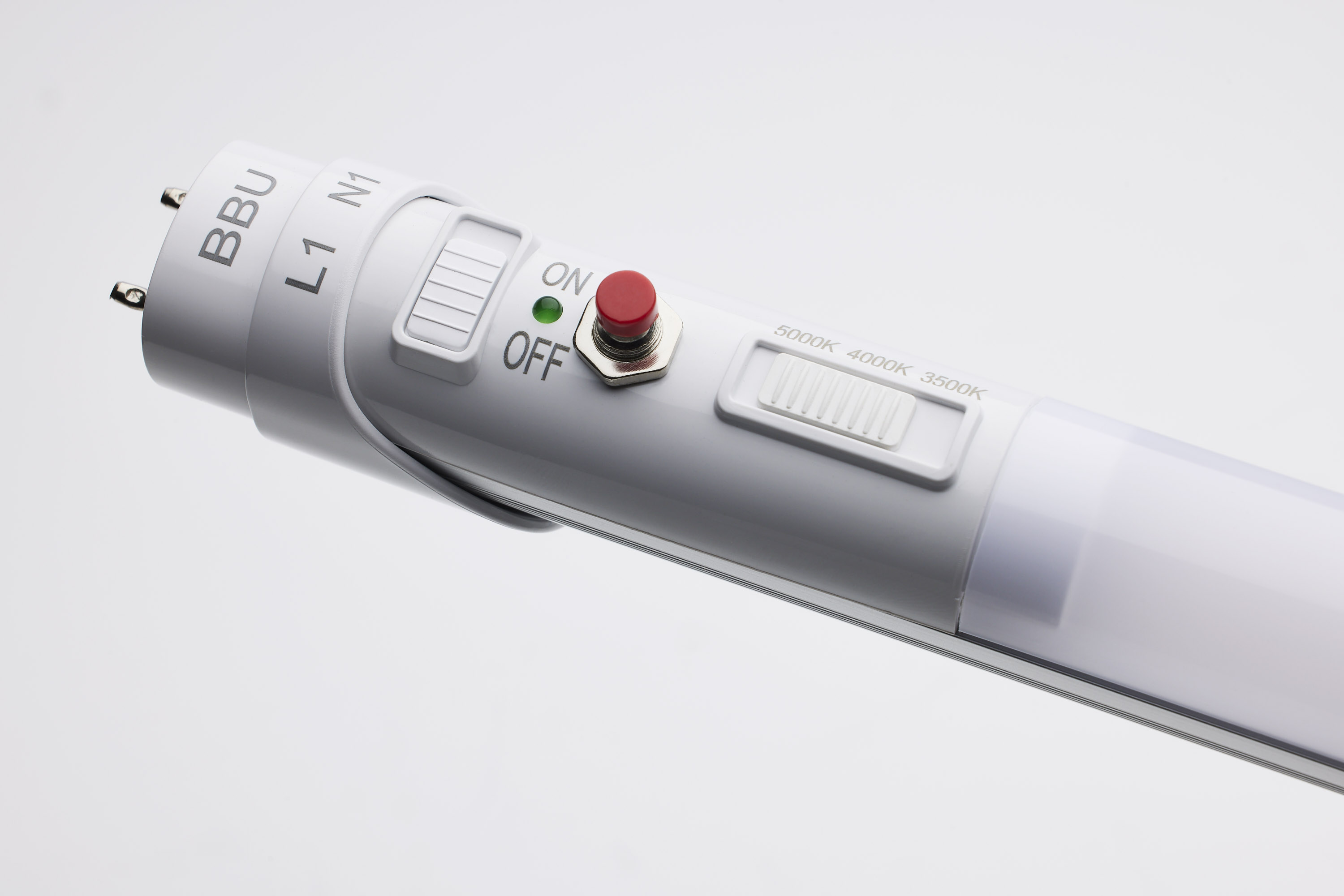

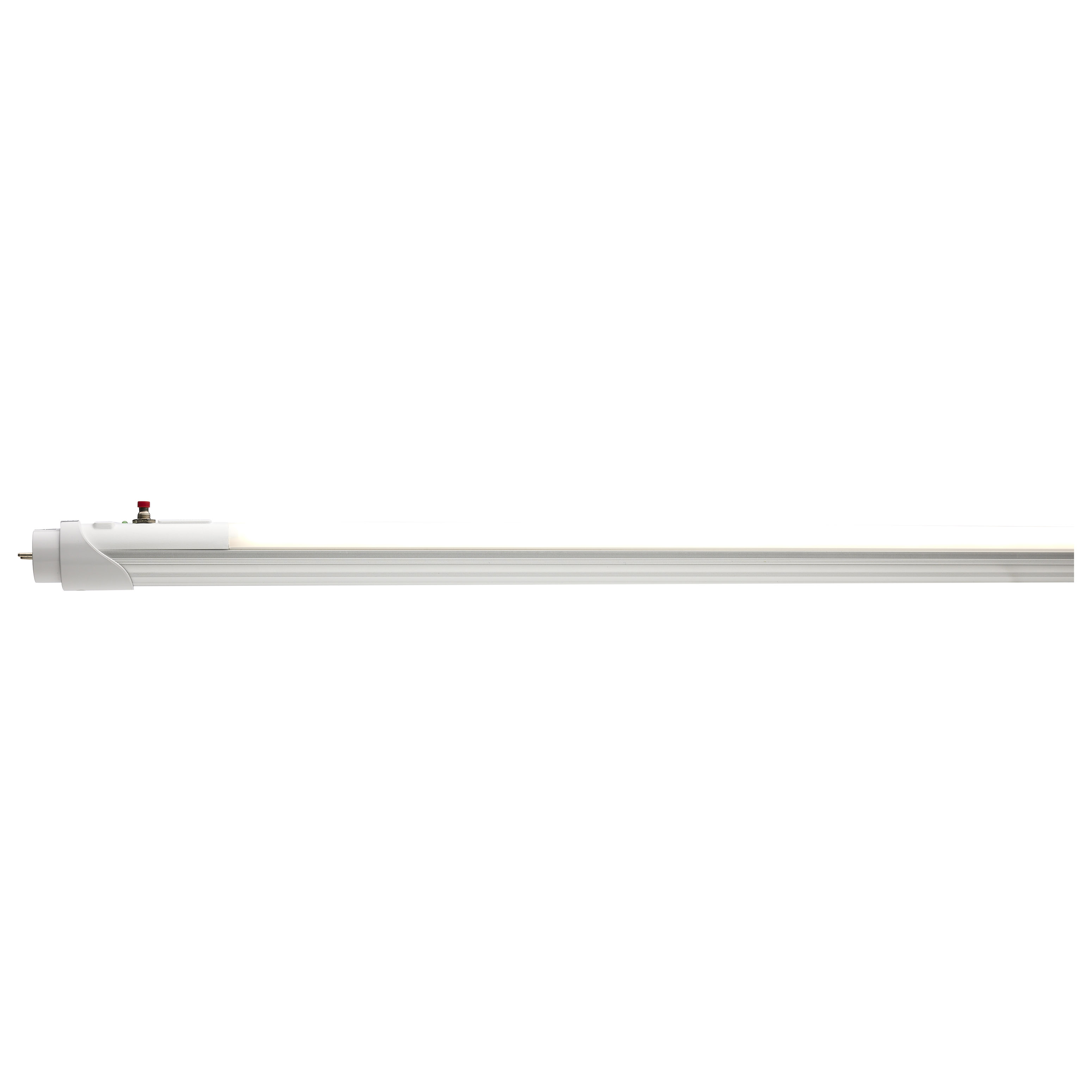

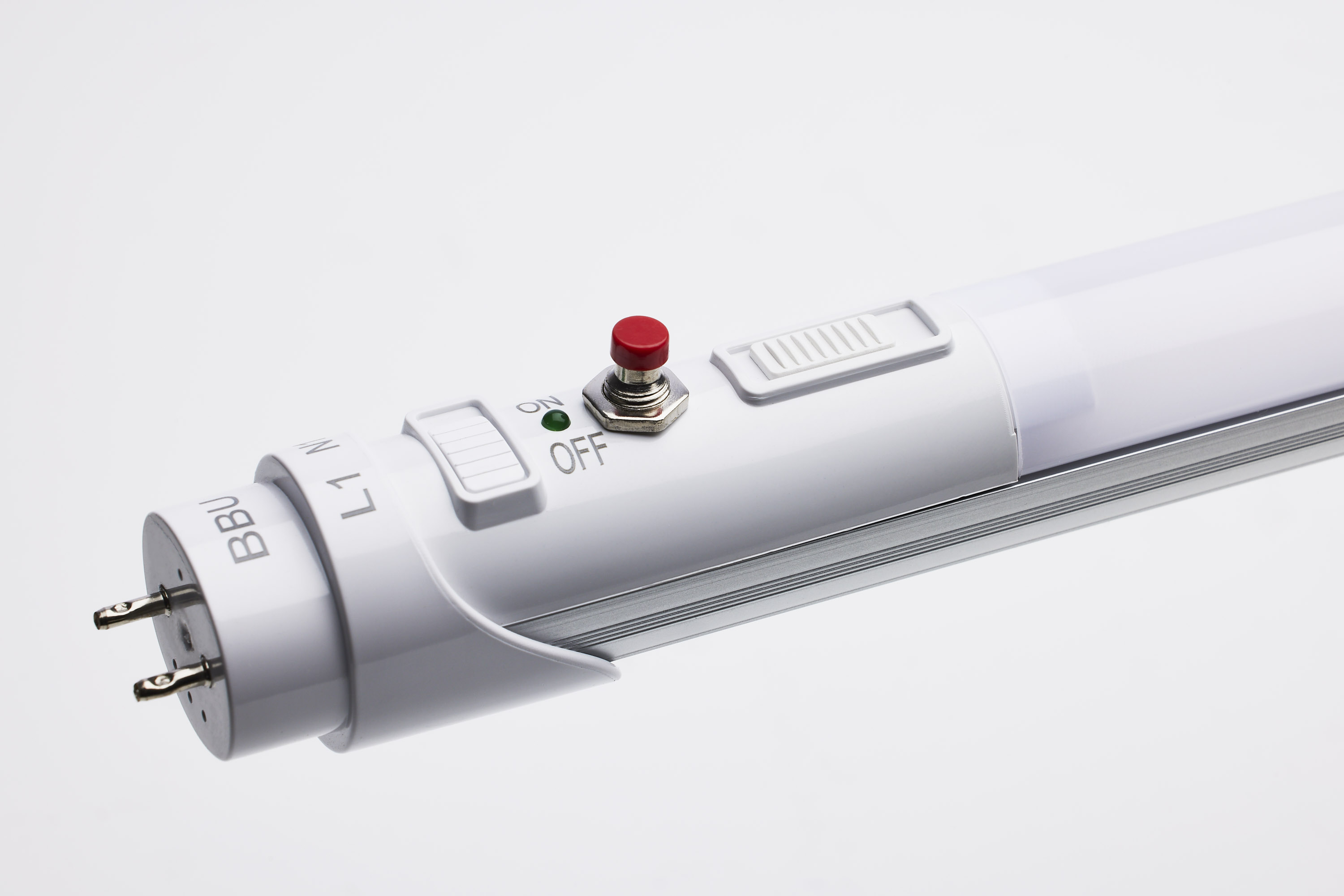

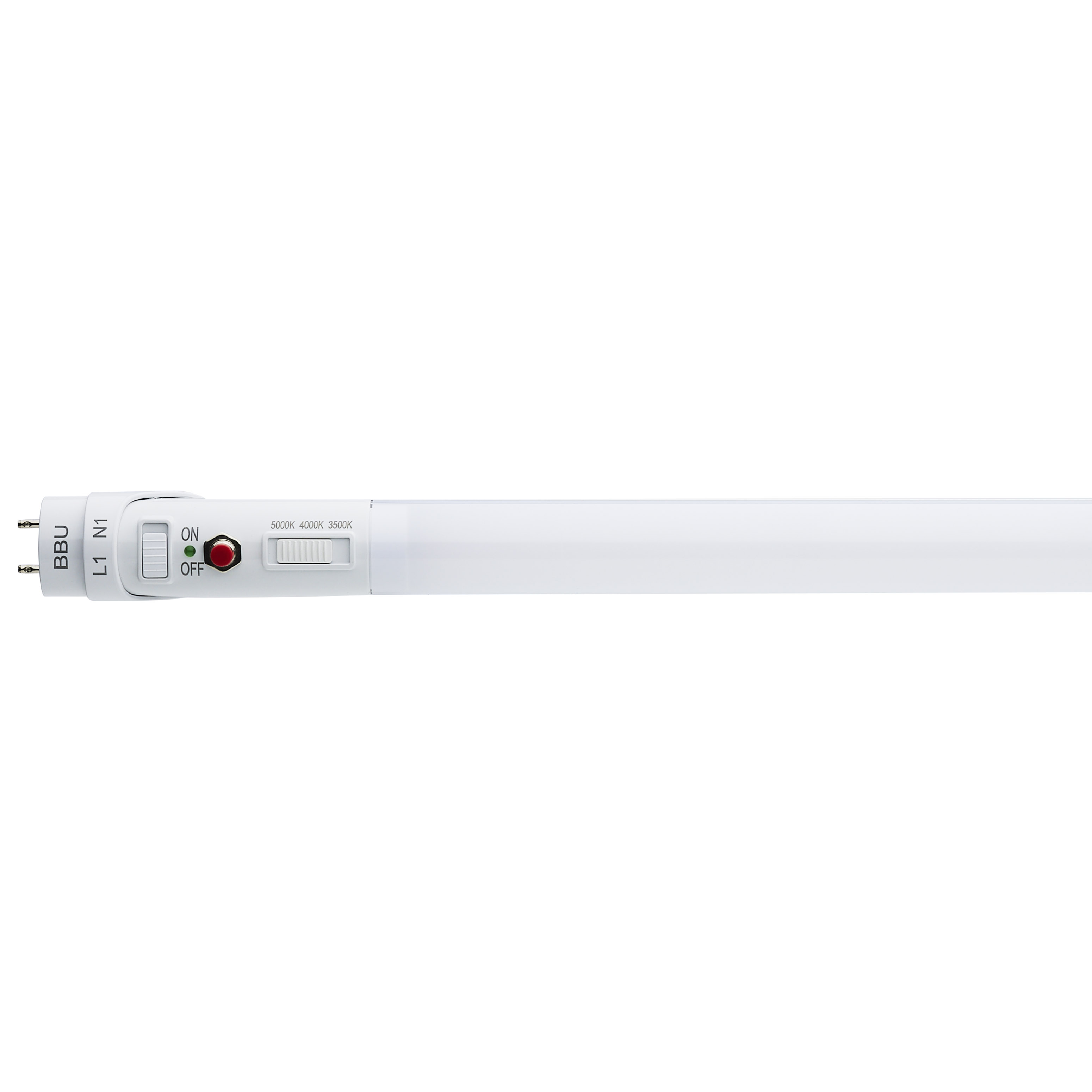

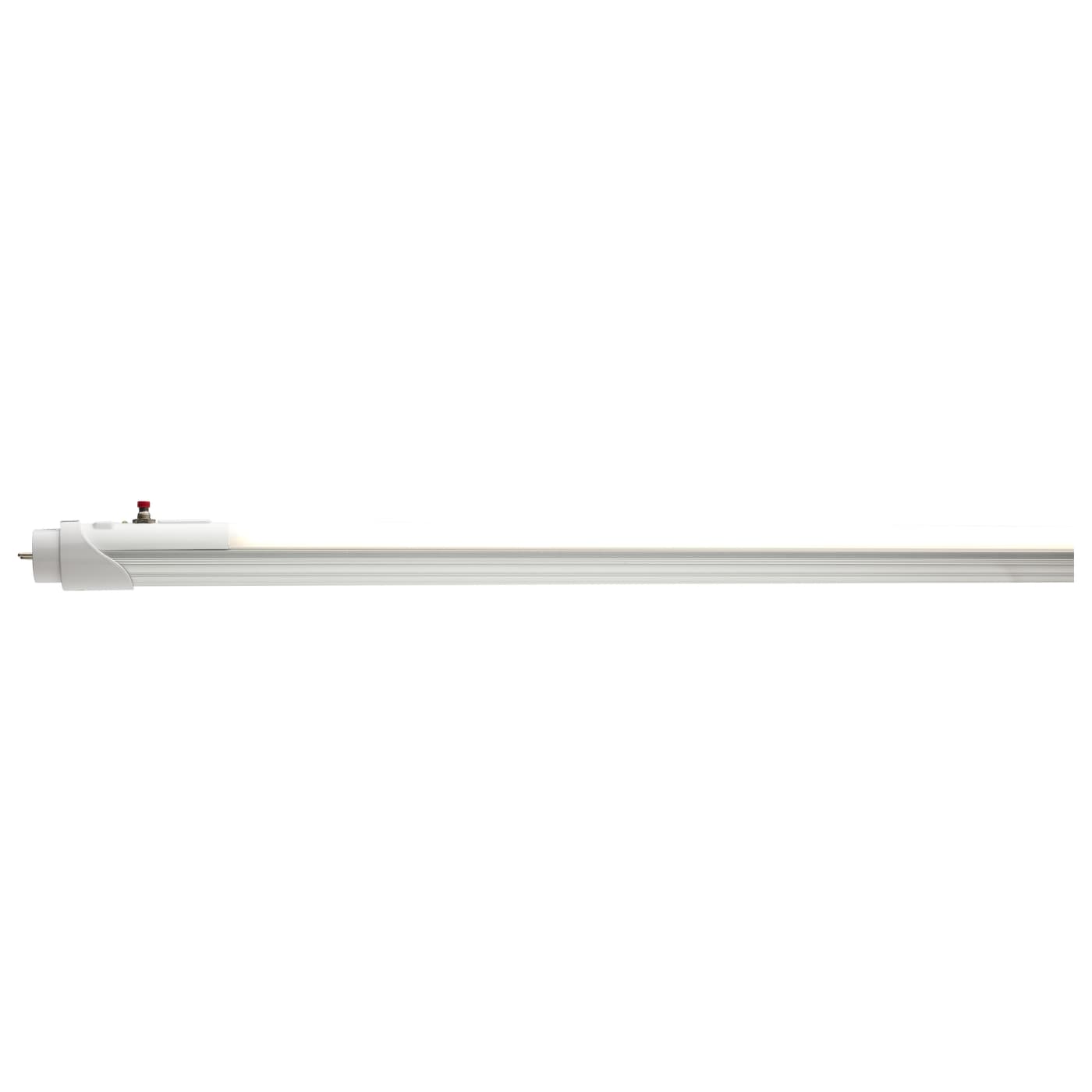

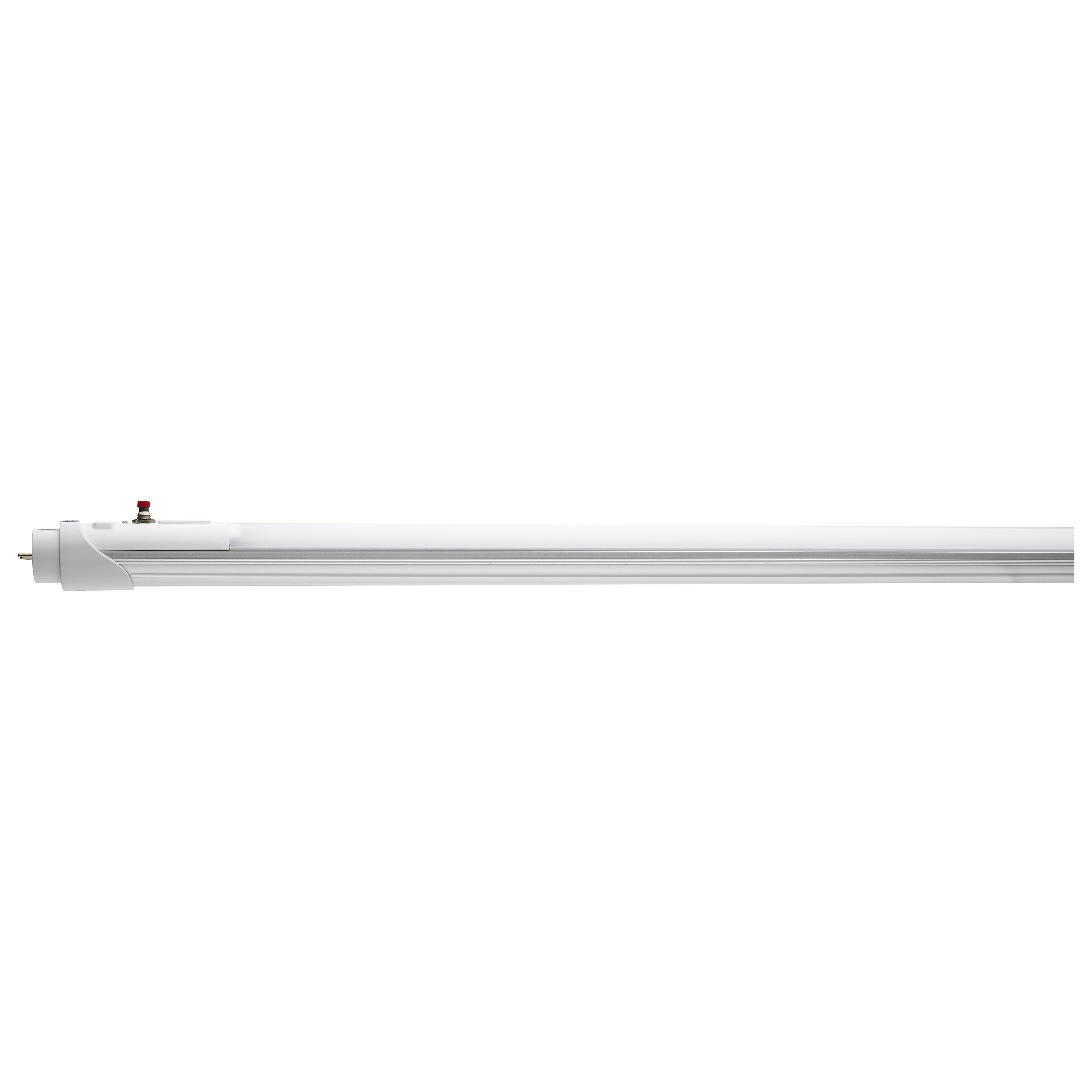

S11731

17T8/LED/48-CCT/BB/BP

  • 17 Watt 48 Inch T8 LED
  • 35K/40K/50K CCT Selectable
  • Ballast Bypass with Battery Backup
  • G13 Base
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11731 SpecificationsS11731 Instructions.pdf
Tools
Lighting Layout Analysis For S11731
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
SATCO NUVO's S11731 T8 lamp with Battery Backup is the logical choice for commercial installations. Providing up to 90-minutes of illumination in the event of a power failure, this lamp is ideal for use where backup lighting is essential. Available in 17W, This lamp is designed to replace our most popular T8 and T12 fluorescent lamps, with the 17W model offering the option of higher lumen output. This new lamp has Increased safety and energy efficiency while reducing maintenance costs with this easy-to-install fluorescent alternative.
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialAluminum
Fixture TypeLinear
Product NotesHeight at switch: 1.30 Inches; Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic Distortion<25%
Tube Guard UseNo
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Additional Info5 Watts and 700 Lumens in Battery Backup Mode
Amps0.142-0.061A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Nominal Length48.0
Operating PositionHorizontal
Power Factor0.9
SDS ClassLithium_Ion_Battery
Shatter Proof TypeYes
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
Hours Rated50000
Beam Angle (degree)140
Color TempNeutral White to Natural Light
CRI80+
Operating Frequency60Hz
Operating Temp-4F to +113F (-20C to +45C)

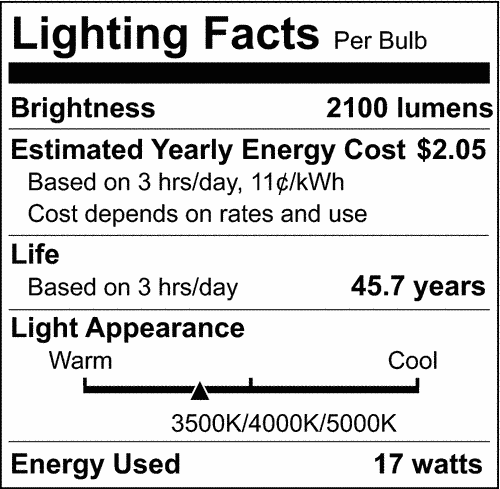

Lumens2100L/2300L/2200L
Volts120V-277V
Watts17W
Max Lumens2300L
Battery ChemistryLithium-ion (Li-ion)
Physical
Lamp BaseMedium Bi Pin
FinishWHITE
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.13

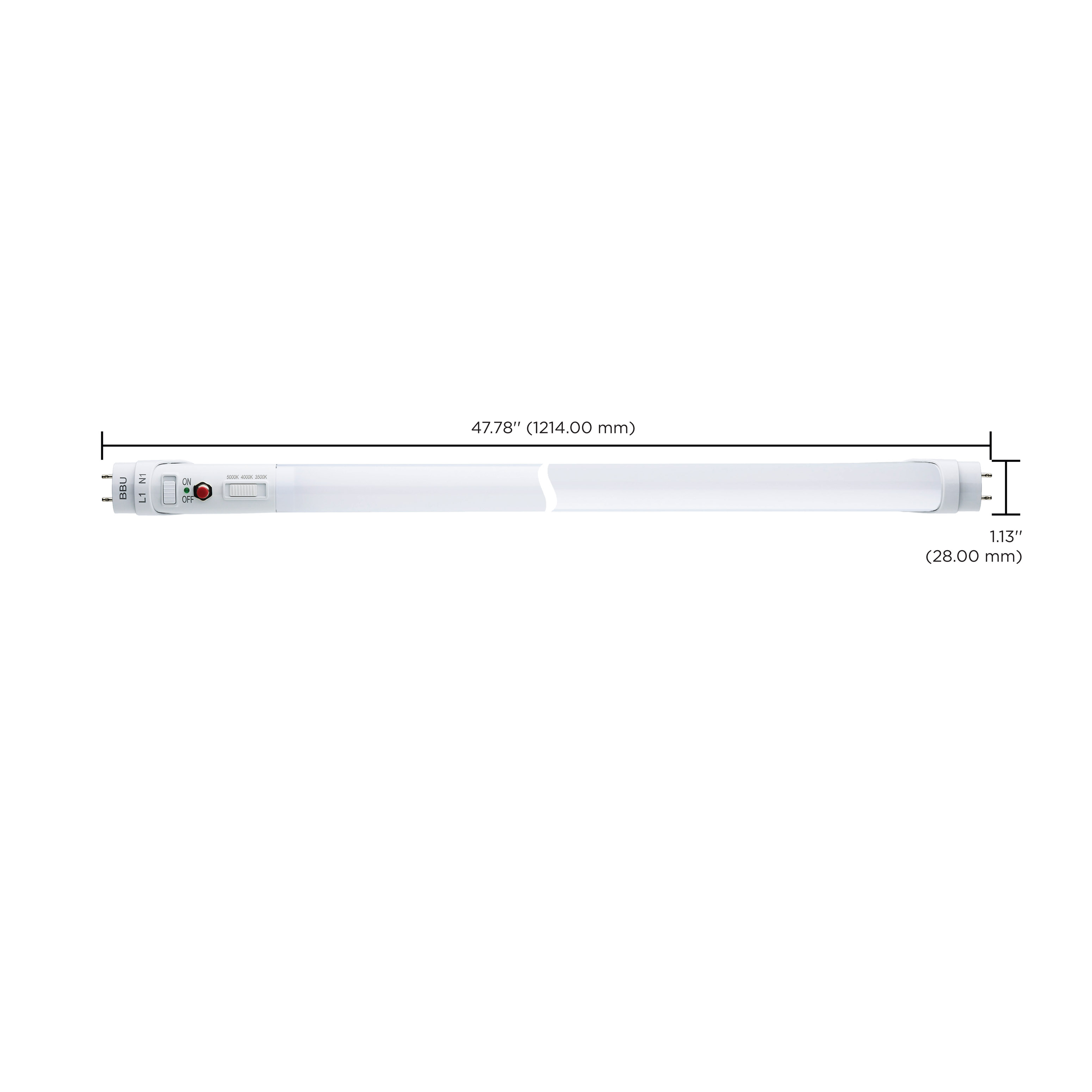

MOL47.78
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Maximum Mounting Height: 13 Feet
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-MASCZT
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
DLC ApprovedYes
Title 20Pending
T24/JA8 CompliantNo
Packaging
UPC045923117312
Case Cube2.0275
Case Height6.5
Case Length49.0
Case Quantity20
Case UPC10045923117319
Case Weight26.5
Case Width11.0
EA Cube0.0765
EA Height1.34
EA Length48.11
EA Quantity1
EA Weight1.19
EA Width2.05
Pack TypeBox
Web Length47.78
Web Width1.13
