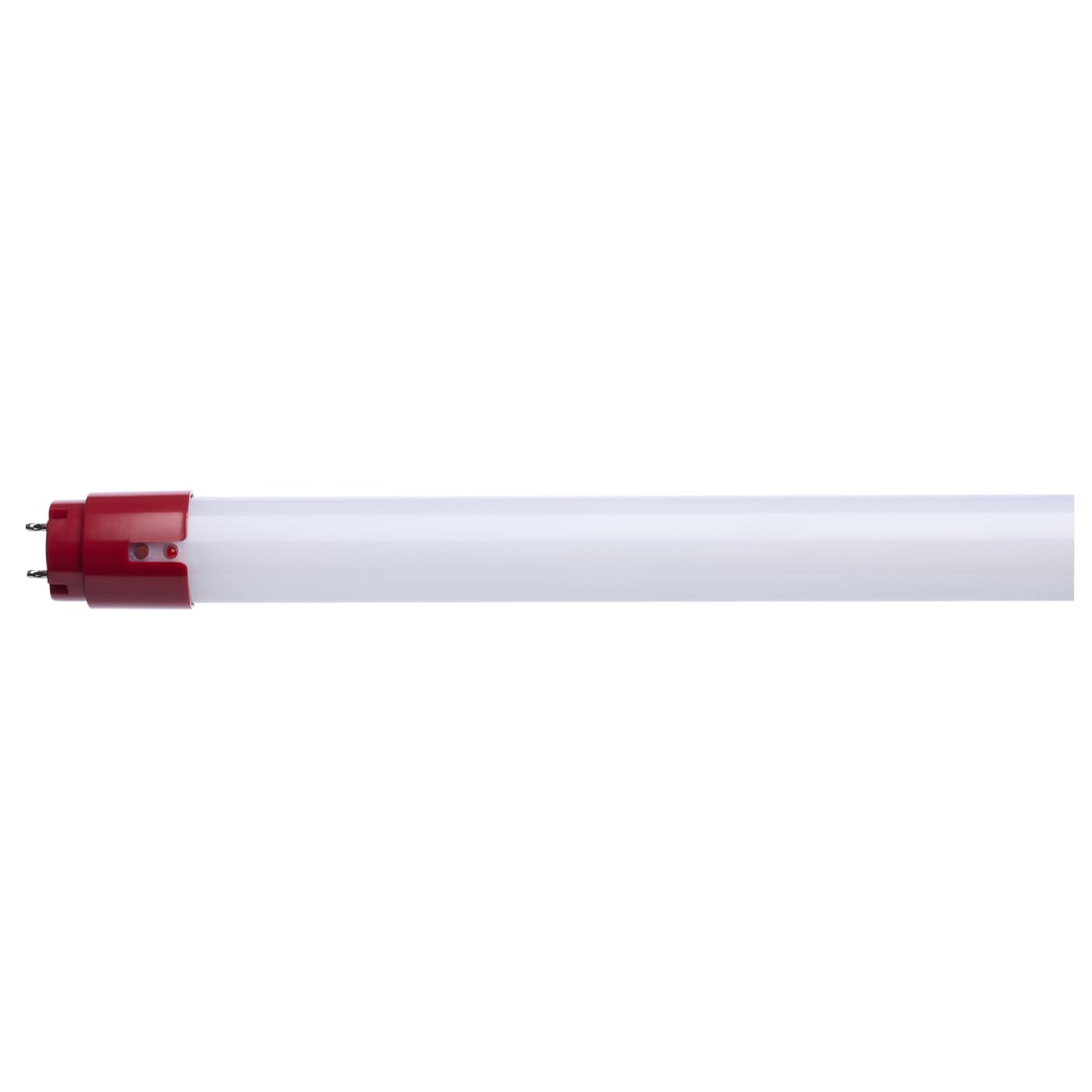

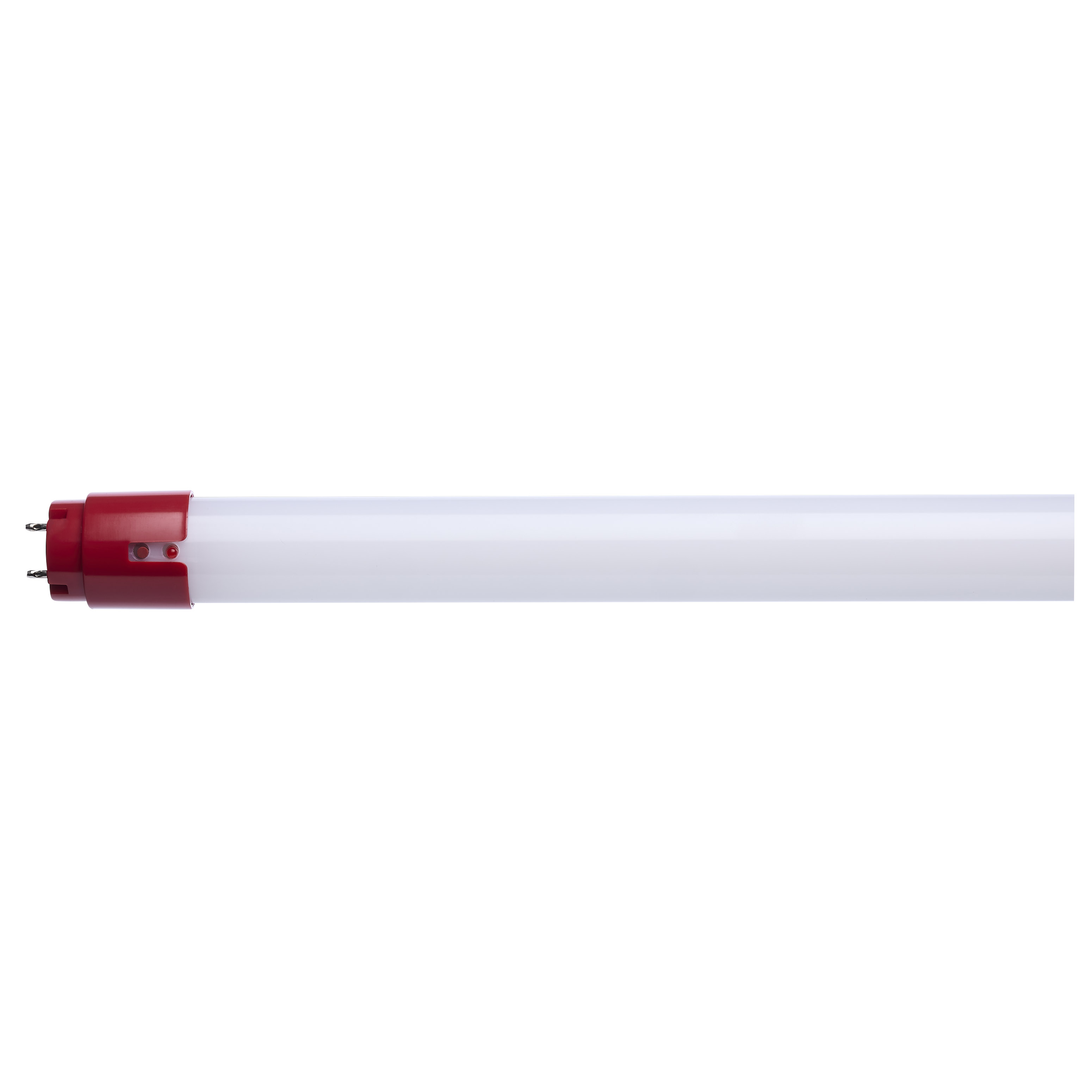

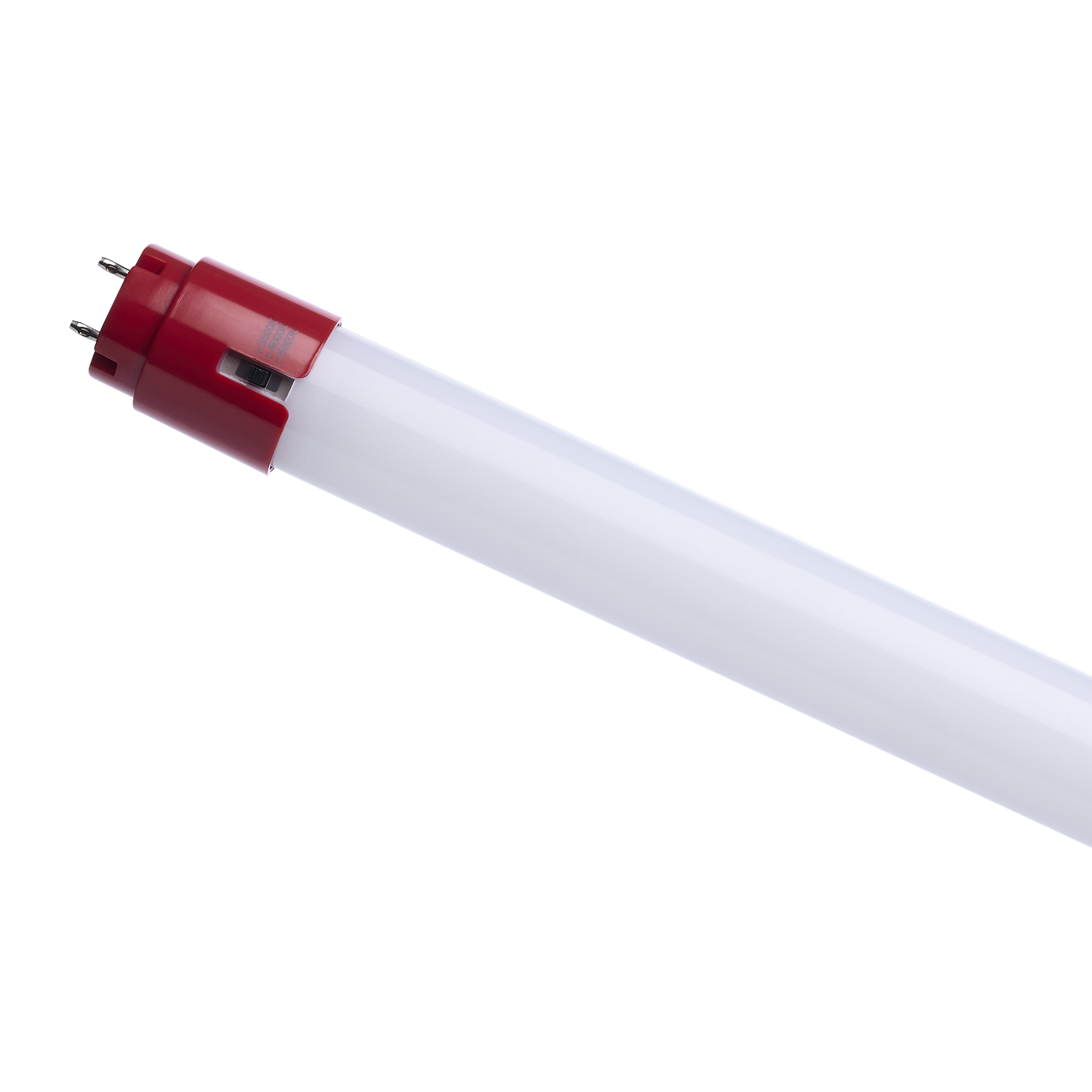

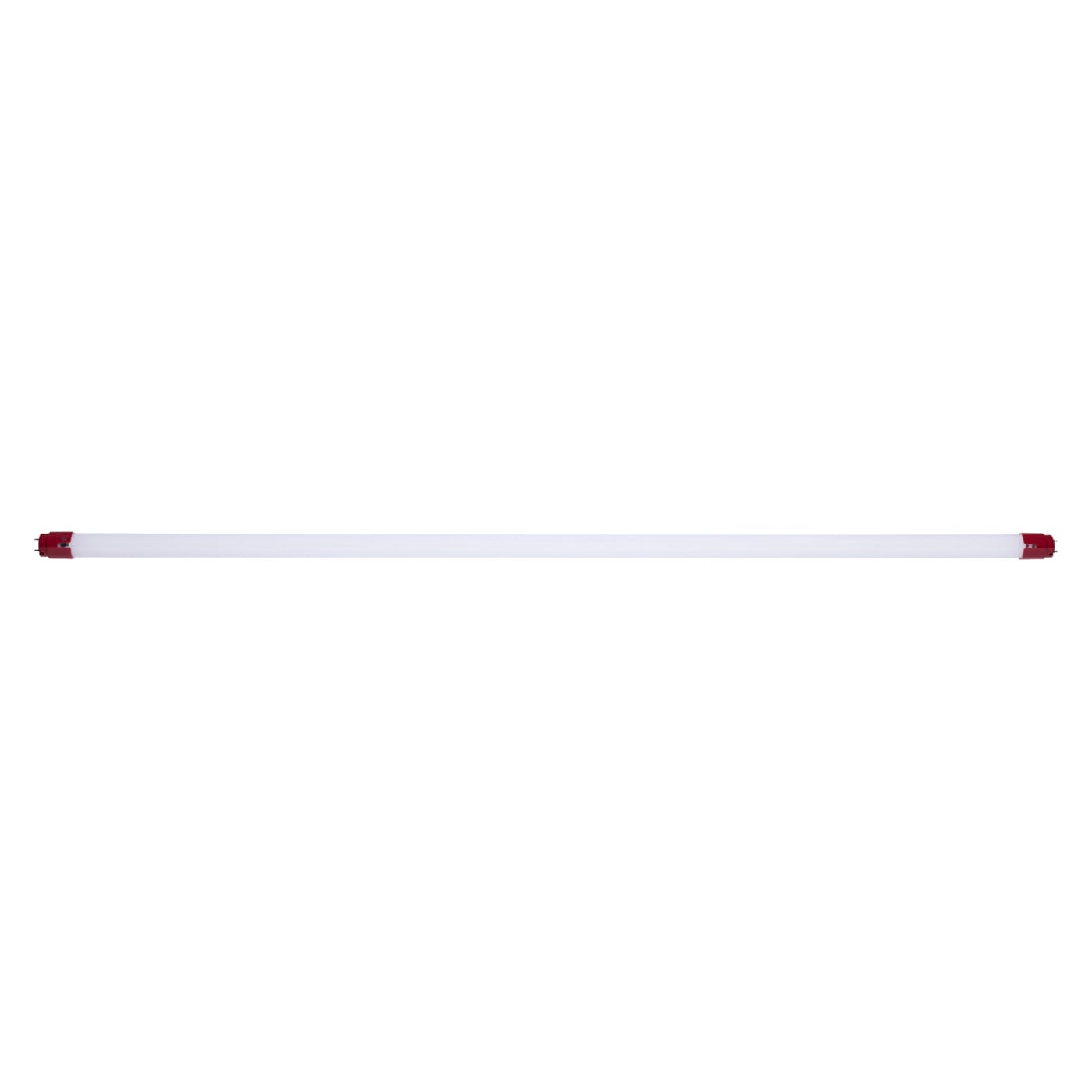

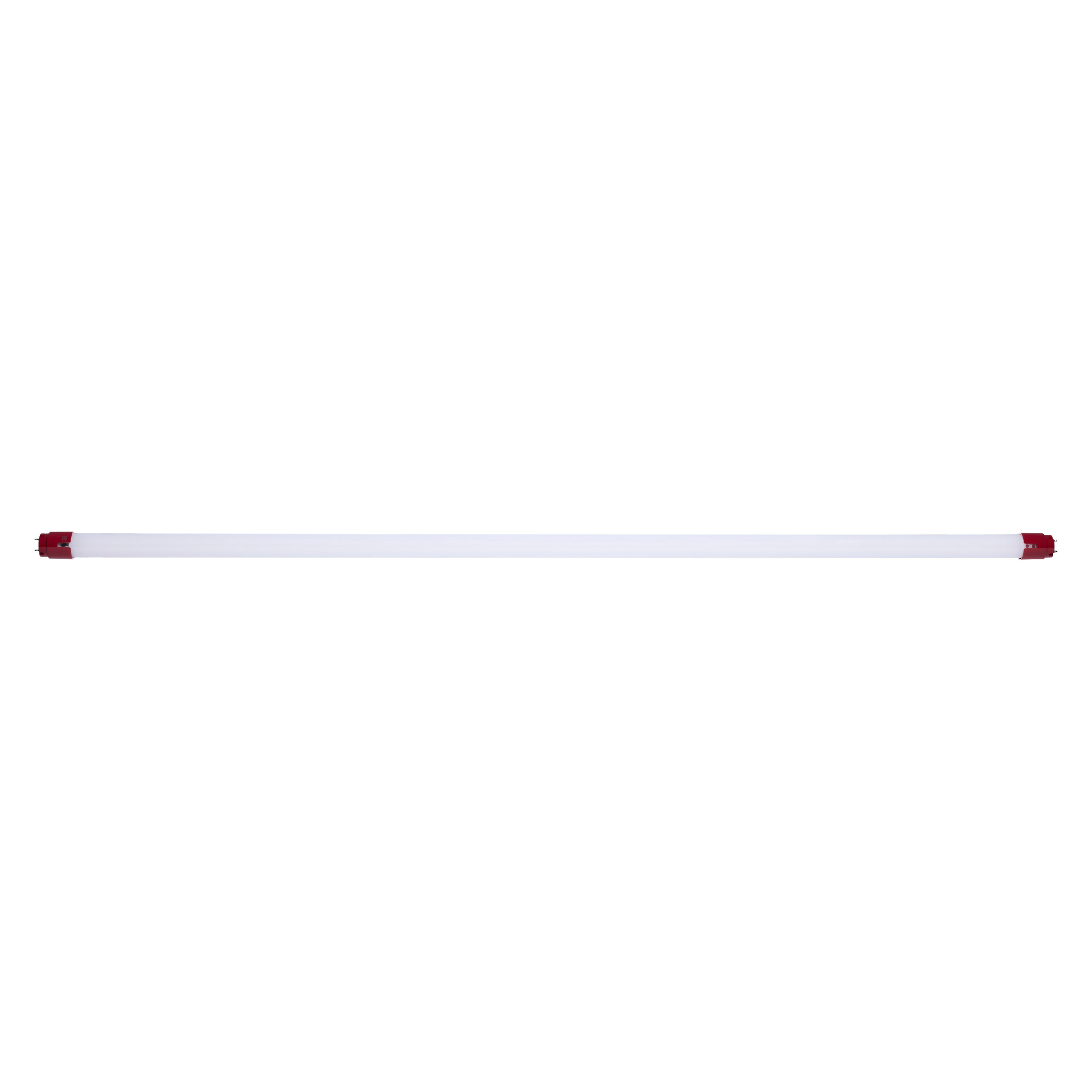

S11732

15WT8/LED/CCT/EM/BP

  • 15 Watt T8 LED
  • 48 Inch
  • 35K/40K/50K CCT Selectable
  • Medium Bi Pin Base
  • Type B Ballast Bypass
  • 120-277V
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
title_20^y^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11732 SpecificationsS11732 InstructionsSN1810 15W T8 LED CCT EM PI 4-30-25
Description
Description
15 Watt T8 LED; 48 Inch; 35K/40K/50K CCT Selectable; Medium Bi Pin Base; Type B Ballast Bypass; 120-277V
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
CA RegulationsT20 Listed
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLinear
Product NotesWork time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
StatusActive
Total Harmonic Distortion<25%
Tube Guard UseFALSE
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyFrost
Additional Info3.5 Watts and 500 Lumens in Emergency Mode
Amps0.125-0.054A
Has CameraFalse
IOT EnabledFalse
Leg Spacing0.51
Starfish No Switching Cycles1000
Nominal Length48.0
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)140
Color TempNeutral White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp0C (+32F) to +45C (+113F)

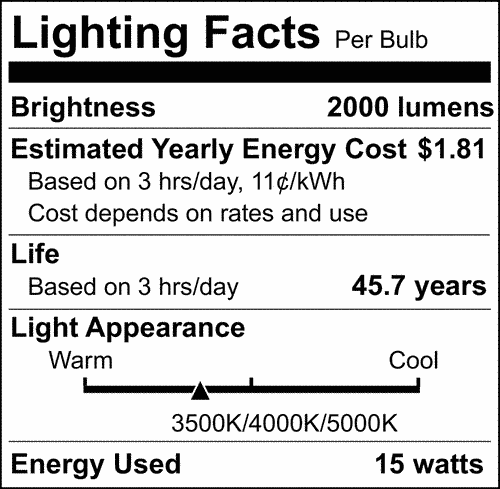

Lumens2000L
Volts120V-277V
Watts15W
Physical
Lamp BaseMedium Bi Pin
FinishFrost
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.16
MOL47.78
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Maximum Mounting Height: 13 Feet
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
DLC IDS-ZM2STB
FCC CompliantTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Yes
T24 CompliantFalse
Packaging
UPC045923117329
Case Cube1.8923
Case Height8.07
Case Length52.76
Case Quantity12
Case UPC10045923117326
Case Weight1.76
Case Width7.68
EA Cube0.0568
EA Height1.38
EA Length51.57
EA Quantity1
EA Weight1.15
EA Width1.38
Inner Cube0.0
Pack TypeSleeve
Web Length47.78
Web Width1.16
