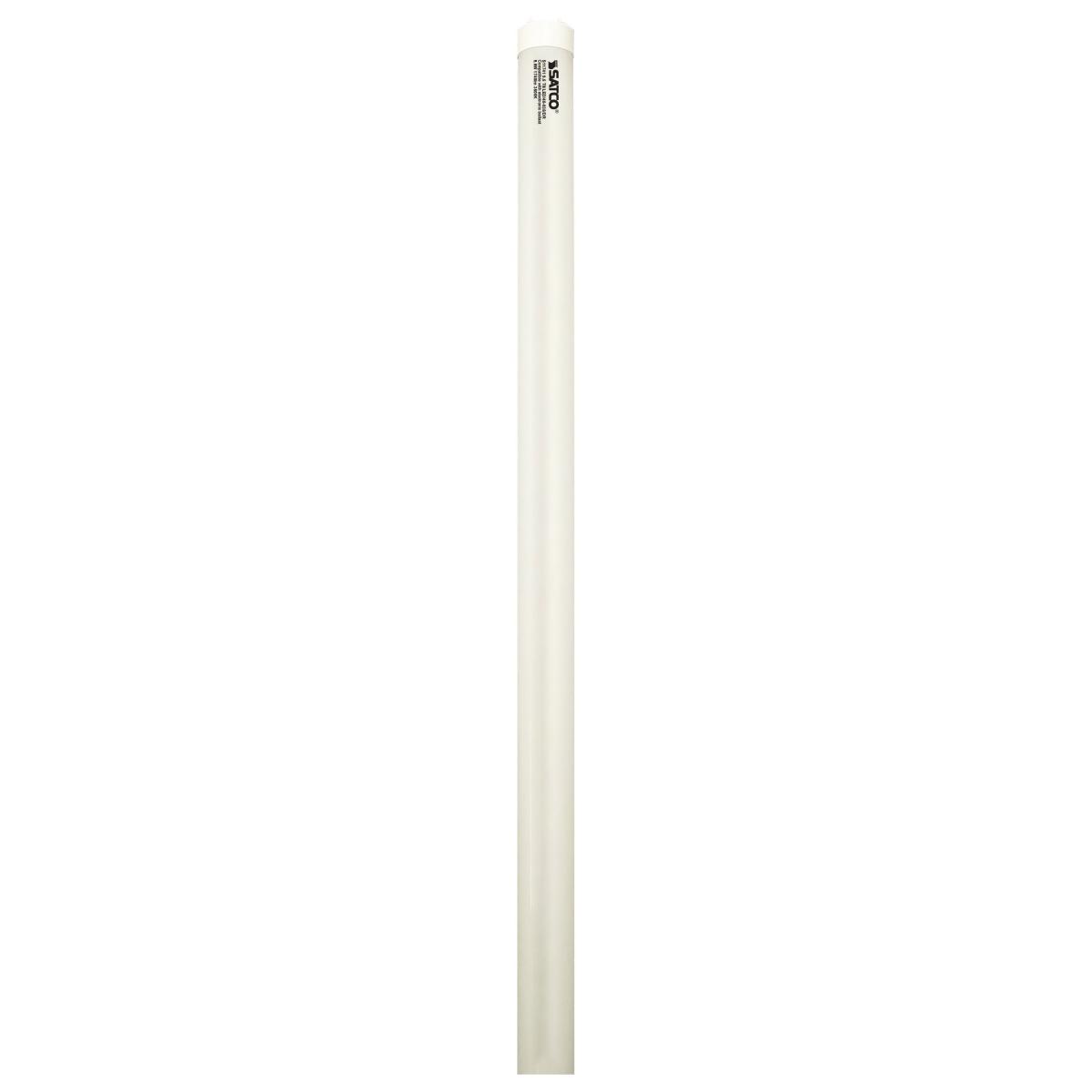

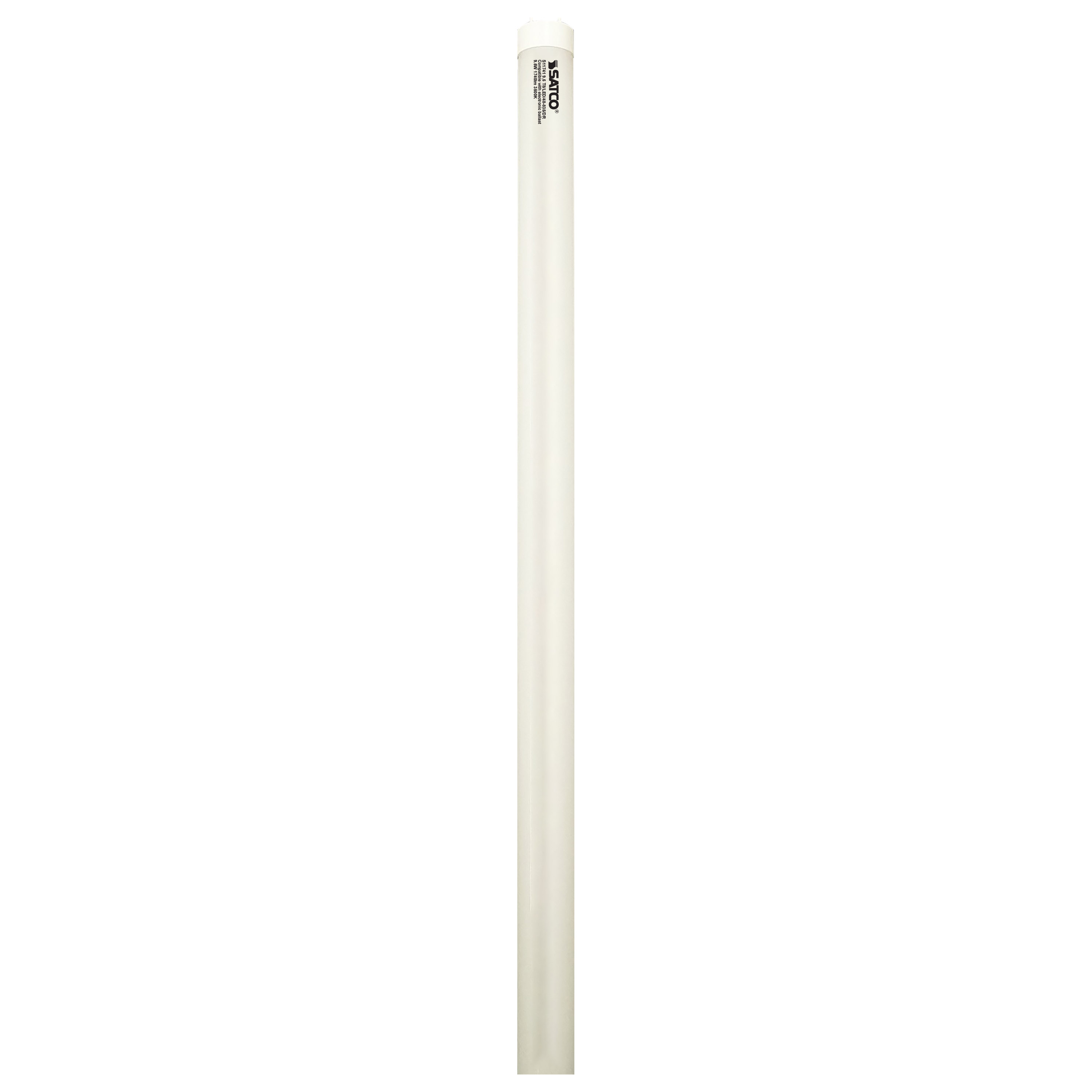

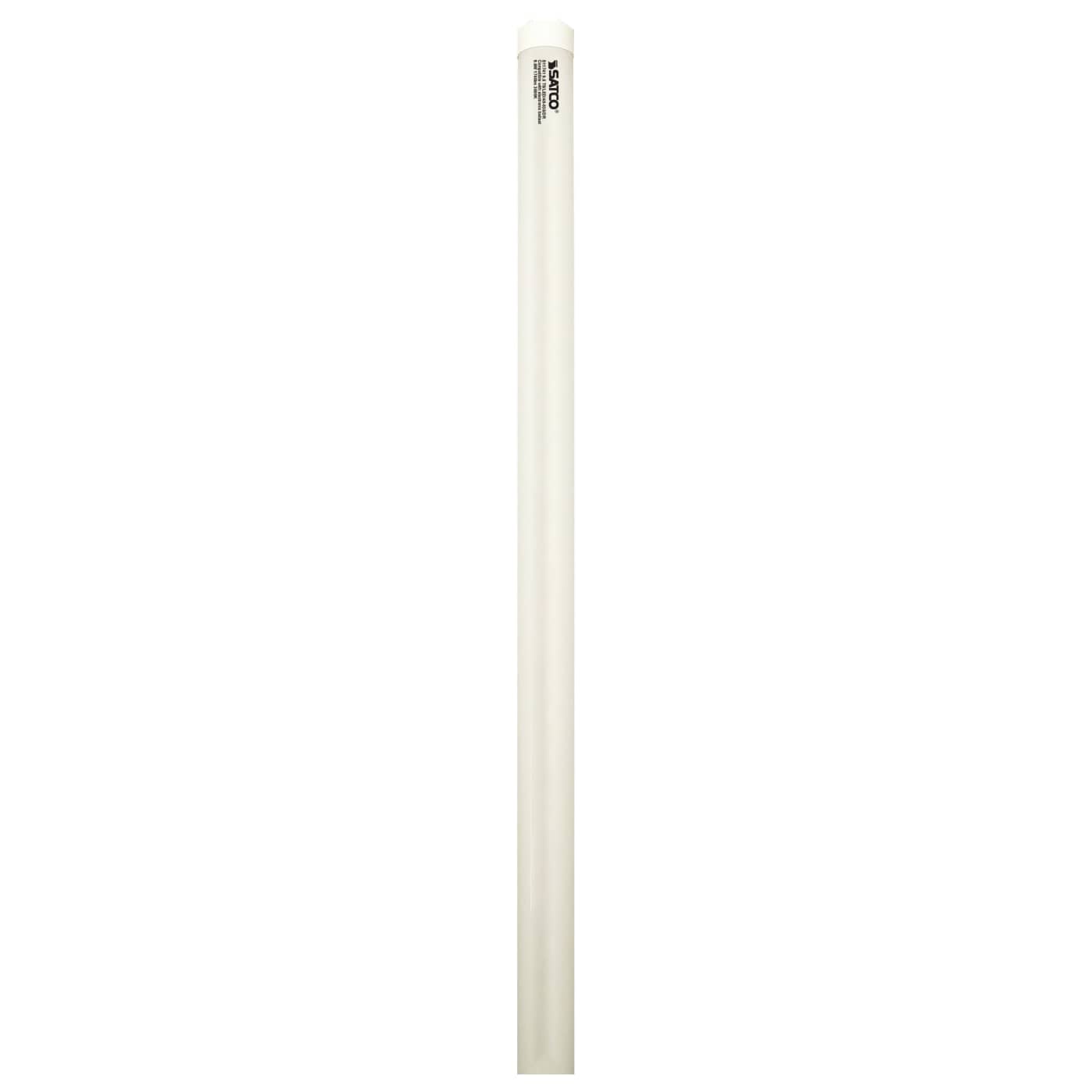

S11741 9.5/T8/LED/48-835/DR

S11741

9.5/T8/LED/48-835/DR

9.5 Watt; 4 Foot; T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours; 1740 Lumens; Type A; Ballast dependent

Lights

S11741

9.5/T8/LED/48-835/DR

9.5 Watt; 4 Foot; T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours; 1740 Lumens; Type A; Ballast dependent

Specifications

General
StatusActive
Watts9.5W
Fluorescent Equivalent32W/30W/28W/25W
Volts120V-277V
Ballast TypeType A
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48.00
FinishGloss
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1740L
Beam Spread210
DimmableYes-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts9.5W
Fluorescent Equivalent32W/30W/28W/25W
Volts120V-277V
Ballasting RequirementsBallast required. Direct Replacement-for use on Instant Start and Rapid Start ballasts with no rewiring required.May not be compatible with every ballast. Refer to the ballast compatibility chart
Ballast TypeType A
Operating Frequency50/60 Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1740L
Beam Spread210
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48.00
MOD1.00
Nominal Length48.00
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss
MaterialGlass
Housing ColorWhite
Weight (lb.)0.42
Additional Information
Specification NoteSurge Protection
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Listed; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLF1P8J2E81G
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923117411
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.51
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923117418
Case Quantity25
Case Length (in.)50.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)12.70
Case Cube (CuFt.)1.0417
×
×

Ballast Compatibility

Name Type View
LED Linear S11741 Ballasts View
×

Precautions

No precautions available at this time.

×
