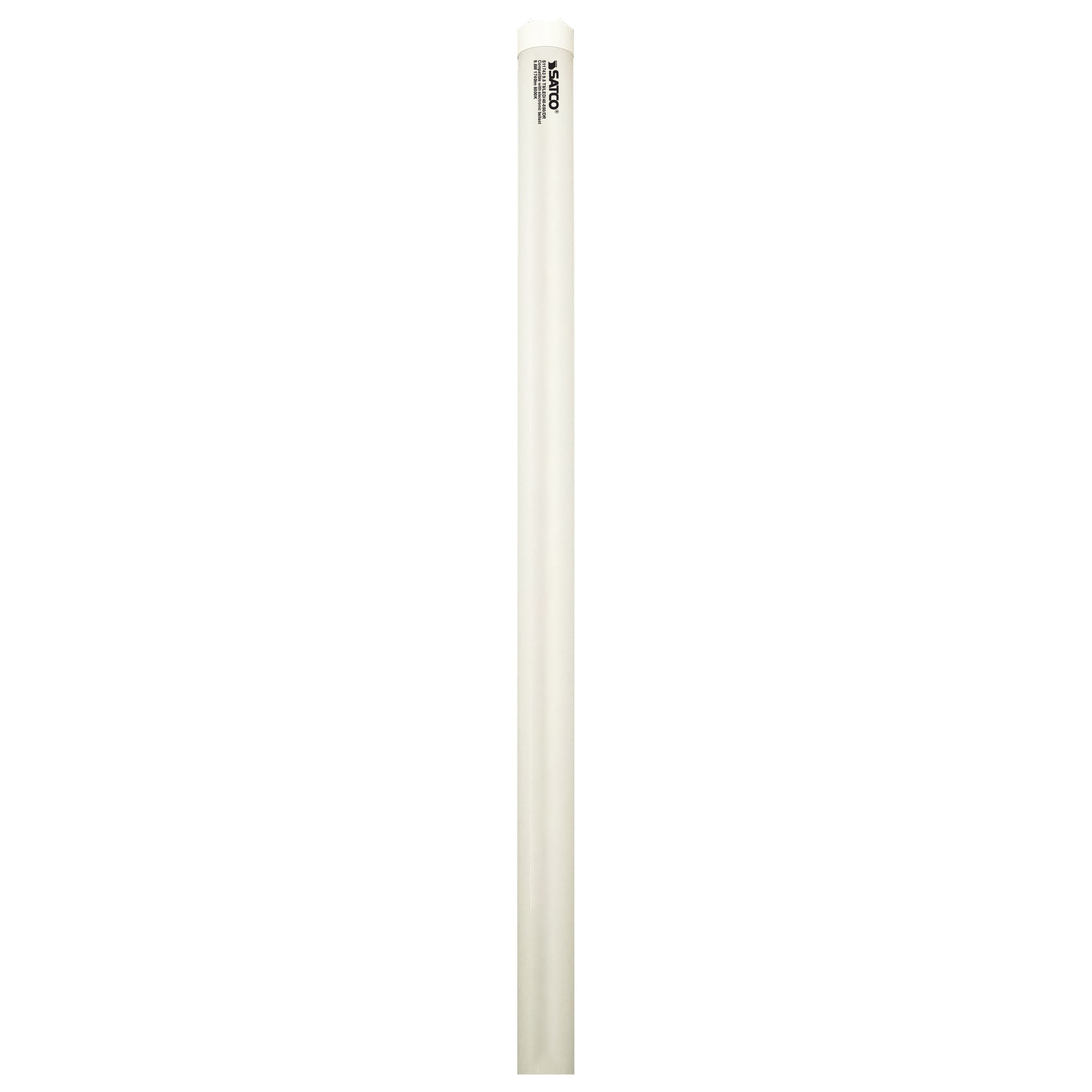

S11743 9.5/T8/LED/48-850/DR

S11743

9.5/T8/LED/48-850/DR

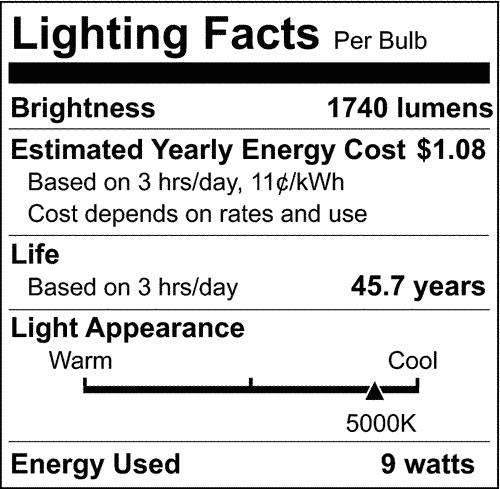

9.5 Watt; 4 Foot; T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1740 Lumens; Type A; Ballast dependent

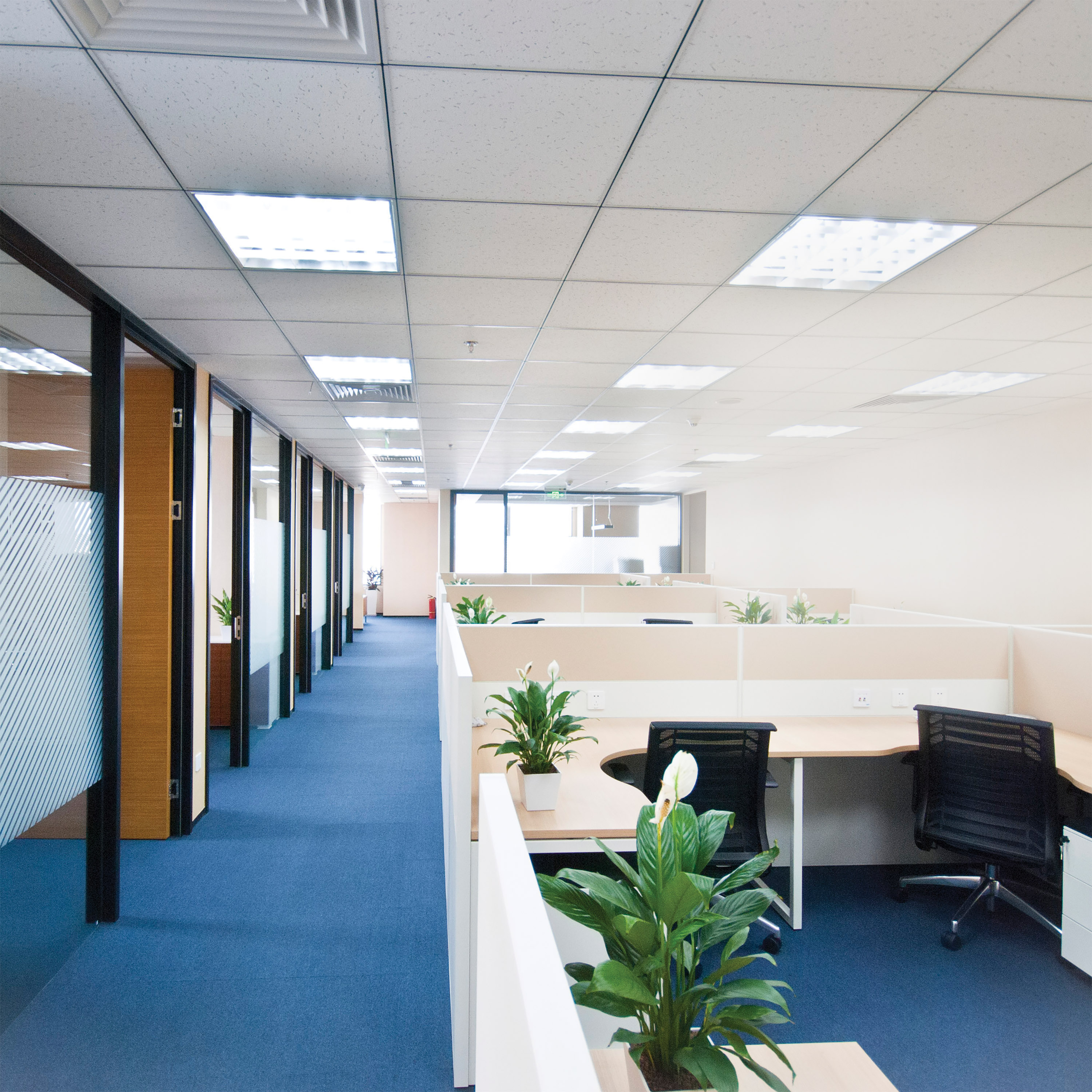

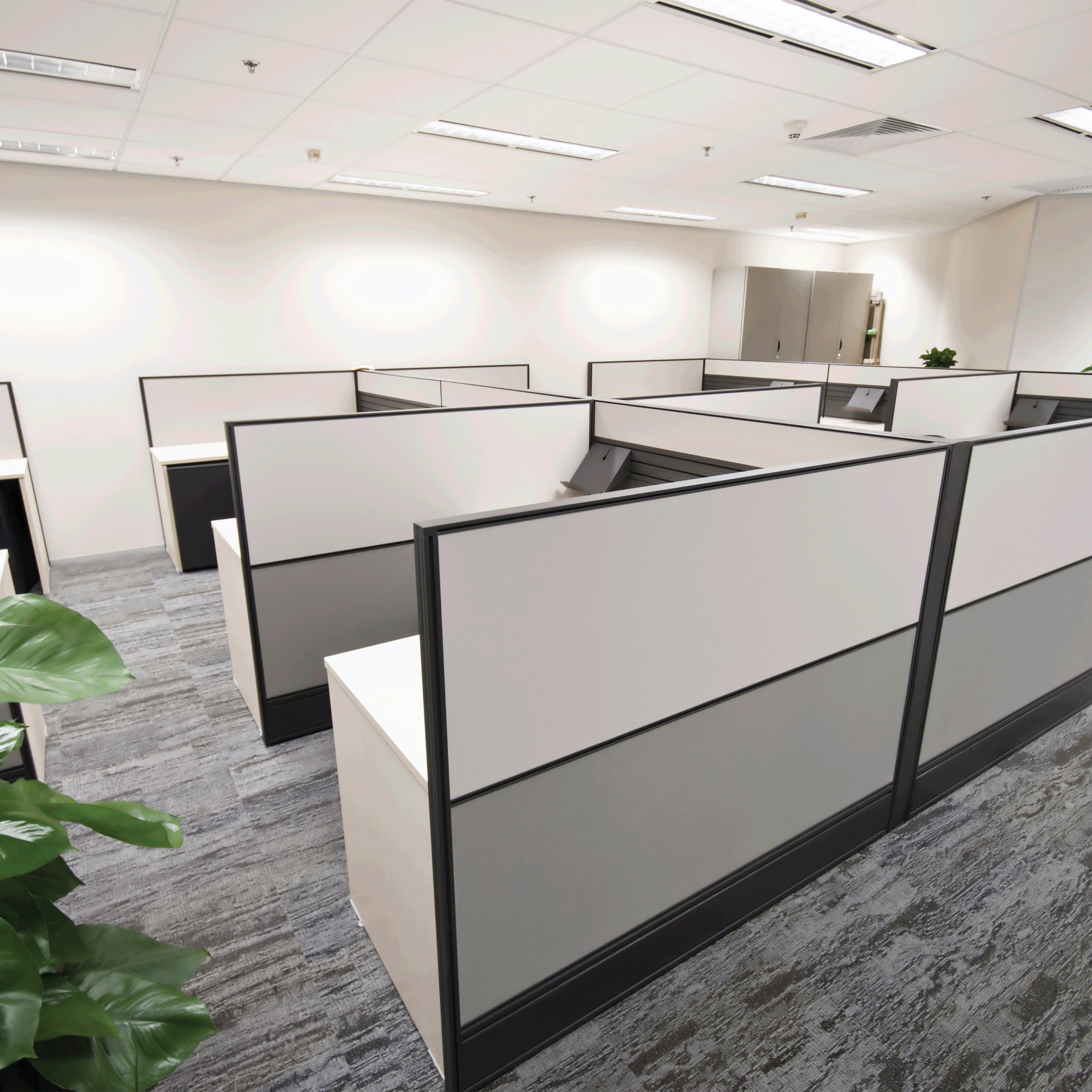

SATCO|NUVO's 9.5-watt, 5000K T8 fluorescent replacement lamp allows the fixture to maintain its original UL and CSA compliance while delivering efficient LED lighting. This lamp provides 50,000 hours of natural light. Commercial, health care, hospitality, and educational venues can all realize the immediate benefits and savings LED light offers.
  • Up to 183 lumens per watt (LPW)
  • All glass tubes - no aging, yellowing, or bending
  • Compatible with most instant start, rapid start T8 electronic ballasts
  • Damp location rated
  • DLC 5.1 certified
  • Integrated thermal fuse at pins
  • Operating Temperature: -20C (-4F) to a maximum of 45C (113F)
  • Long life - Rated for 50,000 hours
Lights

S11743

9.5/T8/LED/48-850/DR

9.5 Watt; 4 Foot; T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1740 Lumens; Type A; Ballast dependent

SATCO|NUVO's 9.5-watt, 5000K T8 fluorescent replacement lamp allows the fixture to maintain its original UL and CSA compliance while delivering efficient LED lighting. This lamp provides 50,000 hours of natural light. Commercial, health care, hospitality, and educational venues can all realize the immediate benefits and savings LED light offers.
  • Up to 183 lumens per watt (LPW)
  • All glass tubes - no aging, yellowing, or bending
  • Compatible with most instant start, rapid start T8 electronic ballasts
  • Damp location rated
  • DLC 5.1 certified
  • Integrated thermal fuse at pins
  • Operating Temperature: -20C (-4F) to a maximum of 45C (113F)
  • Long life - Rated for 50,000 hours

Specifications

General
StatusActive
SubstituteS11743R1
Watts9.5W
Incandescent Equivalent75W
Fluorescent Equivalent32W/30W/28W/25W
Volts120V-277V
Ballast TypeType A
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1740L
Beam Spread210
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts9.5W
Incandescent Equivalent75W
Fluorescent Equivalent32W/30W/28W/25W
Volts120V-277V
Ballasting RequirementsBallast required. Direct Replacement-for use on Instant Start and Rapid Start ballasts with no rewiring required.May not be compatible with every ballast. Refer to the ballast compatibility chart
Ballast TypeType A
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1740L
Beam Spread210
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss
MaterialGlass
Housing ColorWhite
Weight (lb.)0.42
Additional Information
Installation NotesNot for use in vapor tight fixtures.
Specification NoteSurge Protection
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPL2JWH754LKM
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923117435
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.51
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923117432
Case Quantity25
Case Length (in.)50.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)12.70
Case Cube (CuFt.)1.0417
×
×

Ballast Compatibility

Name Type View
LED Linear S11743 Ballasts View
×

Precautions

No precautions available at this time.

×
