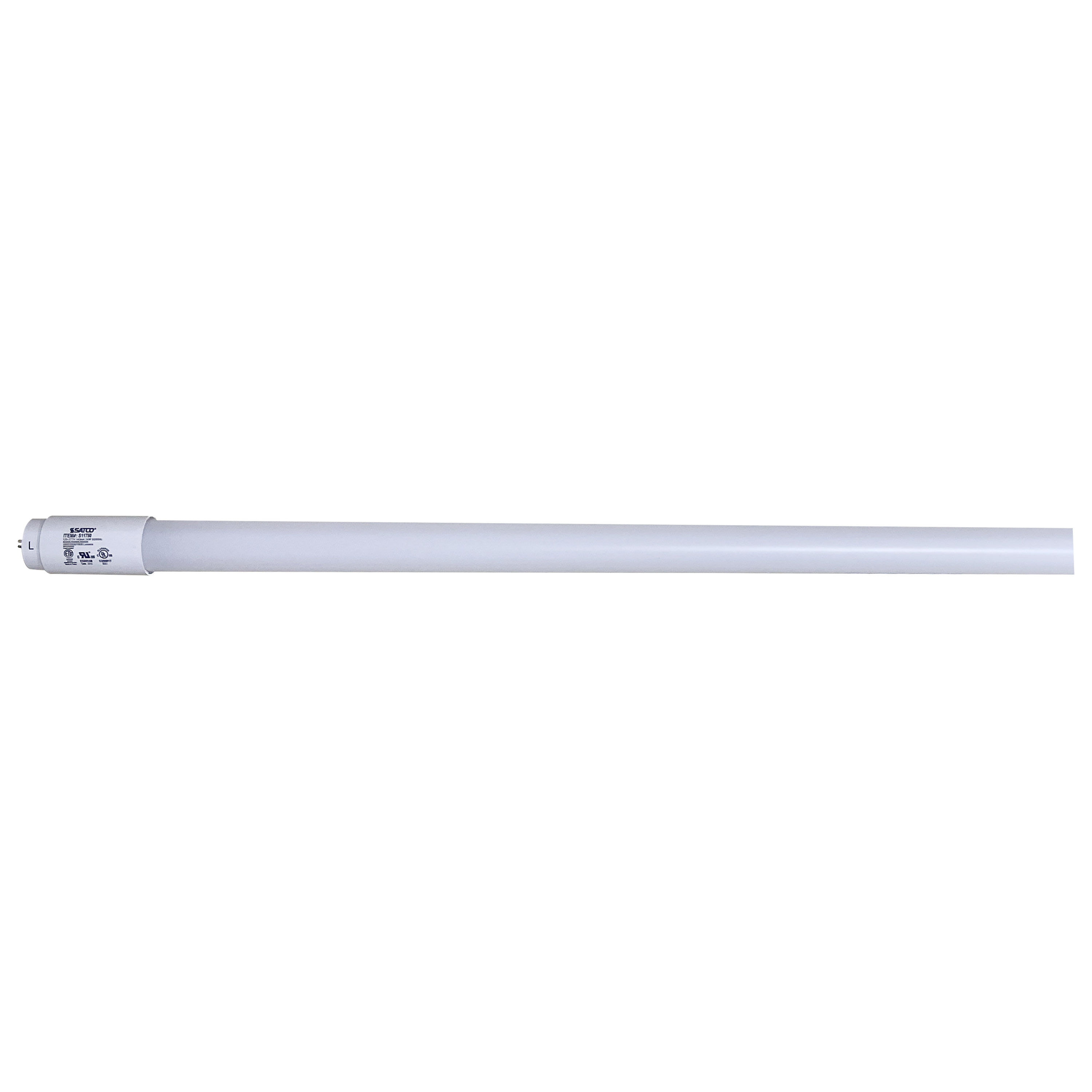

S11750

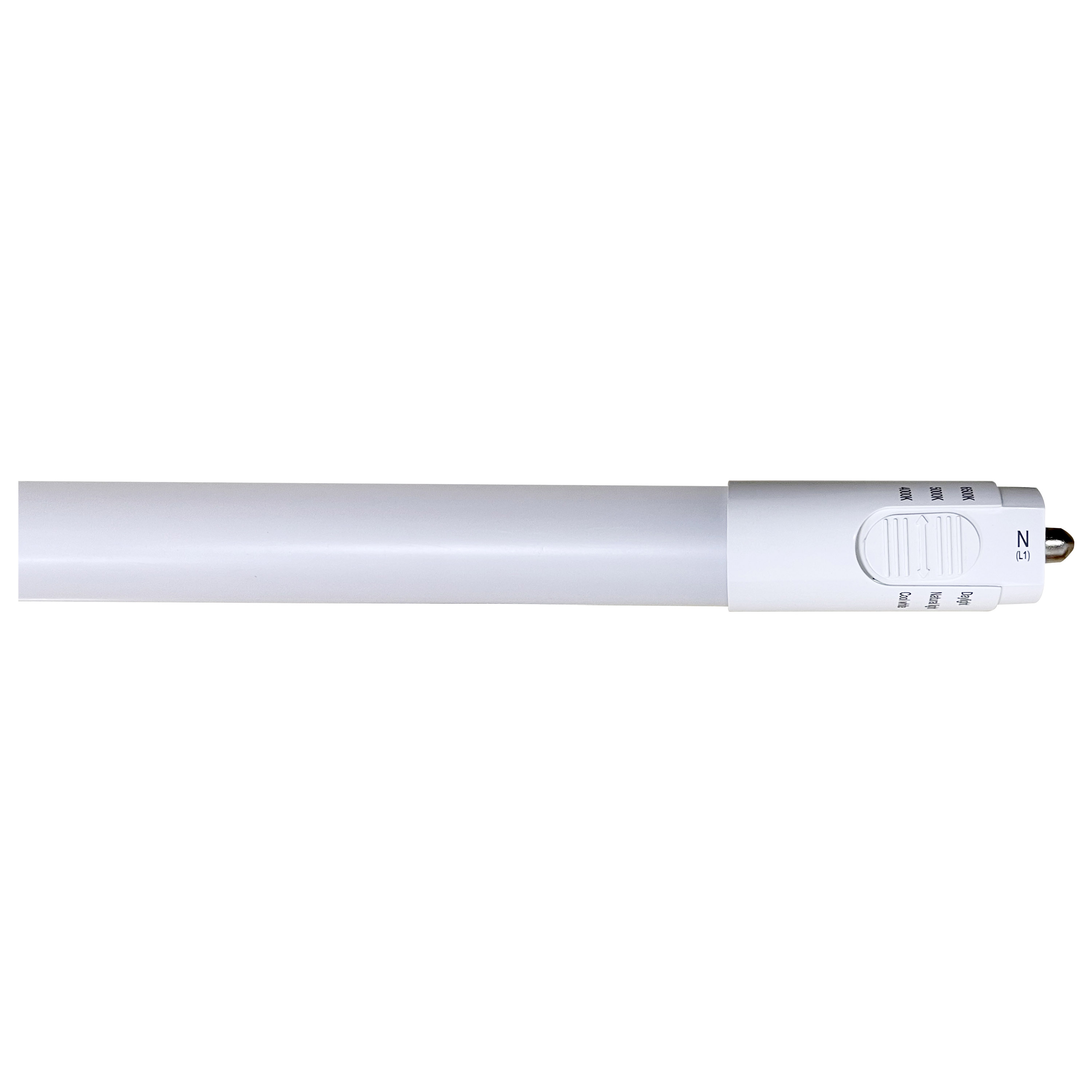

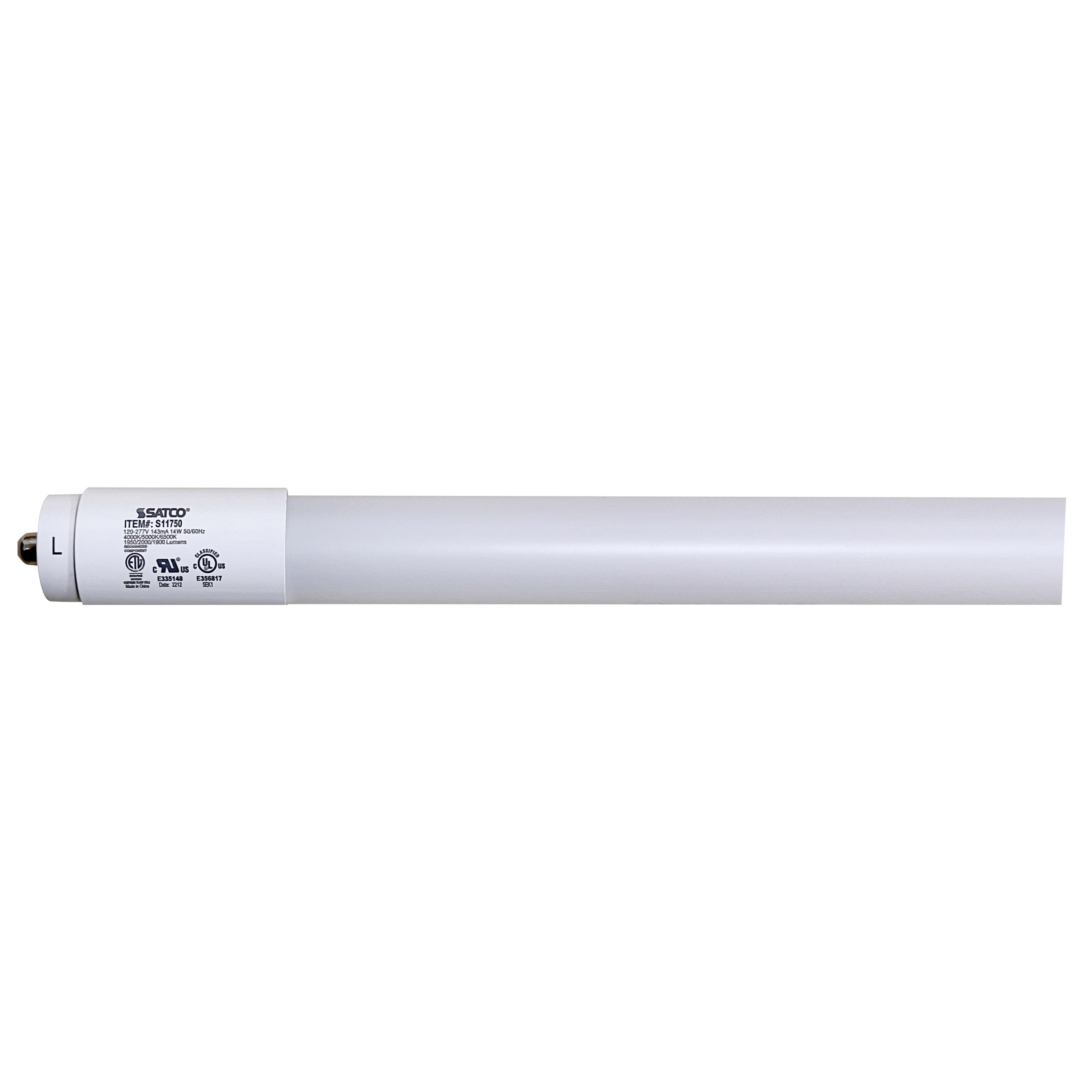

14T8/LED/48-CCT/BP/FA8

  • 14 Watt T8 LED
  • Single Pin Base
  • CCT Selectable
  • PET Shatterproof Coated
  • White Finish
  • Type B
  • Ballast Bypass
  • 48 Inches
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11750 SpecificationsS11750 Instructions.pdfLED T8 LAMPS FA8 R17D BASE CCT SELECTABLE
Description
Description
14 Watt T8 LED; Single Pin Base; CCT Selectable; PET Shatterproof Coated; White Finish; Type B; Ballast Bypass; 48 Inches; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass / Plastic
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic Distortion<25%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.117-0.051A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent75W
Electrical

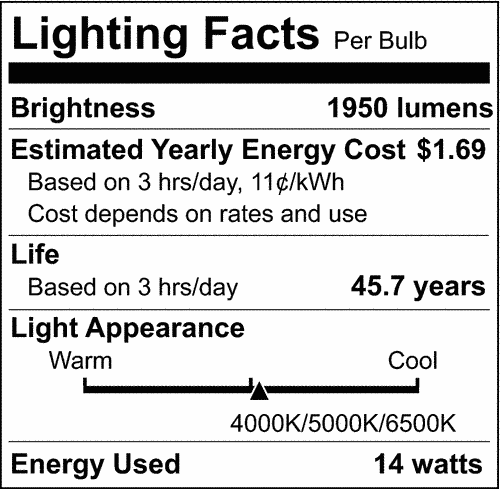

CCT (Kelvin Temp)4000K/5000K/6500K
Hours Rated50000
Beam Angle (degree)180
Color TempCool White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1950L/2000L/1900L
Volts120V-277V
Watts14W
Physical
Lamp BaseSingle Pin
FinishWHITE
Housing ColorWhite
ANSI BaseFa8
Lamp TypeT8
MOD Lamps1.0
MOL46.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923117503
Case Cube1.0895
Case Height4.92
Case Length48.62
Case Quantity10
Case UPC10045923117500
Case Weight8.8
Case Width7.87
EA Cube0.0278
EA Height1.0
EA Length48.0
EA Quantity1
EA Weight0.58
EA Width1.0
Pack TypeBox
Web Length46.0
Web Width1.0
