S11751

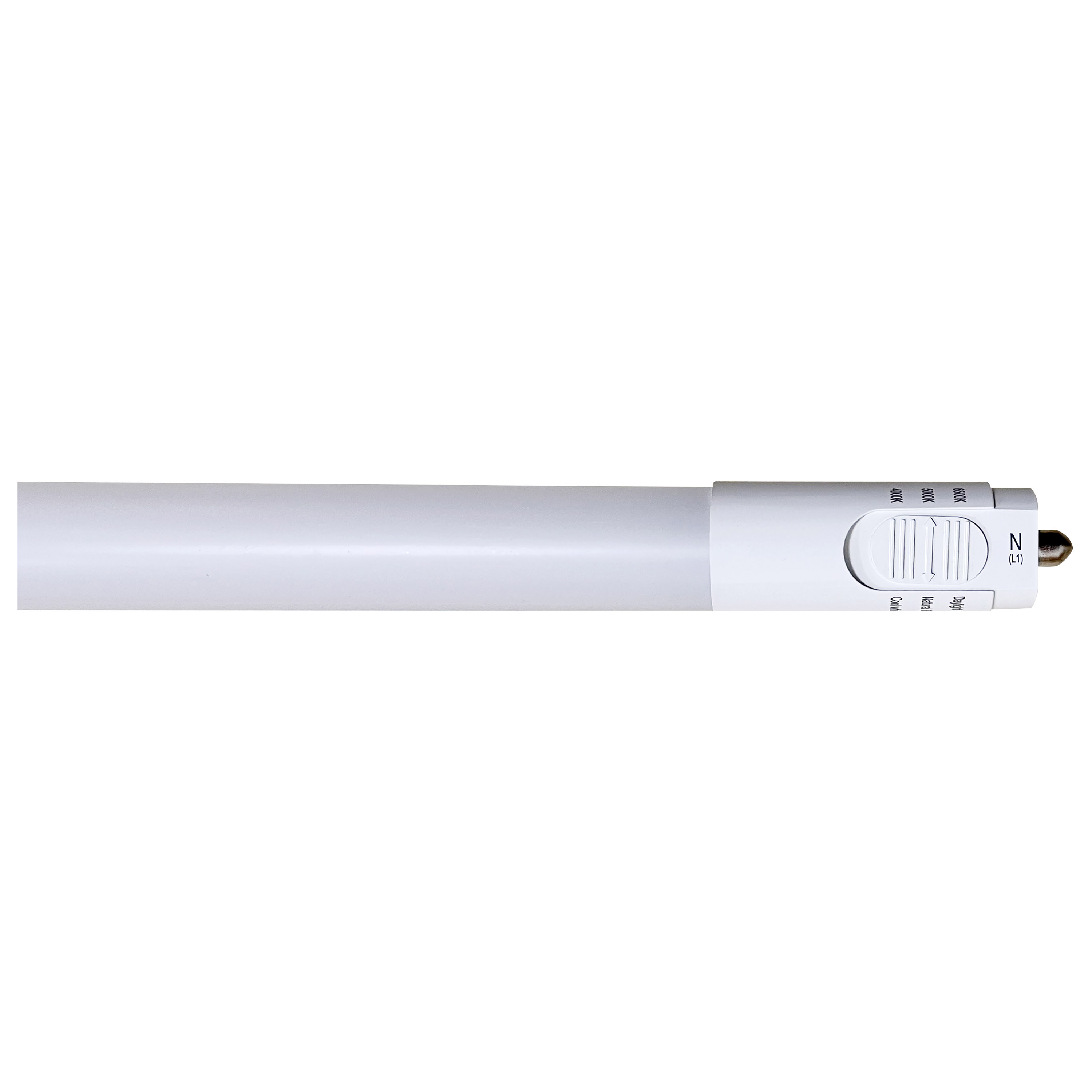

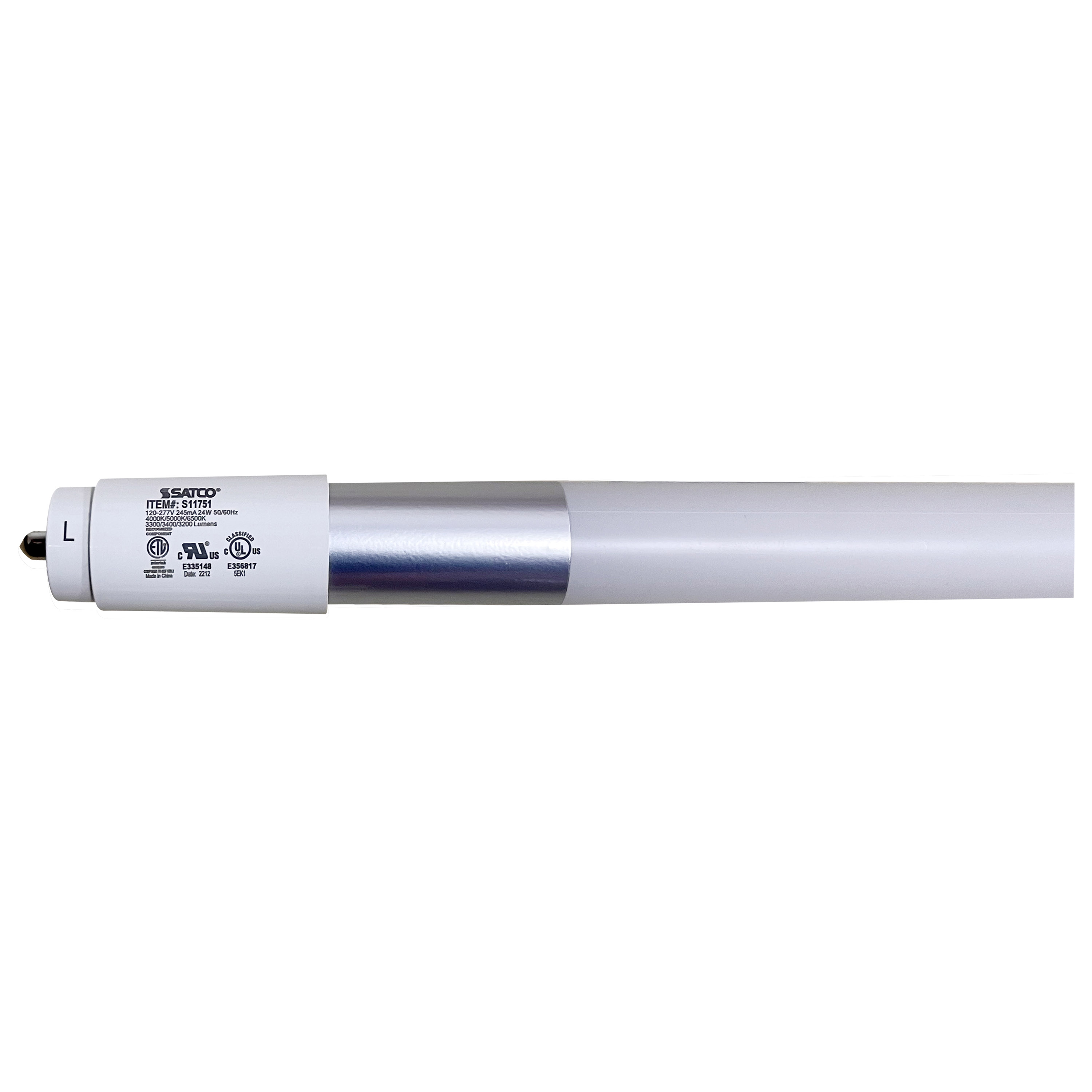

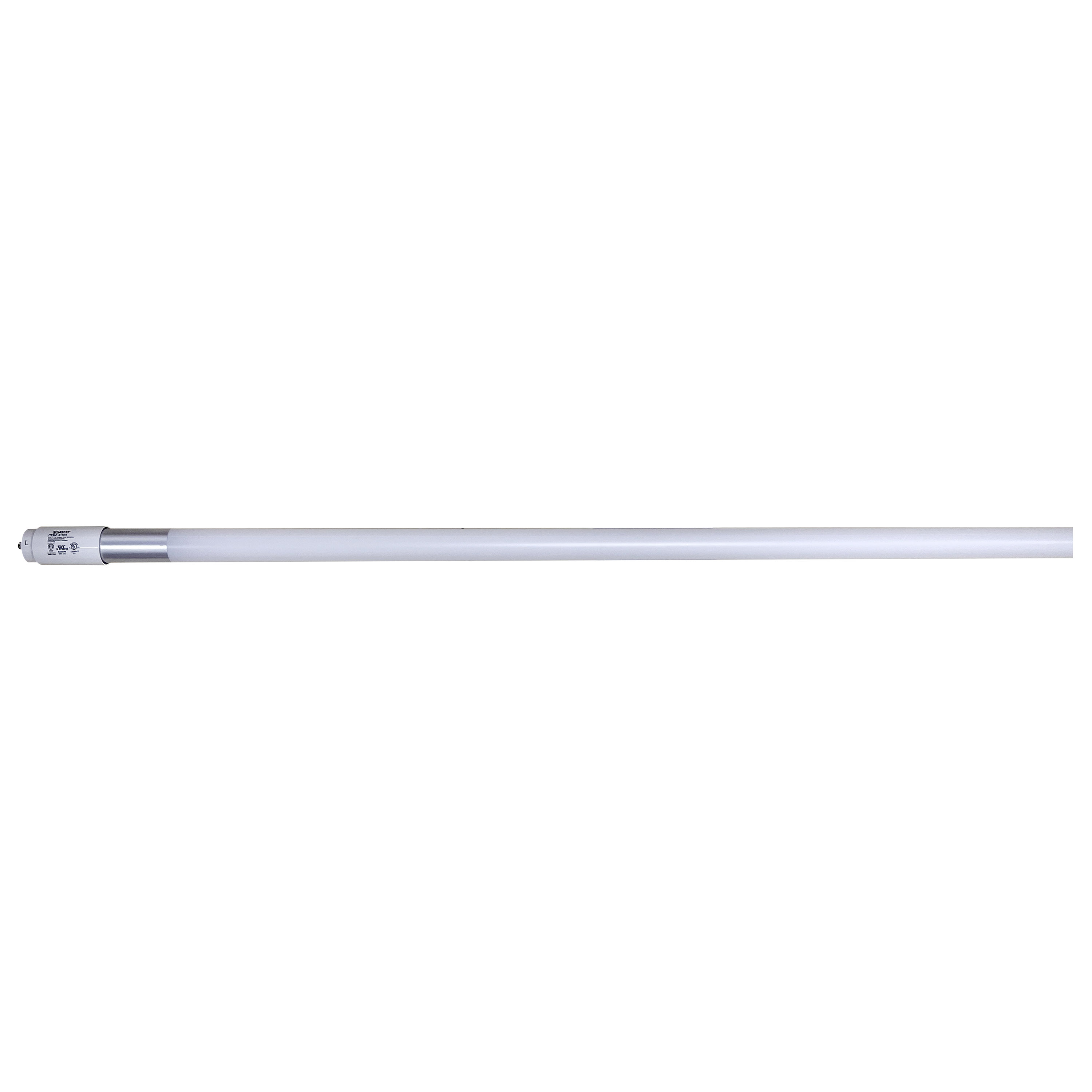

24T8/LED/72-CCT/BP/FA8

  • 24 Watt T8 LED
  • Single Pin Base
  • CCT Selectable
  • Type B
  • Ballast Bypass
  • PET Shatterproof Coated
  • White Finish
  • 72 Inches
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11751 SpecificationsS11751 Instructions.pdf
Tools
Lighting Layout Analysis For S11751
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
24 Watt T8 LED; Single Pin Base; CCT Selectable; Type B; Ballast Bypass; PET Shatterproof Coated; White Finish; 72 Inches; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass / Plastic
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic Distortion<25%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.200-0.087A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
Nominal Length72.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv38W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)4000K/5000K/6500K
Hours Rated50000
Beam Angle (degree)180
Color TempCool White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)

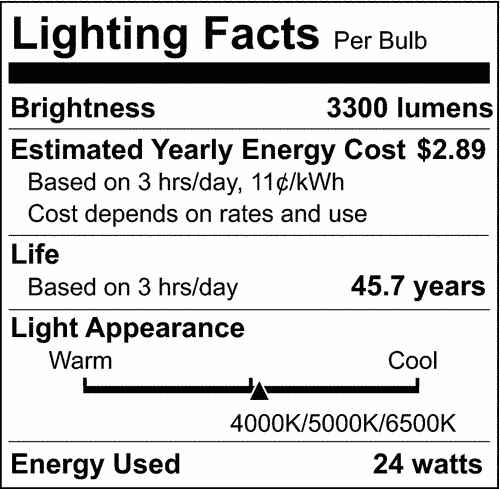

Lumens3300L/3400L/3200L
Volts120V-277V
Watts24W
Physical
Lamp BaseSingle Pin
FinishWHITE
Housing ColorWhite
ANSI BaseFa8
Lamp TypeT8
MOD Lamps1.0
MOL70.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923117510
Case Cube1.6082
Case Height4.92
Case Length71.77
Case Quantity10
Case UPC10045923117517
Case Weight13.33
Case Width7.87
EA Cube0.0417
EA Height1.0
EA Length72.0
EA Quantity1
EA Weight0.86
EA Width1.0
Pack TypeBox
Web Length70.0
Web Width1.0
