S11756

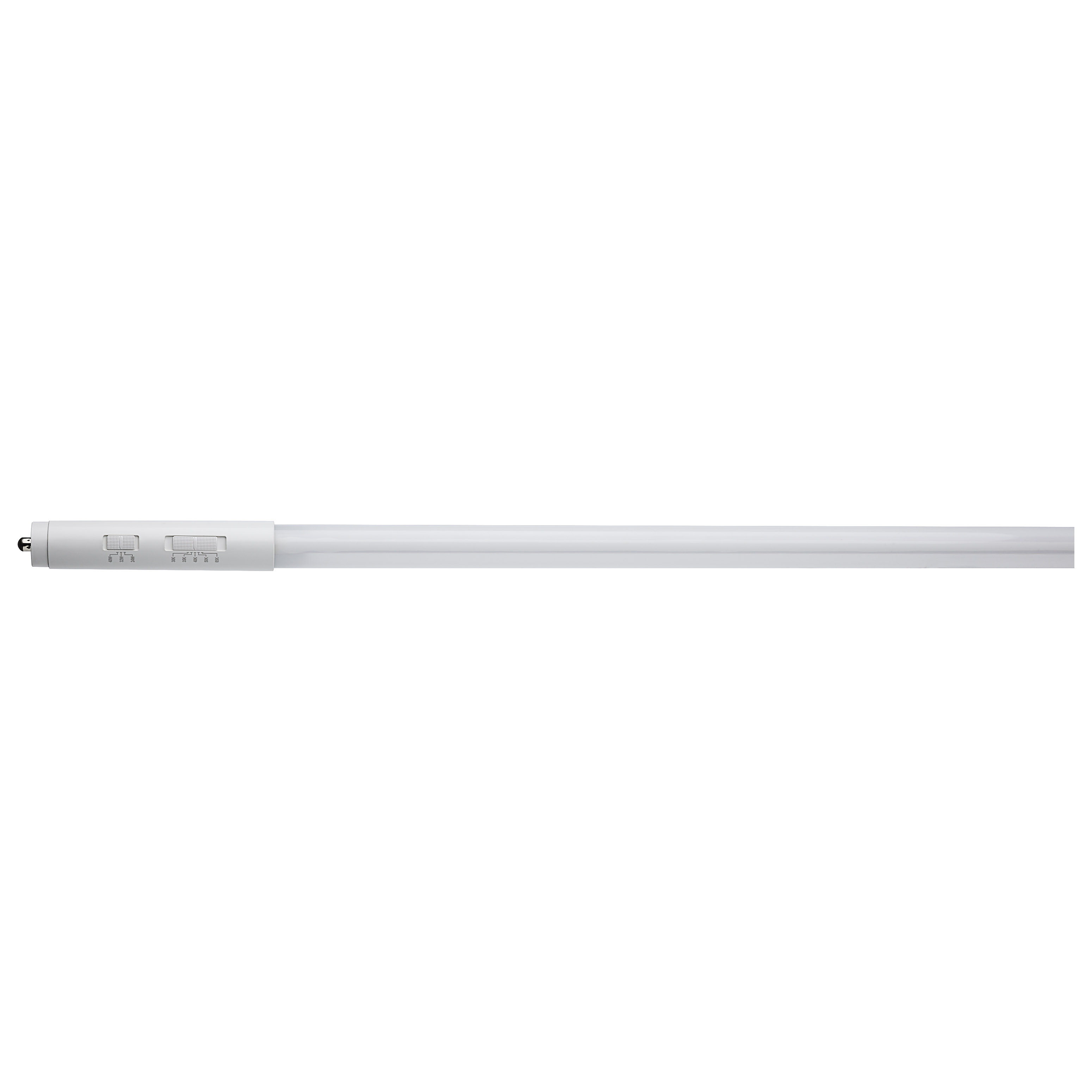

40T8/LED/96-CCT/BP/2PC

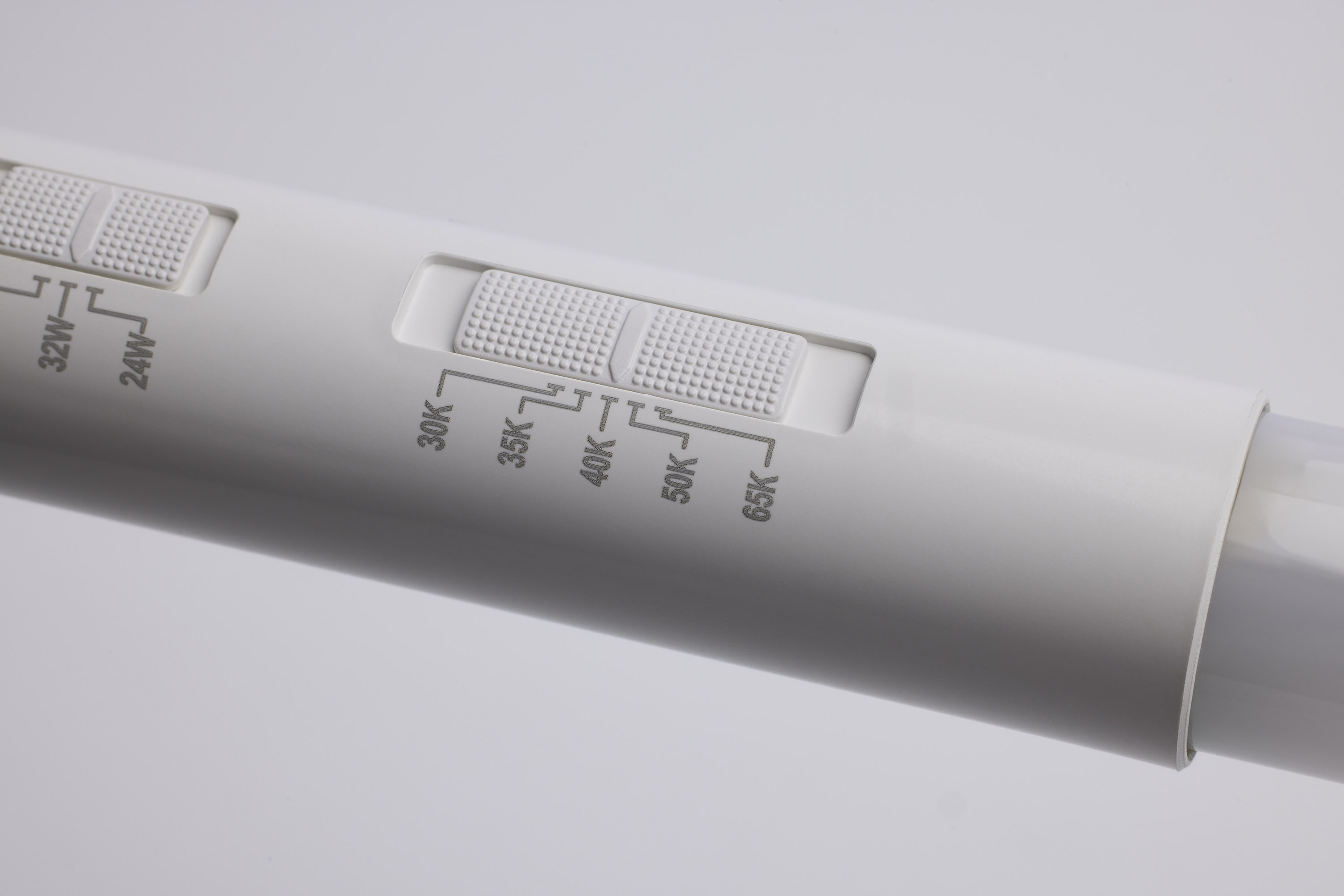

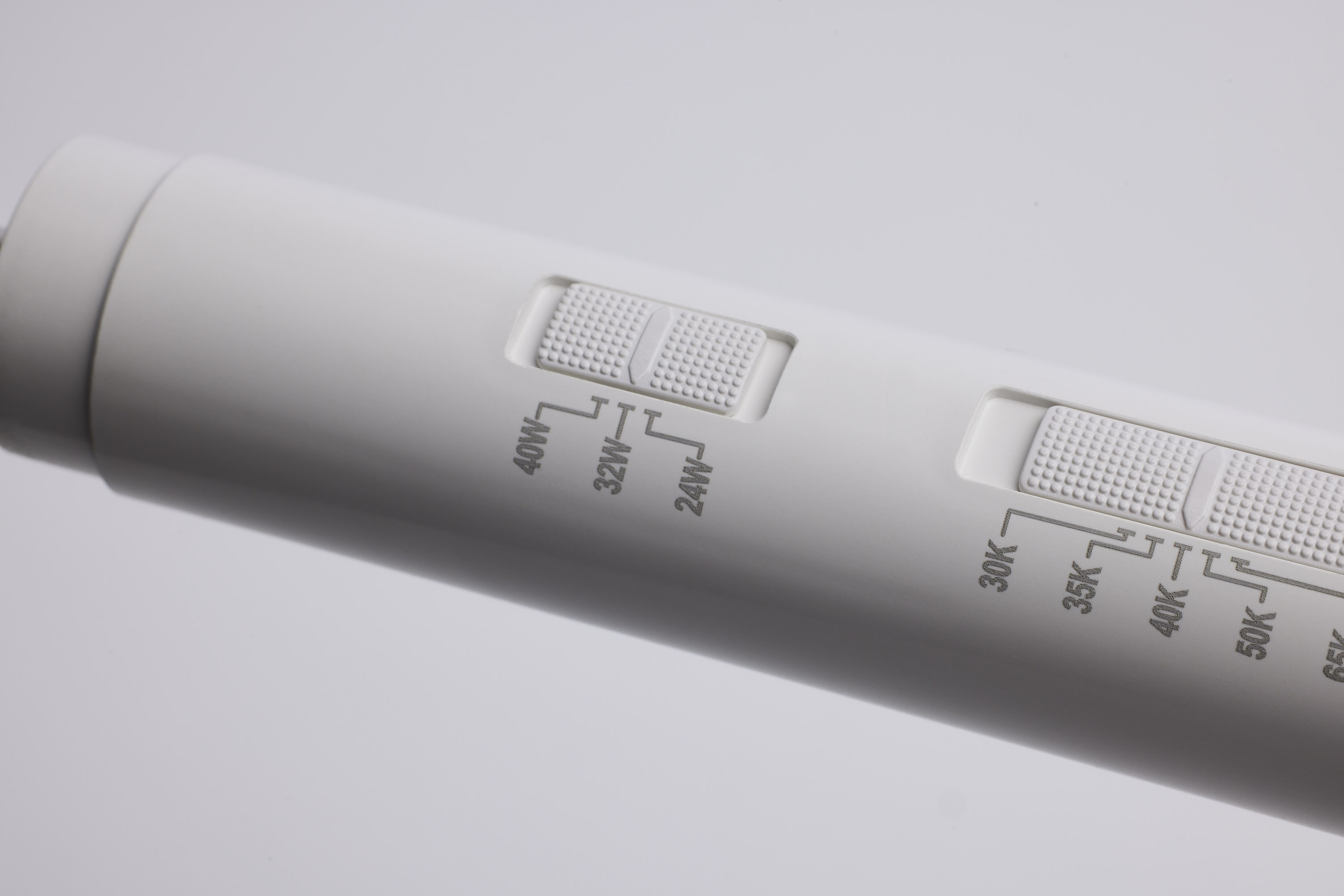

  • 24/32/40 Wattage Selectable

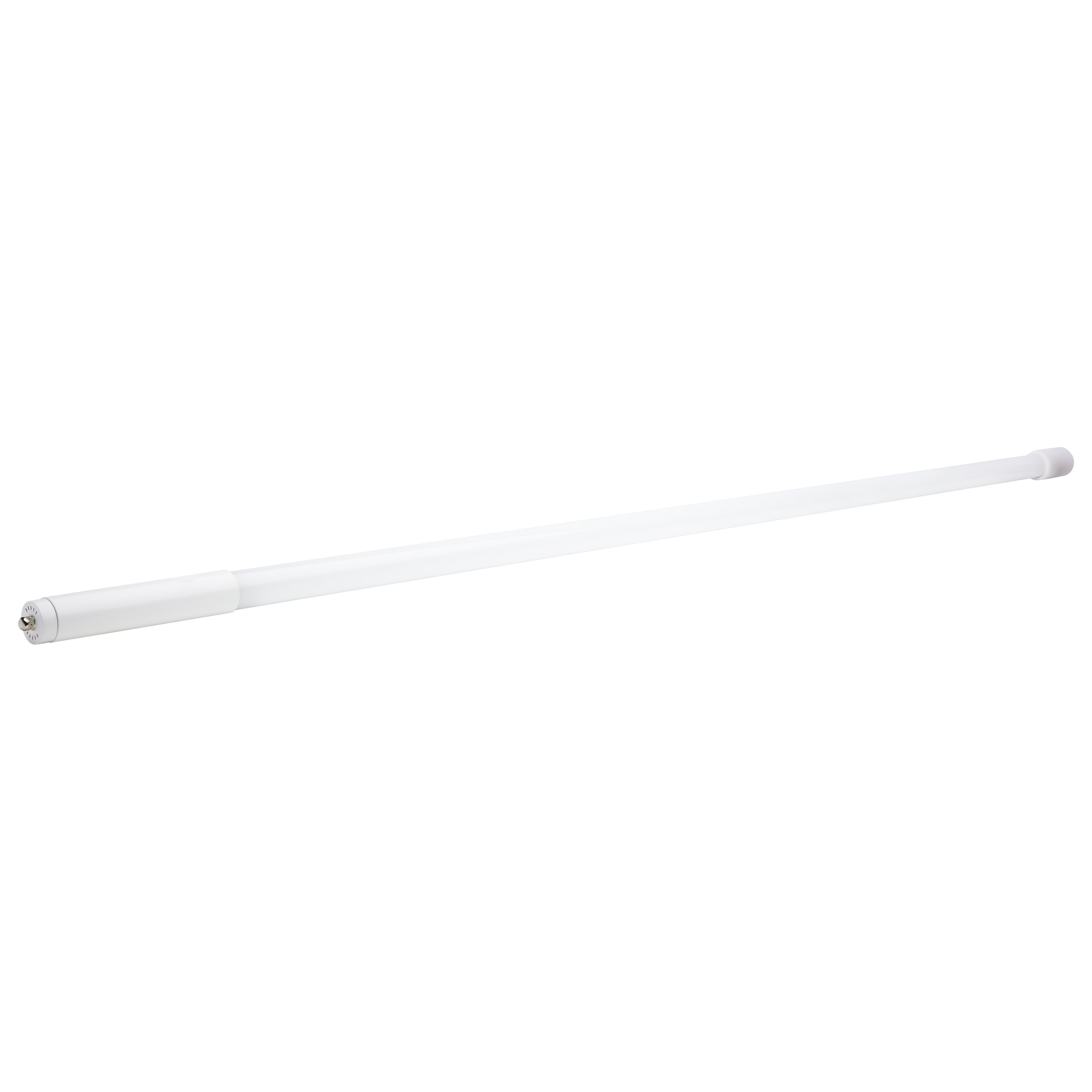

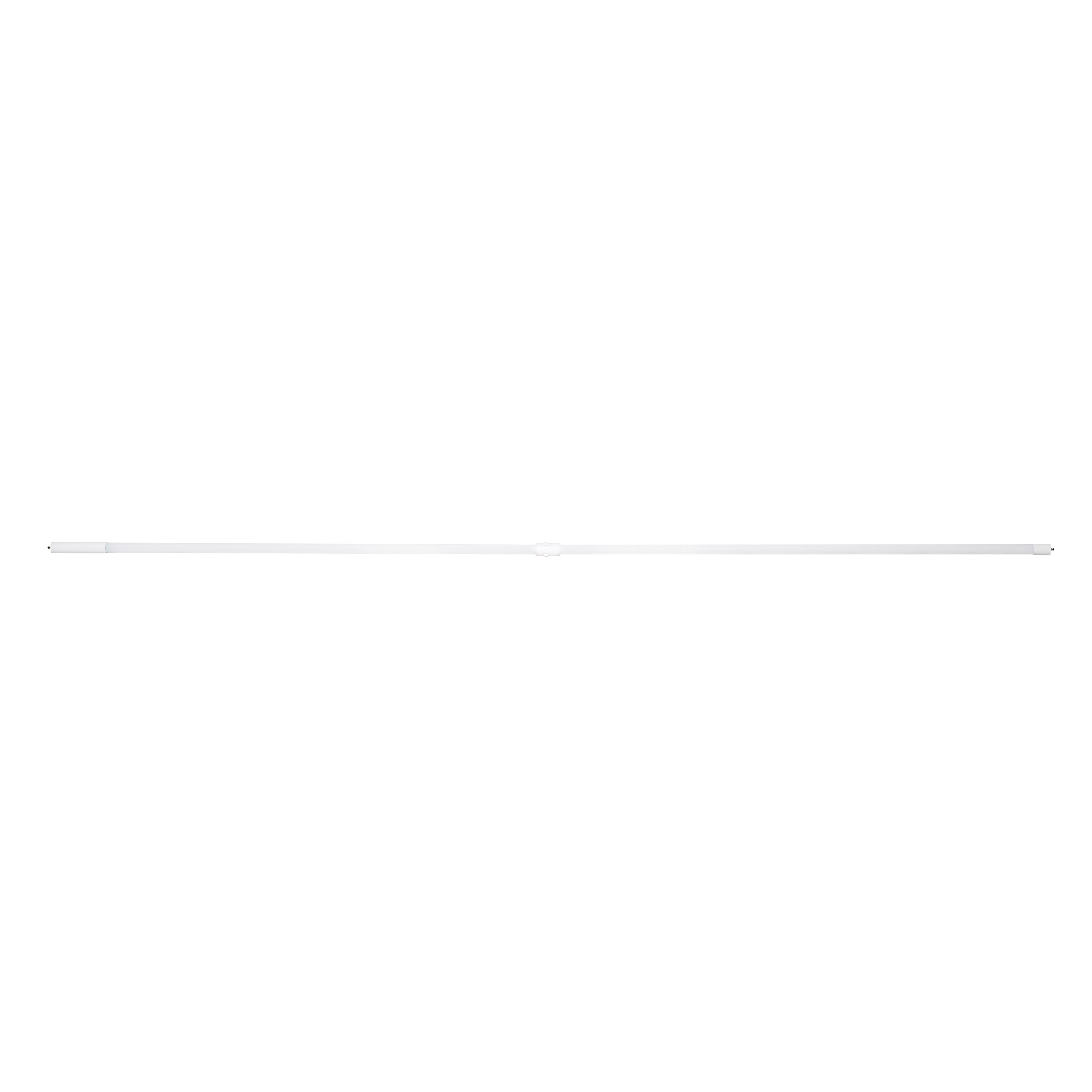

  • 8 Foot T8 LED
  • 30/35/40/50/65K CCT Selectable
  • 120-277 Volt

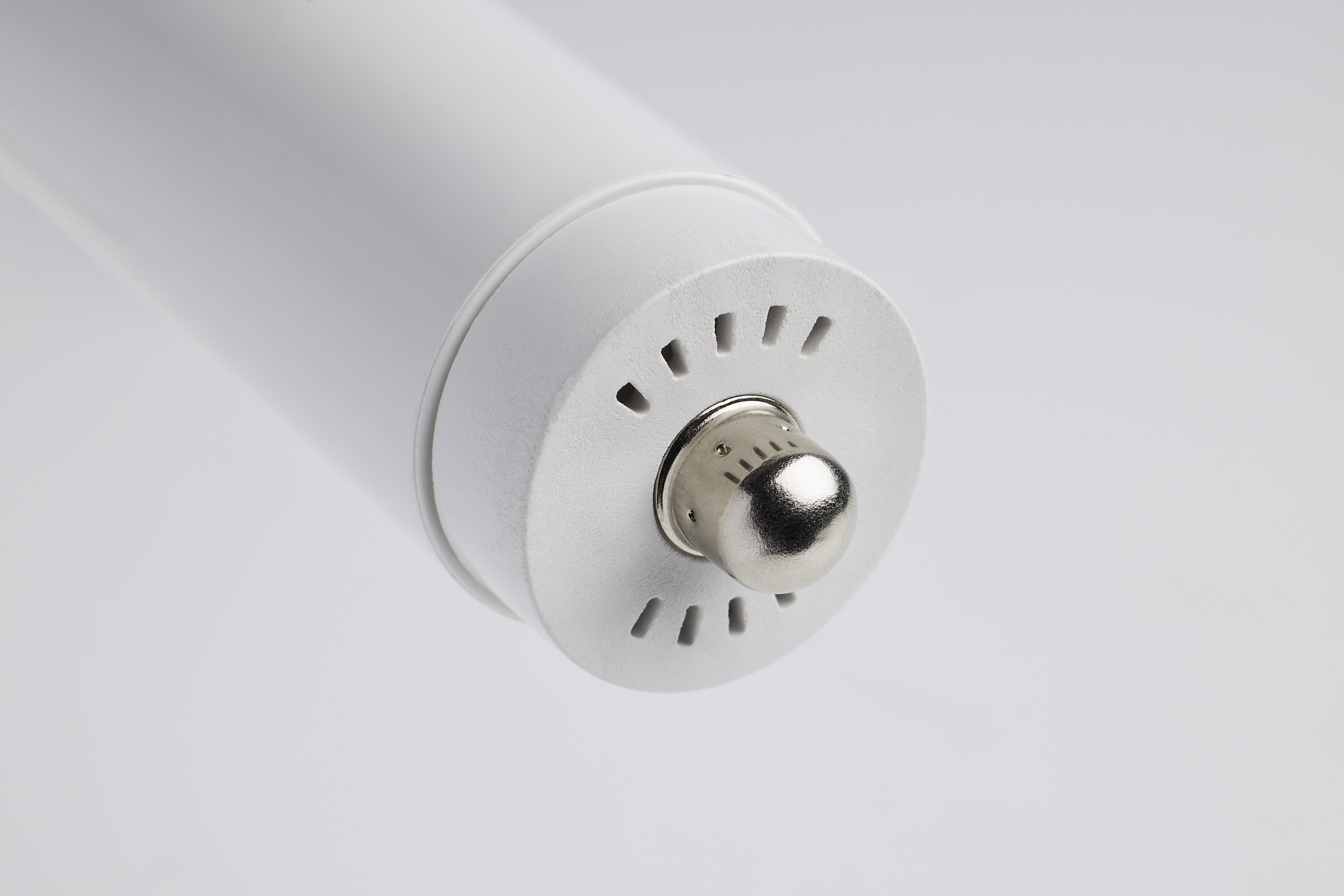

  • FA8 Base
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11756 SpecificationsS11756 Photometrics.iesS11756 Instructions.pdf
Tools
Lighting Layout Analysis For S11756
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear

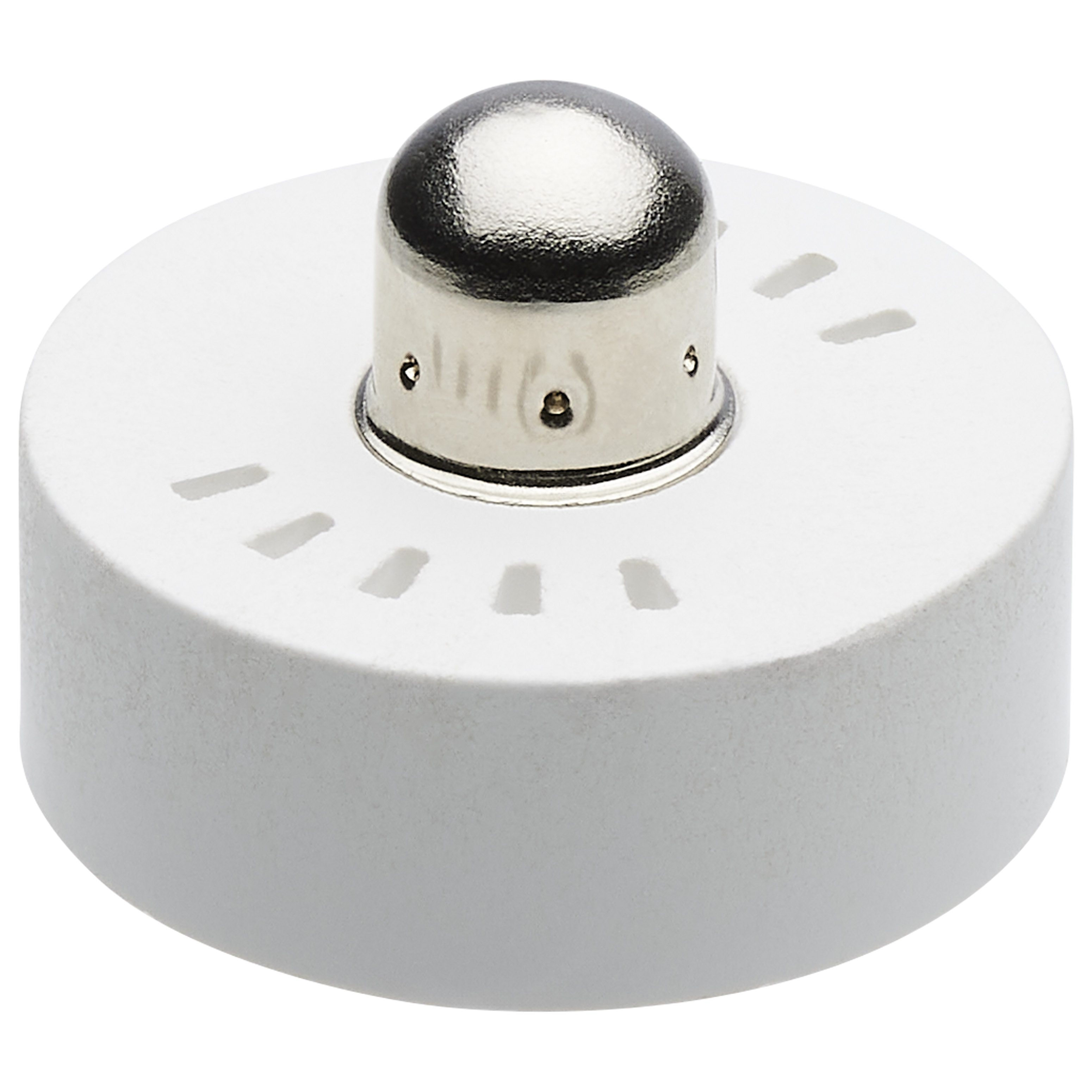

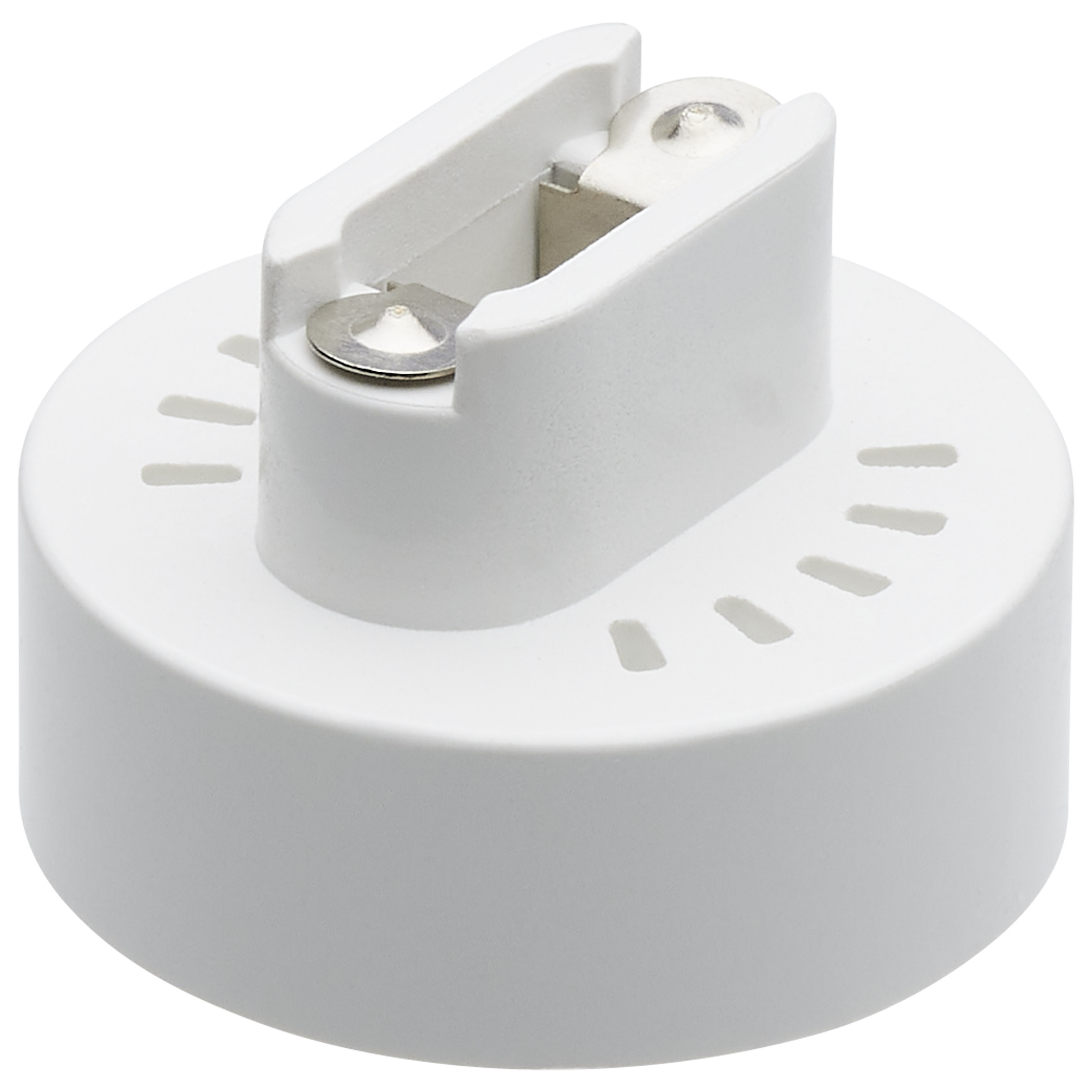

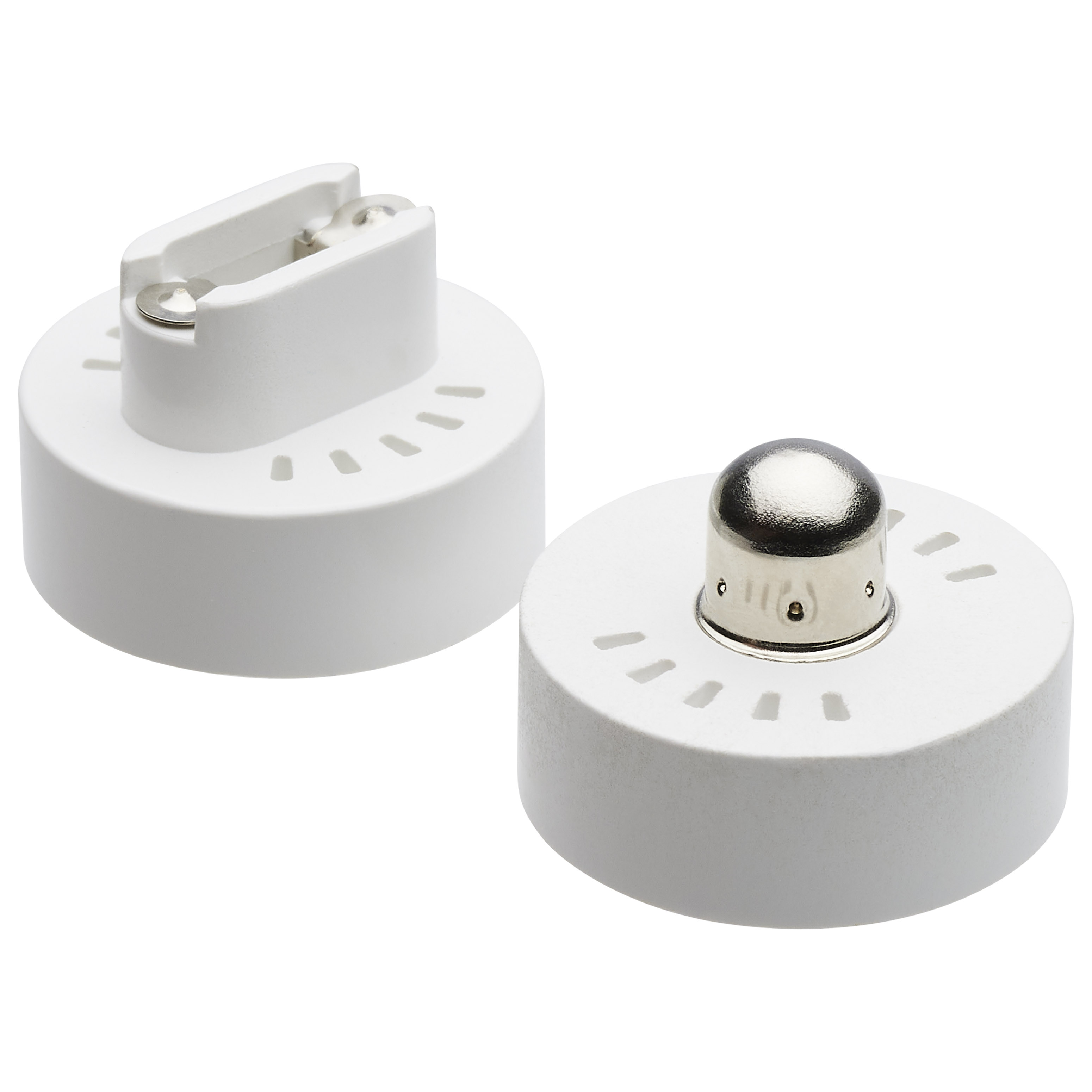

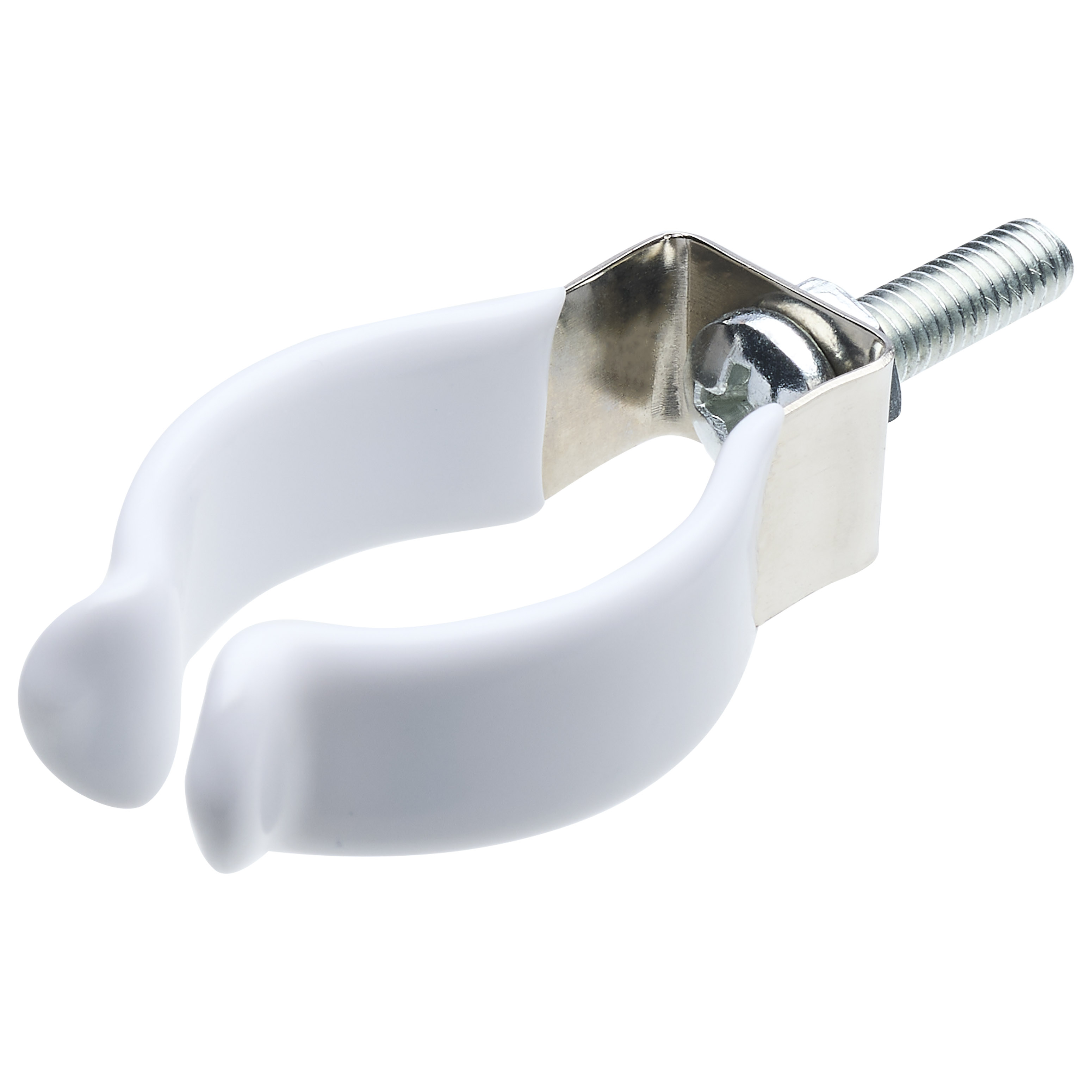

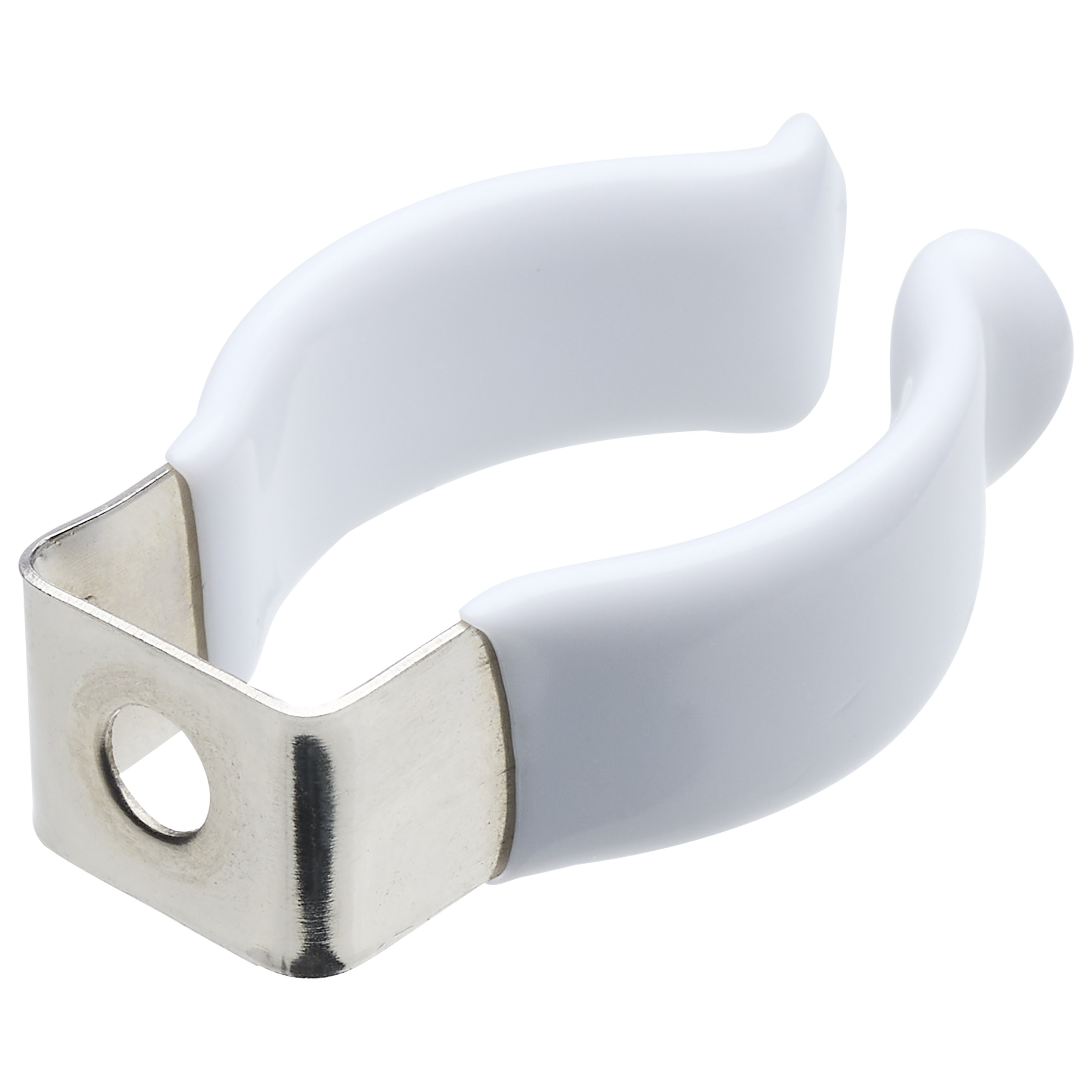

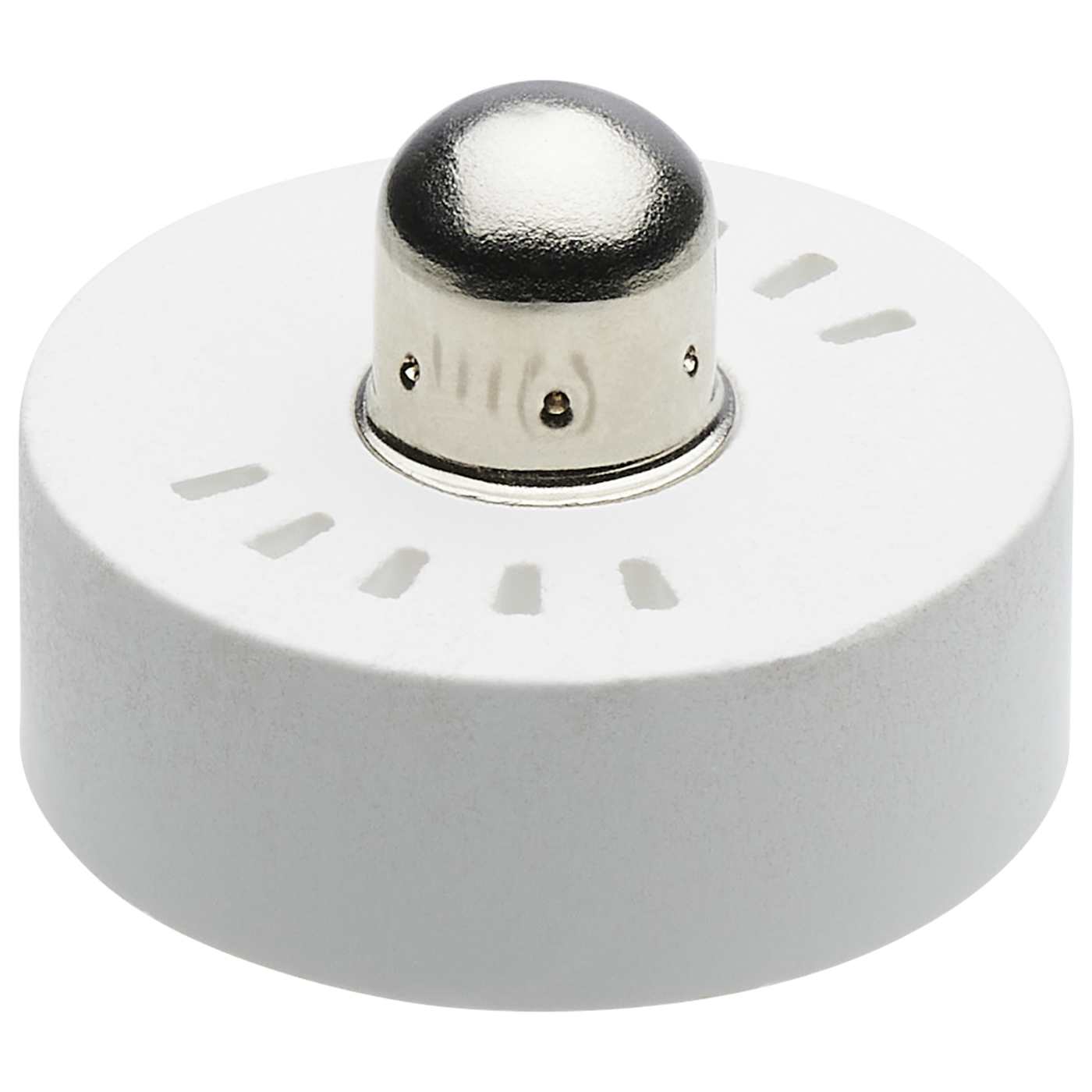

Includes(20) R17d Base Adapters and (10) Fastening Clips included per case
StatusActive
StyleUtility
Total Harmonic Distortion20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Amps0.200-0.087/0.267-0.116/0.333-0.144A
Has CameraNo
IOT EnabledNo
Minimum Compartment SizeLength: 96.06 in. Width; 10.63 in. Height: 2.76 in.
Nominal Length96.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Product TechnologyLED
Fluor Equiv40W/55W/70W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
Hours Rated50000
Beam Angle (degree)210
Color TempSoft White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)

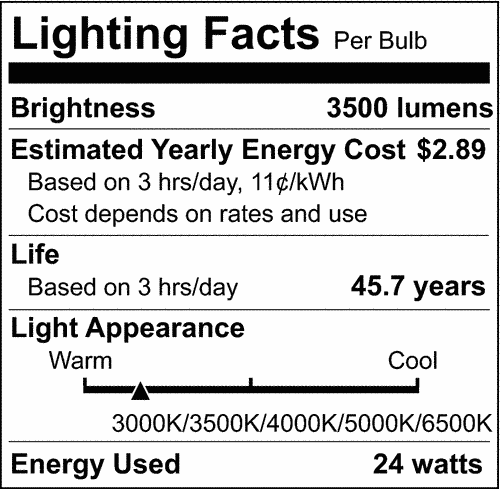

Lumens3500L/4400L/5500L
Volts120V-277V
Watts24W/32W/40W
Physical
Lamp BaseSingle Pin
FinishWHITE
Housing ColorWhite

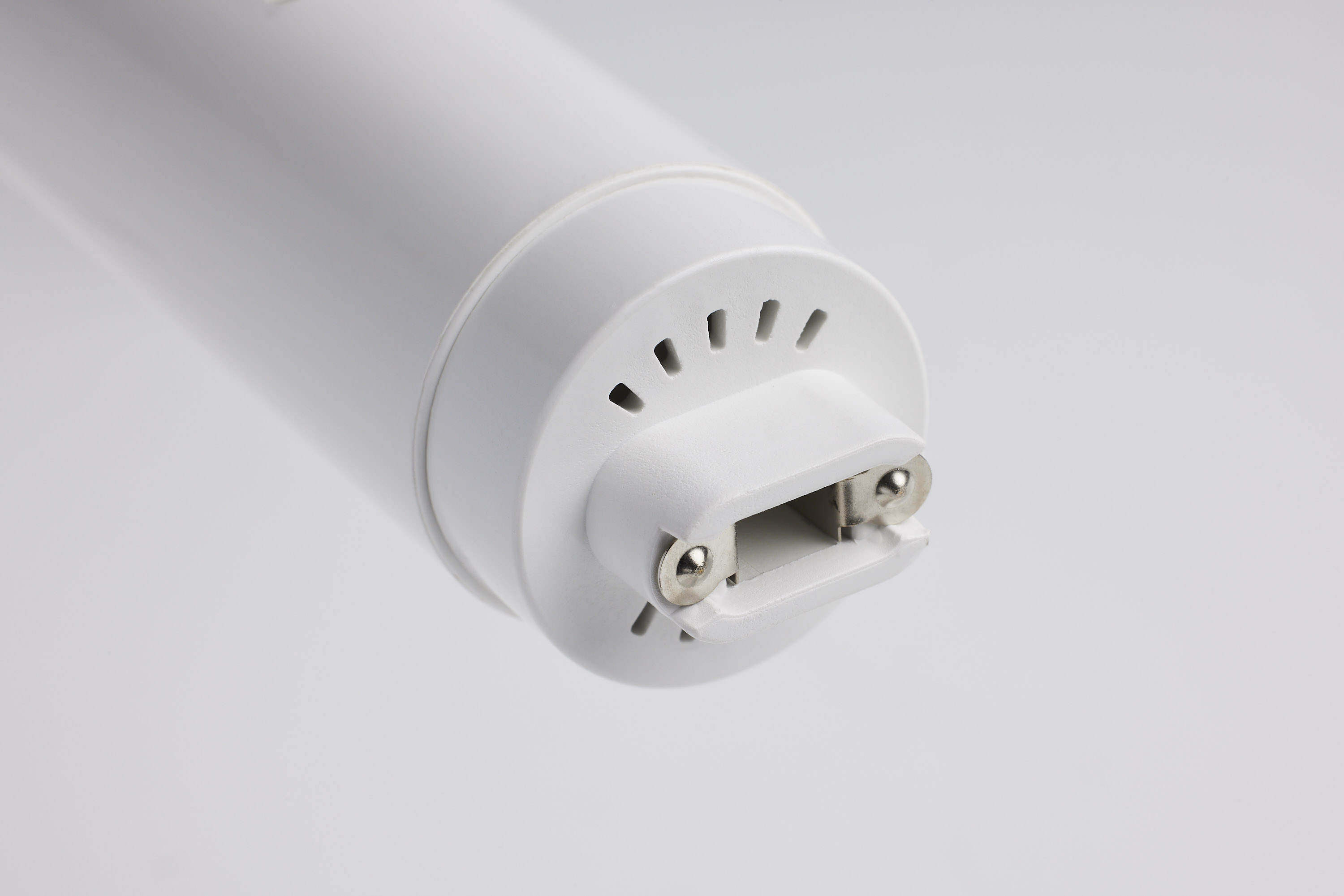

ANSI BaseFa8
Lamp TypeT8
MOD Lamps1.0
MOL93.75
Additional Info
Warranty5-Years

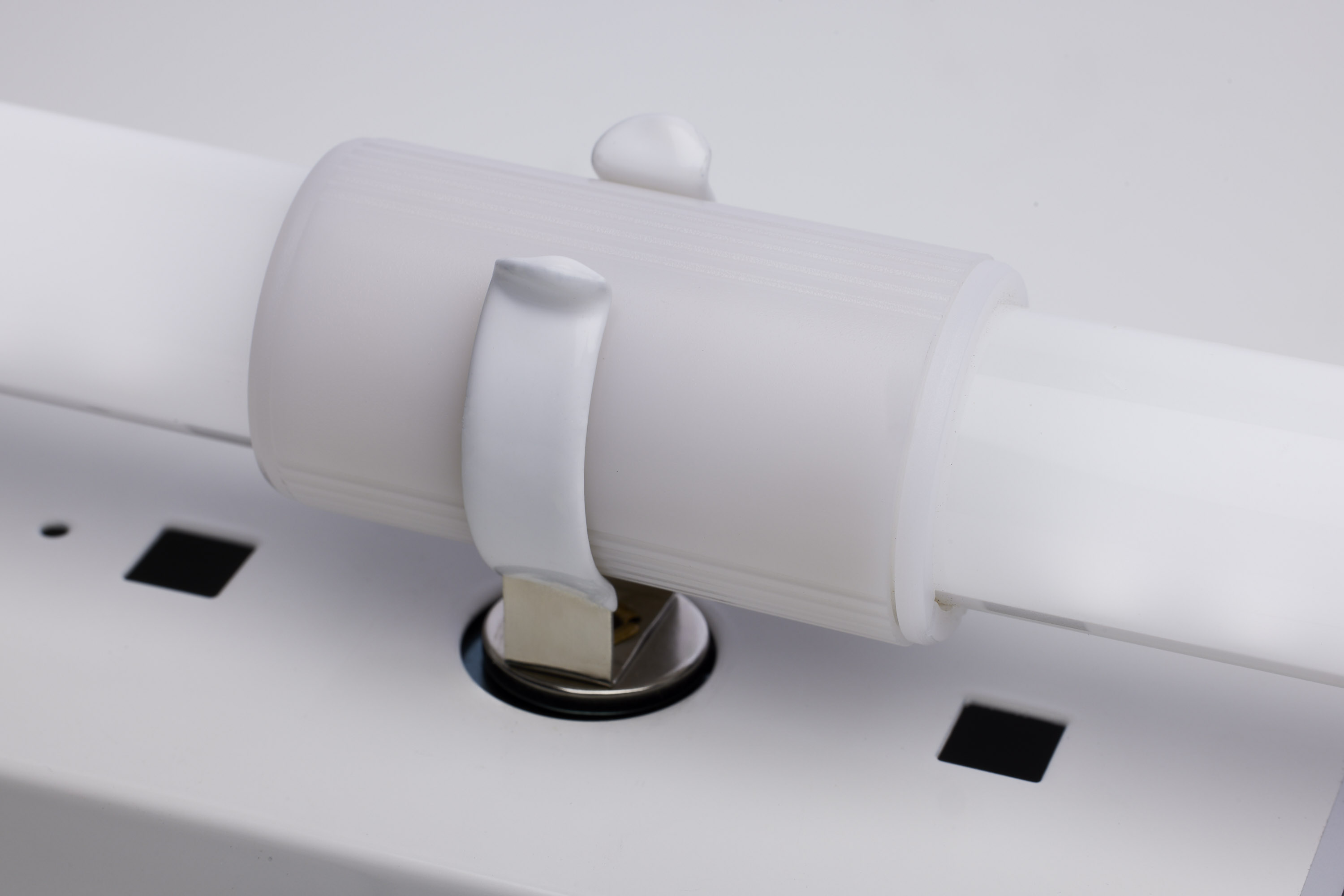

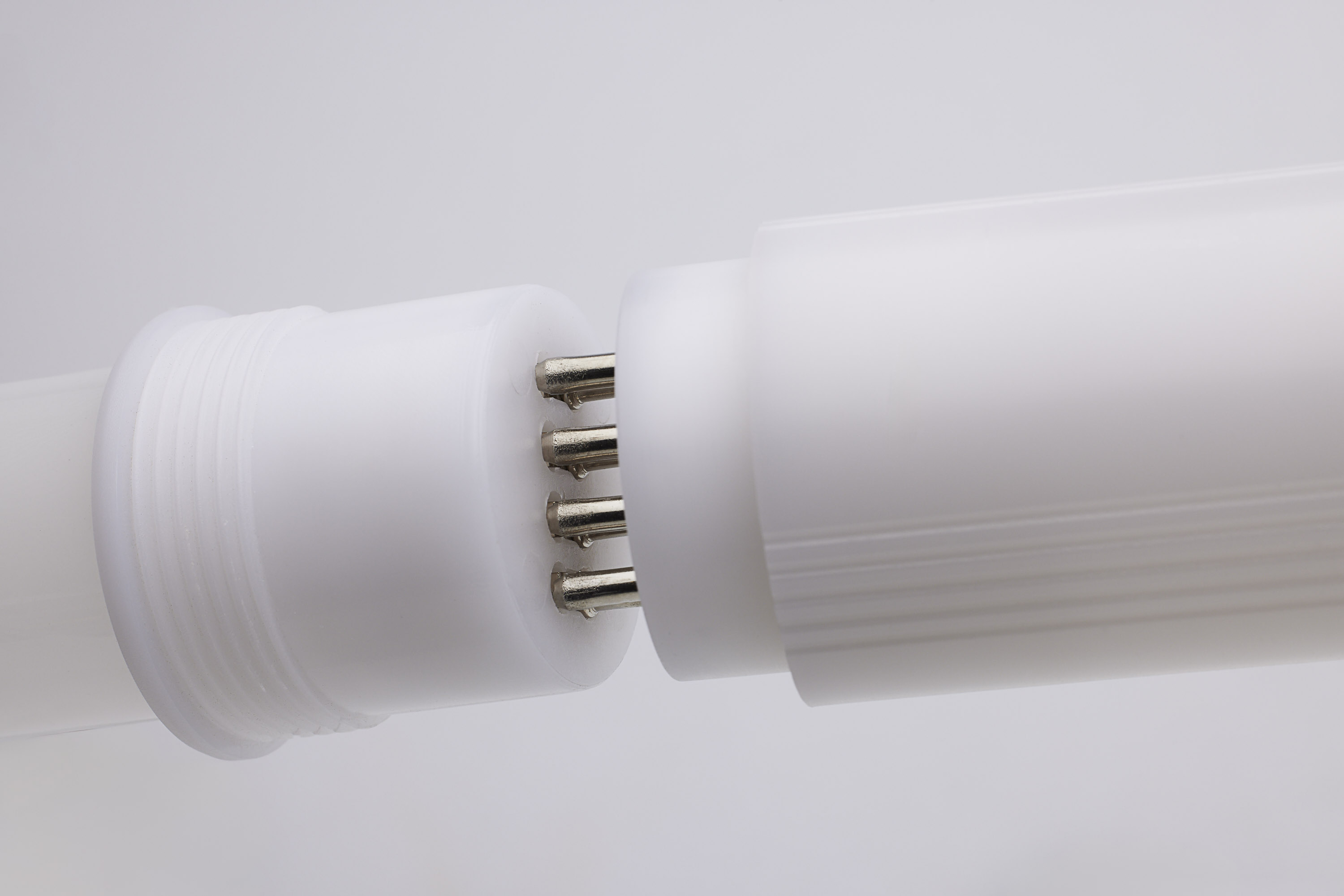

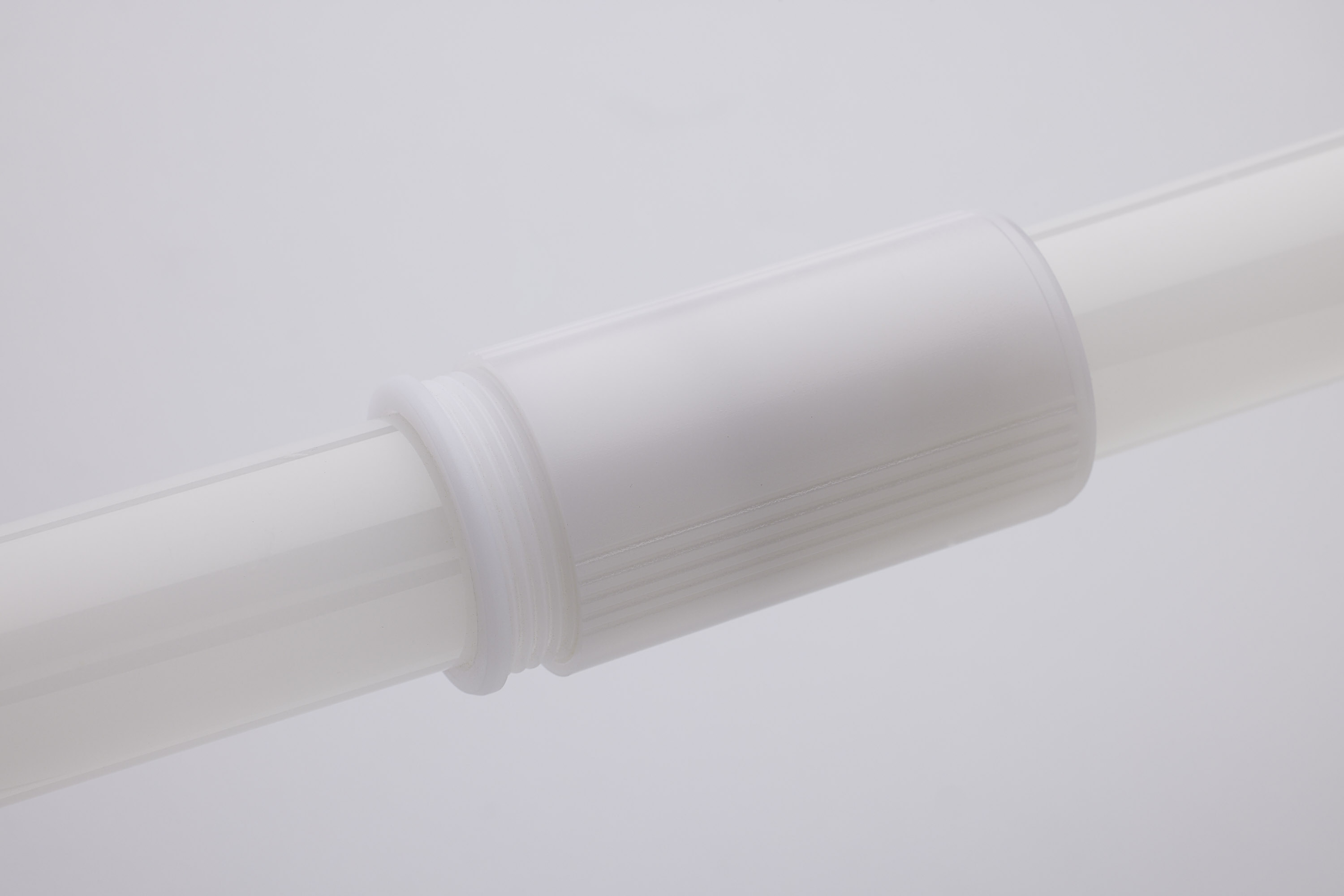

Installation NotesNot for use in vapor tight fixtures. Must use both sections; Provided support clips may differ from current PI Sheet (SN1394). Please refer to the Instruction Sheet provided in the master carton or downloaded from the website, https://www.satco.com/search/S11756
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-HPN8SY
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923117565
Case Cube1.3542
Case Height7.44
Case Length48.39
Case Quantity10
Case UPC10045923117562
Case Weight12.1
Case Width6.5
EA Cube1.3542
EA Height7.44
EA Length48.39
EA Quantity1
EA Weight12.1
EA Width6.5
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeEgg Crate
Web Length93.75
Web Width1.0
