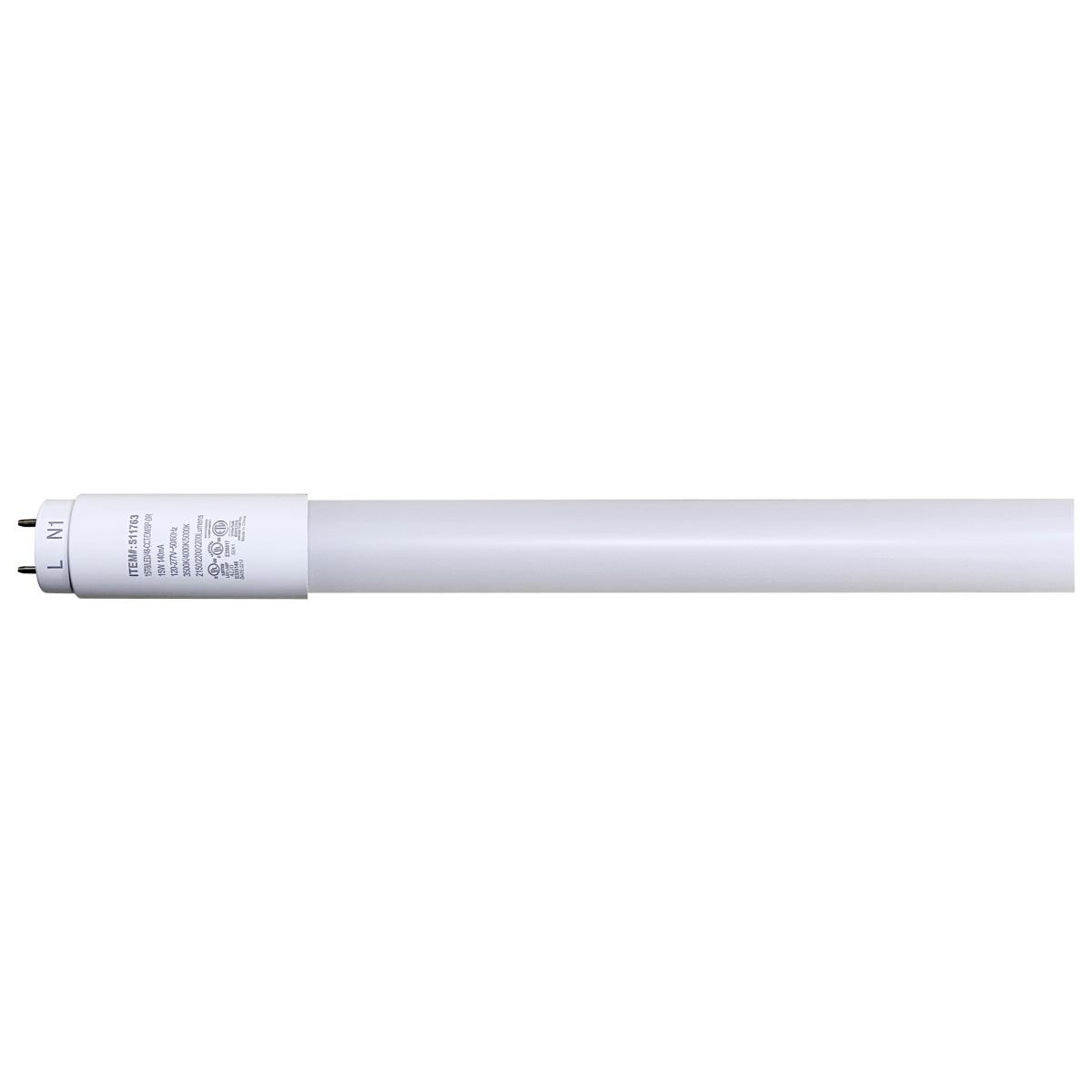

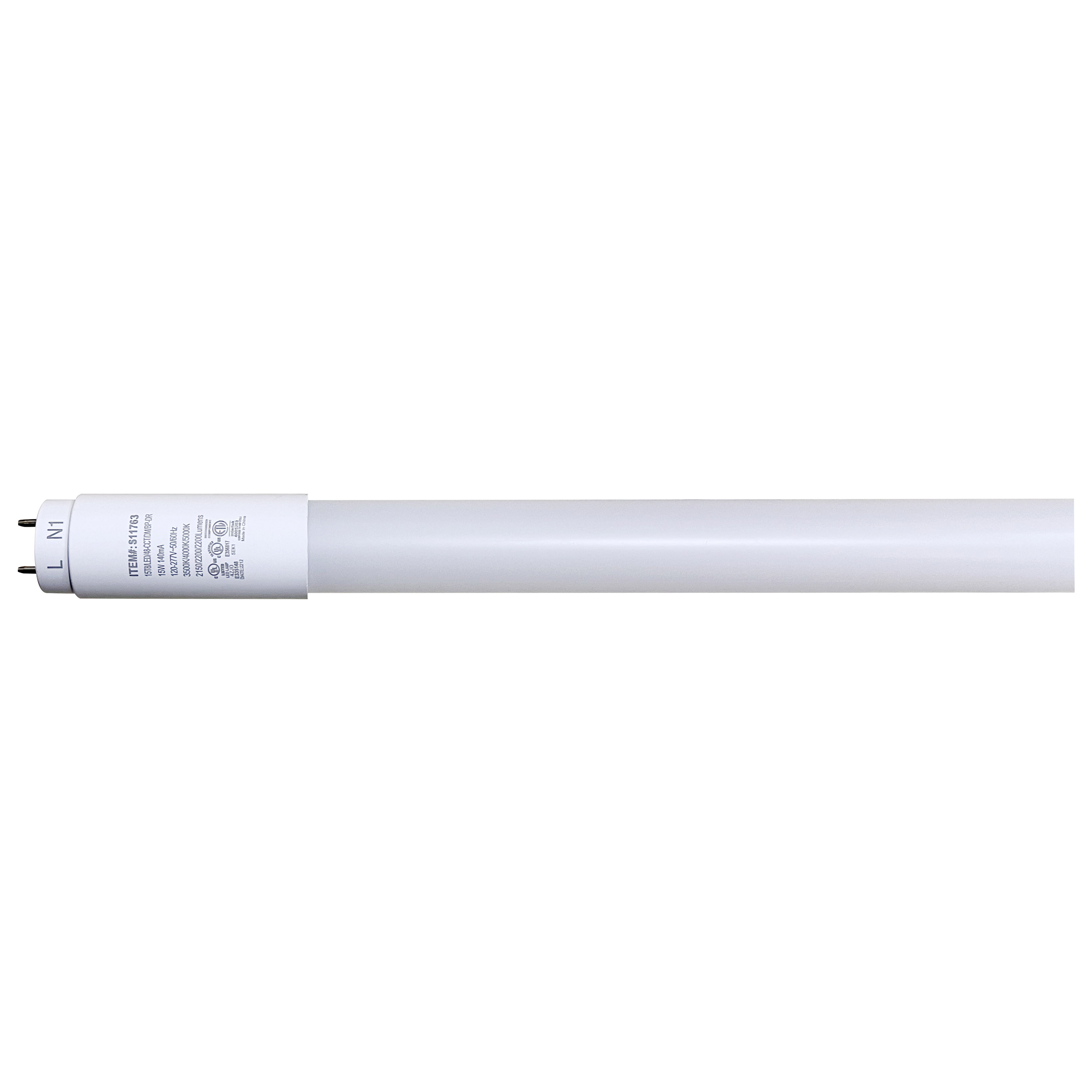

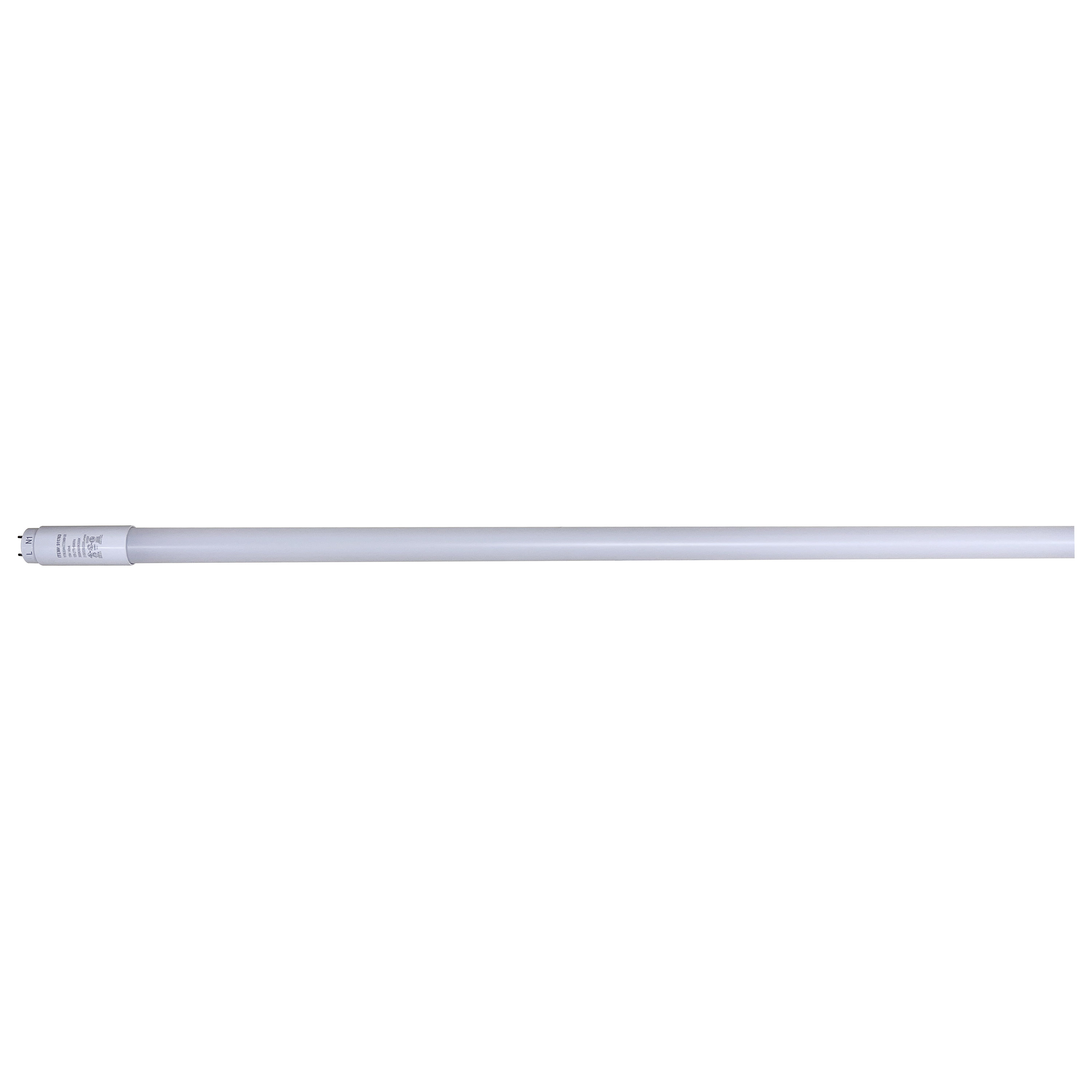

15T8/LED/48-CCT/DM/BP-DR - S11763
15T8/LED/48-CCT/DM/BP-DR - S11763
15T8/LED/48-CCT/DM/BP-DR - S11763
S11763

15T8/LED/48-CCT/DM/BP-DR

Discontinued - Suggested Replacement: S21763
  • 15 Watt T8 LED

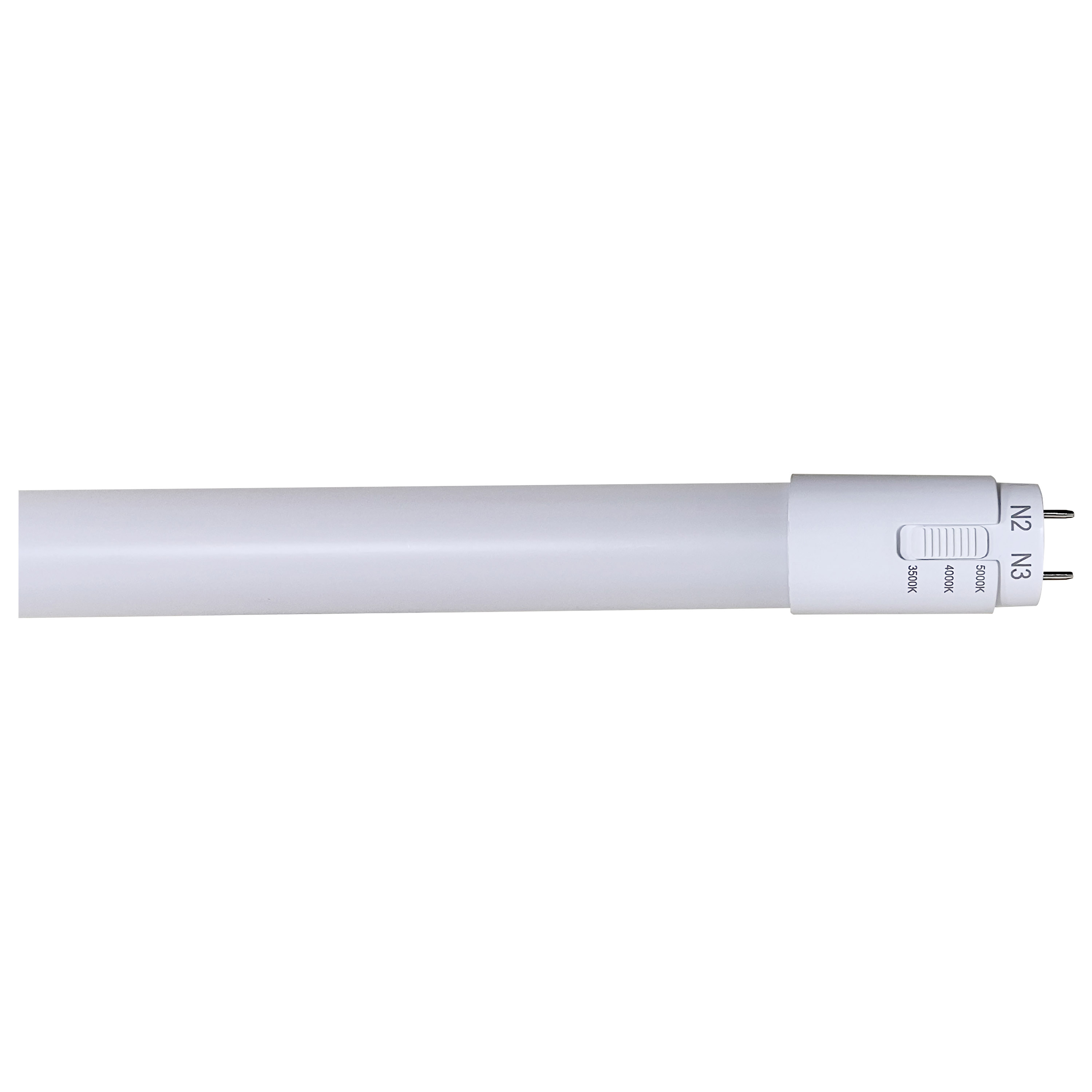

  • CCT Selectable
  • Medium bi-pin base
  • 50000 Hours
  • Type A/B
  • Ballast Bypass or Direct Replacement
  • Single or Double Ended Wiring
  • Glass with PET coating
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_ab^1
ip_rating^IP20^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11763 SpecificationsS11763 Ballast Compatibility Chart 2.pdfS11763 Ballast EM Compatibility Chart.pdf
Description
Description
SATCO NUVO's S11763 premium LED T8 dual mode lamps offer the most versatility of any linear replacement lamp on the market. This lamp is compatible with ballasts and in ballast bypass systems with single or double-ended wiring to maximize ease of installation. This four foot T8 is 3500K/4000K/5000K selectable during installation for immediate energy savings anywhere fluorescent lamps were used.
Products Specs
General
Generational SKUS21763
CompanySATCO
Lamp Ballast Type ABType A/B
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Lamp FilamentLED
MaterialGlass / Plastic
Fixture TypeLinear
StatusObsolete
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.7KV
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.125-0.054A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Product TechnologyLED
Fluor Equiv55W
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)180
Color TempNeutral White to Natural Light
CRI80+
Dimming TypeCheck Ballast MFG for Dimmer Compatibility, Only in Type A mode
Operating Frequency50/60Hz
Operating Temp-4F to +113F (-20C to +45C)

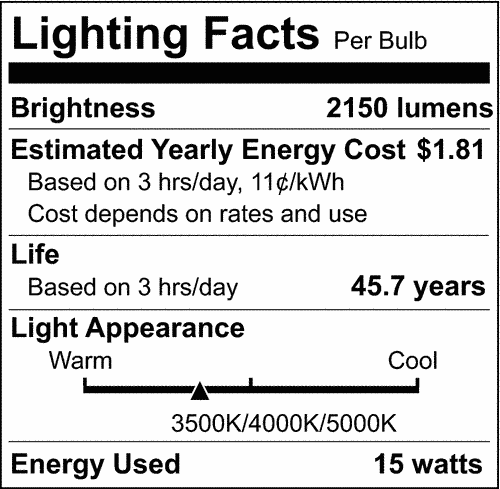

Lumens2150L/2200L/2200L
Volts120V-277V
Watts15W
Max Lumens2200L
Physical
Lamp BaseMedium Bi Pin
FinishWHITE
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL47.78
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-X87CKG
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923117633
Case Cube1.2601
Case Height6.7
Case Length50.0
Case Quantity25
Case UPC10045923117630
Case Weight17.2
Case Width6.5
EA Cube0.0278
EA Height1.0
EA Length48.0
EA Quantity1
EA Weight0.7
EA Width1.0
Pack TypeSleeve
Web Length47.78
Web Width1.0
