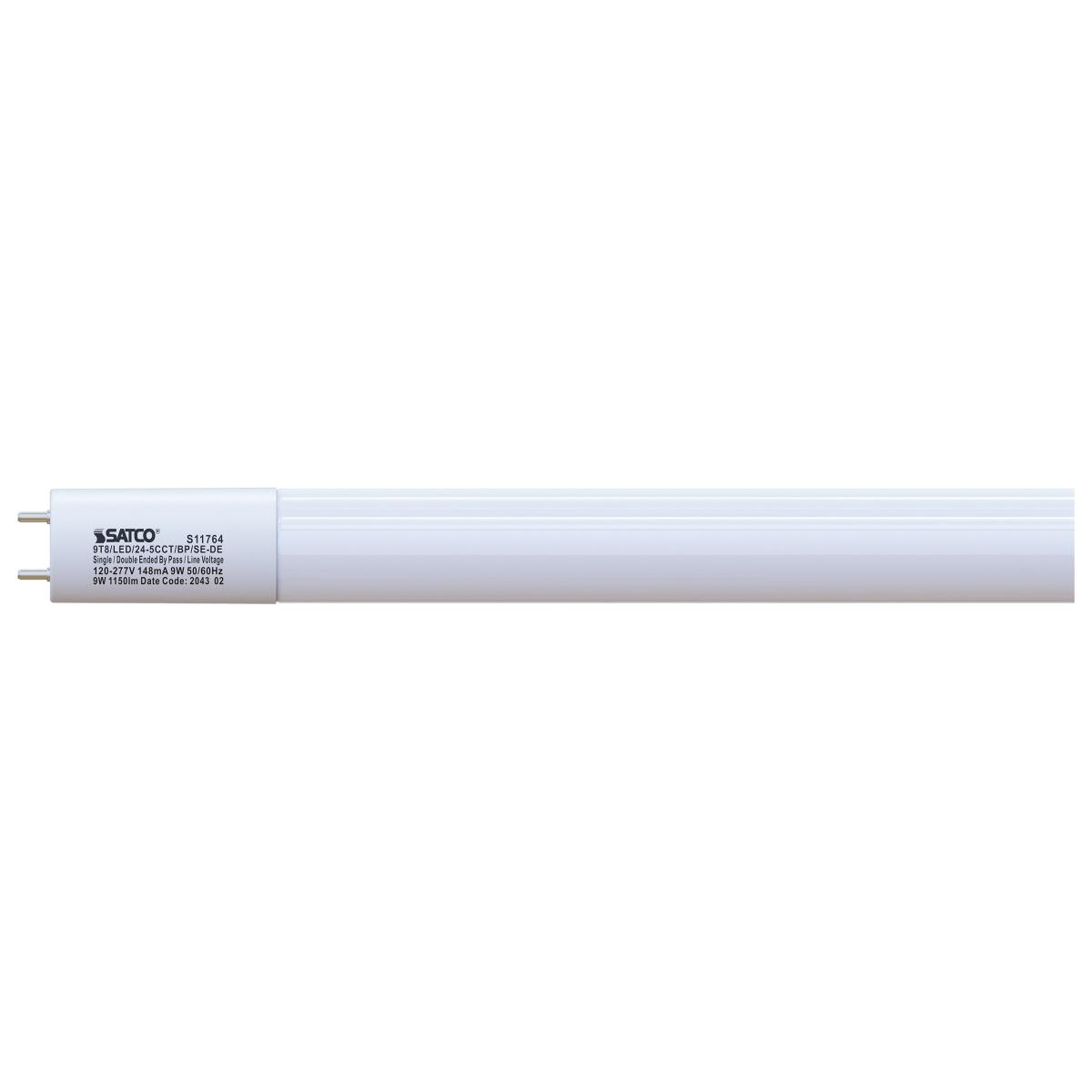

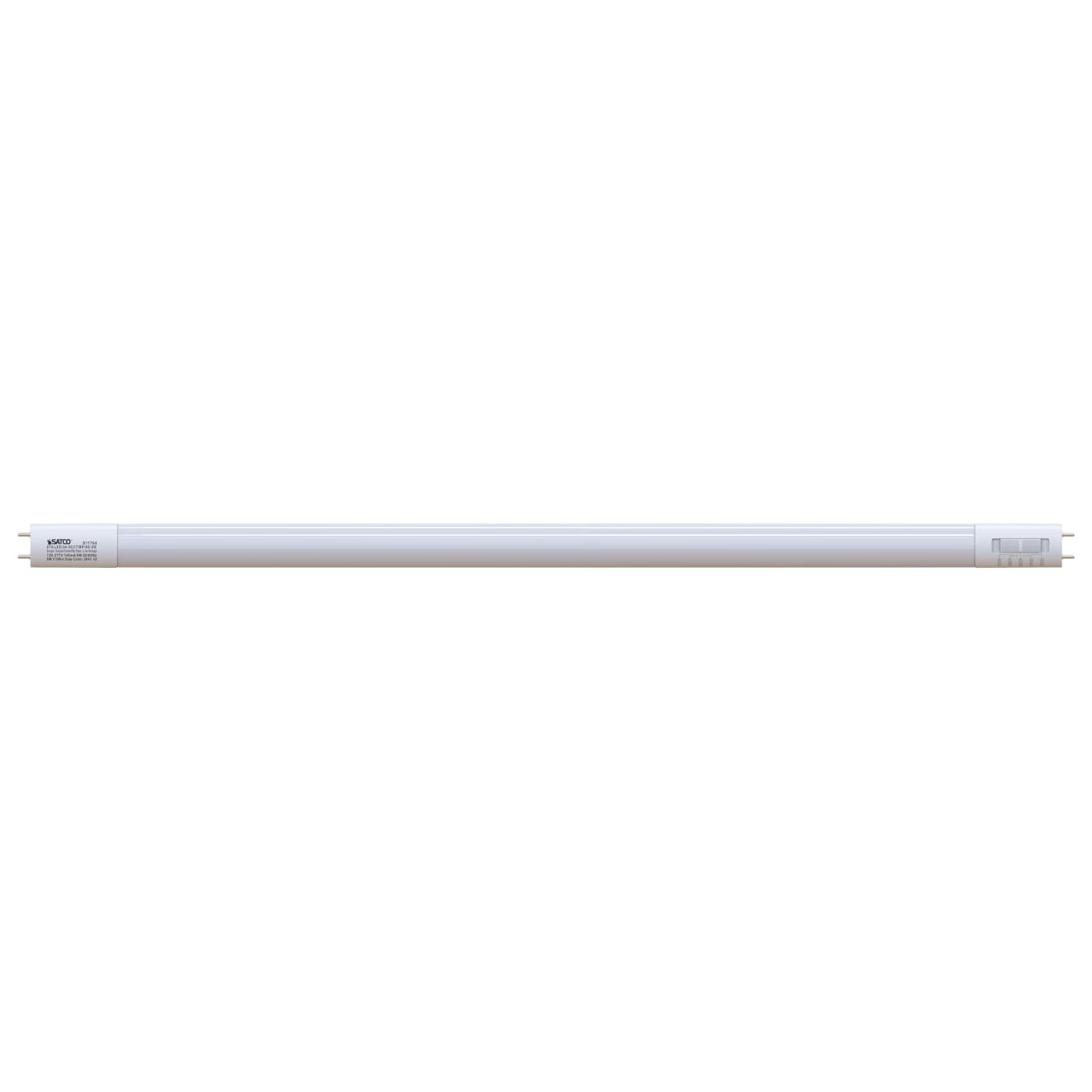

S11764 9T8/LED/24-5CCT/BP/SE-DE

S11764

9T8/LED/24-5CCT/BP/SE-DE

9 Watt; 2 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt


SATCO|NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures with CCT selection at installation. Available in two, three, and four-foot lengths for immediate energy savings in a variety of commercial and industrial applications.
  • MOL: 23.17 inches, MOD: 1.00 inch
  • Medium Bi Pin base
  • CCT Selectable
  • Rated for 50,000 hours
  • Damp location rated
  • Single or double-ended wiring
  • 5-Year Warranty
Lights

S11764

9T8/LED/24-5CCT/BP/SE-DE

9 Watt; 2 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt

SATCO|NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures with CCT selection at installation. Available in two, three, and four-foot lengths for immediate energy savings in a variety of commercial and industrial applications.
  • MOL: 23.17 inches, MOD: 1.00 inch
  • Medium Bi Pin base
  • CCT Selectable
  • Rated for 50,000 hours
  • Damp location rated
  • Single or double-ended wiring
  • 5-Year Warranty

Specifications

General
StatusActive
Watts9W
Incandescent Equivalent40W
Fluorescent Equivalent17W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length24
FinishWhite
CCT (Kelvin)3000K/3500K/4000K/5000K/6500K
TemperatureWarm White to Daylight
CRI80

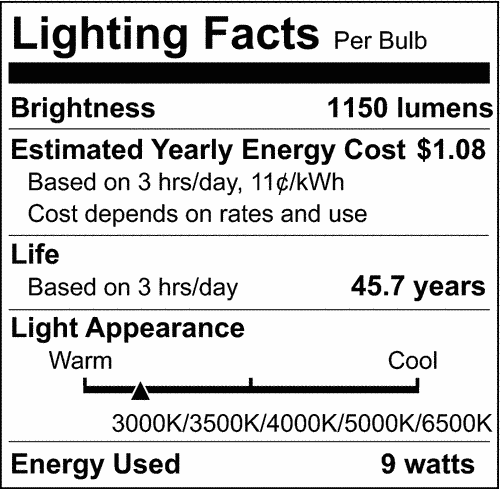

Lumens1150L/1150L/1250L/1250L/1250L
Beam Spread210
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts9W
Incandescent Equivalent40W
Fluorescent Equivalent17W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3000K/3500K/4000K/5000K/6500K
TemperatureWarm White to Daylight
CRI80
Lumens1150L/1150L/1250L/1250L/1250L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD<25%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL23.17
MOD1
Nominal Length24
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishWhite
MaterialGlass / Plastic
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.25
Additional Information
Additional InfoNon CCT Selectable options are S39900-S39903
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-N3X0KC
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923117640
Each Quantity1
Each Length (in.)23.78
Each Width (in.)0.94
Each Height (in.)0.94
Each Weight (lb.)0.44
Each Cube (CuFt.)0.0122
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923117647
Case Quantity25
Case Length (in.)24.65
Case Width (in.)5.87
Case Height (in.)5.75
Case Weight (lb.)14.40
Case Cube (CuFt.)0.4815
