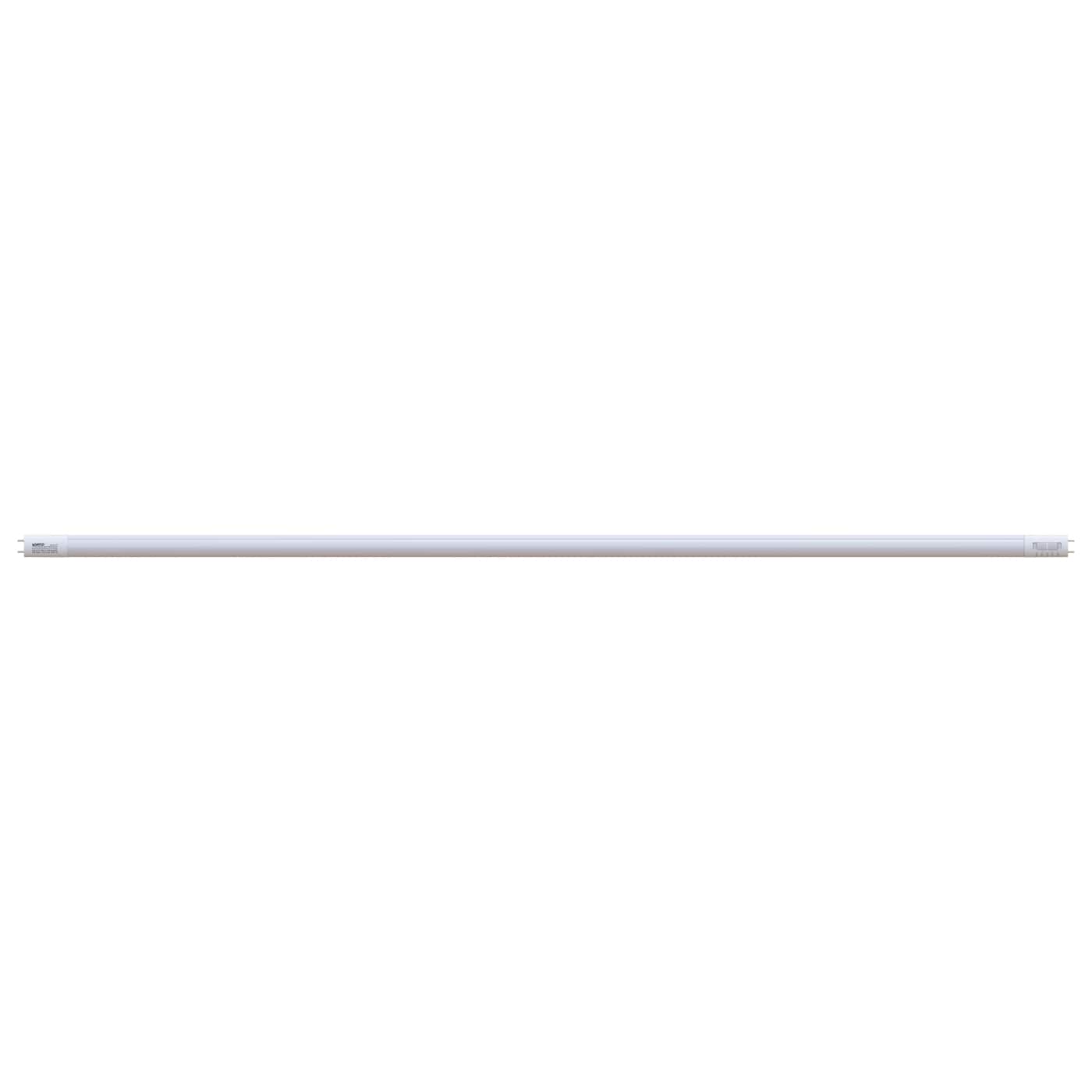

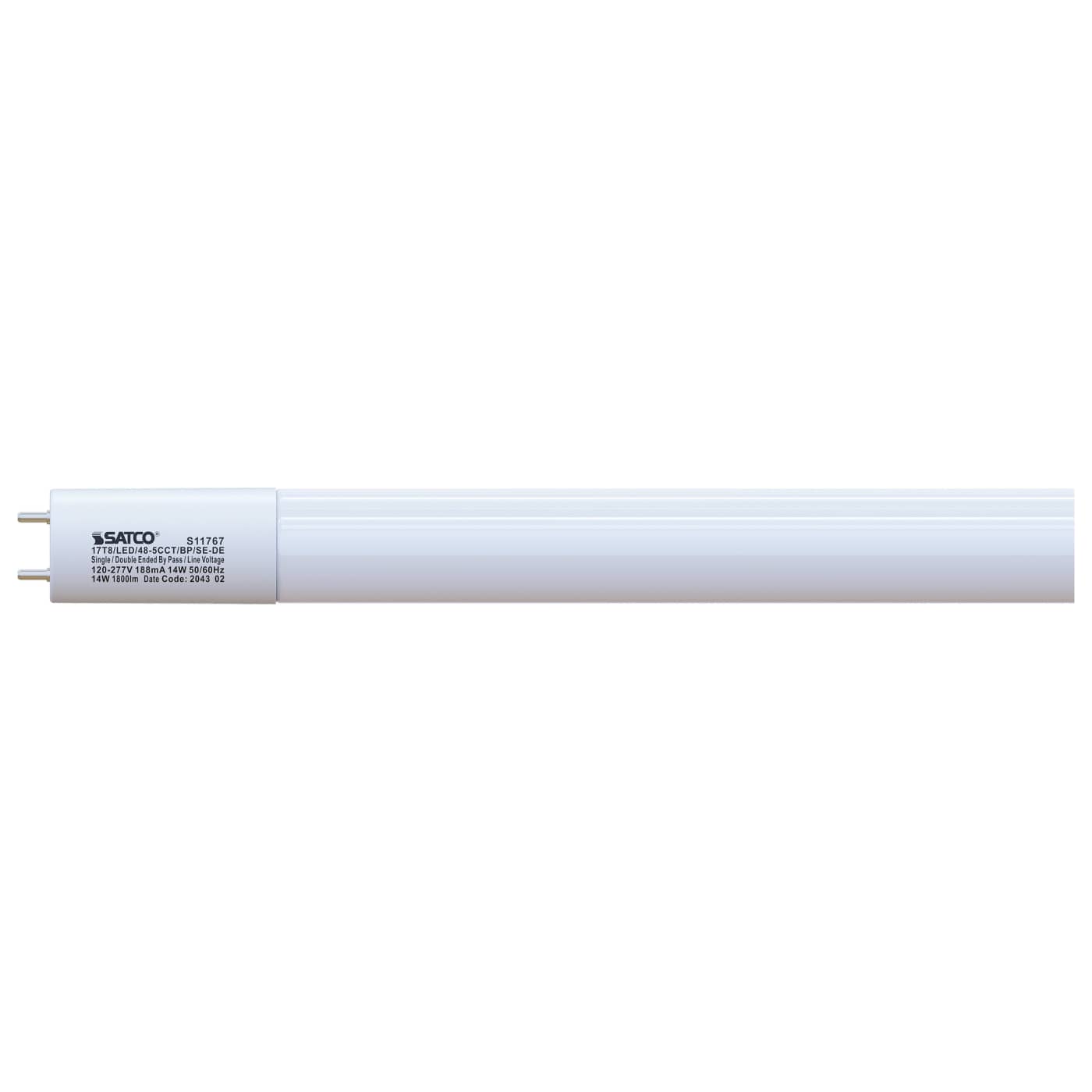

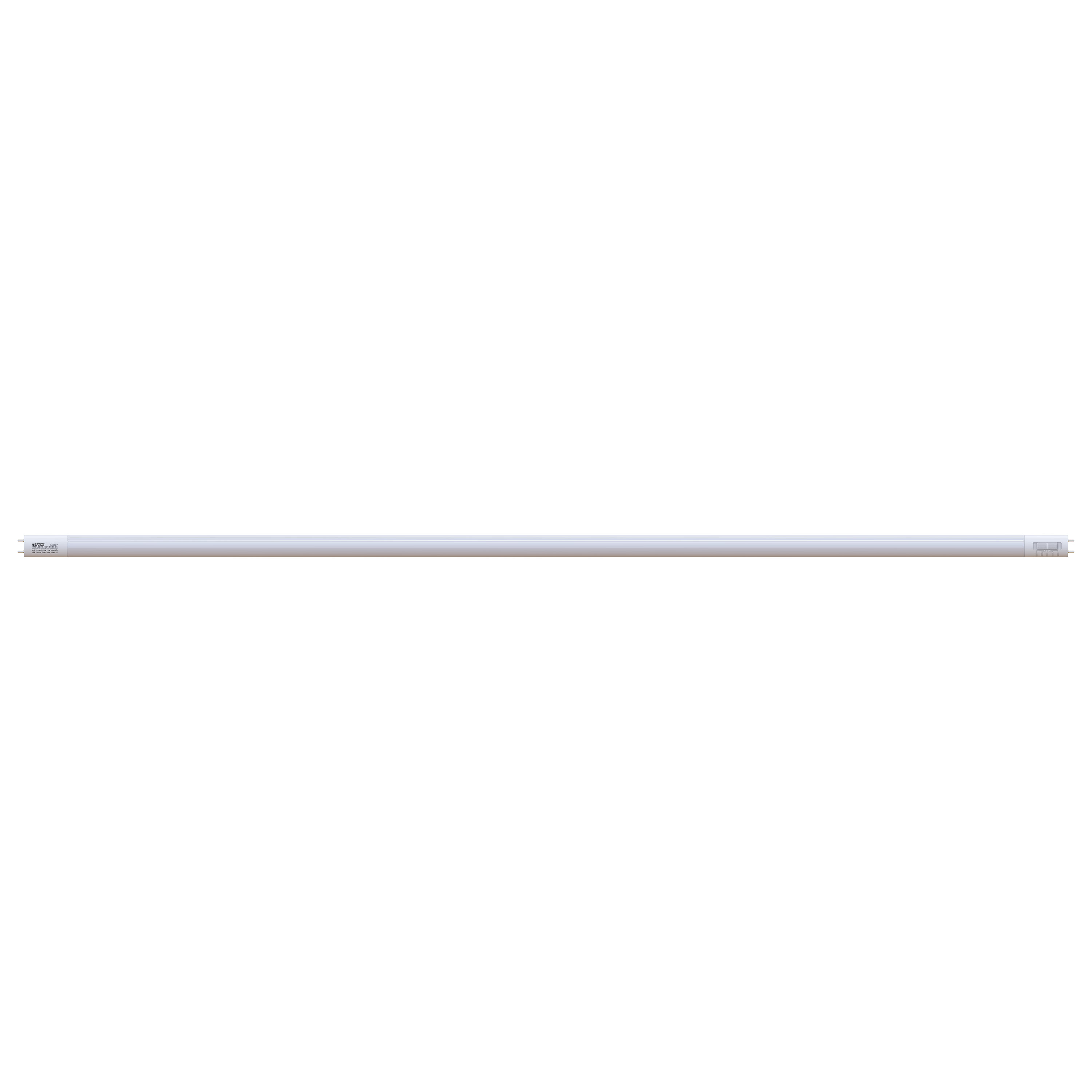

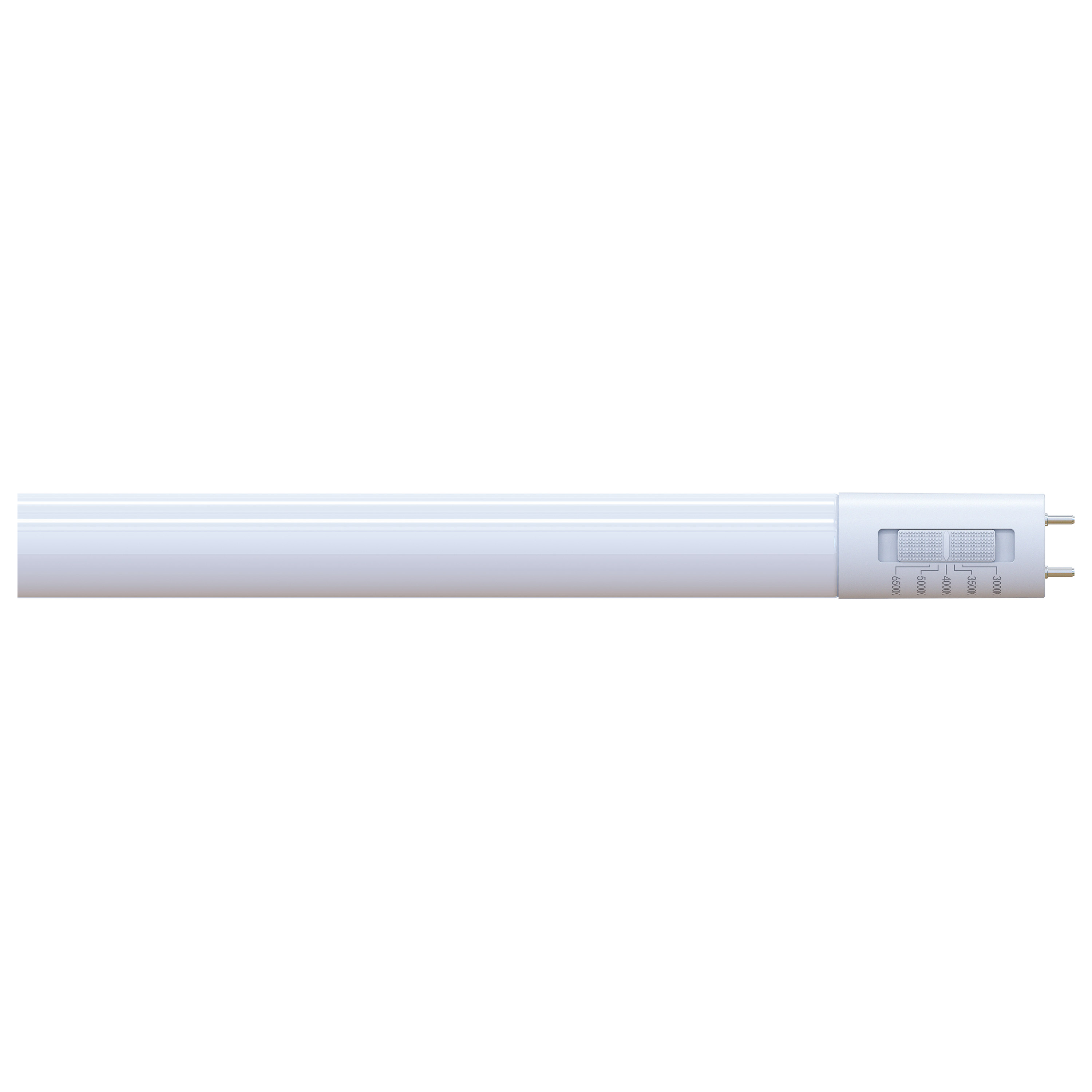

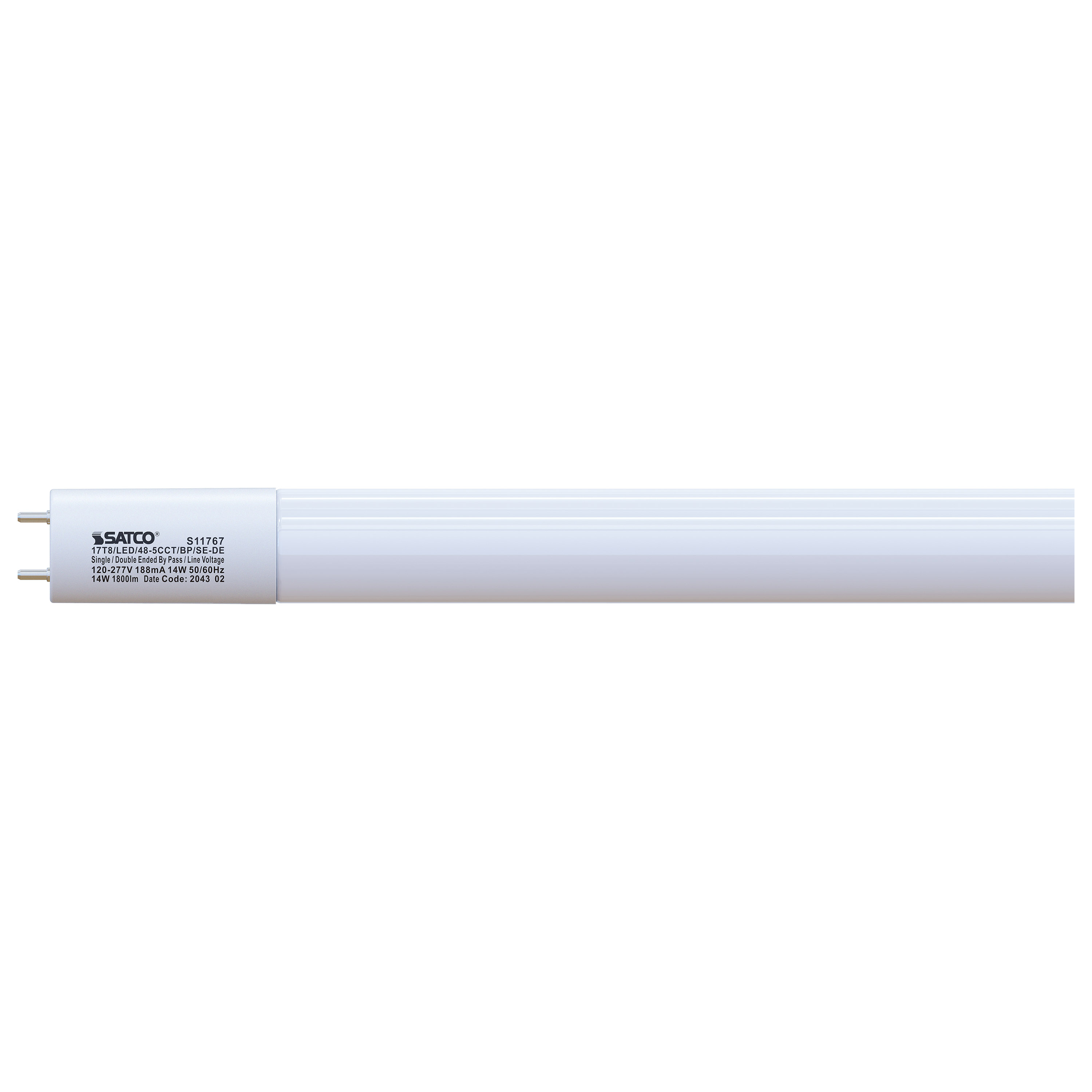

17T8/LED/48-5CCT/BP/SE-DE - S11767
17T8/LED/48-5CCT/BP/SE-DE - S11767
17T8/LED/48-5CCT/BP/SE-DE - S11767
S11767

17T8/LED/48-5CCT/BP/SE-DE

  • 17 Watt
  • 4 Foot LED
  • T8
  • CCT Selectable
  • Type B Ballast Bypass
  • G13 Base
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11767 SpecificationsS11767 Photometrics 3000K.iesS11767 Instructions.pdf
Tools
Lighting Layout Analysis For S11767
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
17 Watt; 4 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass / Plastic
Fixture TypeLinear
StatusActive
StyleUtility
Total Harmonic Distortion<25%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Additional InfoNon CCT Selectable options are S39904-S39907
Amps0.142-0.061A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv45W
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
Hours Rated50000
Beam Angle (degree)210
Color TempWarm White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)

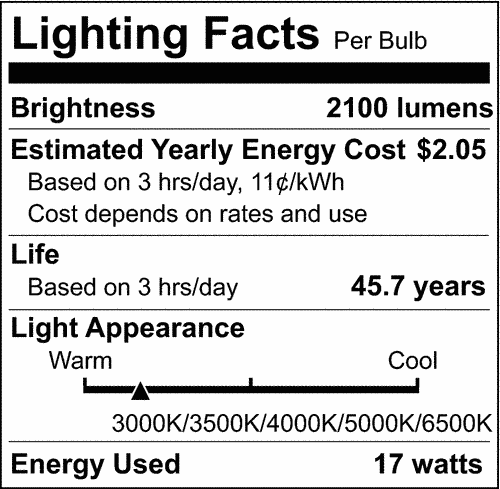

Lumens2100L/2100L/2200L/2200L/2200L
Volts120V-277V
Watts17W
Physical
Lamp BaseMedium Bi Pin
FinishWHITE
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL47.17
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-J4M2XF
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923117671
Case Cube0.9544
Case Height5.75
Case Length48.86
Case Quantity25
Case UPC10045923117678
Case Weight14.4
Case Width5.87
EA Cube0.0244
EA Height0.94
EA Length47.8
EA Quantity1
EA Weight0.47
EA Width0.94
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length47.17
Web Width1.0
