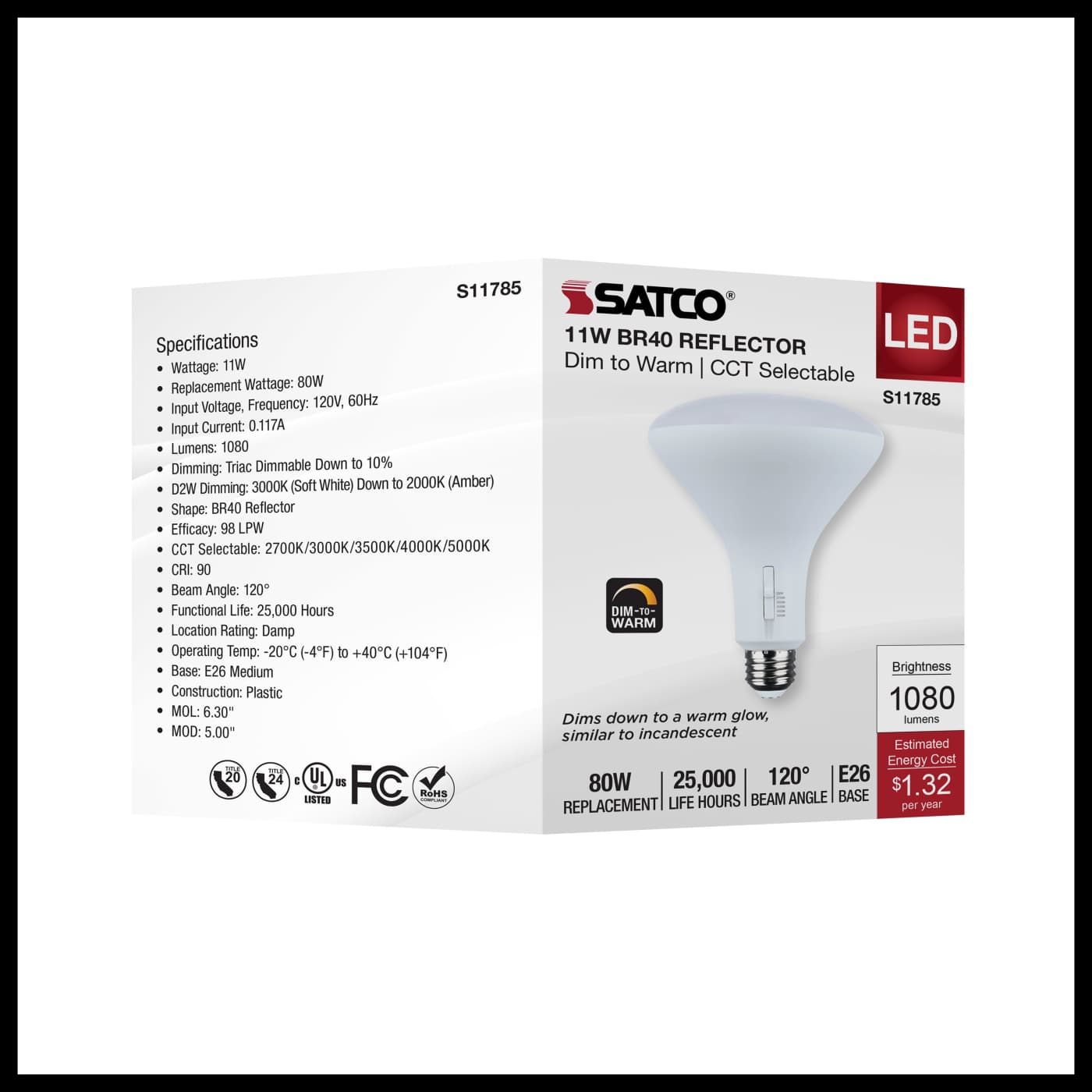

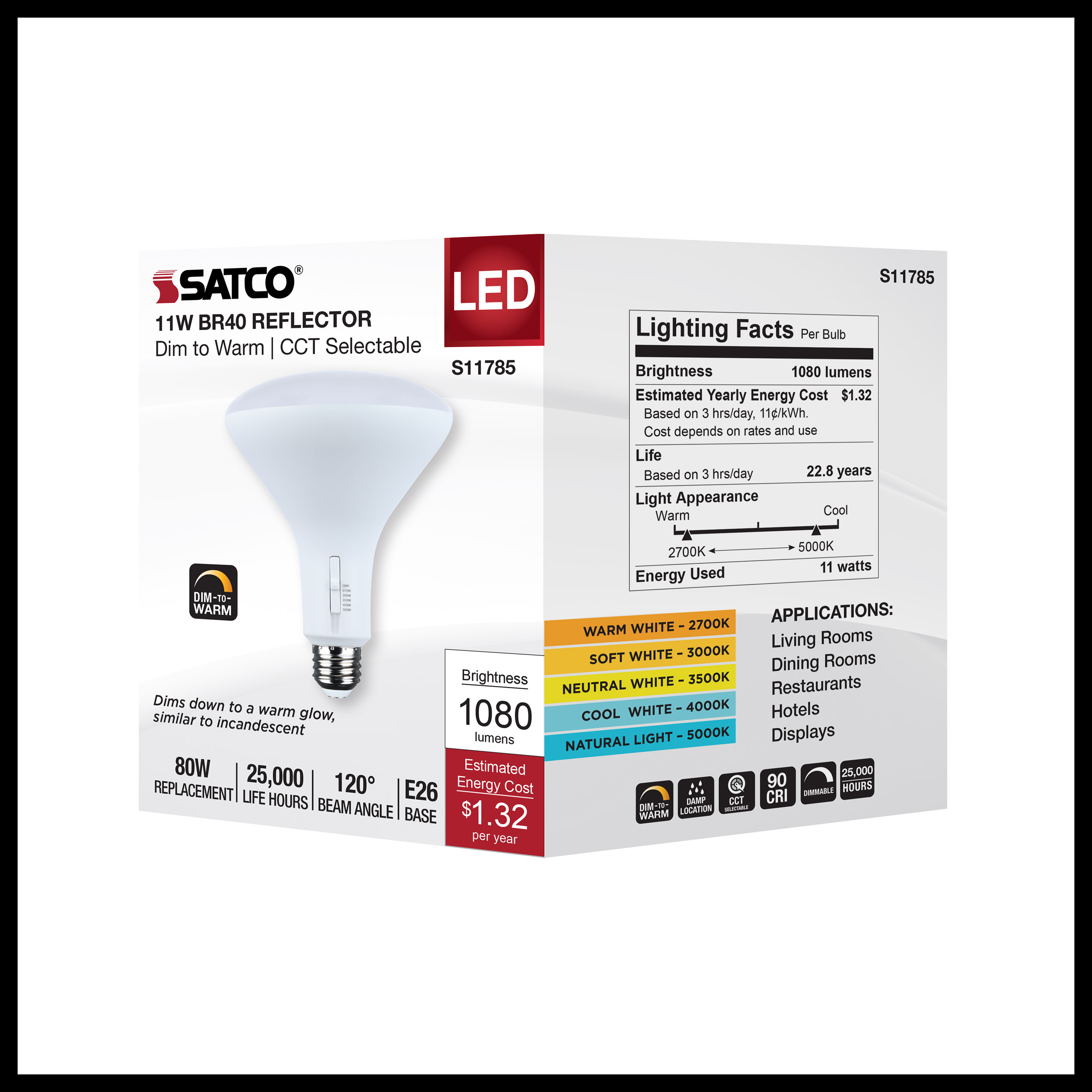

S11785

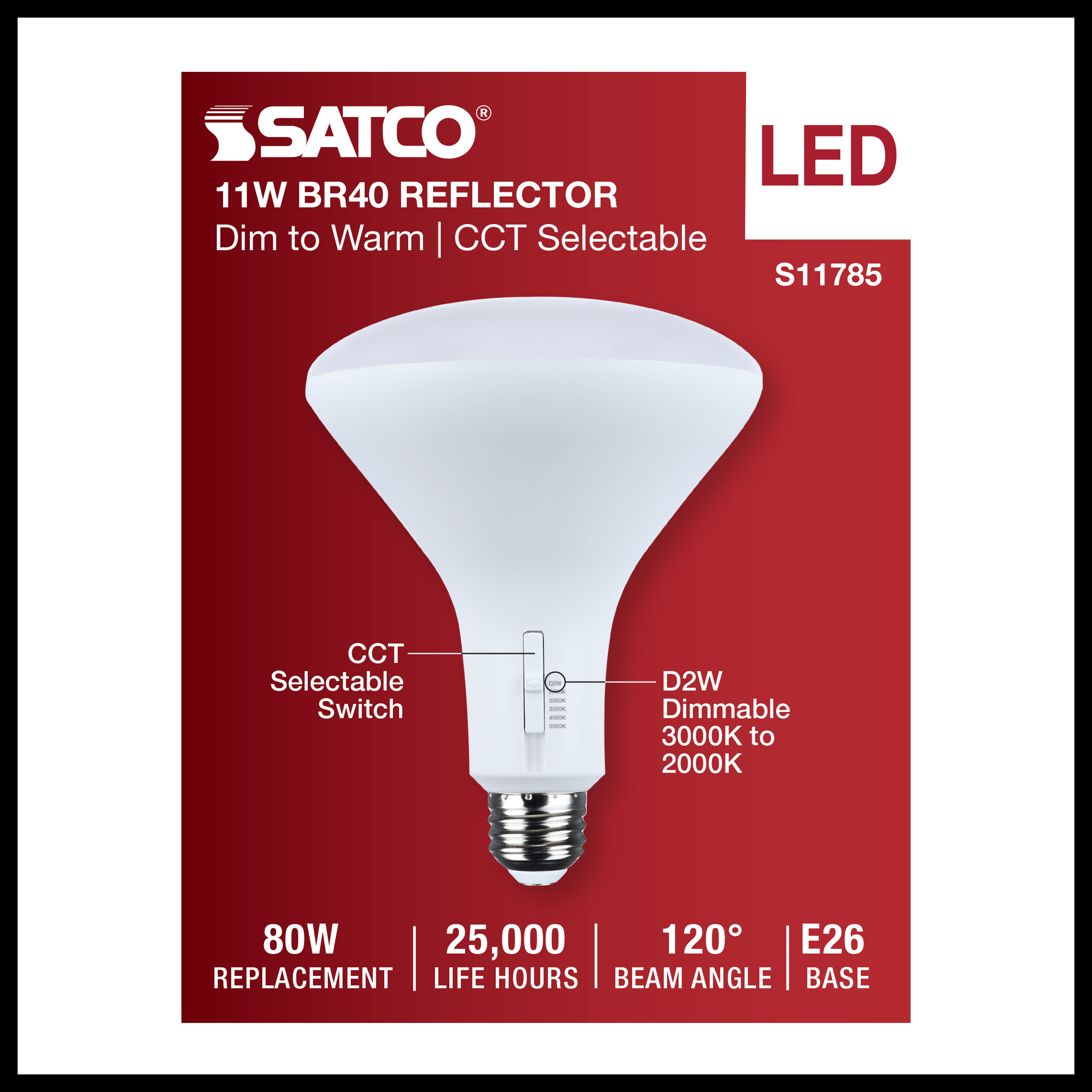

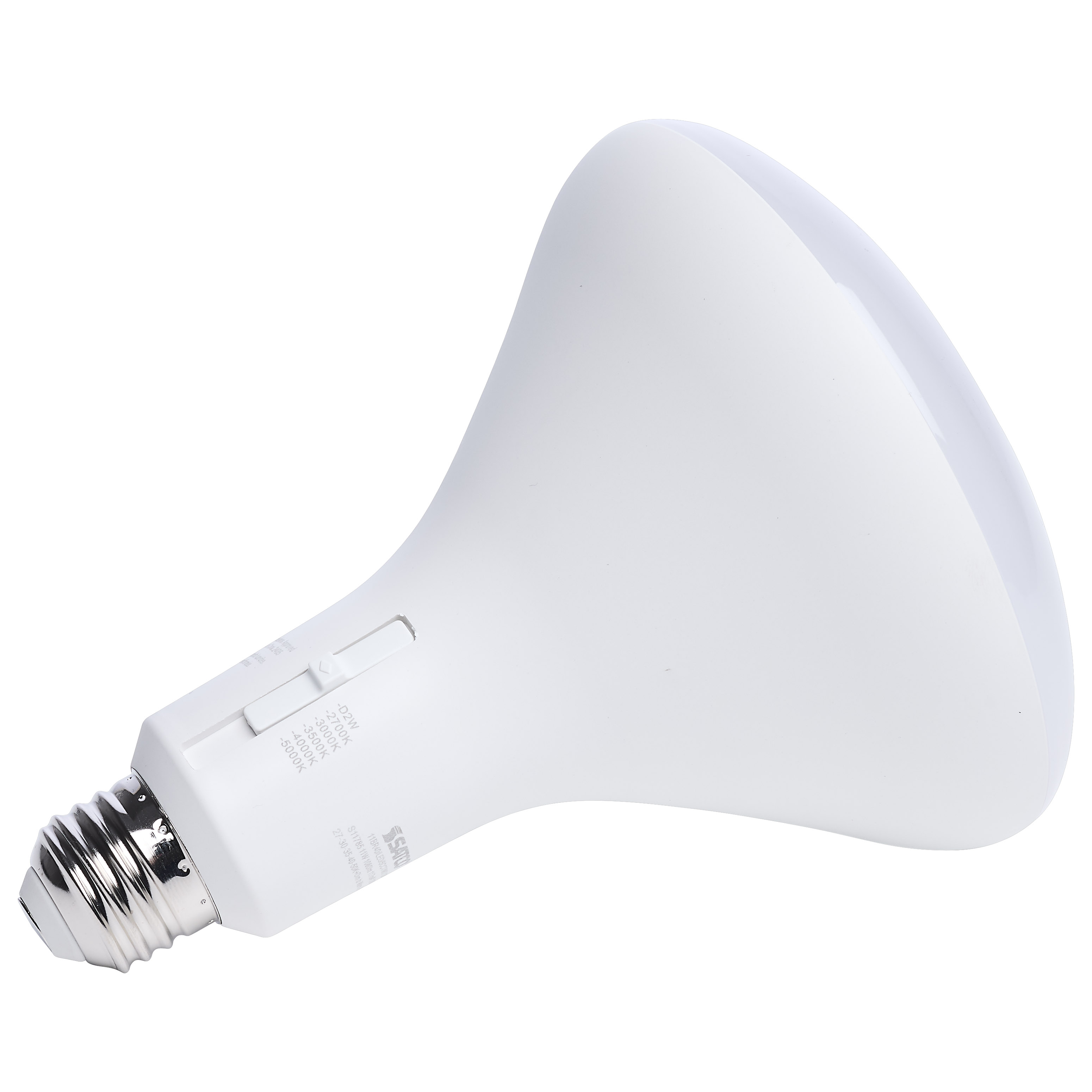

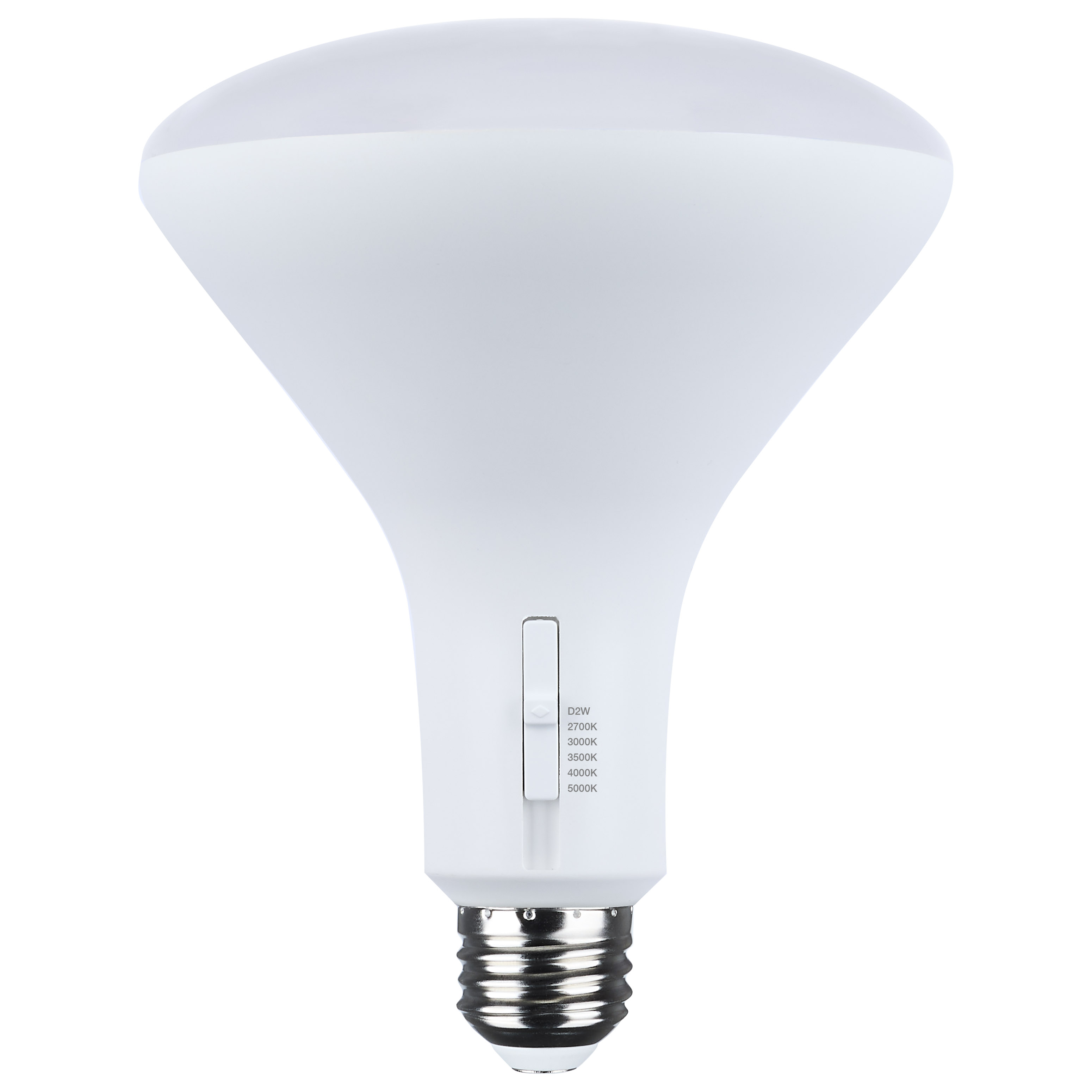

11BR40/LED/5CCT/WD/120V

  • 11 Watt BR40 LED

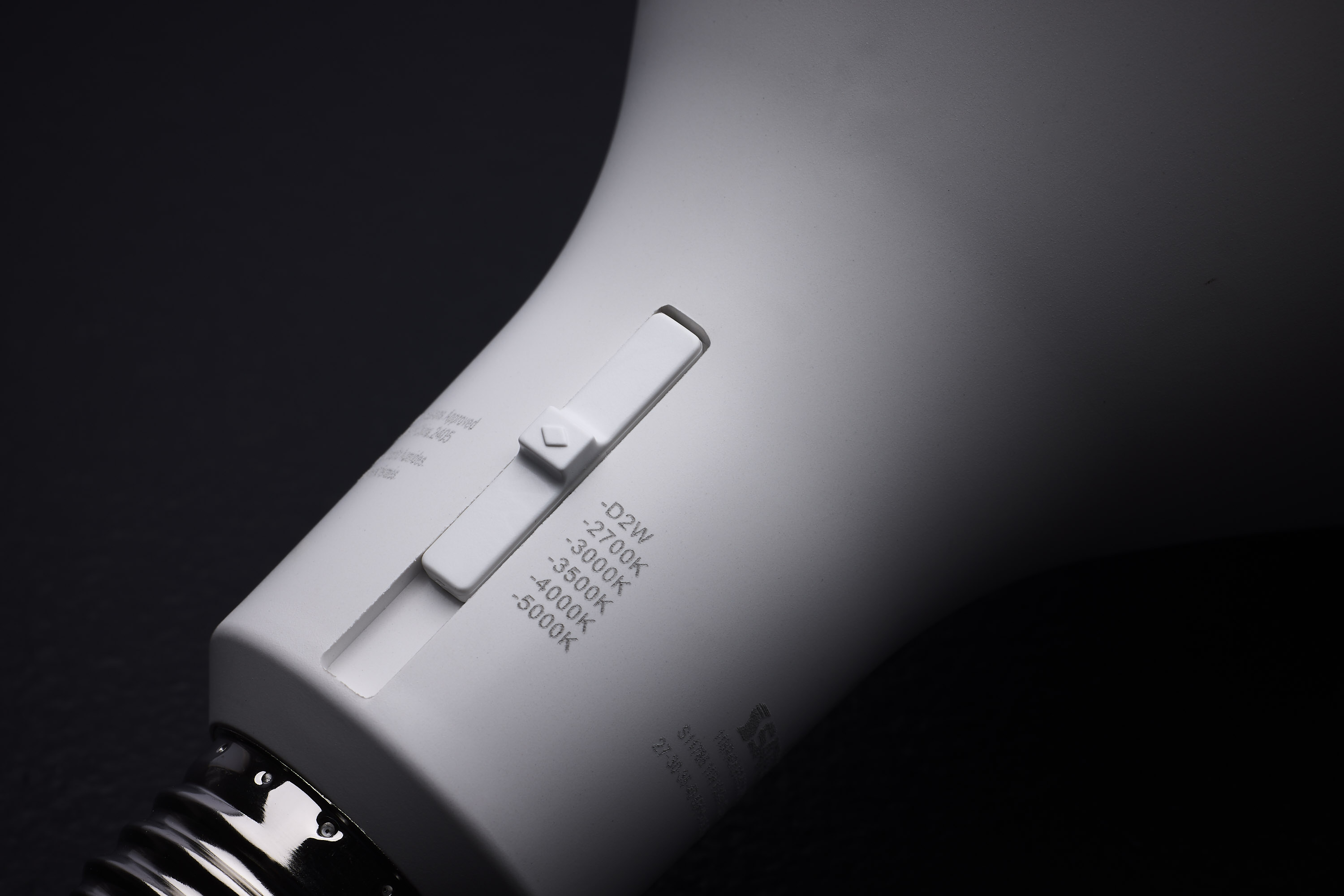

  • 27K/30K/35K/40K/50K CCT Selectable
  • Dim to Warm
  • White Finish
  • 120 Volt
location_rating^damp^1
cc_selectable^y^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
warranty^5_years^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

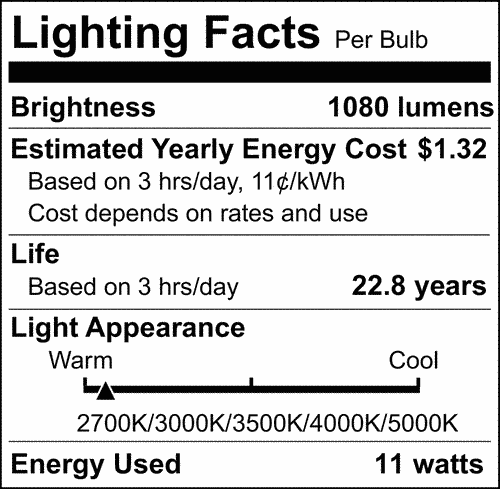

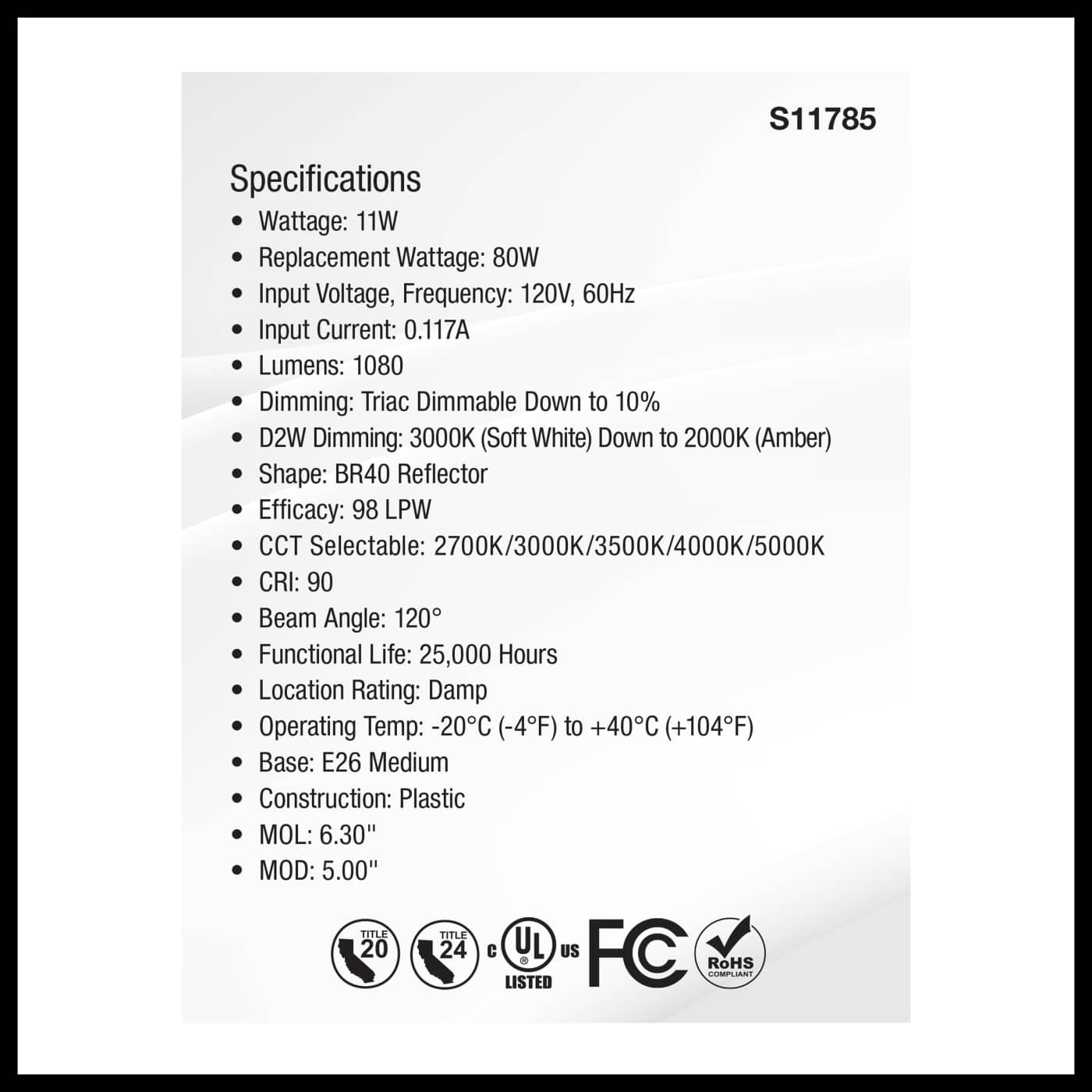

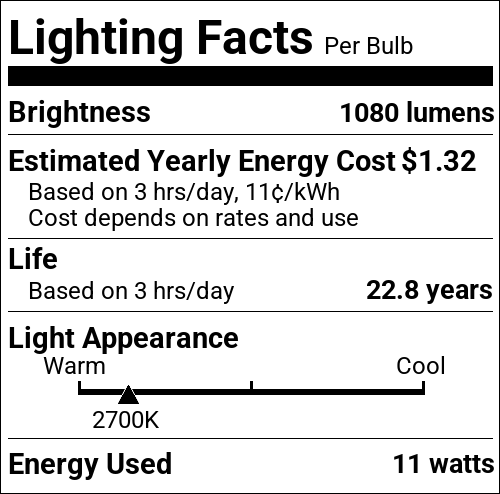

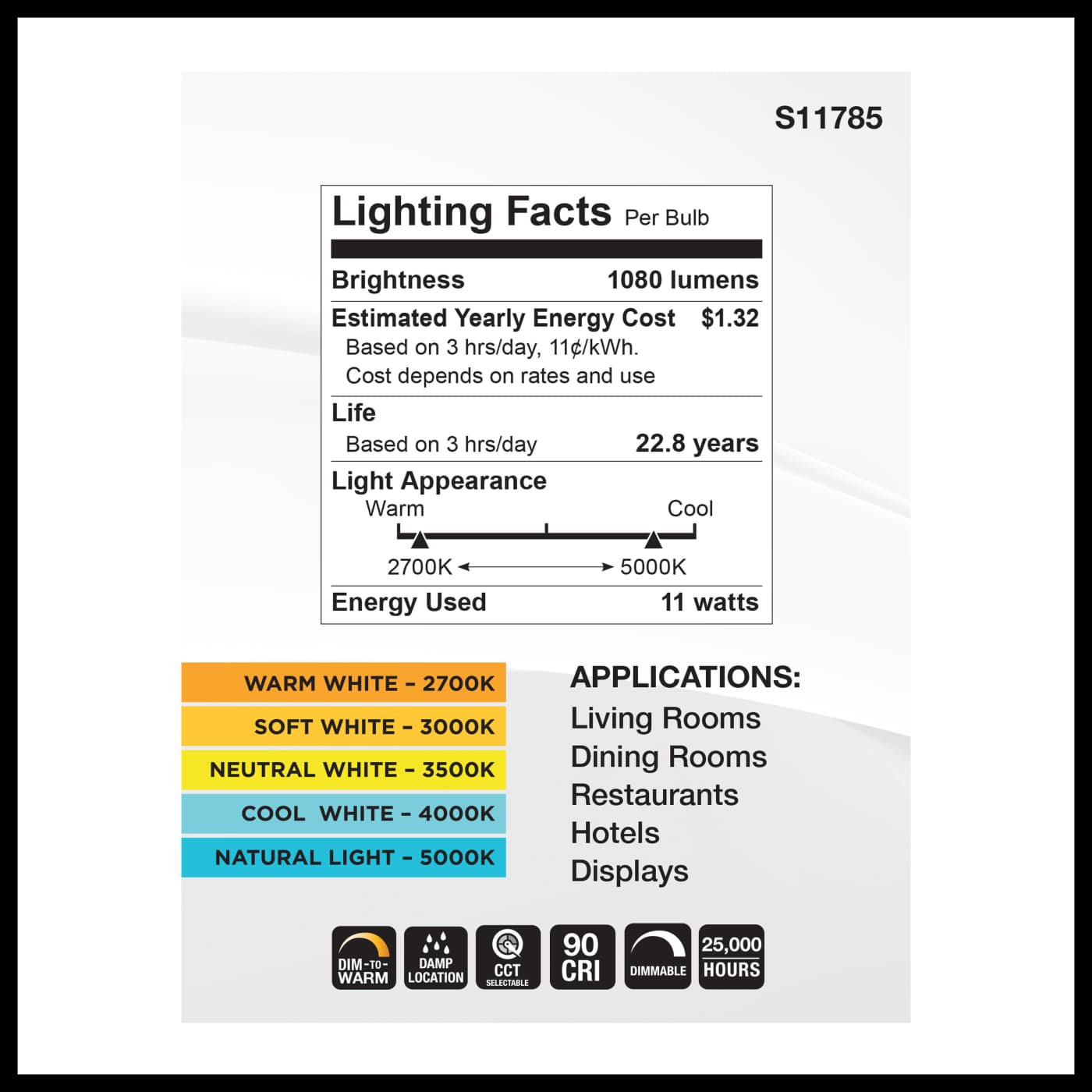

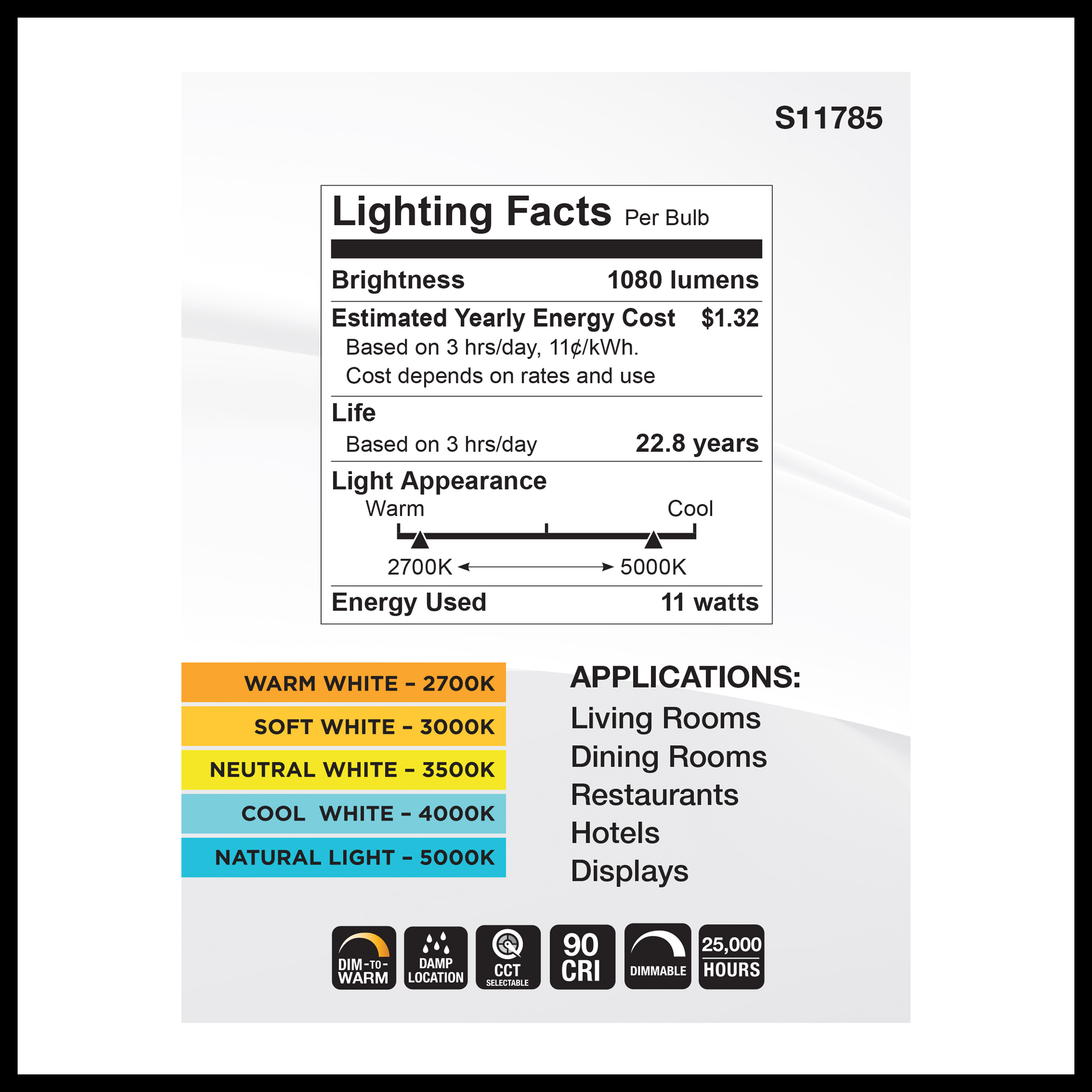

S11785 SpecificationsLED REFLECTOR LAMPS DIM TO WARM|CCT SELECTABLES11785 Lighting Facts Label
Tools
Lighting Layout Analysis For S11785
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

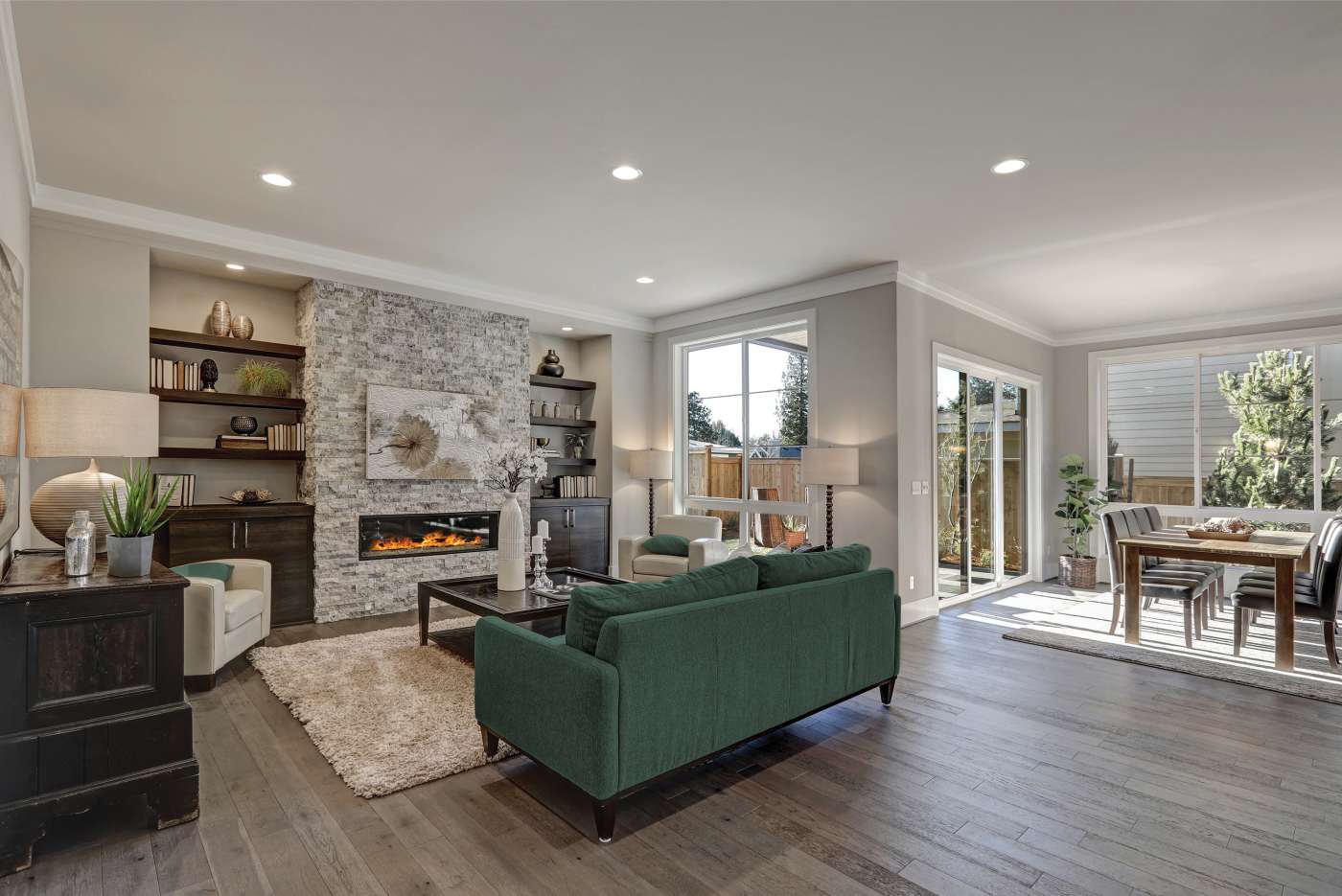

Transform your lighting experience with SATCO NUVO's LED S11785 reflector light bulb. Designed for superior energy efficiency, this bulb provides vibrant, true-to-life white light with an impressive CRI of 90. The classic BR40 shape, allows this lamp to fit seamlessly into a variety of fixtures to suit many different needs. Offering a 5 CCT range from a soft 2700K to a crisp 5000K, and a dim-to-warm capability feature from 3000K to 2000K, this lamp allows you to enjoy the nostalgic charm of traditional incandescent lighting with modern efficiency. With a wide 120 degrees beam angle, this bulb is versatile enough to suit any environment, from living rooms and dining areas to offices, museums, and retail stores, ensuring the perfect ambiance for every setting.
Products Specs
General
CompanySATCO
Center Beam Candle Power397
Lamp FilamentLED
MaterialPlastic
Fixture TypeReflector
Product NotesCCT Range at D2W: 3000K-2000K
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion14.5%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.117A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent80W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)120
Color TempWarm Dimming, Warm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens1080L
Volts120v
Watts11W
Physical
Lamp BaseMedium
FinishWHITE
Housing ColorWhite
ANSI BaseE26
Lamp TypeBR40

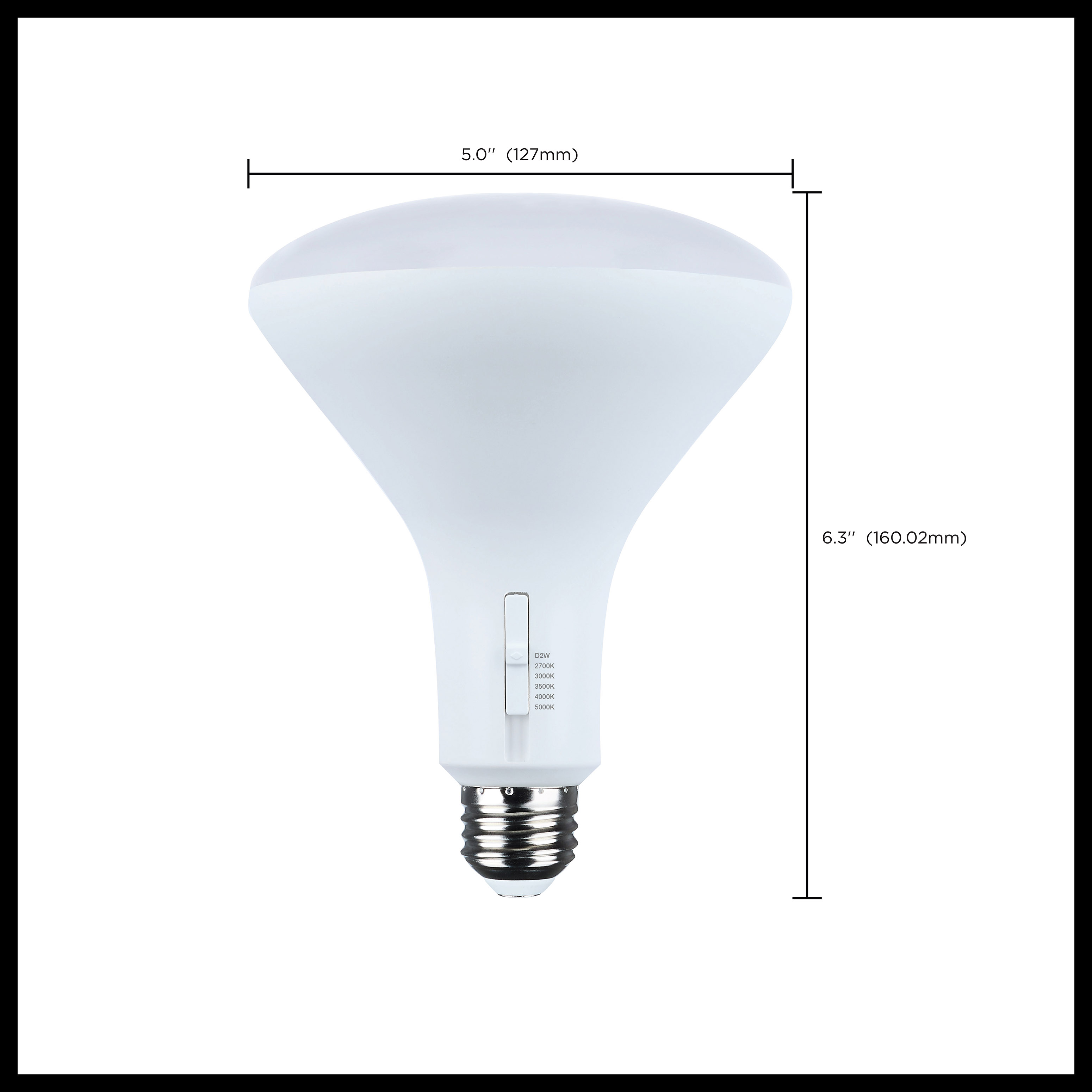

MOD Lamps5.0
MOL6.3
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Title 20Yes
T24/JA8 CompliantYes
Packaging
UPC045923117855
Case Cube3.289
Case Height14.96
Case Length22.44
Case Quantity24
Case UPC10045923117852
Case Weight15.48
Case Width16.93
EA Cube0.1015
EA Height6.69
EA Length5.12
EA Quantity1
EA Weight0.53
EA Width5.12
Inner Cube0.7083
Inner Height7.09
Inner Length15.94
Inner Quantity6
Inner UPC20045923117859
Inner Weight3.36
Inner Width10.83
Pack TypeColor Box
Web Length6.3
Web Width5.0
