| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 11.3 |
| Dimmable Text | 0-10V Dimming |
| Material | Aluminum |

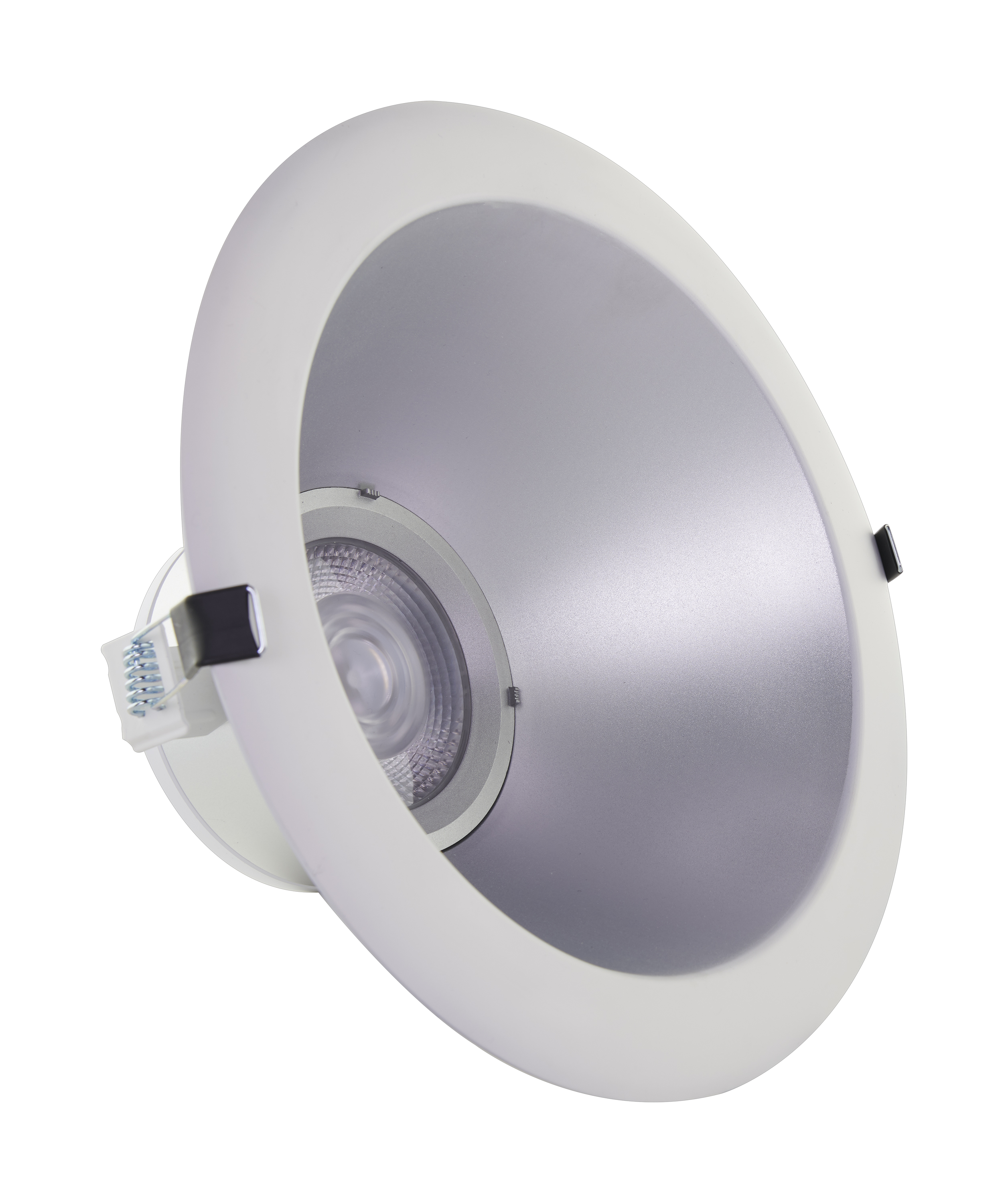

| Fixture Type | Commercial Downlight Retrofit |
| Product Notes | Default wattage setting is 46W |
| Status | Active |
| Style | Utility |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| Can Size | 10 in. |
| Finish Family | Silver |
| Amps | 0.275-0.119/0.333-0.144/0.383-0.166A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Power Factor | 0.98 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor and Outdoor |
| Product Technology | LED |
| Fluor Equiv | 2 x 26W CFL |
| Incandescent Equivalent | 150W/200W/250W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 40 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 2500L/3000L/3500L |
| Volts | 120V-277V |
| Watts | 33W/40W/46W |
| Lamp Base | Integrated |
|---|---|
| Finish | SILVER |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Can be installed with or without the rough-in plate (80-959) |
| Air Tight | No |
|---|---|
| CA Prop 65 | Lead |
| FCC Compliant | Yes |
| IC Rated | Yes |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923118173 |
|---|---|
| Case Cube | 2.2237 |
| Case Height | 12.8 |
| Case Length | 24.21 |
| Case Quantity | 4 |
| Case UPC | 10045923118170 |
| Case Weight | 16.44 |
| Case Width | 12.4 |
| EA Cube | 0.477 |
| EA Height | 5.91 |
| EA Length | 11.81 |
| EA Quantity | 1 |
| EA Weight | 3.59 |
| EA Width | 11.81 |
| Pack Type | Box |

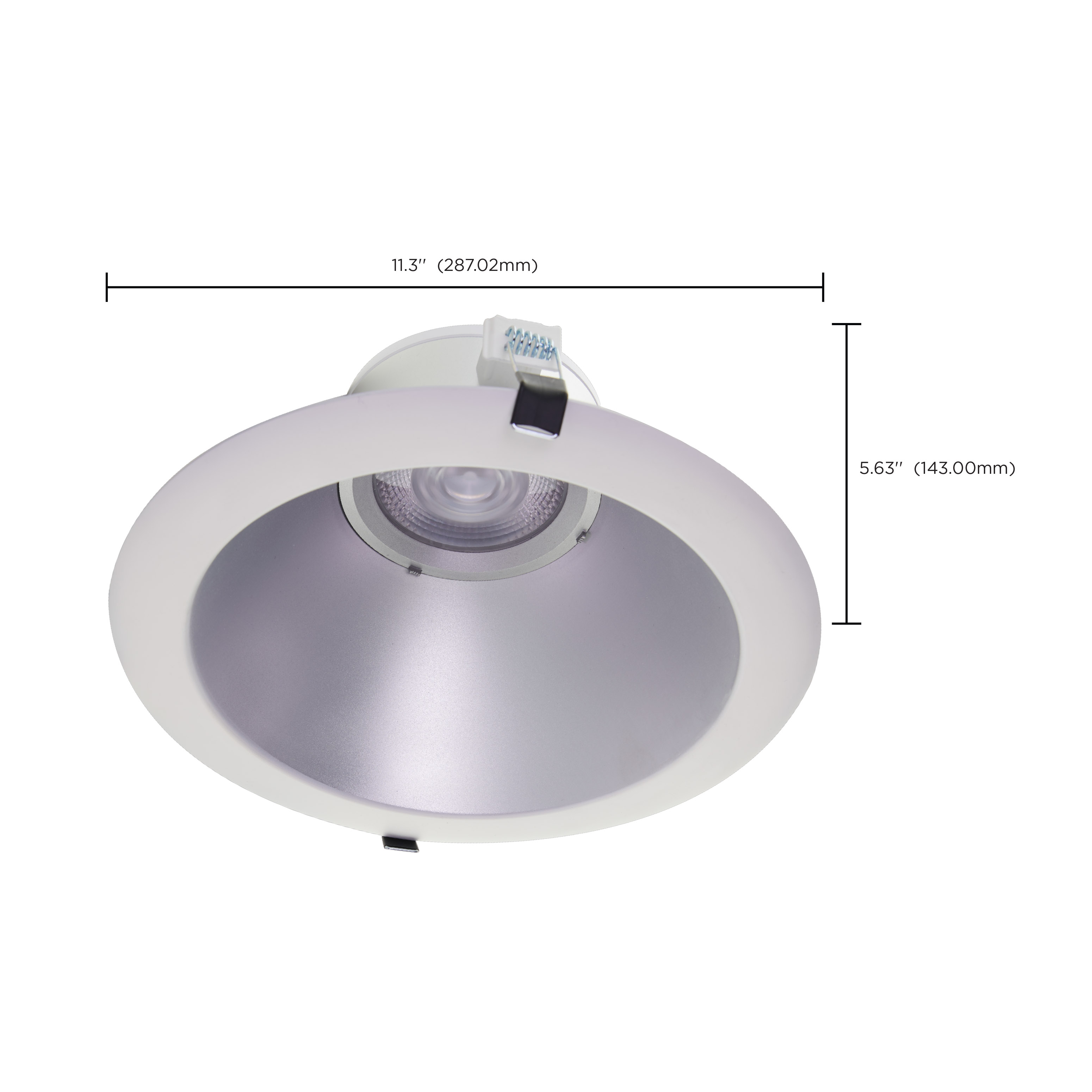

| Web Height | 5.63 |
| Web Width | 11.3 |
