S11824

10.5WLED/DIR/5-6/90'/CCT-SEL

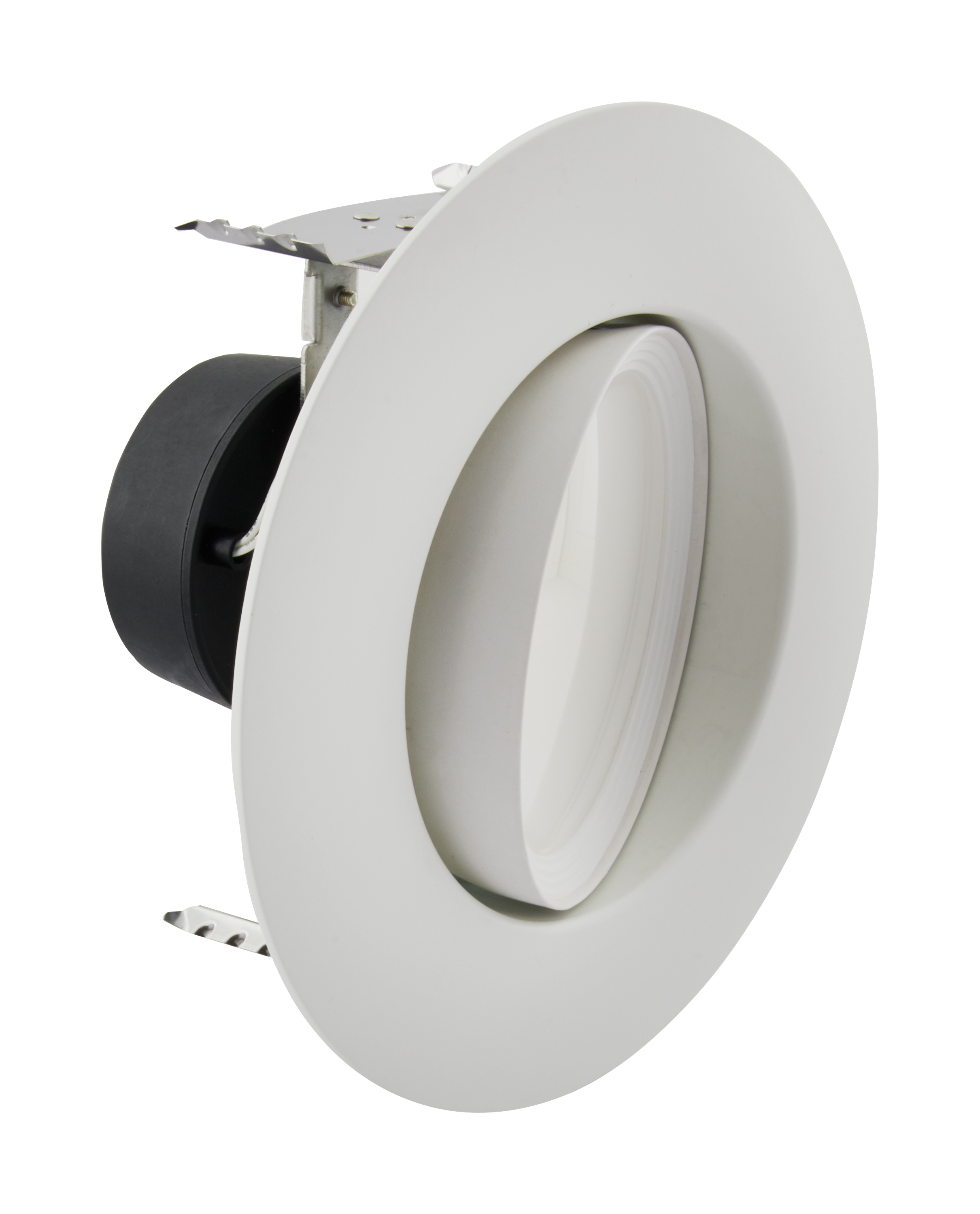

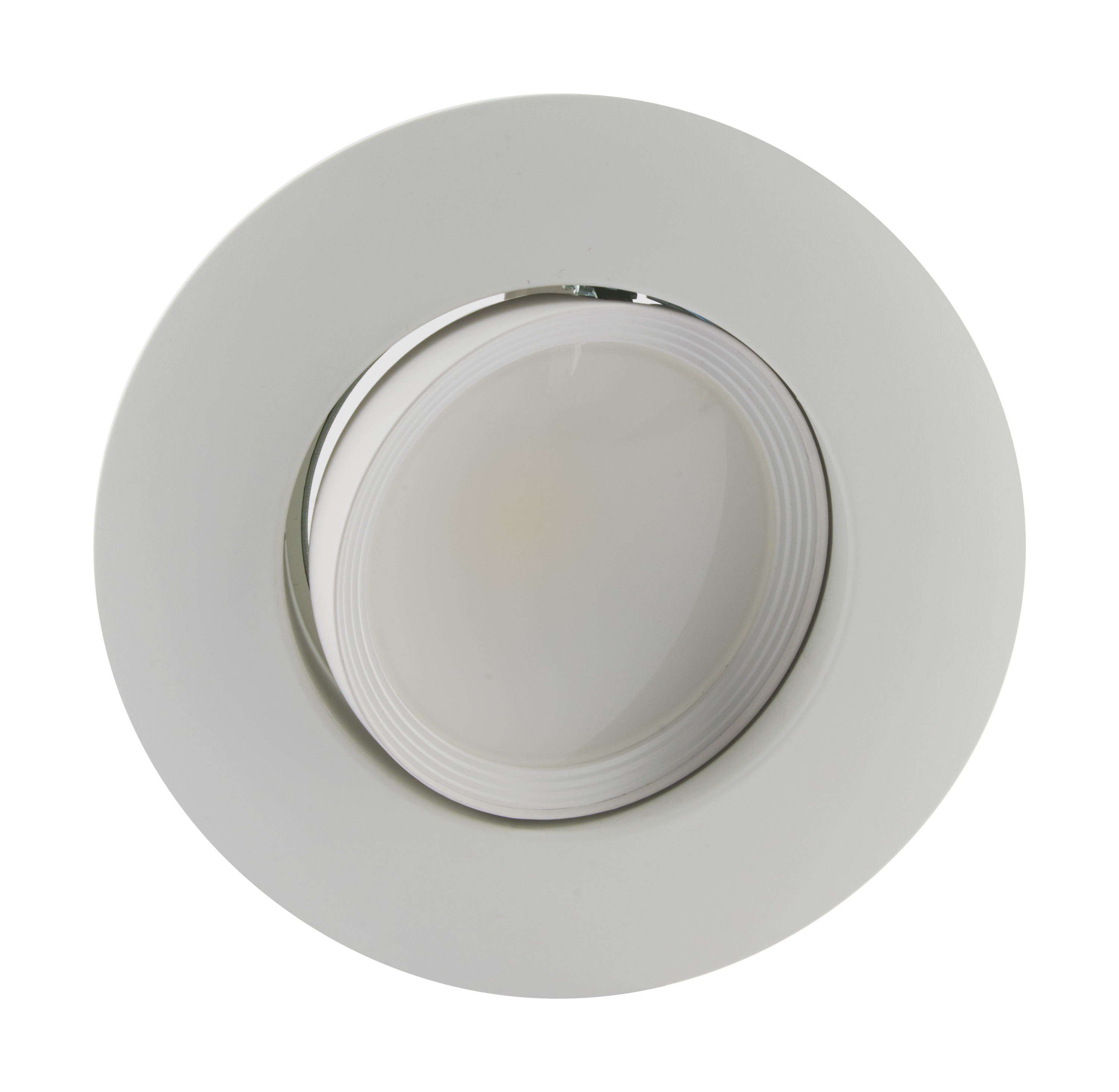

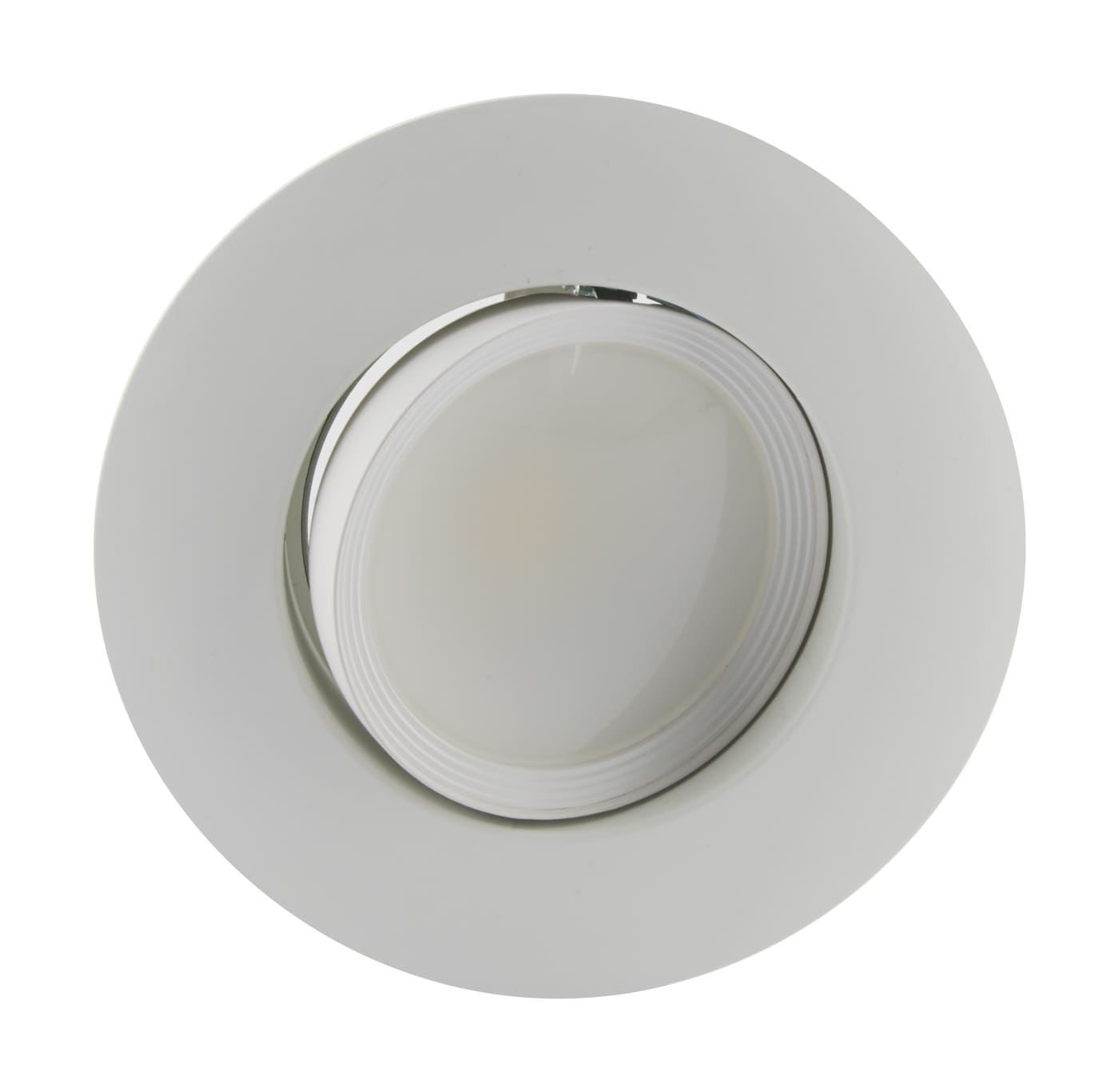

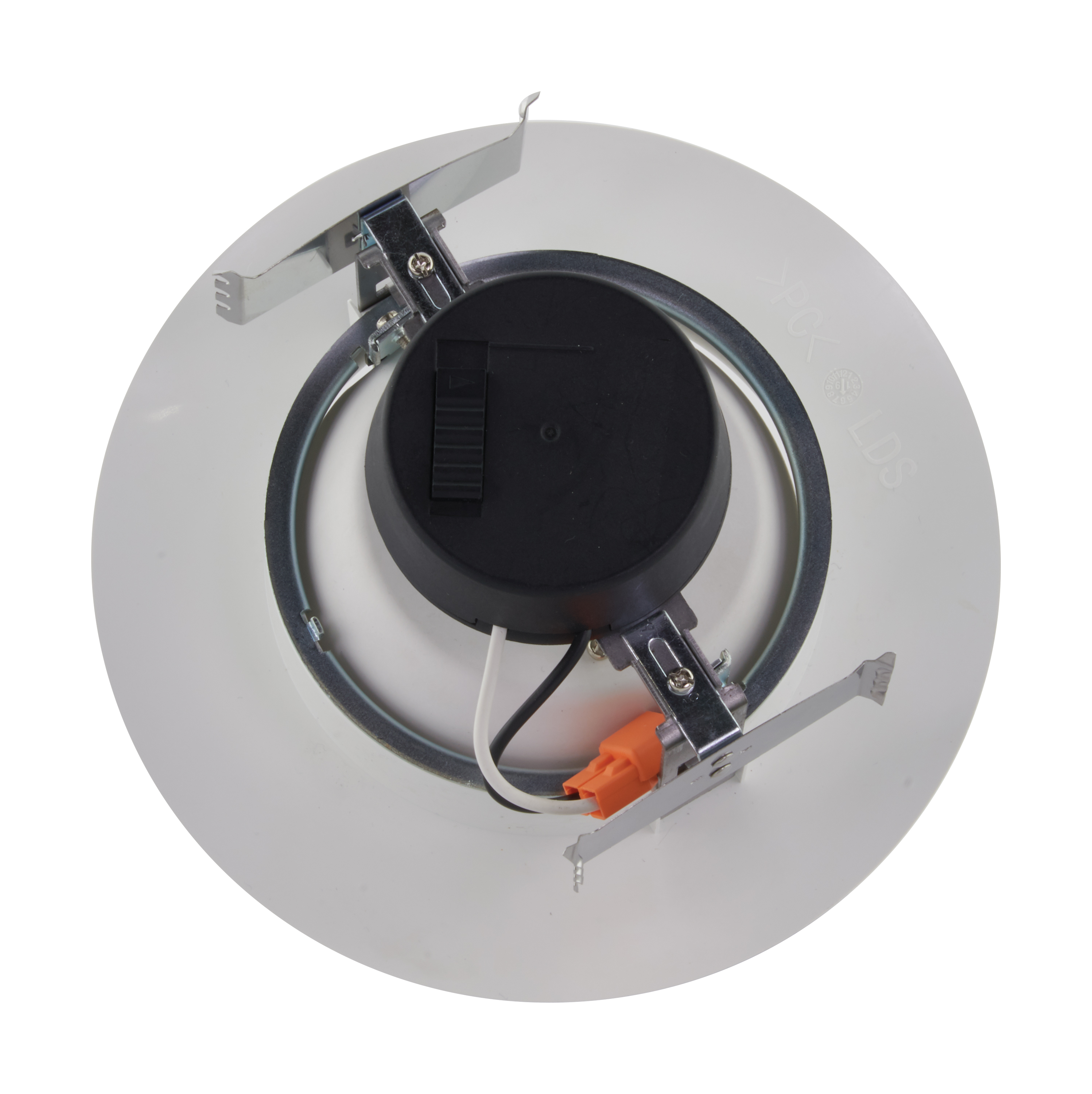

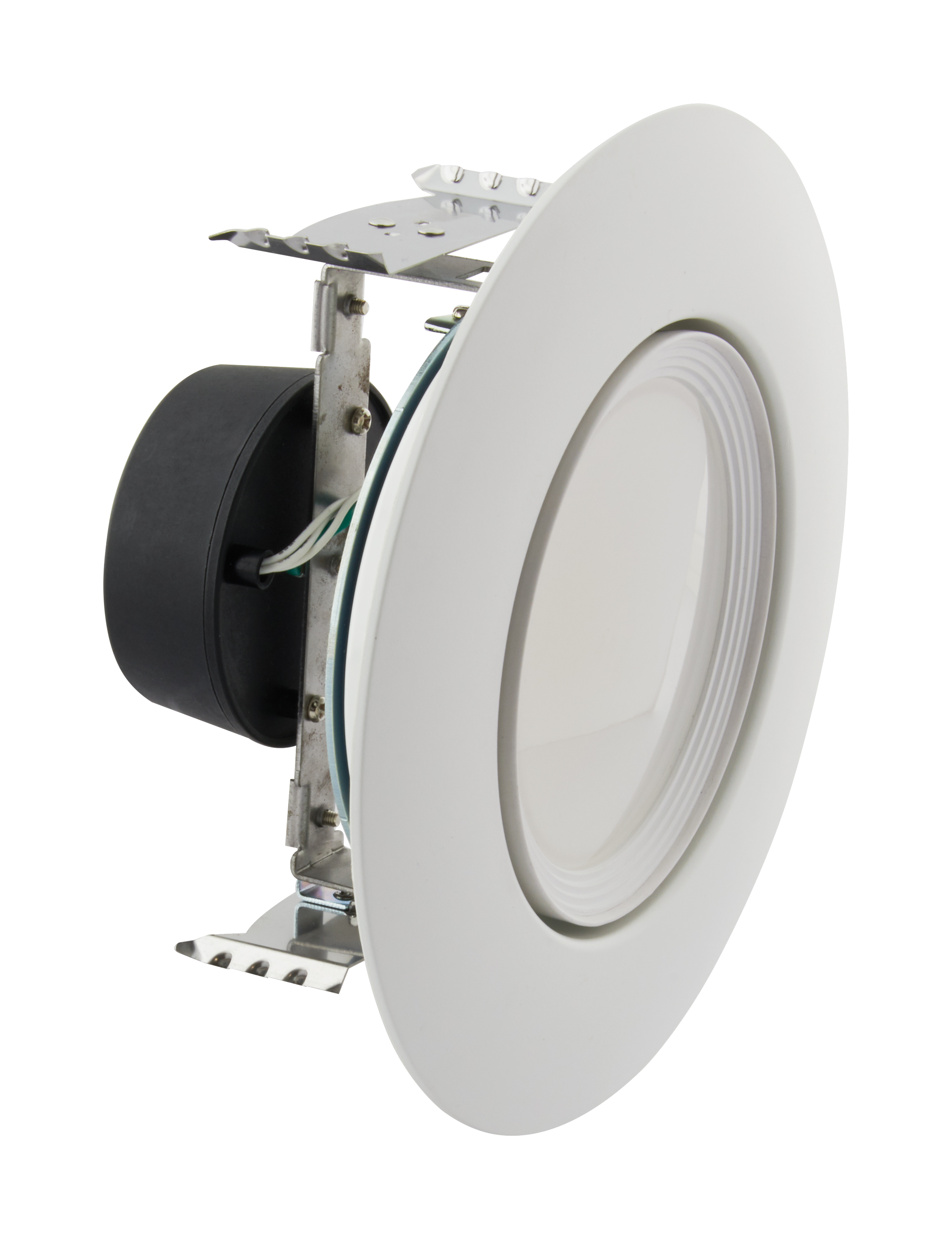

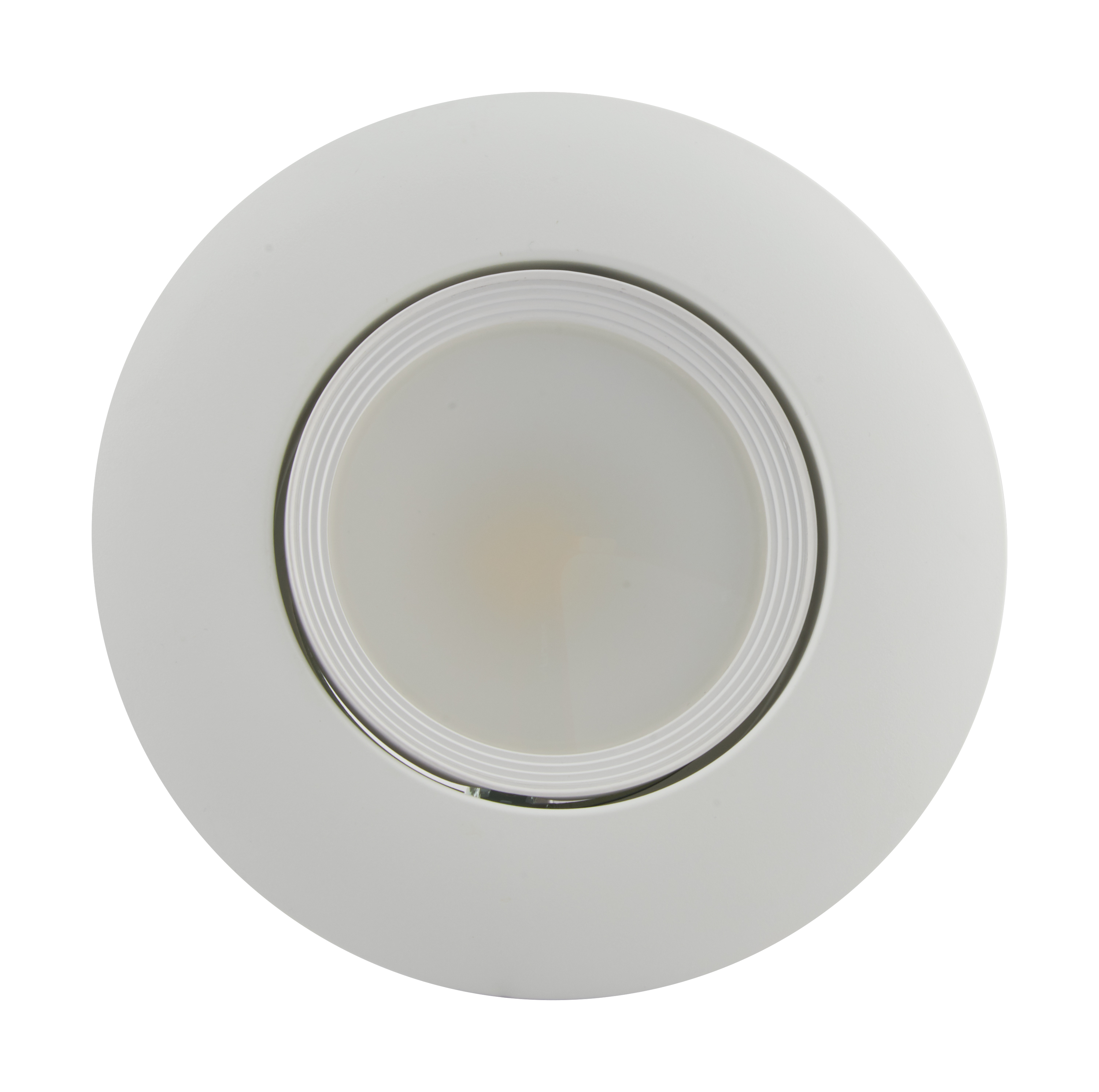

  • 10.5 Watt LED Directional Retrofit Downlight - Gimbaled
  • 5-6 in.
  • Adjustable Color Temperature
  • 90 deg. Beam Angle
  • 120 Volt
location_rating^damp^1
cc_selectable^y^1
energy_star_certified^y^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11824 SpecificationsS11824 Instructions.pdf
Tools
Lighting Layout Analysis For S11824
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
10.5 Watt LED Directional Retrofit Downlight - Gimbaled; 5-6 in.; Adjustable Color Temperature; 90 deg. Beam Angle; 120 Volt
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter7.4
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
MaterialAluminum
Fixture TypeDownlight Retrofit
IncludesE26 Adapter
Product NotesGimbaled - Rotates 355 degrees and tilts 30 degrees
StatusActive
StyleModern and Contemporary
CCT SelectableYes
Wattage SelectableNo
Can Size5-6 in.
Finish FamilyWhite

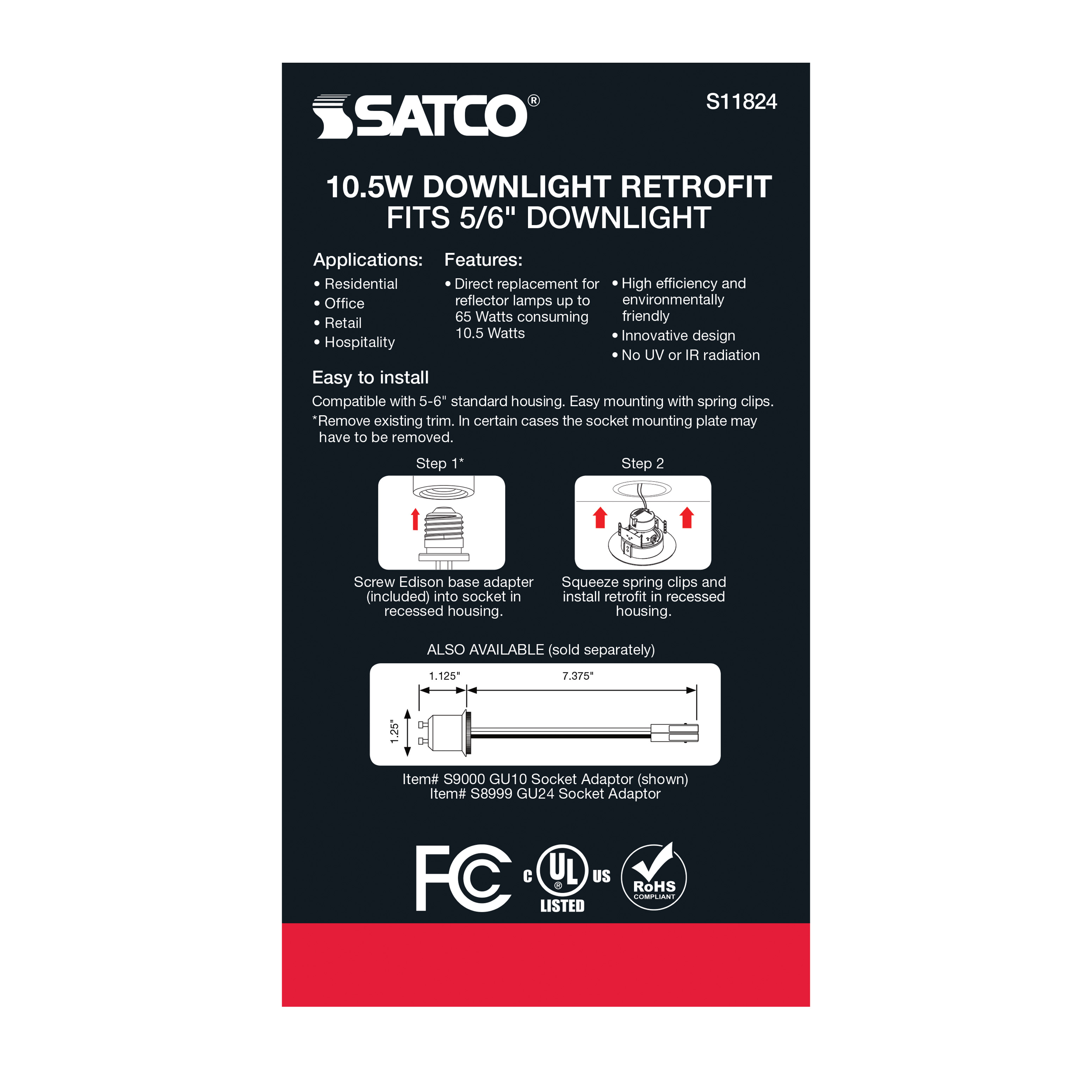

Additional InfoGU10 and GU24 Adapters sold separately
Amps0.088A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm to Cool White
CRI90+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens861L
Volts120v
Watts10.5W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeNo
Compliance
CA Prop 65Lead
Energy Star ID4510423
FCC CompliantYes
IC RatedYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedYes
Title 20Yes
T24 CompliantYes
Packaging
UPC045923118241
Case Cube1.7047
Case Height9.06
Case Length18.98
Case Quantity8
Case UPC10045923118248
Case Weight11.57
Case Width17.13
EA Cube0.175
EA Height8.07
EA Length4.53
EA Quantity1
EA Weight1.15
EA Width8.27
Pack TypeBox

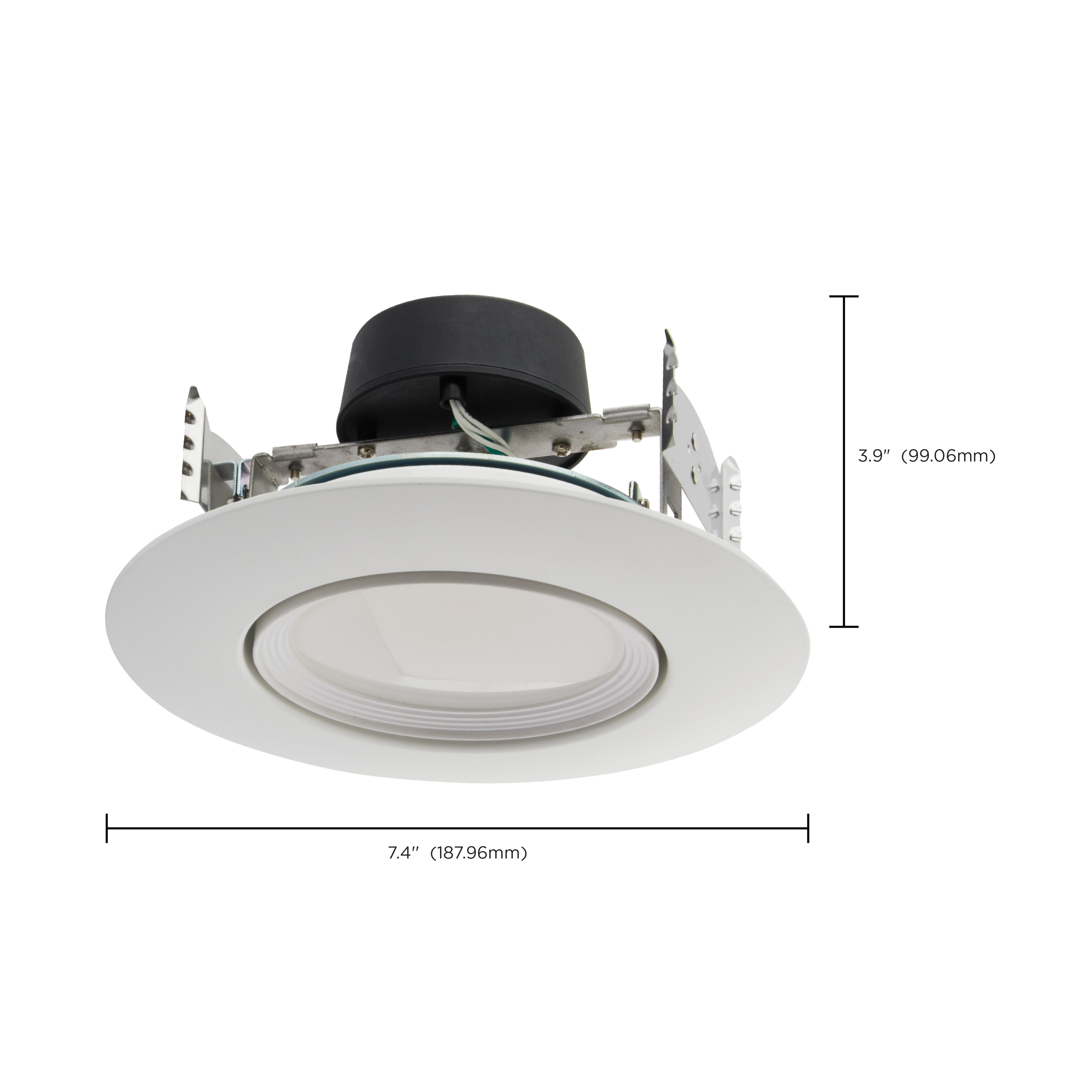

Web Height3.9
Web Width7.4
