S11825

13.5WLED/RDL/5-6/CCT-SEL/120V

Discontinued - Suggested Replacement: S11825R1

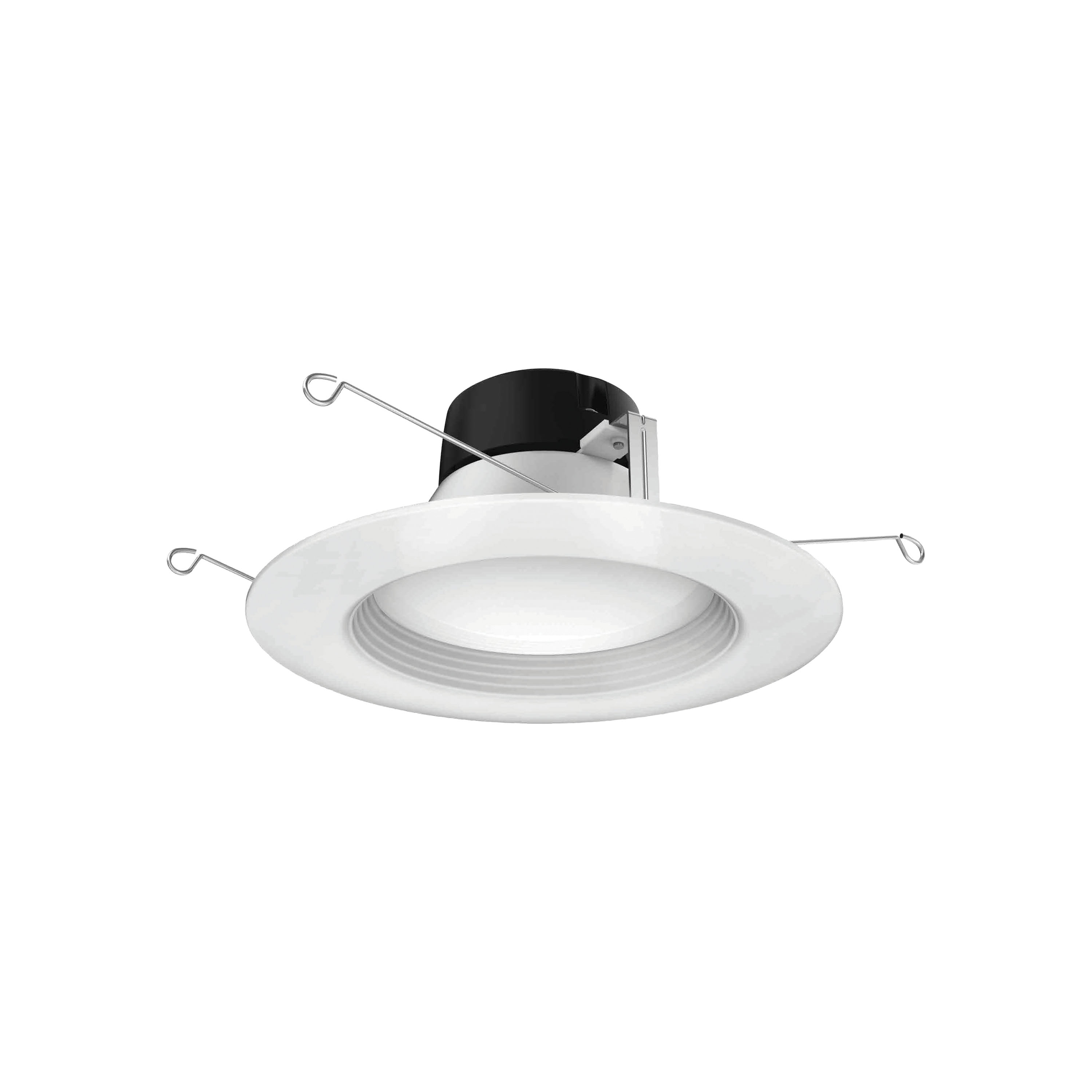

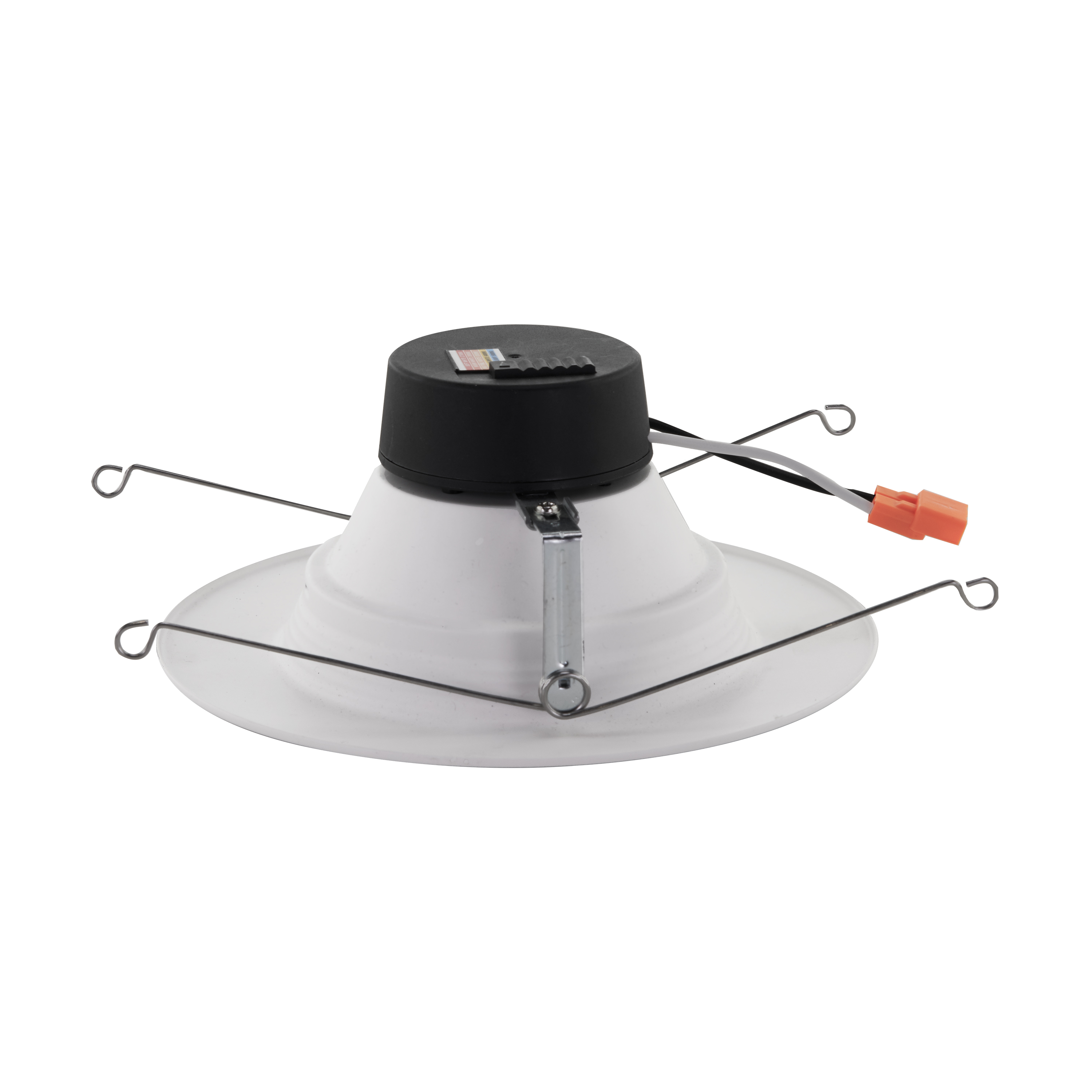

  • 13.5 Watt LED Downlight Retrofit
  • 5-6 in.
  • Adjustable Color Temperature
  • 120 Volt
cc_selectable^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11825 SpecificationsS11825 Photometrics.iesS11825 Instructions.pdf
Tools
Lighting Layout Analysis For S11825
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
13.5 Watt LED Downlight Retrofit; 5-6 in.; Adjustable Color Temperature; 120 Volt
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

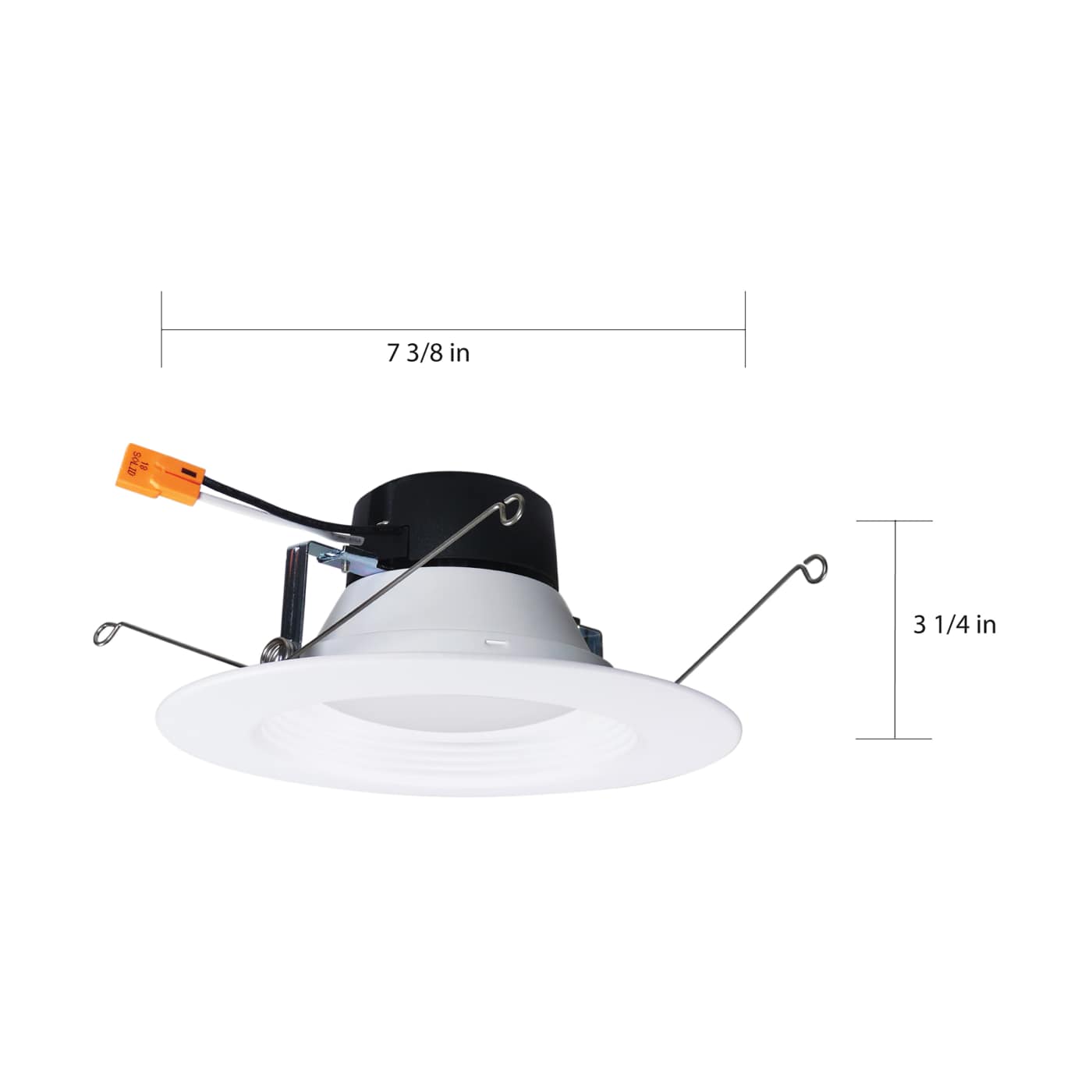

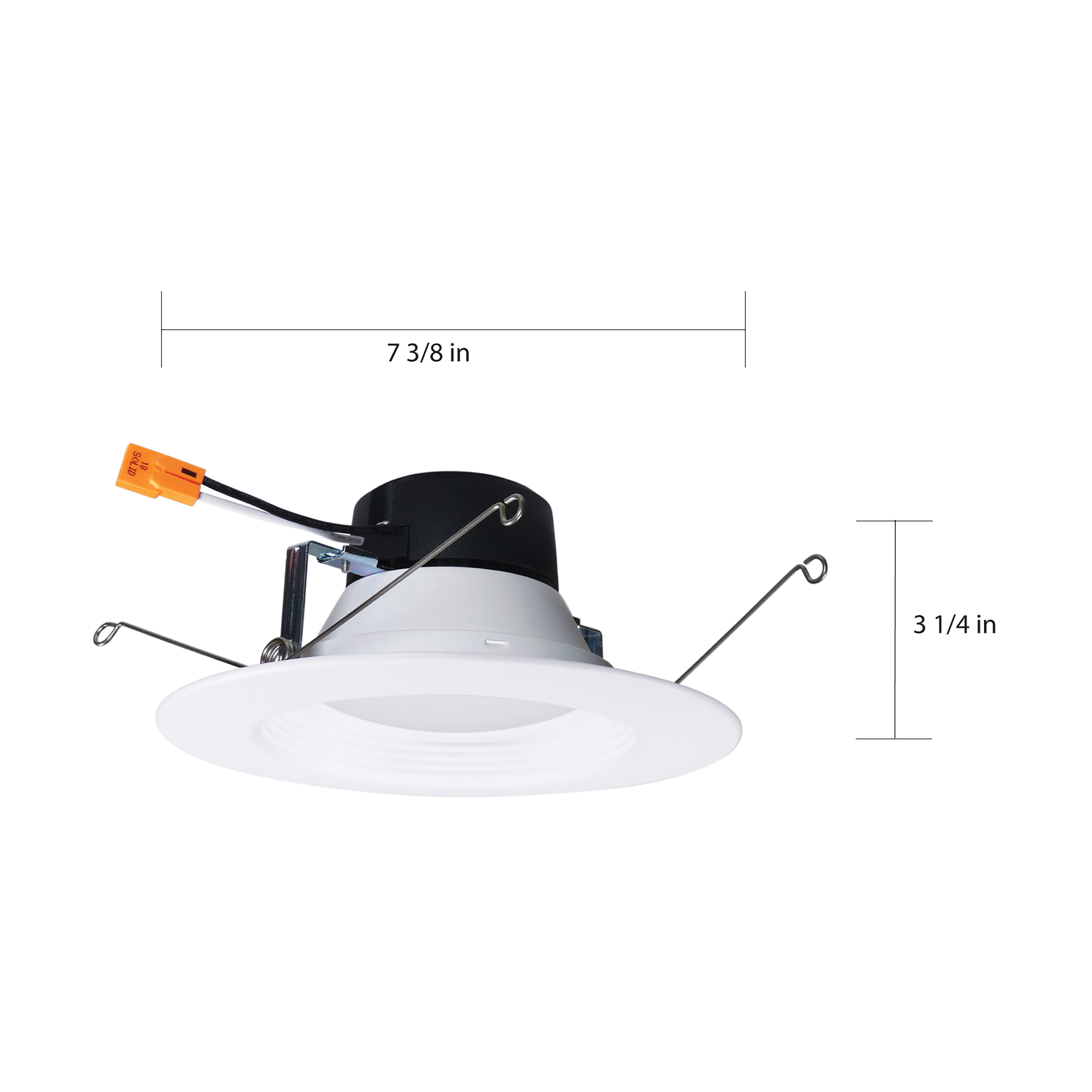

Diameter7.4
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
MaterialZinc coated steel
Fixture TypeDownlight Retrofit
IncludesE26 Adapter
StatusDiscontinued
StyleModern and Contemporary
CCT SelectableYes
Wattage SelectableNo
Can Size5-6 in.
Finish FamilyWhite
Additional InfoGU10 and GU24 Adapters sold separately
Amps0.113A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent90W
Electrical

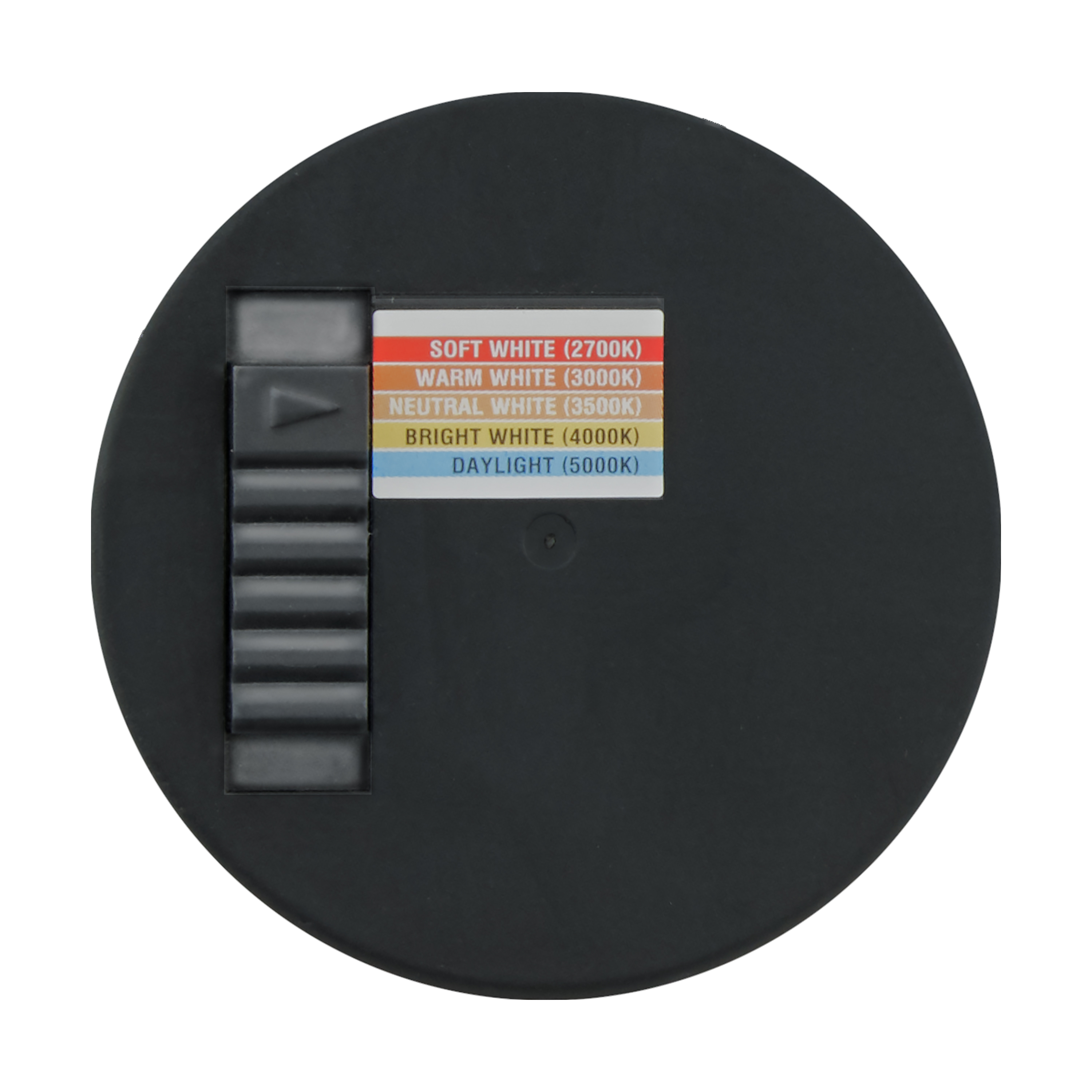

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempWarm to Cool White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1200L
Volts120v
Watts13.5W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeNo
Compliance
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanCalifornia T24 Listed
DLC ApprovedNo
Title 20Yes
T24 CompliantYes
Packaging
UPC045923118258
Case Cube1.596
Case Height8.86
Case Length18.74
Case Quantity8
Case UPC10045923118255
Case Weight10.38
Case Width16.61
EA Cube0.1667
EA Height8.07
EA Length3.94
EA Quantity1
EA Weight1.08
EA Width9.06
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.23
Web Width7.4
