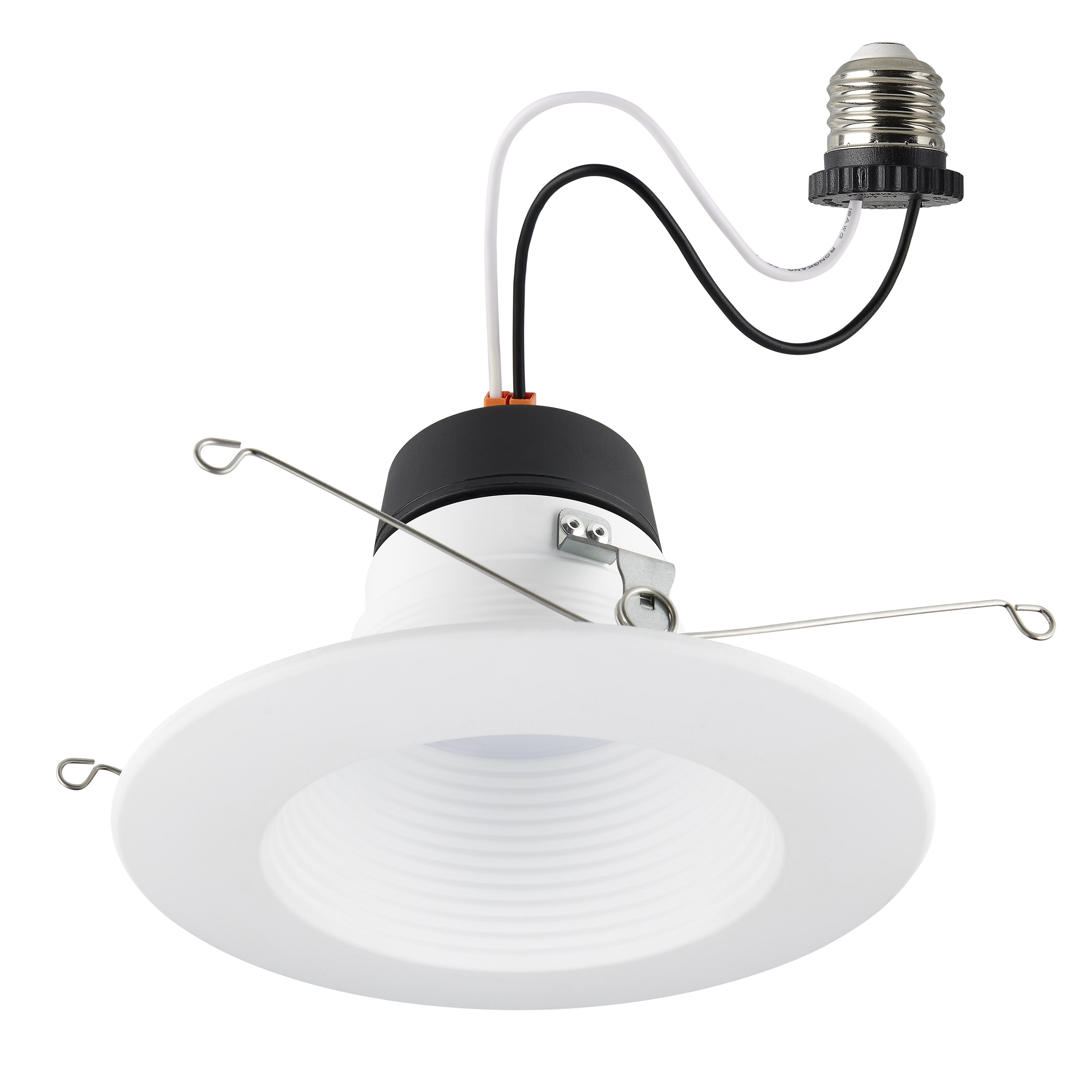

S11845 9WLED/DB/RDL/6/CCT-SEL/120V

S11845

9WLED/DB/RDL/6/CCT-SEL/120V

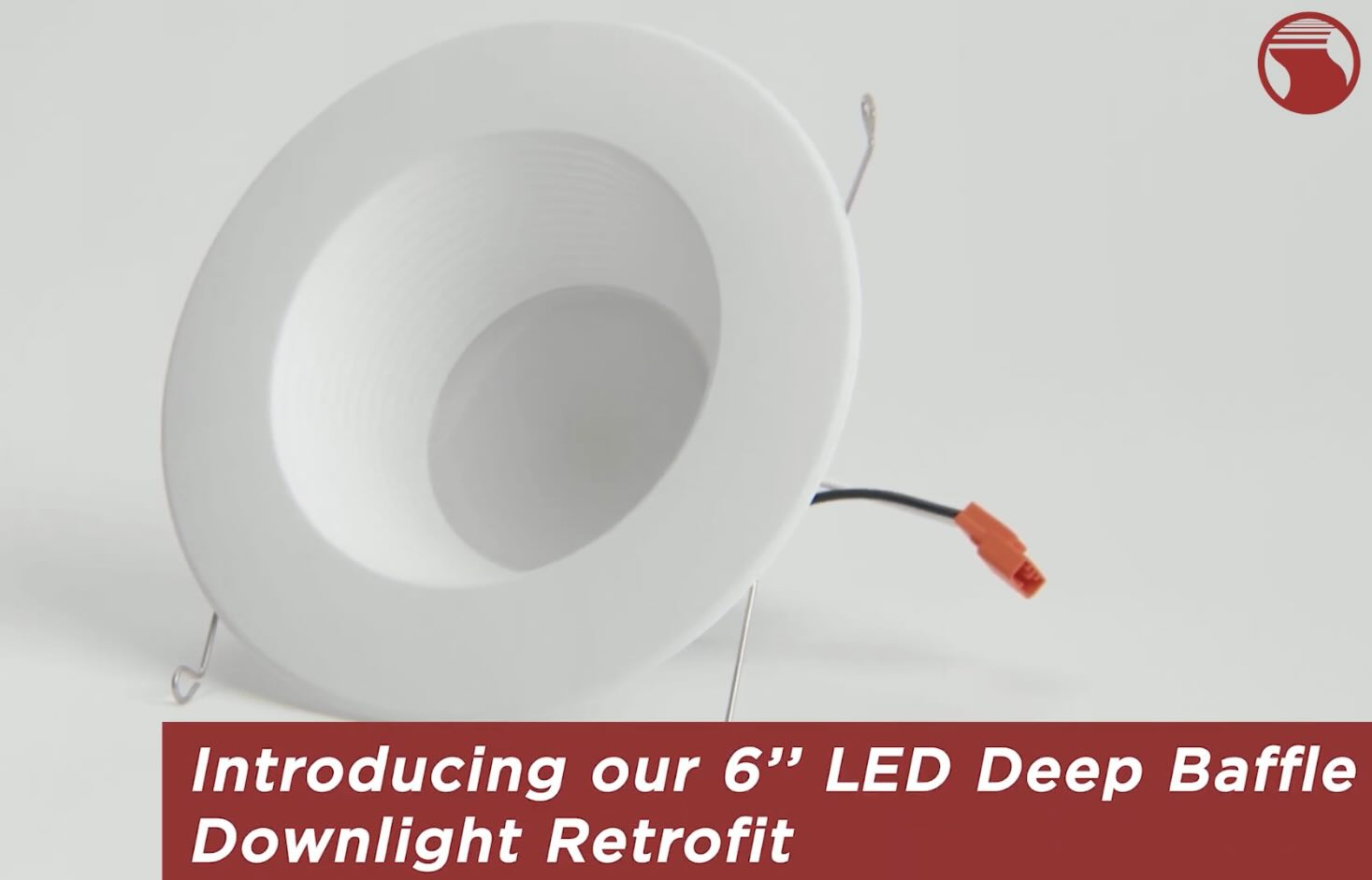

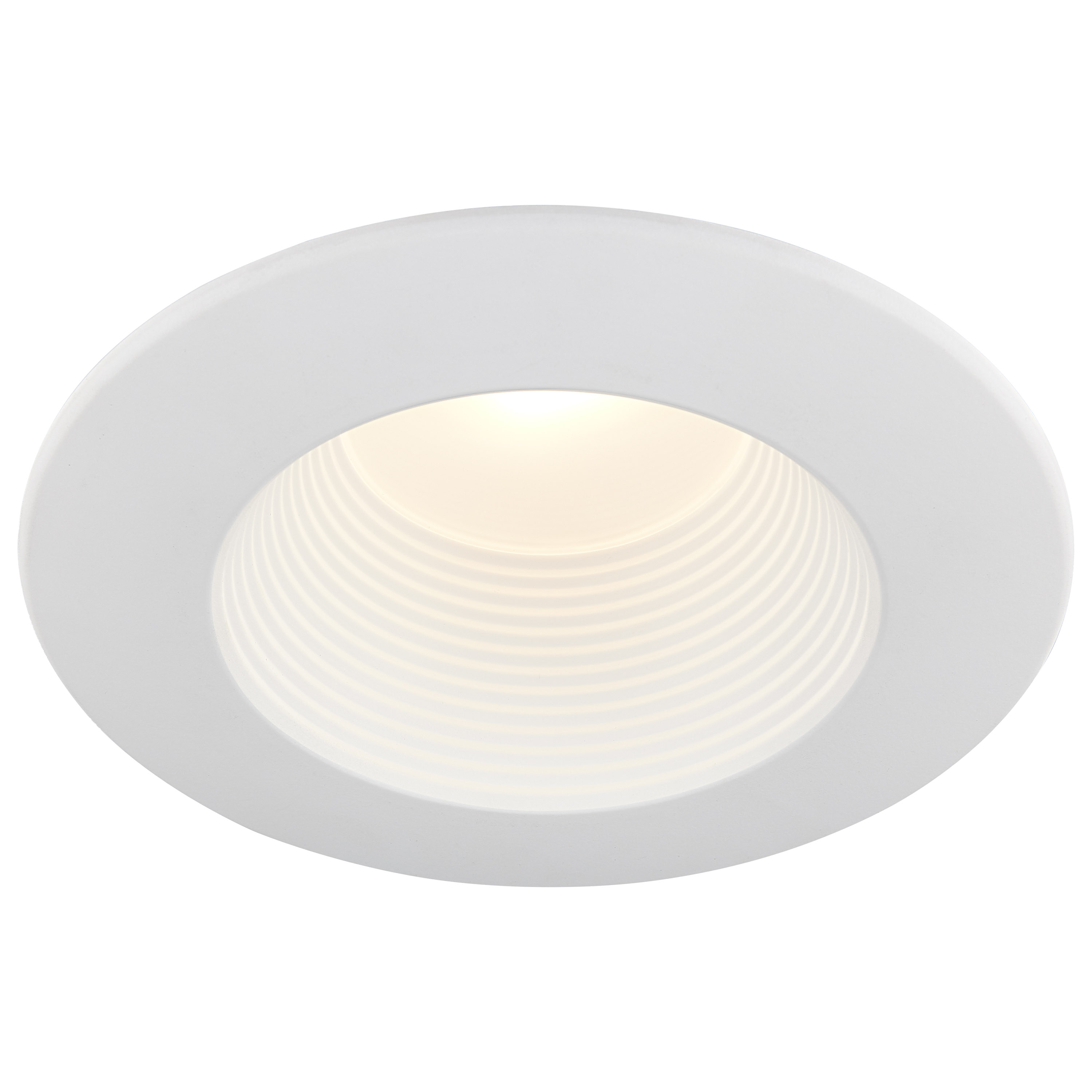

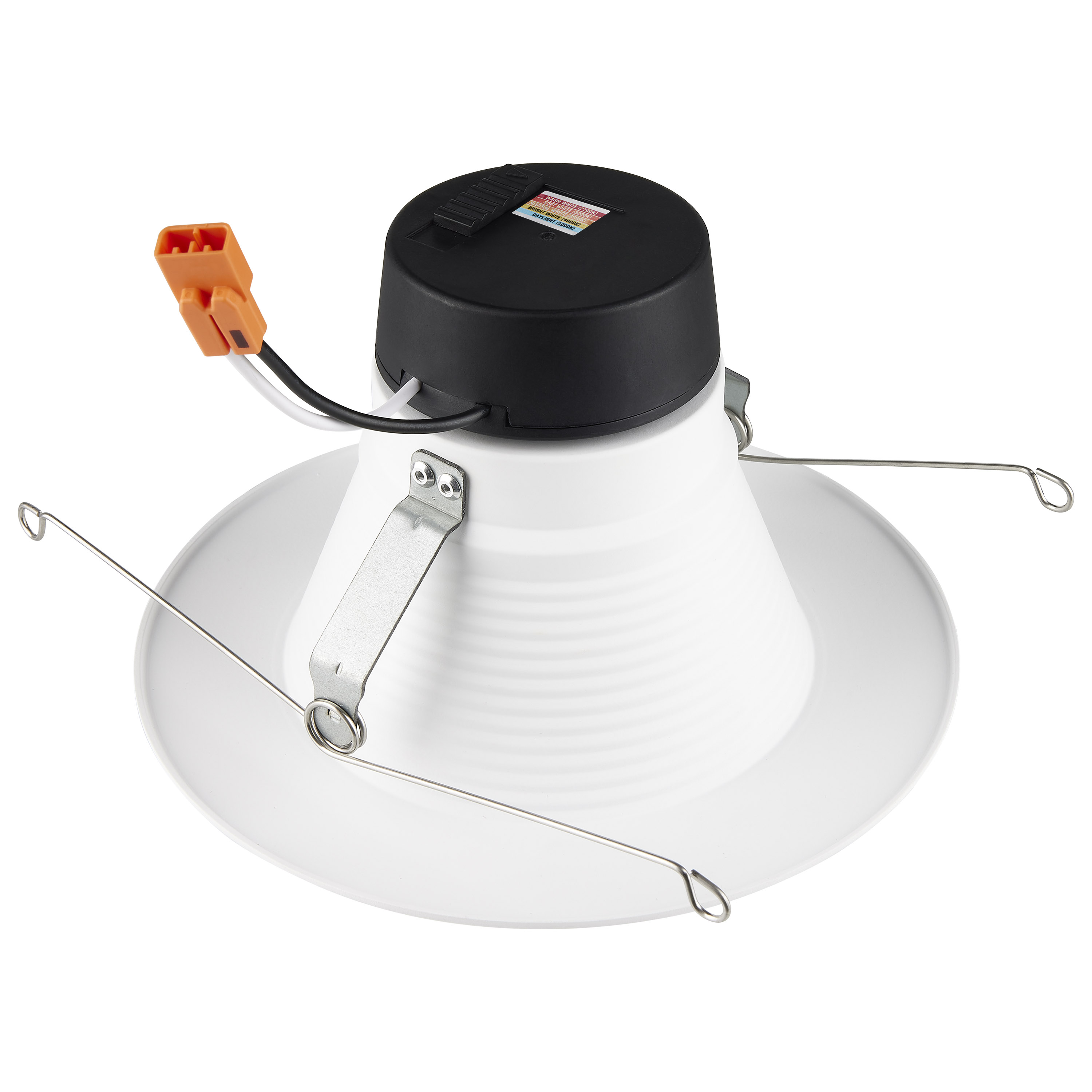

9 Watt; 6 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight


Satco's latest LED recessed retrofits are designed with the architect in mind. They represent an elegant, value oriented, easy to install solution wherever more design is required, but without the harsh glare of standard downlight retrofits. Our latest ColorQuick technology allows lighting designers and end users to choose from five color temperatures during installation, just by flicking a switch. These lights offer all the efficiency, low maintenance and superior lighting that LED technology delivers in an easy to maintain, simple package.

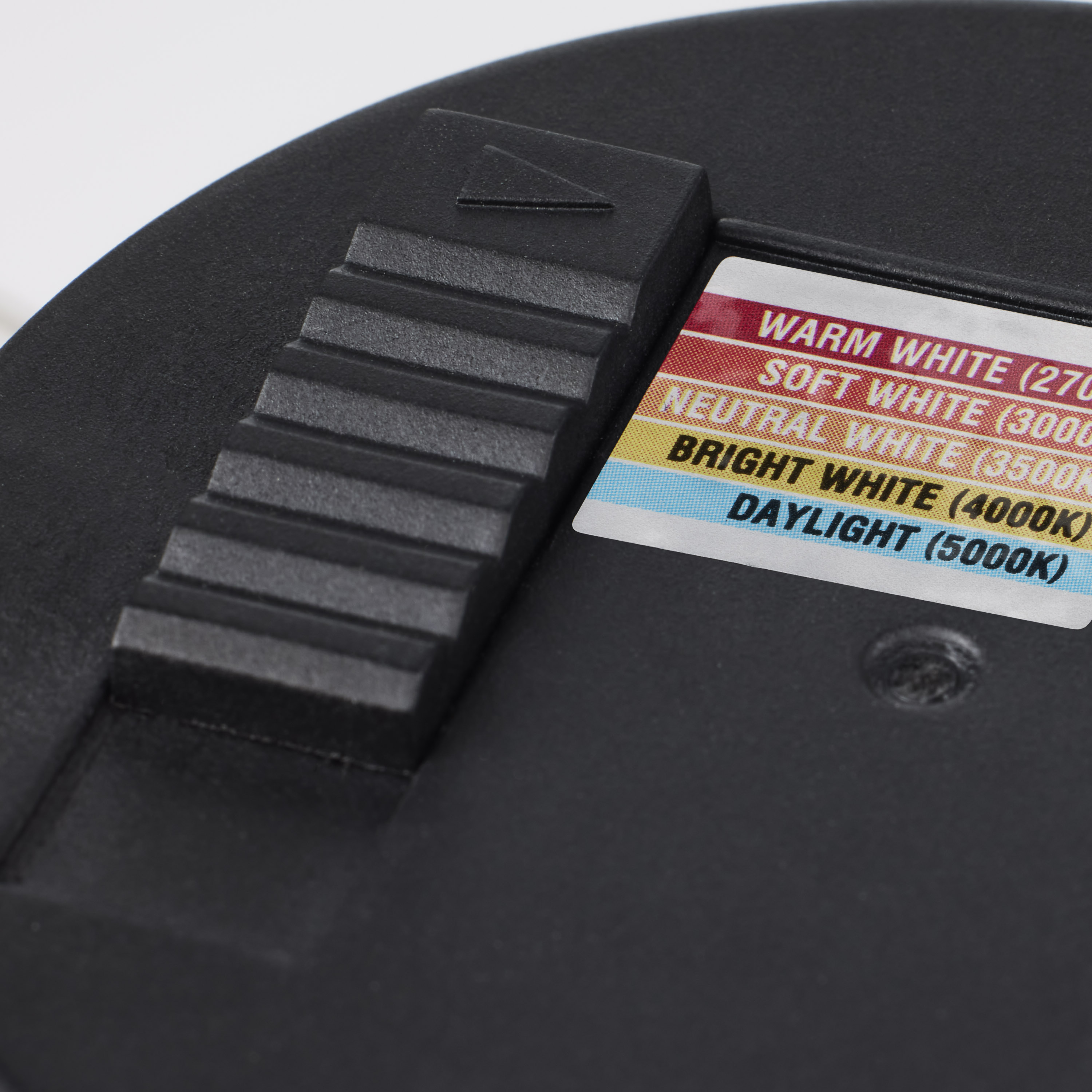

  • ColorQuick Technology; CCT Selectable
  • Reduced glare with subtle, pleasing light distribution
  • Dimmable
  • 90 CRI and Wet location rated
  • T20, T24 compliant
  • Energy Star Certified
  • Rated life of 50,000 hours
Lights

S11845

9WLED/DB/RDL/6/CCT-SEL/120V

9 Watt; 6 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight

Satco's latest LED recessed retrofits are designed with the architect in mind. They represent an elegant, value oriented, easy to install solution wherever more design is required, but without the harsh glare of standard downlight retrofits. Our latest ColorQuick technology allows lighting designers and end users to choose from five color temperatures during installation, just by flicking a switch. These lights offer all the efficiency, low maintenance and superior lighting that LED technology delivers in an easy to maintain, simple package.
  • ColorQuick Technology; CCT Selectable
  • Reduced glare with subtle, pleasing light distribution
  • Dimmable
  • 90 CRI and Wet location rated
  • T20, T24 compliant
  • Energy Star Certified
  • Rated life of 50,000 hours

Specifications

General
StatusActive
Recessed Can Size6 in.
Wattage9W
Voltage120V
FinishWhite
CCT (Kelvin)2700K/3000K/3500K/4000K/5000K
Color TemperatureWarm to Cool White
Lumen Output800L
Indoor or Outdoor FixtureIndoor
Specifications
TechnologyLED
Wattage9W
Lumen Output800L
CCT (Kelvin)2700K/3000K/3500K/4000K/5000K
Color TemperatureWarm to Cool White
CRI90
Voltage120V

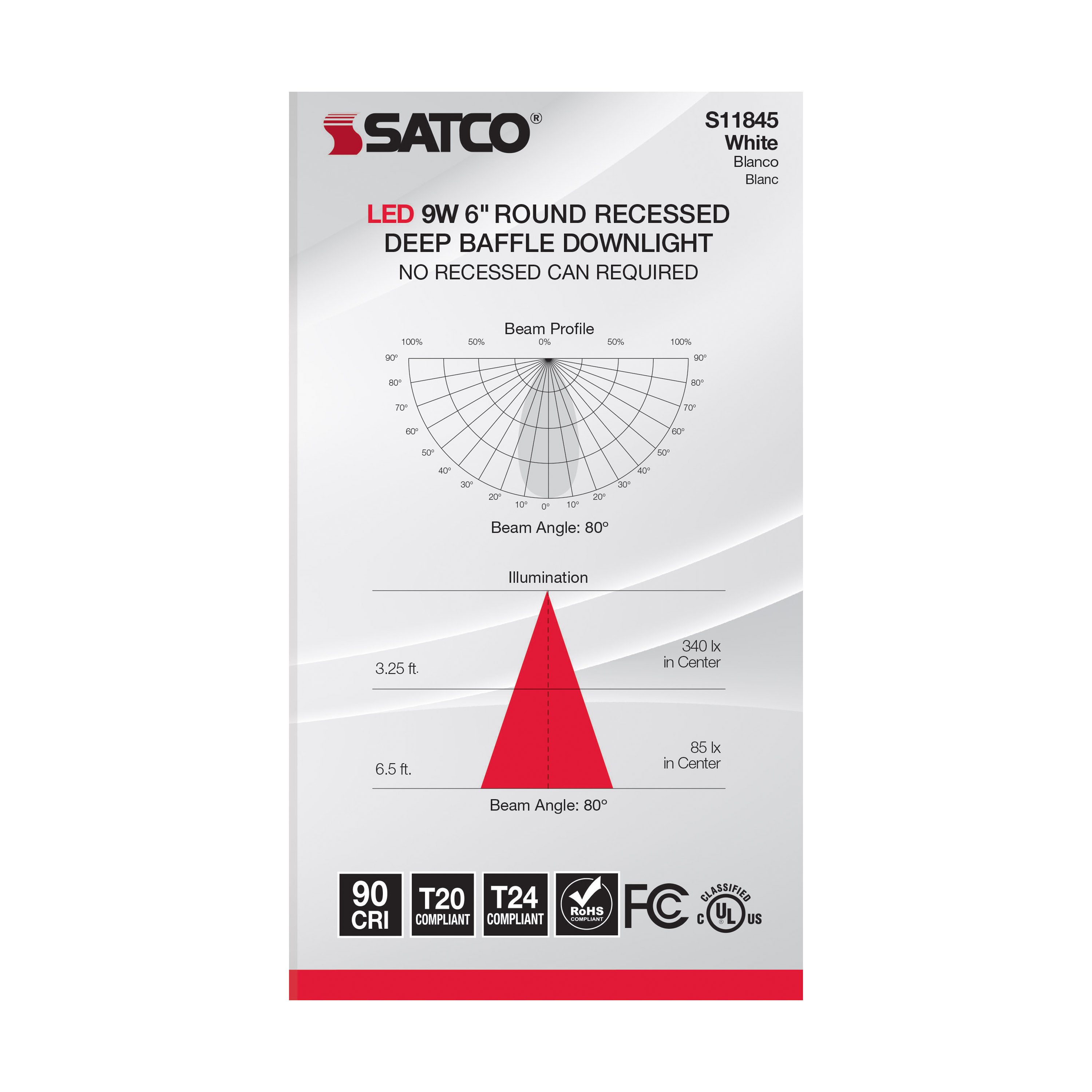

Beam Angle80
Rated Hours50000
Operating Temperature-20C (-4F) to +40C (+104F)
DimmableYes-Dimmable
Sloped CeilingNo

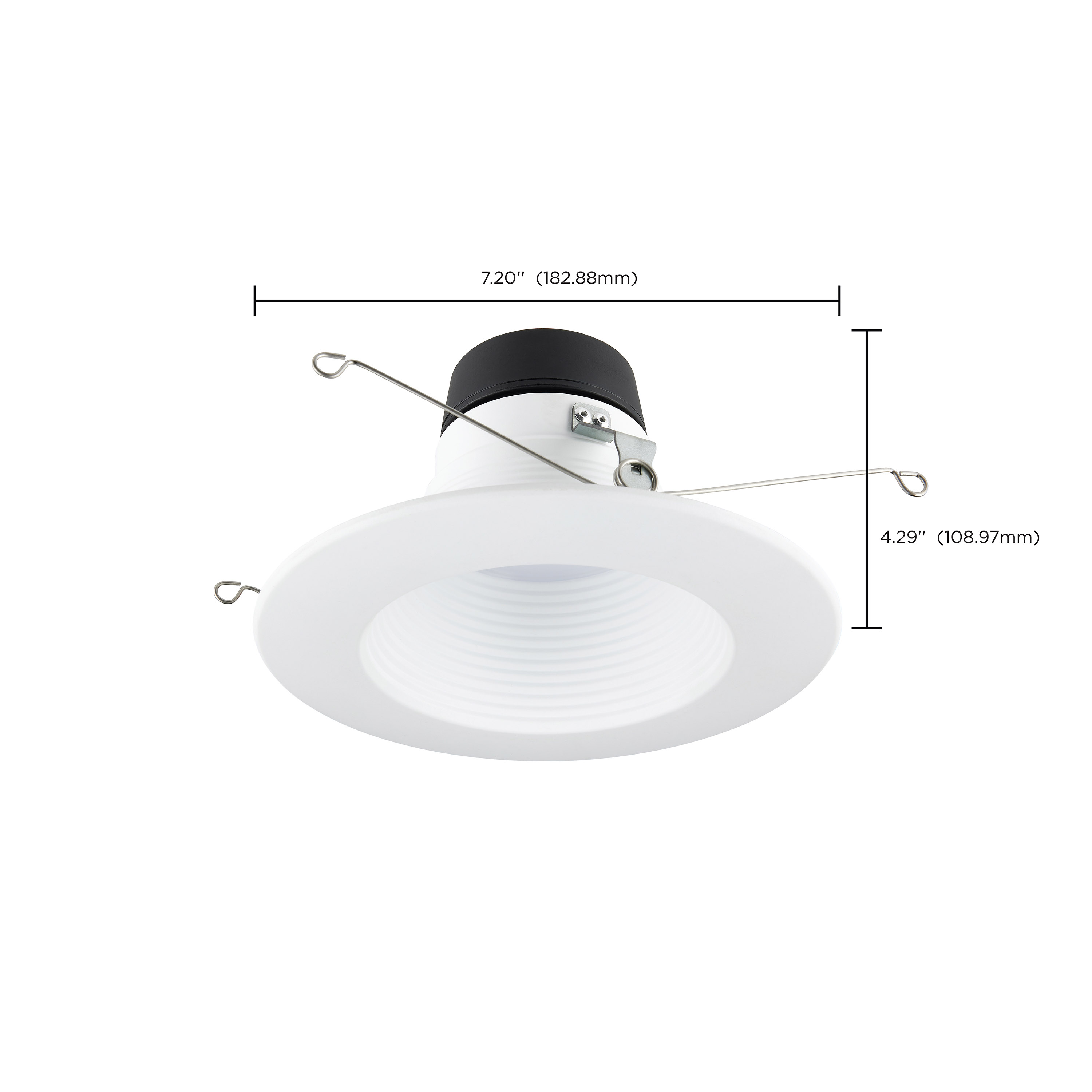

Dimensions
Width (in.)7.20
Height (in.)4.29
Weight (lb.)0.53
Compliance
Safety ListingcULus - Classified
Location RatingWet
Energy StarYes
ES Unique IDESID-2396913
Air Tight RatedNo
IC RatedYes
CA T20 / T24 RationaleCalifornia T24 2016 & 2019 JA8 Compliant; T20 Compliant
California StatusLawful for sale in California
Title 20 / 24 StatusCalifornia T24 Compliant
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Additional Information
Specification Note.079A
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923118456
Each Quantity1
Each Length (in.)8.50
Each Width (in.)4.25
Each Height (in.)7.50
Each Weight (lb.)0.69
Each Cube (CuFt.)0.1568
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923118453
Case Quantity8
Case Length (in.)14.57
Case Width (in.)11.22
Case Height (in.)11.81
Case Weight (lb.)7.05
Case Cube (CuFt.)1.1173
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
