S11864R1

10WLED/4/FR/CCT/SLF/RD/FL/RND

  • 10 Watt LED

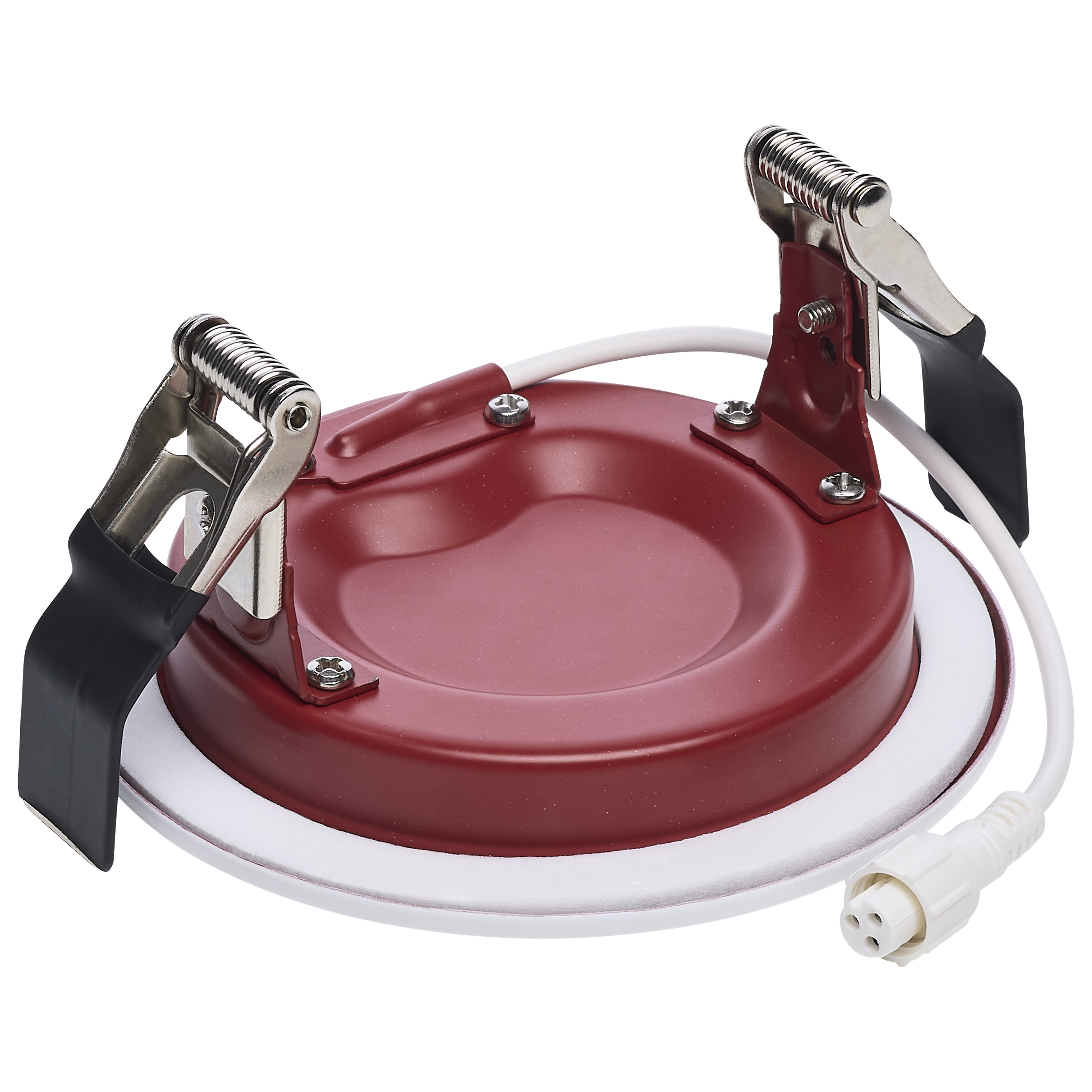

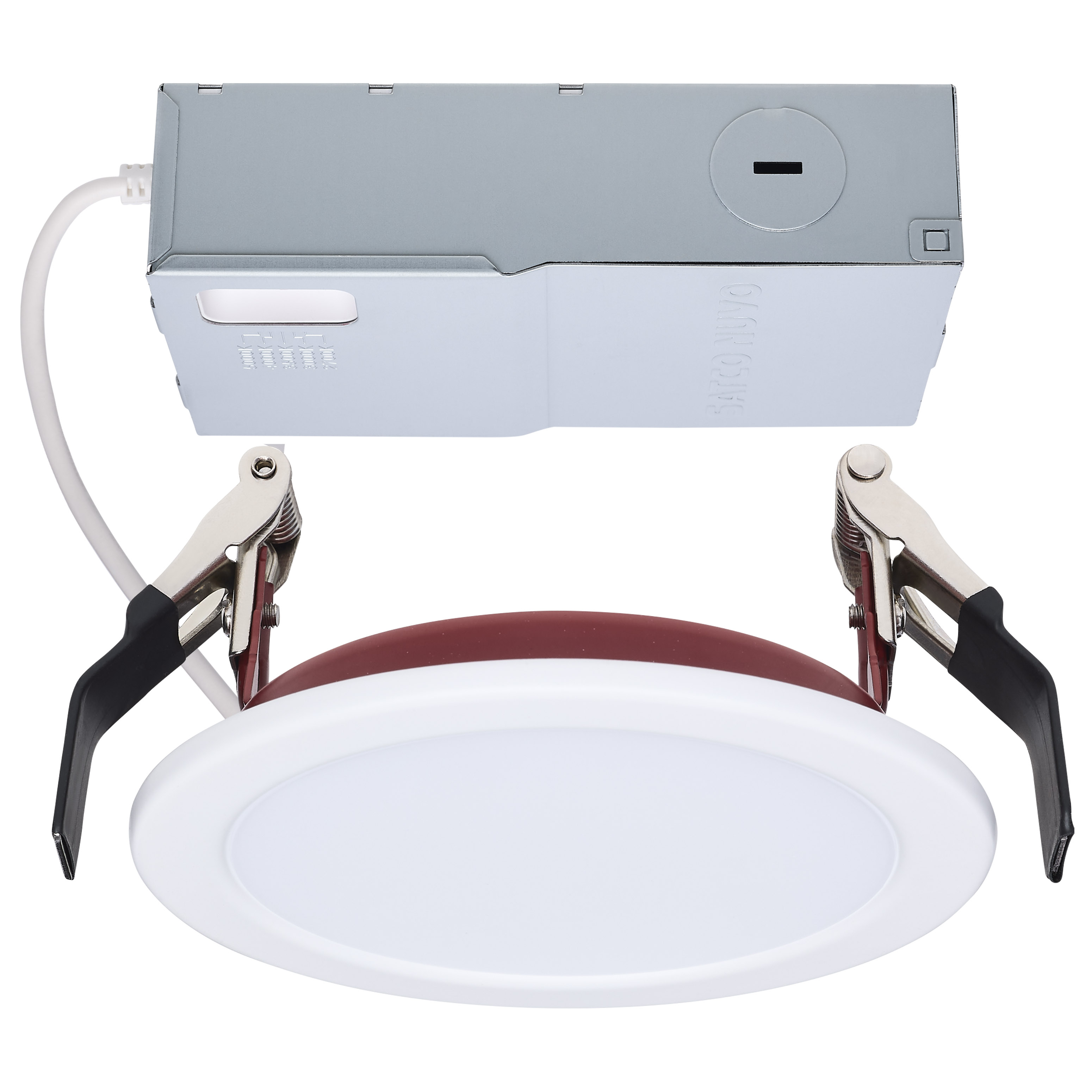

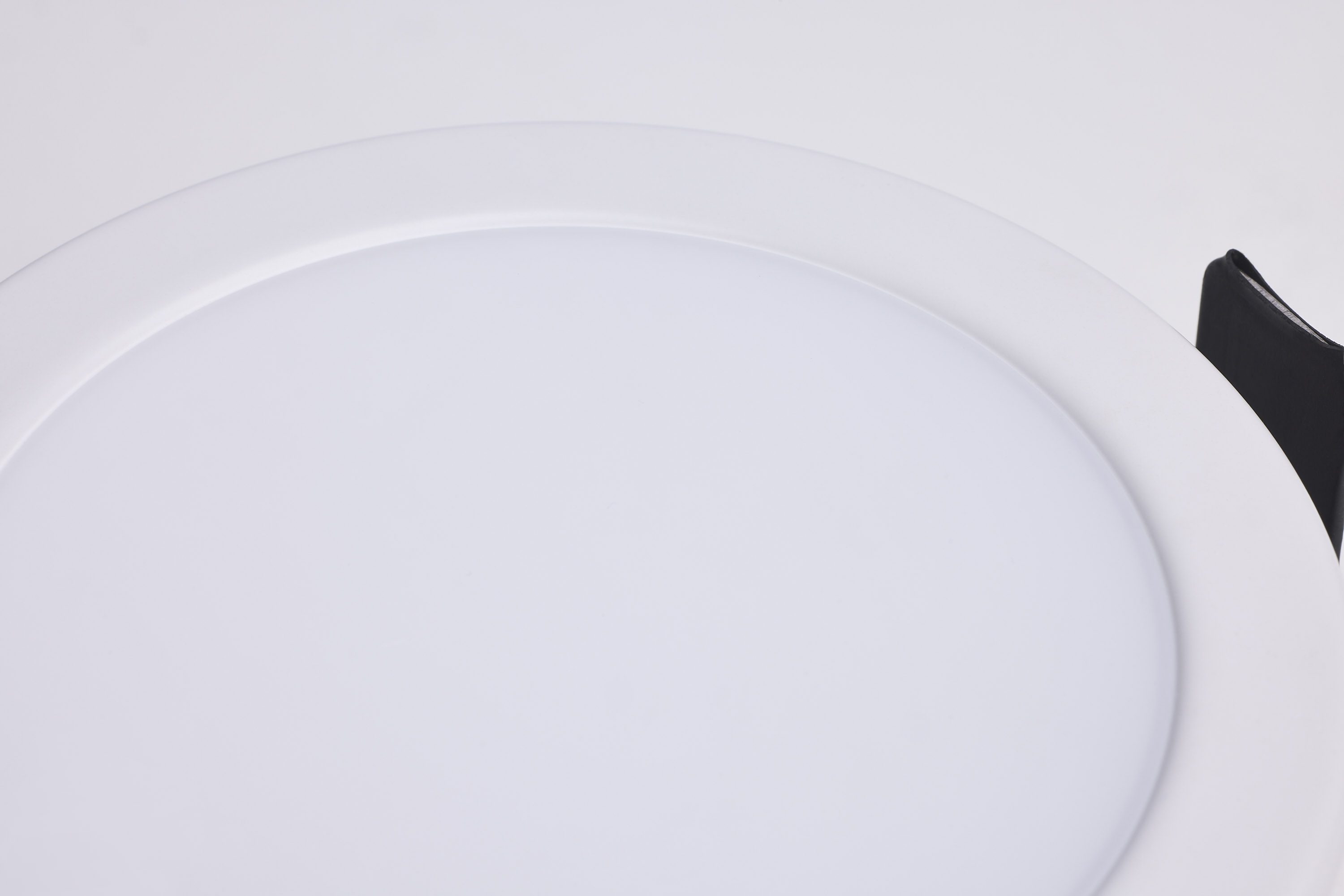

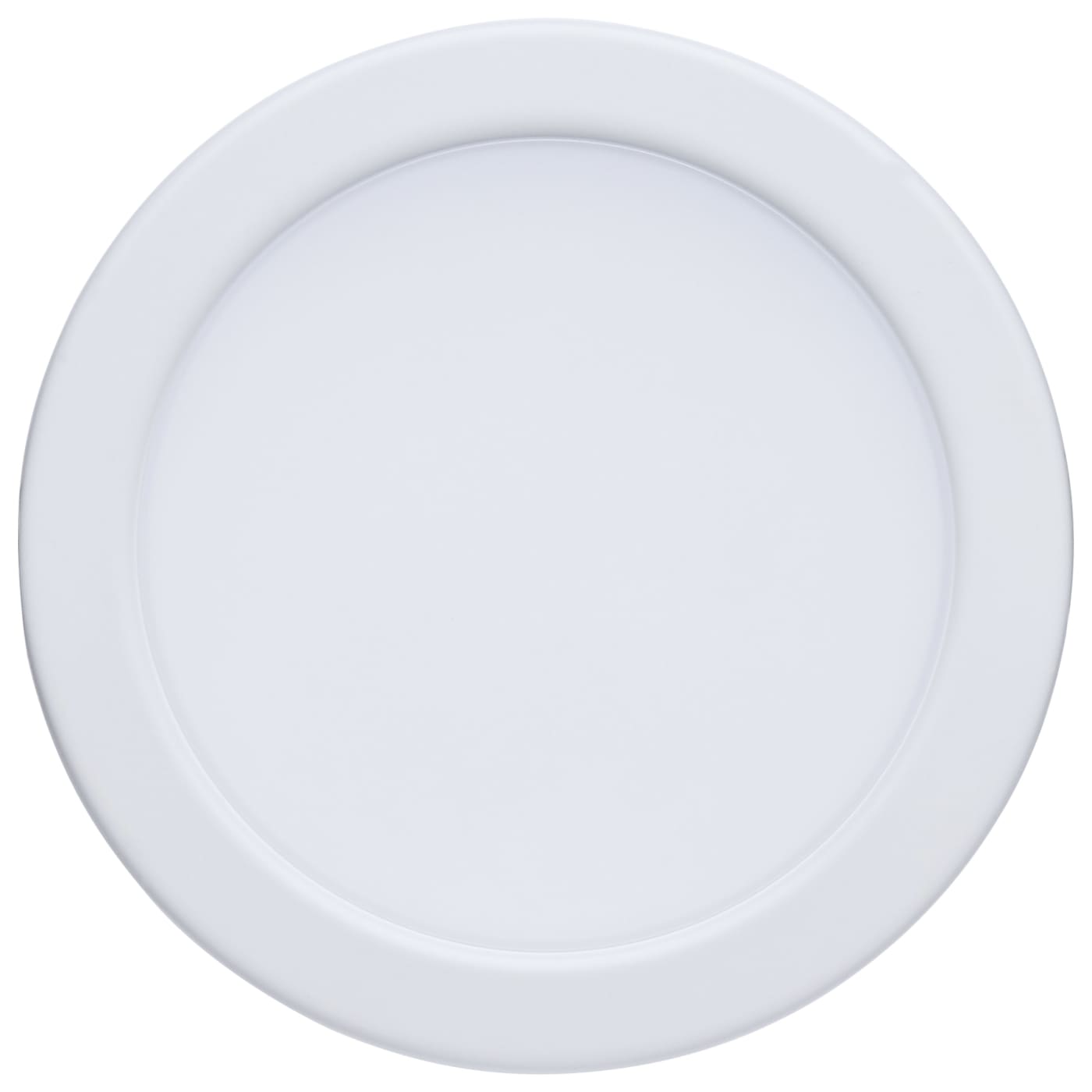

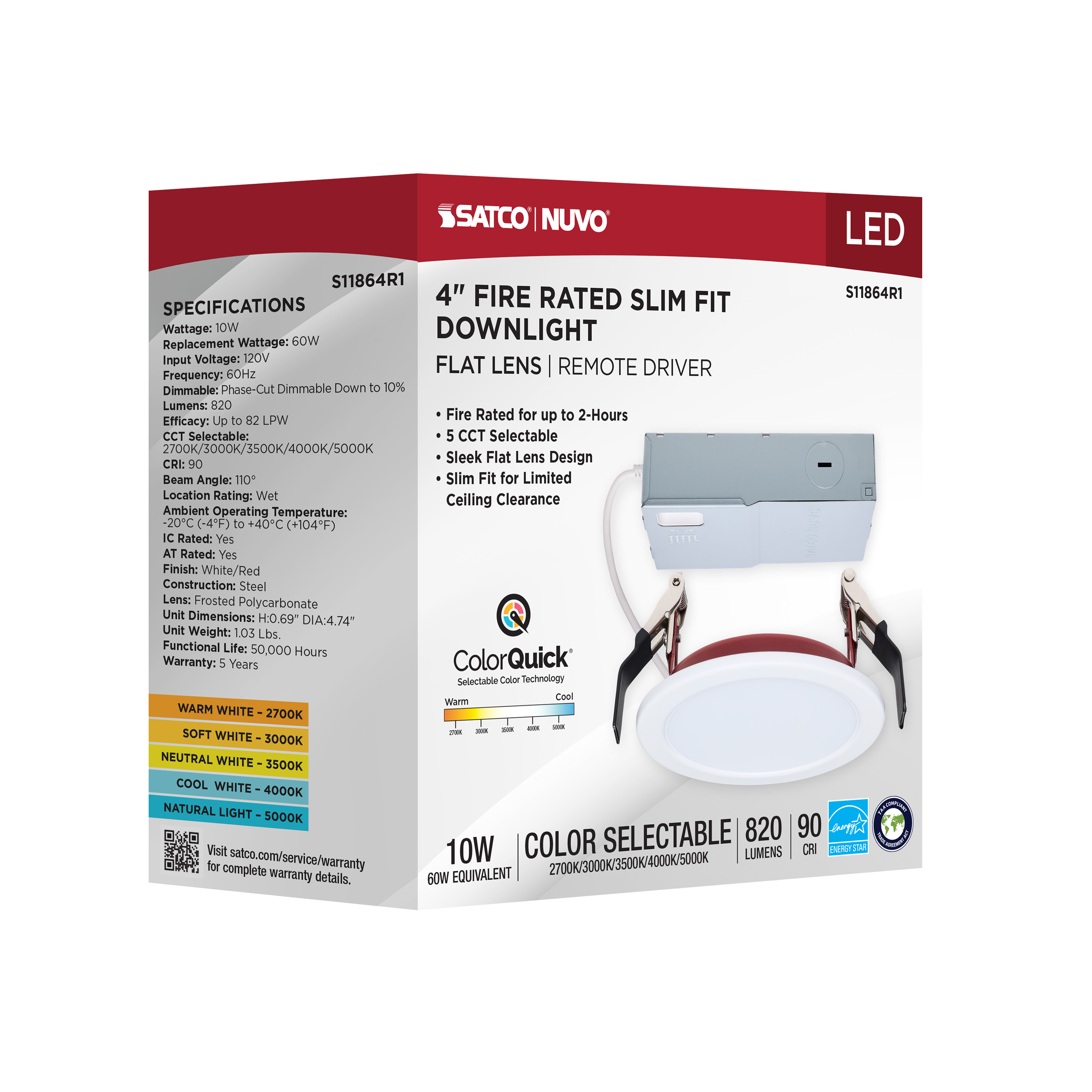

  • Fire Rated 4 Inch Direct Wire Slim Fit Flat Face Downlight
  • Round Shape
  • White Finish
  • CCT Selectable
  • 120 Volts
  • Dimmable
cc_selectable^y^1
air_tight^y^1
energy_star_certified^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
fcc_compliant^true^3
rohs_compliant^y^3
S11864R1 SpecificationsLED FIRE RATED SLIM FIT DOWNLIGHTS REMOTE DRIVER|CCT SELECTABLES11864R1 Photometrics 2700K.ies
Tools
Lighting Layout Analysis For S11864R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
10 Watt LED; Fire Rated 4 Inch Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; CCT Selectable; 120 Volts; Dimmable
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

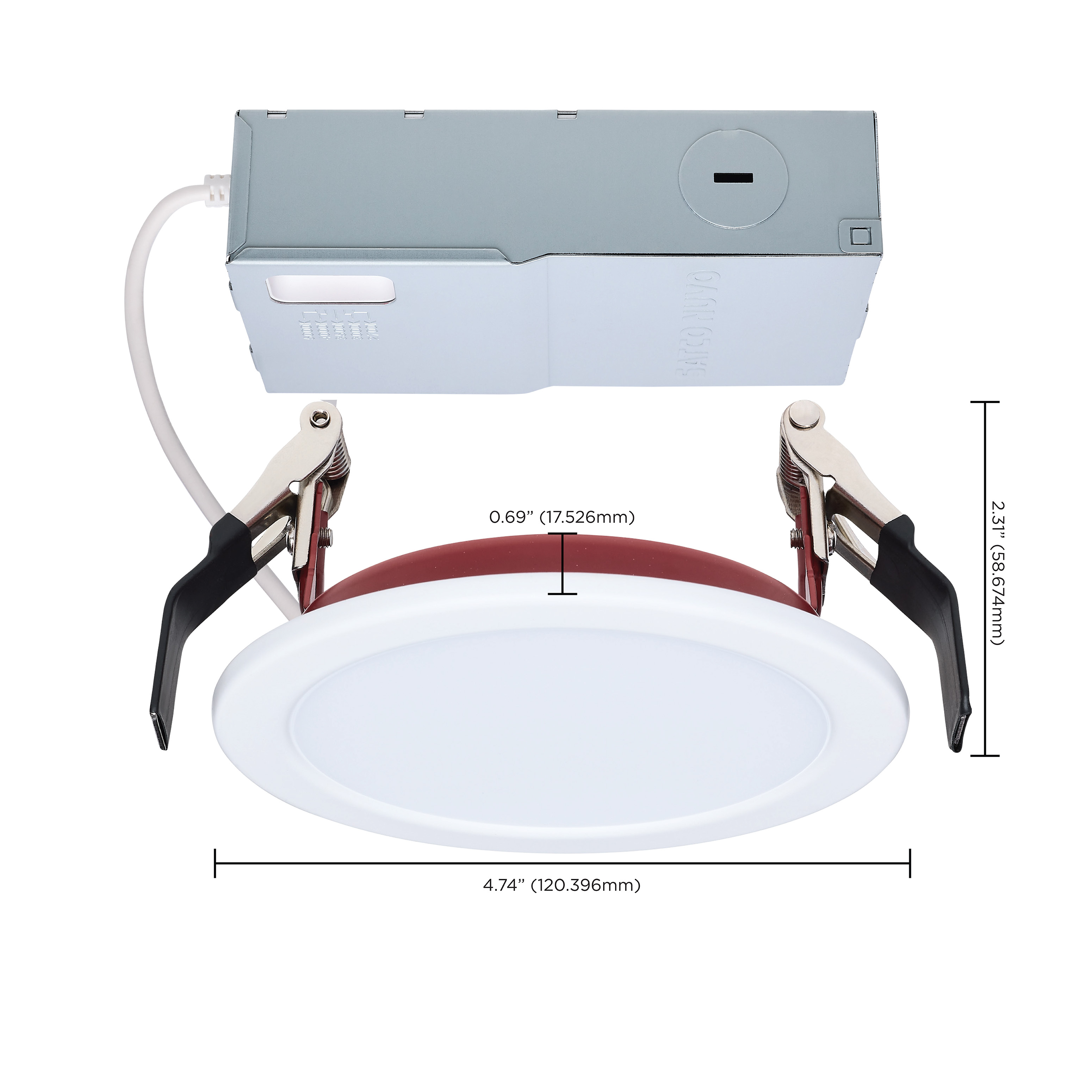

Diameter4.74
Dimmable Text120V only
MaterialSteel

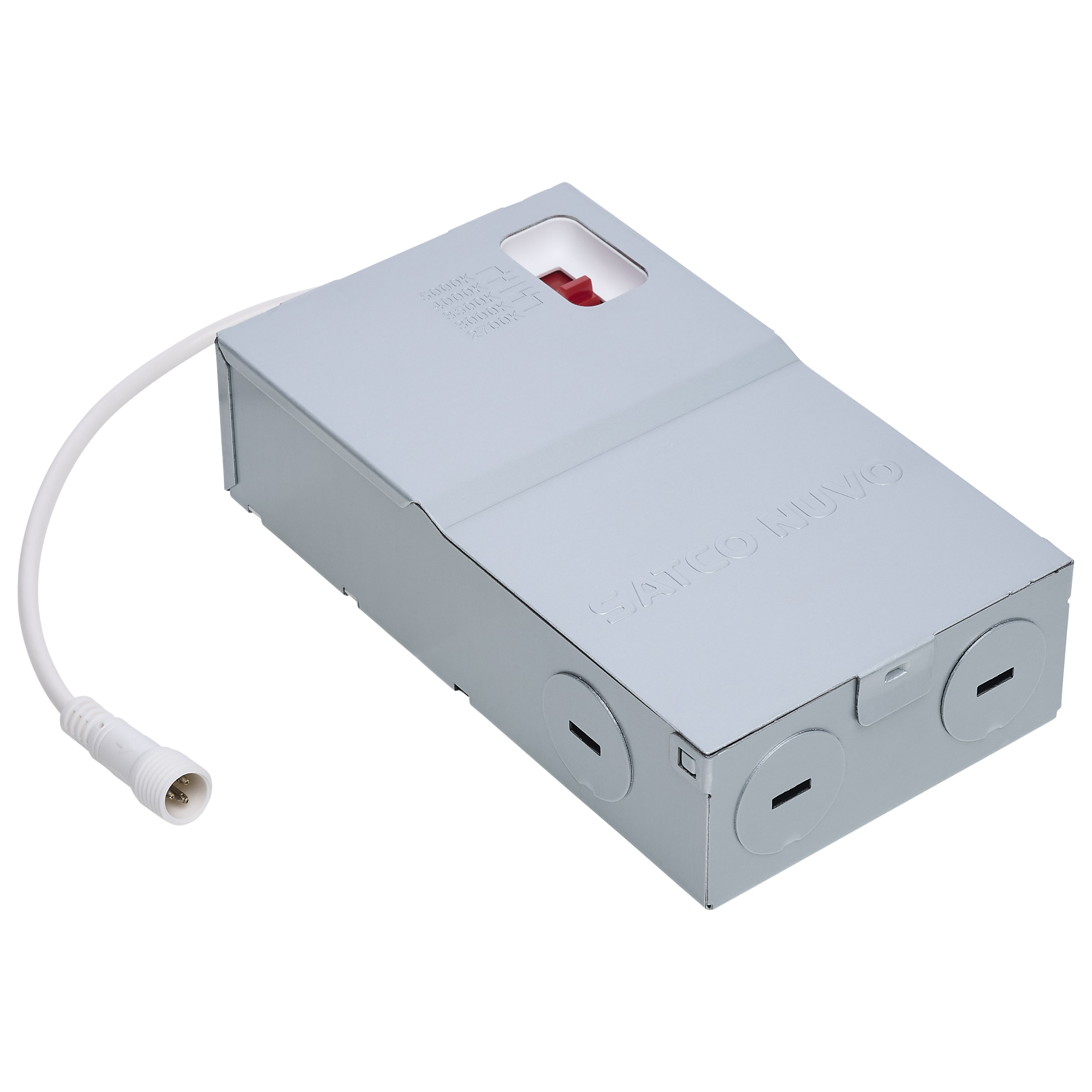

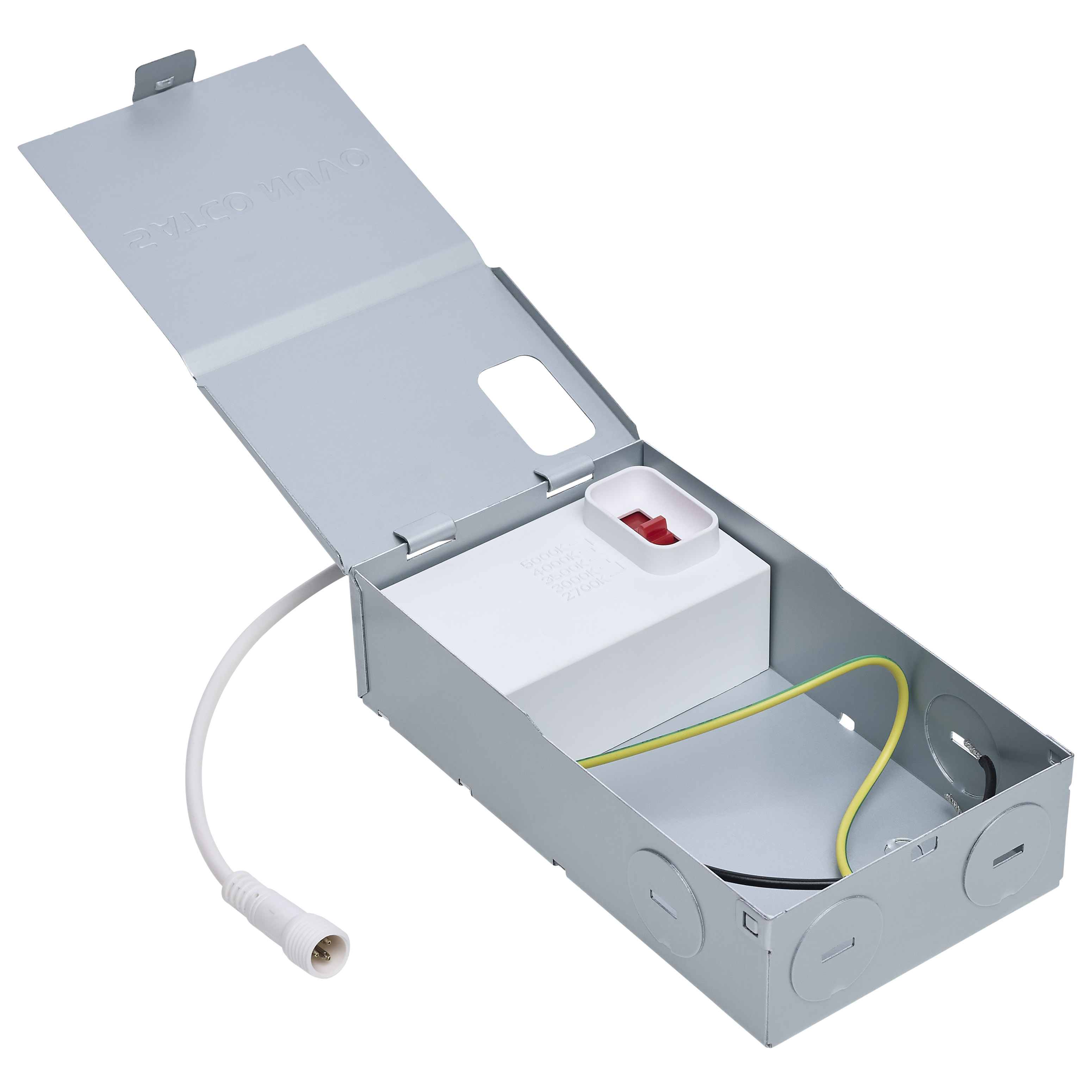

Fixture TypeRemote Driver LED Downlight
StatusActive
StyleSpecialty
Surge ProtectionBuilt-in-surge protection - 0.7KV
Total Harmonic Distortion<20%

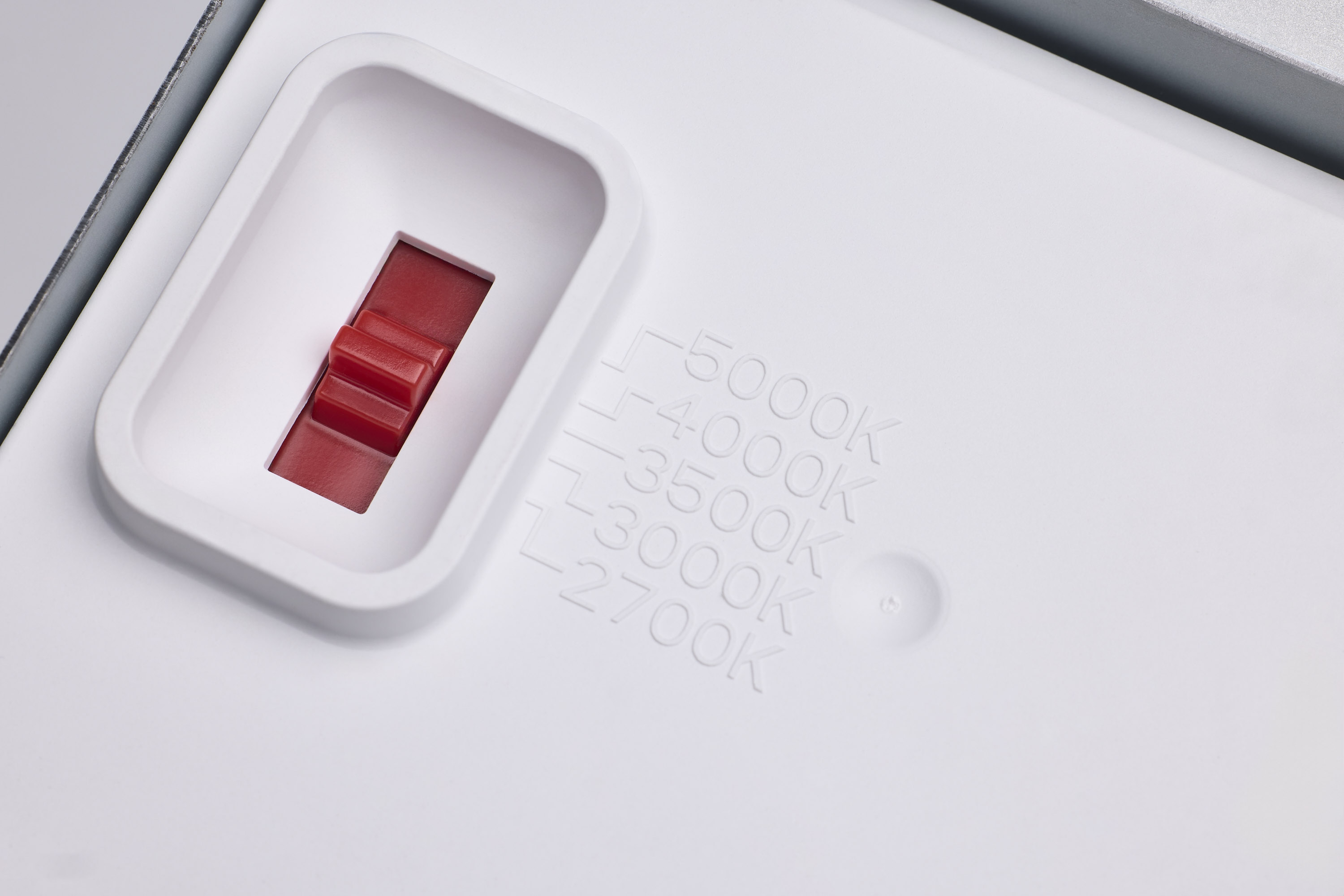

CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.083A

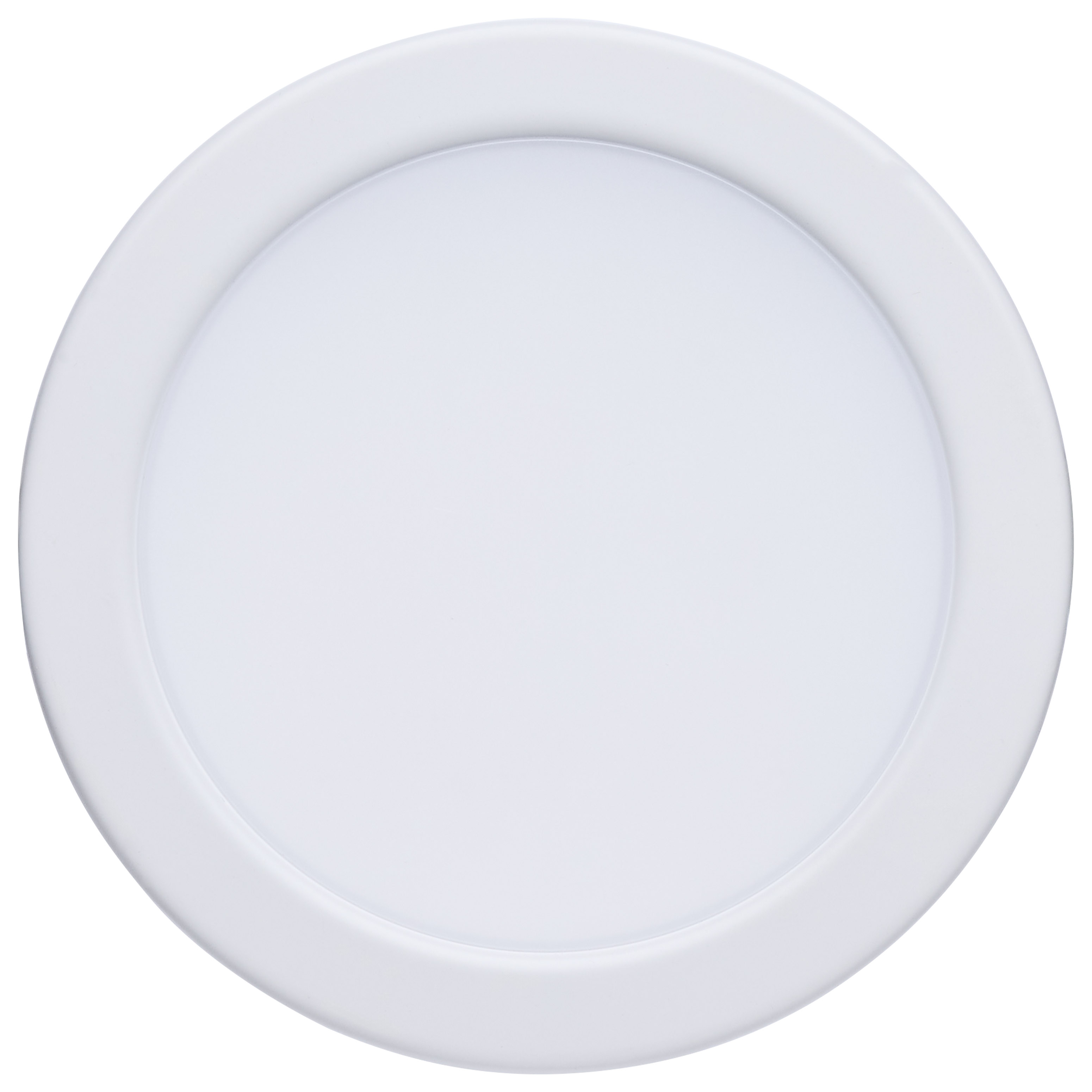

Lens FinishFrosted
Lens MaterialPolycarbonate (PC)
Nominal Length4.0
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical

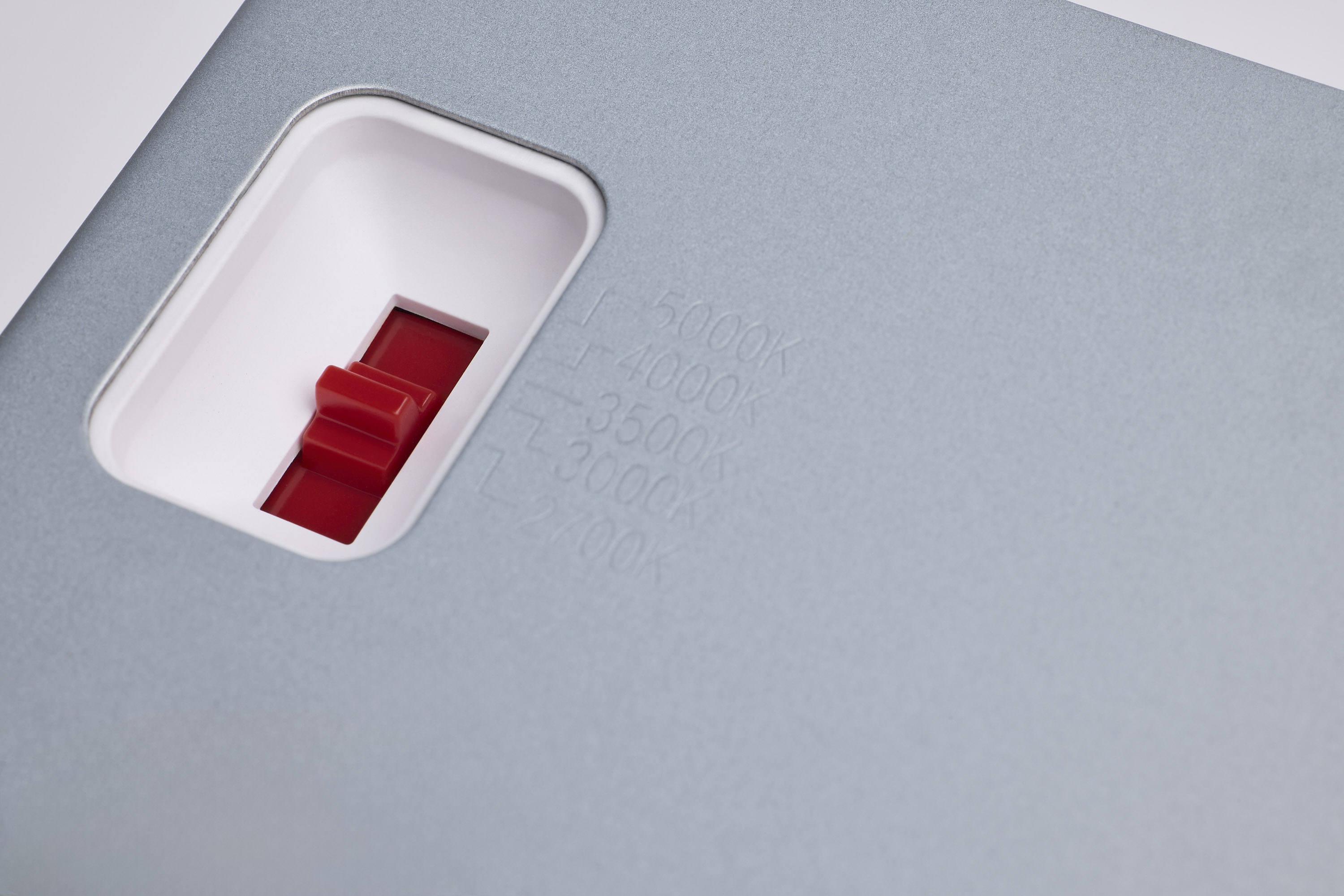

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm White to Natural Light
CRI90+
Dimming TypePhase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens820L
Volts120v
Watts10W
Physical
Lamp BaseIntegrated
FinishWhite / Red
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
ADA CompliantFalse
Air TightTrue
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
Dark Sky RatedFalse
Energy Star ID4479602
FCC CompliantTrue
IC RatedTrue
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
Energy Star CertifiedYes
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923410161
Case Cube0.4064
Case Height6.69
Case Length12.01
Case Quantity6
Case UPC10045923410168
Case Weight7.19
Case Width8.74
EA Cube0.0587
EA Height6.3
EA Length5.83
EA Quantity1
EA Weight1.16
EA Width2.76
Inner Cube0.0
Pack TypeColor Box
Web Height0.88
Web Width4.74
