S11869R1

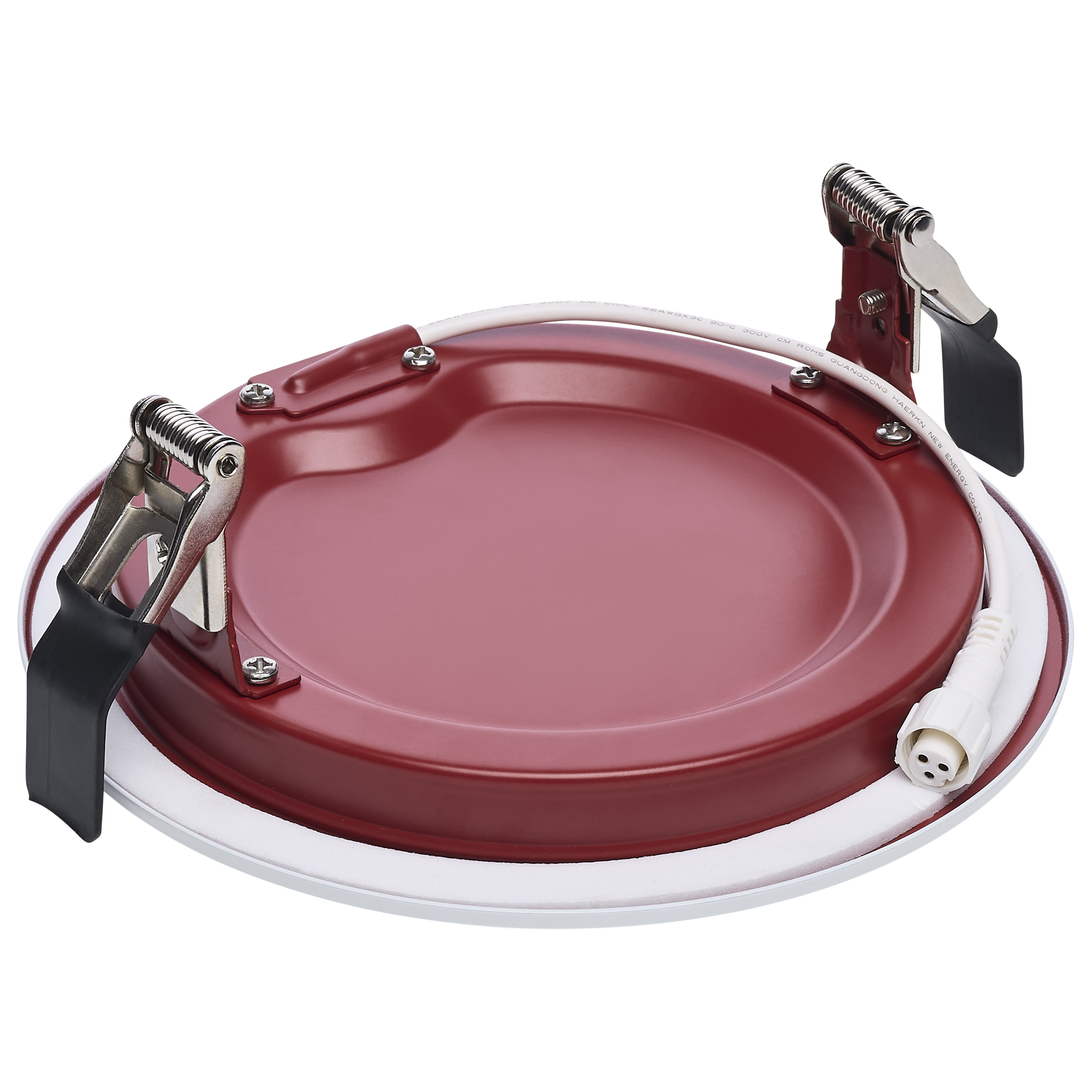

13WLED/6/CFR/CCT/SLF/RD/FL/RND

  • 13 Watt LED
  • Fire Rated 6 Inch
  • Direct Wire Slim Fit Flat Face Downlight
  • Round Shape
  • White Finish

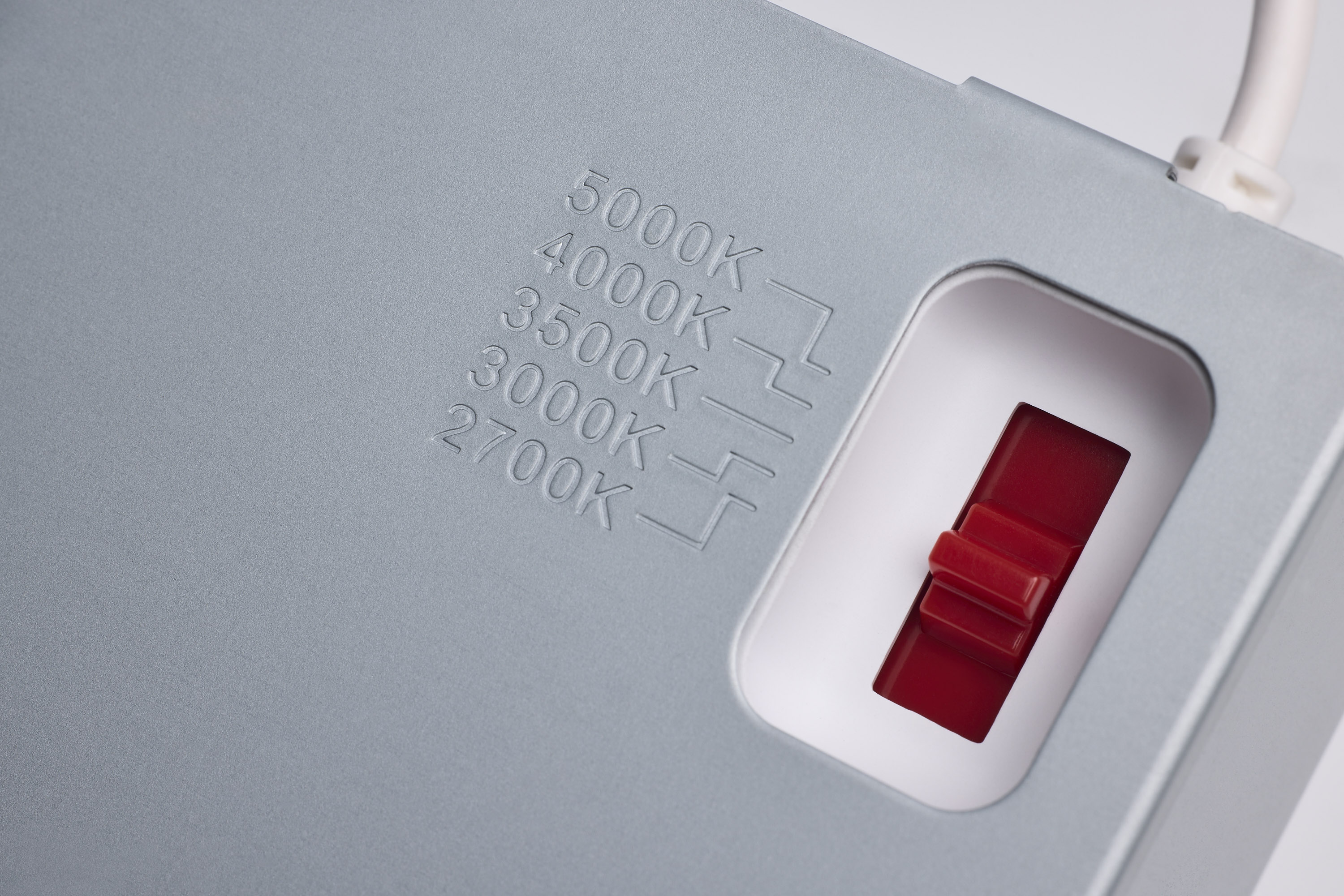

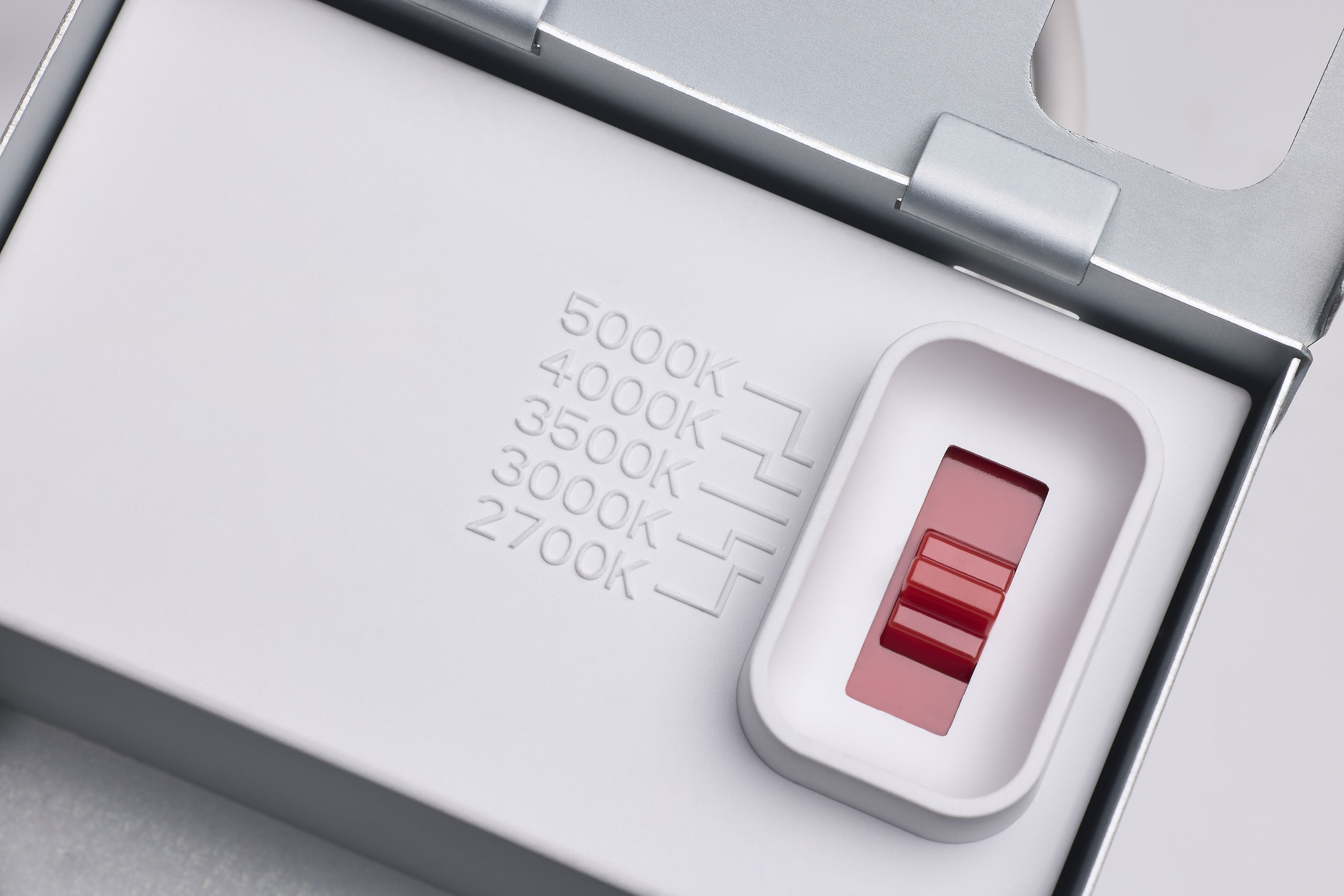

  • CCT Selectable
  • 120-277 Volts
  • 0-10V Dimmable
cc_selectable^y^1
air_tight^y^1
energy_star_certified^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
S11869R1 SpecificationsS11869R1 Photometrics 3500K.iesLED FIRE RATED SLIM FIT DOWNLIGHTS REMOTE DRIVER|CCT SELECTABLE
Tools
Lighting Layout Analysis For S11869R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
13 Watt LED; Fire Rated 6 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; CCT Selectable; 120-277 Volts; 0-10V Dimmable
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated

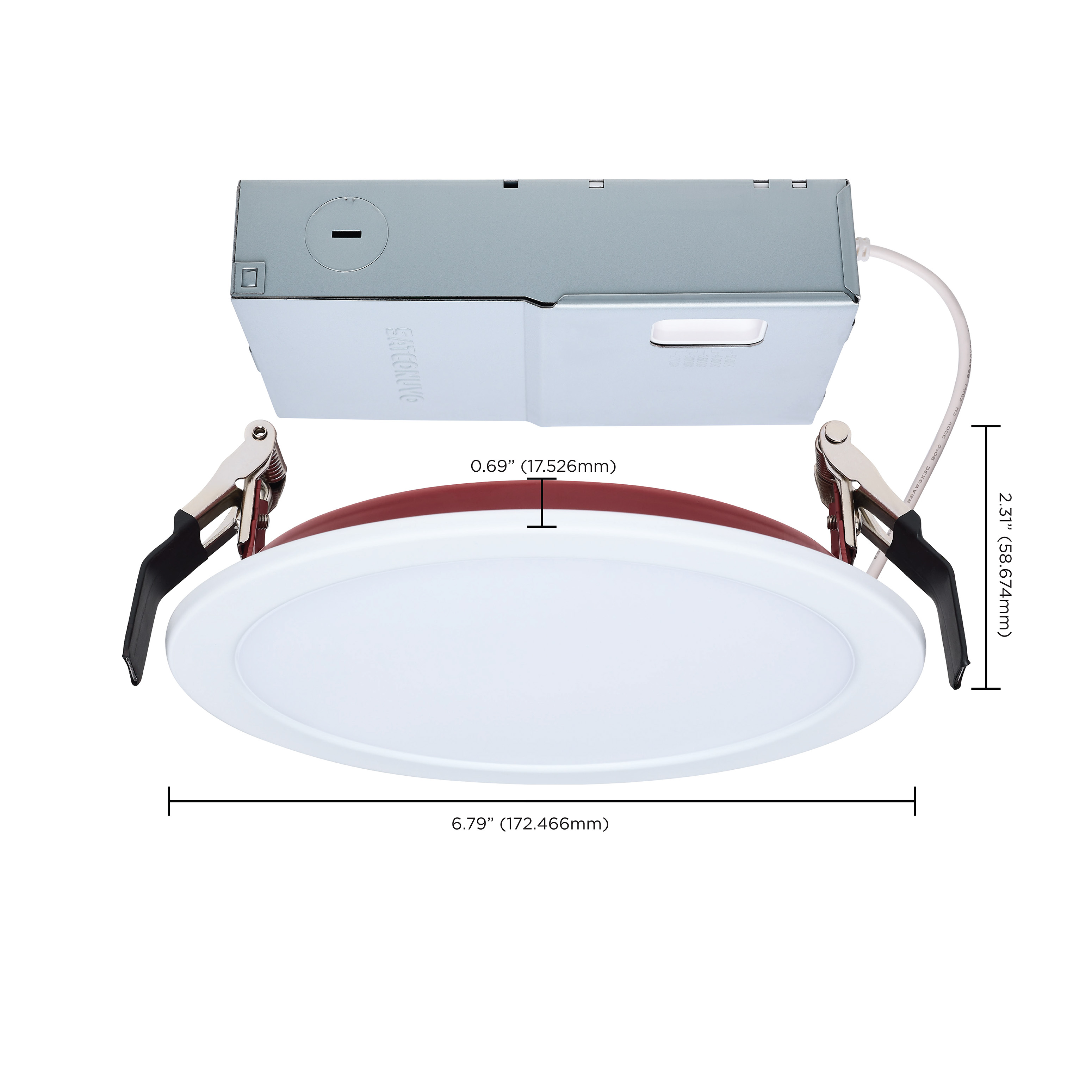

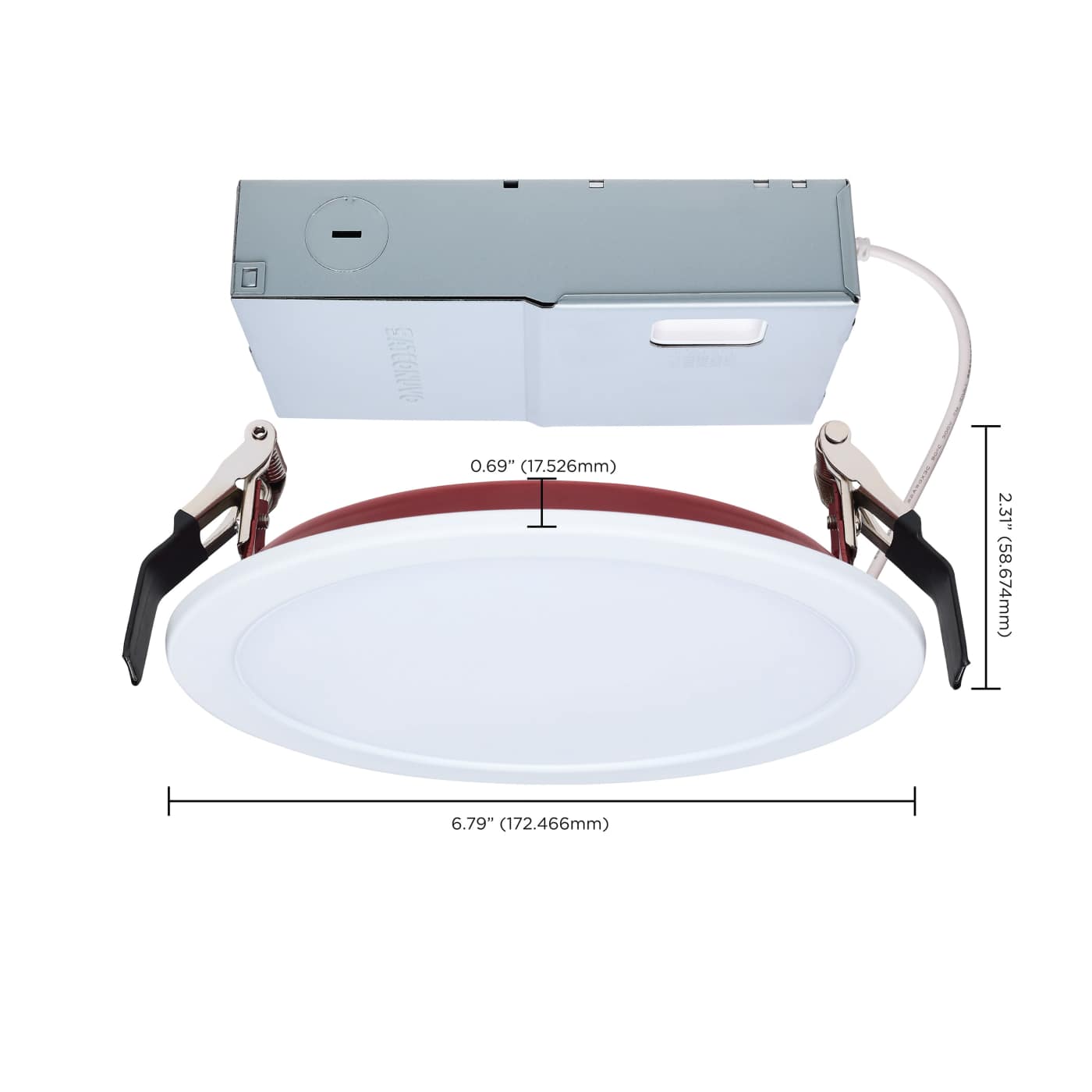

Diameter6.79
Dimmable Text0-10V Dimming
MaterialSteel

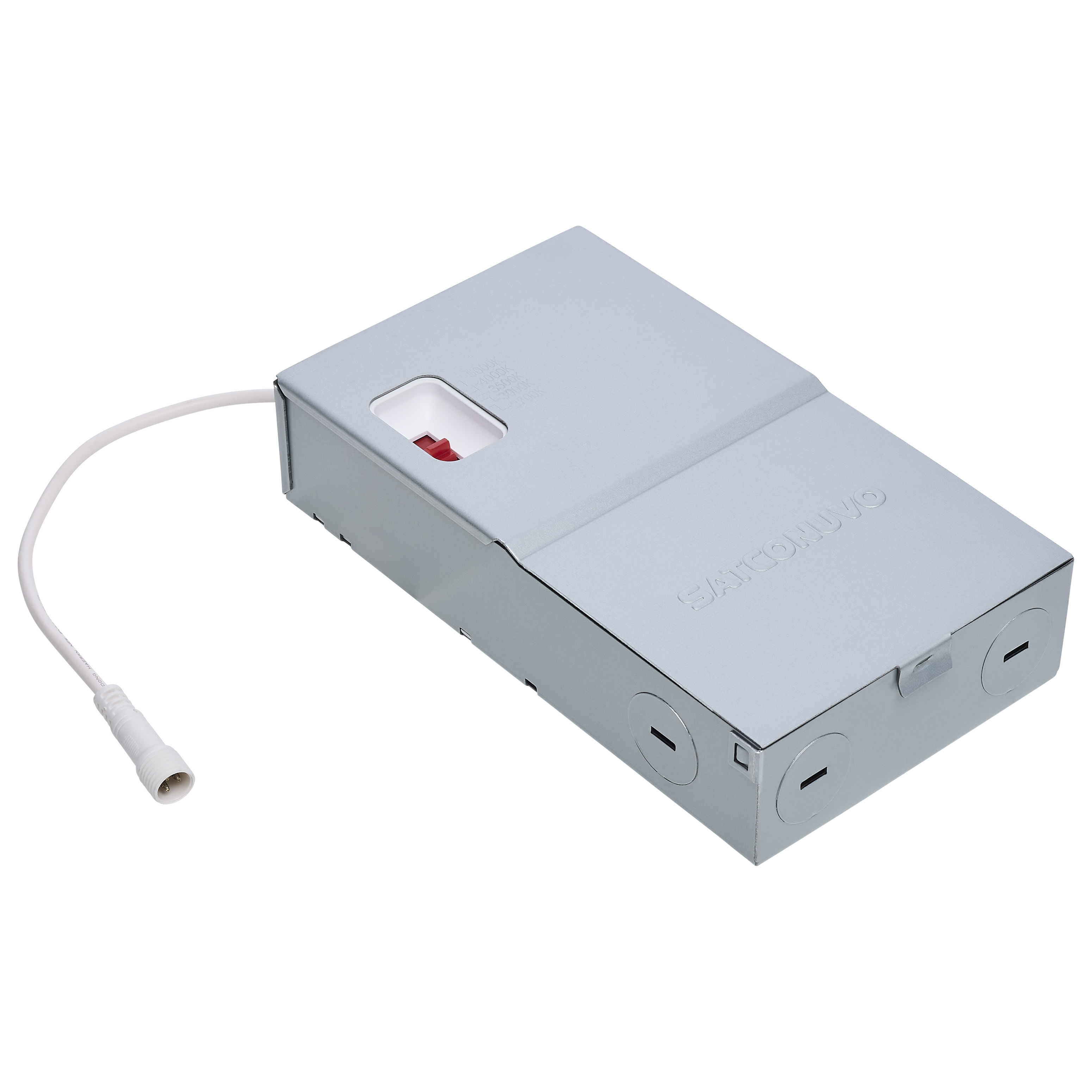

Fixture TypeRemote Driver LED Downlight
StatusActive
StyleSpecialty
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.108-0.047A
Lens FinishFrosted
Lens MaterialPolycarbonate (PC)
Nominal Length6.0
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm White to Natural Light
CRI90+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1100L
Volts120V-277V
Watts13W
Physical
Lamp BaseIntegrated
FinishWhite / Red
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
ADA CompliantFalse
Air TightTrue
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
Dark Sky RatedFalse
Energy Star ID4479605
FCC CompliantTrue
IC RatedTrue
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
Energy Star CertifiedYes
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923410215
Case Cube0.6854
Case Height7.87
Case Length16.06
Case Quantity6
Case UPC10045923410212
Case Weight12.59
Case Width9.37
EA Cube0.1005
EA Height7.48
EA Length7.87
EA Quantity1
EA Weight2.01
EA Width2.95
Inner Cube0.0
Pack TypeColor Box
Web Height0.88
Web Width6.79
