| Company | SATCO |
|---|---|
| Mounting Height | 1.34 |
| Mounting Length | 6.18 |
| Bulb Included | Integrated |
| Center Beam Candle Power | 400 |
| Dimmable Text | Line Voltage; 120V Only |
| Material | Aluminum |

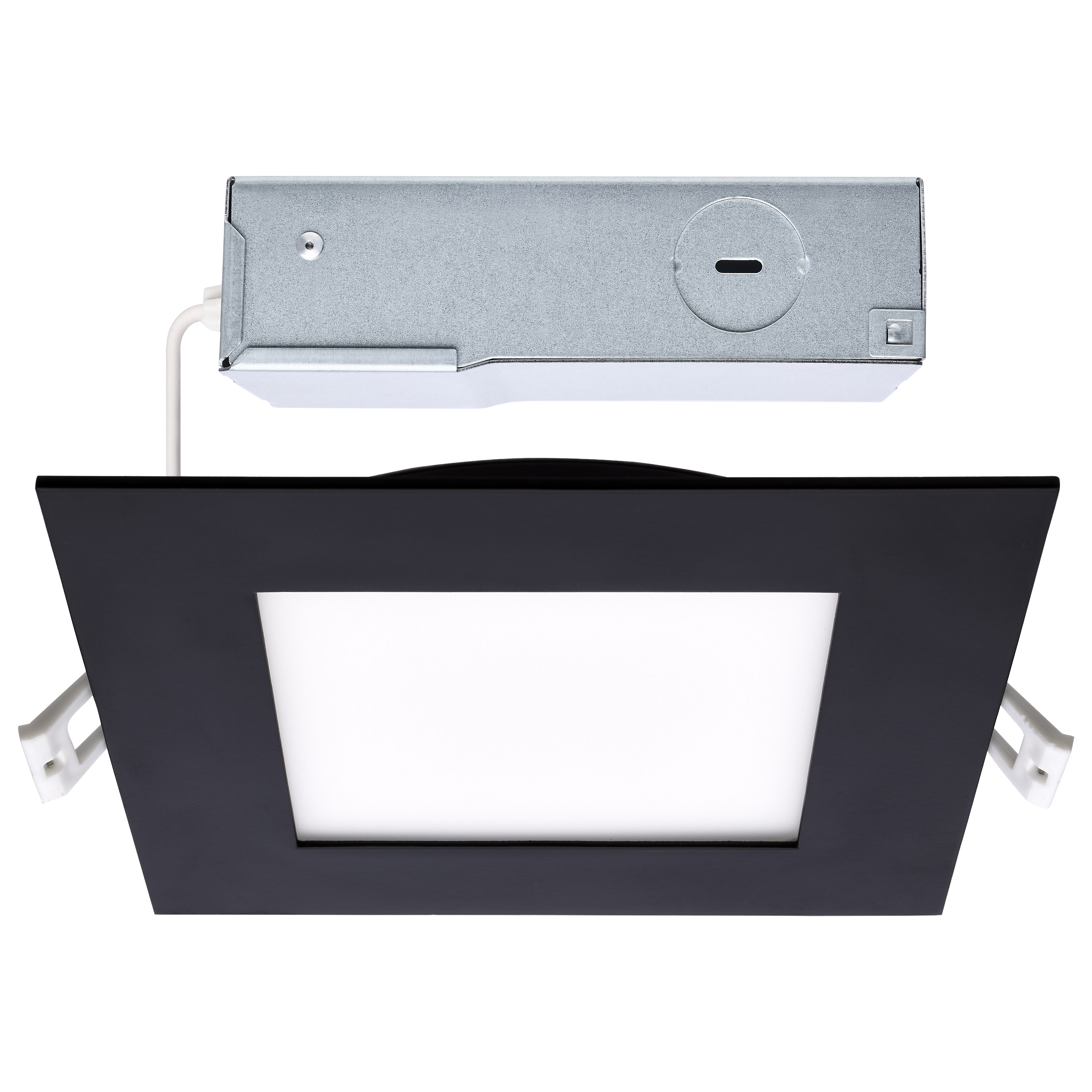

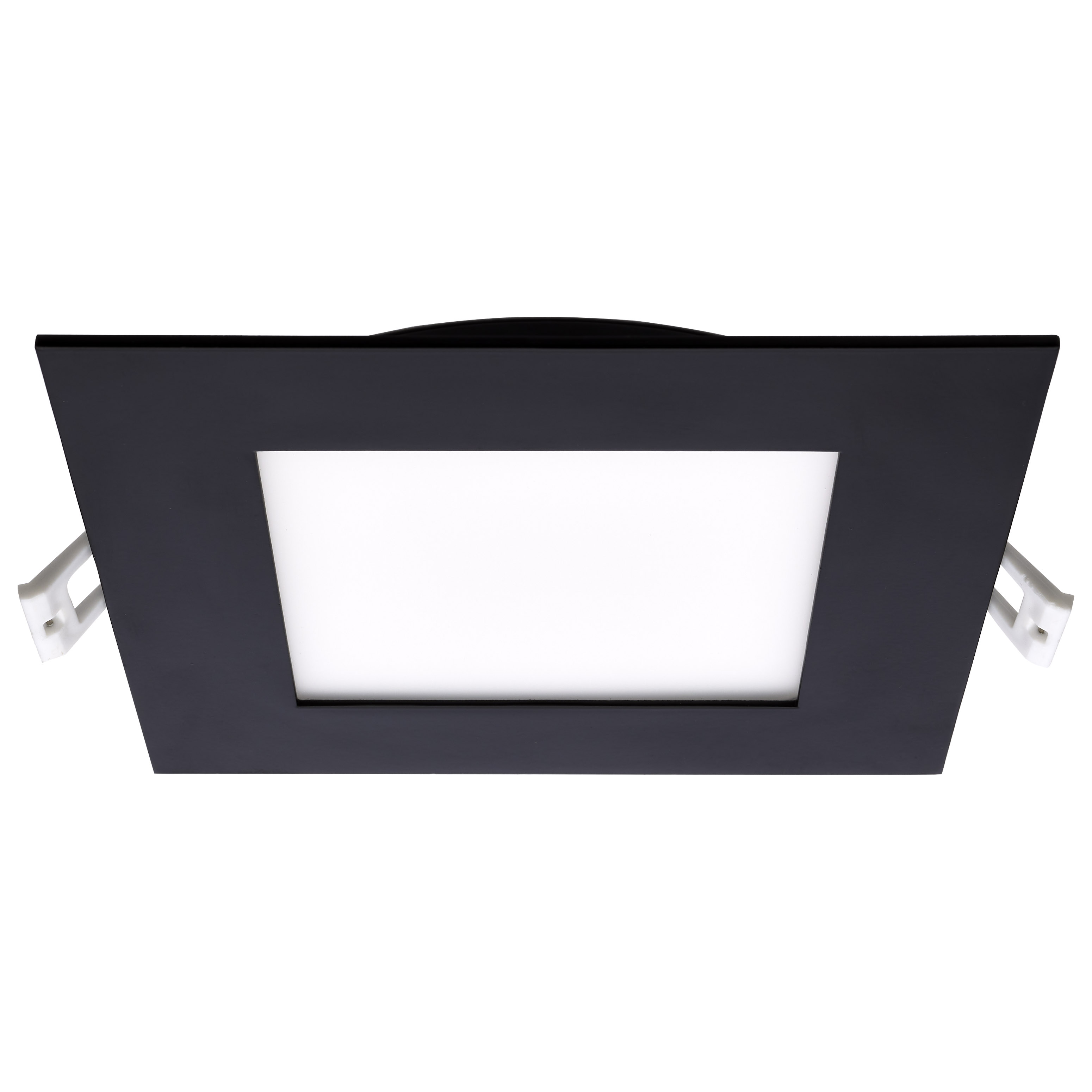

| Fixture Type | Direct Wire LED Downlight |
| Product Notes | Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | <20% |
| Up Down Installation | Down |

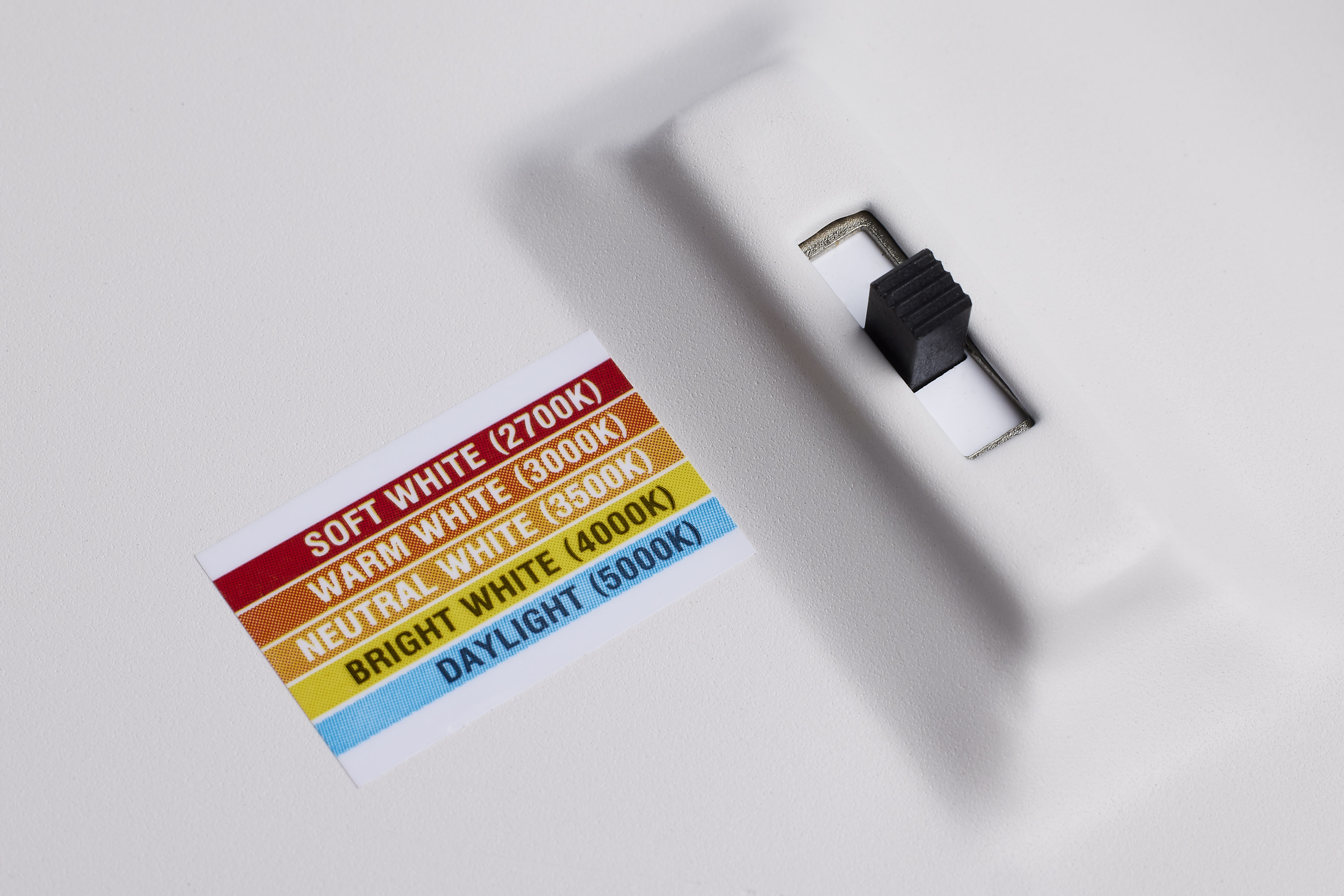

| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | Black |
| Amps | 0.120A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Nominal Length | 6.0 |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Sloped Ceiling Compatible | Yes |
| Indoor Outdoor | Indoor and Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 110 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | Linear Dimming, Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 1050L |
| Volts | 120v |
| Watts | 12W |
| Lamp Base | Integrated |
|---|---|
| Finish | BLACK |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Square |
| Warranty | 5-Years |
|---|
| Air Tight | Yes |
|---|---|
| CA Prop 65 | Lead |
| Energy Star ID | 4480263 |
| FCC Compliant | Yes |
| IC Rated | Yes |
| Location Rating | Wet |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | Lawful for sale |
| Energy Star Certified | Yes |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| UPC | 045923411113 |
|---|---|
| Case Cube | 1.0269 |
| Case Height | 14.96 |
| Case Length | 16.73 |
| Case Quantity | 12 |
| Case UPC | 10045923411110 |
| Case Weight | 18.3 |
| Case Width | 7.09 |
| EA Cube | 0.0696 |
| EA Height | 6.97 |
| EA Length | 7.95 |
| EA Quantity | 1 |
| EA Weight | 1.43 |
| EA Width | 2.17 |
| Pack Type | Color Box |

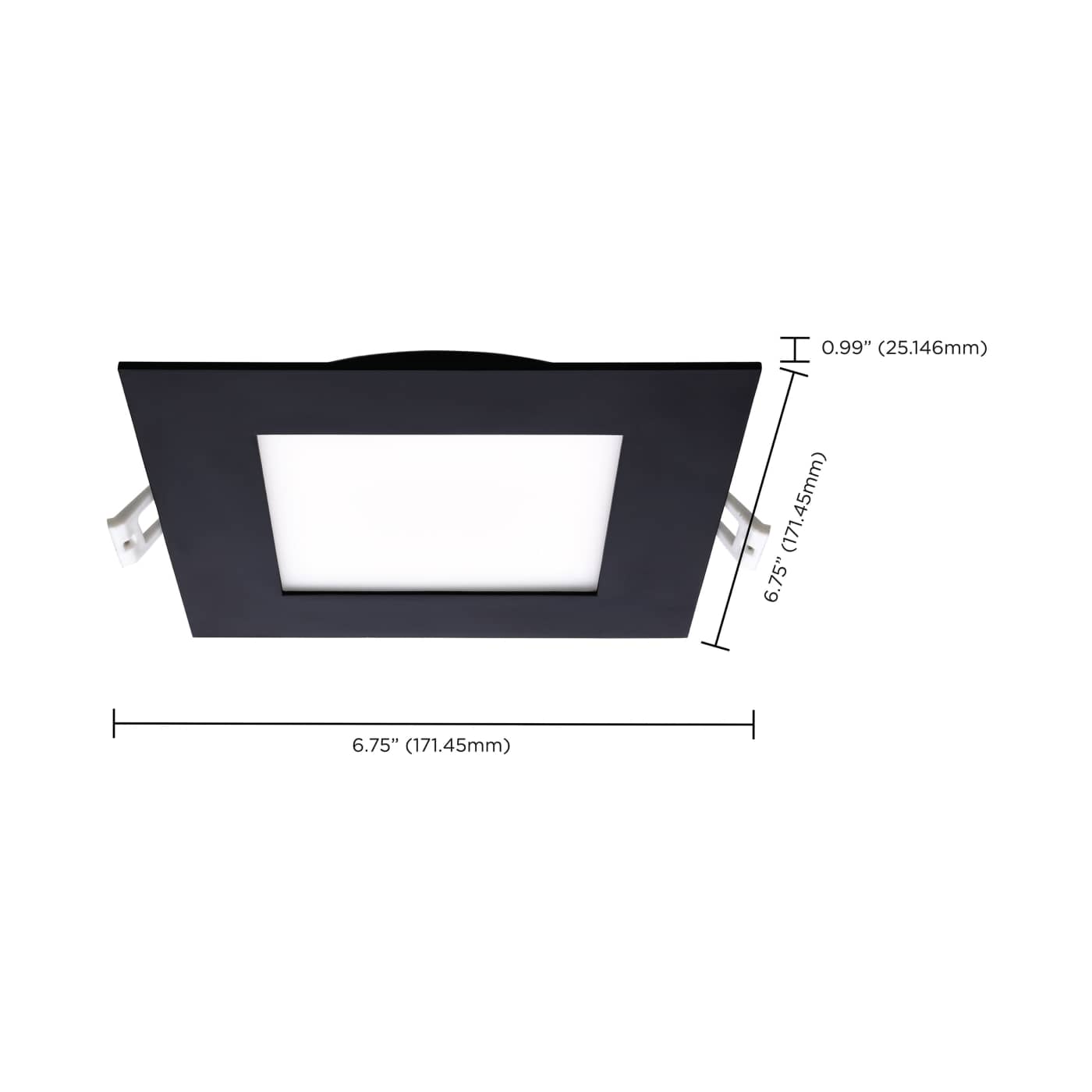

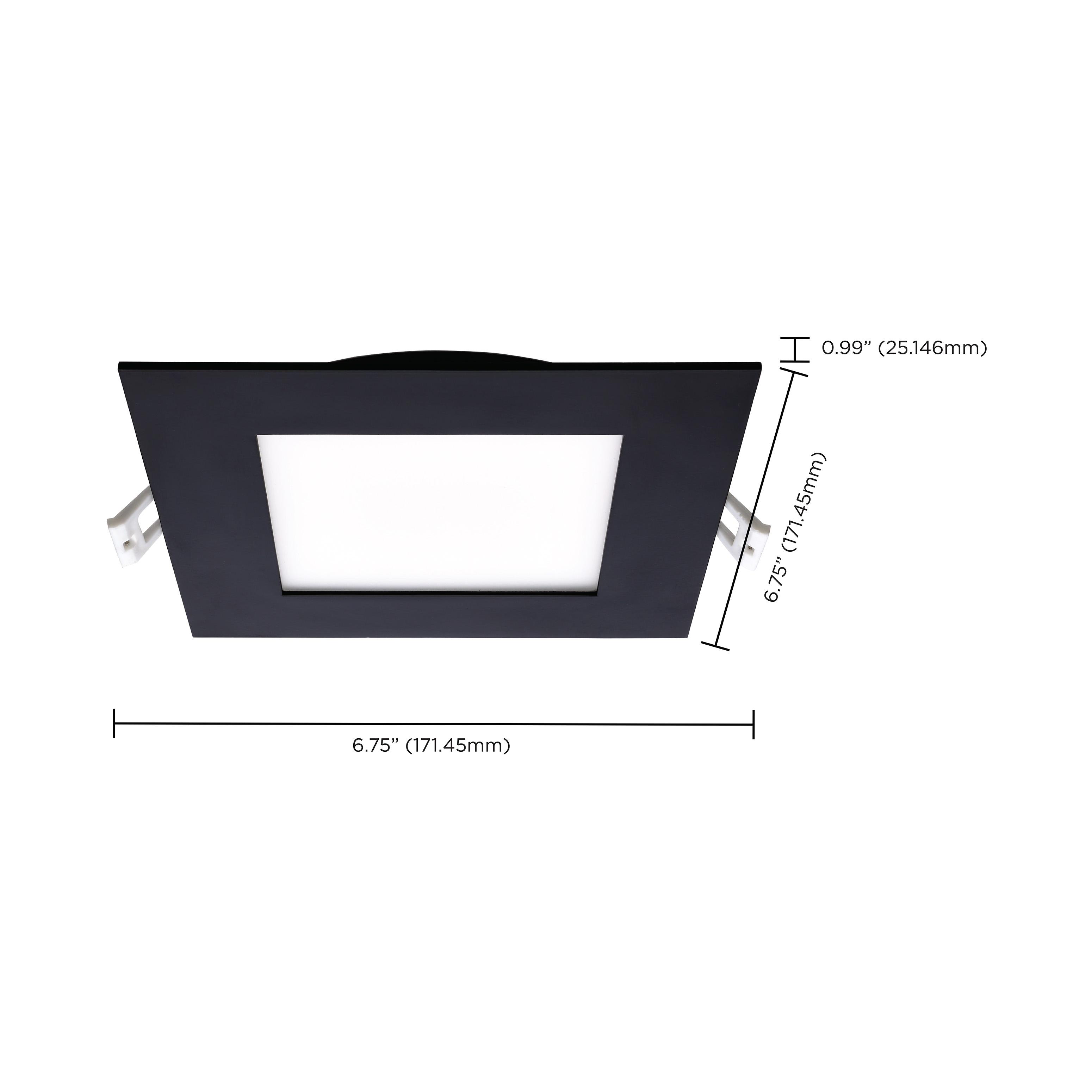

| Web Height | 0.99 |
| Web Length | 6.75 |
| Web Width | 6.75 |
