S11900

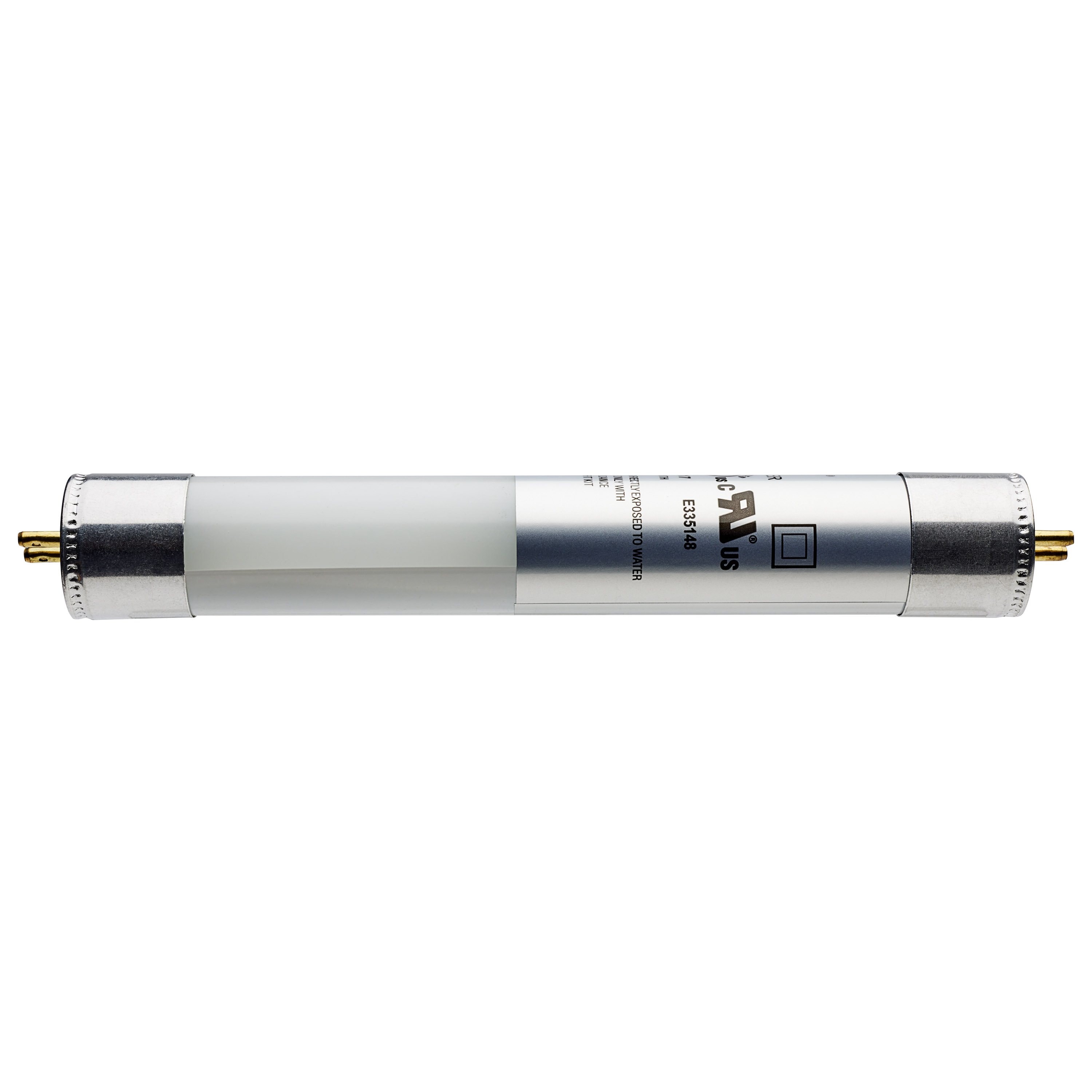

2W/LED/T5/840/BP

  • 2 Watt T5 LED
  • Miniature bi-pin base
  • 4000K
  • 50000 Average rated hours

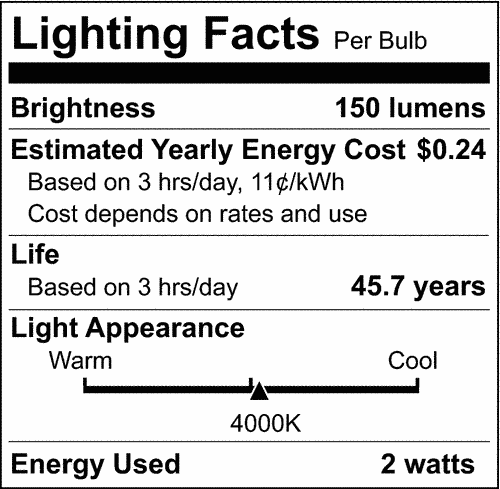

  • 150 Lumens
  • 120-277 Volt
  • Type B
  • Ballast Bypass
  • Double Ended Wiring
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11900 SpecificationsS11900 Photometrics.iesS11900 Instructions.pdf
Tools
Lighting Layout Analysis For S11900
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 150 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsNo ballast or external driver required
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoReplaces F4T5/CW lamps; All glass tube
Amps0.017-0.007A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Nominal Length6.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Product TechnologyLED
Fluor Equiv4W
Incandescent Equivalent15W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)240
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens150L
Volts120V-277V
Watts2W
Physical

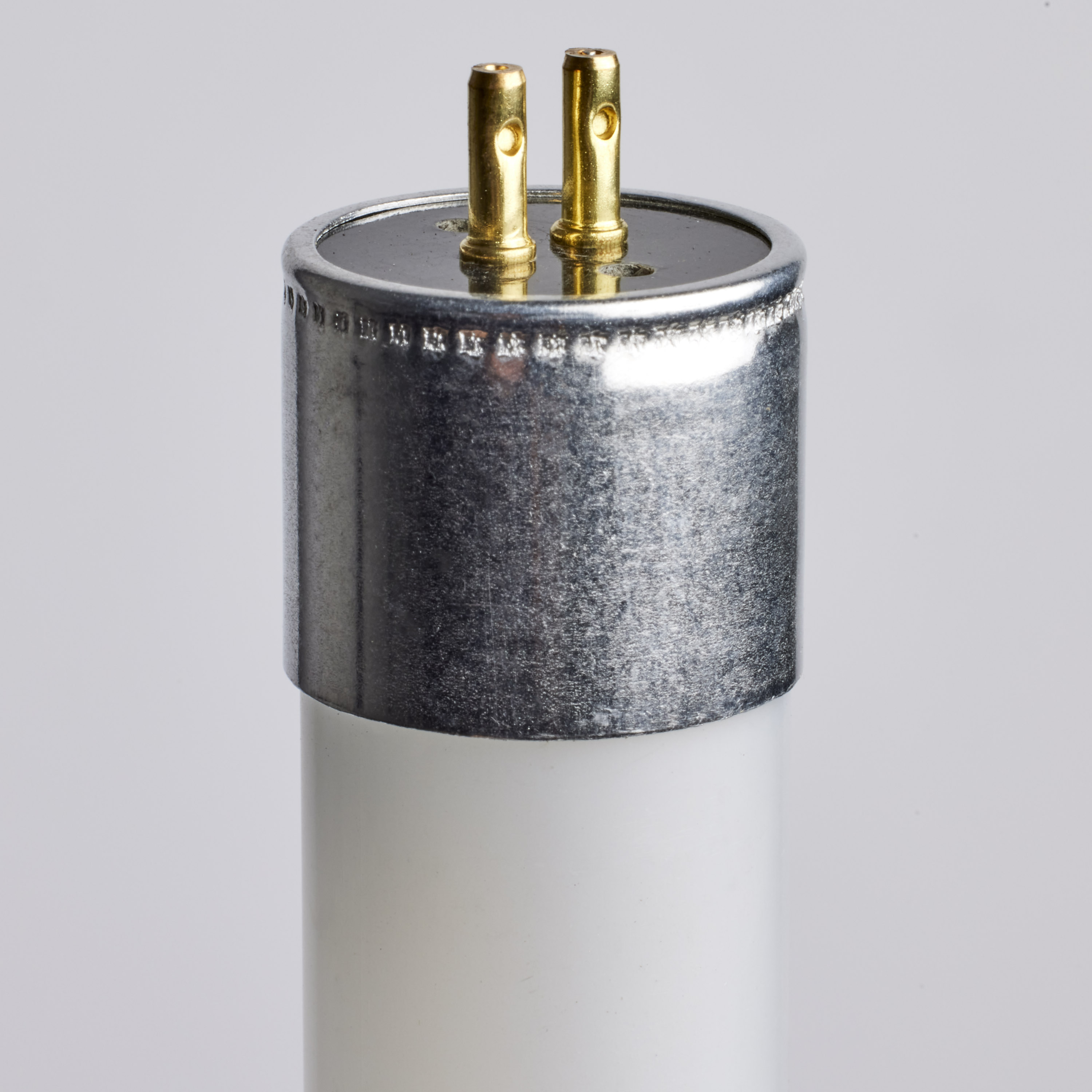

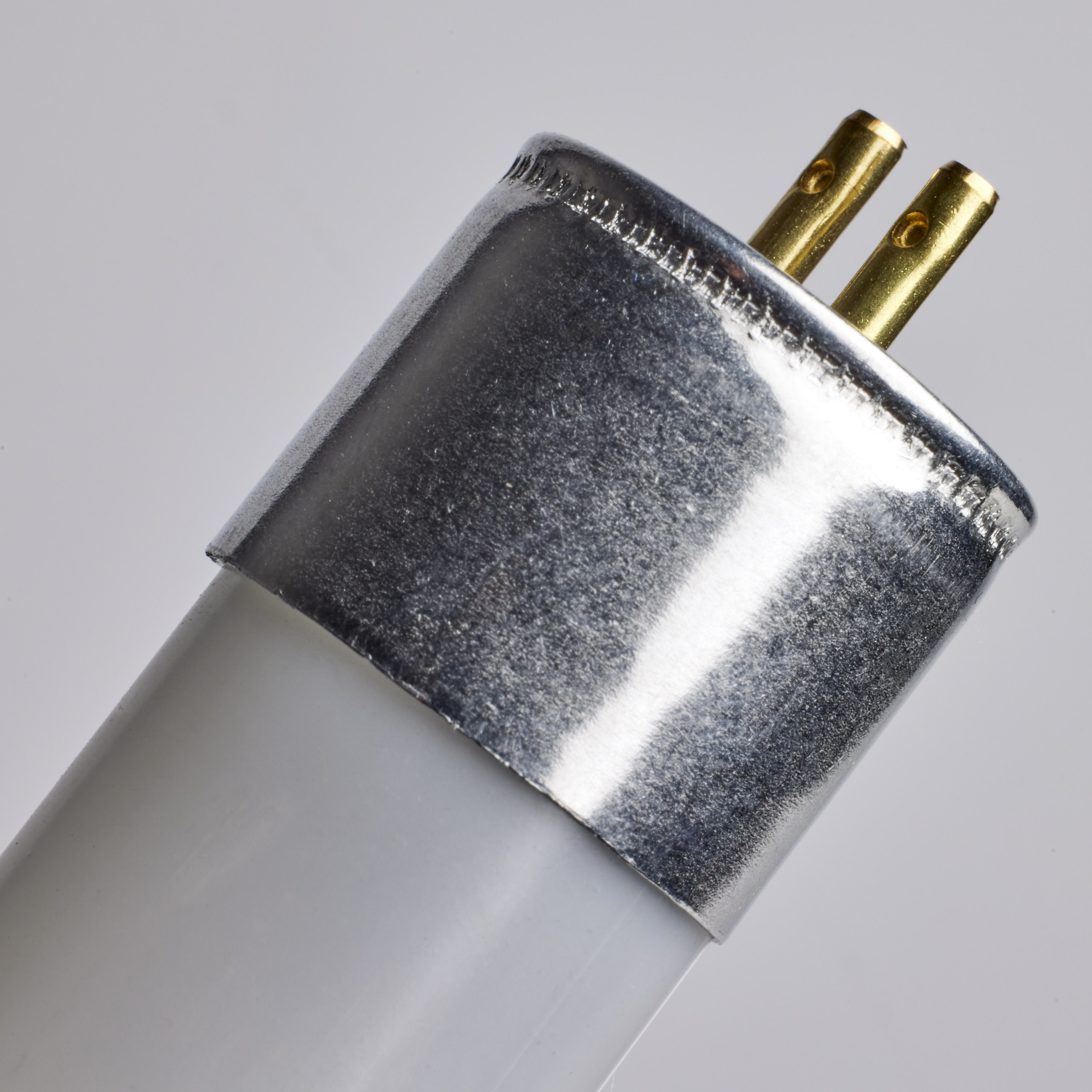

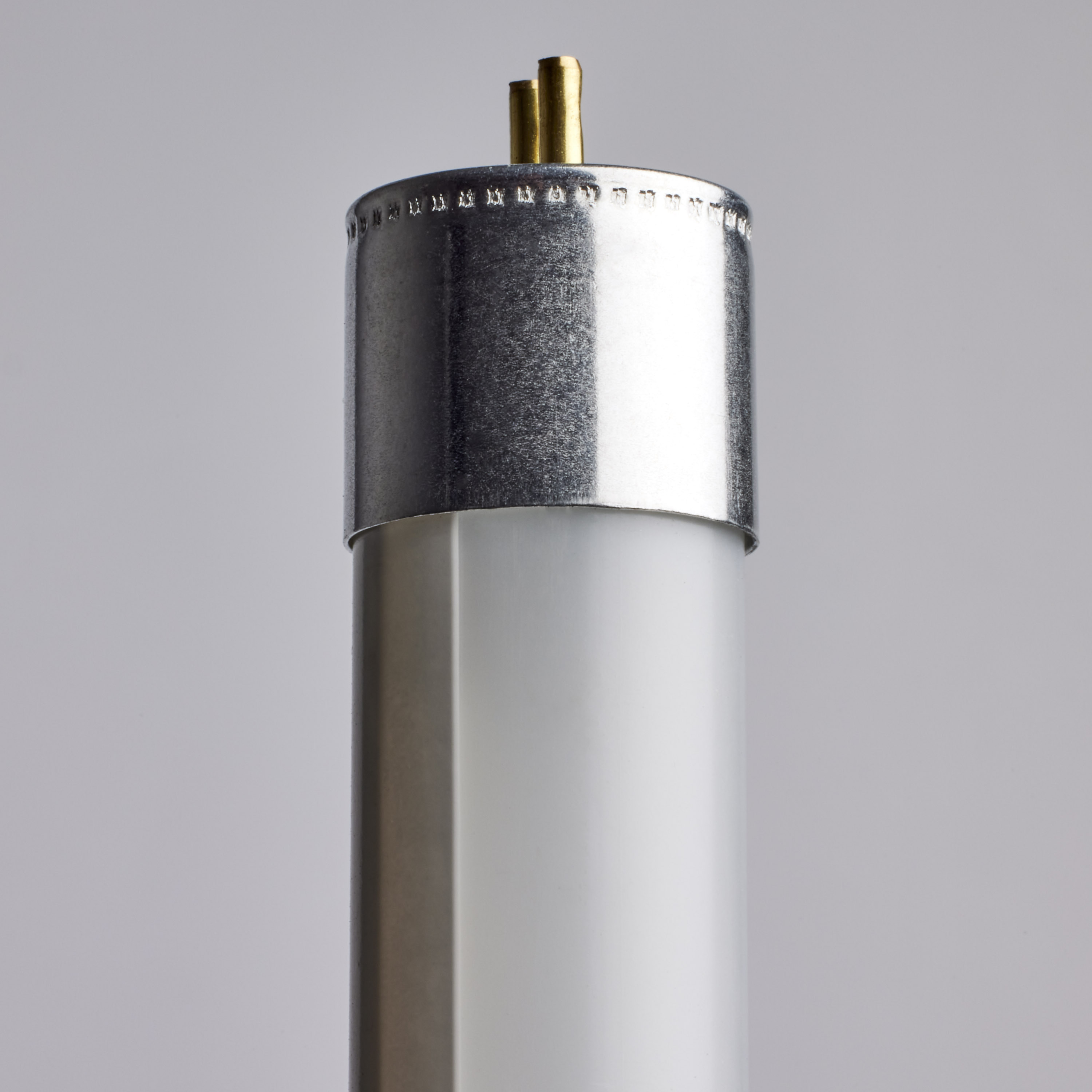

Lamp BaseMiniature Bi Pin
FinishFrost
ANSI BaseG5
Lamp TypeT5
MOD Lamps0.83
MOL5.91
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Direct wire 120-277V line voltage; Double ended wiring
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119002
Case Cube1.3291
Case Height16.54
Case Length11.02
Case Quantity200
Case UPC10045923119009
Case Weight9.06
Case Width12.6
EA Cube0.0028
EA Height6.0
EA Length0.9
EA Quantity1
EA Weight0.09
EA Width0.9
Inner Cube0.0678
Inner Height7.9
Inner Length2.8
Inner Quantity10
Inner UPC20045923119006
Inner Weight0.5
Inner Width5.3
Pack TypeBox
Web Length5.91
Web Width0.83
