» S11904

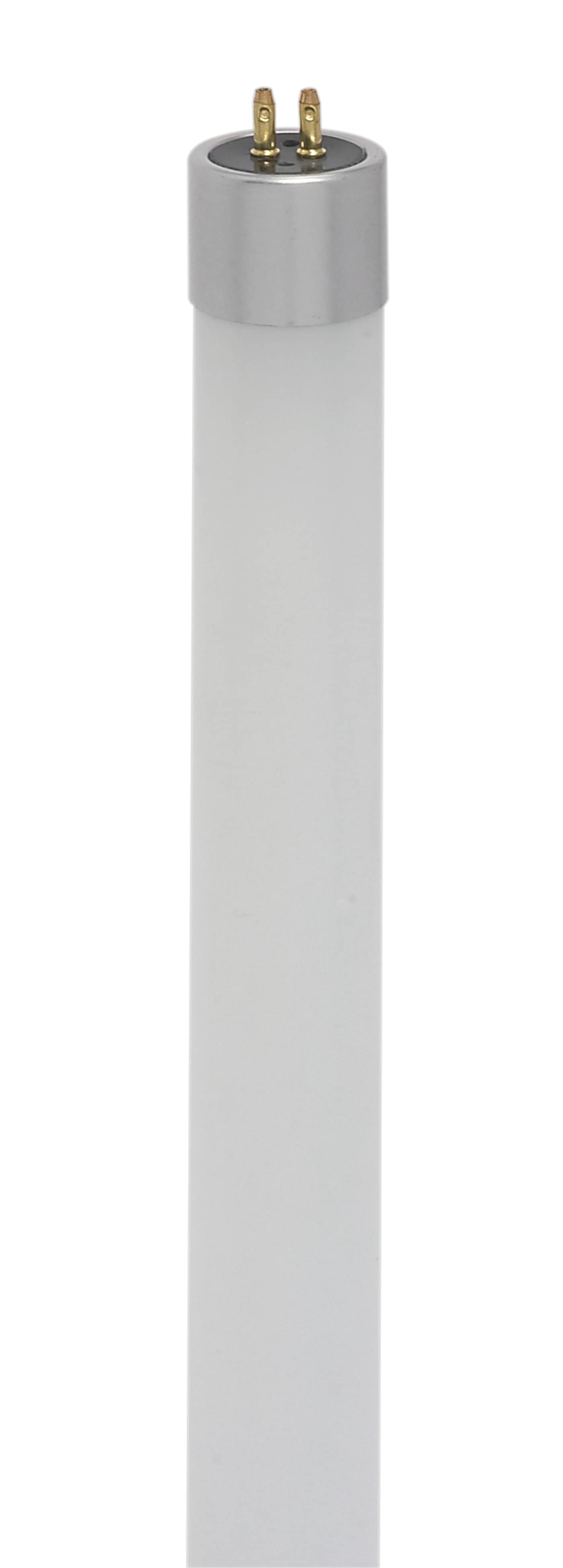

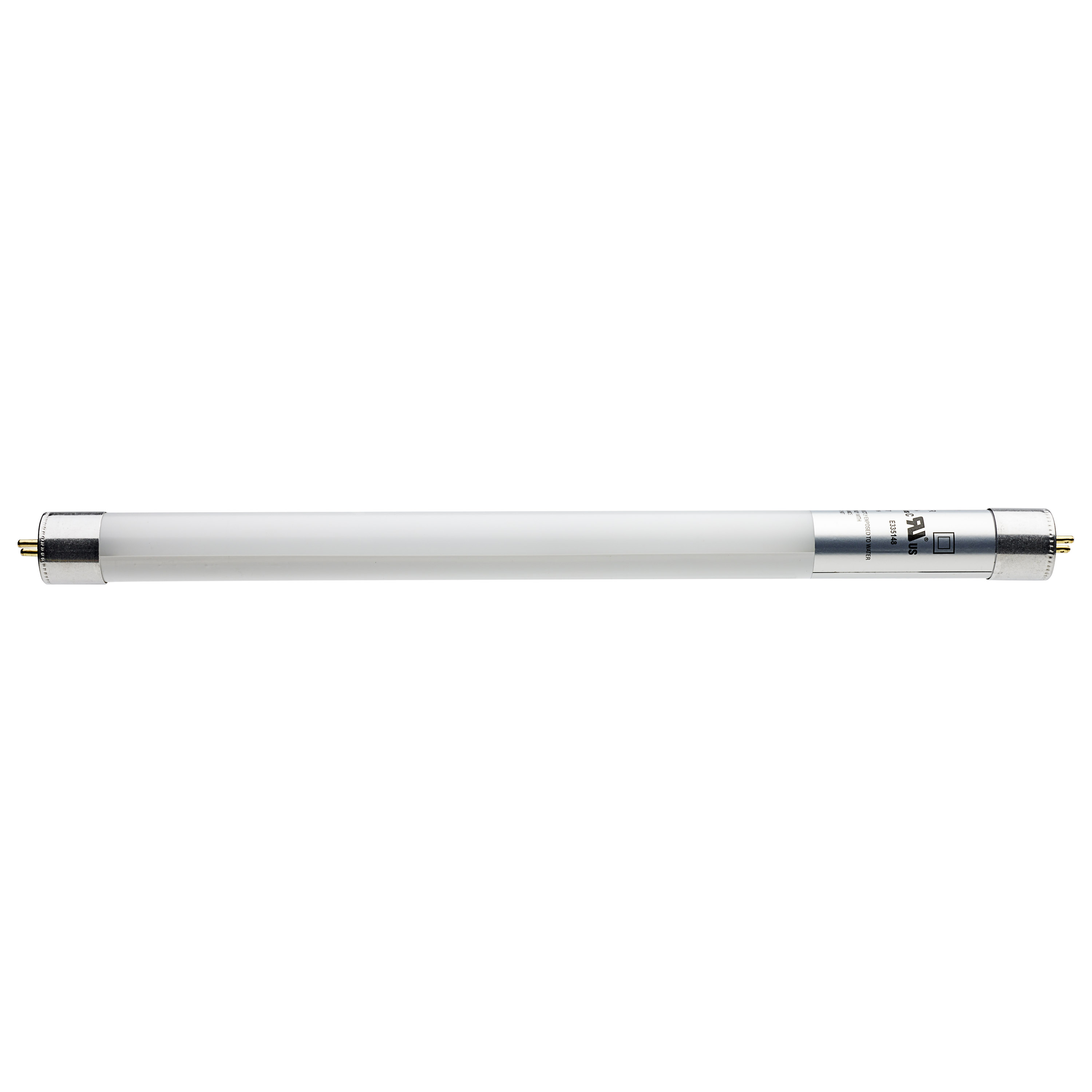

S11904 4W/LED/T5/830/BP

S11904

4W/LED/T5/830/BP

4 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring


Satco's 4 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 3000 kelvins and a lumens count of 400. Providing 50,000 hours of warm white light, this bulb is PET coated for shatterproof protection.
  • MOL: 11.91 inches, MOD: 0.83 inches
  • Superior 82 CRI light quality, 400 lumens, 3000K warm white light, with a 240 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 8 watt fluorescent equivalent
  • Frost finished linear bulb
  • LED energy efficient fixture
  • 5 Year Limited Warranty
Lights

S11904

4W/LED/T5/830/BP

4 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring

Satco's 4 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 3000 kelvins and a lumens count of 400. Providing 50,000 hours of warm white light, this bulb is PET coated for shatterproof protection.
  • MOL: 11.91 inches, MOD: 0.83 inches
  • Superior 82 CRI light quality, 400 lumens, 3000K warm white light, with a 240 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 8 watt fluorescent equivalent
  • Frost finished linear bulb
  • LED energy efficient fixture
  • 5 Year Limited Warranty

Specifications

General
StatusActive
Watts4W
Fluorescent Equivalent8W
Volts120V-277V
Ballast TypeType B
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length12
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens400L
Beam Spread240
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts4W
Fluorescent Equivalent8W
Volts120V-277V
Ballasting RequirementsNo ballast or external driver required
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens400L
Beam Spread240
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL11.91
MOD0.83
Nominal Length12
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrost
MaterialGlass
Lens FinishFrost
Weight (lb.)0.08
Additional Information
Additional InfoReplaces F8T5/WW lamps
Shatter-Proof TypePET Coated
Installation NotesDirect wire 120-277V line voltage; Double ended wiring
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
Colorado StatusLawful for sale
Hawaii StatusLawful for sale
Nevada StatusLawful for sale
Washington StatusLawful for sale
Vermont StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119040
Each Quantity1
Each Length (in.)12.00
Each Width (in.)0.90
Each Height (in.)0.90
Each Weight (lb.)0.08
Each Cube (CuFt.)0.0056
Pack TypeBox
Inner UPC20045923119044
Inner Quantity10
Inner Length (in.)13.20
Inner Width (in.)5.30
Inner Height (in.)2.80
Inner Weight (lb.)0.80
Inner Cube (CuFt.)0.1134
Case UPC10045923119047
Case Quantity100
Case Length (in.)14.76
Case Width (in.)11.02
Case Height (in.)12.60
Case Weight (lb.)8.07
Case Cube (CuFt.)1.1860
