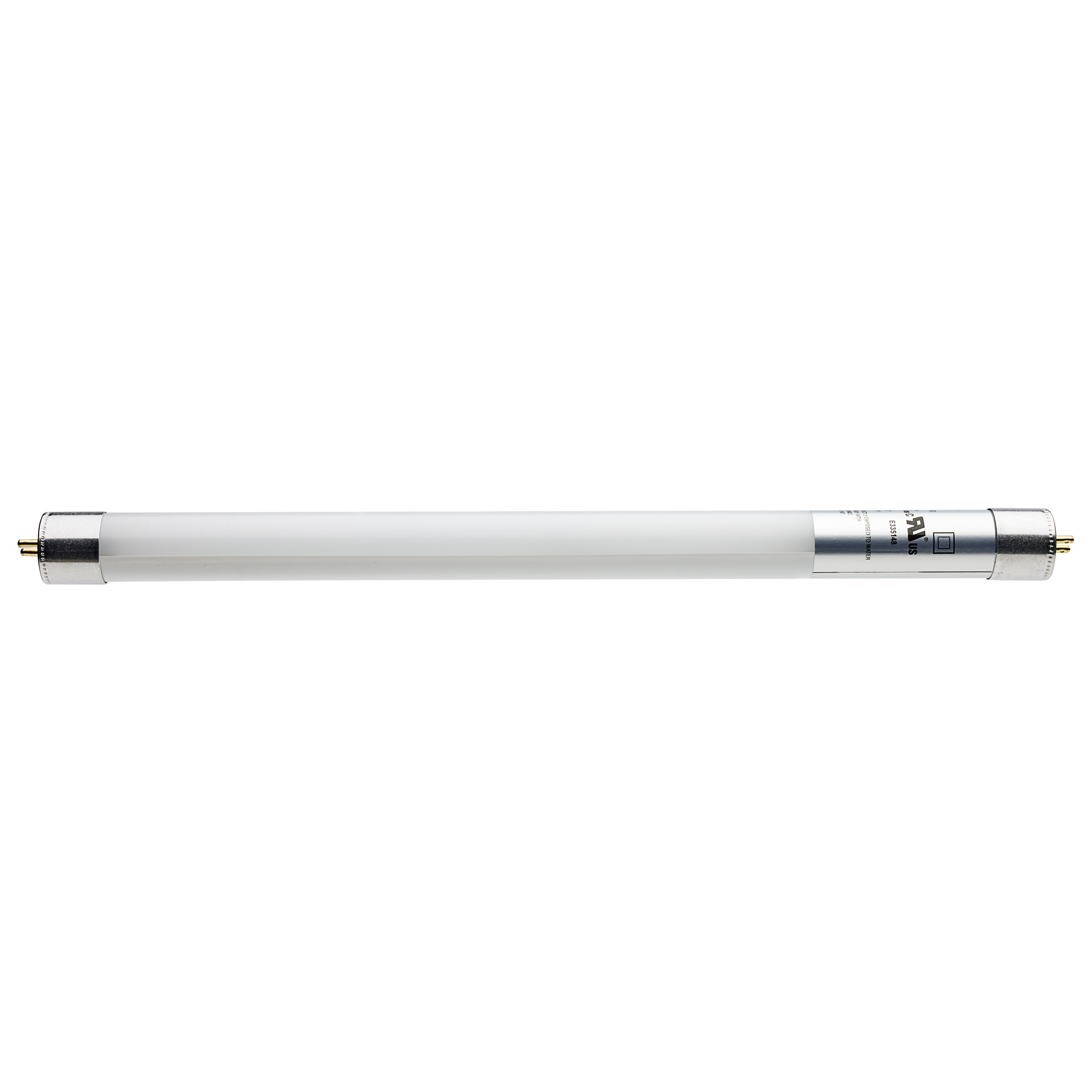

4W/LED/T5/865/BP - S11906
4W/LED/T5/865/BP - S11906
4W/LED/T5/865/BP - S11906
4W/LED/T5/865/BP - S11906
S11906

4W/LED/T5/865/BP

Discontinued
  • 4 Watt T5 LED
  • Miniature bi-pin base
  • 6500K
  • 50000 Average rated hours
  • 400 Lumens
  • 120-277 Volt
  • Type B
  • Ballast Bypass
  • Double Ended Wiring
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11906 SpecificationsS11906 Photometrics.iesS11906 Instructions.pdf
Tools
Lighting Layout Analysis For S11906
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsNo ballast or external driver required
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusDiscontinued
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoReplaces F8T5/D lamps
Amps0.033-0.014A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Nominal Length12.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Product TechnologyLED
Fluor Equiv8W
Incandescent Equivalent25W
Electrical
CCT (Kelvin Temp)6500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)240
Color TempDaylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)

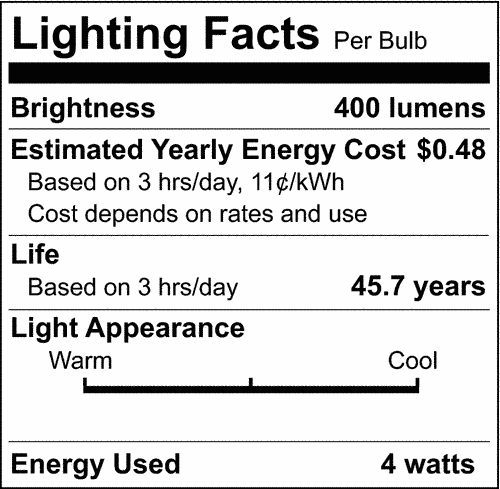

Lumens400L
Volts120V-277V
Watts4W
Physical

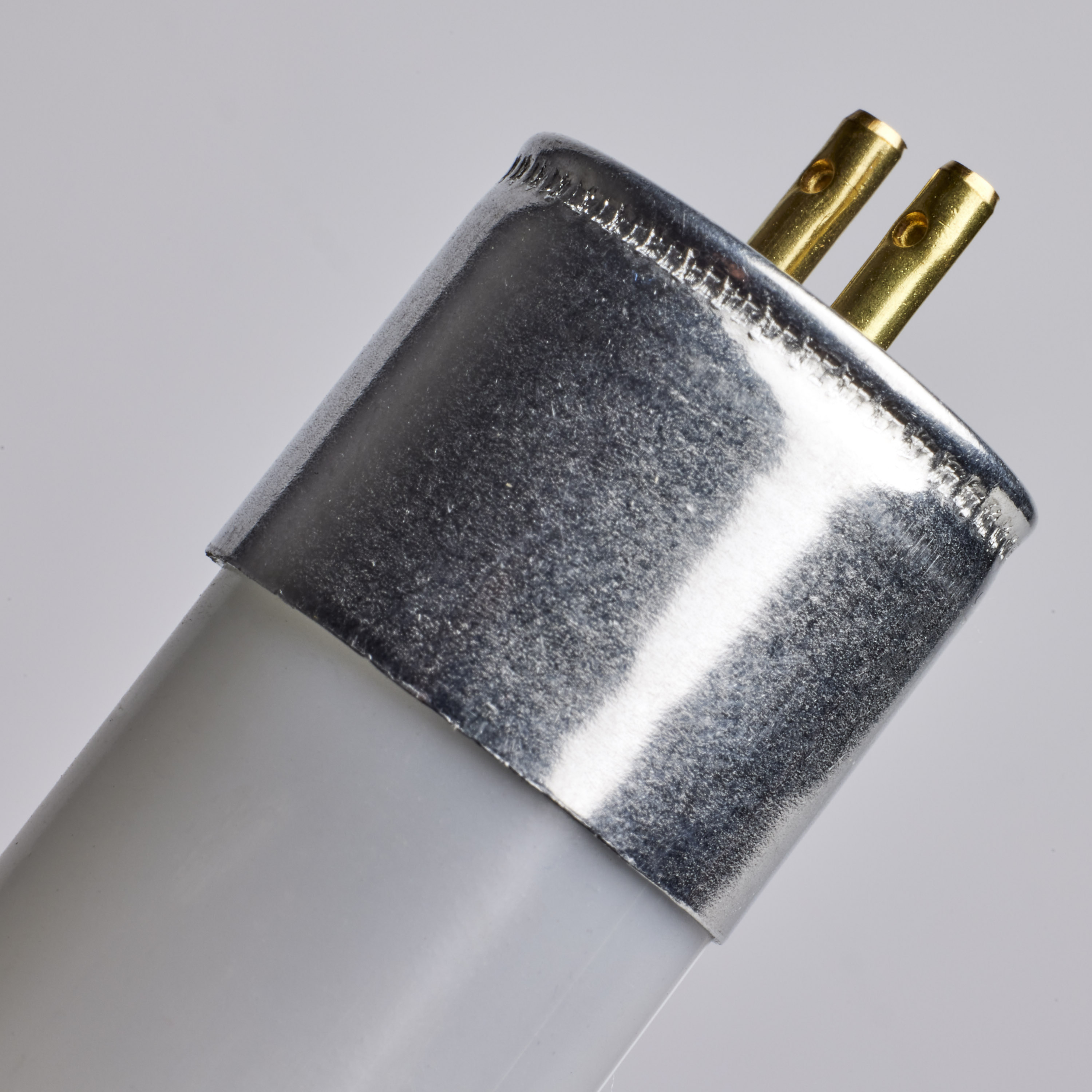

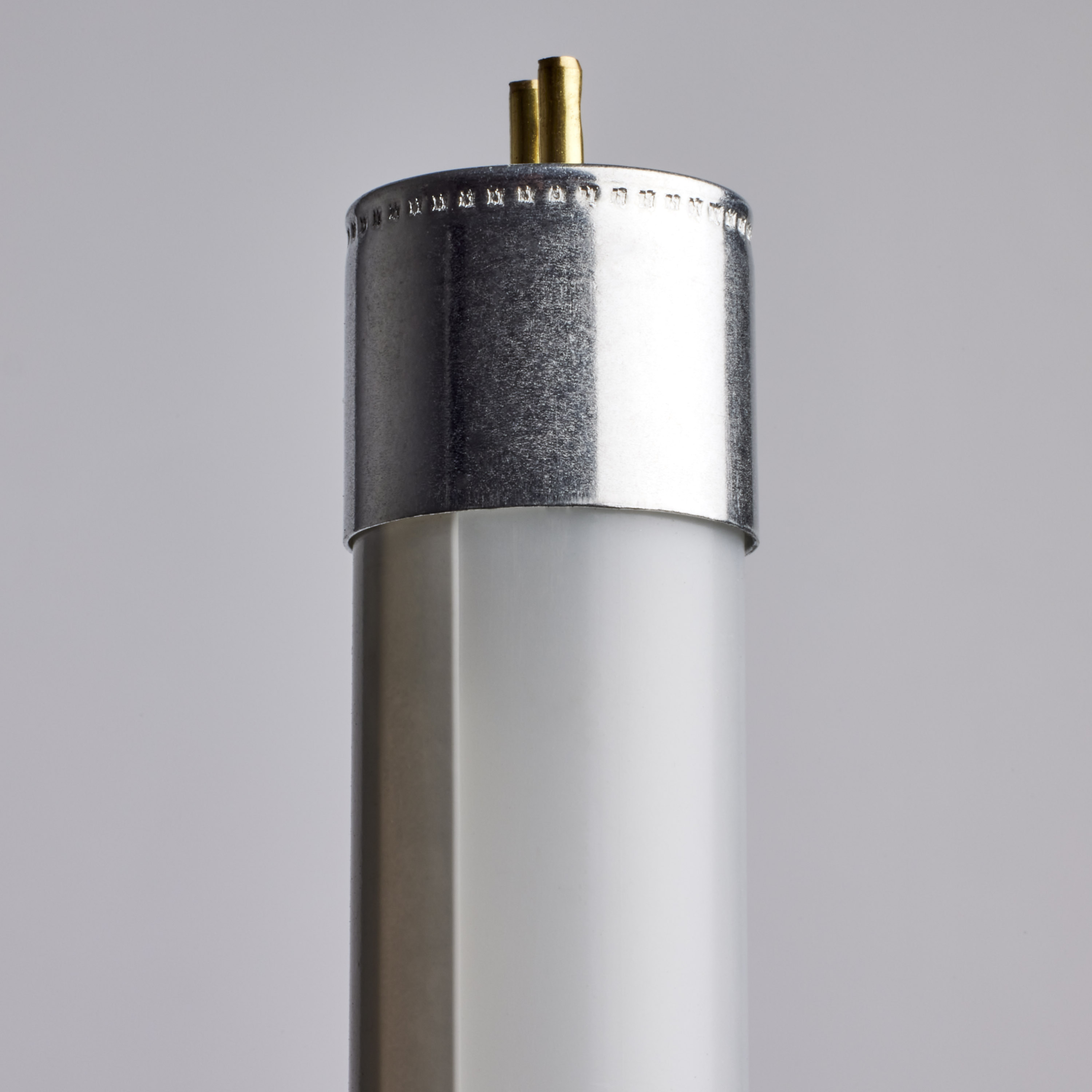

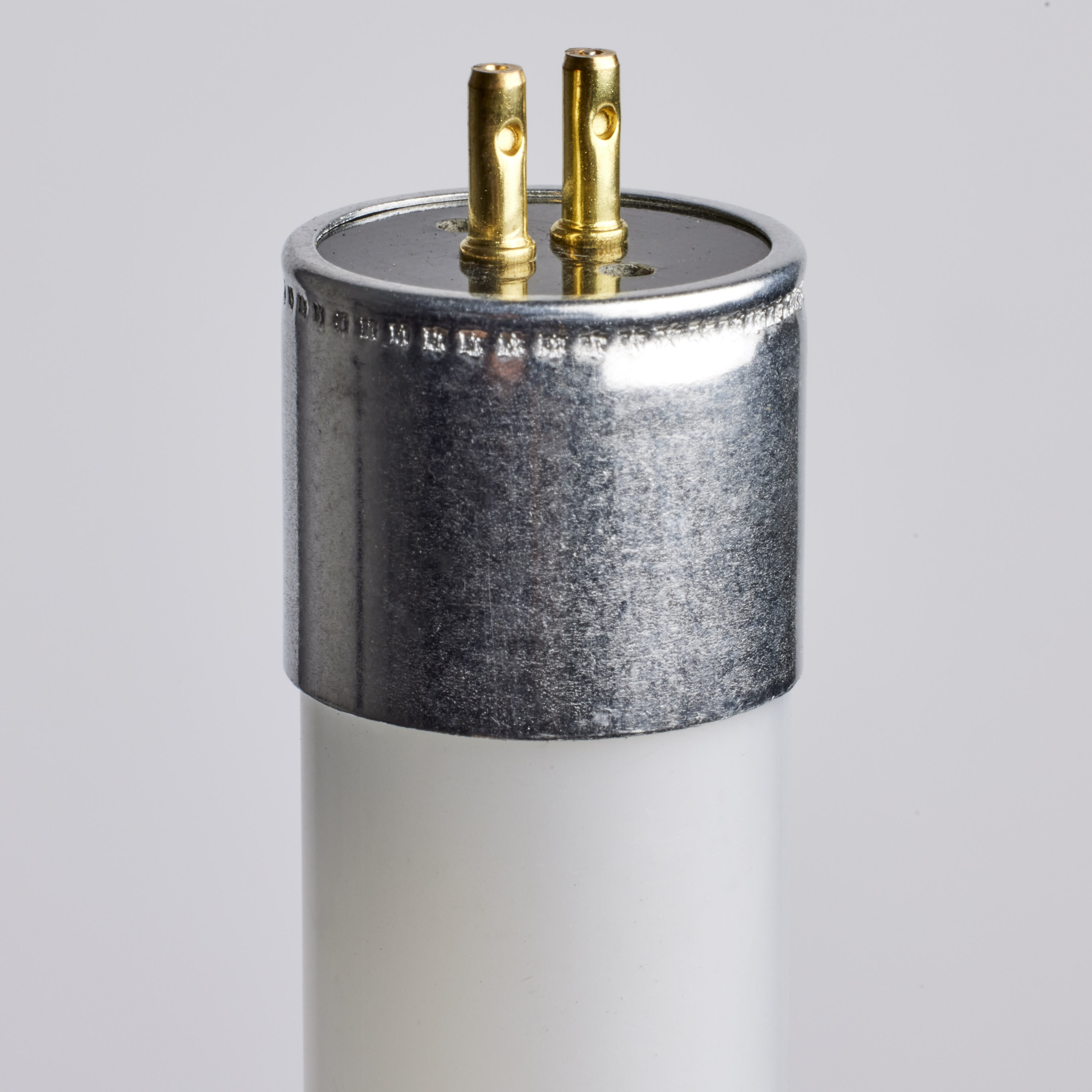

Lamp BaseMiniature Bi Pin
FinishFrost
ANSI BaseG5
Lamp TypeT5
MOD Lamps0.83
MOL11.91
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Direct wire 120-277V line voltage; Double ended wiring
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119064
Case Cube1.186
Case Height12.6
Case Length14.76
Case Quantity100
Case UPC10045923119061
Case Weight8.07
Case Width11.02
EA Cube0.0056
EA Height0.9
EA Length12.0
EA Quantity1
EA Weight0.1
EA Width0.9
Inner Cube0.1134
Inner Height2.8
Inner Length13.2
Inner Quantity10
Inner UPC20045923119068
Inner Weight0.8
Inner Width5.3
Pack TypeBox
Web Length11.91
Web Width0.83
