» S11907

S11907 7W/LED/T5/830/BP

S11907

7W/LED/T5/830/BP

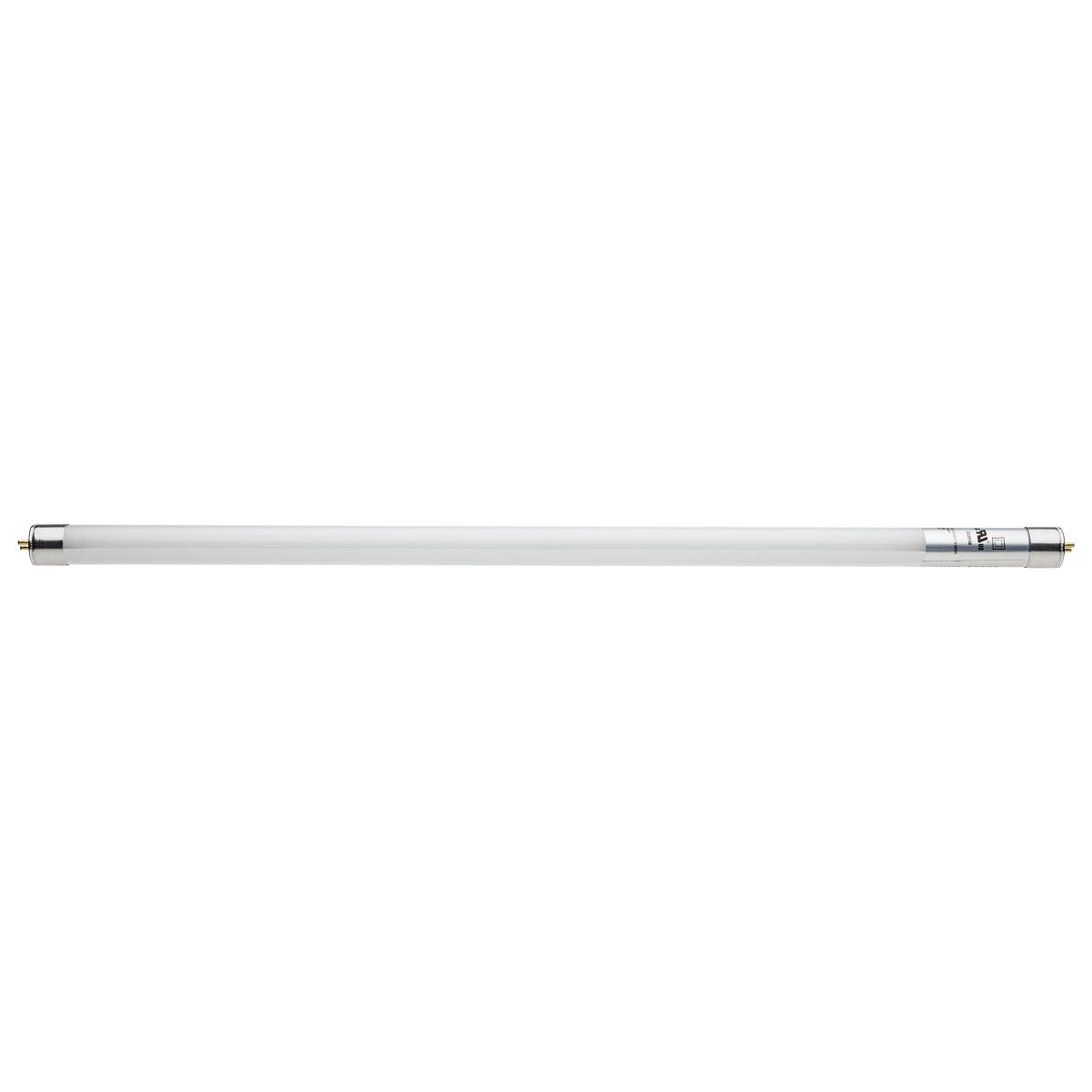

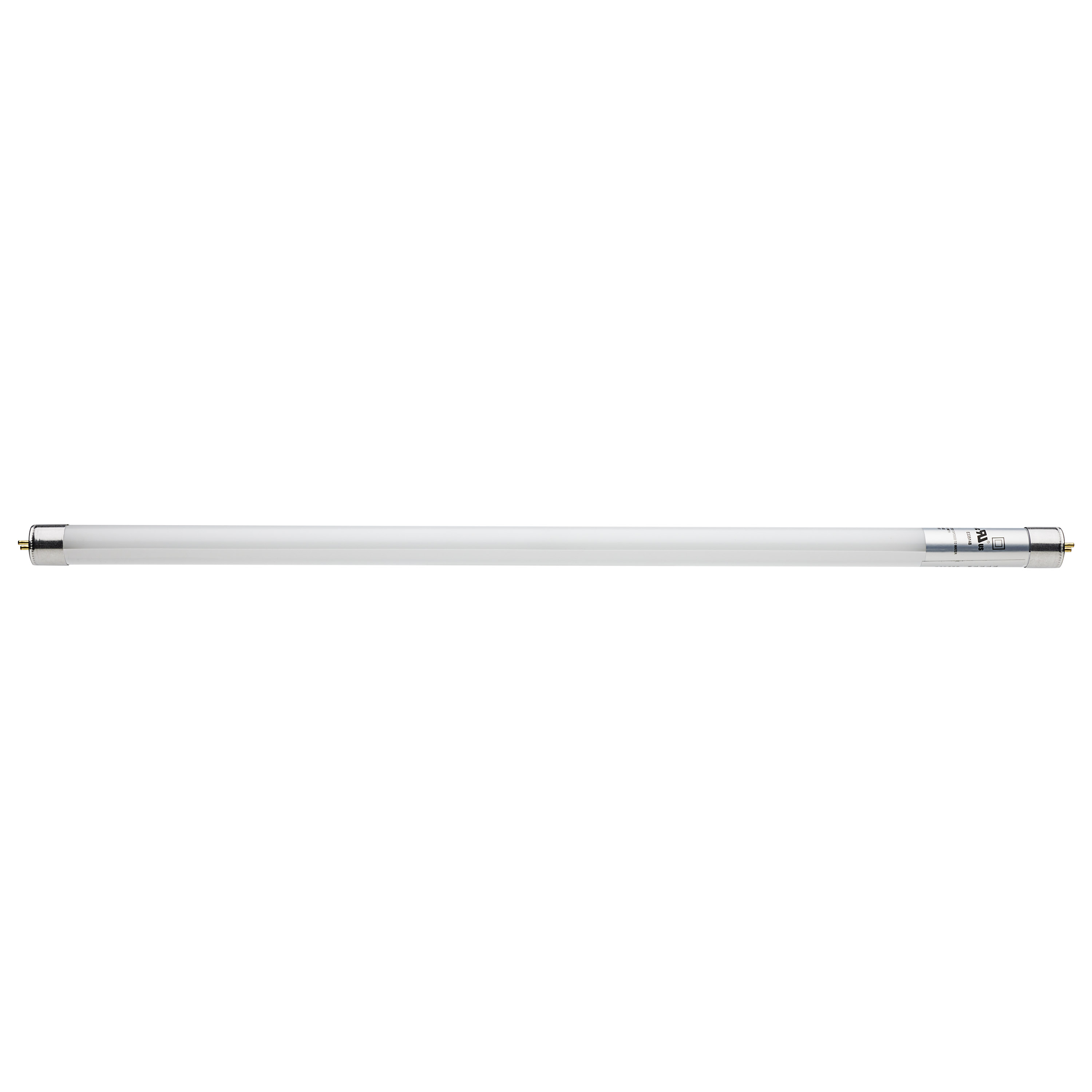

7 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 700 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring

Lights

S11907

7W/LED/T5/830/BP

7 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 700 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring

Specifications

General
StatusActive
Watts7W
Fluorescent Equivalent13W
Volts120V-277V
Ballast TypeType B
ShapeT5

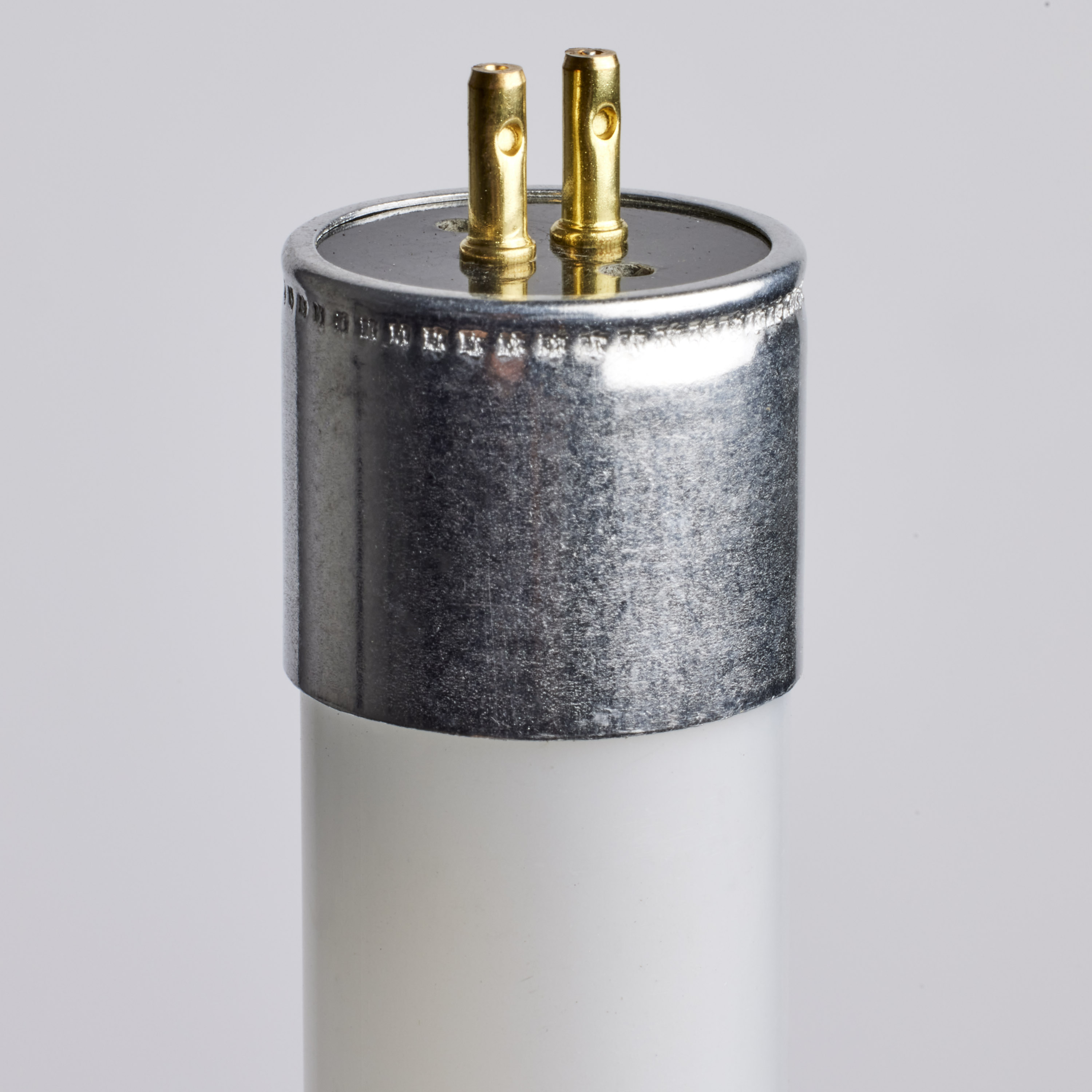

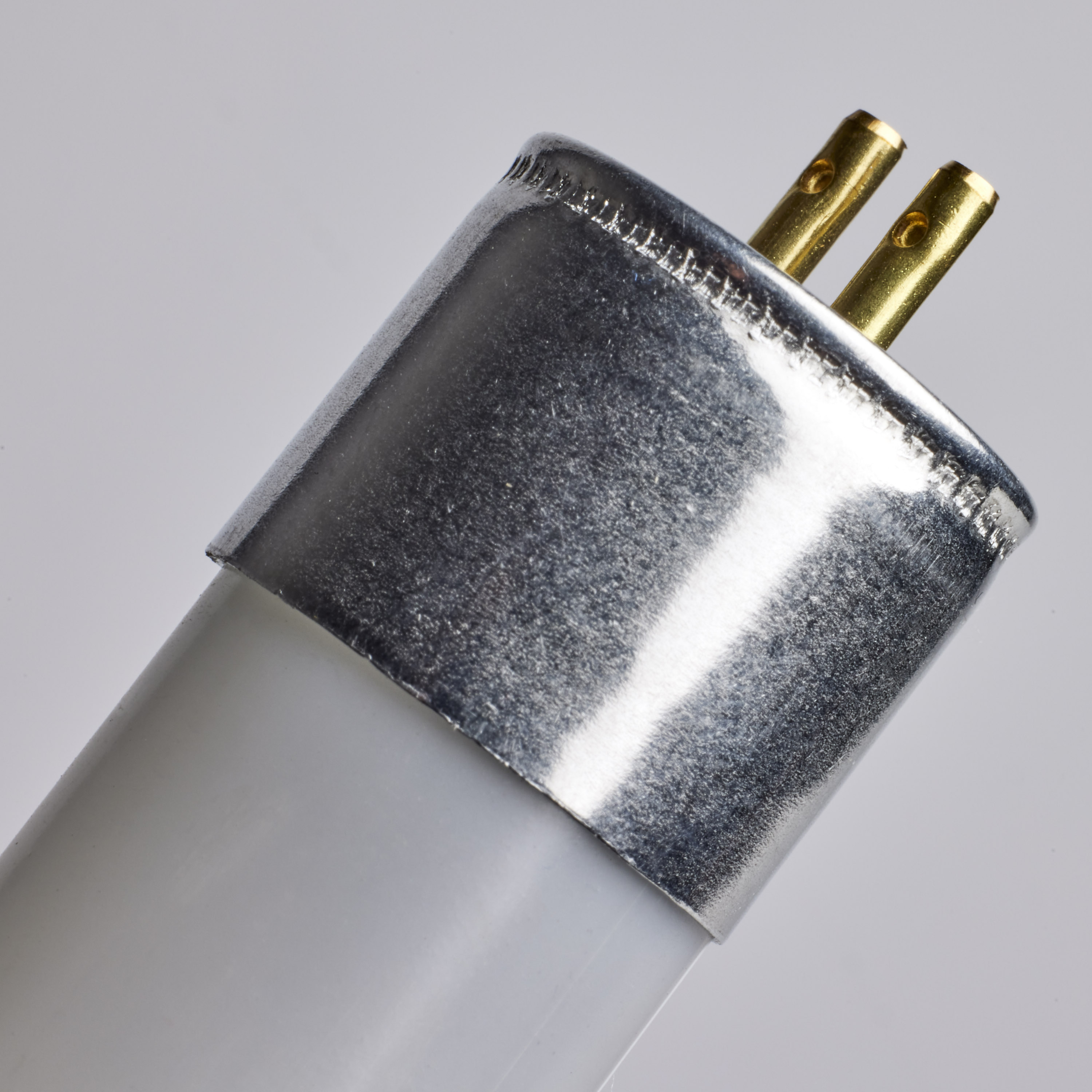

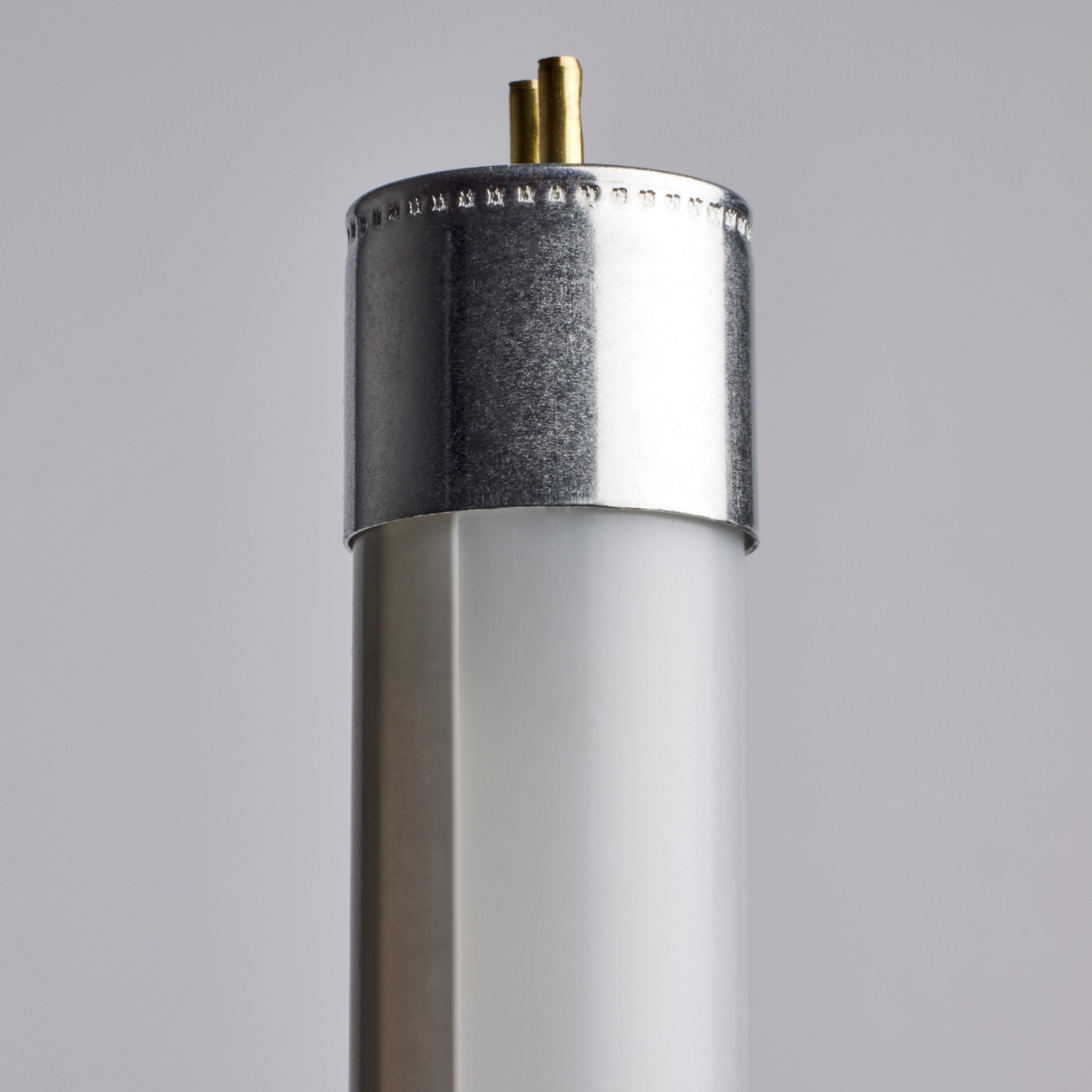

BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length21
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens700L
Beam Spread240
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts7W
Fluorescent Equivalent13W
Volts120V-277V
Ballasting RequirementsNo ballast or external driver required
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens700L
Beam Spread240
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-25C (-13F) to a maximum of +45C (+113F)
Physical
MOL20.91
MOD0.83
Nominal Length21
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrost
MaterialGlass
Lens FinishFrost
Weight (lb.)0.13
Additional Information
Additional InfoReplaces F13T5/WW lamps
Shatter-Proof TypePET Coated
Installation NotesDirect wire 120-277V line voltage; Double ended wiring
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119071
Each Quantity1
Each Length (in.)21.00
Each Width (in.)0.90
Each Height (in.)0.90
Each Weight (lb.)0.13
Each Cube (CuFt.)0.0098
Pack TypeBox
Inner UPC20045923119075
Inner Quantity10
Inner Length (in.)23.00
Inner Width (in.)5.30
Inner Height (in.)2.80
Inner Weight (lb.)1.30
Inner Cube (CuFt.)0.1975
Case UPC10045923119078
Case Quantity100
Case Length (in.)23.82
Case Width (in.)11.02
Case Height (in.)12.60
Case Weight (lb.)13.39
Case Cube (CuFt.)1.9140
