» S11913

S11913 11.5T8/LED/48-850/BP 120-277V

S11913

11.5T8/LED/48-850/BP 120-277V

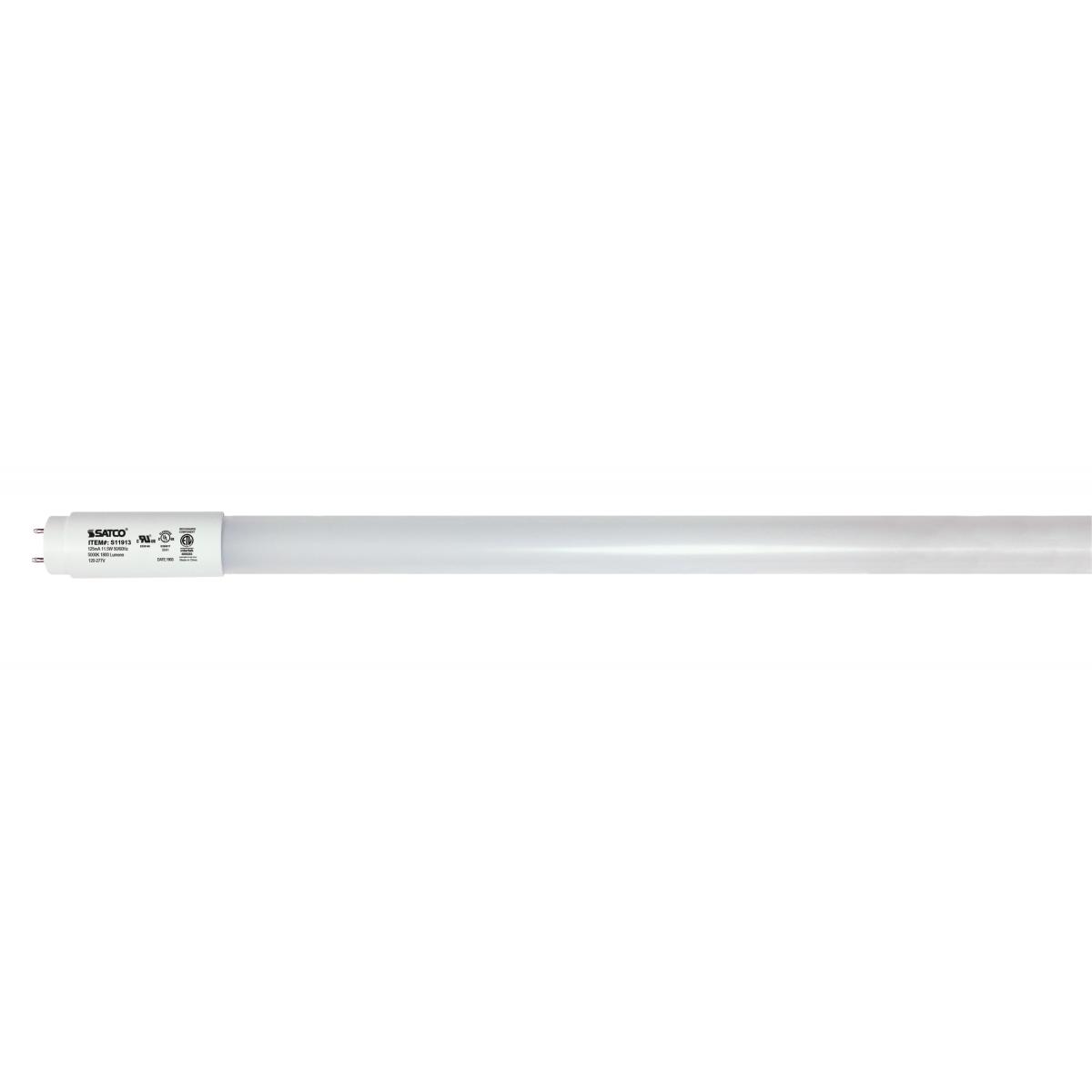

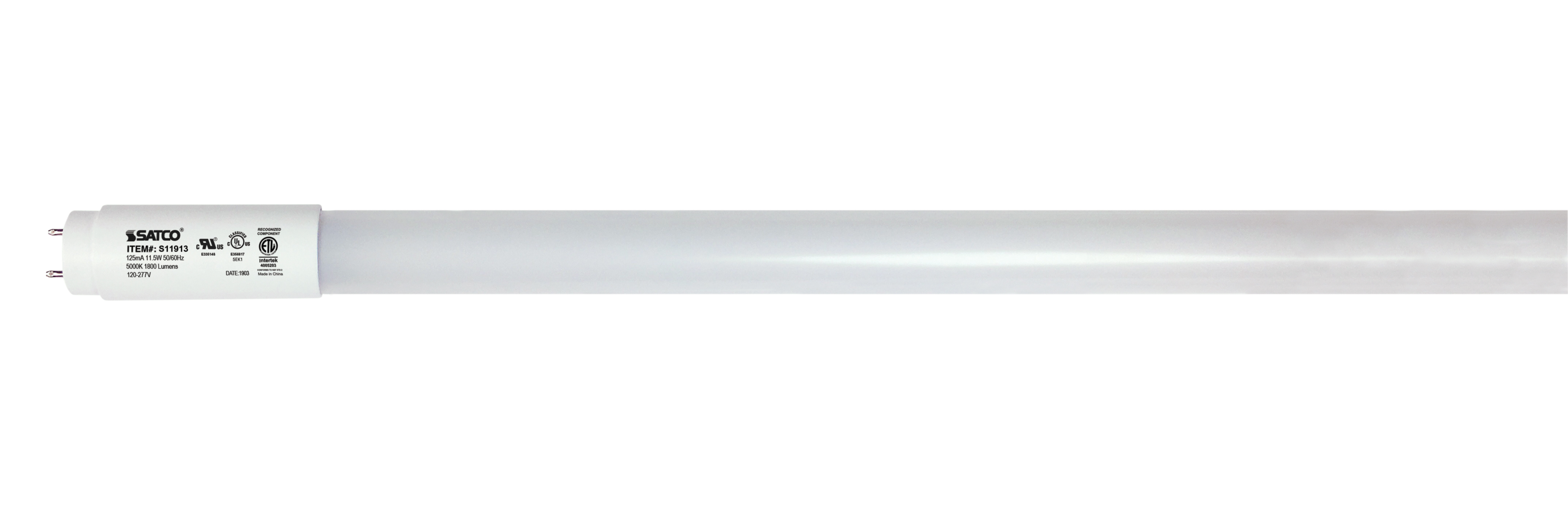

11.5 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring


SATCO|NUVO's 11.5-watt T8 LED frosted tubular bulb offers natural light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof protection and delivers 50,000 hours of superior illumination.
  • Natural light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:1.00
  • T8, Frosted Finish
  • Flicker Free - Less than 2%
Lights

S11913

11.5T8/LED/48-850/BP 120-277V

11.5 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

SATCO|NUVO's 11.5-watt T8 LED frosted tubular bulb offers natural light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof protection and delivers 50,000 hours of superior illumination.
  • Natural light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:1.00
  • T8, Frosted Finish
  • Flicker Free - Less than 2%

Specifications

General
StatusActive
Watts11.5W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens1800L
Beam Spread180
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts11.5W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens1800L
Beam Spread180
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.85
Additional Information
Additional InfoInstallation protection - will not light if ballast is not bypassed.
Shatter-Proof TypePET Coated
Installation NotesTwo Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLJ7C4J9AQ0Z
CA T20 / T24 RationaleExempt - Base Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
Flicker FreeYes
SDS SheetLED Lamp
Packaging
Each UPC045923119132
Each Quantity1
Each Length (in.)48.00
Each Width (in.)7.56
Each Height (in.)4.92
Each Weight (lb.)0.85
Each Cube (CuFt.)1.0332
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119139
Case Quantity25
Case Length (in.)50.20
Case Width (in.)7.30
Case Height (in.)7.30
Case Weight (lb.)15.90
Case Cube (CuFt.)1.5481
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
