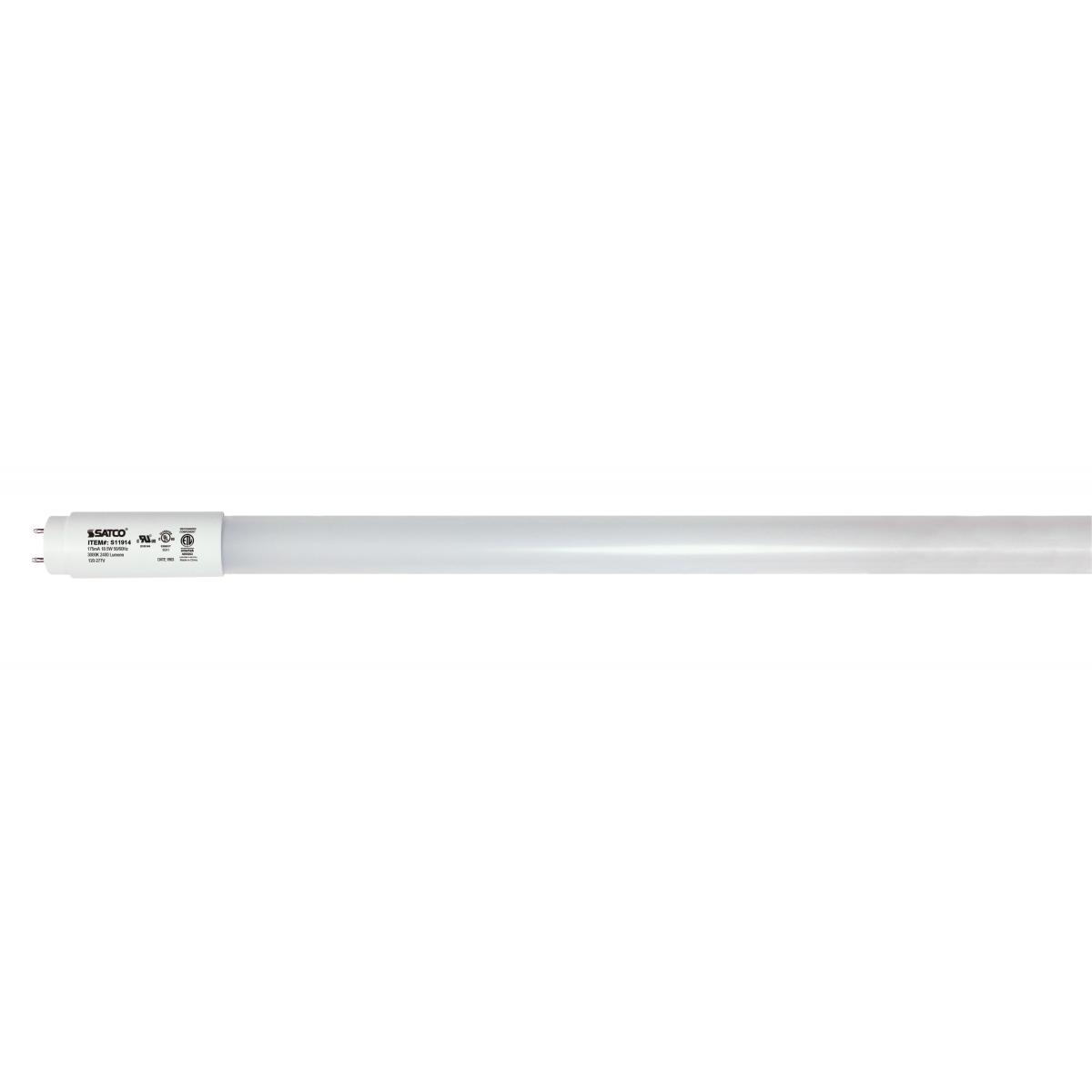

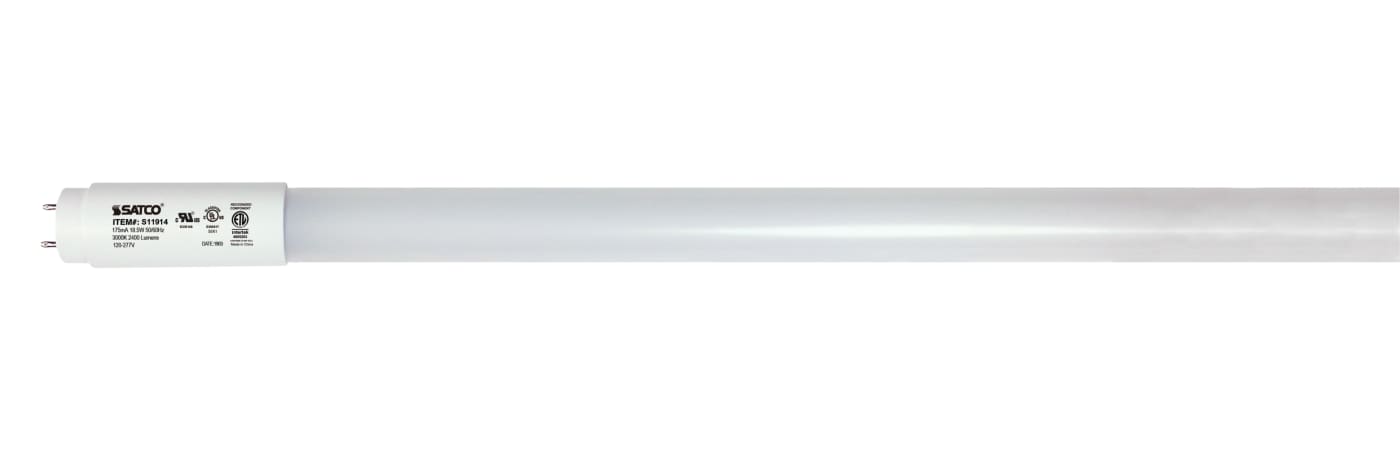

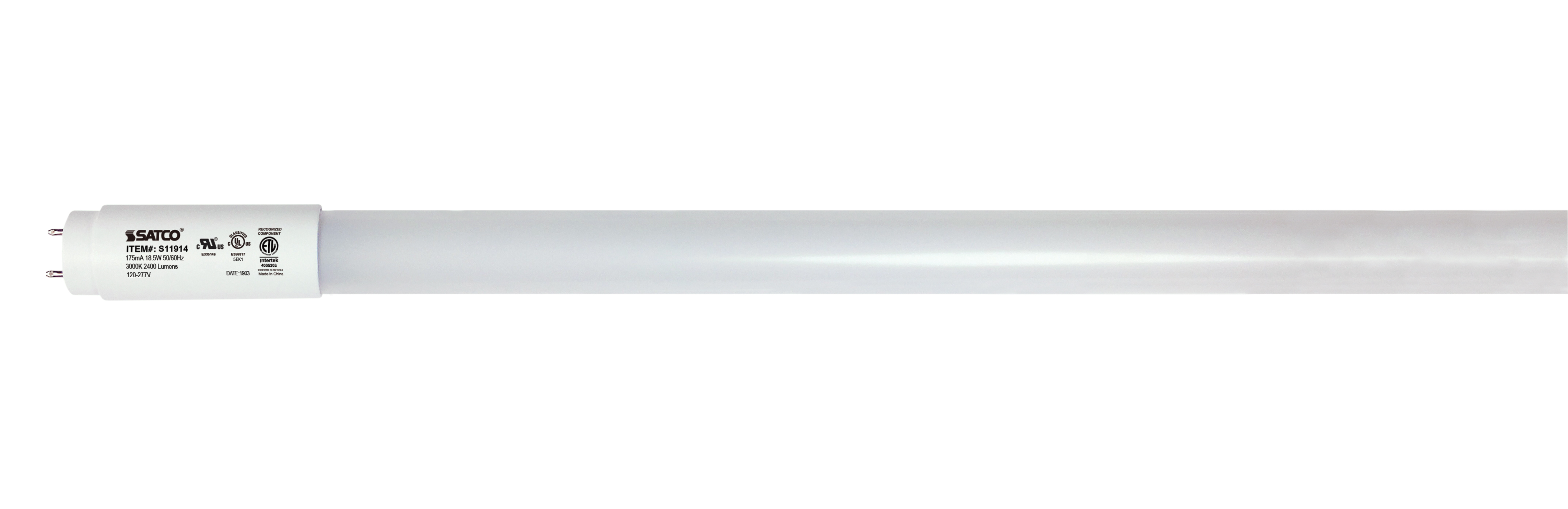

S11914 18.5T8/LED/48-830/BP 120-277V

S11914

18.5T8/LED/48-830/BP 120-277V

18.5 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring


Lights

S11914

18.5T8/LED/48-830/BP 120-277V

18.5 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Specifications

General
StatusActive
Watts18.5W
Incandescent Equivalent90W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI80
Lumens2400L
Beam Spread180
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts18.5W
Incandescent Equivalent90W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI80
Lumens2400L
Beam Spread180
Power Factor0.92
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.85
Additional Information
Additional InfoInstallation protection - will not light if ballast is not bypassed.
Shatter-Proof TypePET Coated
Installation NotesTwo Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLNRLCN42WOV
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
Flicker FreeYes
SDS SheetLED Lamp
Packaging
Each UPC045923119149
Each Quantity1
Each Length (in.)48.00
Each Width (in.)7.56
Each Height (in.)4.92
Each Weight (lb.)0.85
Each Cube (CuFt.)1.0332
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119146
Case Quantity25
Case Length (in.)50.20
Case Width (in.)7.30
Case Height (in.)7.30
Case Weight (lb.)15.90
Case Cube (CuFt.)1.5481
