» S11917

S11917 18.5T8/LED/48-850/BP 120-277V

S11917

18.5T8/LED/48-850/BP 120-277V

18.5 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

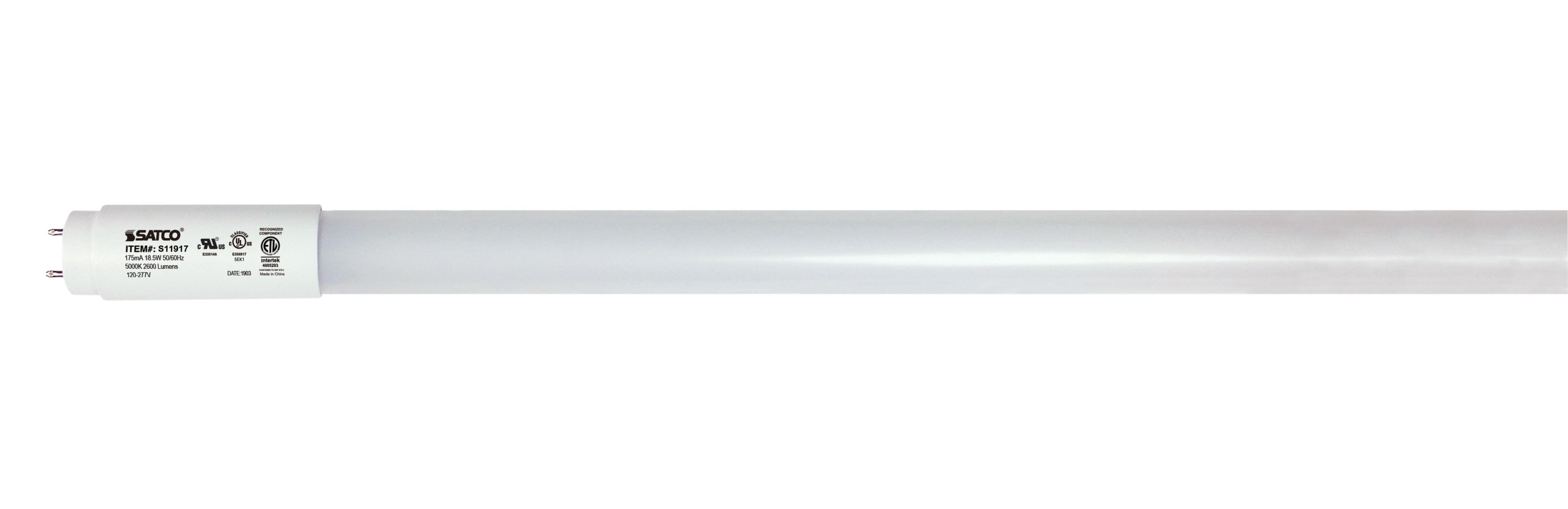

The SATCO 18.5W LED frosted tubular bulb offers natural light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring.
  • Natural light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:1.00
  • T8, Frosted Finish
Lights

S11917

18.5T8/LED/48-850/BP 120-277V

18.5 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

The SATCO 18.5W LED frosted tubular bulb offers natural light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring.
  • Natural light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:1.00
  • T8, Frosted Finish

Specifications

General
StatusActive
Watts18.5W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48.00
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens2600L
Beam Spread180
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts18.5W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Ballast TypeType B
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens2600L
Beam Spread180
DimmableNon-Dimmable
Power Factor0.92
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48.00
MOD1.00
Nominal Length48.00
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.85
Additional Information
Additional InfoInstallation protection - will not light if ballast is not bypassed.
Shatter-Proof TypePET Coated
Installation NotesTwo Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPL63HZ9PL0VN
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
Colorado StatusLawful for sale
Hawaii StatusLawful for sale
Nevada StatusLawful for sale
Washington StatusLawful for sale
Vermont StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
Flicker FreeYes
SDS SheetLED Lamp
Packaging
Each UPC045923119170
Each Quantity1
Each Length (in.)48.00
Each Width (in.)7.56
Each Height (in.)4.92
Each Weight (lb.)0.85
Each Cube (CuFt.)1.0332
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119177
Case Quantity25
Case Length (in.)50.20
Case Width (in.)7.30
Case Height (in.)7.30
Case Weight (lb.)15.90
Case Cube (CuFt.)1.5481
×
×

Ballast Compatibility

Name Type View
LED Linear S11917 Ballasts View
×

Precautions

No precautions available at this time.

×
