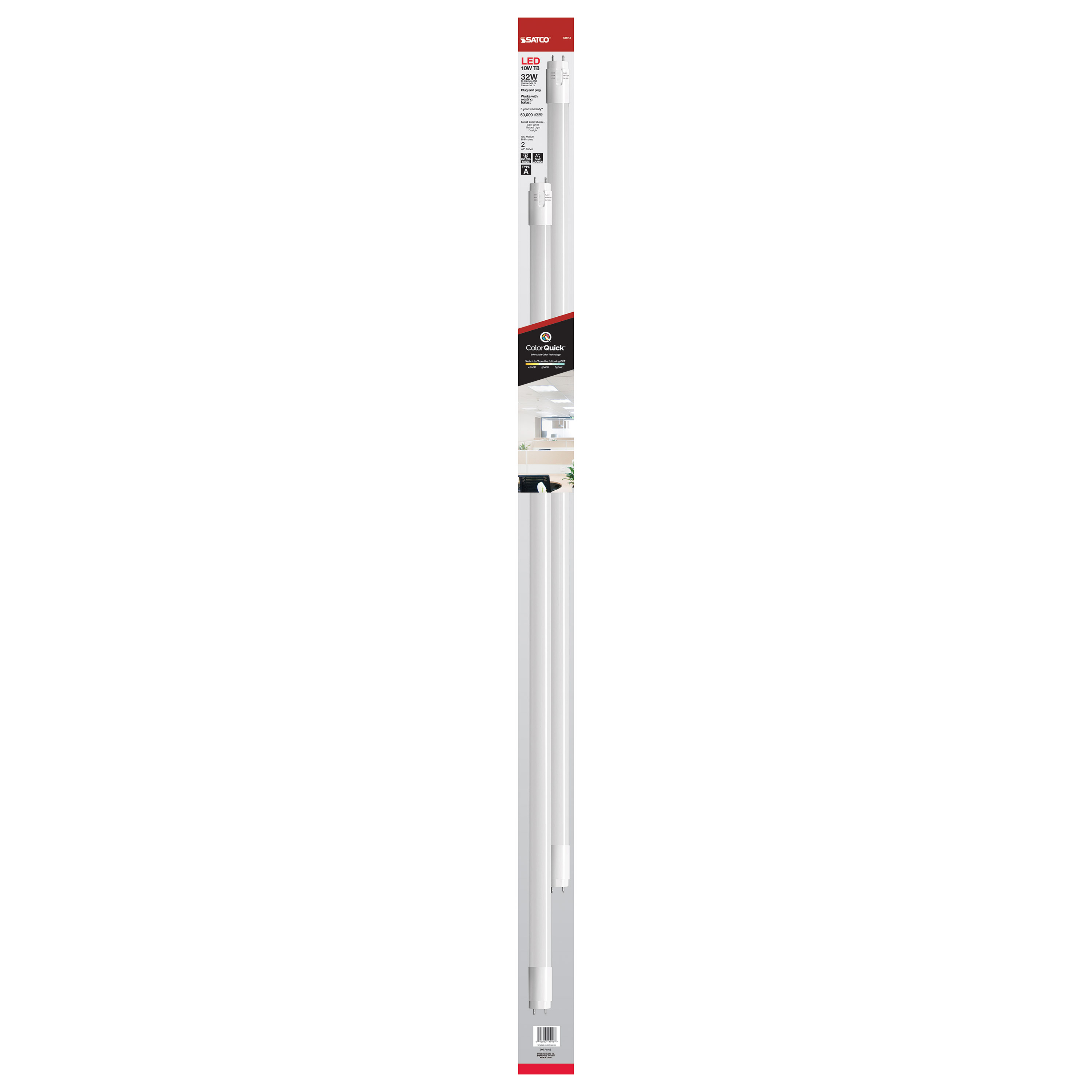

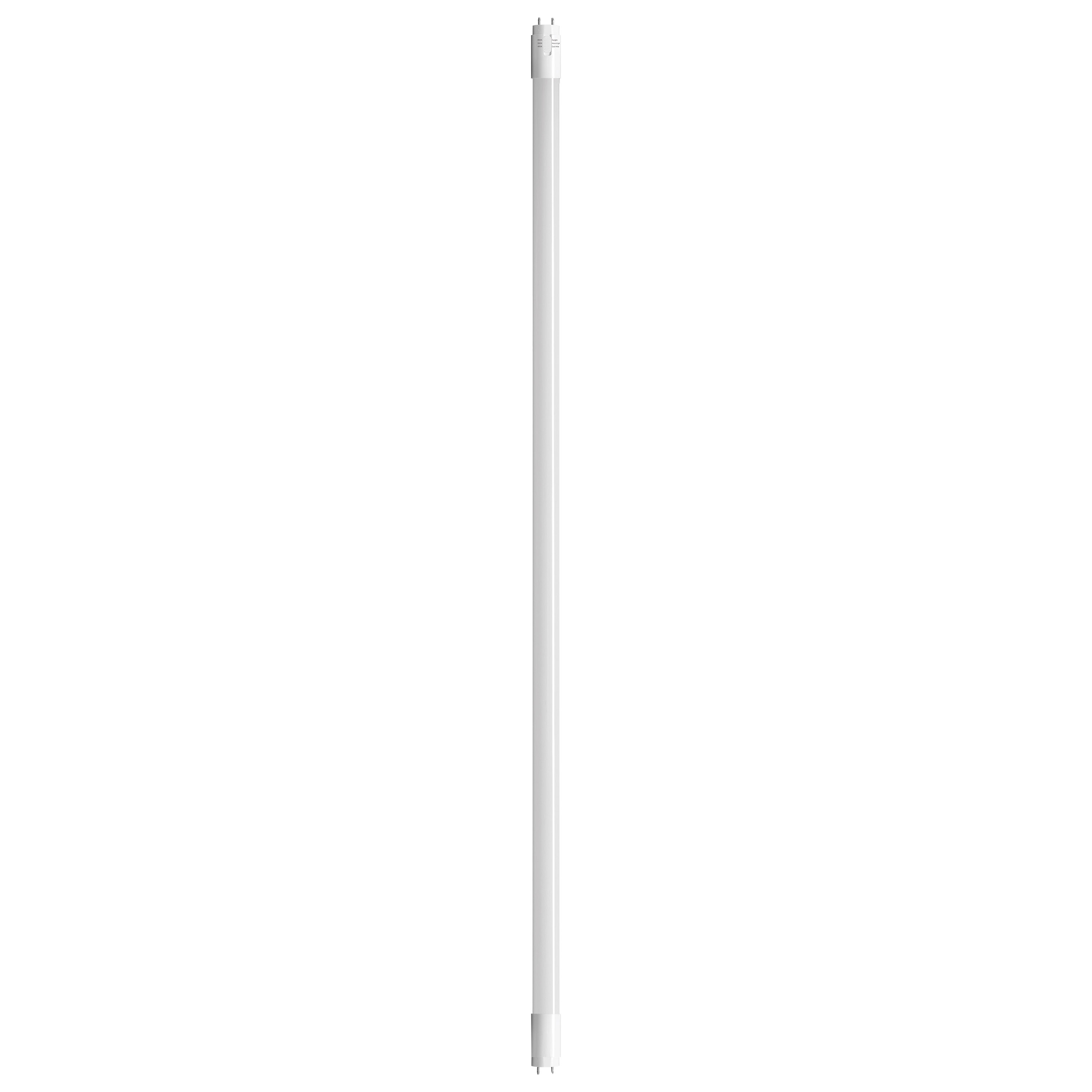

10T8/LED/48/840-850-865/DR/2PK - S11918
10T8/LED/48/840-850-865/DR/2PK - S11918
10T8/LED/48/840-850-865/DR/2PK - S11918
10T8/LED/48/840-850-865/DR/2PK - S11918
10T8/LED/48/840-850-865/DR/2PK - S11918
10T8/LED/48/840-850-865/DR/2PK - S11918
10T8/LED/48/840-850-865/DR/2PK - S11918
S11918

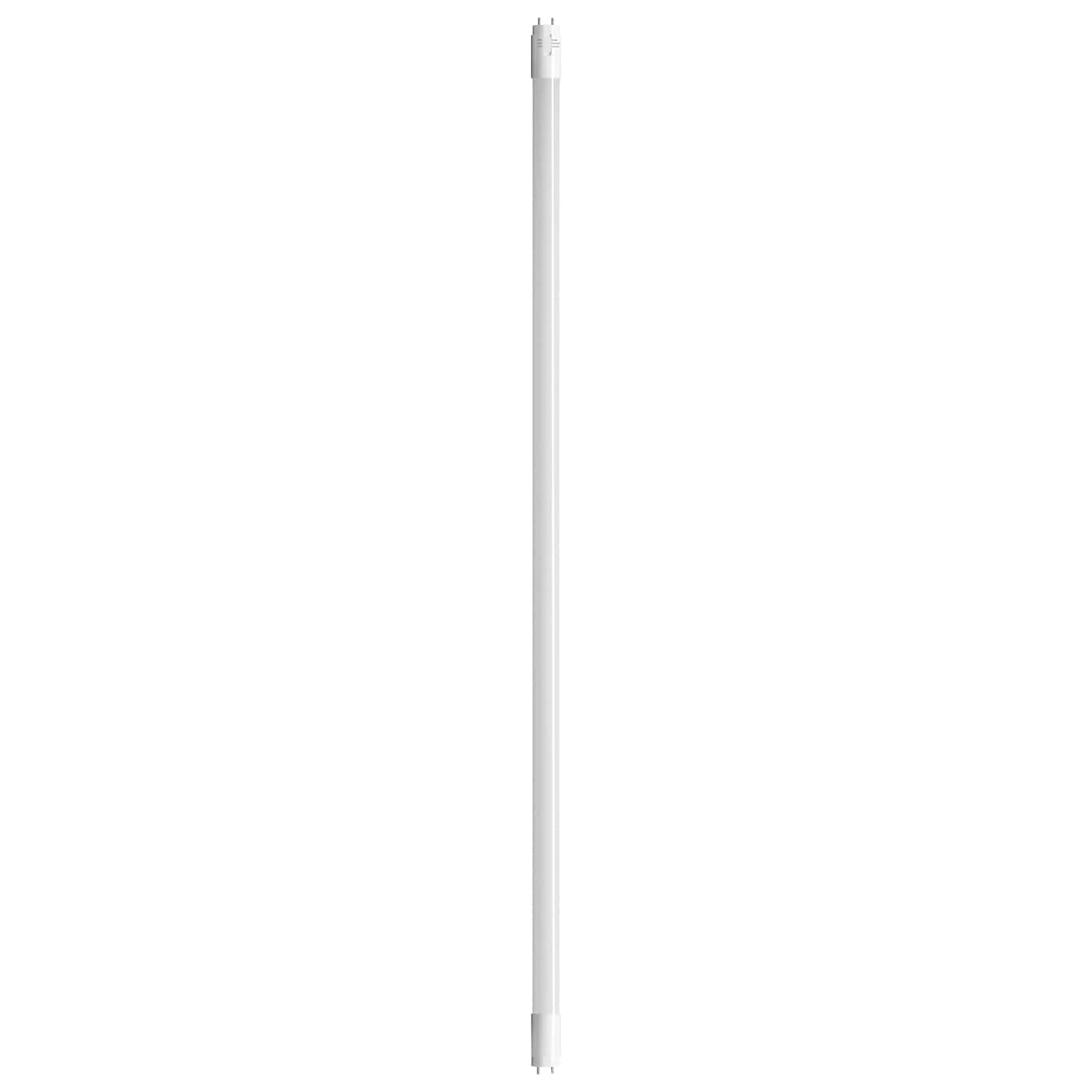

10T8/LED/48/840-850-865/DR/2PK

  • 10 Watt T8 LED

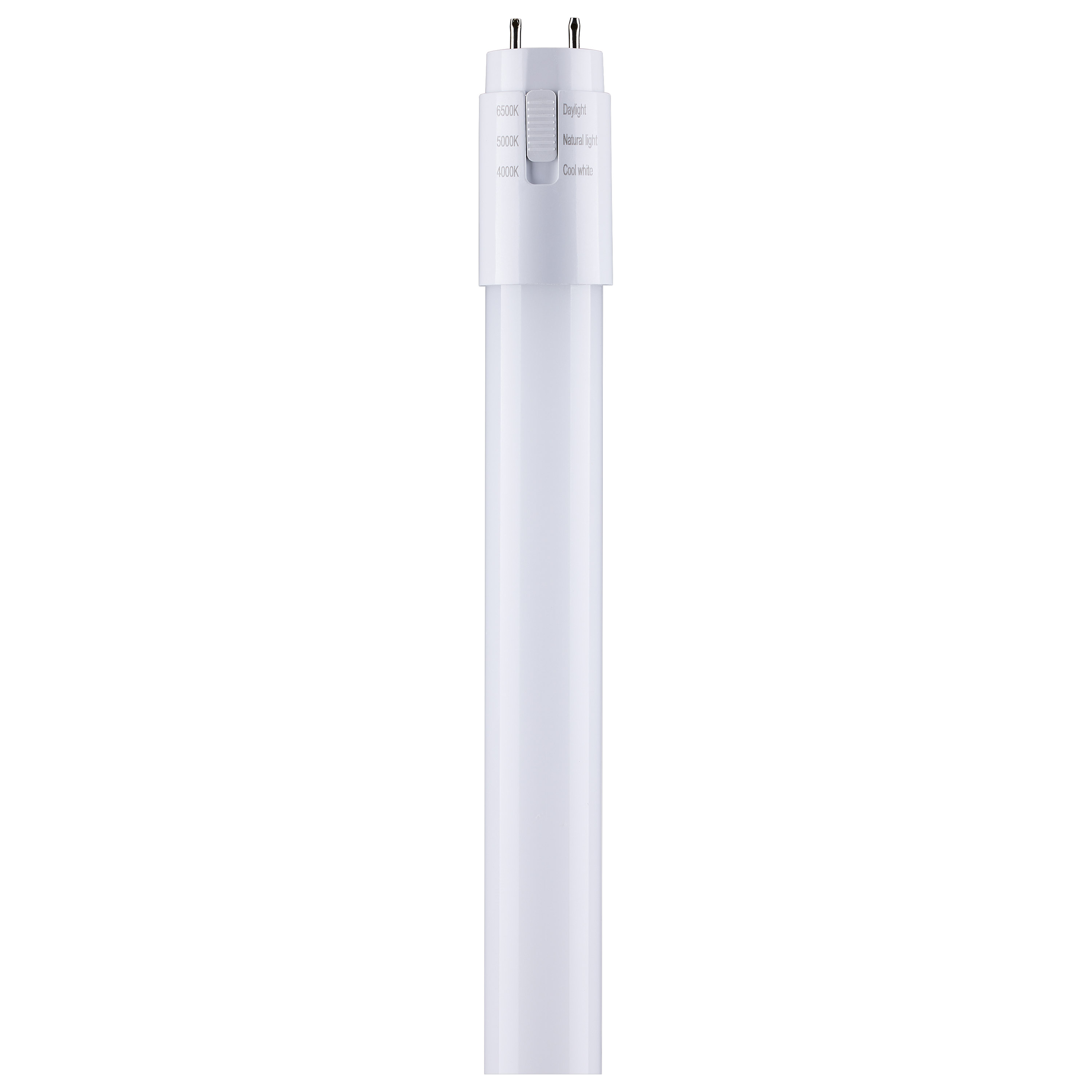

  • CCT Selectable
  • G13 base
  • 50000 Average rated hours
  • Type A
  • Ballast Dependent
  • 2PK
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11918 SpecificationsS11918 Photometrics.iesS11918 Ballast Compatibility Chart.pdf
Tools
Lighting Layout Analysis For S11918
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
10 Watt T8 LED; CCT Selectable; G13 base; 50000 Average rated hours; Type A; Ballast Dependent; 2PK
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A
Ballasting RequirementsBallast required, check compatibility
Dimmable TextOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBallast Dependent
Total Harmonic Distortion20%
Tube Guard UseNo
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.083-0.036A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)220
Color TempCool White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1800L
VoltsBallast Dependent
Watts10W
Physical
Lamp BaseMedium Bi Pin
FinishWHITE
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL48.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDPWYOEL4O
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119187
Case Cube1.4068
Case Height8.1
Case Length49.2
Case Quantity10
Case UPC10045923119184
Case Weight7.0
Case Width6.1
EA Cube0.1146
EA Height48.0
EA Length2.75
EA Quantity1
EA Weight0.51
EA Width1.5
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length48.0
Web Width1.0
