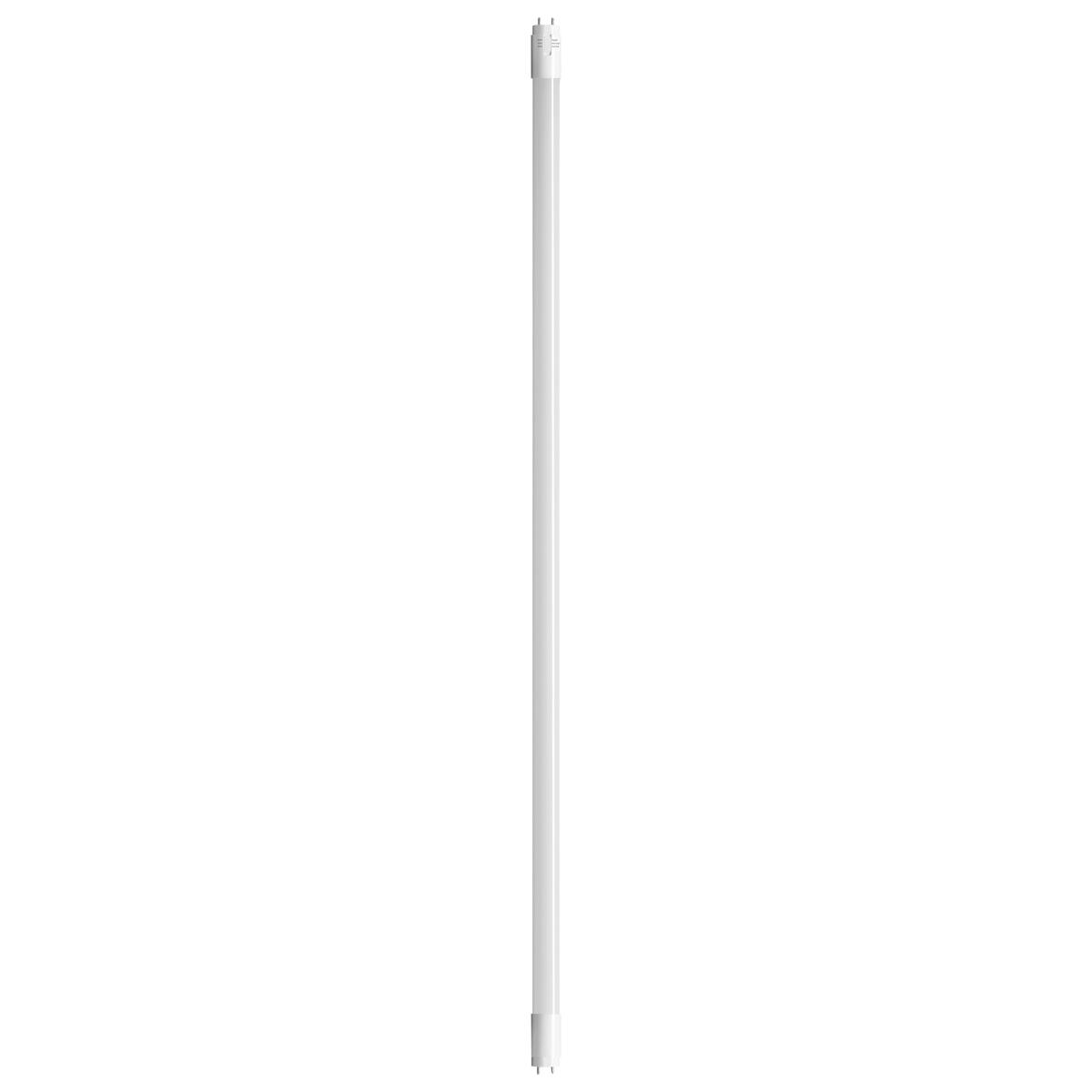

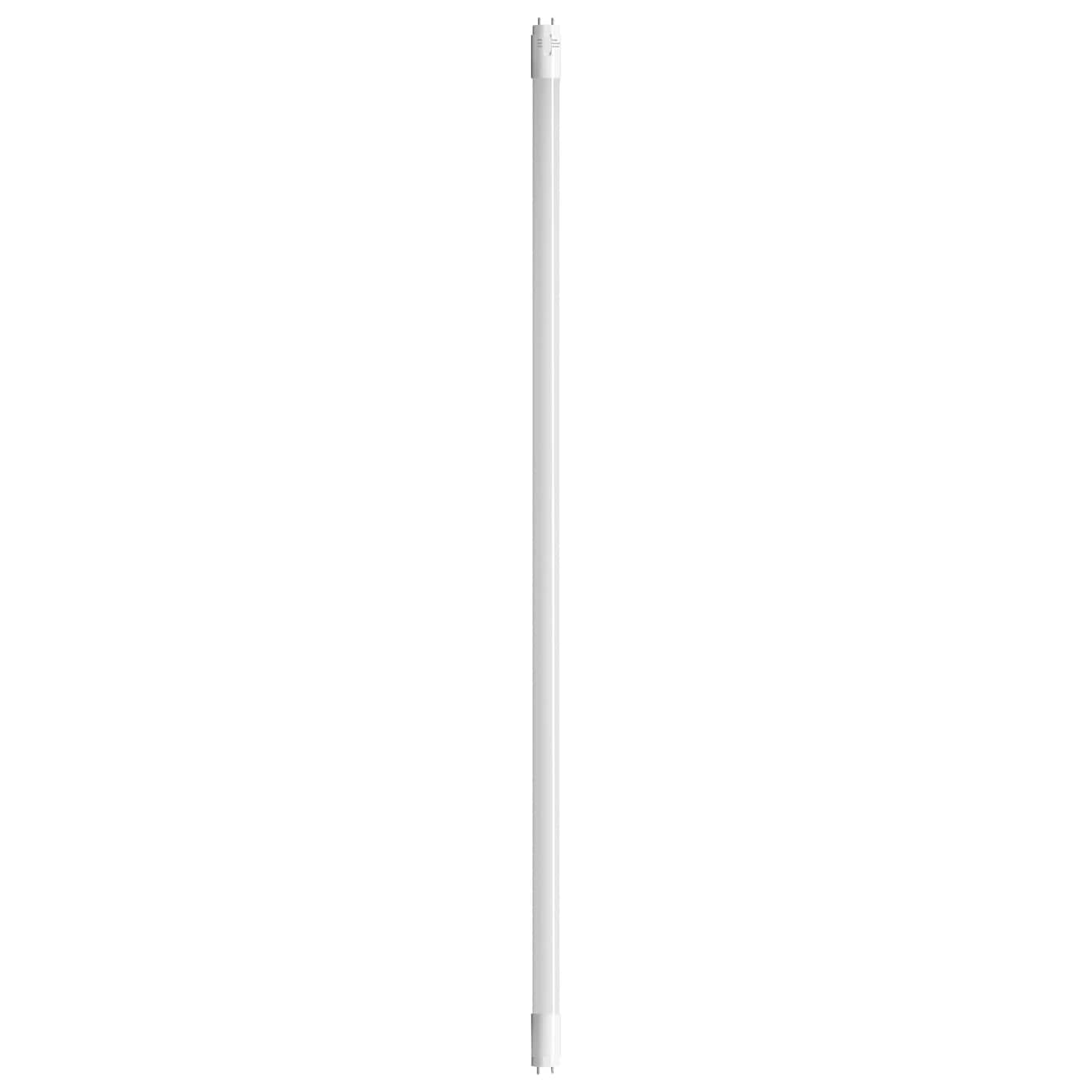

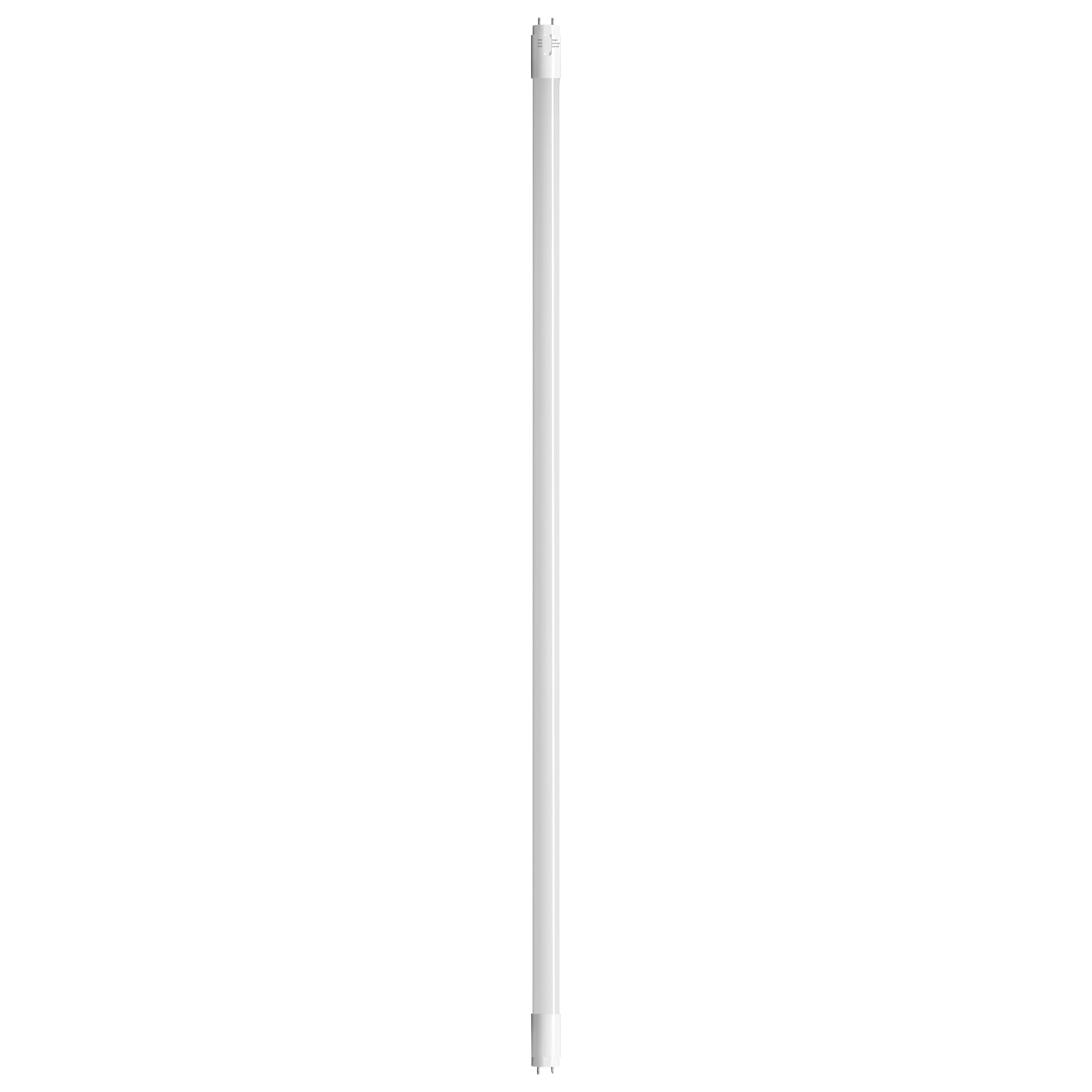

12.5T8/LED/48/840-850-865/BP/2 - S11919
12.5T8/LED/48/840-850-865/BP/2 - S11919
S11919

12.5T8/LED/48/840-850-865/BP/2

  • 12.5 Watt T8 LED

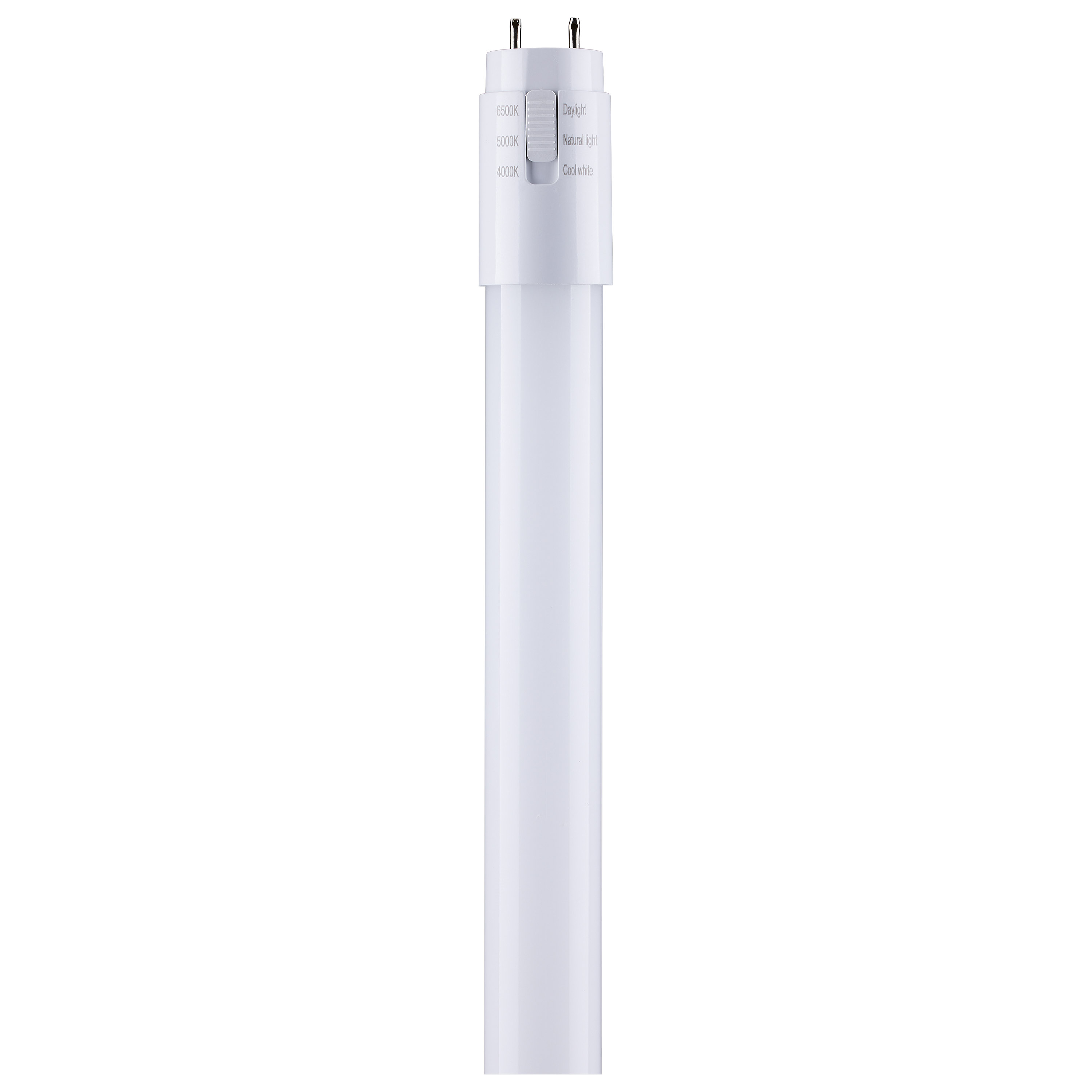

  • CCT Selectable
  • G13 base
  • 50000 Average rated hours
  • Type B
  • Ballast Bypass
  • 2PK
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11919 SpecificationsS11919 Photometrics.iesS11919 Emergency Ballast Compatibility Chart.pdf
Tools
Lighting Layout Analysis For S11919
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
12.5 Watt T8 LED; CCT Selectable; G13 base; 50000 Average rated hours; Type B; Ballast Bypass; 2PK
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.7KV
Total Harmonic Distortion20%
Tube Guard UseNo
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.104-0.045A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent70W
Electrical
CCT (Kelvin Temp)4000K/5000K/6500K
Hours Rated50000
Beam Angle (degree)220
Color TempCool White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)

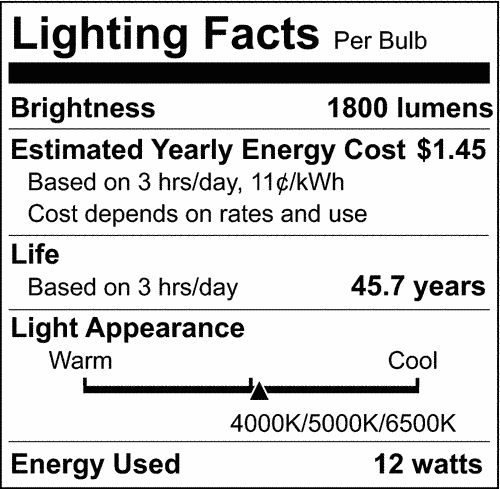

Lumens1800L
Volts120V-277V
Watts12.5W
Physical
Lamp BaseMedium Bi Pin
FinishWHITE
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL47.78
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDPAZ9CLH1
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119194
Case Cube1.4068
Case Height8.1
Case Length49.2
Case Quantity10
Case UPC10045923119191
Case Weight7.0
Case Width6.1
EA Cube0.1146
EA Height48.0
EA Length2.75
EA Quantity1
EA Weight0.53
EA Width1.5
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length47.78
Web Width1.0
