» S11921

S11921 13.5T8/LED/48-835/DIM-BP

S11921

13.5T8/LED/48-835/DIM-BP

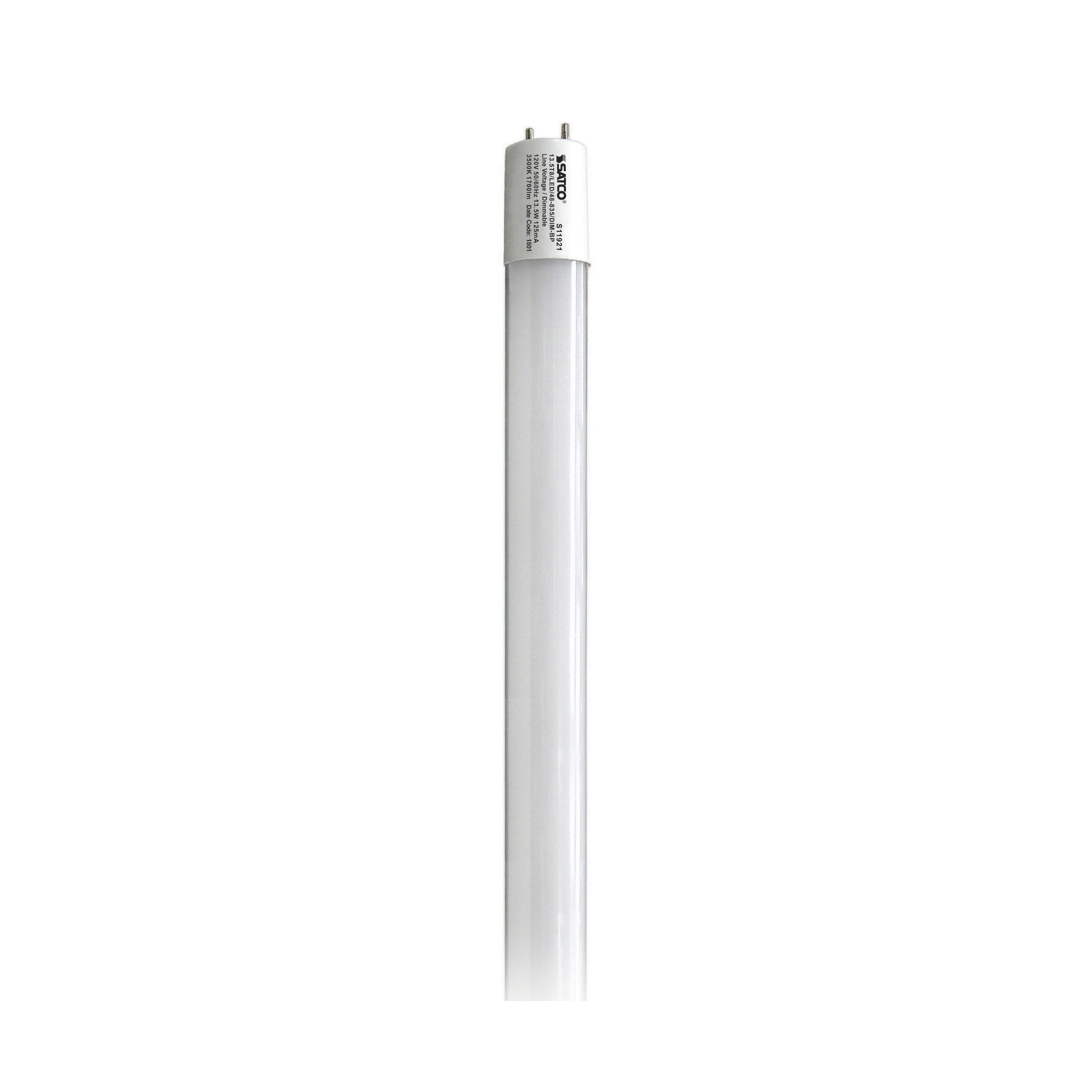

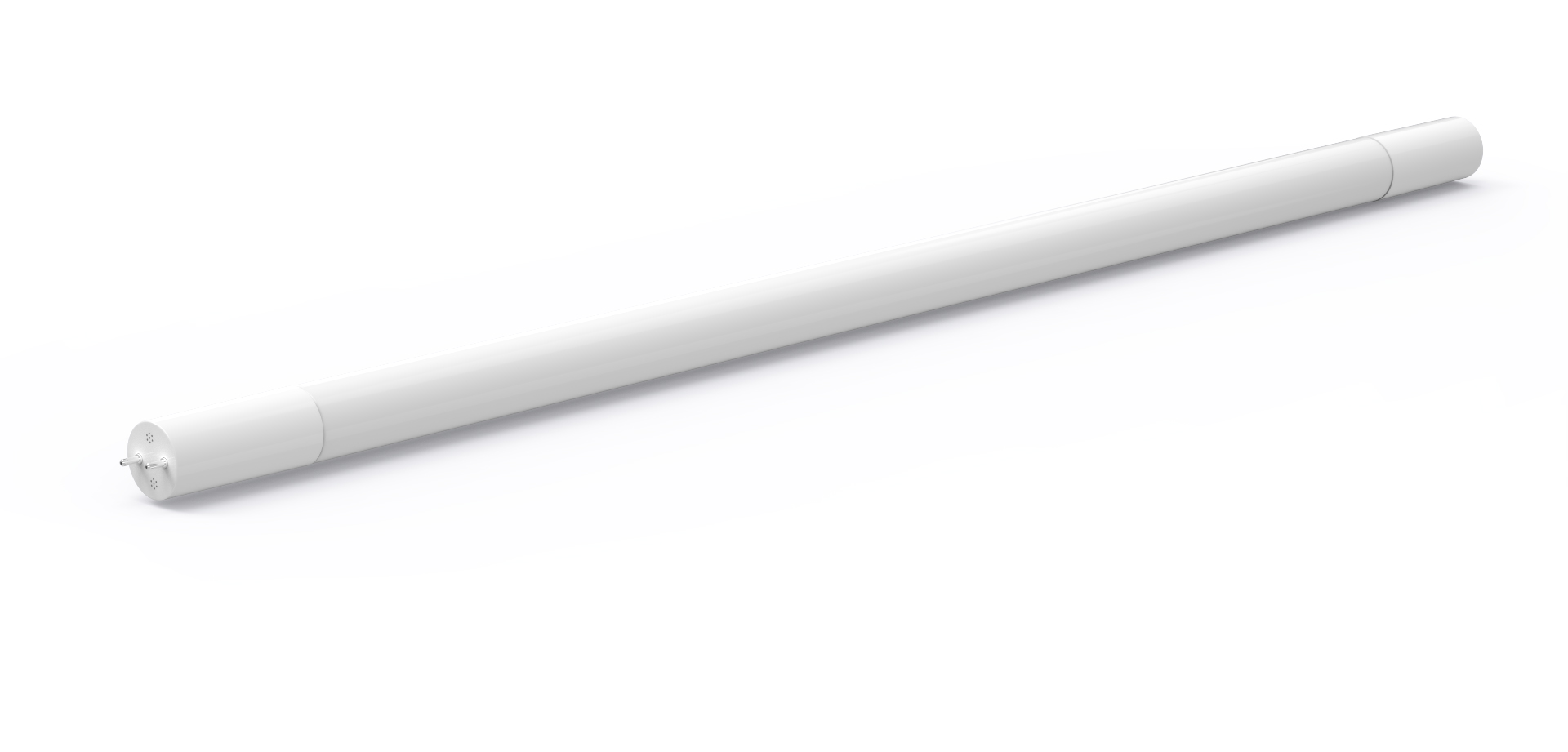

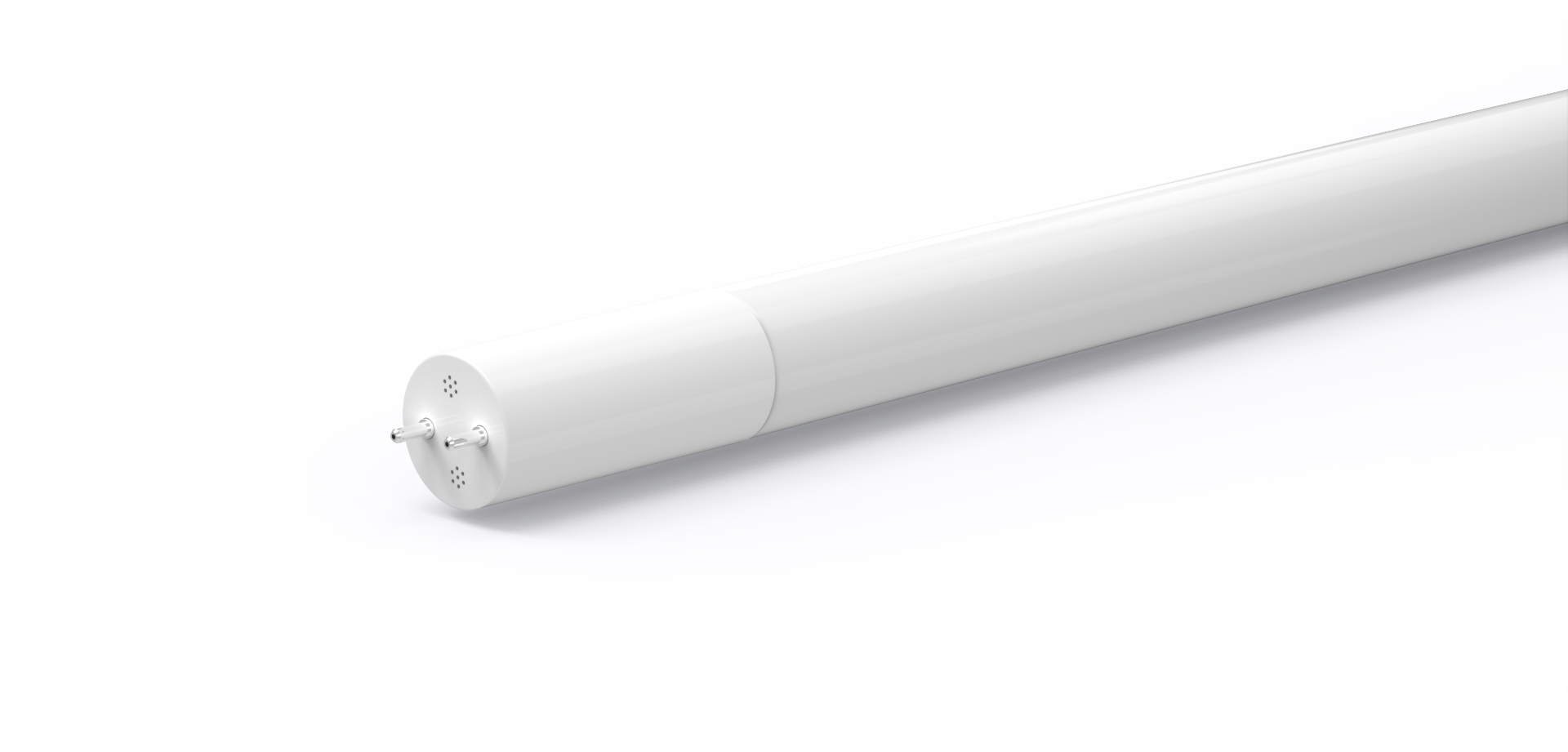

13.5 Watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring

The SATCO 13.5W dimmable LED frosted tubular bulb offers neutral white light and a 220 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single ended wiring.
  • Neutral white light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:1.00
  • T8, Frosted Finish
Lights

S11921

13.5T8/LED/48-835/DIM-BP

13.5 Watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring

The SATCO 13.5W dimmable LED frosted tubular bulb offers neutral white light and a 220 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single ended wiring.
  • Neutral white light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:1.00
  • T8, Frosted Finish

Specifications

General
StatusActive
Watts13.5W
Volts120V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48.00
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1700L
Beam Spread220
DimmableYes-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts13.5W
Volts120V
Ballasting RequirementsBallast Bypass; Direct wire 120V line voltage; No ballast or external driver required
Ballast TypeType B
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1700L
Beam Spread220
DimmableYes-Dimmable
Dimming TypeReverse Phase or Phase Selectable
Dimming NoteDimming range from 100 to less than or equal to 20 percent depending on dimmer control
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48.00
MOD1.00
Nominal Length48.00
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Additional Information
Additional InfoAll glass tube
Tube Guard UseApproved for use with tube guards
Installation NotesInstall only in non-shunted lampholders
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPL699Z8XDJKU
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119217
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.50
Each Cube (CuFt.)0.0278
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119214
Case Quantity25
Case Length (in.)49.00
Case Width (in.)5.90
Case Height (in.)5.90
Case Weight (lb.)13.00
Case Cube (CuFt.)0.9871
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Leviton 6615-P Visit
Dimmer Leviton 66ELV Visit
Dimmer LeGrand ADTP703TU Visit
Dimmer Lutron CTRP-253P Visit
Dimmer Lutron DVRP-253P Visit
Dimmer Leviton IPE04 Visit
Dimmer Lutron NTRP-250 Visit
×
×

Precautions

No precautions available at this time.

×
