» S11923

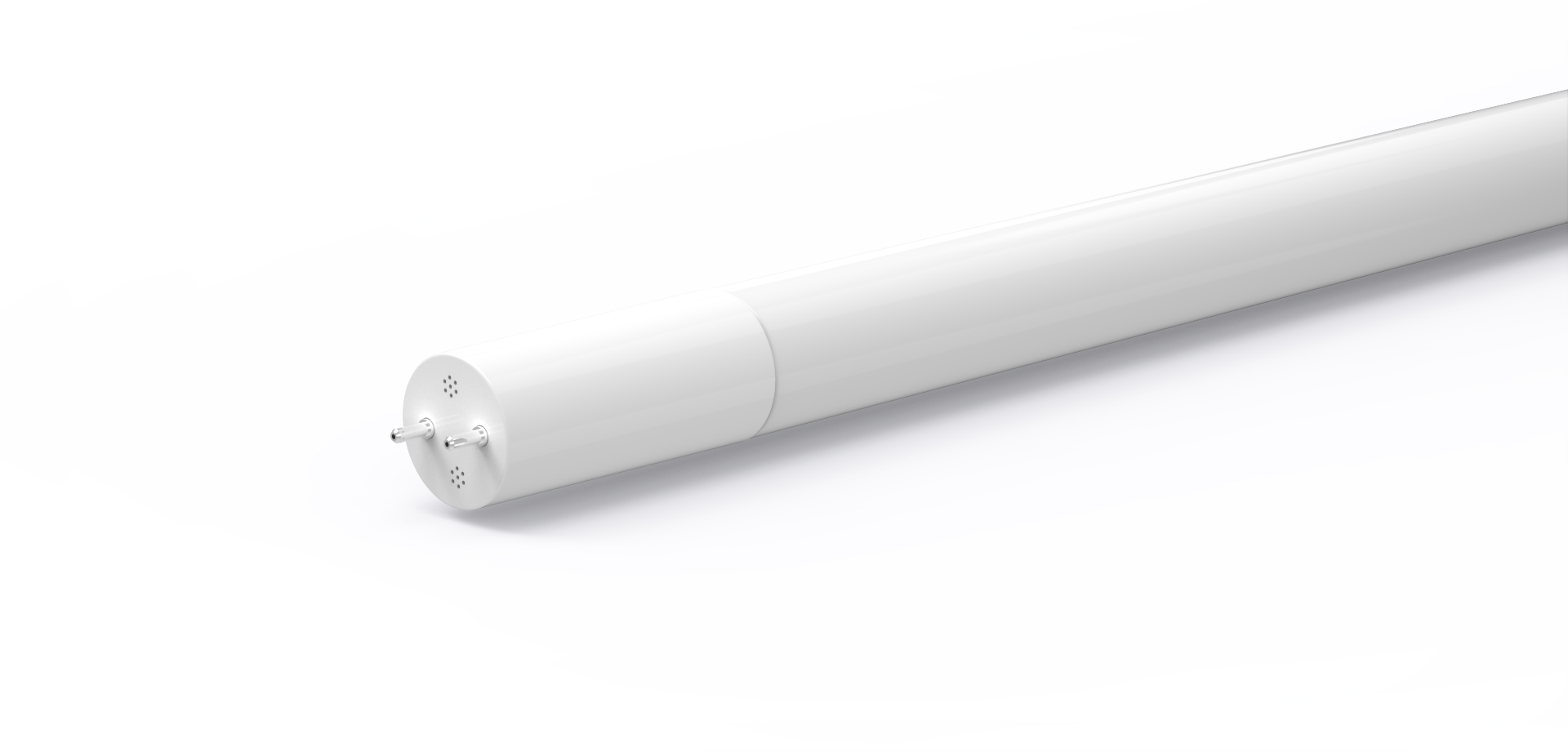

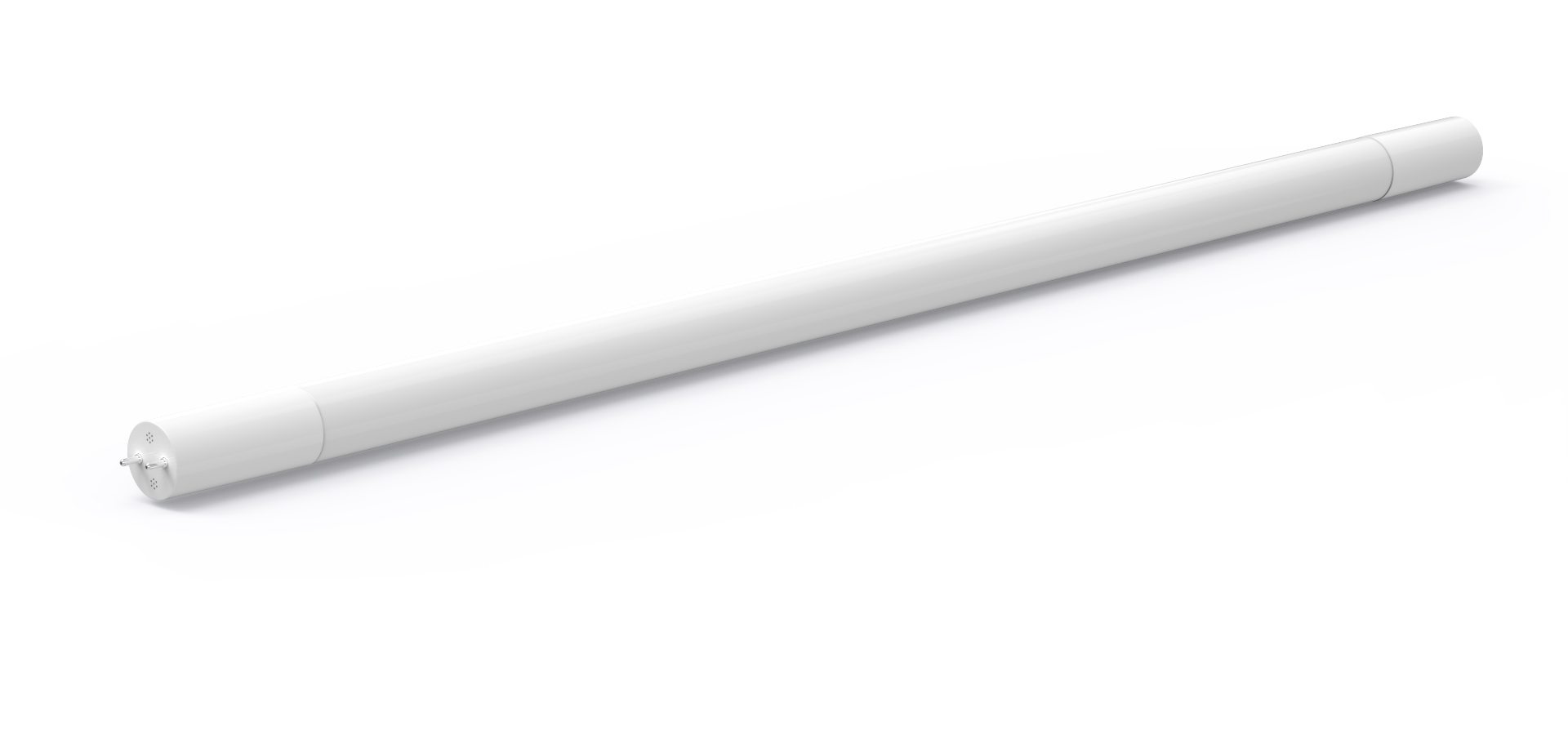

S11923 13.5T8/LED/48-850/DIM-BP

S11923

13.5T8/LED/48-850/DIM-BP

13.5 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring


SATCO|NUVO's 13.5-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp delivers 50,000 hours of natural white light.
  • Natural light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:1.00
  • T8, Frosted Finish
Lights

S11923

13.5T8/LED/48-850/DIM-BP

13.5 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring

SATCO|NUVO's 13.5-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp delivers 50,000 hours of natural white light.
  • Natural light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:1.00
  • T8, Frosted Finish

Specifications

General
StatusActive
SubstituteS11664
Watts13.5W
Incandescent Equivalent70W
Fluorescent Equivalent25W
Volts120V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1800L
Beam Spread220
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts13.5W
Incandescent Equivalent70W
Fluorescent Equivalent25W
Volts120V
Ballasting RequirementsBallast Bypass; Direct wire 120V line voltage; No ballast or external driver required
Ballast TypeType B
Operating Frequency60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1800L
Beam Spread220
DimmableYes-Dimmable
Dimming TypeReverse Phase or Phase Selectable
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Additional Information
Tube Guard UseApproved for use with tube guards
Installation NotesInstall only in non-shunted lampholders
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLUKVT19TA0M
CA T20 / T24 RationaleExempt - Base Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119231
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.50
Each Cube (CuFt.)0.0278
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119238
Case Quantity25
Case Length (in.)49.00
Case Width (in.)5.90
Case Height (in.)5.90
Case Weight (lb.)13.00
Case Cube (CuFt.)0.9871
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Leviton 6615-P Visit
Dimmer Leviton 66ELV Visit
Dimmer LeGrand ADTP703TU Visit
Dimmer Lutron CTRP-253P Visit
Dimmer Lutron DVRP-253P Visit
Dimmer Leviton IPE04 Visit
Dimmer Lutron NTRP-250 Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
