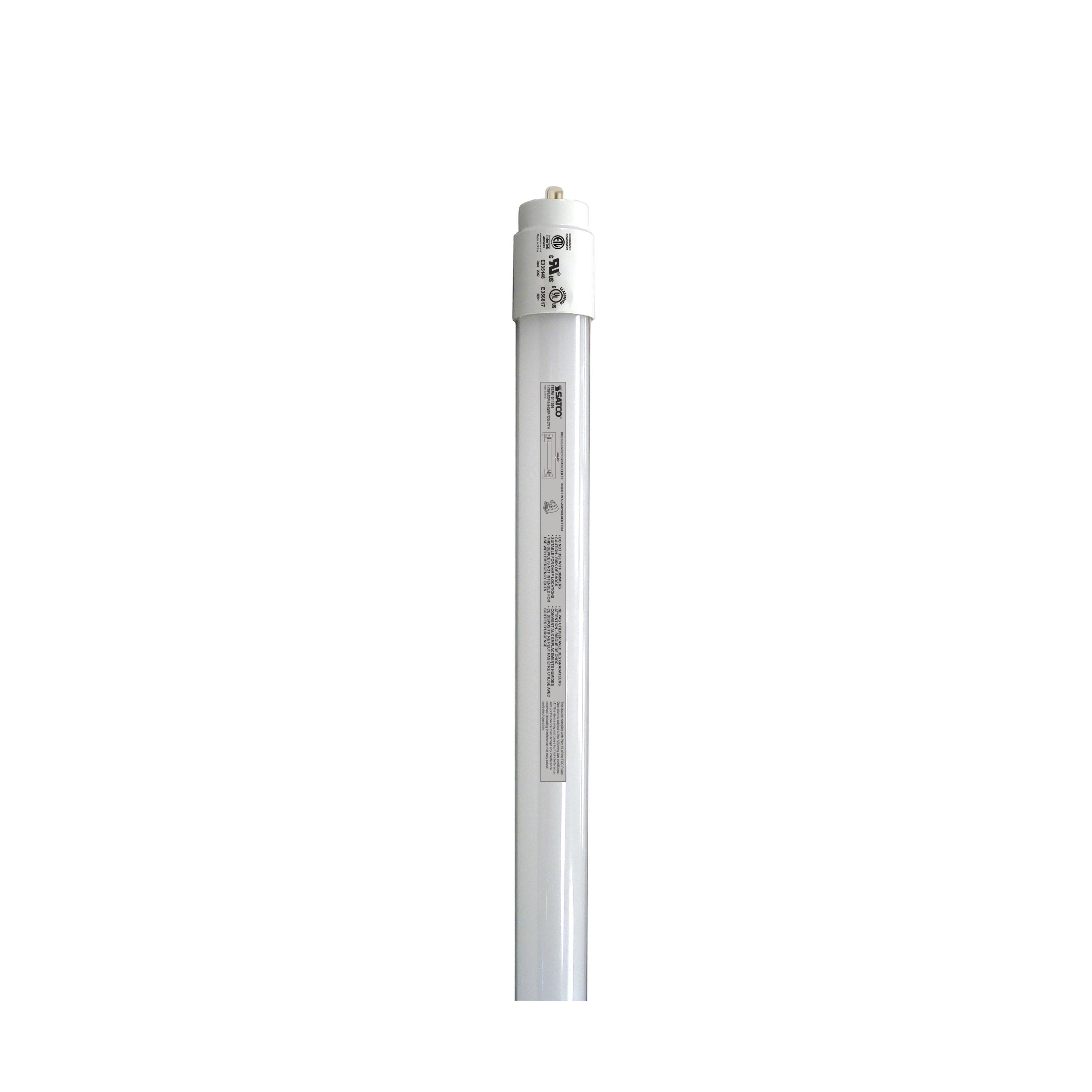

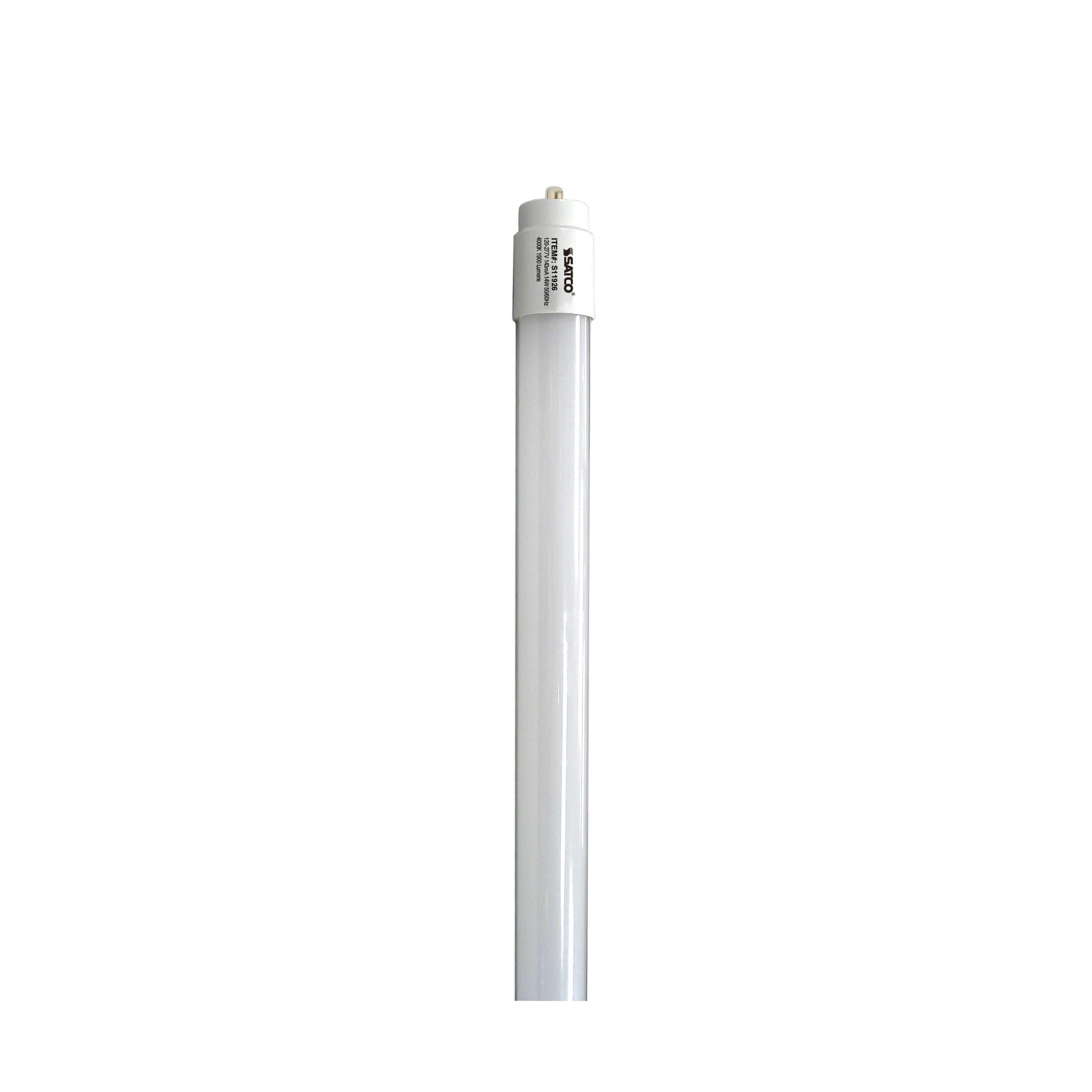

14T8/LED/48-840/BP/120-277V - S11926
14T8/LED/48-840/BP/120-277V - S11926
S11926

14T8/LED/48-840/BP/120-277V

  • 14 Watt T8 LED
  • Single pin base
  • 4000K
  • 50,000 Average rated hours
  • 1900 Lumens
  • Type B
  • 4 ft. Double Ended Bypass
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11926 SpecificationsS11926 ICES Attestation of Conformity.pdfS11926 Photometrics.ies
Tools
Lighting Layout Analysis For S11926
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
14 Watt T8 LED; Single pin base; 4000K; 50,000 Average rated hours; 1900 Lumens; Type B; 4 ft. Double Ended Bypass
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleTransitional
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.117-0.051A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass
LensedYes
Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)210
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens1900L
Volts120V-277V
Watts14W
Physical
Lamp BaseSingle Pin
FinishFrost
Housing ColorWhite
ANSI BaseFa8
Lamp TypeT8
MOD Lamps1.0
MOL46.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119262
Case Cube1.4722
Case Height7.28
Case Length48.0
Case Quantity25
Case UPC10045923119269
Case Weight17.2
Case Width7.28
EA Cube0.0278
EA Height1.0
EA Length48.0
EA Quantity1
EA Weight0.66
EA Width1.0
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length46.0
Web Width1.0
