» S11935

S11935 11T8/LED/36-835/XD

S11935

11T8/LED/36-835/XD

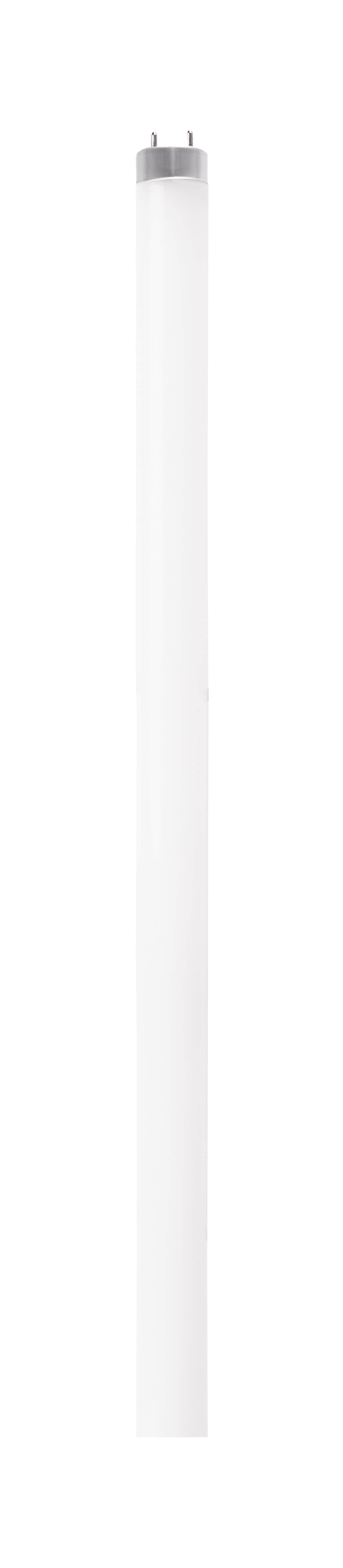

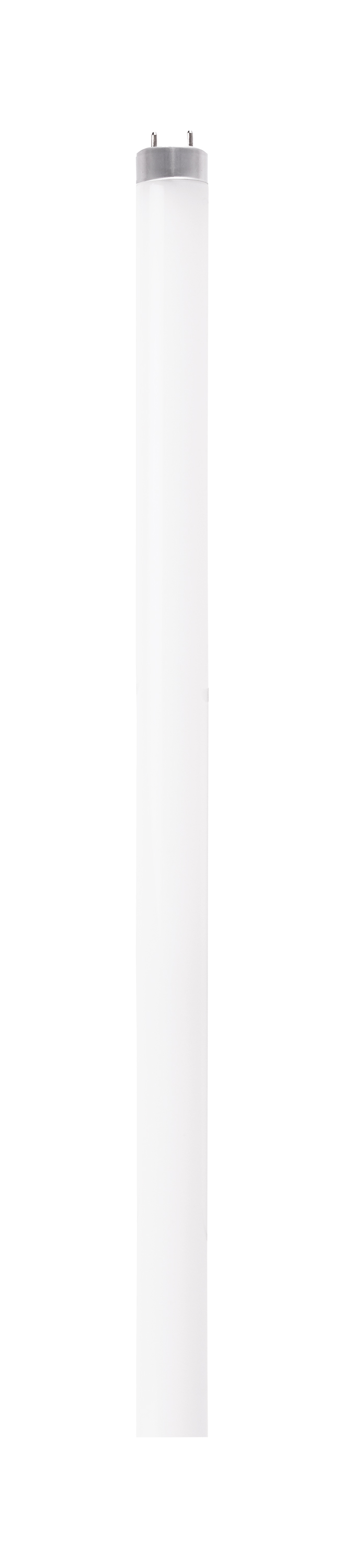

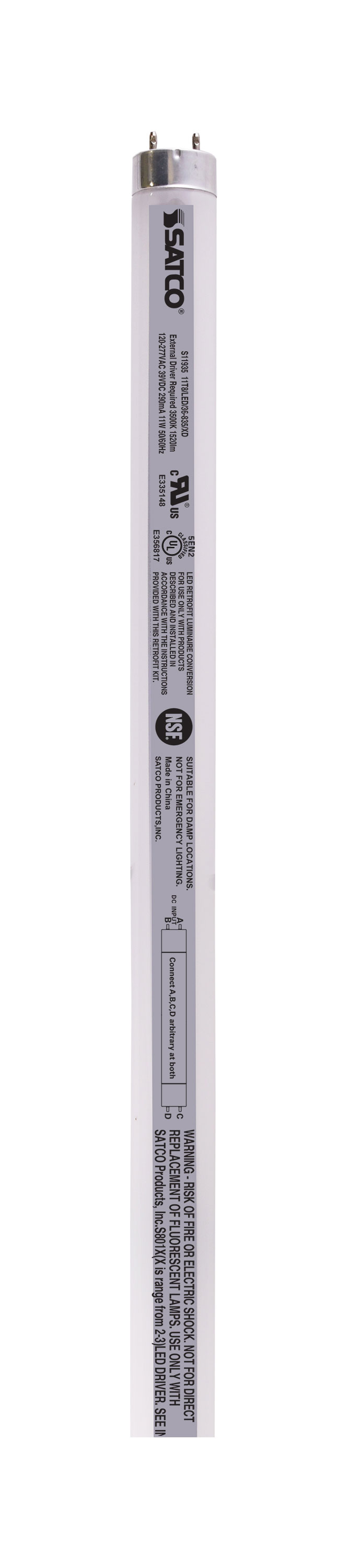

11 Watt T8 LED; 3500K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required

The SATCO 11W LED frosted tubular bulb offers neutral white light and a 220 degree beam spread. The bulb features a medium bi pin base and requires an external driver.
  • Neutral white light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:36.00 D:1.00
  • T8, Frosted Finish
Lights

S11935

11T8/LED/36-835/XD

11 Watt T8 LED; 3500K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required

The SATCO 11W LED frosted tubular bulb offers neutral white light and a 220 degree beam spread. The bulb features a medium bi pin base and requires an external driver.
  • Neutral white light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:36.00 D:1.00
  • T8, Frosted Finish

Specifications

General
StatusActive
Watts11W
Fluorescent Equivalent25W
Ballast TypeType C
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36.00
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1600L
Beam Spread220
DimmableYes-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts11W
Fluorescent Equivalent25W
Ballasting RequirementsBallast replaced with external driver
Ballast TypeType C
Operating Frequency50/60 Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1600L
Beam Spread220
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL36.00
MOD1.00
Nominal Length36.00
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
Lens FinishFrost
Weight (lb.)0.34
Additional Information
Additional InfoNot for emergency lighting
Tube Guard UseApproved for use with tube guards
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLE306JZGWQU
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
SDS SheetLED Lamp
Packaging
Each UPC045923119354
Each Quantity1
Each Length (in.)35.70
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.34
Each Cube (CuFt.)0.0207
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119351
Case Quantity25
Case Length (in.)37.20
Case Width (in.)5.90
Case Height (in.)5.90
Case Weight (lb.)10.20
Case Cube (CuFt.)0.7494
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
