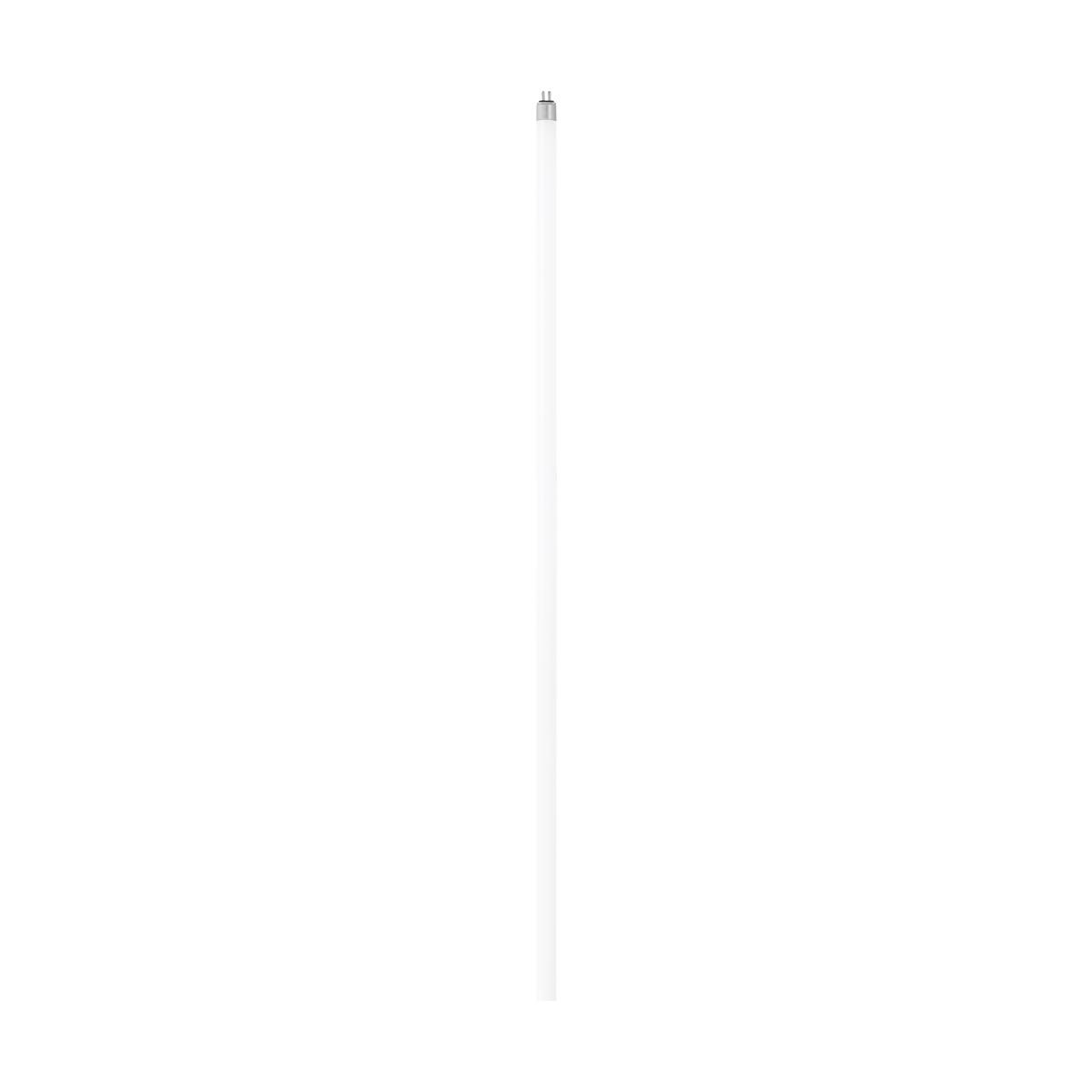

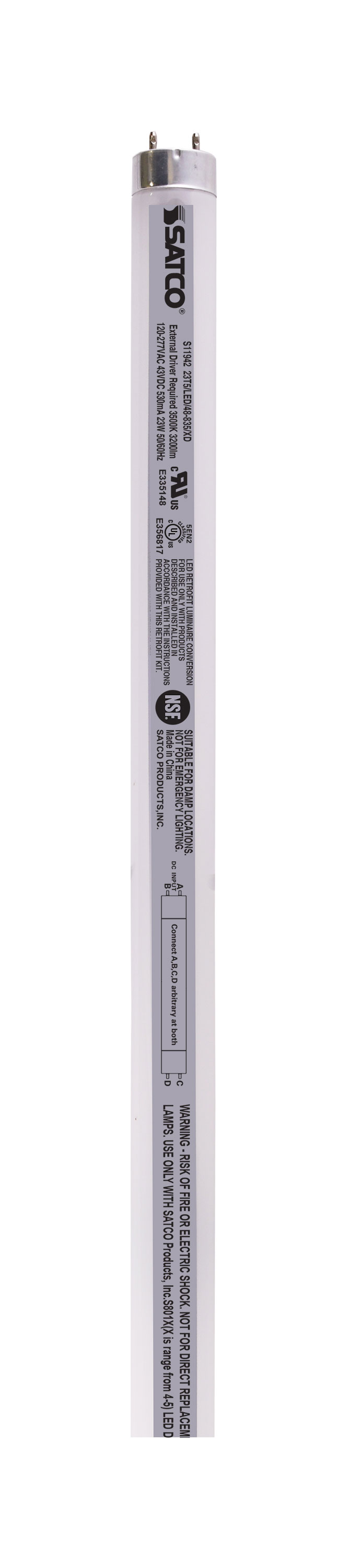

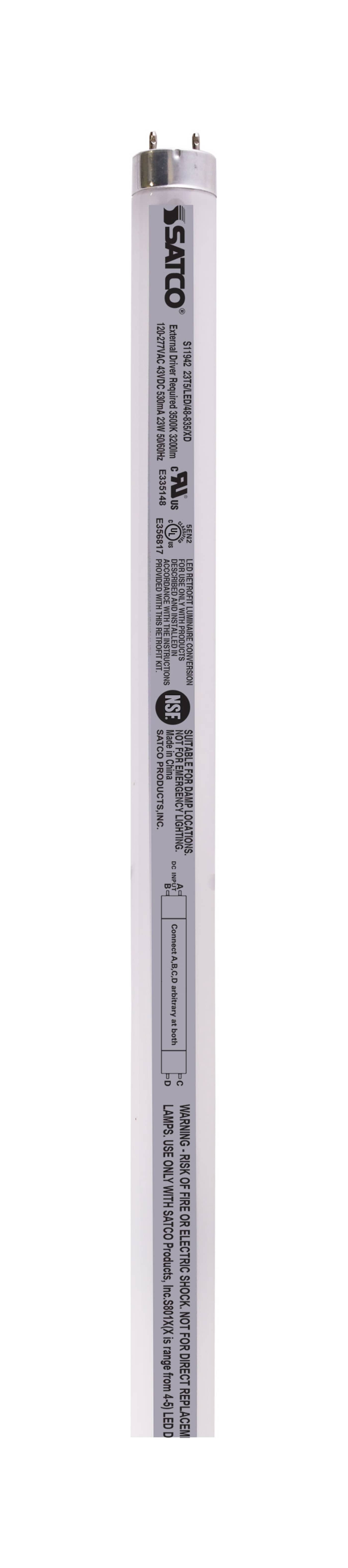

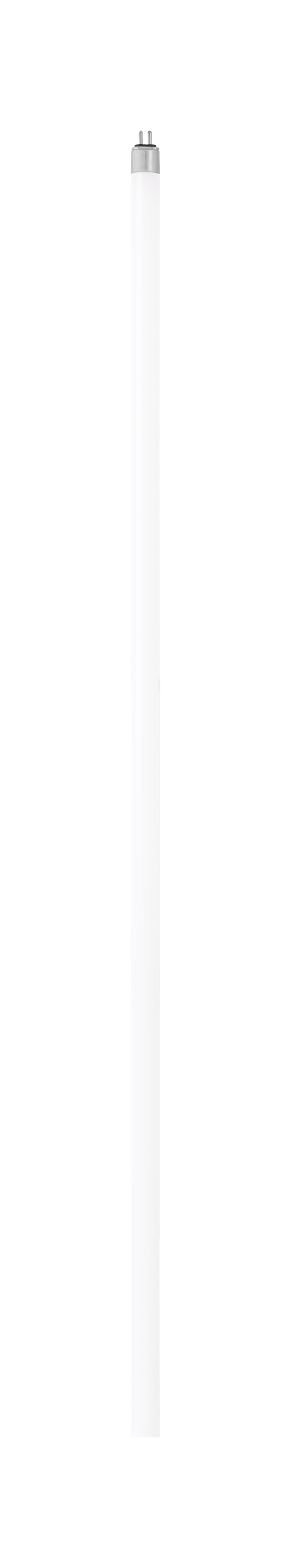

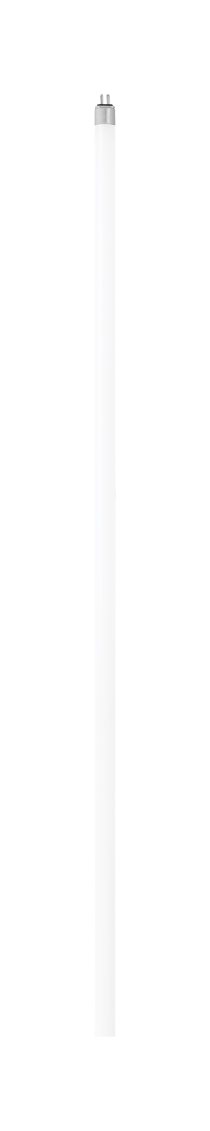

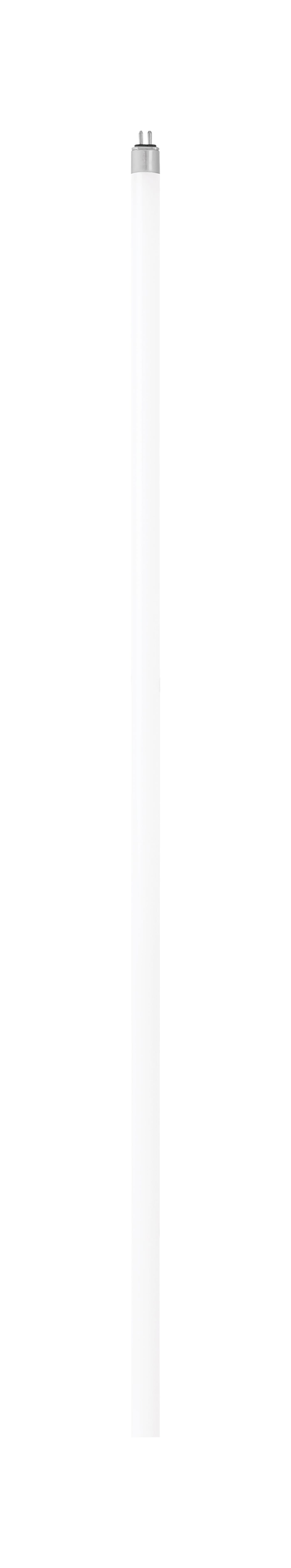

S11942 23T5/LED/48-835/XD

S11942

23T5/LED/48-835/XD

23 Watt T5 LED; 3500K; 120-277 Volt; Miniature Bi Pin base; Type C; External Driver required


SATCO|NUVO's 23-watt LED, T5 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp delivers 50,000 hours of neutral white light.
  • Neutral white light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:0.63
  • T8, Frosted Finish
Lights

S11942

23T5/LED/48-835/XD

23 Watt T5 LED; 3500K; 120-277 Volt; Miniature Bi Pin base; Type C; External Driver required

SATCO|NUVO's 23-watt LED, T5 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp delivers 50,000 hours of neutral white light.
  • Neutral white light
  • Damp rated for indoor use
  • Enclosed Rated Lamp
  • L:48.00 D:0.63
  • T8, Frosted Finish

Specifications

General
StatusActive
Watts23W
Incandescent Equivalent100W
Fluorescent Equivalent54W
Volts120V-277V
Ballast TypeType C
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens3400L
Beam Spread220
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts23W
Incandescent Equivalent100W
Fluorescent Equivalent54W
Volts120V-277V
Ballasting RequirementsBallast replaced with external driver
Ballast TypeType C
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens3400L
Beam Spread220
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD0.63
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrost
MaterialGlass
Lens FinishFrost
Weight (lb.)0.31
Additional Information
Additional InfoNot for emergency lighting
Rated For Enclosed FixtureYes
Warranty5 Year Limited - LED Type C Bulbs
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLQCYU7LBNEU
CA T20 / T24 RationaleExempt - Base Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
SDS SheetLED Lamp
Packaging
Each UPC045923119422
Each Quantity1
Each Length (in.)45.70
Each Width (in.)0.62
Each Height (in.)0.62
Each Weight (lb.)0.31
Each Cube (CuFt.)0.0102
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119429
Case Quantity25
Case Length (in.)46.85
Case Width (in.)3.93
Case Height (in.)3.93
Case Weight (lb.)9.43
Case Cube (CuFt.)0.4187
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
