S11952

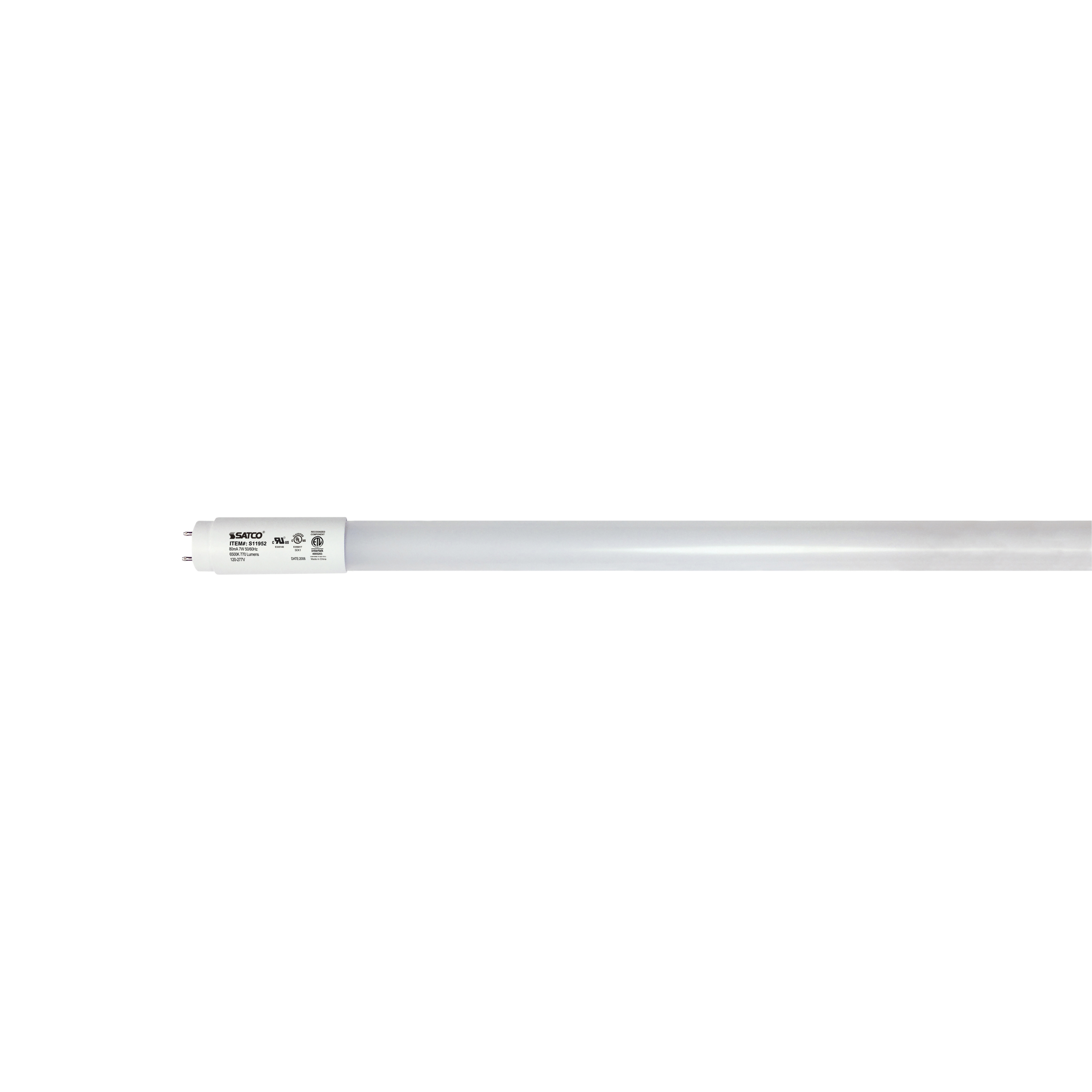

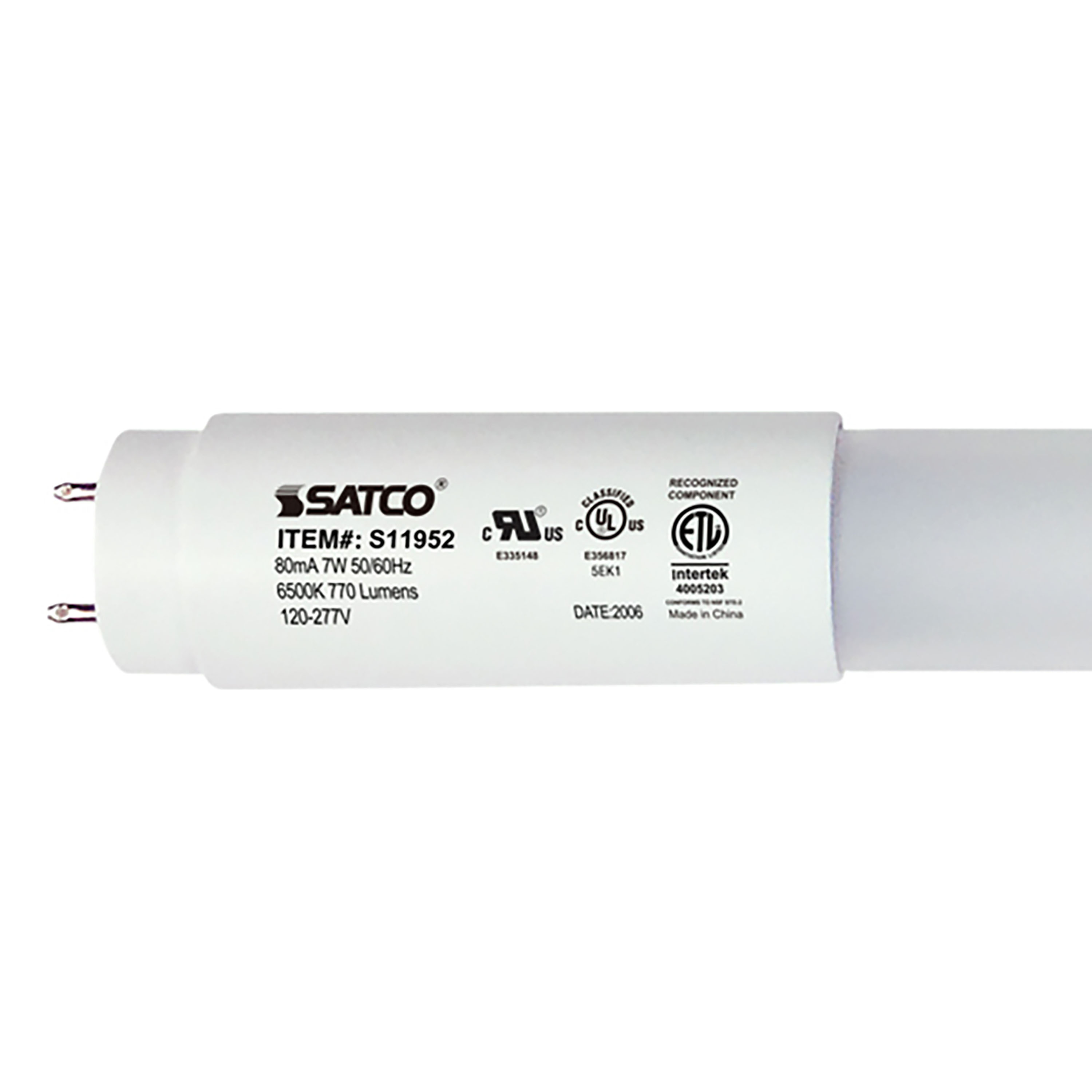

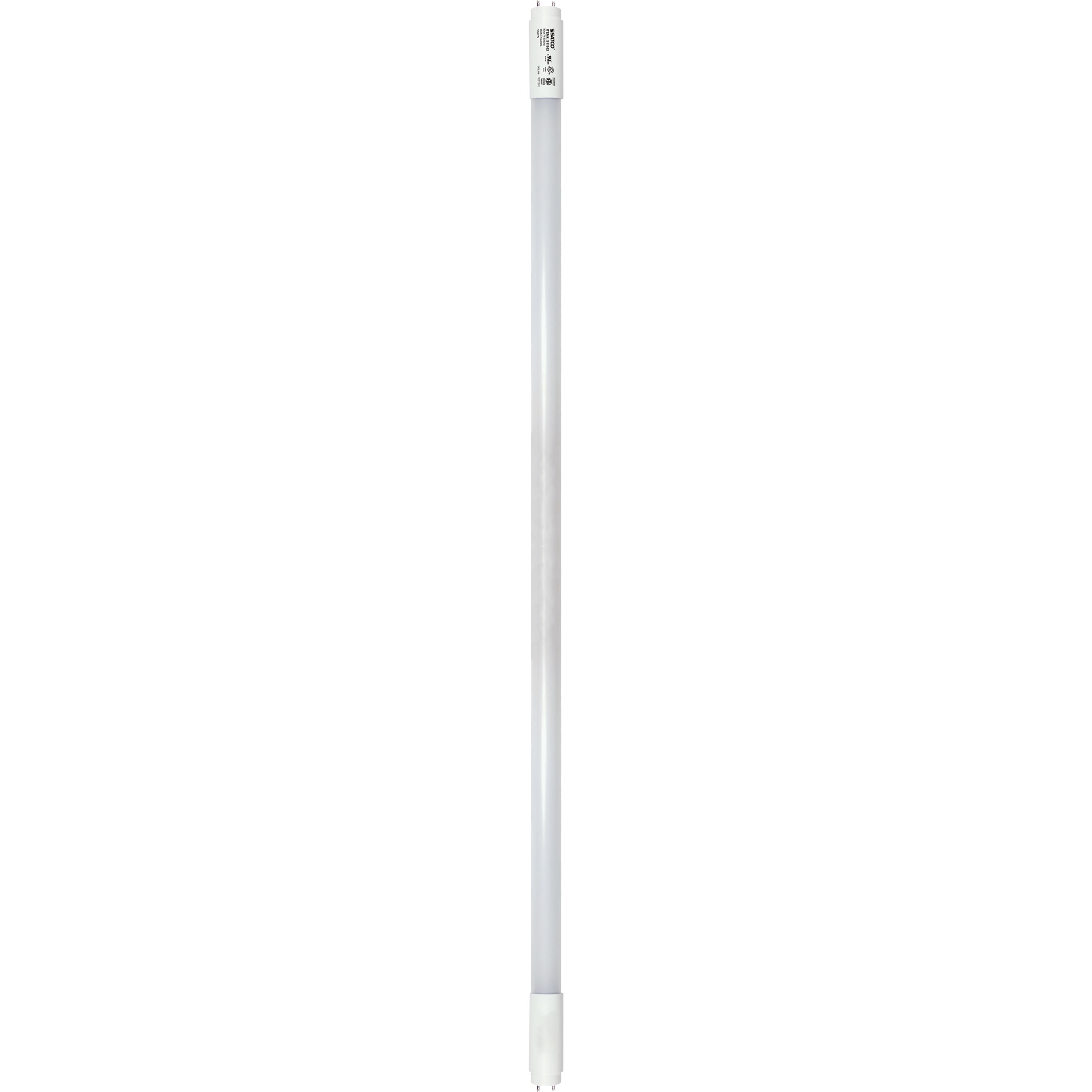

7T8/LED/18-865/BP

  • 7 Watt
  • 18 Inch
  • T8 Linear LED
  • Medium Bi-Pin G13Base
  • 6500K
  • 50000 Average Rated Hours
  • 770 Lumens
  • Type B Ballast Bypass
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
beam_angle^160^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S11952 SpecificationsS11952 Photometrics.iesS11952 Instructions.pdf
Tools
Lighting Layout Analysis For S11952
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens; Type B Ballast Bypass
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass / Plastic
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.7KV
Total Harmonic Distortion25%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.058-0.025A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass

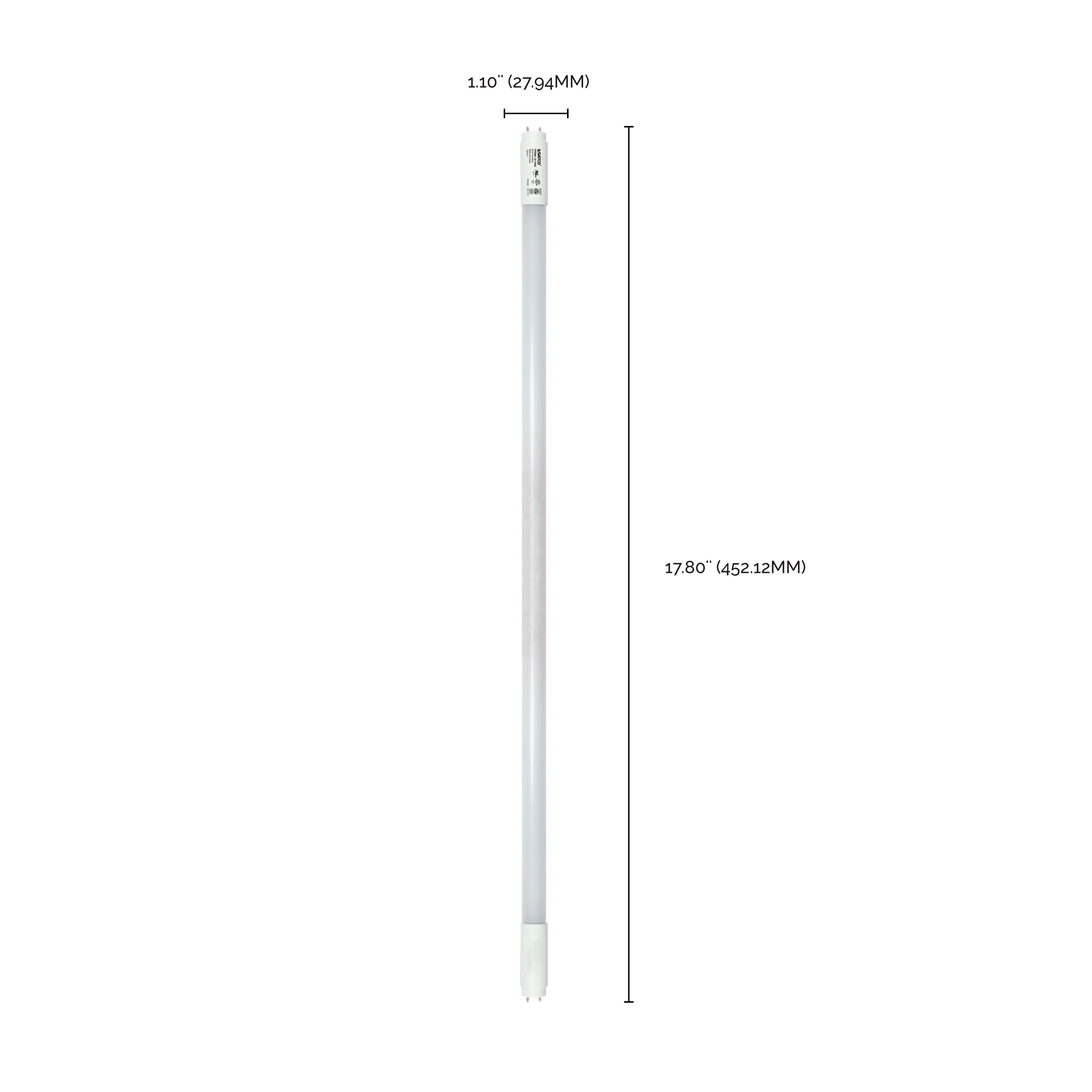

Nominal Length18.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv15W
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)6500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)160
Color TempDaylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +40C (+104F)
Lumens770L
Volts120V-277V
Watts7W
Physical
Lamp BaseMedium Bi Pin
FinishFrost
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.1
MOL17.8
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedETL Sanitation listed (conforms to NSF)
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119521
Case Cube0.626
Case Height7.3
Case Length20.3
Case Quantity25
Case UPC10045923119528
Case Weight8.0
Case Width7.3
EA Cube0.0126
EA Height1.1
EA Length18.0
EA Quantity1
EA Weight0.23
EA Width1.1
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length17.8
Web Width1.1
