» S11953

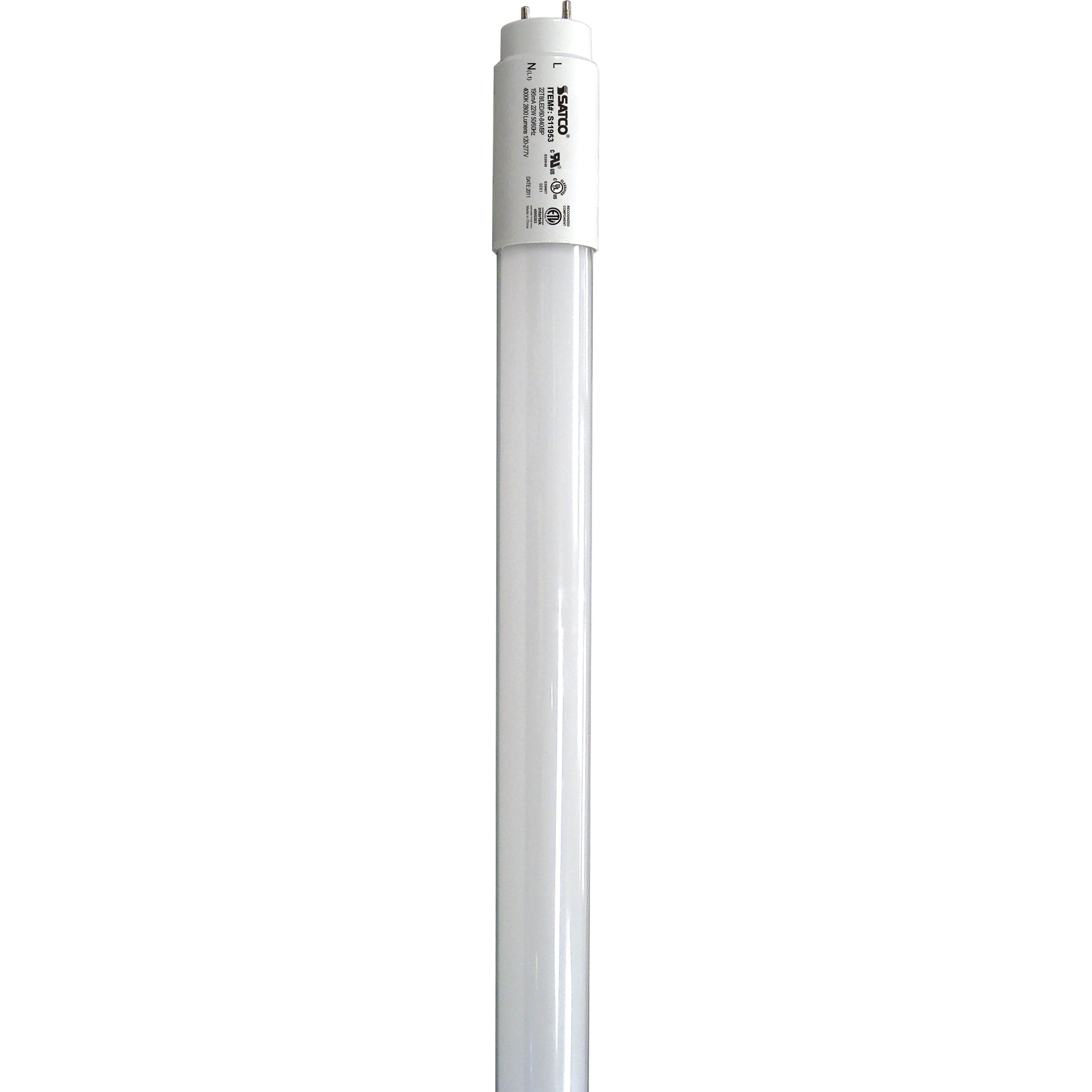

S11953 22T8/LED/60-840/BP

S11953

22T8/LED/60-840/BP

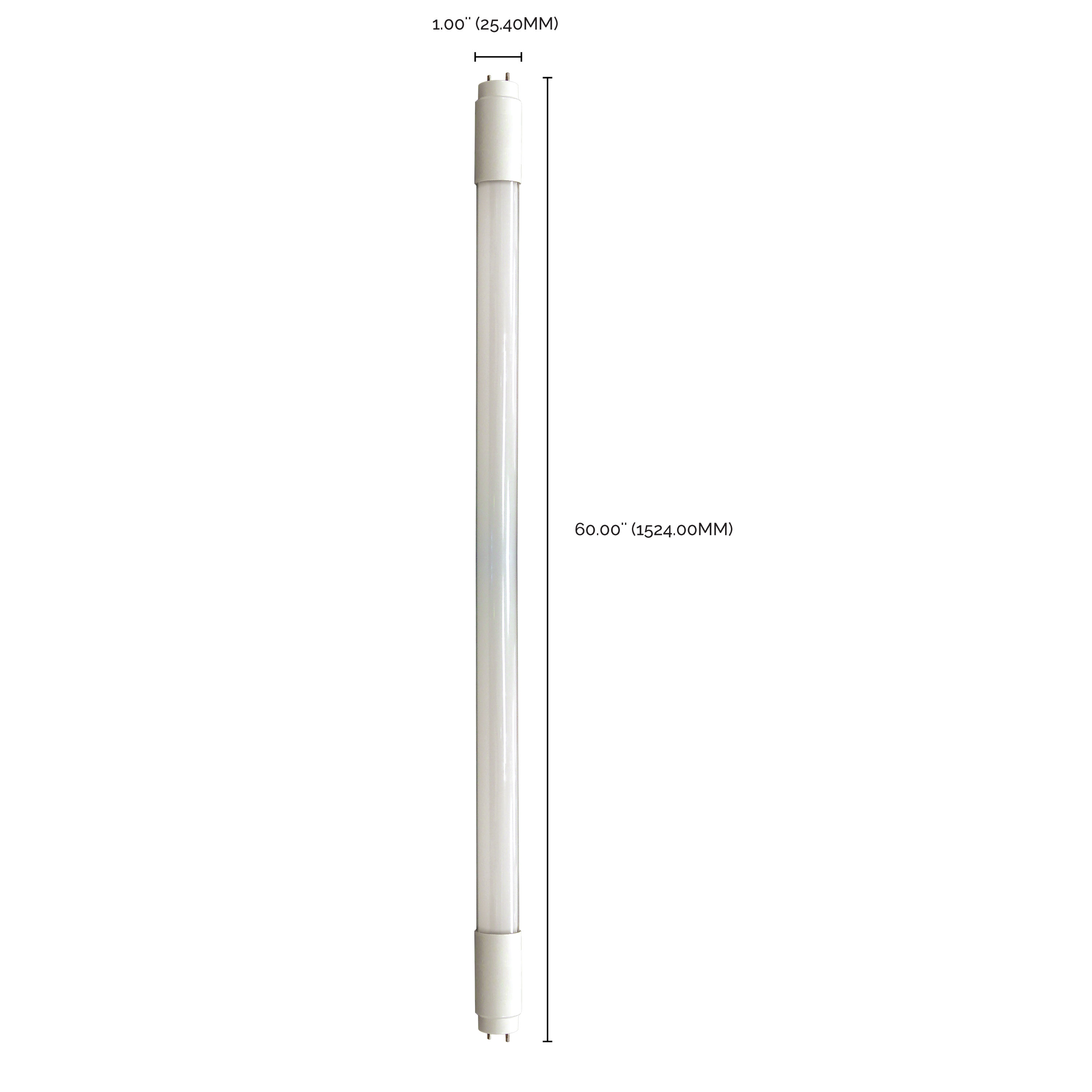

5 Foot; 22 Watt; Linear LED T8; Type B Ballast Bypass; G13 Bi-Pin Base; 80 CRI; 4000K

Our new 22-watt 4000K LED ballast bypass linear lamp now covers more applications. This 60 inch T8 provides more energy savings, less maintenance and high lumen output. No ballast or external driver is required and has a life expectancy at 50,000 hours.
Lights

S11953

22T8/LED/60-840/BP

5 Foot; 22 Watt; Linear LED T8; Type B Ballast Bypass; G13 Bi-Pin Base; 80 CRI; 4000K

Our new 22-watt 4000K LED ballast bypass linear lamp now covers more applications. This 60 inch T8 provides more energy savings, less maintenance and high lumen output. No ballast or external driver is required and has a life expectancy at 50,000 hours.

Specifications

General
StatusActive
Watts22W
Incandescent Equivalent40W
Fluorescent Equivalent58W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length60
FinishFrost
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens2800L
Beam Spread160
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts22W
Incandescent Equivalent40W
Fluorescent Equivalent58W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens2800L
Beam Spread160
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
THD0.25
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL60
MOD1
Nominal Length60
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.448
Additional Information
Shatter-Proof TypePET Coated
Tube Guard UseYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
Colorado StatusLawful for sale
Hawaii StatusLawful for sale
Nevada StatusLawful for sale
Washington StatusLawful for sale
Vermont StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119538
Each Quantity1
Each Length (in.)61.40
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.45
Each Cube (CuFt.)0.0430
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119535
Case Quantity10
Case Length (in.)61.42
Case Width (in.)7.87
Case Height (in.)4.92
Case Weight (lb.)11.20
Case Cube (CuFt.)1.3763
×
×

Ballast Compatibility

Name Type View
LED Linear S11953 Ballasts View
×

Precautions

No precautions available at this time.

×
