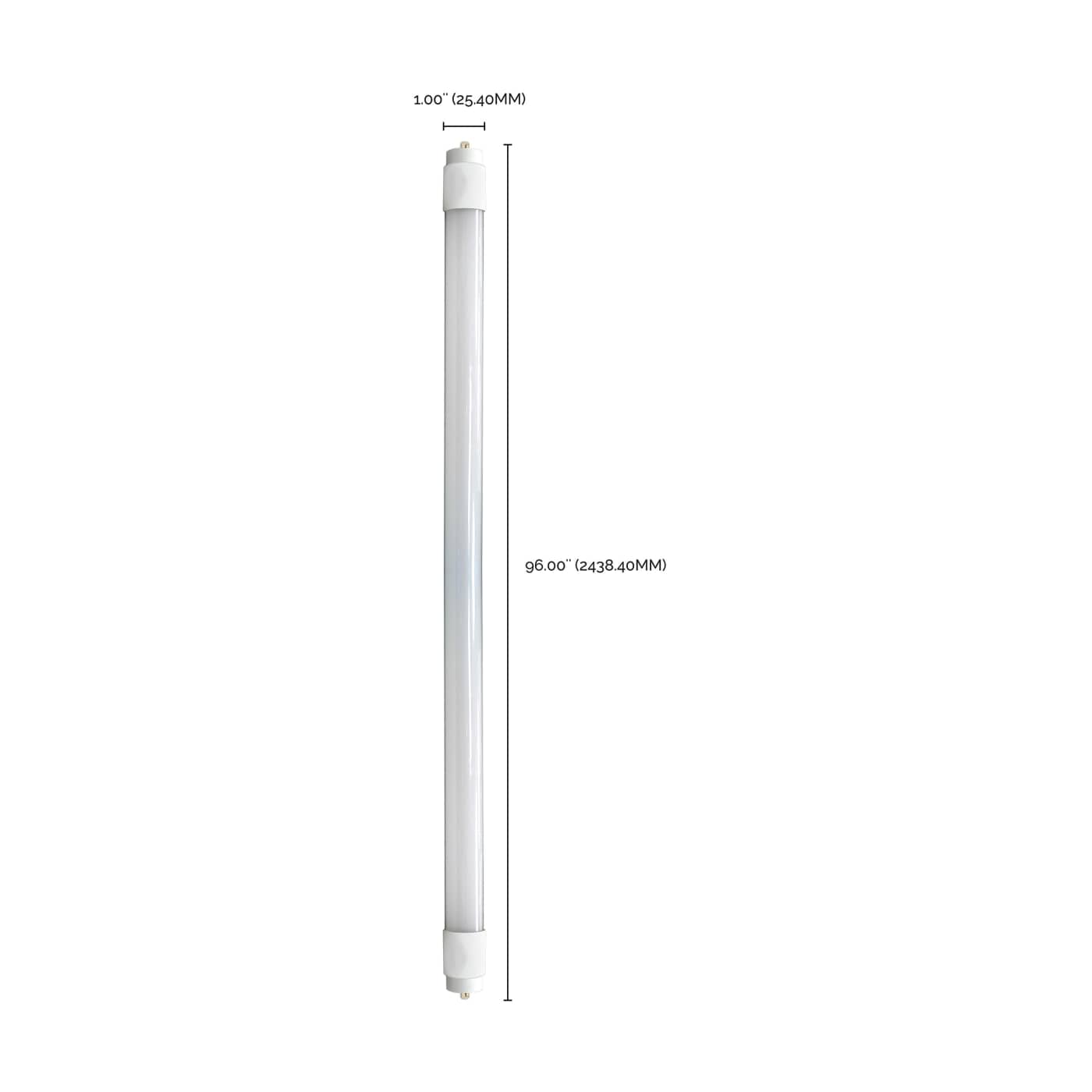

S11958 24T8/LED/96-840/BP/FA8

S11958

24T8/LED/96-840/BP/FA8

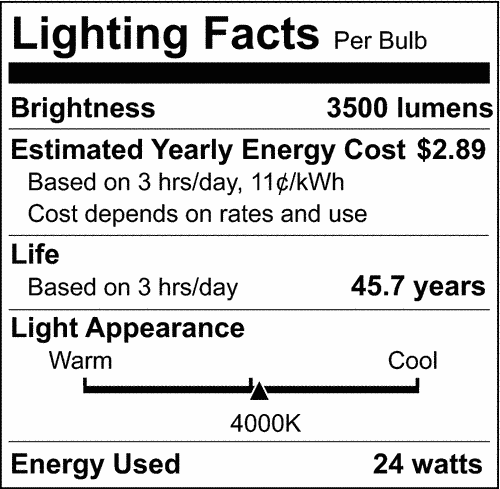

24 Watt; 8 Foot; T8 LED; Single pin base; 4000K; 50000 Average rated hours; 3500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1

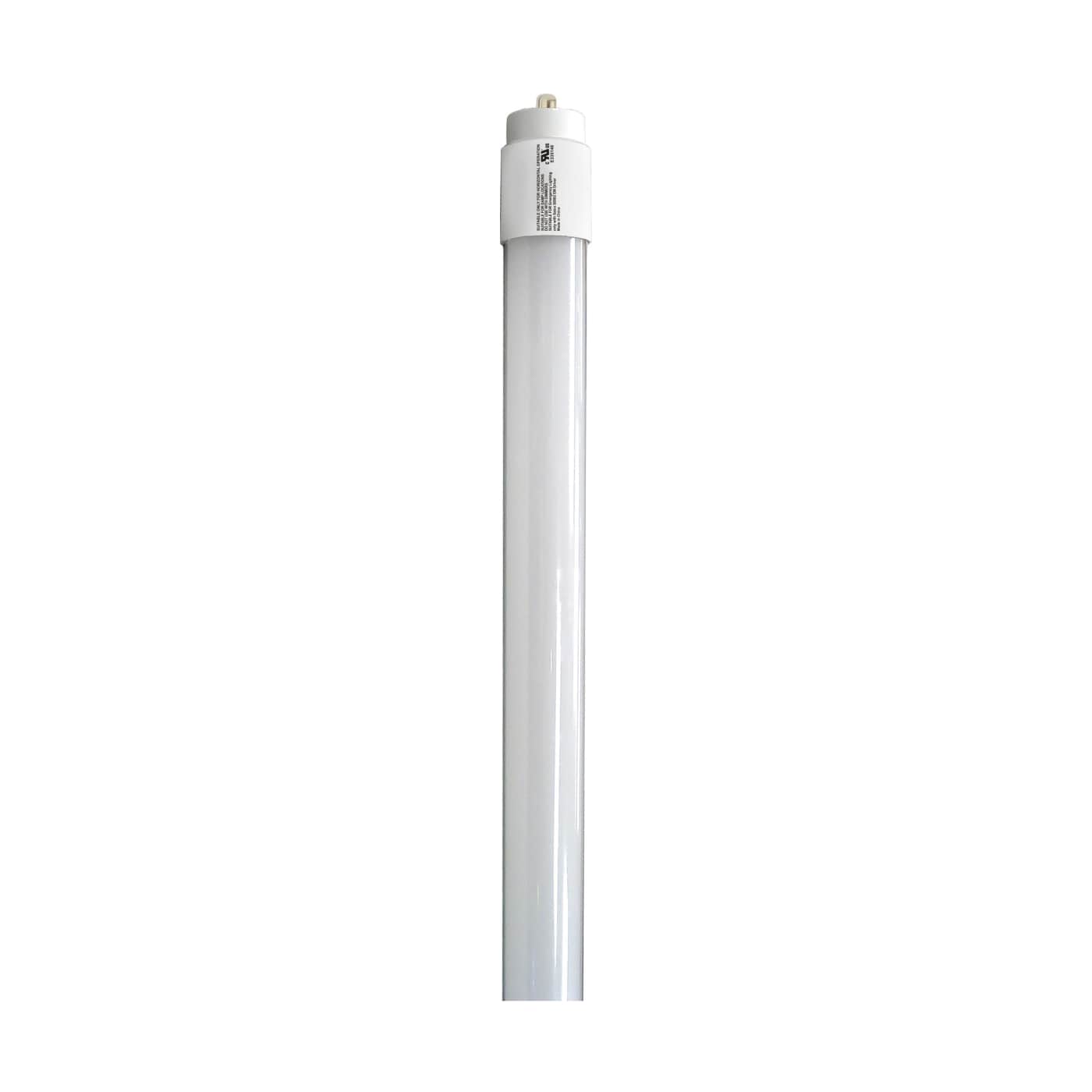

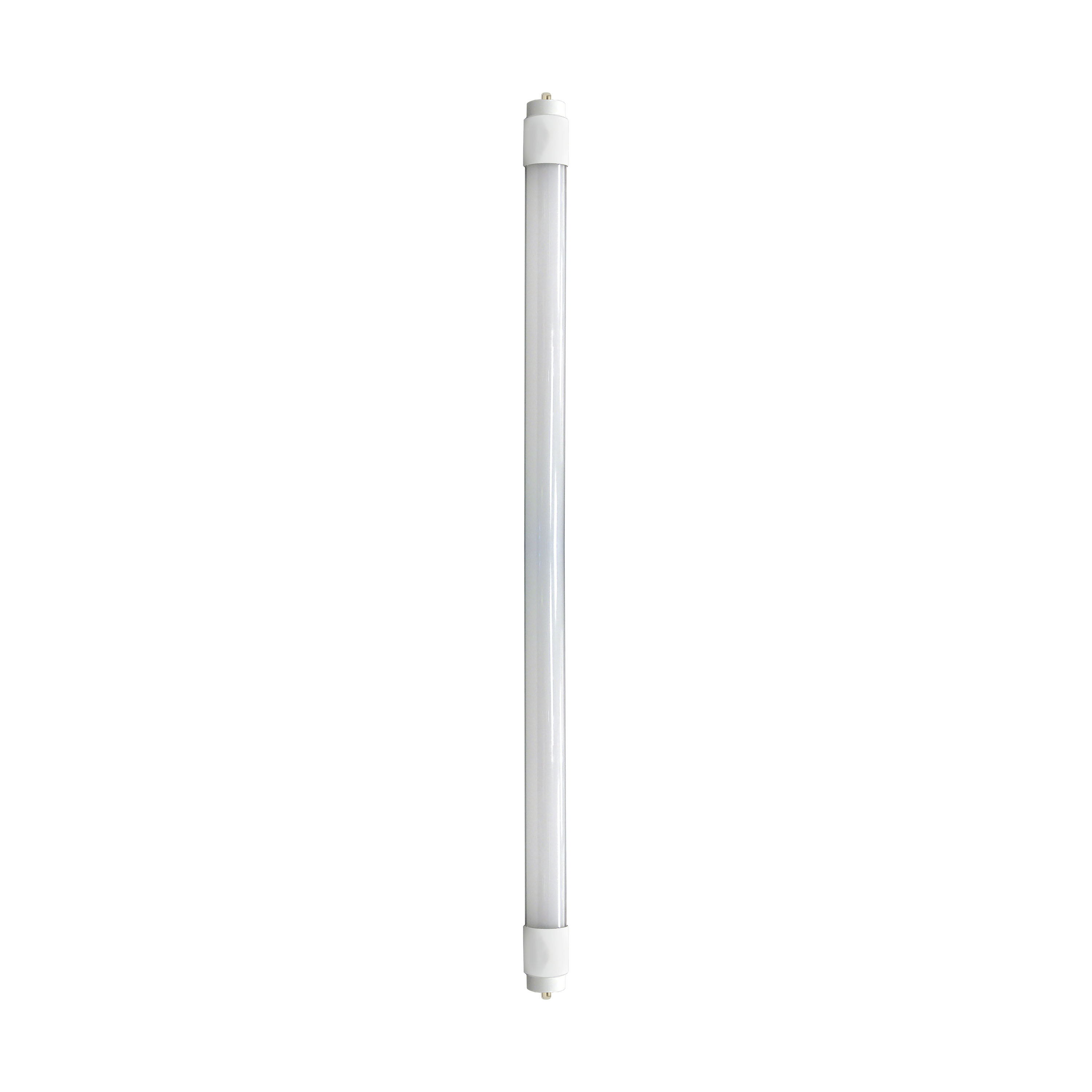

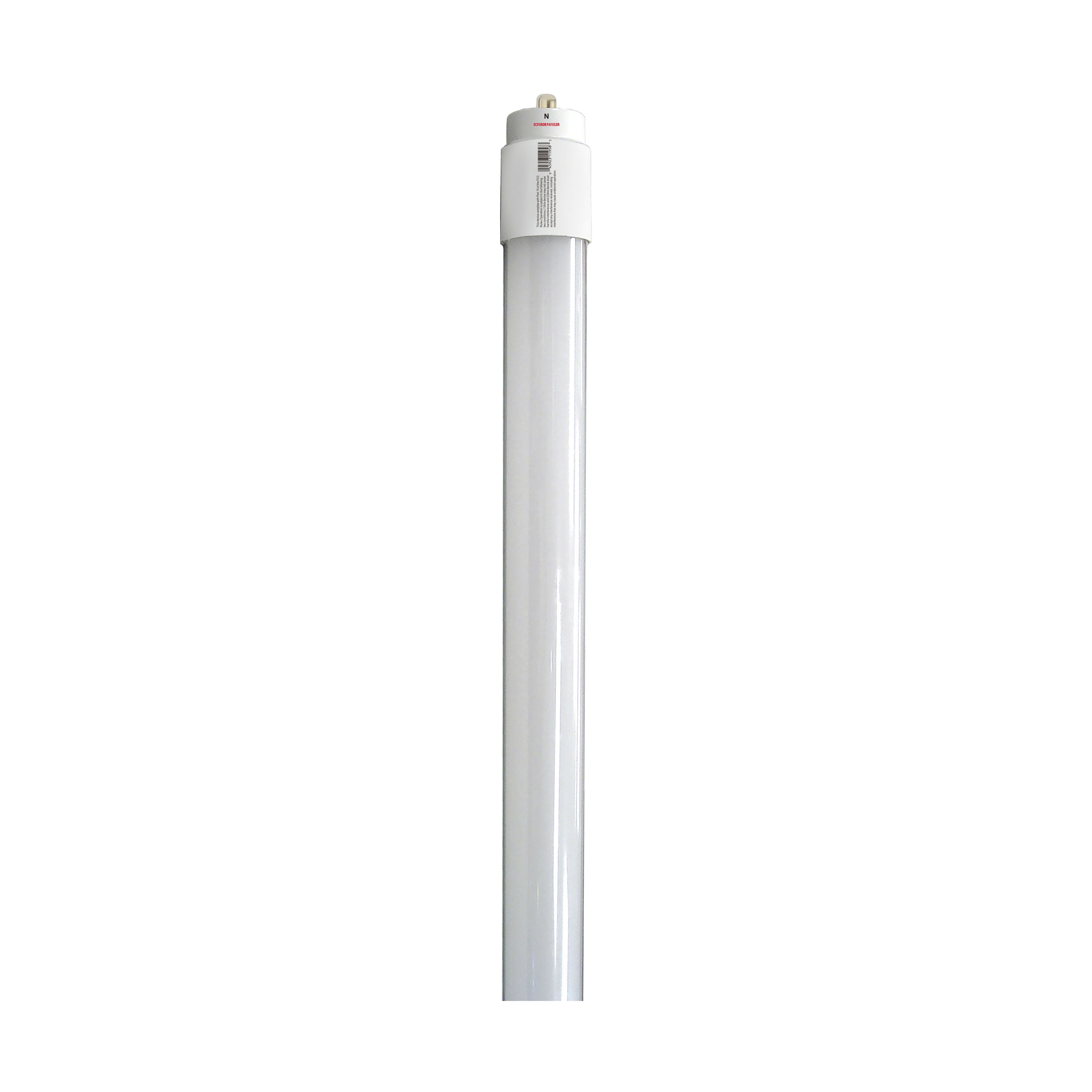

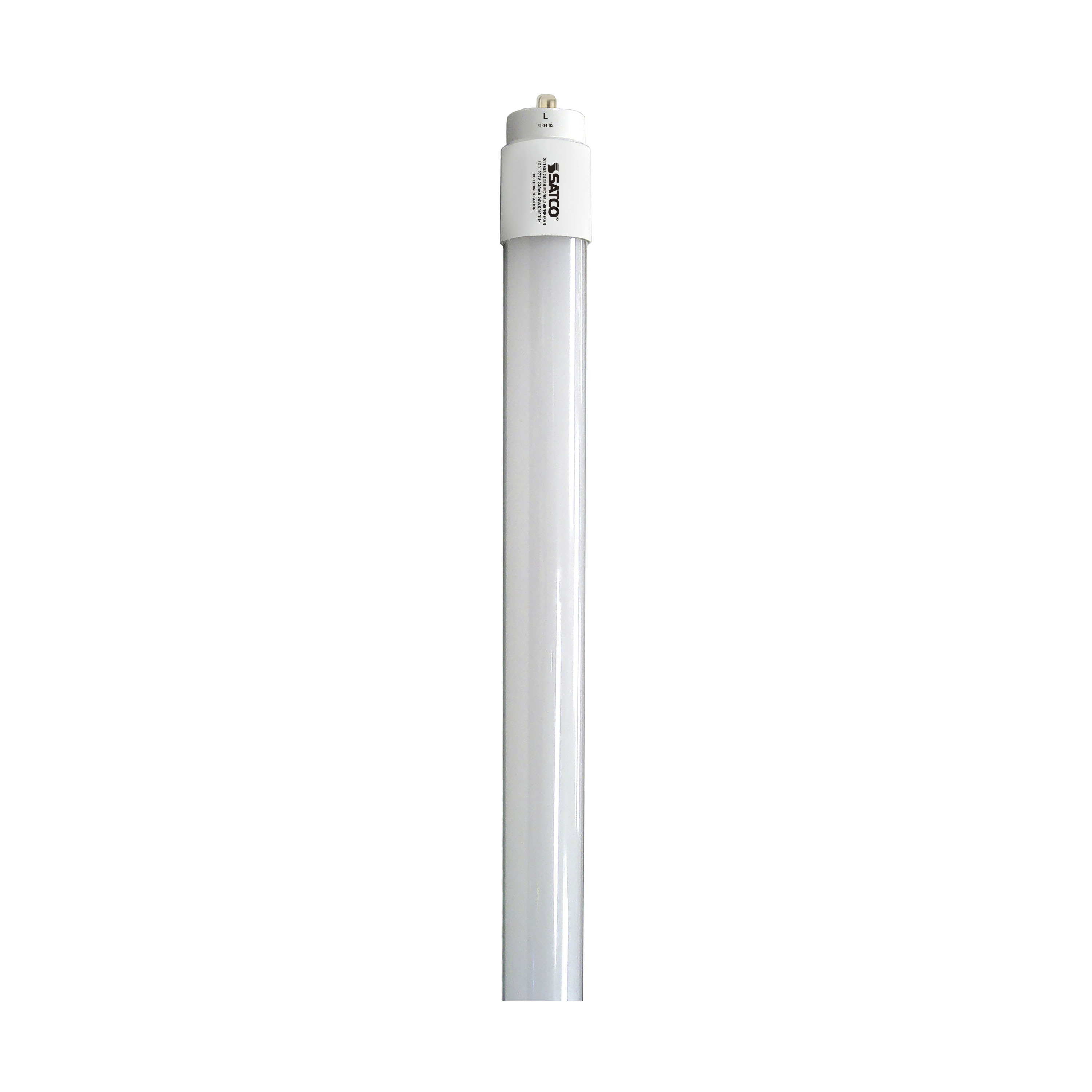

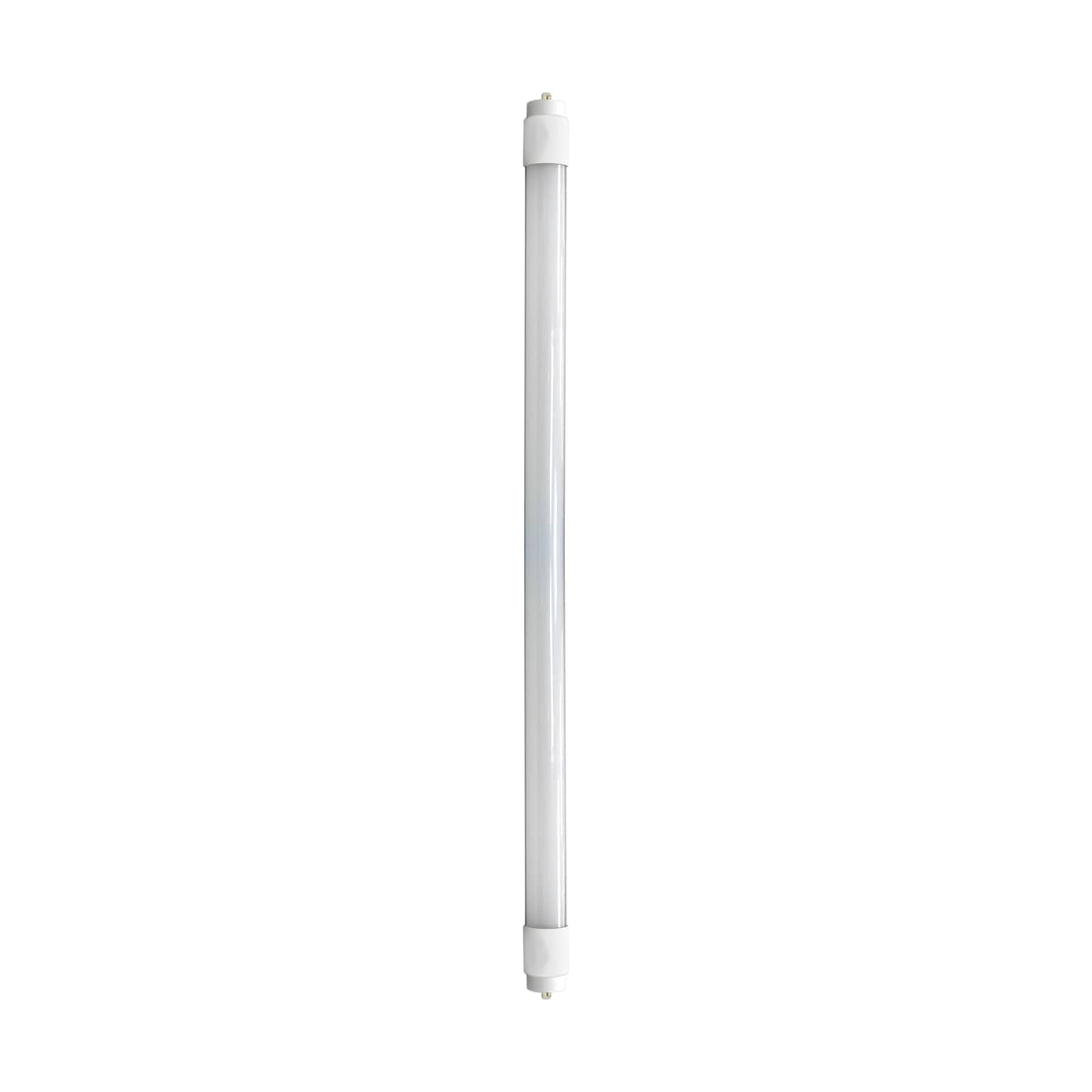

SATCO|NUVO's 24 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof protection. With a high lumen count, this lamp provides up to 50,000 hours of cool white light.
  • MOL: 94.00 inches, MOD: 1.00 inch
  • Superior 82 CRI light quality, 3500 lumens, 4000K CCT with a 210 beam spread
  • Rated for enclosed fixtures
  • Damp rated, for indoor use only
  • 24 watt LED replaces 59 watt fluorescent
  • White finished linear glass lamp
  • DLC Certified and qualifies for rebates where available
  • 5 Year Limited Warranty
Lights

S11958

24T8/LED/96-840/BP/FA8

24 Watt; 8 Foot; T8 LED; Single pin base; 4000K; 50000 Average rated hours; 3500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1

SATCO|NUVO's 24 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof protection. With a high lumen count, this lamp provides up to 50,000 hours of cool white light.
  • MOL: 94.00 inches, MOD: 1.00 inch
  • Superior 82 CRI light quality, 3500 lumens, 4000K CCT with a 210 beam spread
  • Rated for enclosed fixtures
  • Damp rated, for indoor use only
  • 24 watt LED replaces 59 watt fluorescent
  • White finished linear glass lamp
  • DLC Certified and qualifies for rebates where available
  • 5 Year Limited Warranty

Specifications

General
StatusActive
Watts24W
Incandescent Equivalent100W
Fluorescent Equivalent59W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseSingle Pin
ANSI BaseFa8
Nominal Length96
FinishWhite
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens3500L
Beam Spread210
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts24W
Incandescent Equivalent100W
Fluorescent Equivalent59W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens3500L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical

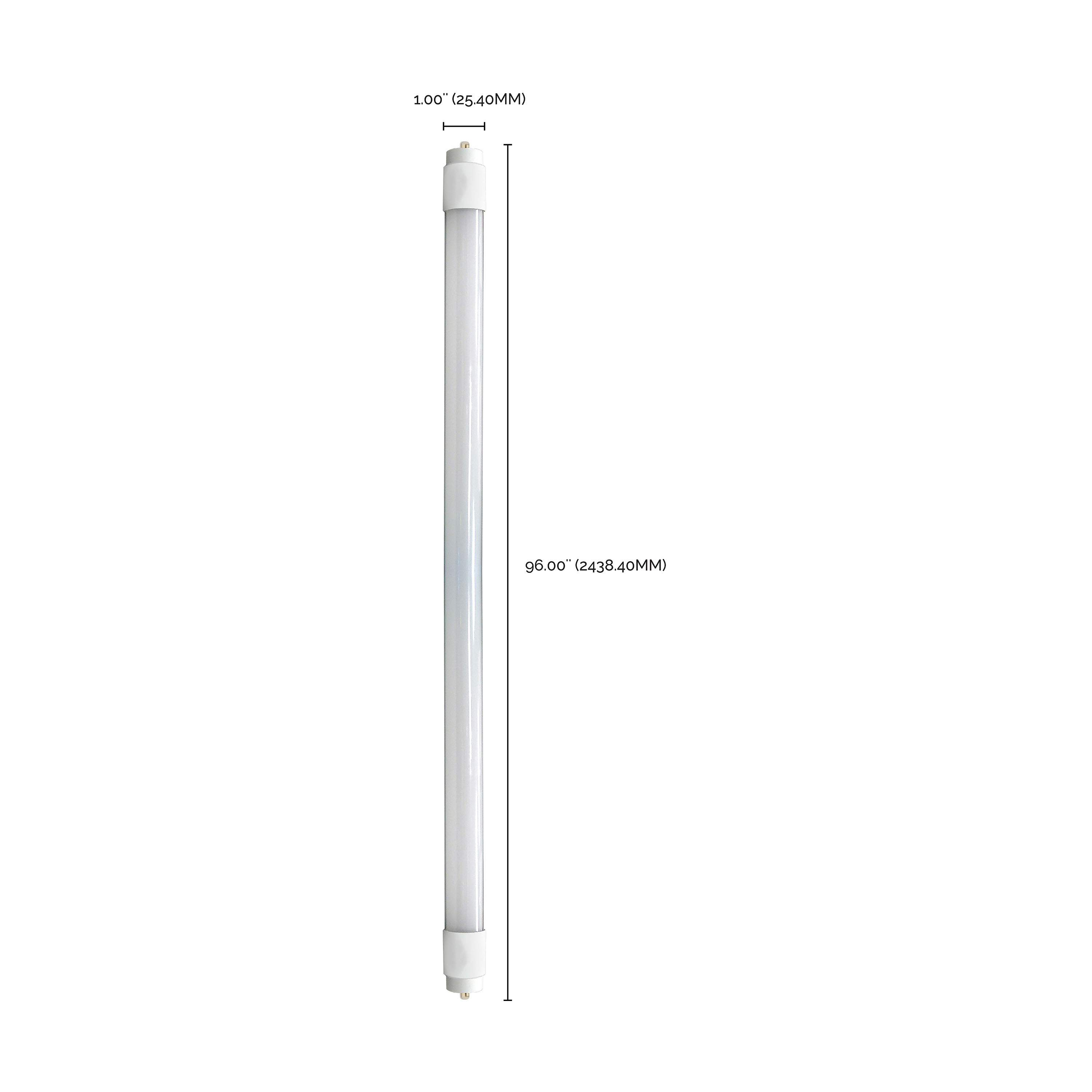

MOL94
MOD1
Nominal Length96
ShapeT8
BaseSingle Pin
ANSI BaseFa8
FinishWhite
MaterialGlass
Lens FinishWhite
Weight (lb.)0.88
Additional Information
Additional InfoSuitable for Emergency Lighting only with Satco EM Driver #S8002
Shatter-Proof TypePET Coated
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLO7K8JCRGBZ
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119583
Each Quantity1
Each Length (in.)94.00
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.88
Each Cube (CuFt.)0.0544
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119580
Case Quantity10
Case Length (in.)95.87
Case Width (in.)7.56
Case Height (in.)3.86
Case Weight (lb.)11.87
Case Cube (CuFt.)1.6190
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
