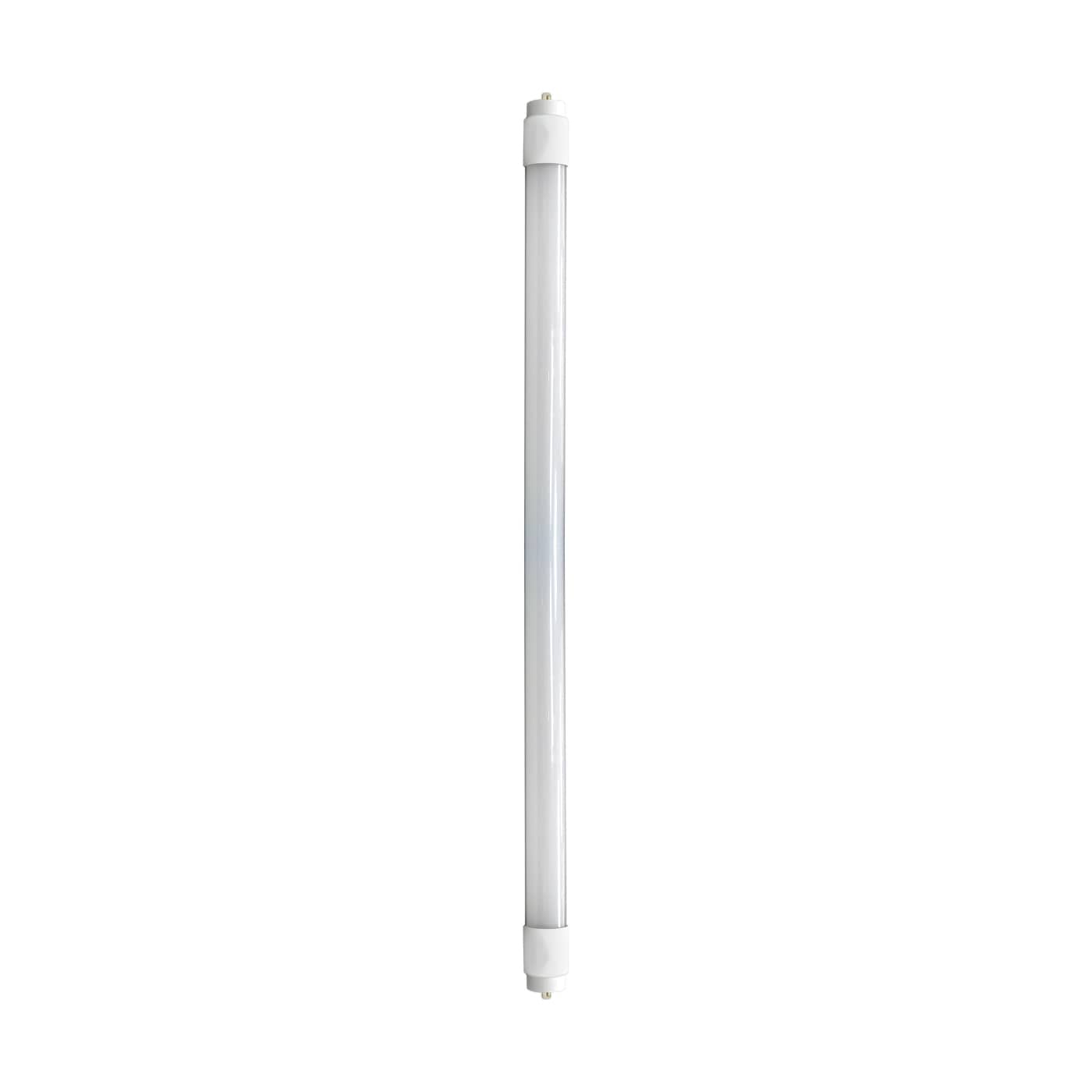

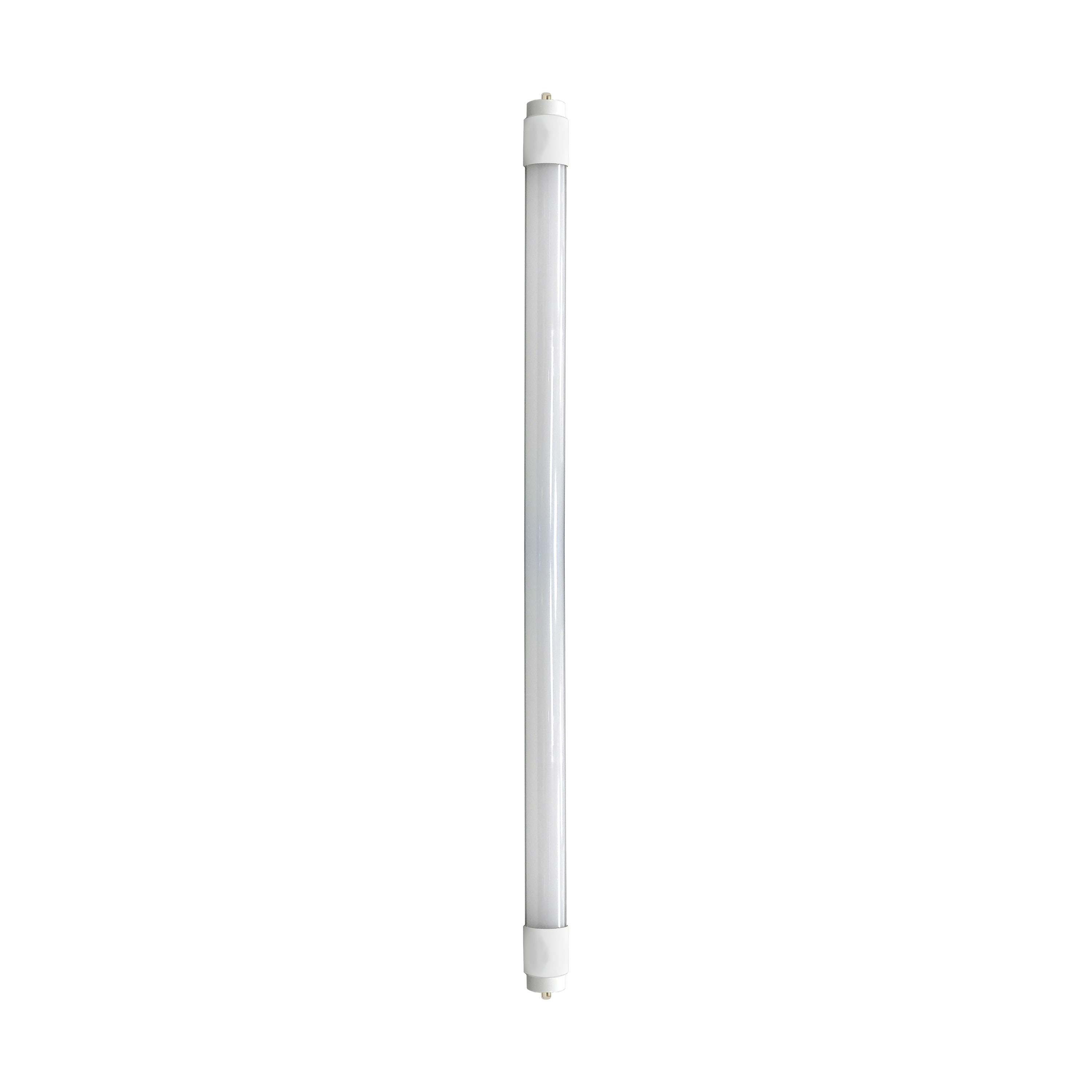

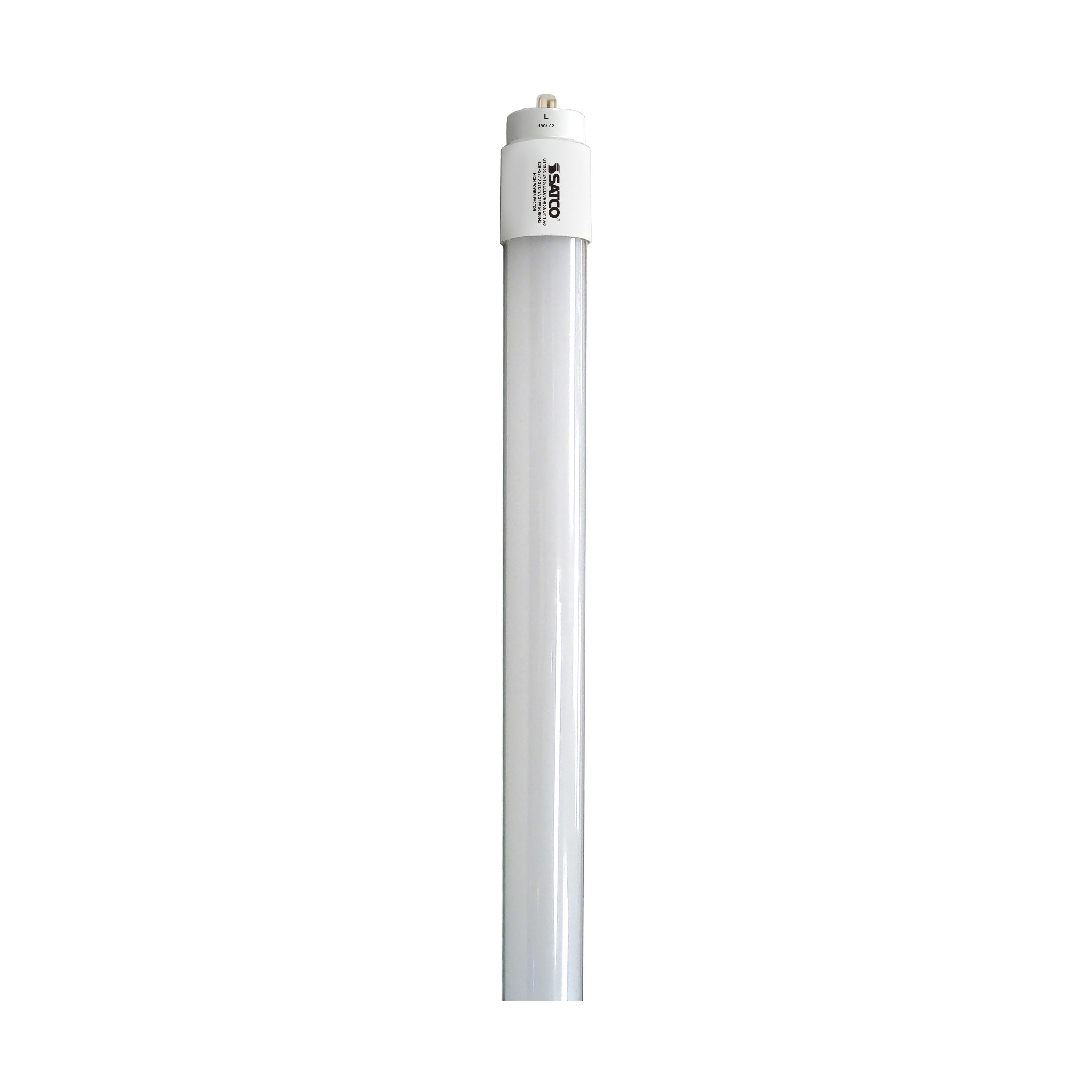

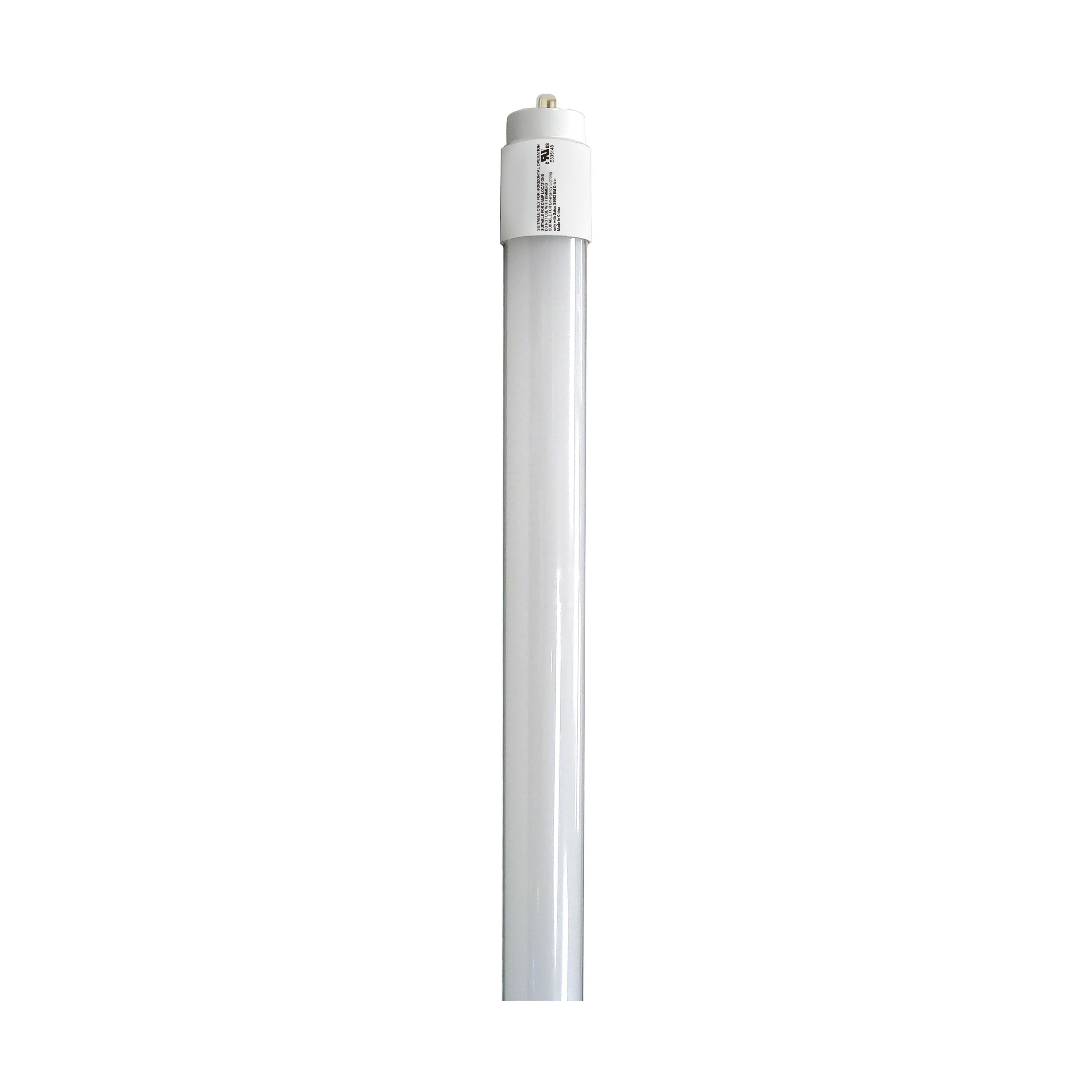

24T8/LED/96-850/BP/FA8 - S11959
24T8/LED/96-850/BP/FA8 - S11959
24T8/LED/96-850/BP/FA8 - S11959
24T8/LED/96-850/BP/FA8 - S11959
24T8/LED/96-850/BP/FA8 - S11959
24T8/LED/96-850/BP/FA8 - S11959
24T8/LED/96-850/BP/FA8 - S11959
S11959

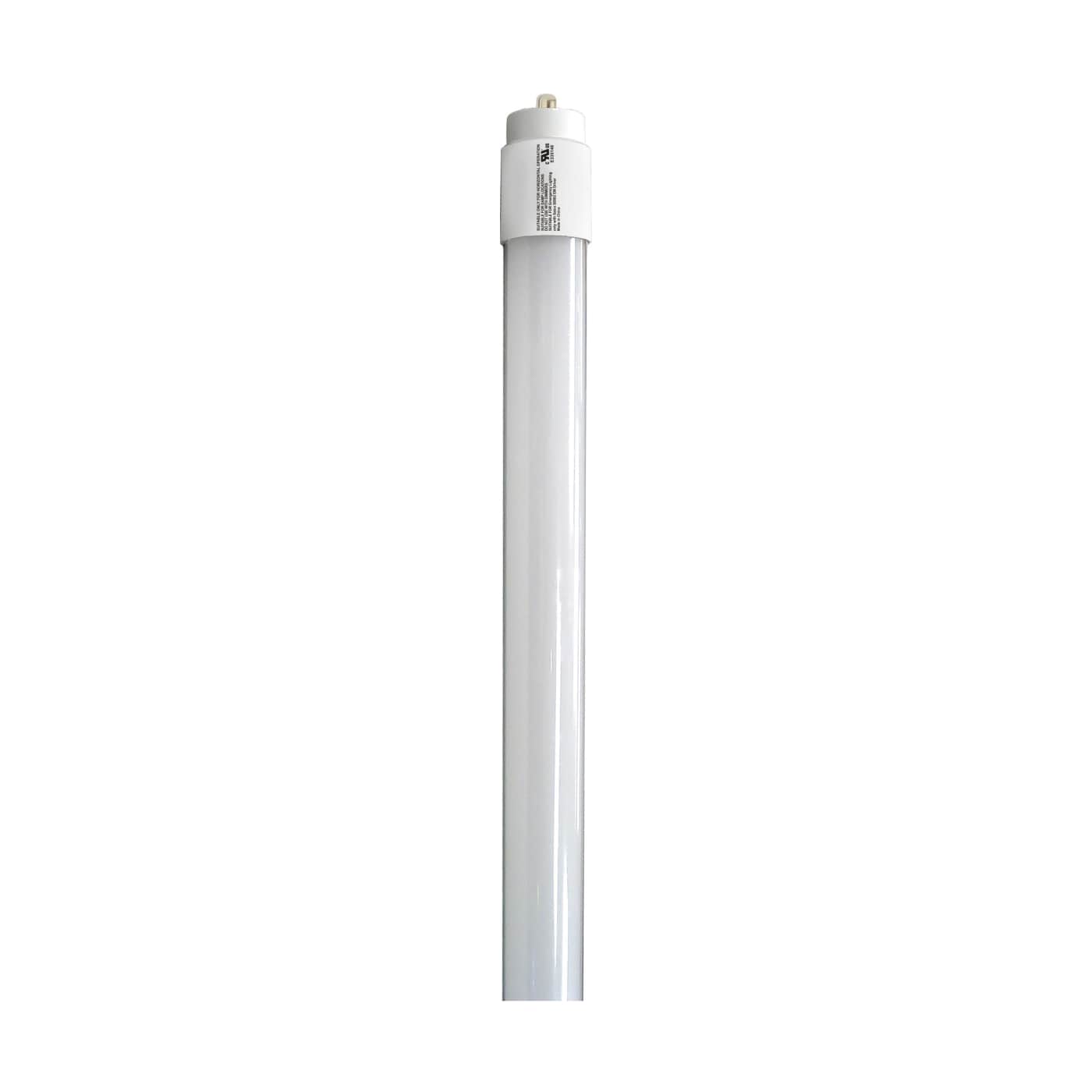

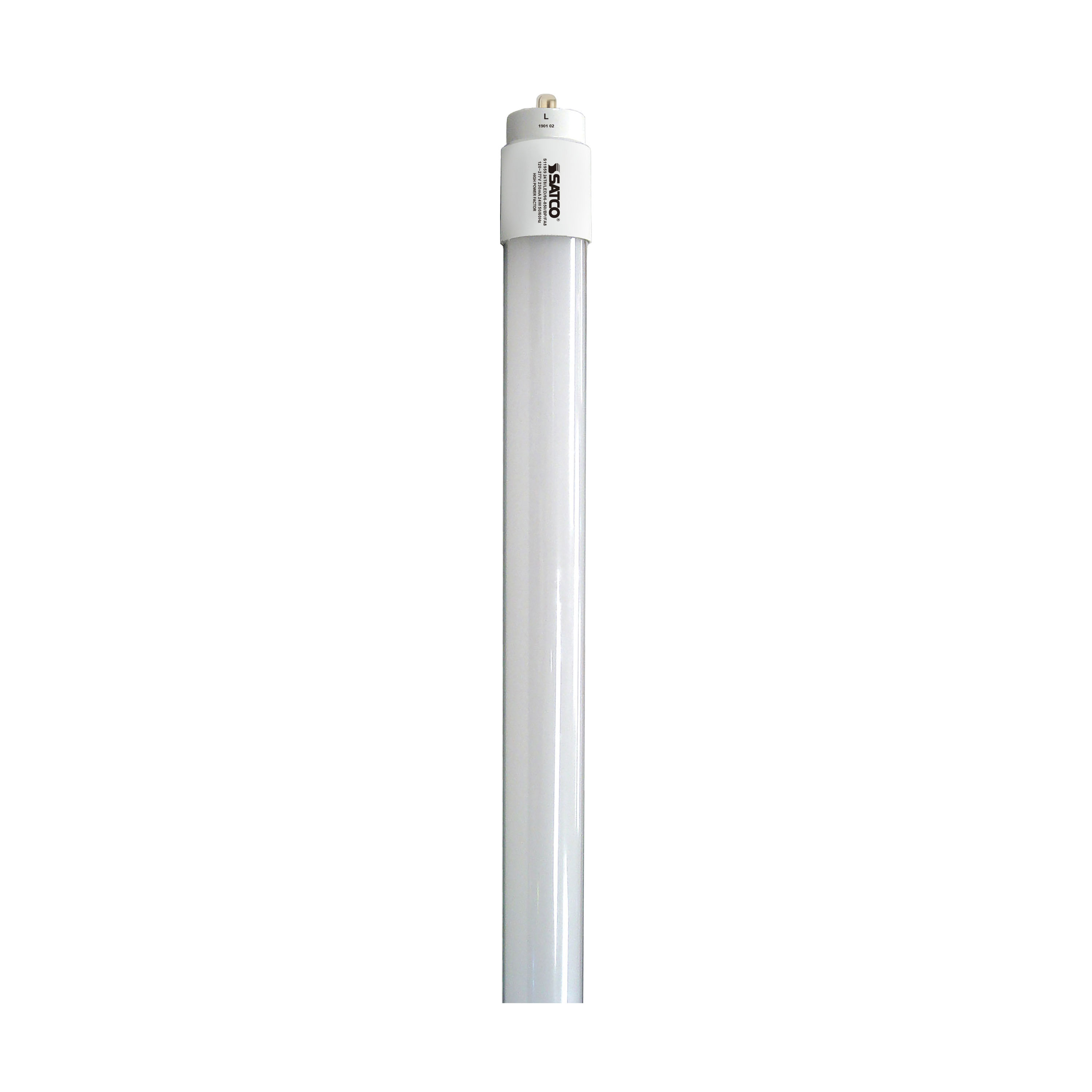

24T8/LED/96-850/BP/FA8

  • 24 Watt
  • 8 Foot
  • T8 LED
  • Single pin base
  • 5000K
  • 50000 Average rated hours
  • 3500 Lumens
  • Type B
  • Ballast Bypass
  • Double Ended Wiring
  • DLC 5.1
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11959 SpecificationsS11959 Instructions.pdfNEW! 8' LED T8 TYPE B-GEN2
Description
Description
24 Watt; 8 Foot; T8 LED; Single pin base; 5000K; 50000 Average rated hours; 3500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Total Harmonic Distortion20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoSuitable for Emergency Lighting only with Satco EM Driver #S8002
Amps0.200-0.087A
Has CameraNo
IOT EnabledNo
Lens FinishWhite

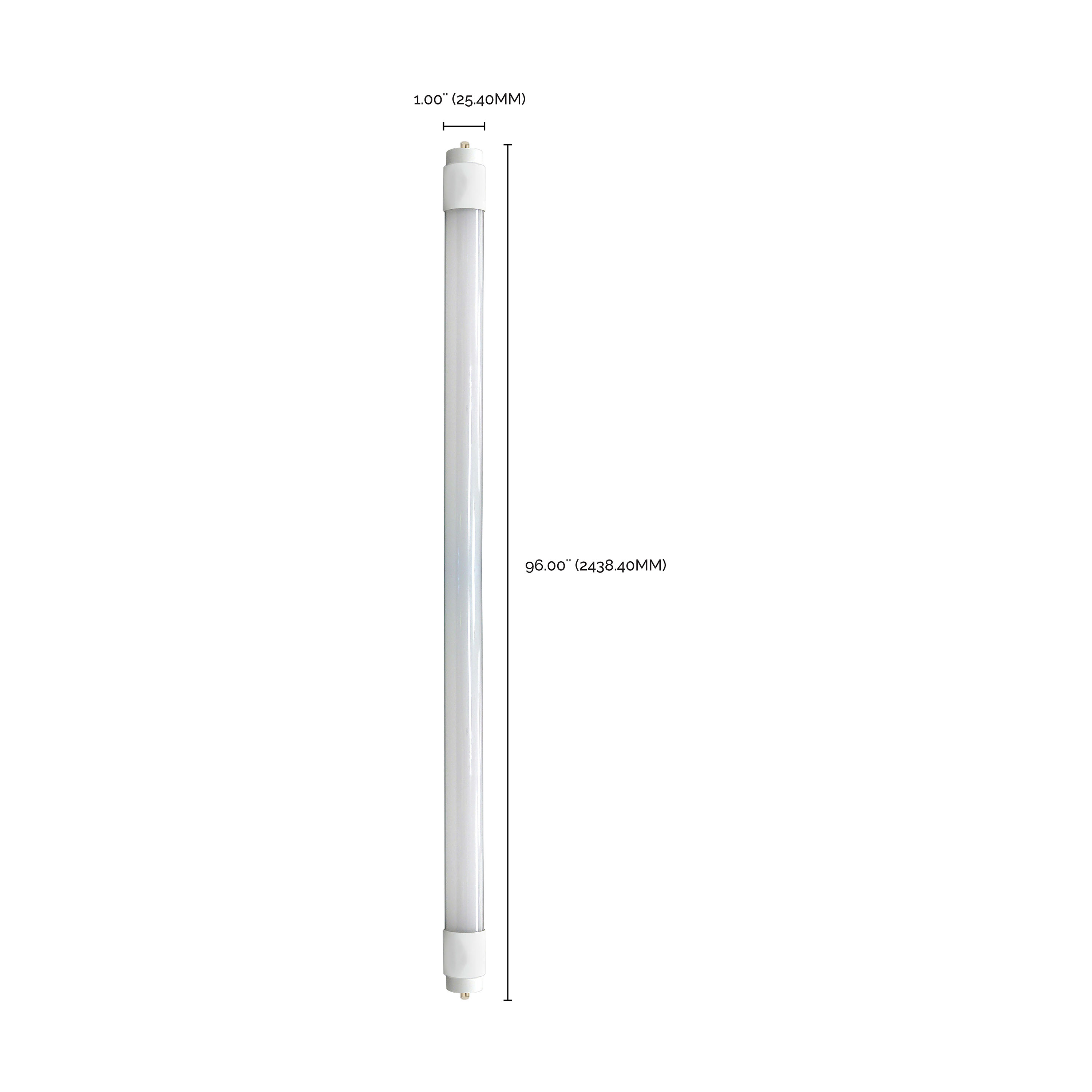

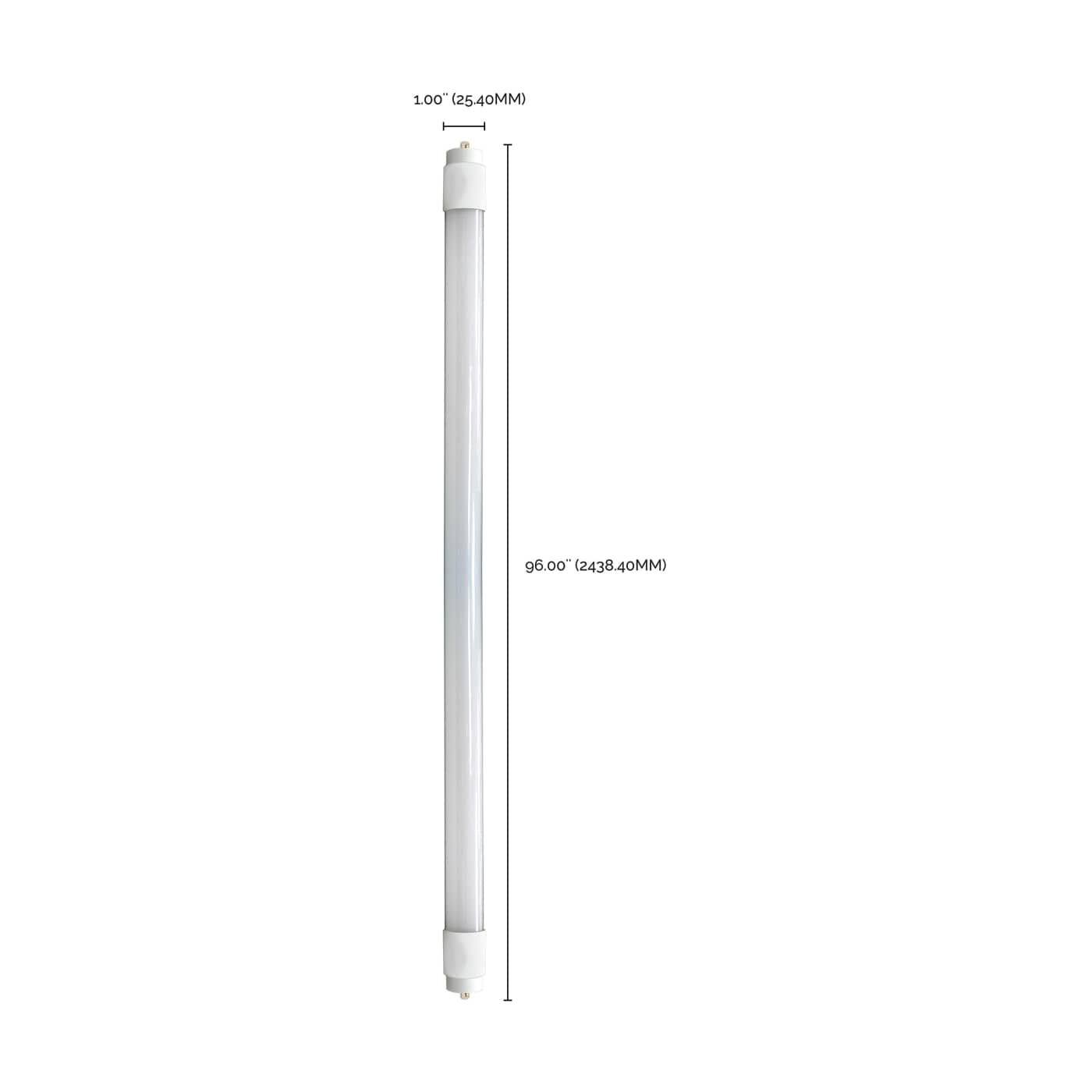

Nominal Length96.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv59W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)5000K
Hours Rated50000
Beam Angle (degree)210
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens3500L
Volts120V-277V
Watts24W
Physical
Lamp BaseSingle Pin
FinishWHITE
Housing ColorWhite
ANSI BaseFa8
Lamp TypeT8
MOD Lamps1.0
MOL93.88
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDPLD2OH5KIHQF
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119590
Case Cube1.619
Case Height3.86
Case Length95.87
Case Quantity10
Case UPC10045923119597
Case Weight11.87
Case Width7.56
EA Cube0.0544
EA Height1.0
EA Length94.0
EA Quantity1
EA Weight0.9
EA Width1.0
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length93.88
Web Width1.0
