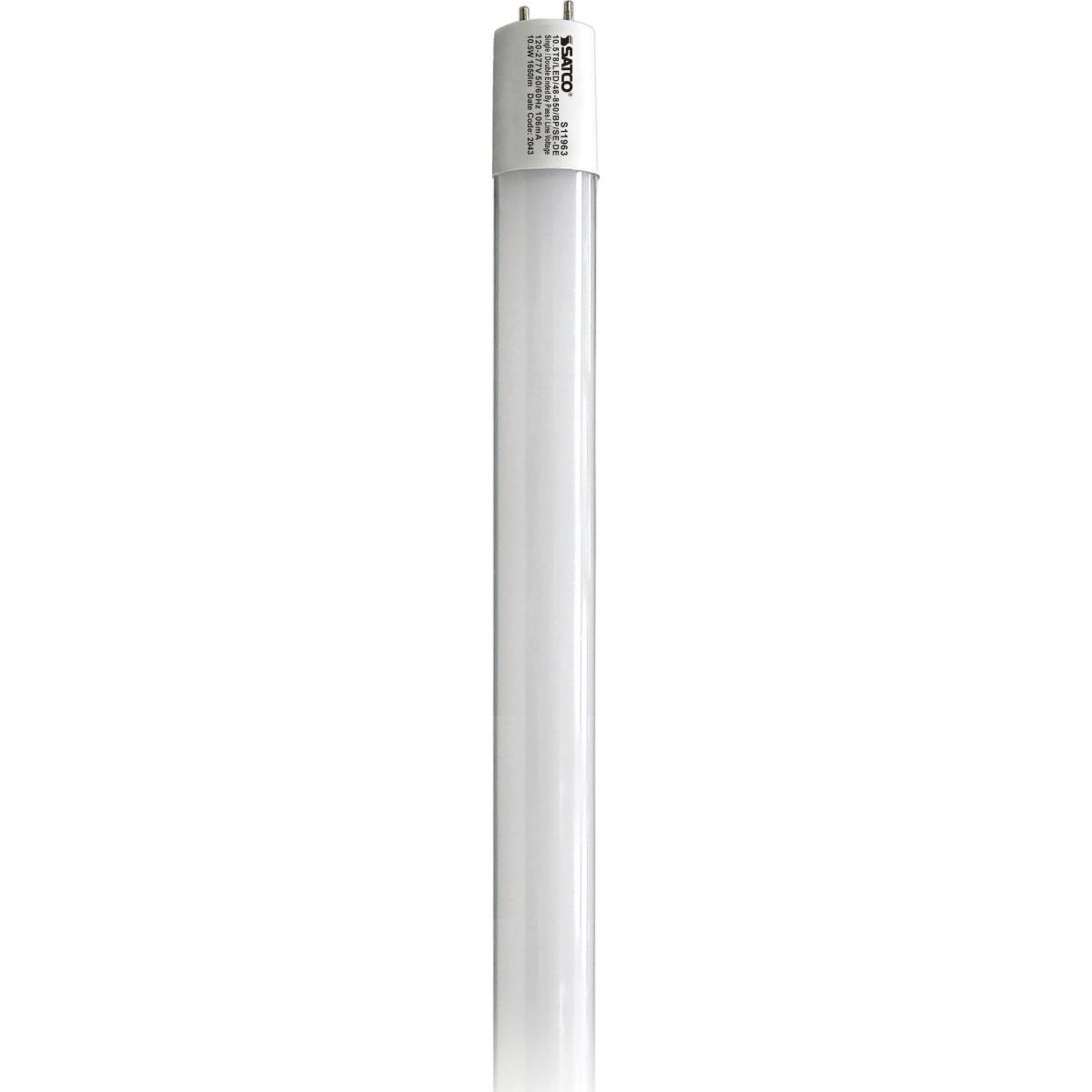

S11963 10.5T8/LED/48-850/BP/SE-DE

S11963

10.5T8/LED/48-850/BP/SE-DE

10.5 Watt T8 LED; 4Ft; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring


SATCO|NUVO's 10.5-watt, 4 foot, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 210 degree beam spread and high lumens count for superior illumination. This gloss white bulb is versatile and delivers 50,000 hours of natural white light.
  • Single or double ended wiring
  • All-glass tube
  • Direct wire 120-277 line voltage
  • Damp location rated
  • DLC listed
  • Long life - 50000 hours
Lights

S11963

10.5T8/LED/48-850/BP/SE-DE

10.5 Watt T8 LED; 4Ft; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

SATCO|NUVO's 10.5-watt, 4 foot, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 210 degree beam spread and high lumens count for superior illumination. This gloss white bulb is versatile and delivers 50,000 hours of natural white light.
  • Single or double ended wiring
  • All-glass tube
  • Direct wire 120-277 line voltage
  • Damp location rated
  • DLC listed
  • Long life - 50000 hours

Specifications

General
StatusActive
Watts10.5W
Incandescent Equivalent50W
Fluorescent Equivalent25W/28W/32W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss White
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82

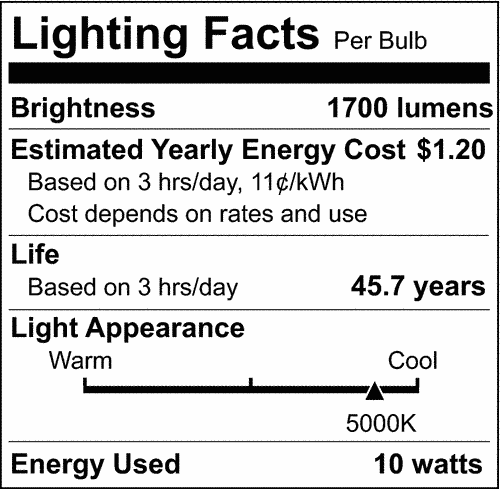

Lumens1700L
Beam Spread210
Hours Rated50000
Product CategoryT8
Lamp TypeT8
TechnologyLED
Electrical
Watts10.5W
Incandescent Equivalent50W
Fluorescent Equivalent25W/28W/32W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1700L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL47.78
MOD1.1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
MaterialGlass
Lens FinishGloss White
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.44
Additional Information
Tube Guard UseApproved for use with tube guards
Installation NotesNot for use in vapor tight fixtures.
Specification NoteBuilt-in shock resistant circuit - (not hot until both ends are installed)
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLYMV9KLI0MX
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
Flicker FreeYes
SDS SheetLED Lamp
Packaging
Each UPC045923119637
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.58
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119634
Case Quantity25
Case Length (in.)49.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)14.40
Case Cube (CuFt.)1.0208
