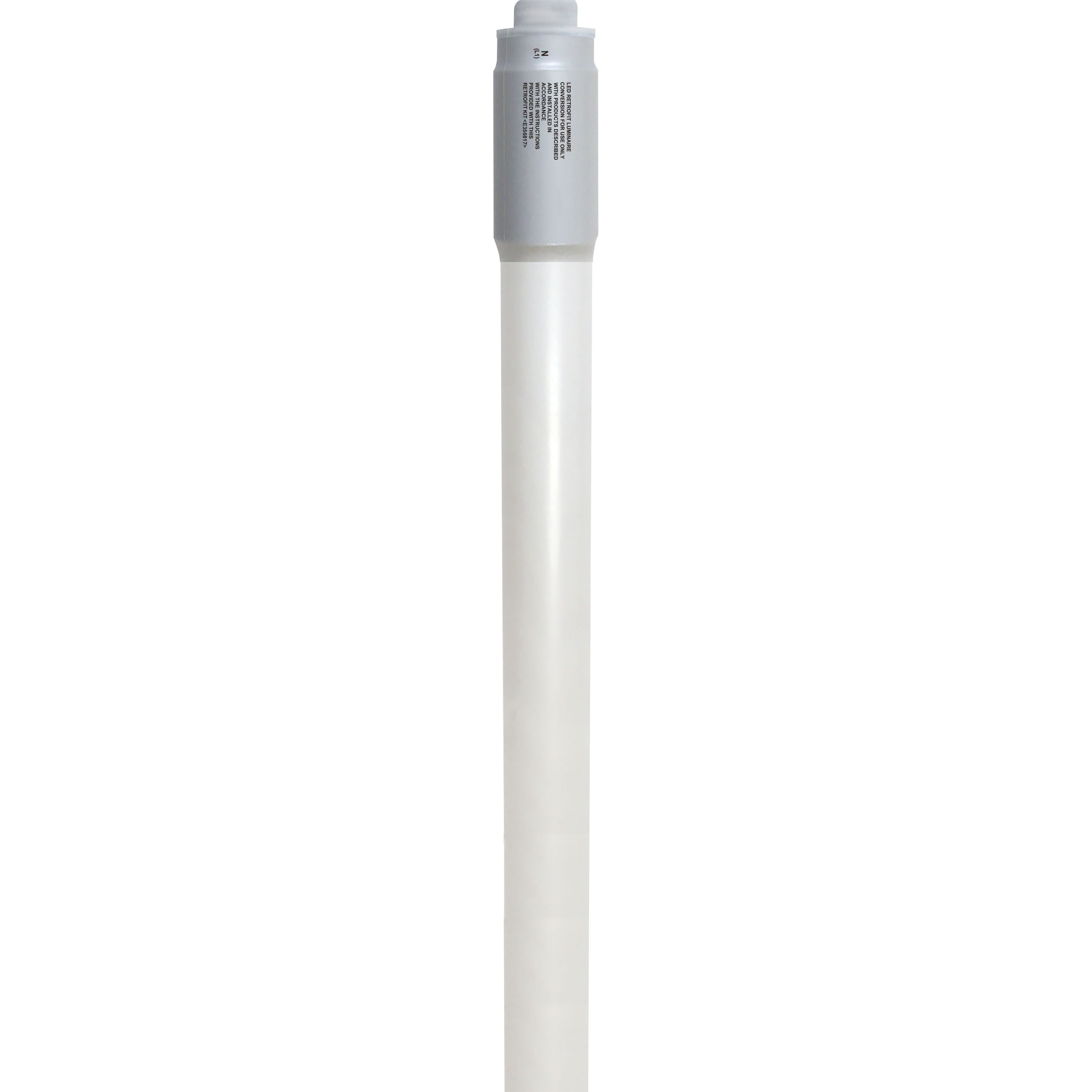

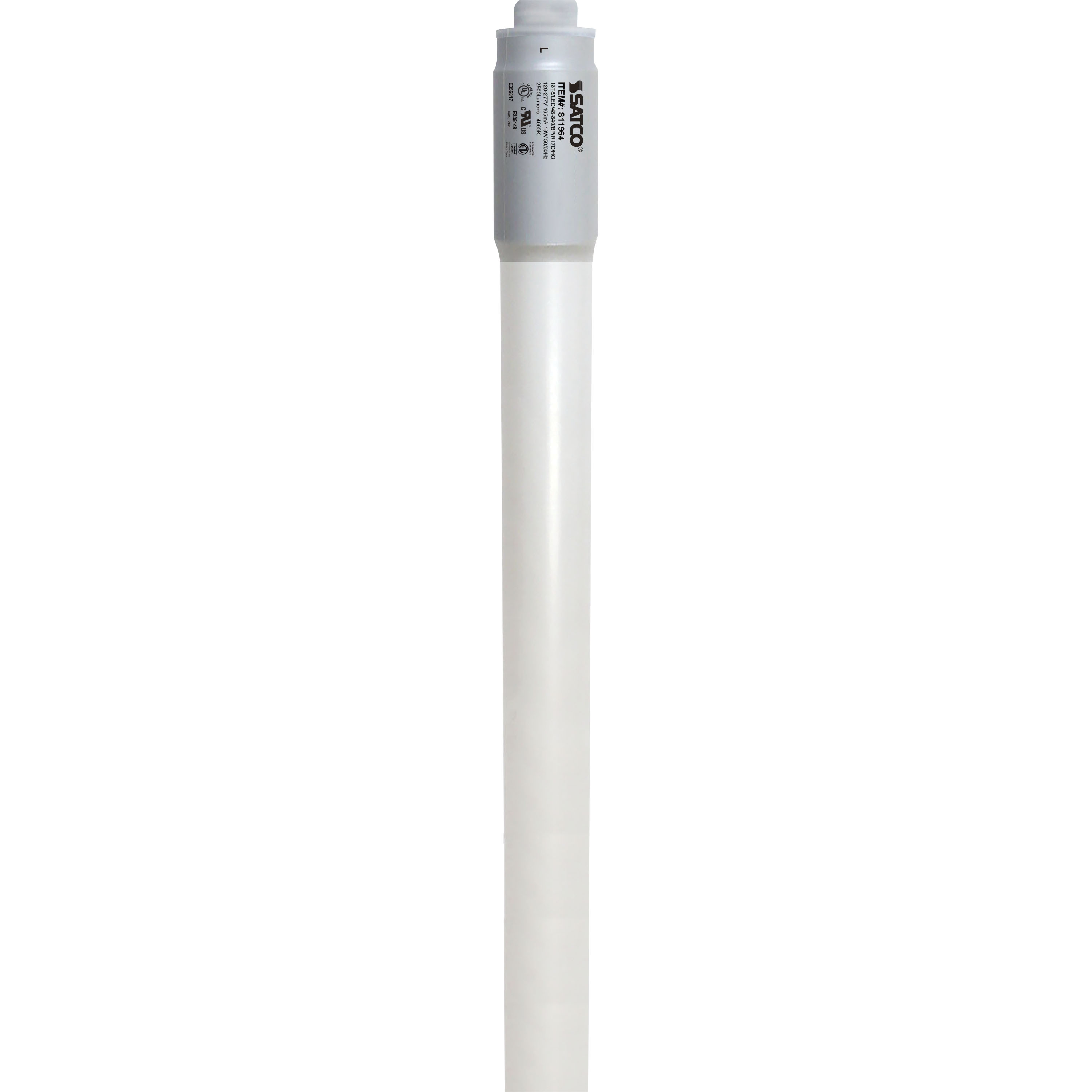

18T8/LED/48-840/BP/R17D/HO - S11964
18T8/LED/48-840/BP/R17D/HO - S11964
18T8/LED/48-840/BP/R17D/HO - S11964
S11964

18T8/LED/48-840/BP/R17D/HO

  • 18 Watt T8 LED
  • 4 Foot
  • 4000K
  • Recessed Double Contact base
  • 50000 Average rated hours

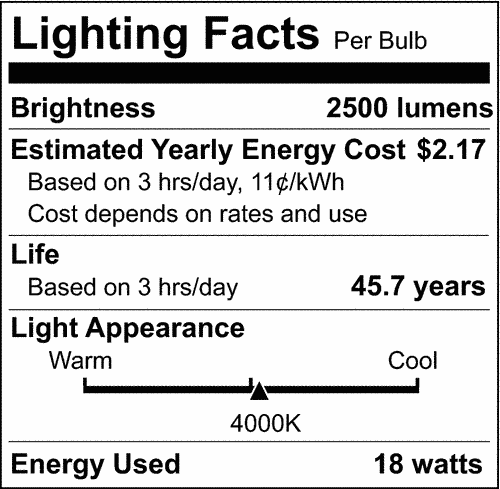

  • 2500 Lumens
  • Type B
  • Ballast Bypass
  • Double Ended Wiring
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
beam_angle^160^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11964 SpecificationsS11964 Photometrics.iesS11964 Ballast Compatibility Chart.pdf
Tools
Lighting Layout Analysis For S11964
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
18 Watt T8 LED; 4 Foot; 4000K; Recessed Double Contact base; 50000 Average rated hours; 2500 Lumens; Type B; Ballast Bypass; Double Ended Wiring
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.7KV
Total Harmonic Distortion25%
Tube Guard UseYes
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.150-0.065A
Has CameraNo
IOT EnabledNo
Lens FinishWhite
Lens MaterialGlass

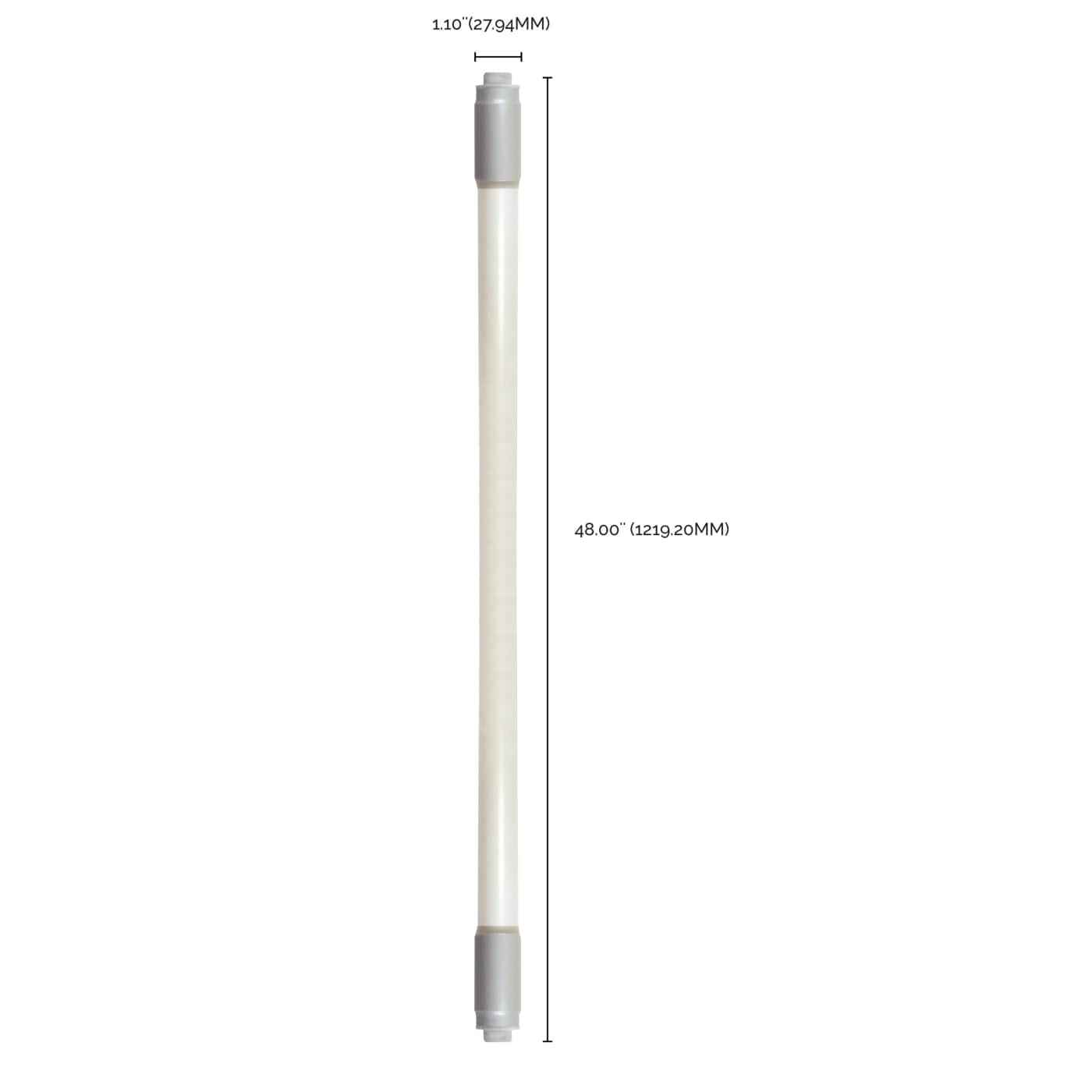

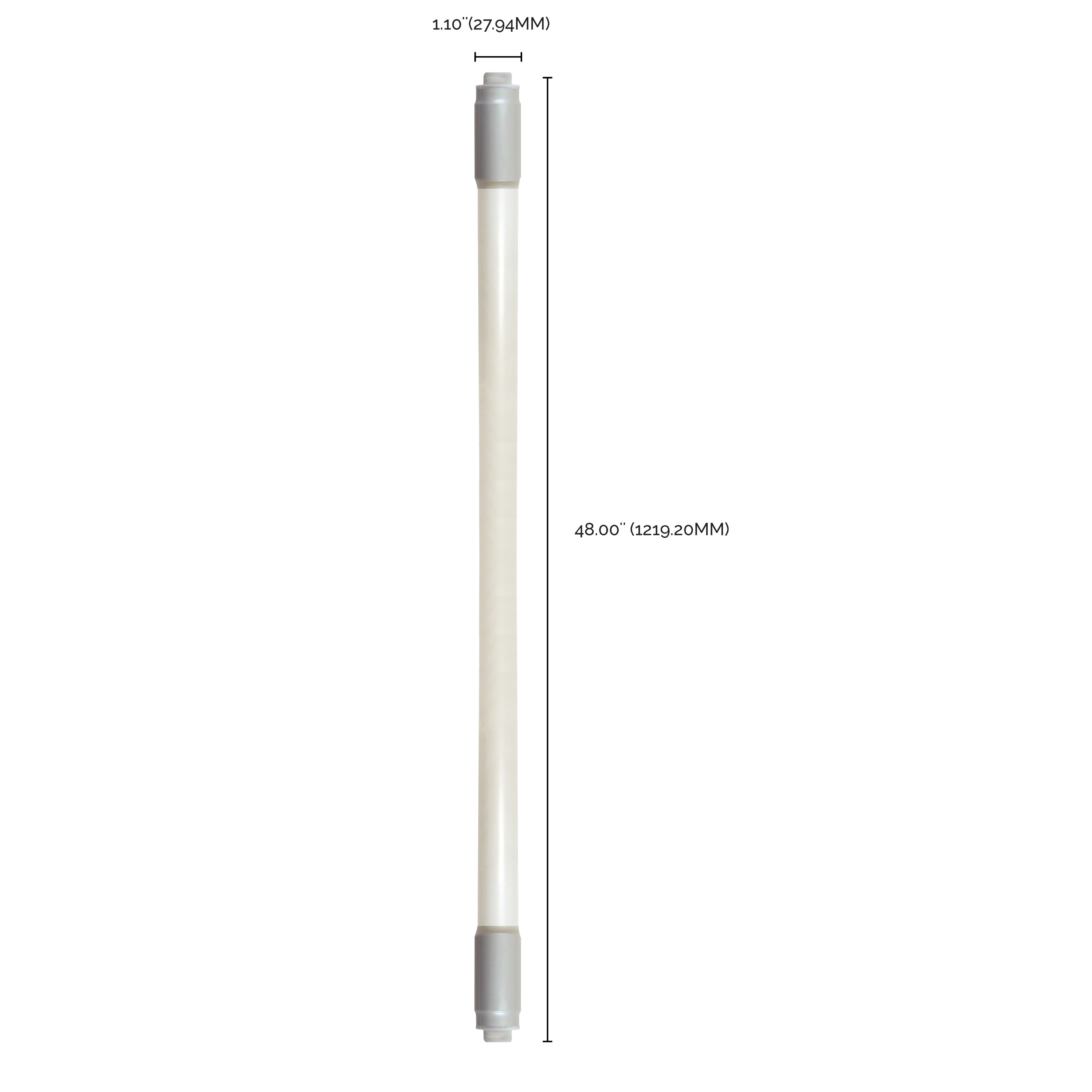

Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv63W
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)160
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens2500L
Volts120V-277V
Watts18W
Physical
Lamp BaseRecessed Double Contact HO/VHO
FinishWHITE
Housing ColorWhite
ANSI BaseR17d
Lamp TypeT8
MOD Lamps1.1
MOL46.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
Bug RatingB0-U0-G0
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119644
Case Cube1.089
Case Height4.92
Case Length48.6
Case Quantity10
Case UPC10045923119641
Case Weight9.9
Case Width7.87
EA Cube0.0336
EA Height1.1
EA Length48.0
EA Quantity1
EA Weight0.6
EA Width1.1
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeEgg Crate
Web Length46.0
Web Width1.1
