» S11966

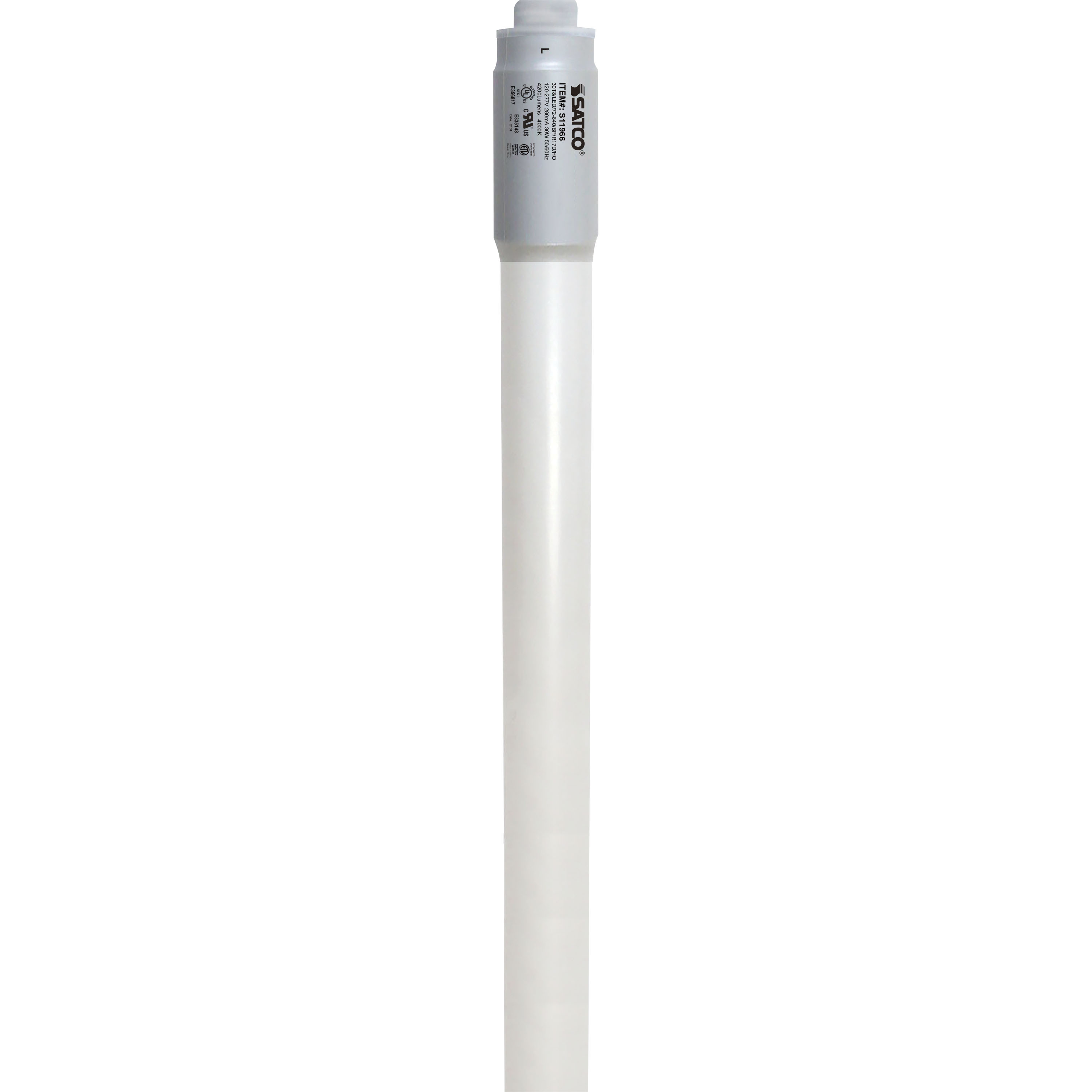

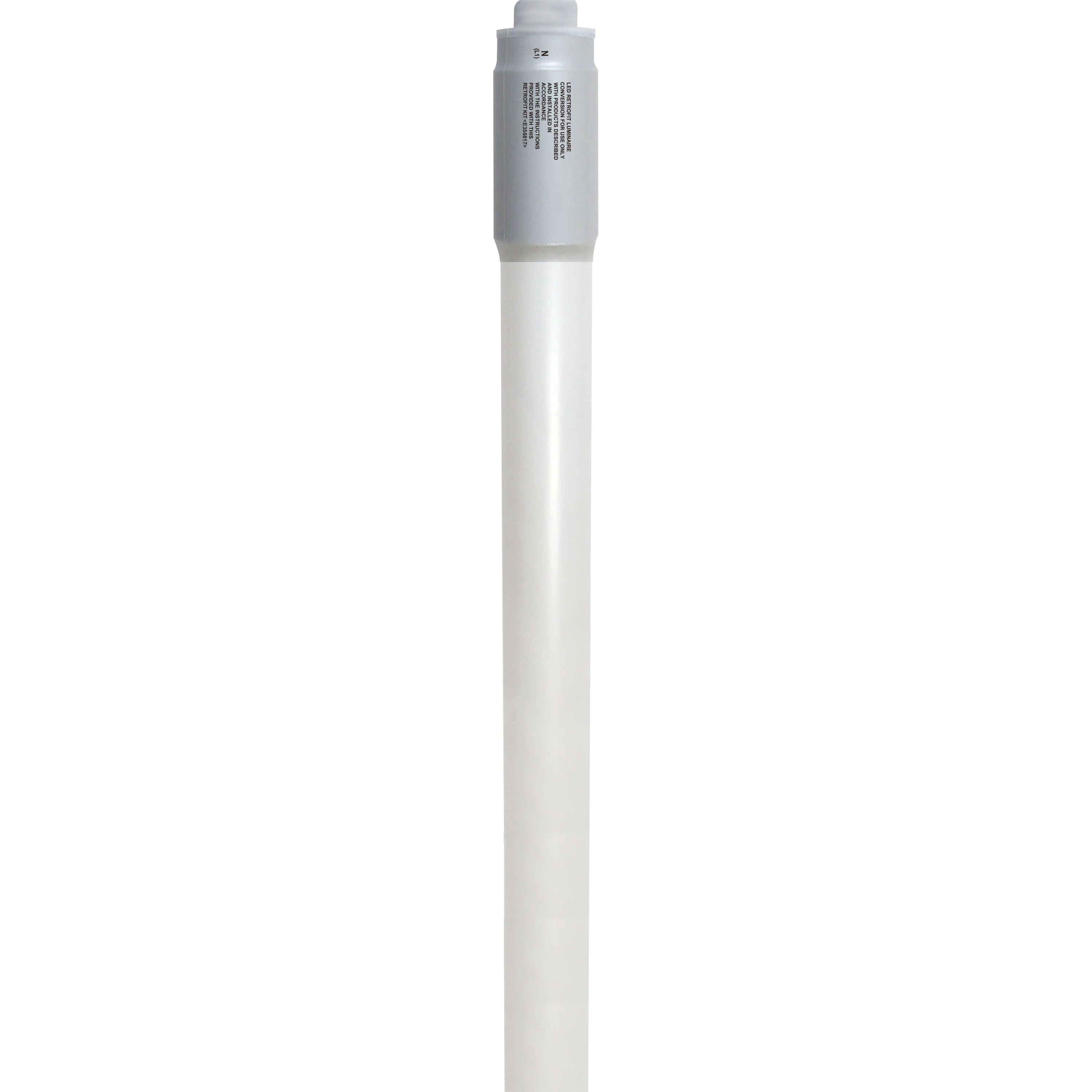

S11966 30T8/LED/72-840/BP/R17D/HO

S11966

30T8/LED/72-840/BP/R17D/HO

30 Watt T8 LED; 6 Foot; 4000K; Recessed Double Contact base; 50000 Average rated hours; 4200 Lumens; Type B; Ballast Bypass; Double Ended Wiring


Satco's 30-watt, 6 foot, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. This frosted bulb is versatile and delivers 50,000 hours of cool white light.
  • Shatterproof PET coated
  • All-glass tube
  • Double-ended wiring
  • ETL listed - conforms to NSF standards
  • Long life -- 50000 hours
  • Five year warranty
Lights

S11966

30T8/LED/72-840/BP/R17D/HO

30 Watt T8 LED; 6 Foot; 4000K; Recessed Double Contact base; 50000 Average rated hours; 4200 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Satco's 30-watt, 6 foot, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. This frosted bulb is versatile and delivers 50,000 hours of cool white light.
  • Shatterproof PET coated
  • All-glass tube
  • Double-ended wiring
  • ETL listed - conforms to NSF standards
  • Long life -- 50000 hours
  • Five year warranty

Specifications

General
StatusActive
Watts30W
Incandescent Equivalent125W
Fluorescent Equivalent87W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseRecessed Double Contact HO/VHO
ANSI BaseR17d
Nominal Length72
FinishFrost
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens4200L
Beam Spread160
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts30W
Incandescent Equivalent125W
Fluorescent Equivalent87W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens4200L
Beam Spread160
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
THD25%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL70
MOD1.1
Nominal Length72
ShapeT8
BaseRecessed Double Contact HO/VHO
ANSI BaseR17d
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)1.01
Additional Information
Shatter-Proof TypePET Coated
Tube Guard UseYes
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119668
Each Quantity1

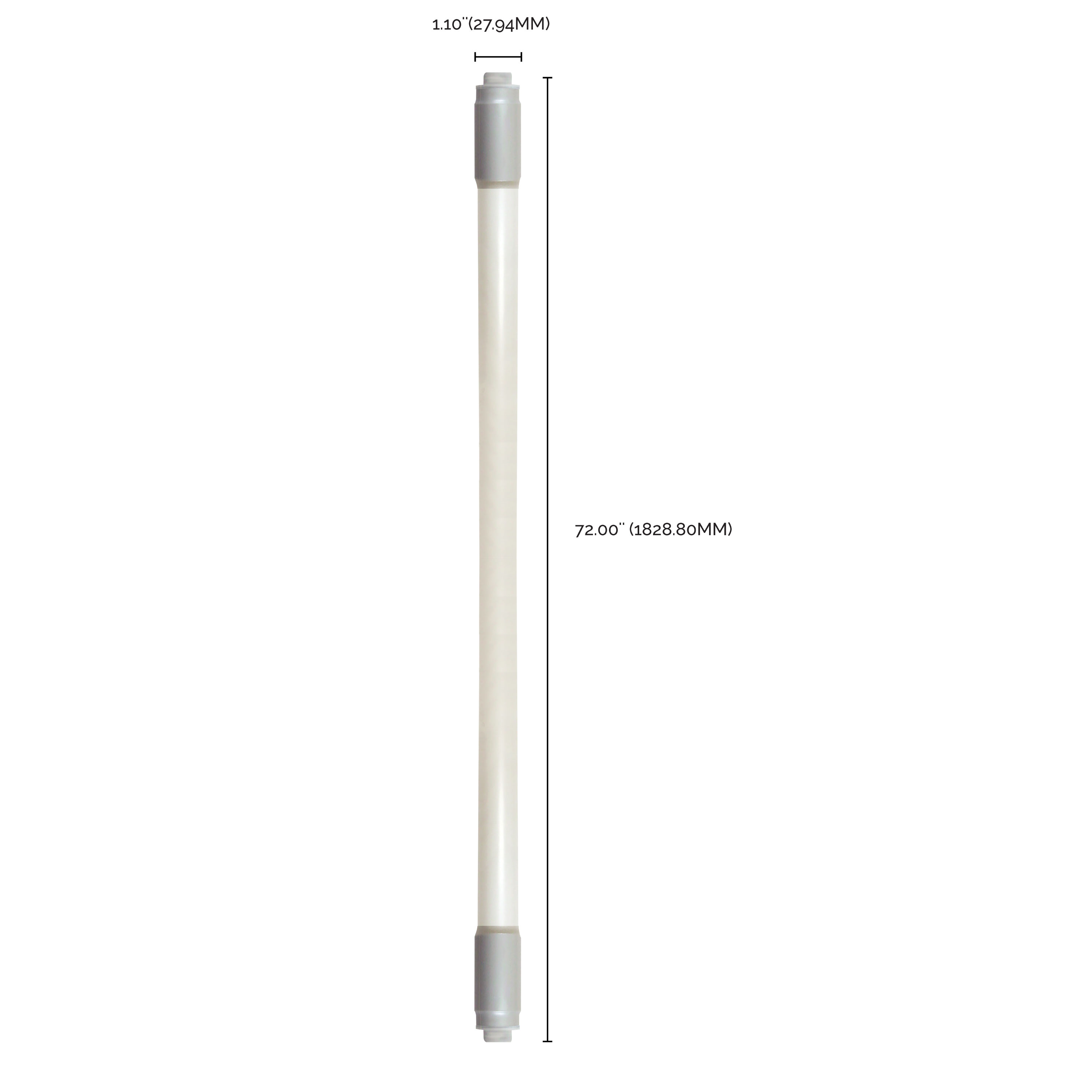

Each Length (in.)72.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)1.10
Each Cube (CuFt.)0.0504
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119665
Case Quantity10
Case Length (in.)74.60
Case Width (in.)7.87
Case Height (in.)4.92
Case Weight (lb.)11.00
Case Cube (CuFt.)1.6716
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
