» S11971

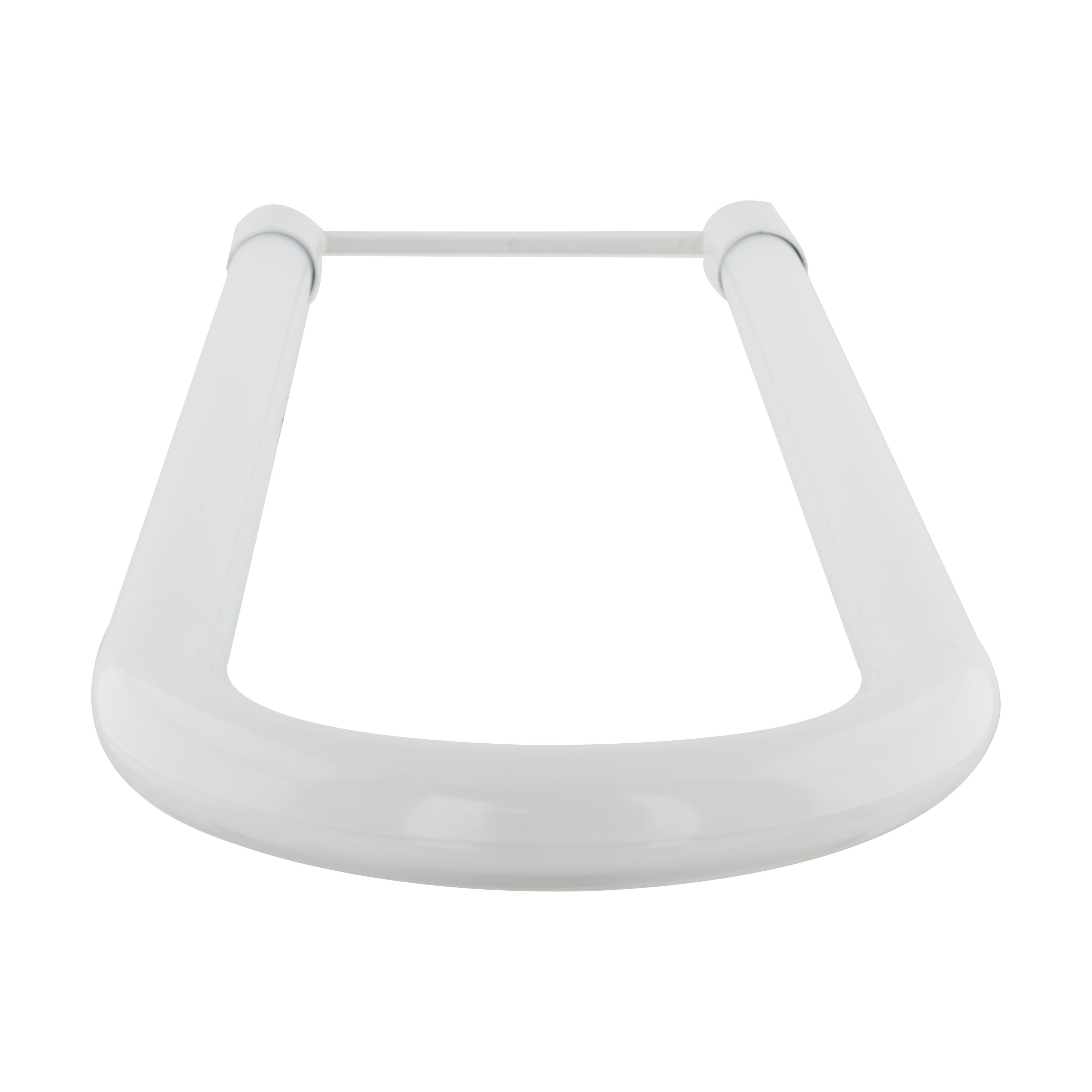

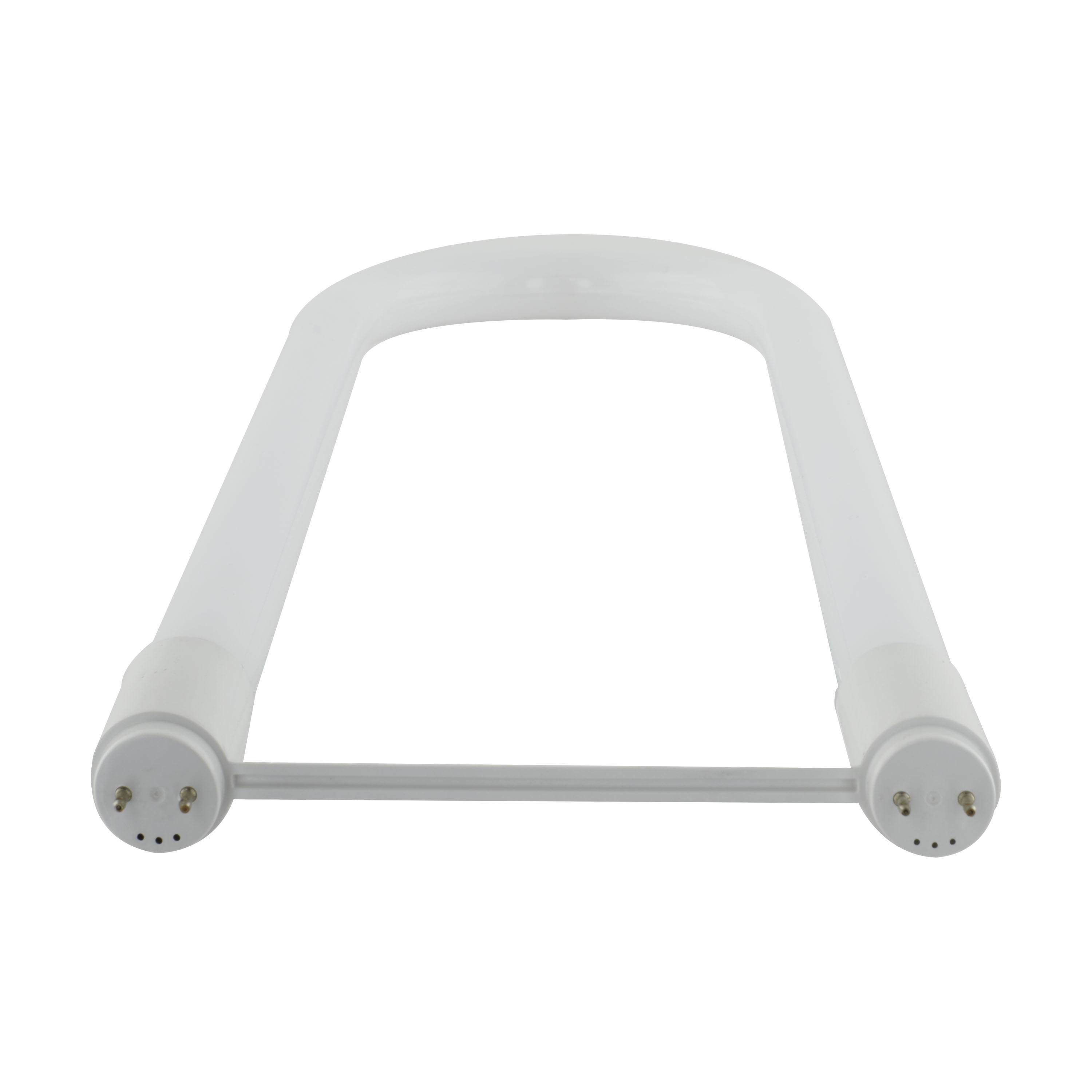

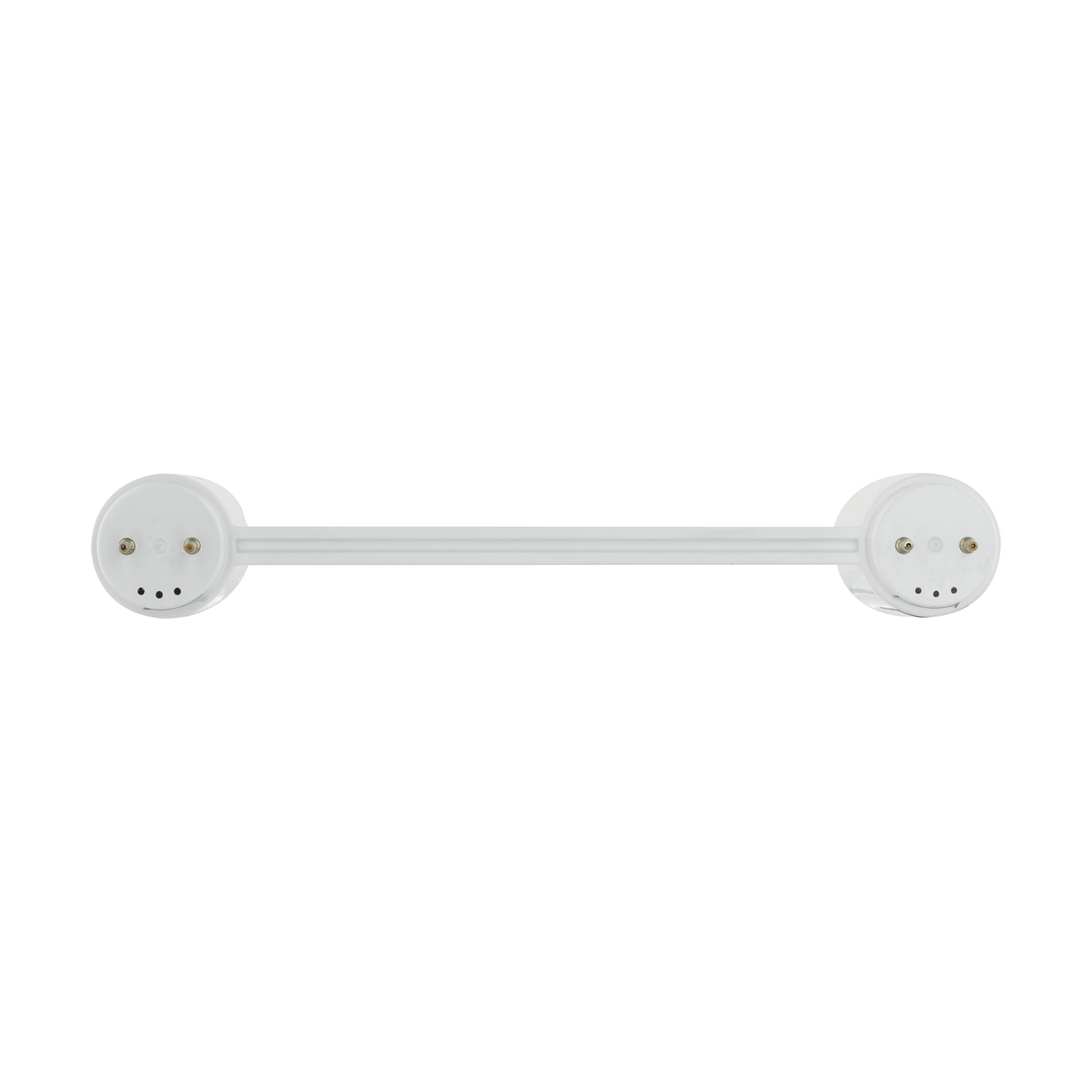

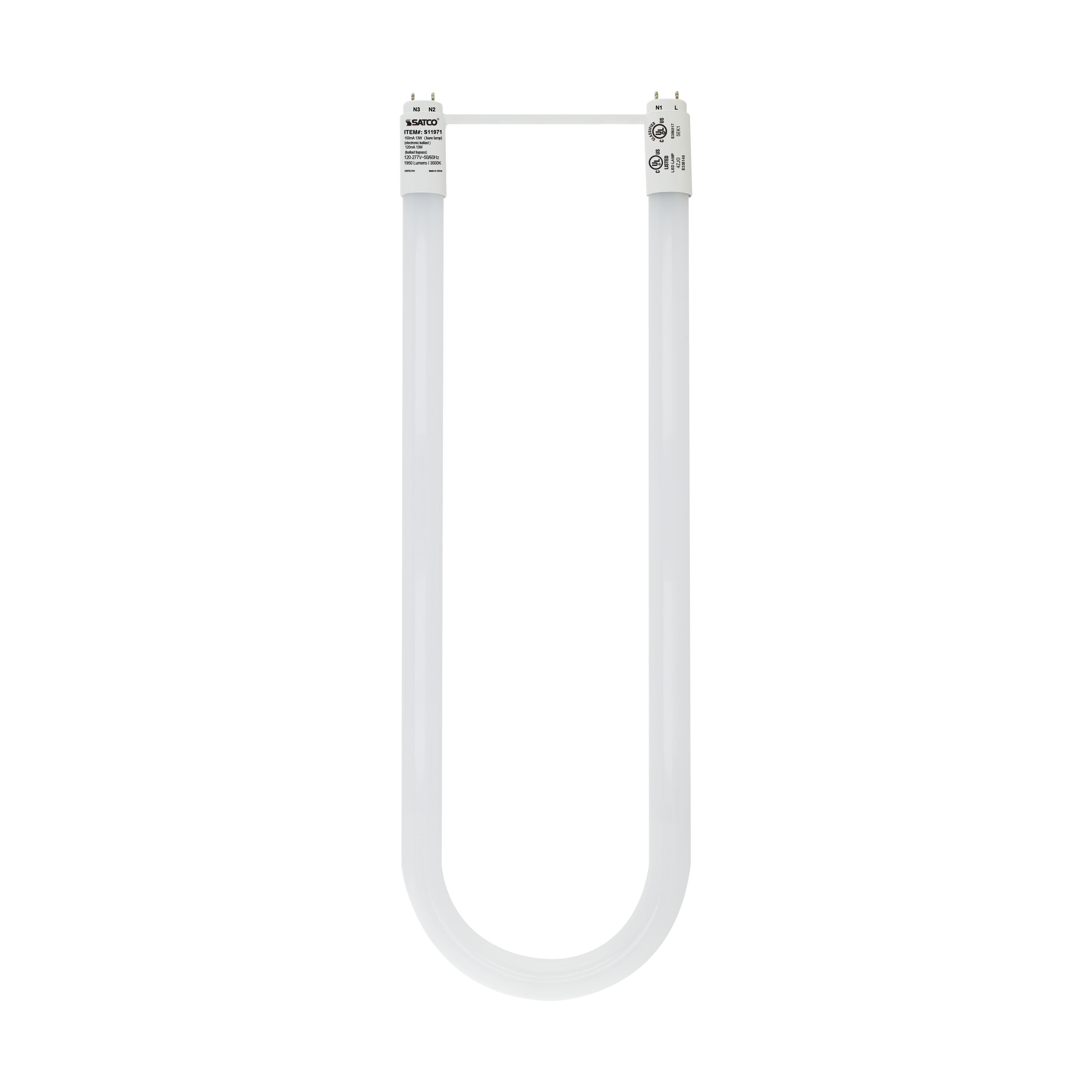

S11971 13T8U6/LED/22.5-835/DUAL

S11971

13T8U6/LED/22.5-835/DUAL

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1950 Lumens; 3500K; Type A/B; Ballast Dependent or Ballast Bypass; Single or Double Ended Wiring

Satco's new 13-watt, 3500K T8 U-bend LED lamp is a direct replacement for fluorescent U-bend lamps in existing fixtures with or without ballasts. Visit www.satco.com for an approved list of dimmable compatibilities. This lamp is rated for use in damp locations and is NSF certified.
  • Up to 60 percent energy savings versus standard T8 systems
  • Ballast compatible and ballast bypass in one lamp
  • Bypass mode works in single or double ended wiring
  • Shatterproof plastic
  • Five year warranty
  • DLC certified
Lights

S11971

13T8U6/LED/22.5-835/DUAL

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1950 Lumens; 3500K; Type A/B; Ballast Dependent or Ballast Bypass; Single or Double Ended Wiring

Satco's new 13-watt, 3500K T8 U-bend LED lamp is a direct replacement for fluorescent U-bend lamps in existing fixtures with or without ballasts. Visit www.satco.com for an approved list of dimmable compatibilities. This lamp is rated for use in damp locations and is NSF certified.
  • Up to 60 percent energy savings versus standard T8 systems
  • Ballast compatible and ballast bypass in one lamp
  • Bypass mode works in single or double ended wiring
  • Shatterproof plastic
  • Five year warranty
  • DLC certified

Specifications

General
StatusActive
Watts13W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType A/B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length22.50
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI83
Lumens1950L
Beam Spread160
DimmableYes-Dimmable
Hours Rated50000
Lamp TypeU-Bend
TechnologyLED
Electrical
Watts13W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60 Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI83
Lumens1950L
Beam Spread160
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
THD25%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL22.50
MOD1.1
Nominal Length22.50
Leg Spacing6
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialPlastic
Lens FinishFrost
Lens MaterialPlastic (PS)
Housing ColorWhite
Weight (lb.)0.91
Additional Information
Shatter-Proof TypeYes
Tube Guard UseYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Classified; cULus - Certified; cULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLD6LILX58CD
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
Colorado StatusLawful for sale
Hawaii StatusLawful for sale
Nevada StatusLawful for sale
Washington StatusLawful for sale
Vermont StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119712
Each Quantity1
Each Length (in.)22.50
Each Width (in.)6.00
Each Height (in.)1.10
Each Weight (lb.)0.99
Each Cube (CuFt.)0.0859
Pack TypeColor Box
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119719
Case Quantity12
Case Length (in.)24.41
Case Width (in.)8.27
Case Height (in.)15.16
Case Weight (lb.)10.60
Case Cube (CuFt.)1.7710
×
×

Ballast Compatibility

Name Type View
U-Bend U Bend View
U Bend Emergency U Bend View
×

Precautions

No precautions available at this time.

×
