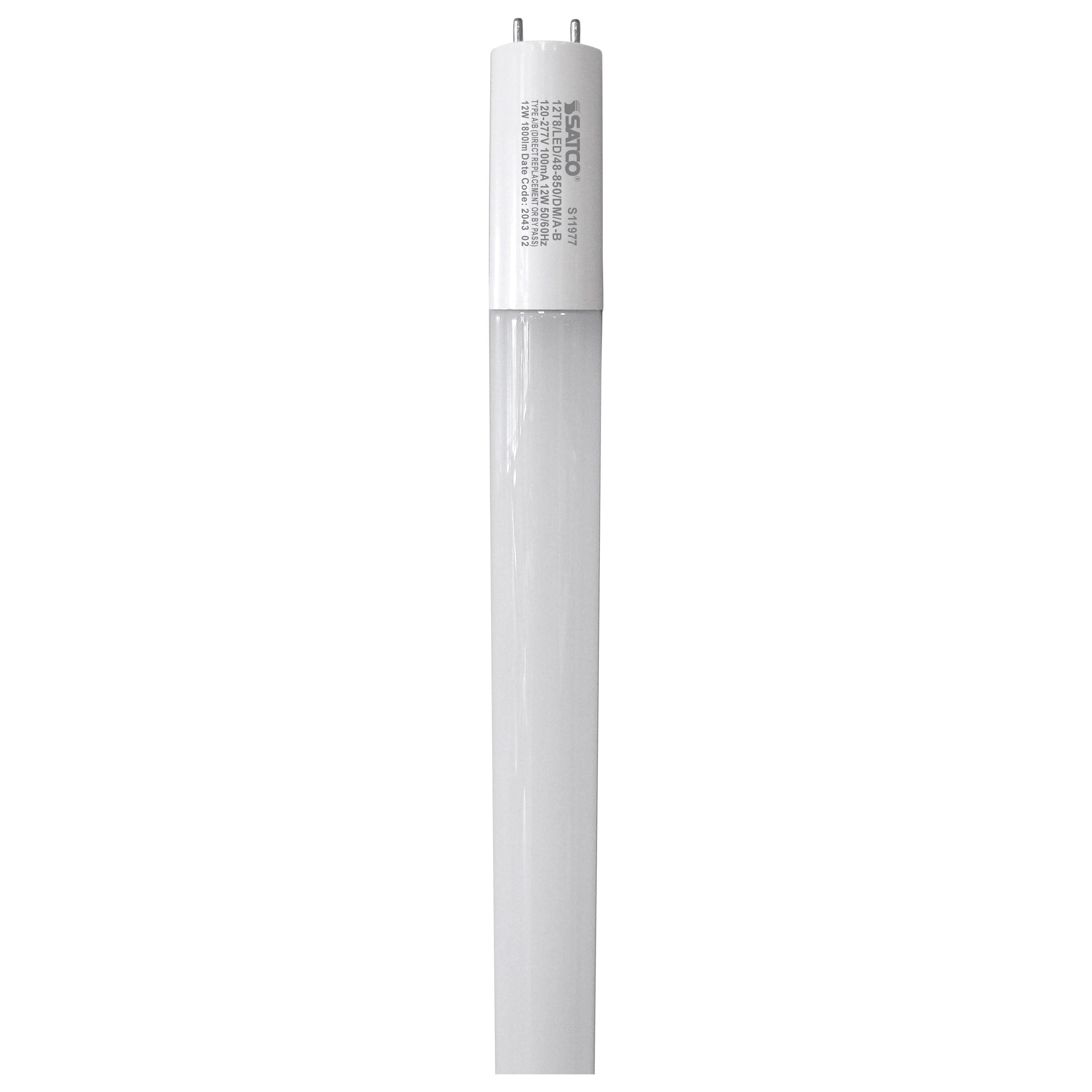

S11977 12T8/LED/48-850/DM/A-B

S11977

12T8/LED/48-850/DM/A-B

12 Watt; 48 Inch; T8 LED; G13 base; Dual Mode Hybrid Type A/B; 5000K; 1800 Lumens


SATCO|NUVO's 12-watt, 4 foot, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 210 degree beam spread and high lumens count for superior illumination. This frosted bulb is versatile and delivers 50,000 hours of natural white light.
  • Brightness: 1800 Lumens
  • Ballast compatible and ballast bypass in one lamp
  • Single or double-ended wiring in bypass mode
  • Protection from arcing
  • All glass tube
  • Damp location rated
  • Light appearance: 5000K (Daylight)
  • Energy Used: Equivalent to a 32 watt linear fluorescent light bulb
  • Compatible with S8000 and S8002 EM drivers in bypass mode
Lights

S11977

12T8/LED/48-850/DM/A-B

12 Watt; 48 Inch; T8 LED; G13 base; Dual Mode Hybrid Type A/B; 5000K; 1800 Lumens

SATCO|NUVO's 12-watt, 4 foot, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 210 degree beam spread and high lumens count for superior illumination. This frosted bulb is versatile and delivers 50,000 hours of natural white light.
  • Brightness: 1800 Lumens
  • Ballast compatible and ballast bypass in one lamp
  • Single or double-ended wiring in bypass mode
  • Protection from arcing
  • All glass tube
  • Damp location rated
  • Light appearance: 5000K (Daylight)
  • Energy Used: Equivalent to a 32 watt linear fluorescent light bulb
  • Compatible with S8000 and S8002 EM drivers in bypass mode

Specifications

General
StatusActive
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType A/B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1800L
Beam Spread210
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1800L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.49
Additional Information
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-N5B9DP
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119774
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.58
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119771
Case Quantity25
Case Length (in.)50.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)14.60
Case Cube (CuFt.)1.0417
×
×

Ballast Compatibility

Name Type View
S11977 Ballast Compatibility Chart LED T-8 View
×

Precautions

No precautions available at this time.

×
