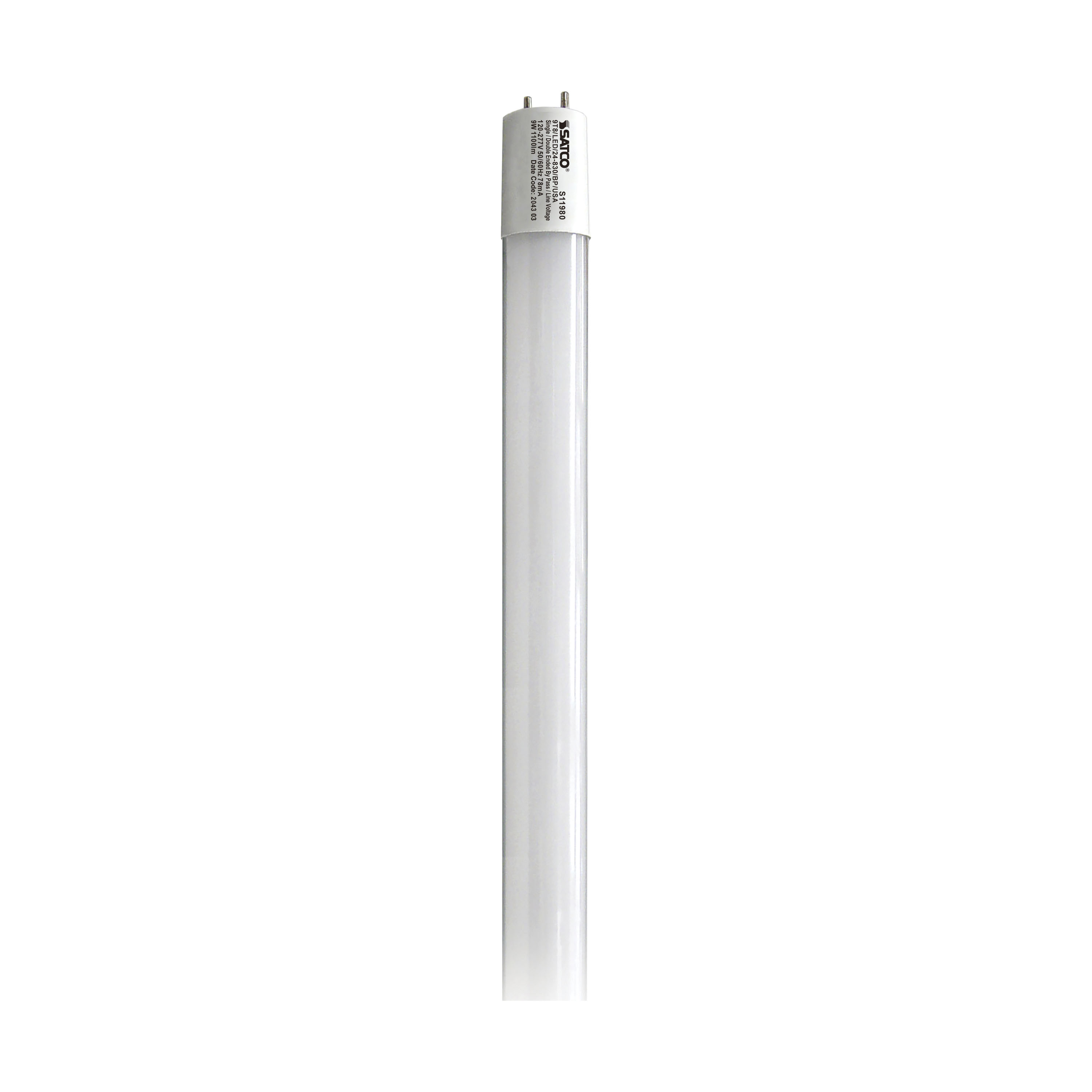

S11980 9T8/LED/24-830/BP/USA

S11980

9T8/LED/24-830/BP/USA

9 Watt; 24 Inch; T8 LED; 3000K; Medium Bi Pin base; 82 CRI; 50000 Average rated hours; Type B Ballast Bypass; 1100 Lumens; Assembled in the USA

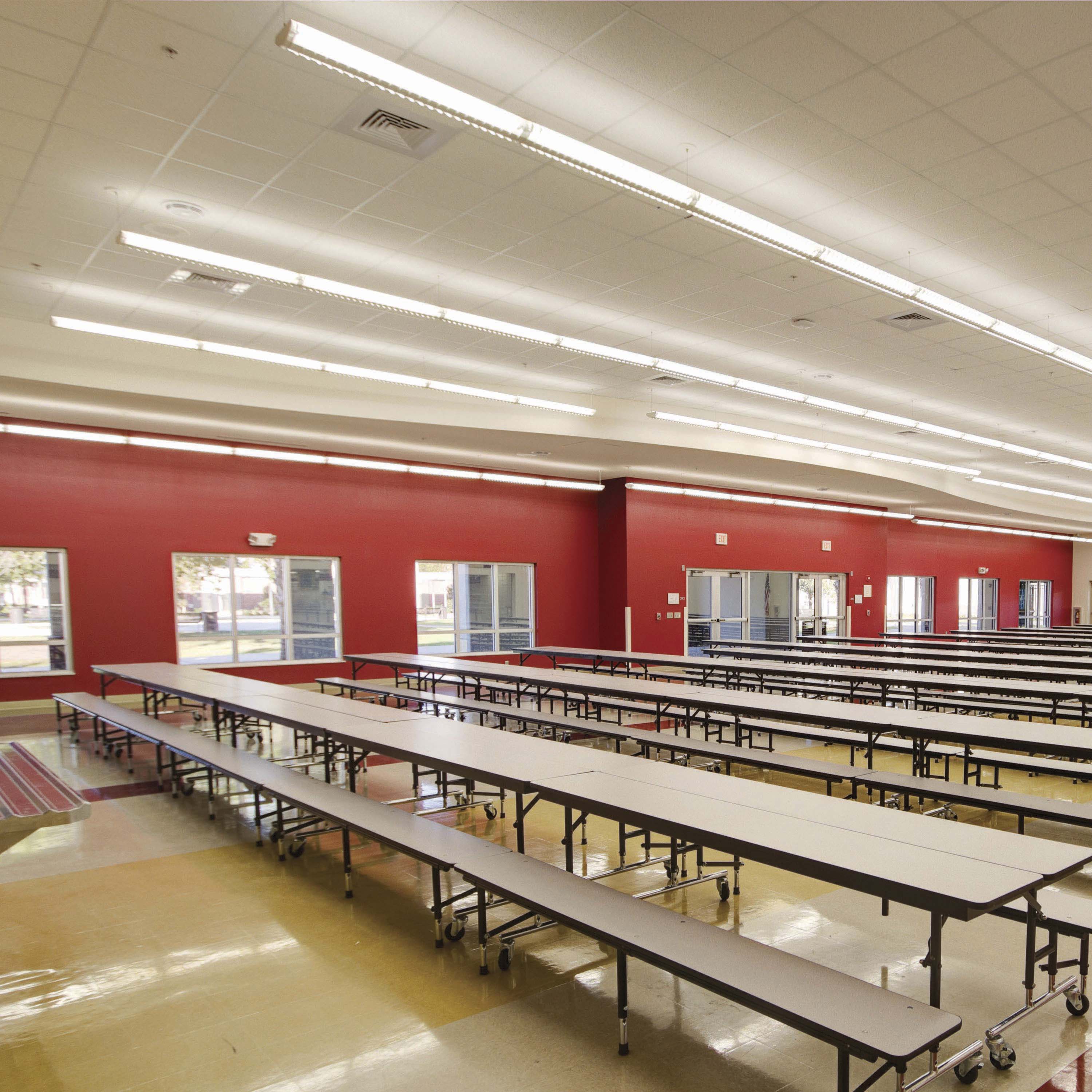

Satco's new generation of Type B ballast bypass lamps, assembled in the USA and designed to replace T8 or T12 medium bi-pin fluorescent lamps, are available in 2-foot, 3-foot, and 4-foot lengths. They are engineered for single or double-ended wiring options and will not light unless the ballast is bypassed. Public venues, schools, libraries, health care, and any large-scale lighting application will benefit from immediate energy savings and less maintenance.
  • Made in the United States
  • BAA - Buy American Act compliant

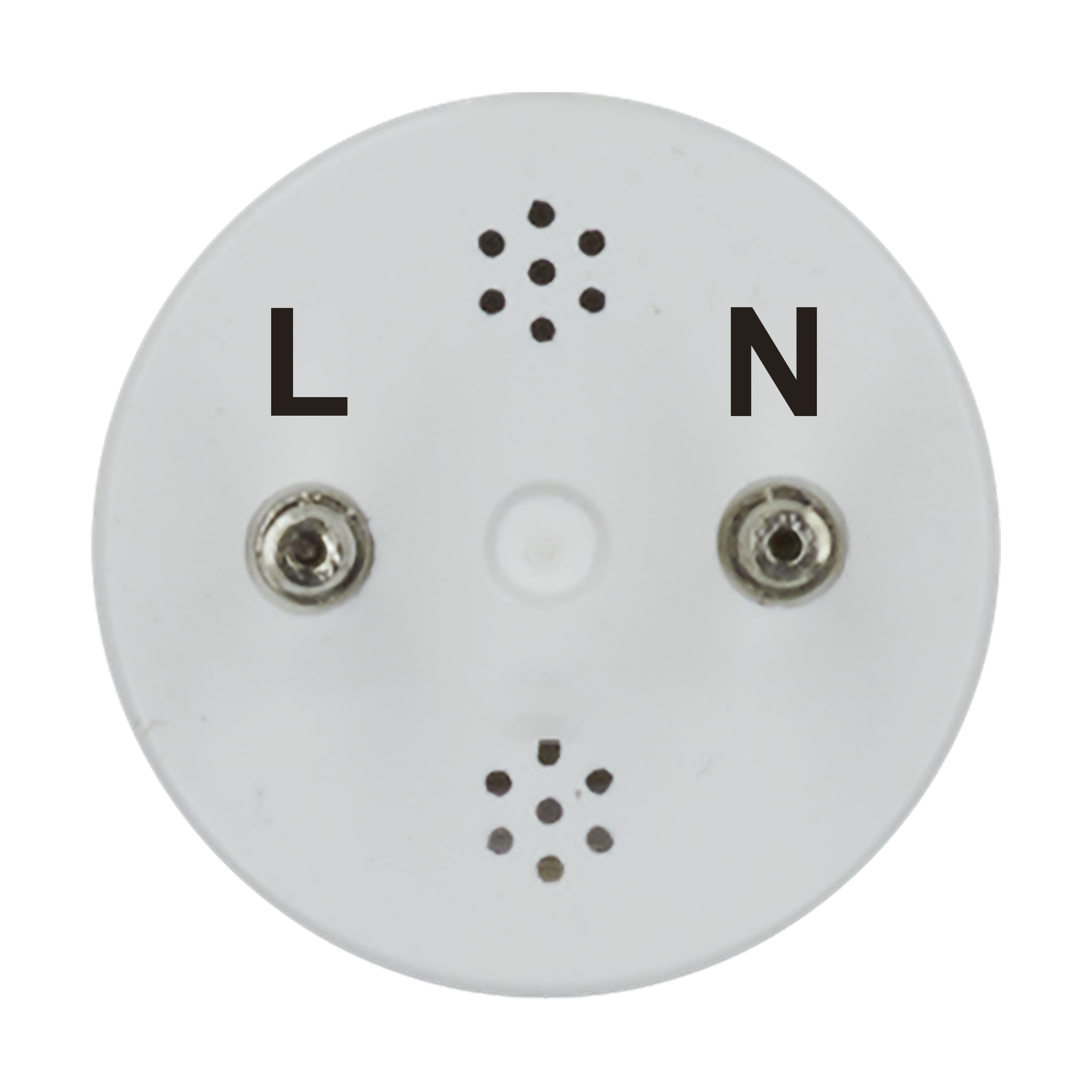

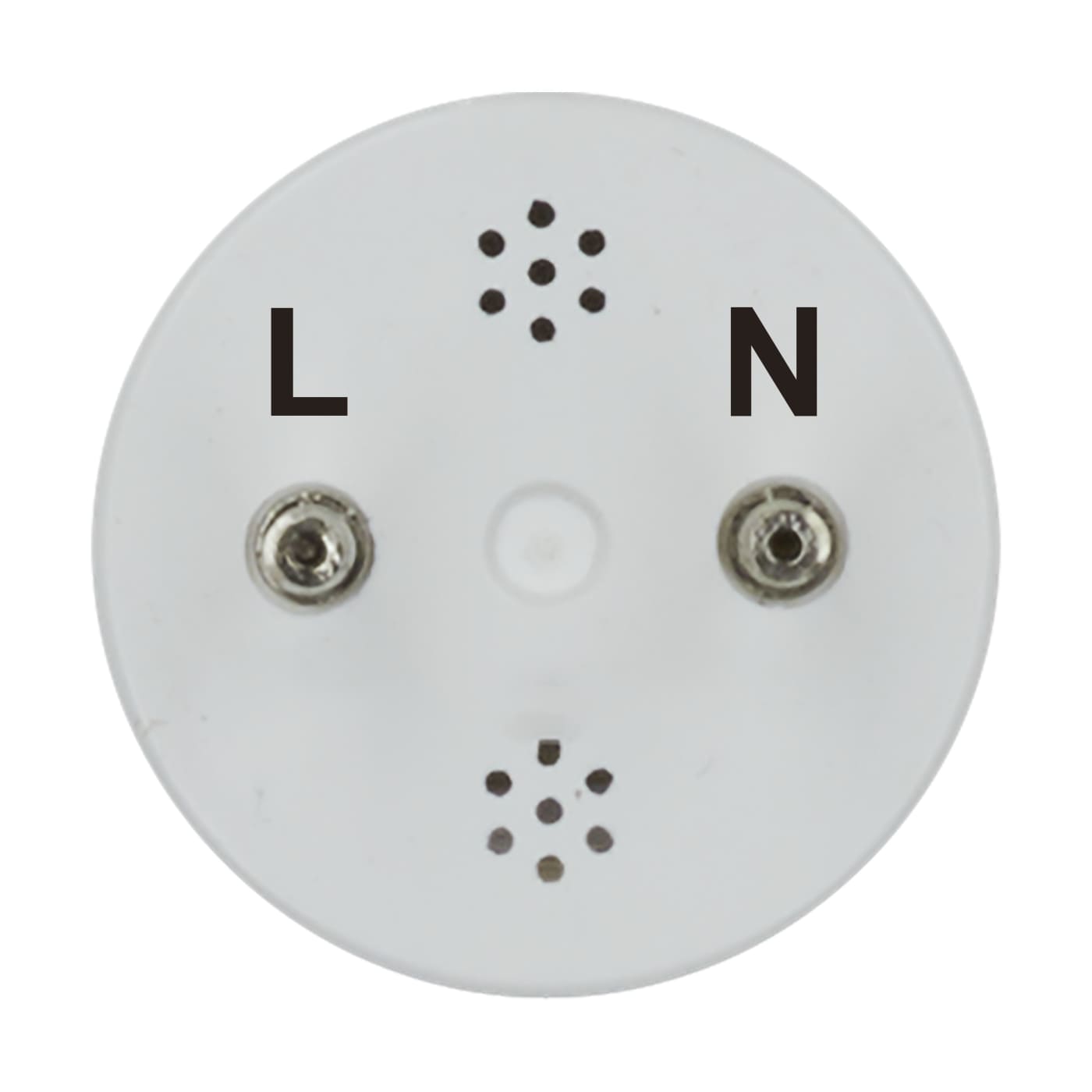

  • Single or double-ended wiring options
  • Suitable for damp locations
  • Direct wire, 120-277V line voltage
  • All-glass tubes
Lights

S11980

9T8/LED/24-830/BP/USA

9 Watt; 24 Inch; T8 LED; 3000K; Medium Bi Pin base; 82 CRI; 50000 Average rated hours; Type B Ballast Bypass; 1100 Lumens; Assembled in the USA

Satco's new generation of Type B ballast bypass lamps, assembled in the USA and designed to replace T8 or T12 medium bi-pin fluorescent lamps, are available in 2-foot, 3-foot, and 4-foot lengths. They are engineered for single or double-ended wiring options and will not light unless the ballast is bypassed. Public venues, schools, libraries, health care, and any large-scale lighting application will benefit from immediate energy savings and less maintenance.
  • Made in the United States
  • BAA - Buy American Act compliant
  • Single or double-ended wiring options
  • Suitable for damp locations
  • Direct wire, 120-277V line voltage
  • All-glass tubes

Specifications

General
StatusActive
Watts9W
Fluorescent Equivalent17W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length24.00
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1100L
Beam Spread210
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts9W
Fluorescent Equivalent17W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1100L
Beam Spread210
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical

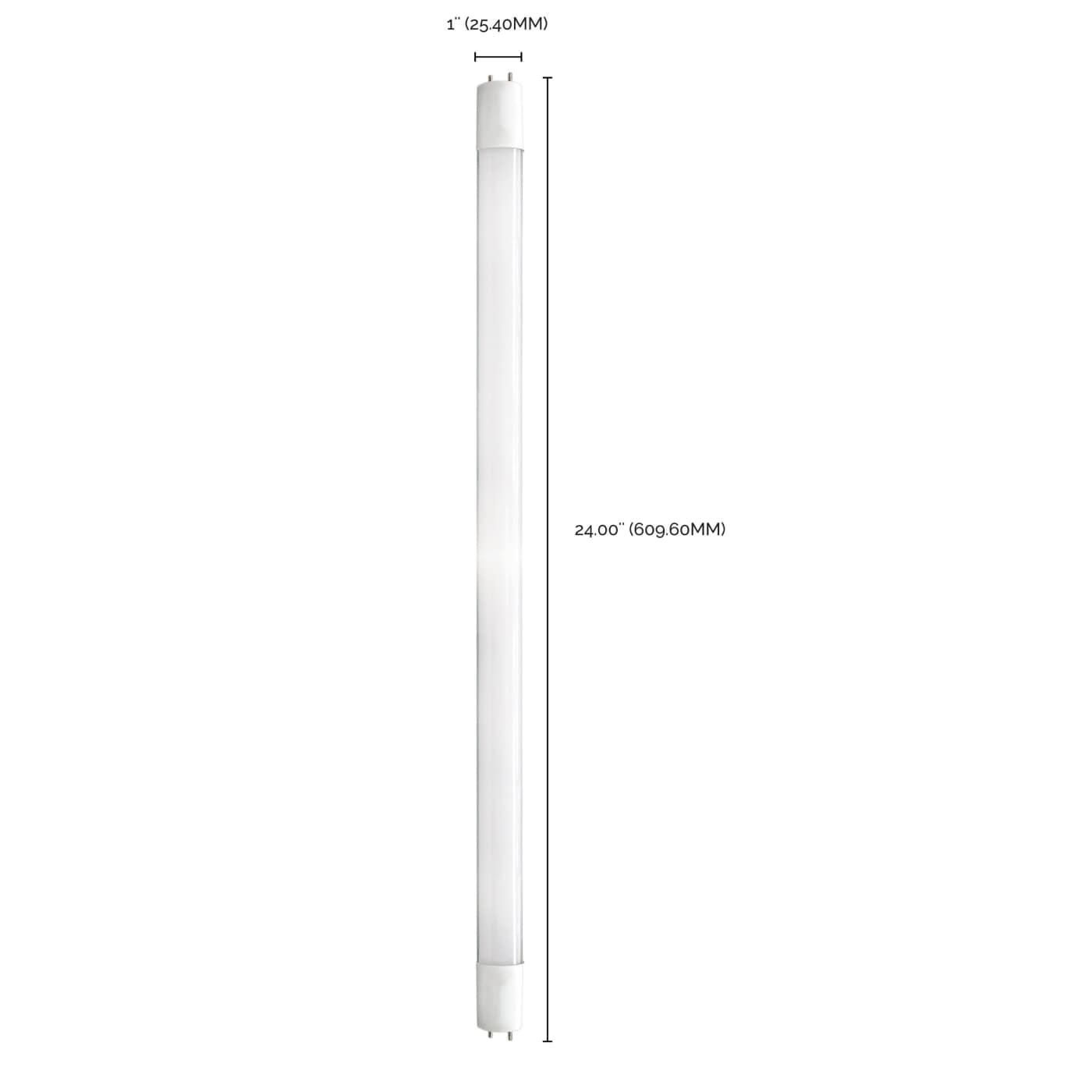

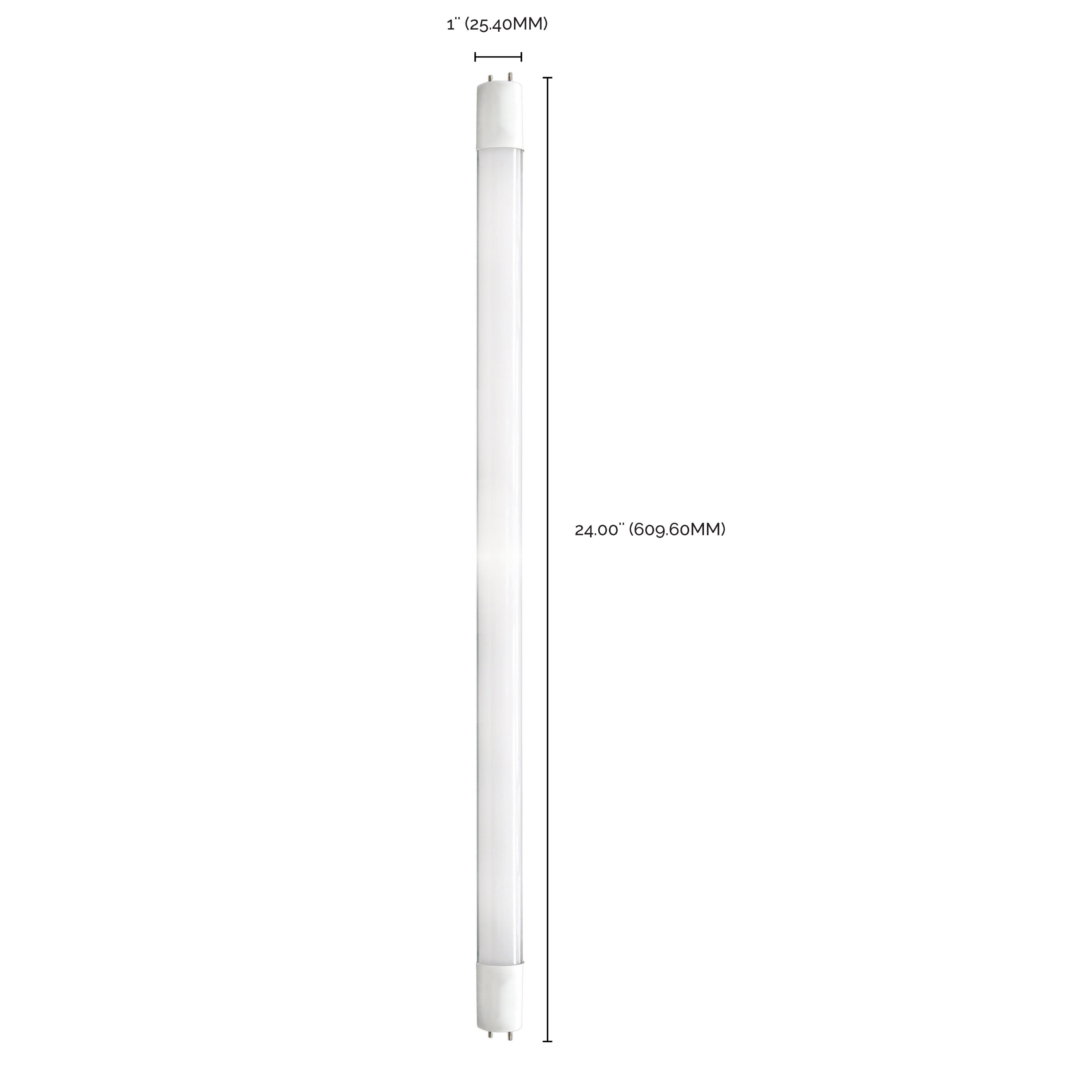

MOL23.78
MOD1.00
Nominal Length24.00
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass / Plastic
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.24
Additional Information
Specification NoteCompatible with S8000 and S8002 LED EM Driver
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcUL - Classified; cUL - Certified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLZM0LZSQTWG
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
Colorado StatusLawful for sale
Hawaii StatusLawful for sale
Nevada StatusLawful for sale
Washington StatusLawful for sale
Vermont StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923119804
Each Quantity1
Each Length (in.)24.00
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.28
Each Cube (CuFt.)0.0139
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923119801
Case Quantity25
Case Length (in.)24.80
Case Width (in.)6.10
Case Height (in.)6.30
Case Weight (lb.)6.88
Case Cube (CuFt.)0.5515
