S11998

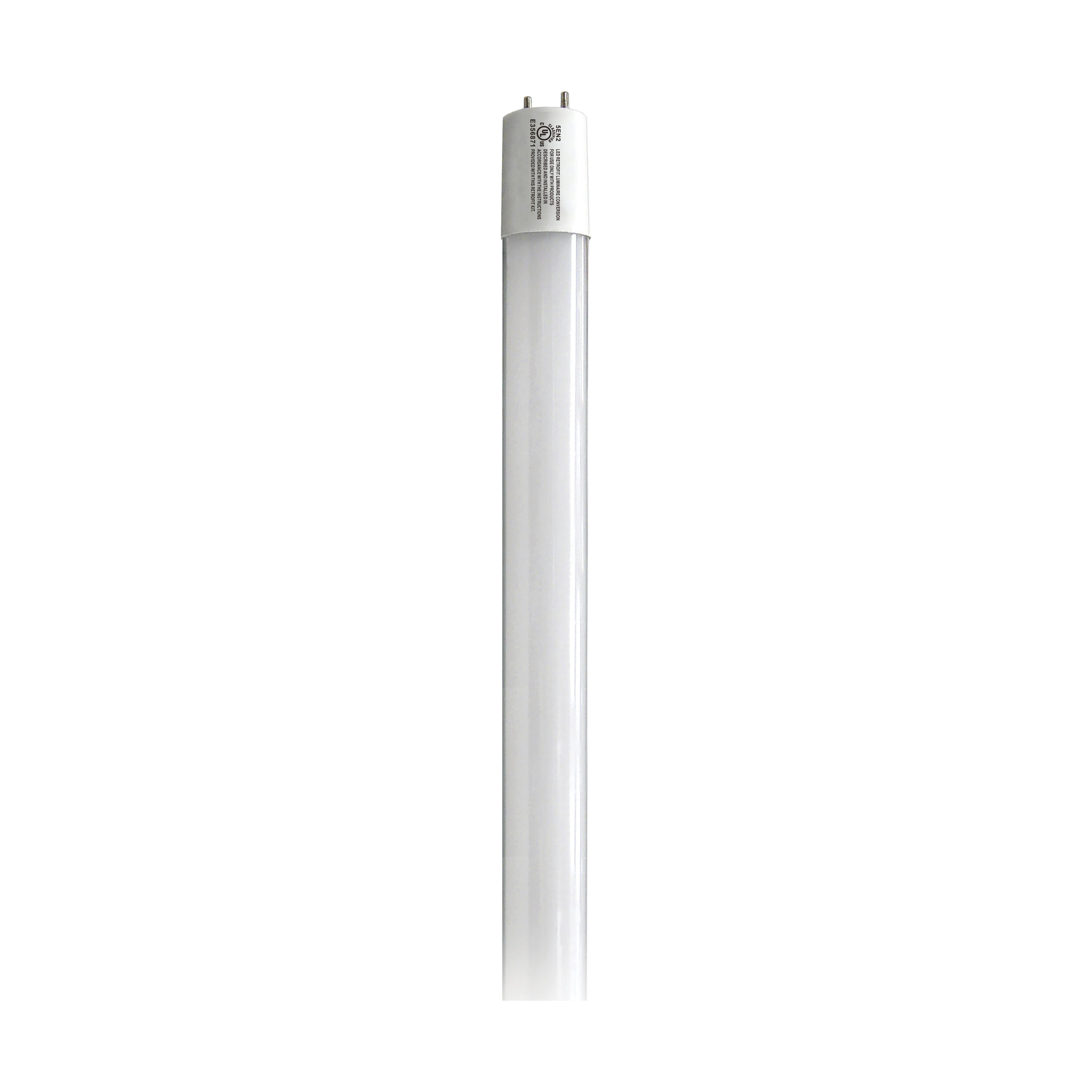

17T8/LED/48-840/BP/USA

Discontinued
  • 17 Watt
  • 48 Inch
  • T8 LED
  • 4000K
  • Medium Bi Pin base
  • 82 CRI
  • 50000 Average rated hours
  • Type B Ballast Bypass
  • 2200 Lumens
  • Assembled in the USA
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11998 SpecificationsS11998 Instructions.pdfDUAL T8 LAMP READY FIXTURE CHANNELS 2', 3', & 4' Lengths!
Description
Description
17 Watt; 48 Inch; T8 LED; 4000K; Medium Bi Pin base; 82 CRI; 50000 Average rated hours;Type B Ballast Bypass; 2200 Lumens; Assembled in the USA
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass / Plastic
Fixture TypeLinear
Product NotesCompatible with S8000 and S8002 LED EM Driver
StatusDiscontinued
Total Harmonic Distortion20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.142-0.061A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialGlass

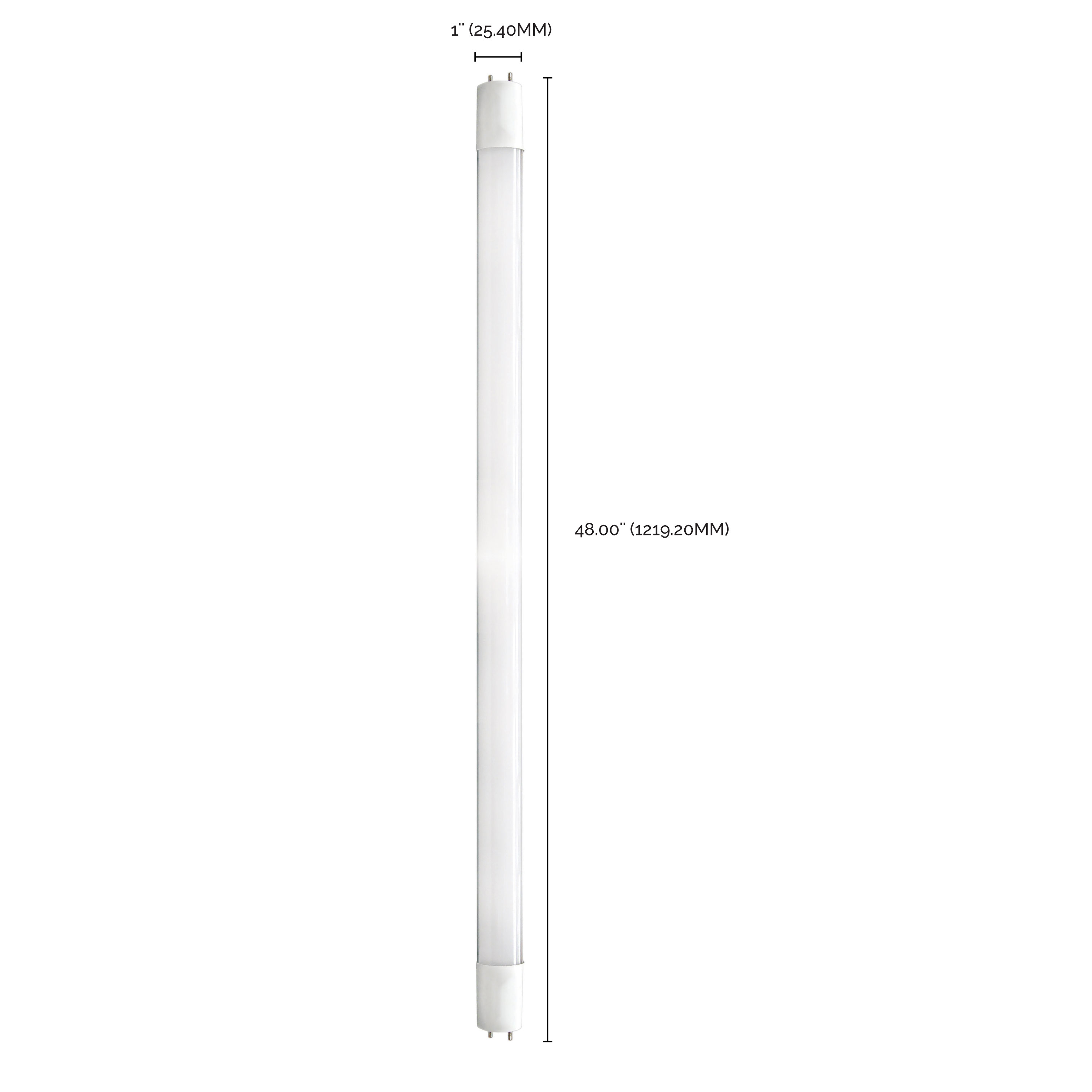

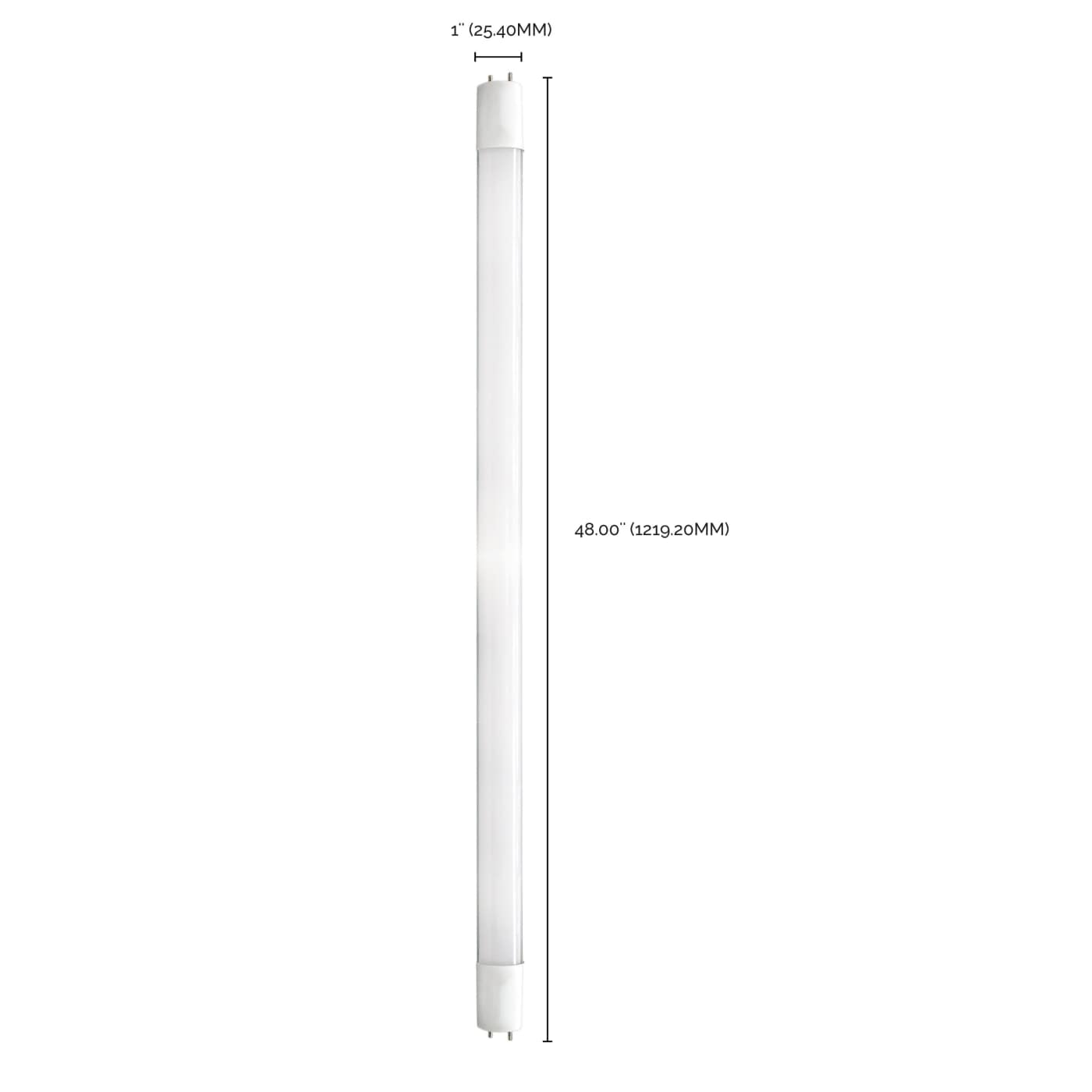

Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv45W
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)4000K
Hours Rated50000
Beam Angle (degree)210
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens2200L
Volts120V-277V
Watts17W
Physical

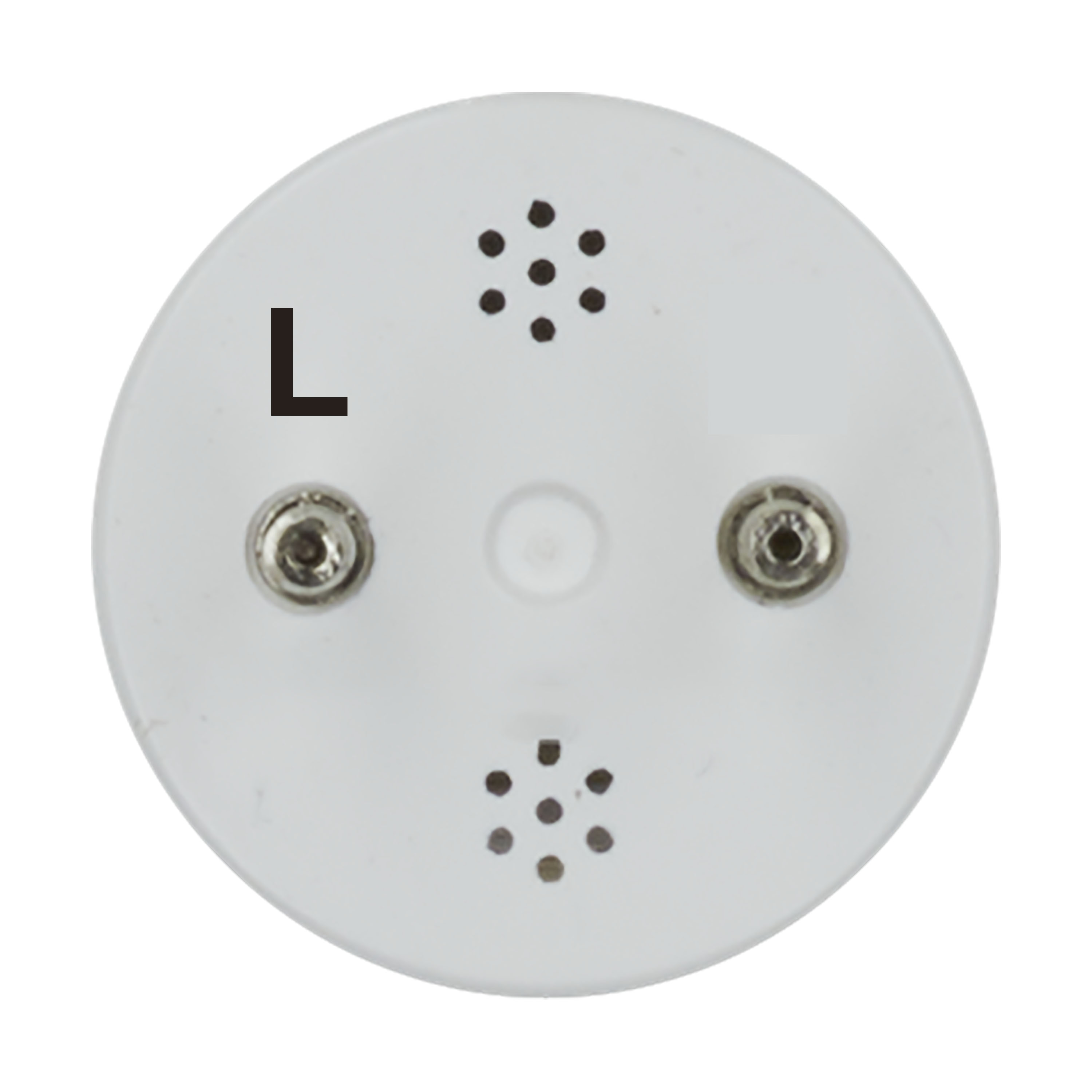

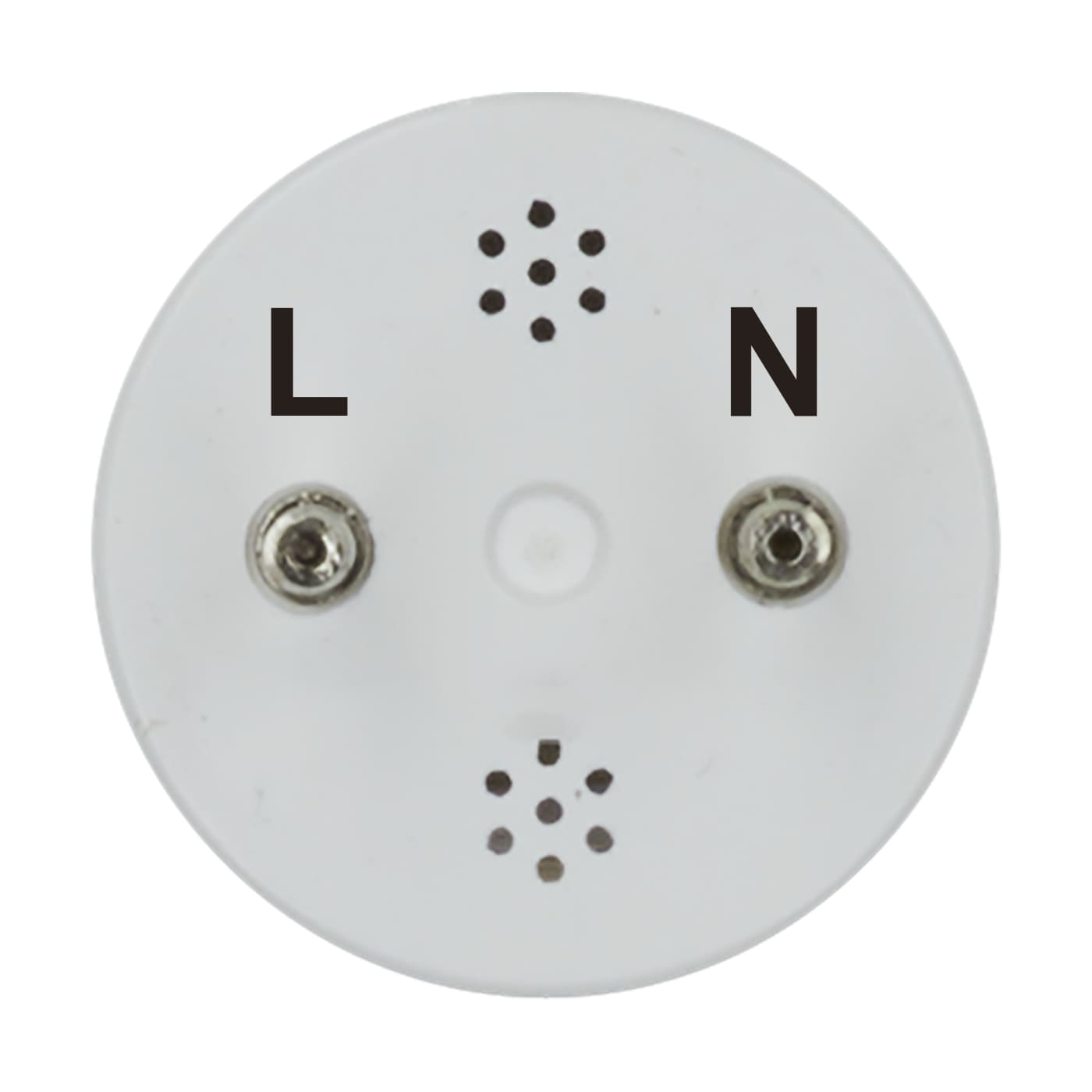

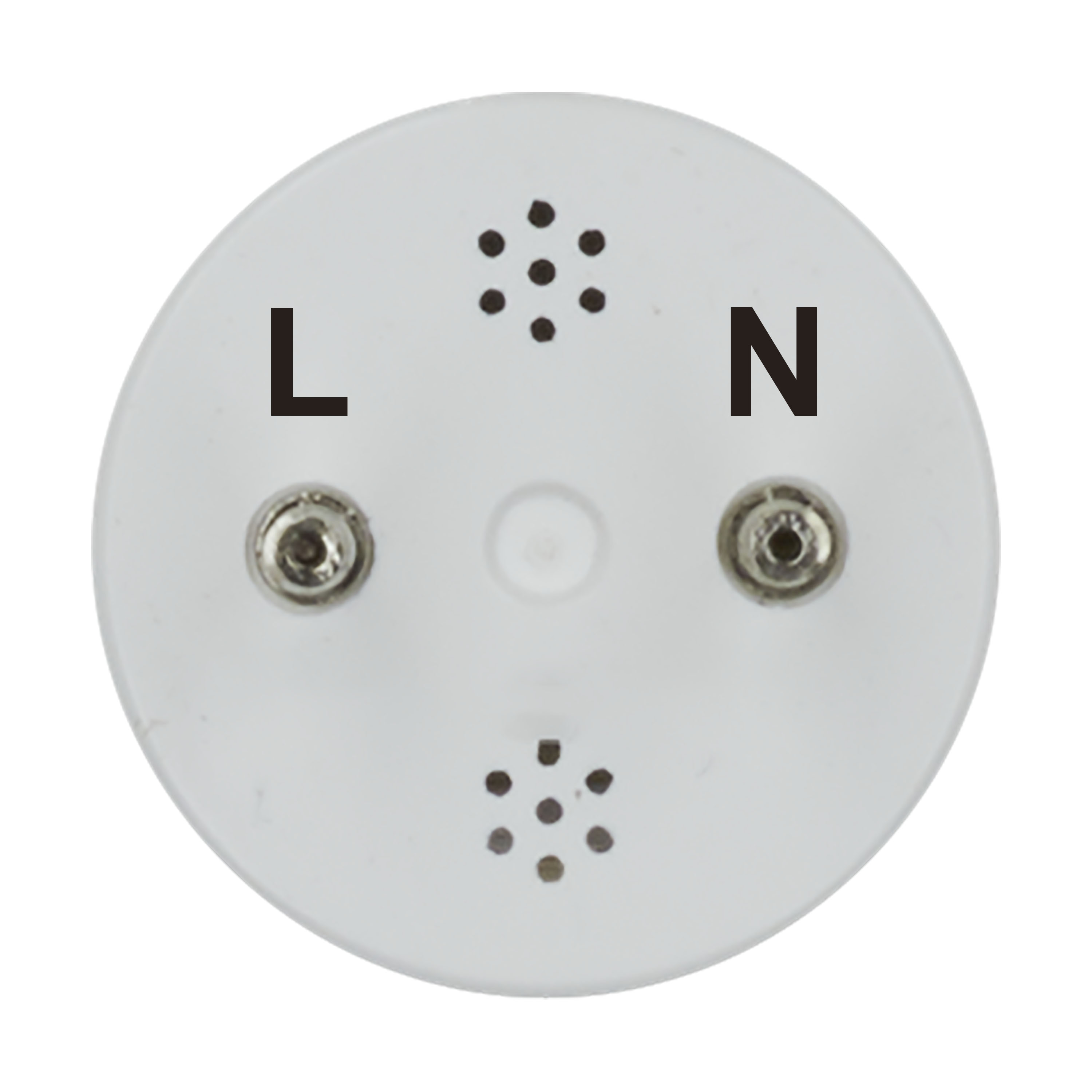

Lamp BaseMedium Bi Pin
FinishFrost
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL47.78
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
Dark Sky RatedNo
DLC IDPLP8HMEVJTBJ
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
Packaging
UPC045923119989
Case Cube1.0853
Case Height6.3
Case Length48.8
Case Quantity25
Case UPC10045923119986
Case Weight14.4
Case Width6.1
EA Cube0.0278
EA Height1.0
EA Length48.0
EA Quantity1
EA Weight0.58
EA Width1.0
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length47.78
Web Width1.0
