| Company | SATCO |
|---|---|
| Candle Power | 30.0 |
| Dimmable Text | Check the transformer/driver MFG for dimmer compatibility |
| Lamp Filament | LED |
| Material | Ceramic / Polycarbonate (PC) |
| Fixture Type | Miniature |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 1.5KV |
| Total Harmonic Distortion | 70% |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Clear |
| Additional Info | Housing Material: Ceramic; Lens Material: Polycarbonate (PC) |
| Amps | 0.380A |
| Has Camera | False |
| IOT Enabled | False |
| Power Factor | 0.7 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 25W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 25000 |
| Beam Angle (degree) | 300 |
| Color Temp | Soft White |
| CRI | 80+ |
| Dimming Type | Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 330L |
| Volts | 12V |
| Watts | 3W |
| Lamp Base | Bi Pin G4 |
|---|---|
| Finish | Clear |
| Housing Color | White |
| ANSI Base | G4 |
| Lamp Type | T5 |

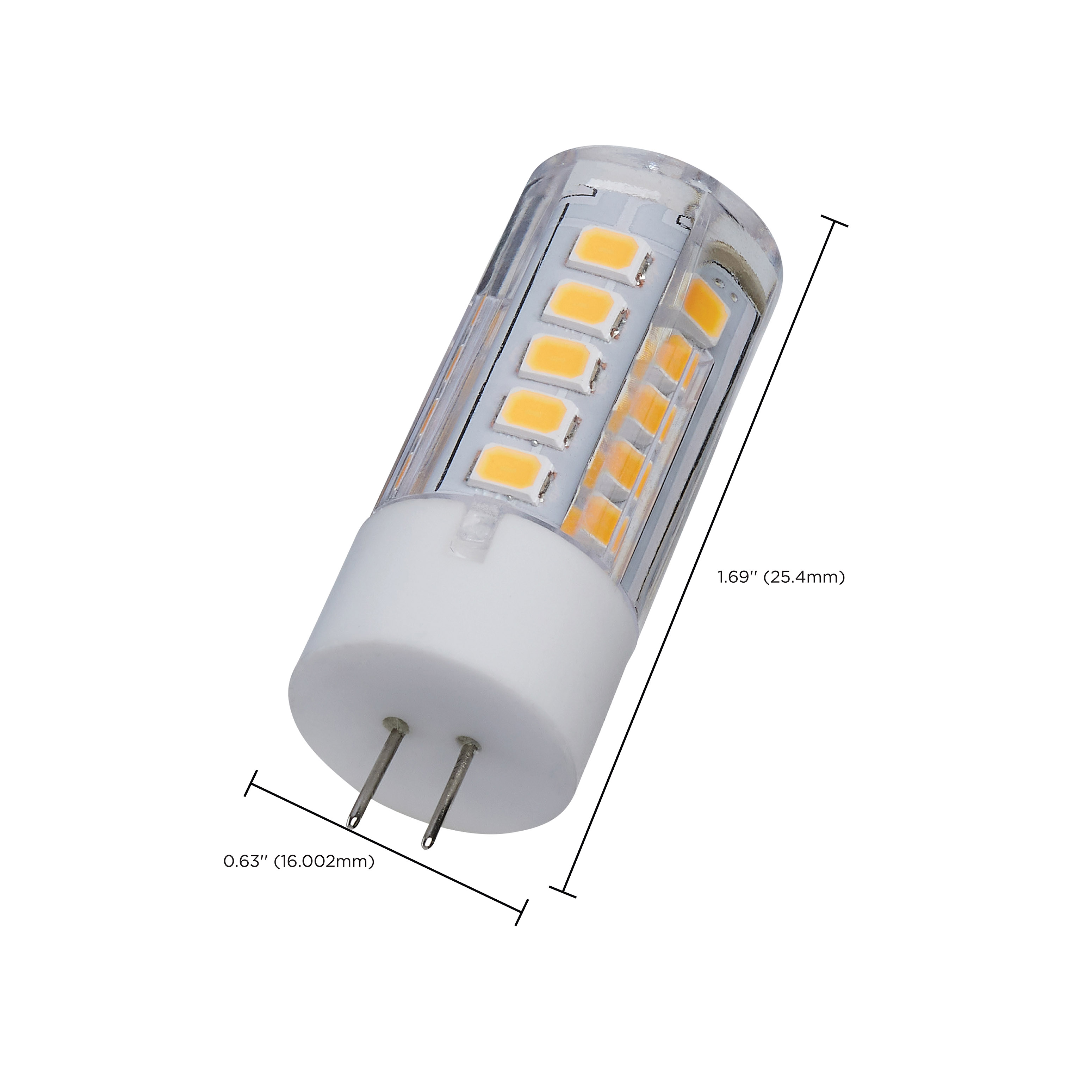

| MOD Lamps | 0.63 |
| MOL | 1.69 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923121203 |
|---|---|
| Case Cube | 0.666 |
| Case Height | 12.13 |
| Case Length | 10.04 |
| Case Quantity | 48 |
| Case UPC | 10045923121200 |
| Case Weight | 4.14 |
| Case Width | 9.45 |
| EA Cube | 0.0058 |
| EA Height | 4.84 |
| EA Length | 3.27 |
| EA Quantity | 1 |
| EA Weight | 0.06 |
| EA Width | 0.63 |
| Inner Cube | 0.1342 |
| Inner Height | 5.63 |
| Inner Length | 8.86 |
| Inner Quantity | 12 |
| Inner UPC | 20045923121207 |
| Inner Weight | 0.83 |
| Inner Width | 4.65 |
| Pack Type | Carded |
| Web Length | 1.69 |
| Web Width | 0.63 |
