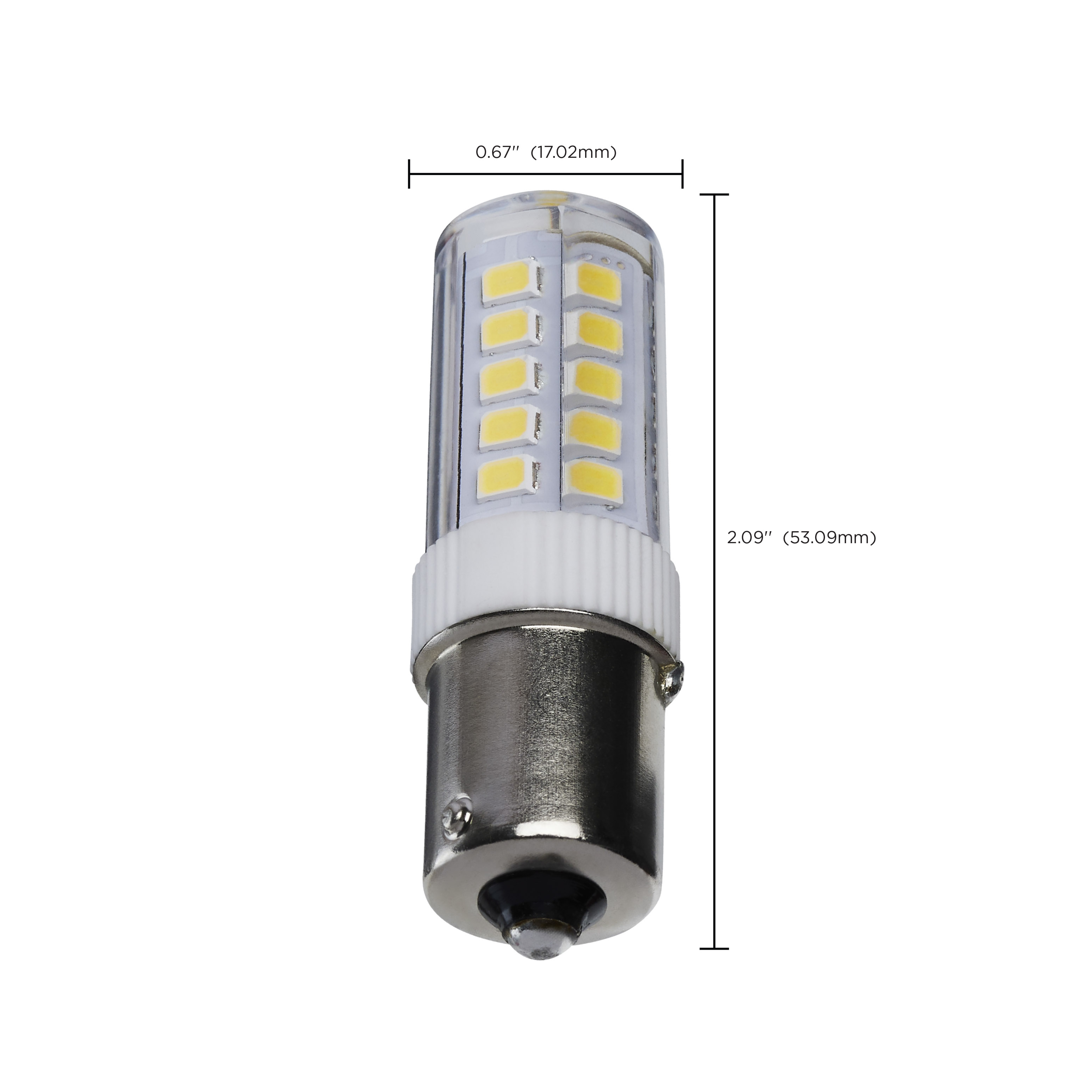

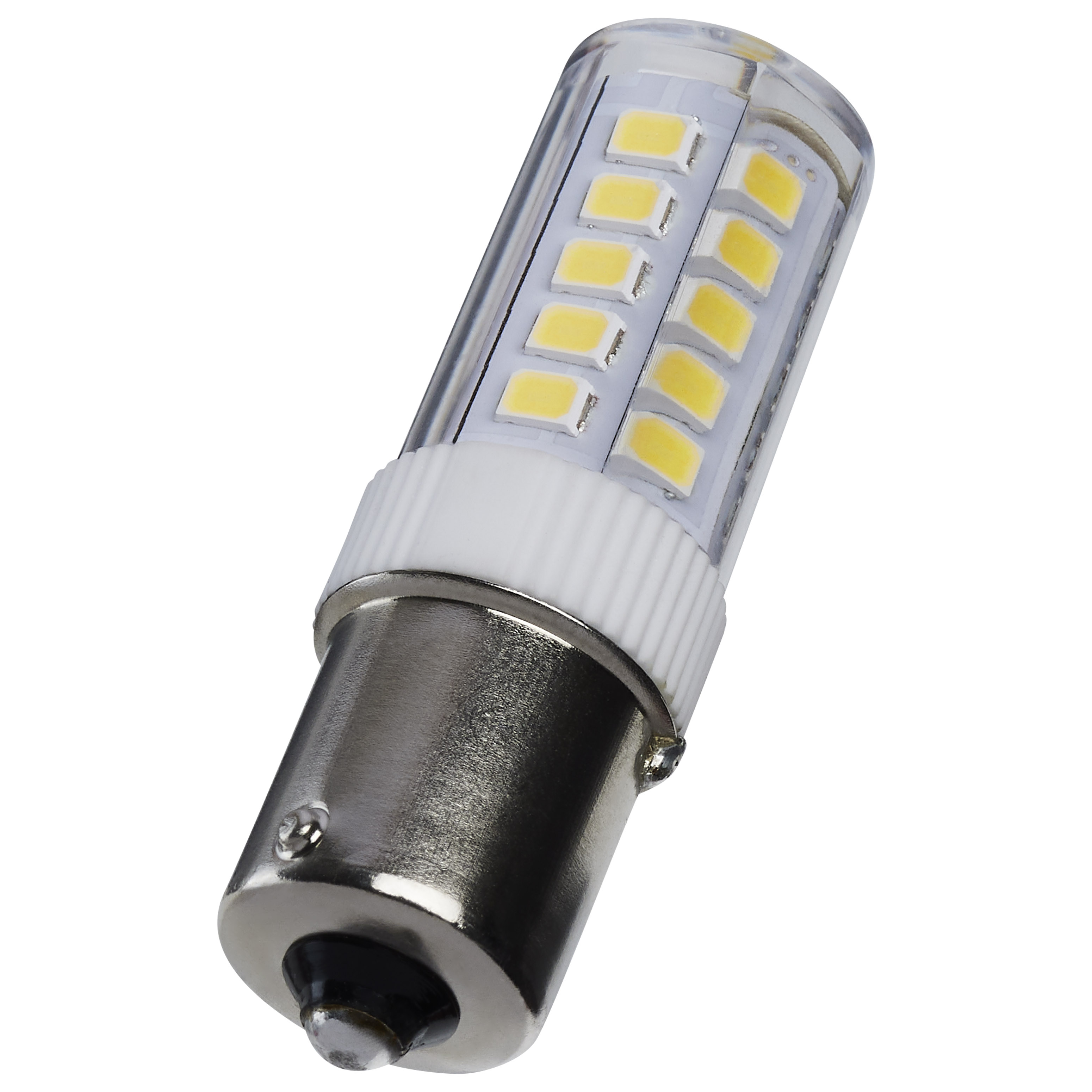

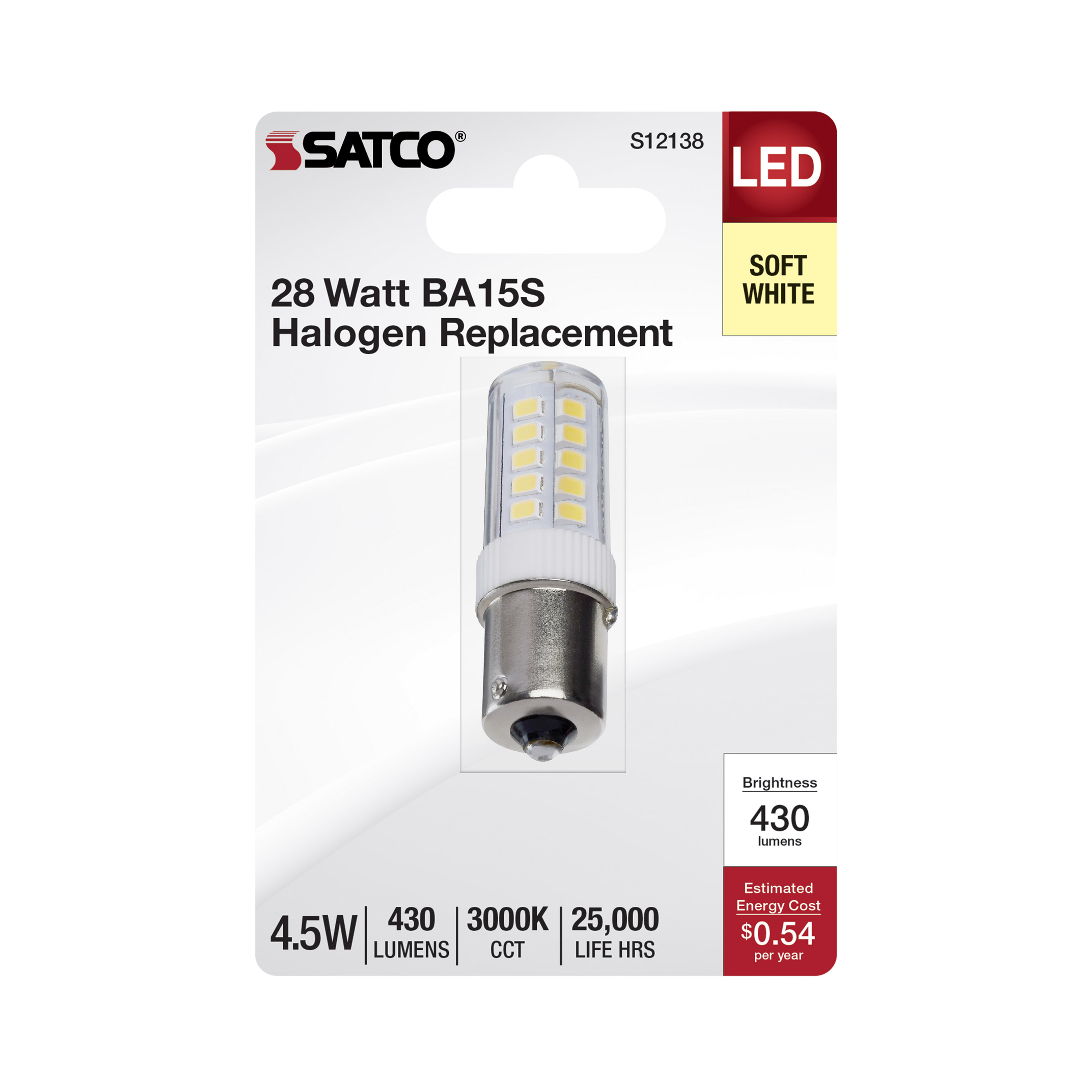

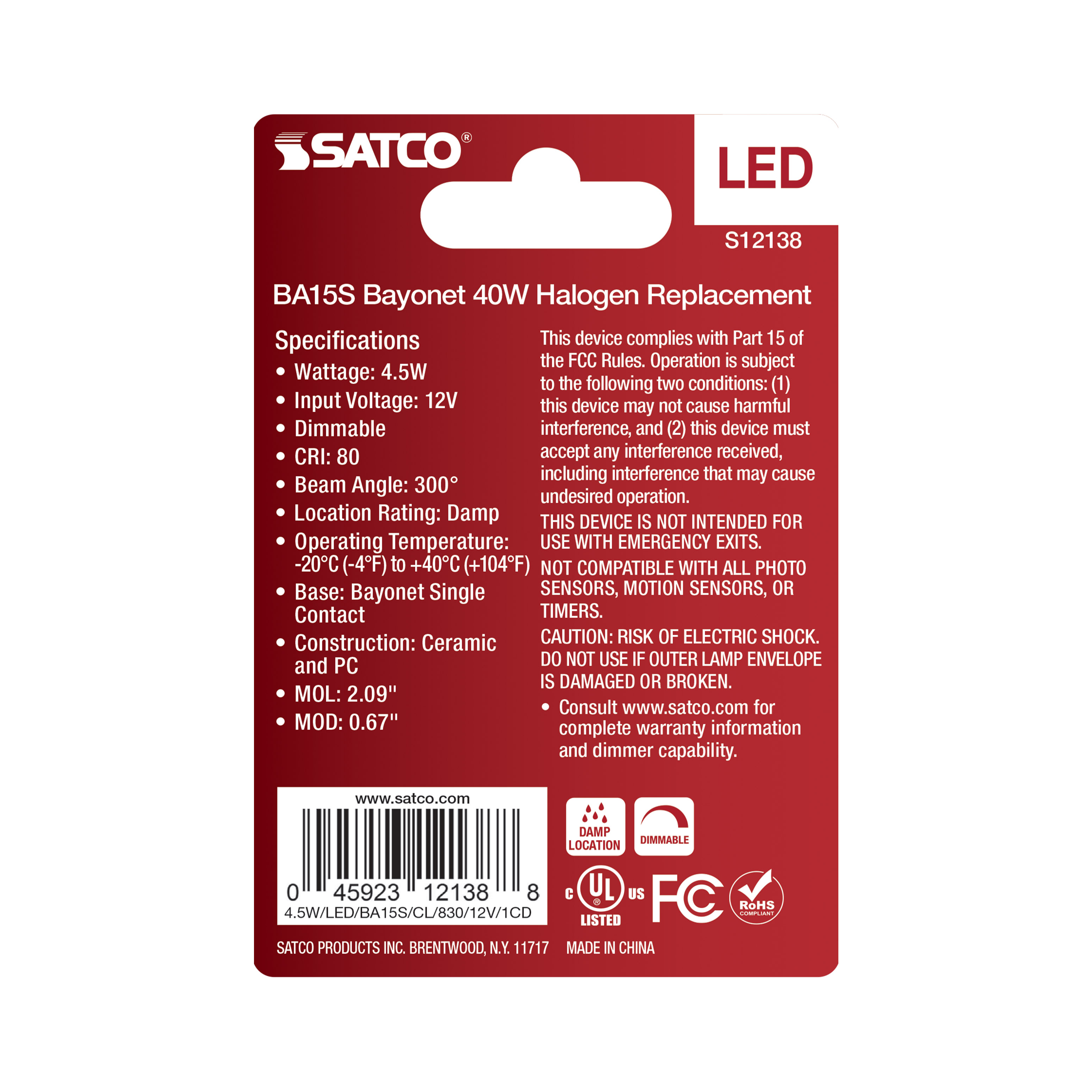

4.5W/LED/BA15S/CL/830/12V/1CD - S12138
4.5W/LED/BA15S/CL/830/12V/1CD - S12138
4.5W/LED/BA15S/CL/830/12V/1CD - S12138
4.5W/LED/BA15S/CL/830/12V/1CD - S12138
4.5W/LED/BA15S/CL/830/12V/1CD - S12138
S12138

4.5W/LED/BA15S/CL/830/12V/1CD

  • 4.5 Watt Mini LED
  • Bayonet Single Contact Base
  • 3000K
  • Clear Finish
  • 12 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S12138 SpecificationsLED HALOGEN REPLACEMENT LAMPS SINGLE AND DOUBLE CONTACT BASESLED|LAMPS & DOWNLIGHT RETROFITS
Description
Description
4.5 Watt Mini LED; Bayonet Single Contact Base; 3000K; Clear Finish; 12 Volt
Products Specs
General
CompanySATCO
Candle Power35.0
Dimmable TextCheck the transformer/driver MFG for dimmer compatibility
Lamp FilamentLED
MaterialCeramic / Polycarbonate (PC)
Fixture TypeMiniature
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1.5KV
Total Harmonic Distortion70%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Additional InfoHousing Material: Ceramic; Lens Material: Polycarbonate (PC)
Amps0.490A
Has CameraNo
IOT EnabledNo
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)300
Color TempSoft White
CRI80+
Dimming TypeCheck the transformer/driver MFG for dimmer compatibility
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens430L
Volts12V
Watts4.5W
Physical
Lamp BaseBayonet Single Contact
FinishClear
Housing ColorWhite
ANSI BaseBA15s
Lamp TypeT6
MOD Lamps0.67
MOL2.09
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923121388
Case Cube0.666
Case Height12.13
Case Length10.04
Case Quantity48
Case UPC10045923121385
Case Weight4.63
Case Width9.45
EA Cube0.0067
EA Height4.84
EA Length3.27
EA Quantity1
EA Weight0.07
EA Width0.73
Inner Cube0.1342
Inner Height5.63
Inner Length8.86
Inner Quantity12
Inner UPC20045923121382
Inner Weight0.96
Inner Width4.65
Pack TypeCarded
Web Length2.09
Web Width0.67
